FAW Jiefang J6M Heavy Truck Standard Load 280hp 8X4(12 wheels) 9.5m Van Truck

Export reference
From $37,222
MSRP ¥26.8M CNY
Horsepower: 280
Emission: China V
Fuel: Diesel
Engine: Xichai8L
Transmission: FAW Jiefang
Curb Weight:: 11.9ton
seating capacity: 2Personnel
Rated payload: 18.905ton
Drive 8X4 (12 wheels)
Cargo box type: Van body

Overview

The FAW Jiefang J6M Heavy Truck Standard Load 280hp 8X4(12 wheels) 9.5m Van Truck is a Heavy-duty cargo trucks featuring 9.5m cargo length, Van body cargo body, 2Personnel volume and 18.905t payload. Its segment focus covers Daily industrial goods transport, agricultural and sideline products transport and cold chain transport, matching those duty cycles. On the powertrain side, it comes with a Xichai8L engine, 280 hp, 8X4 (12 wheels) drive and China V emissions.

China V 280 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5310XXYP63K1L6T4E5
Type: enclosed cargo truck
Drive type: 8X4
Wheelbase: 1950+4550+1350mm
Box length class: 9.5m
engine: XichaiCA6DL1-28E5
transmission: FAW JiefangCA10TAX130M
Rear Axle Ratio: 4.111
Cab length: 11.98m
Cab width: 2.495m
Cab height: 3.87m
Front track width: 1950/1950mm
rear track: 1847/1847mm
Curb Weight: 11.9ton
Rated payload: 18.905ton
GVWR: 31ton
Max. speed: 102km/h
Origin: Changchun/Qingdao/Chengdu
tonnage class: Heavy-duty cargo trucks
Approach angle: 21°
departure angle: 12°
market segment: Daily industrial goods transport, agricultural and sideline products transport, cold chain transport, logistics distribution, LTL transport, daily bulk cargo
Front/rear suspension: 1.4/2.73m
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DL1-28E5
Engine info: Xichai8L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 7.7L
Emission standard: China V
Max output power: 209kW
Max hp: 280Horsepower
Max torque: 1100N·m
Max torque speed: 1300-1700rpm
Rated speed: 2300rpm
Transmission Parameters
Transmission Model: FAW JiefangCA10TAX130M
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 9.5m
Cargo box width: 2.3m
Cargo box height: 2.4m
*Cargo box interior width: 2.2999999523163
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank capacity: 400L
Chassis Specs
Front axle allowable load: 6550/6450kg
Frame Dimensions: 270×75×(7+5)mm
rear axle description: 457 stamped-welded axle
rear axle allowable load: 18000 (twin axle)kg
Axle ratio: 4.111
Leaf spring count: 3/3/11
Tire
Tire Size: 11.00R20
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
AC control type: Automatic

Photos

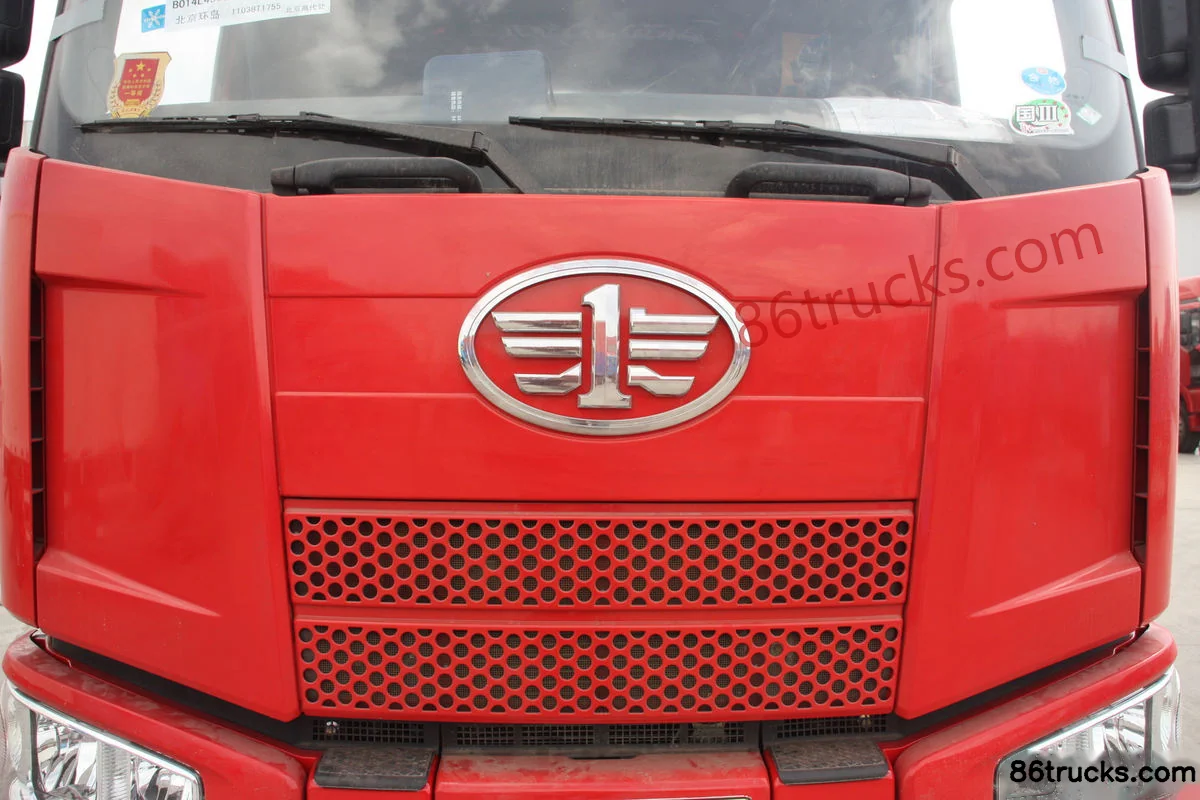

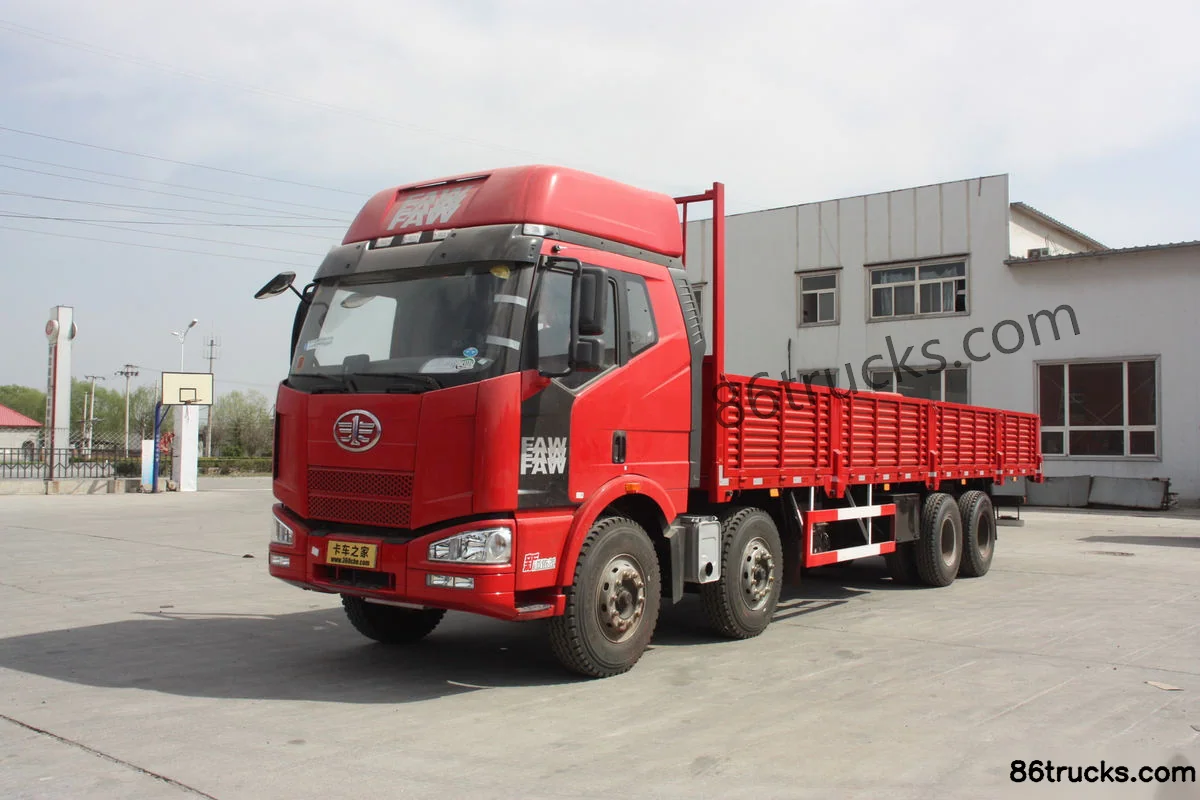

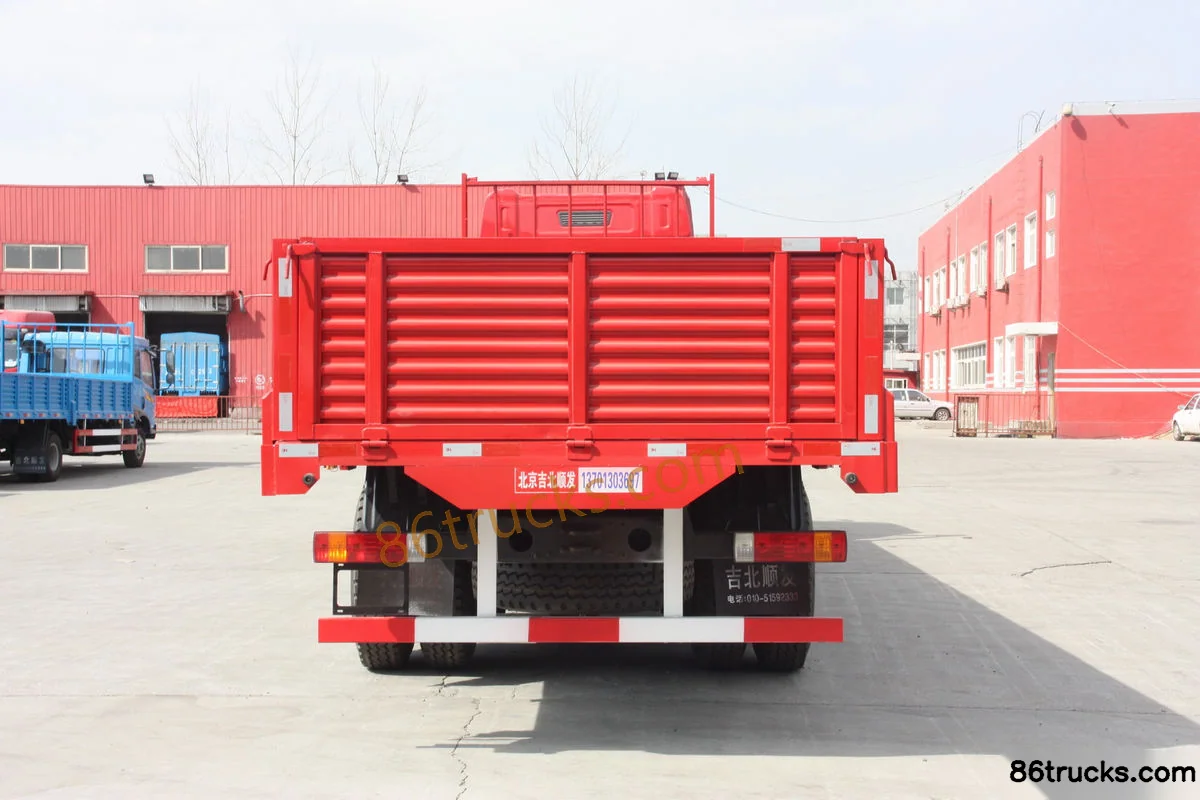

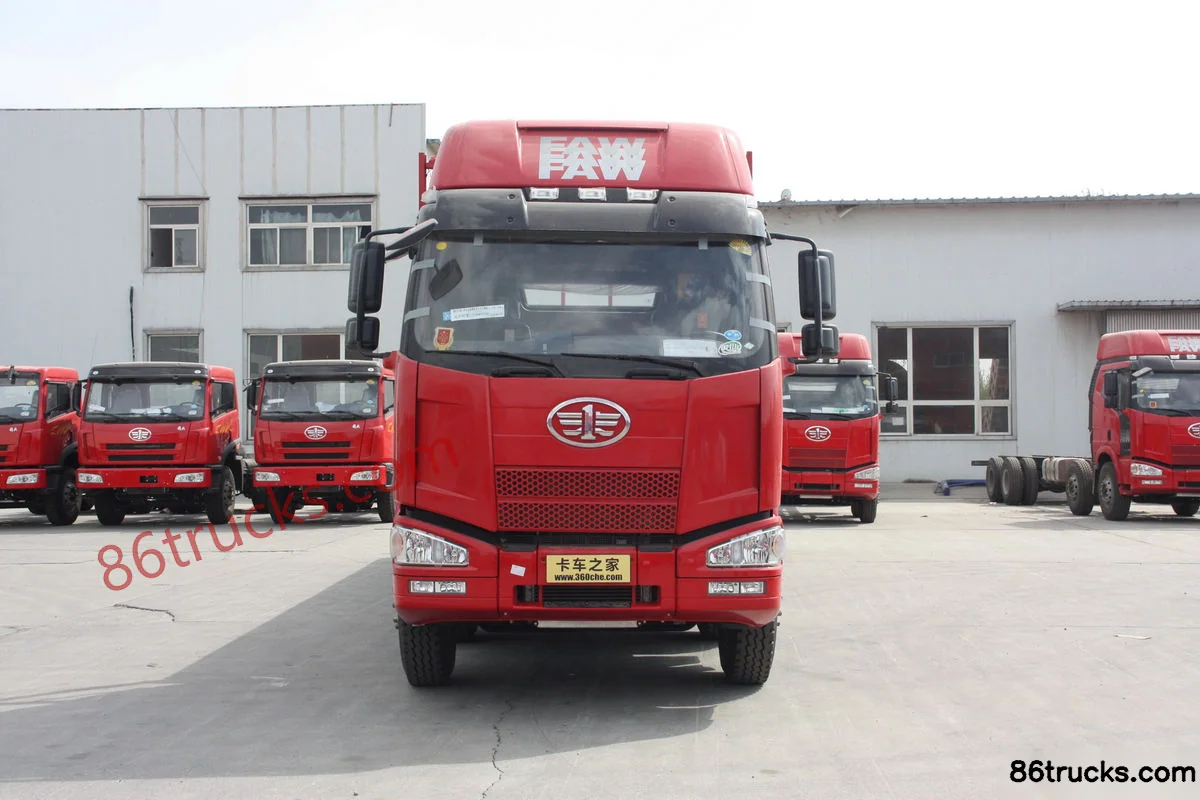

Exterior3

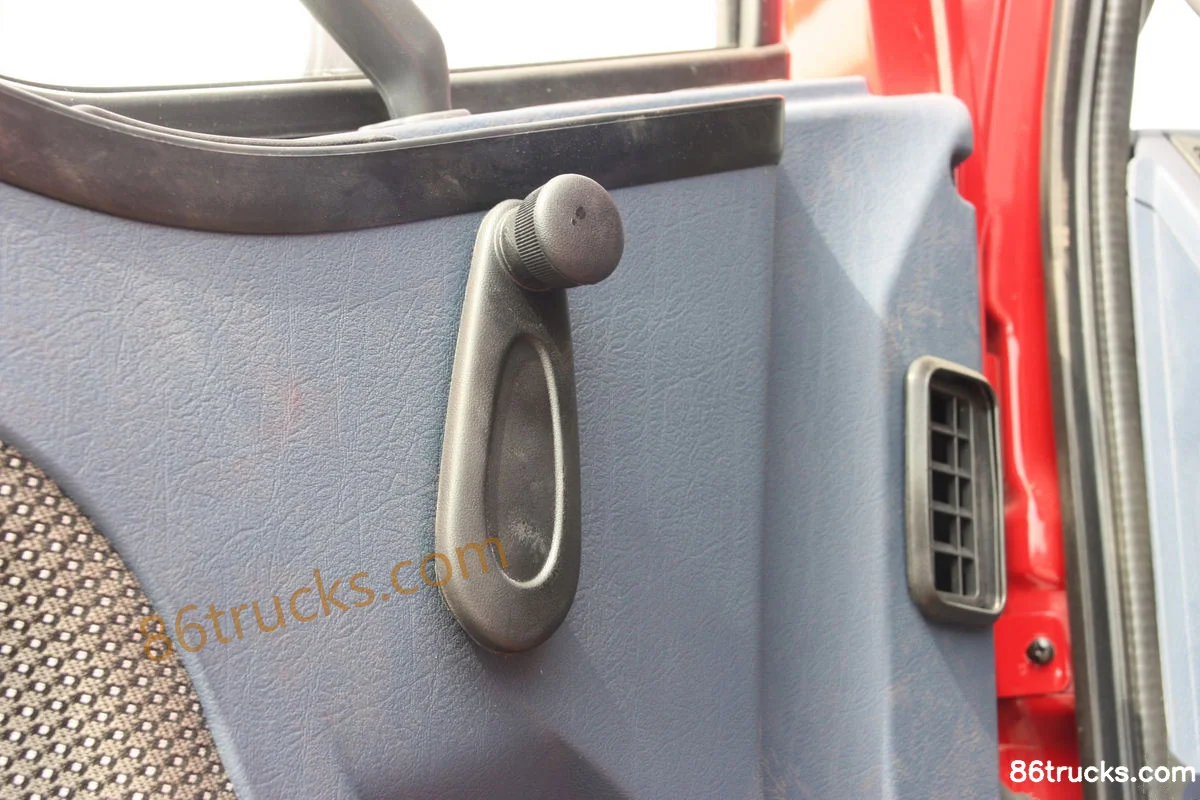

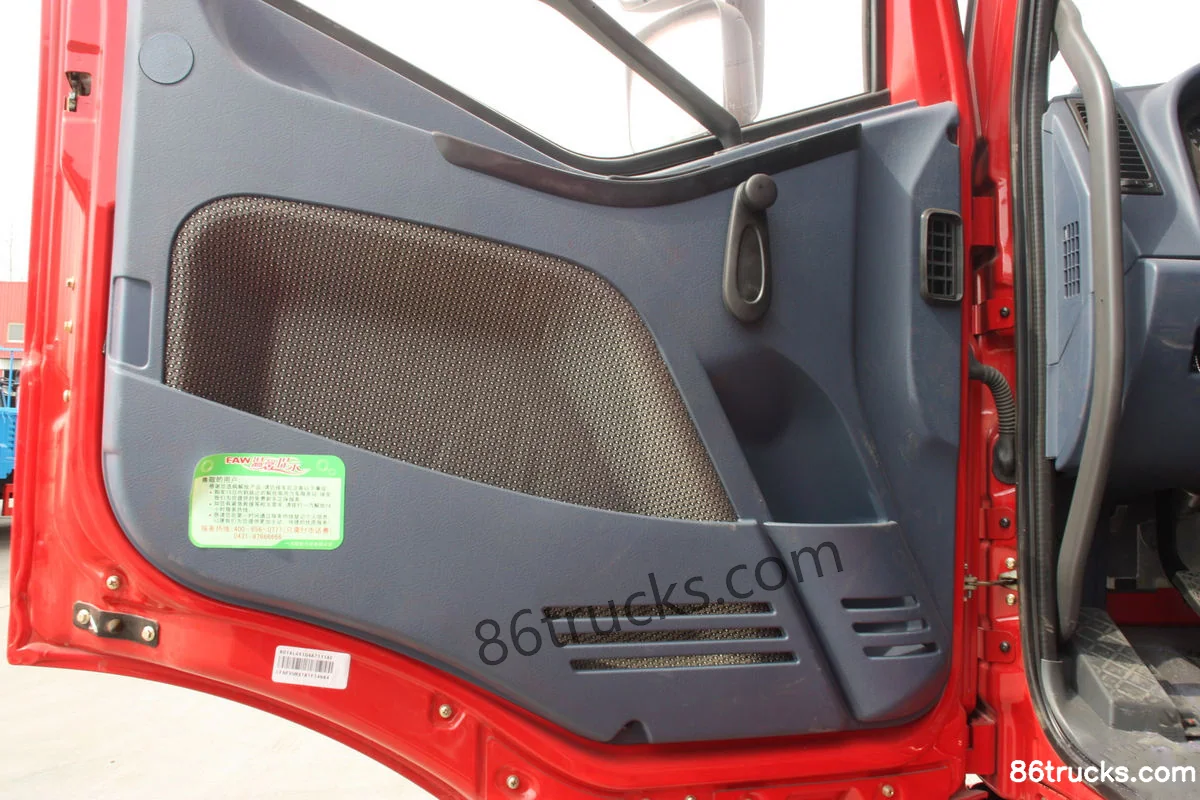

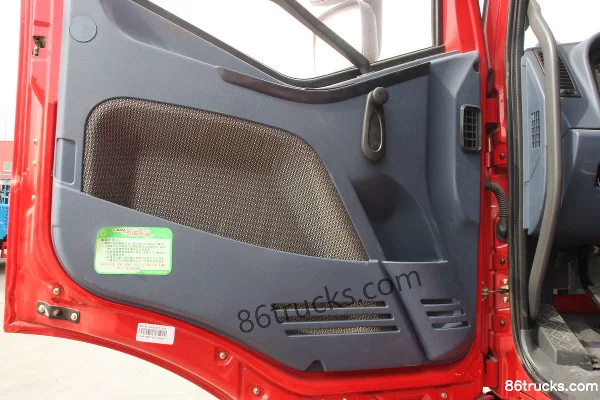

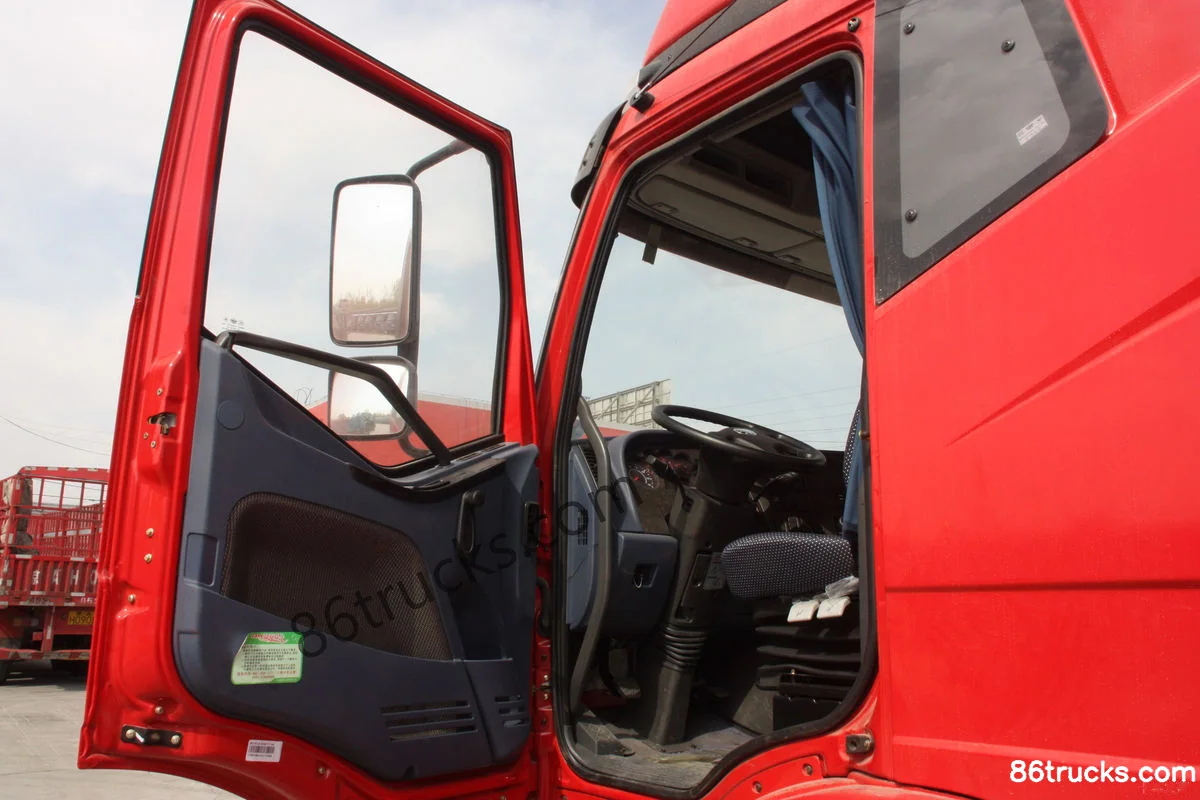

Cab3

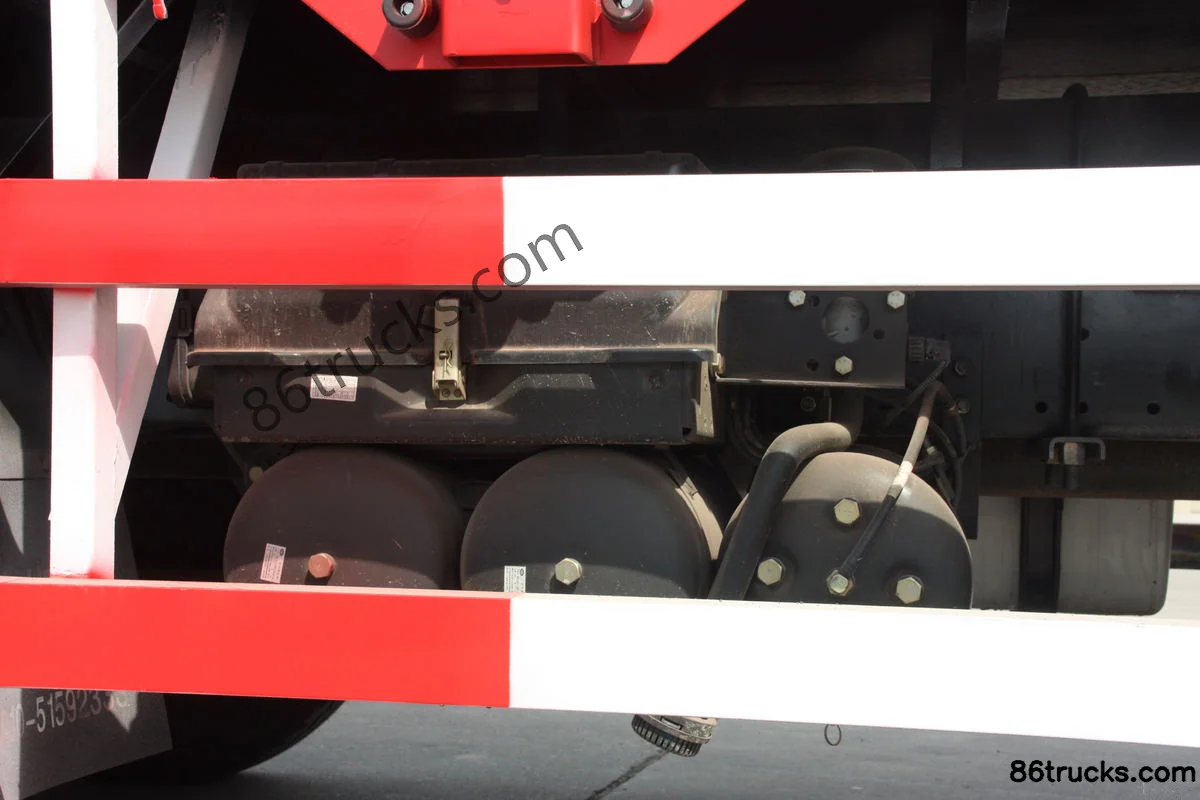

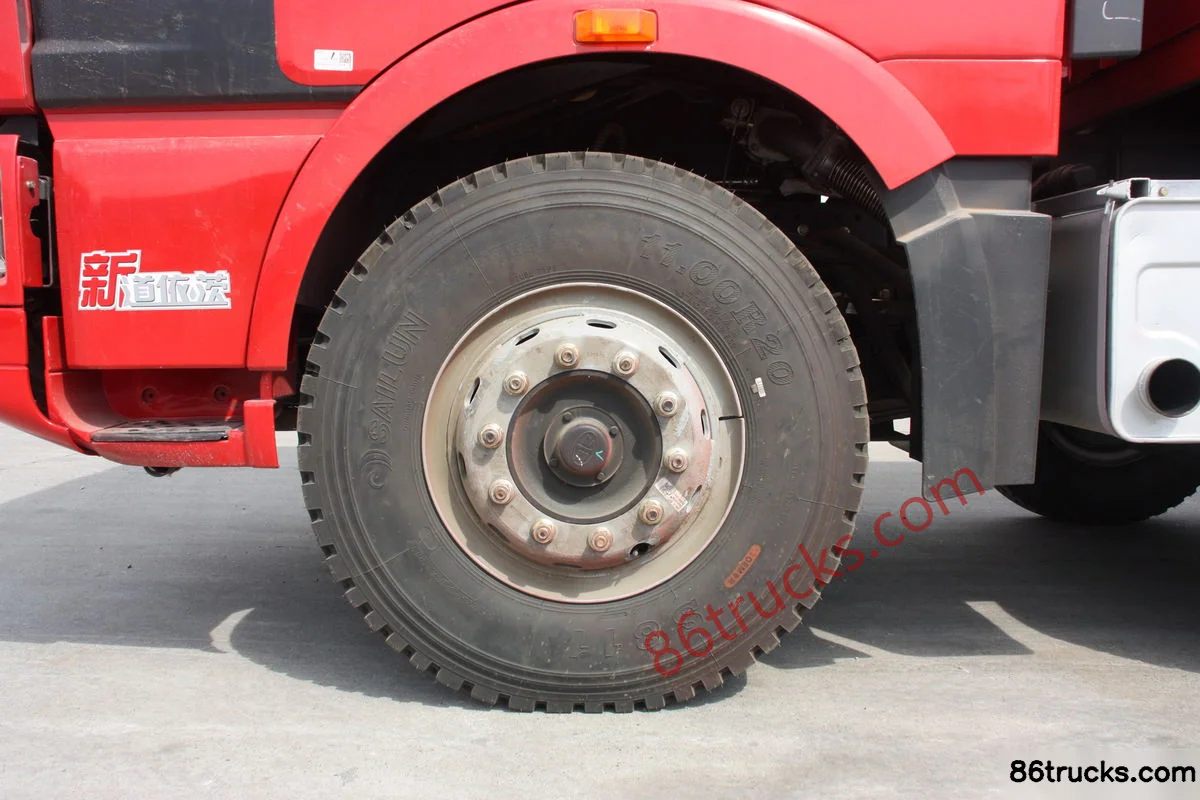

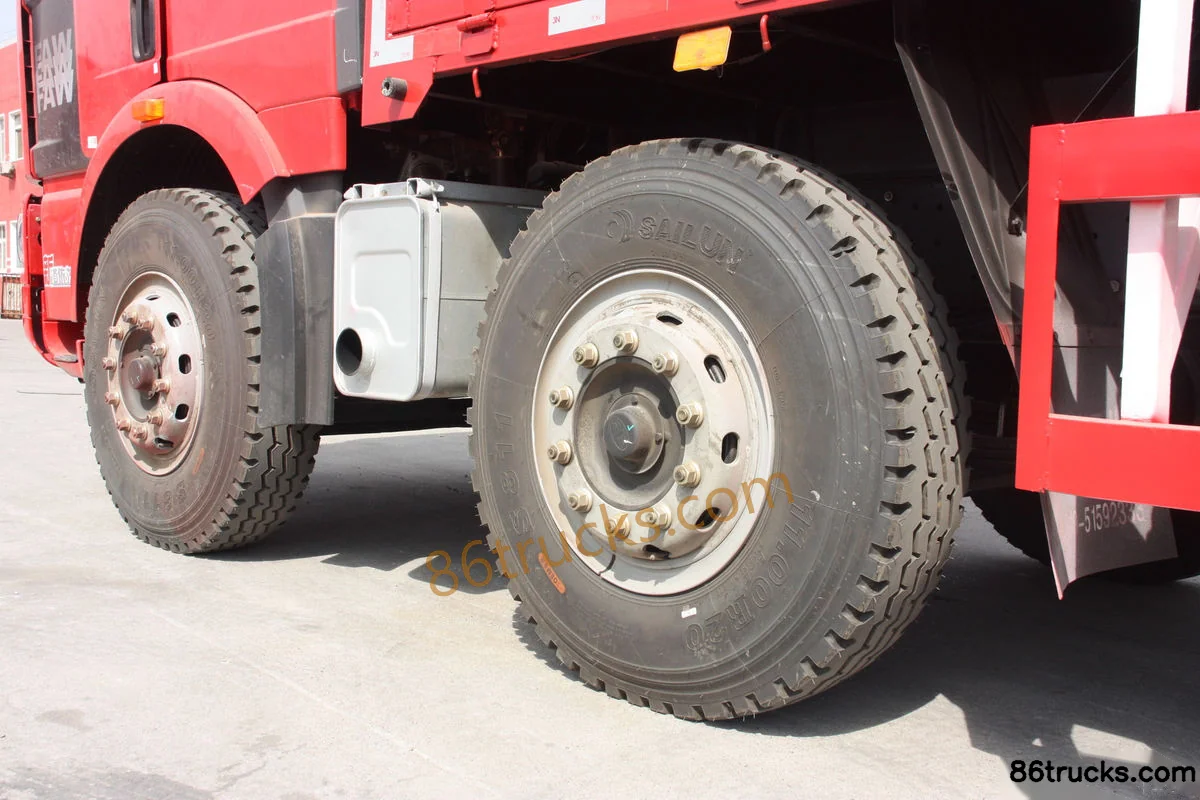

Chassis3

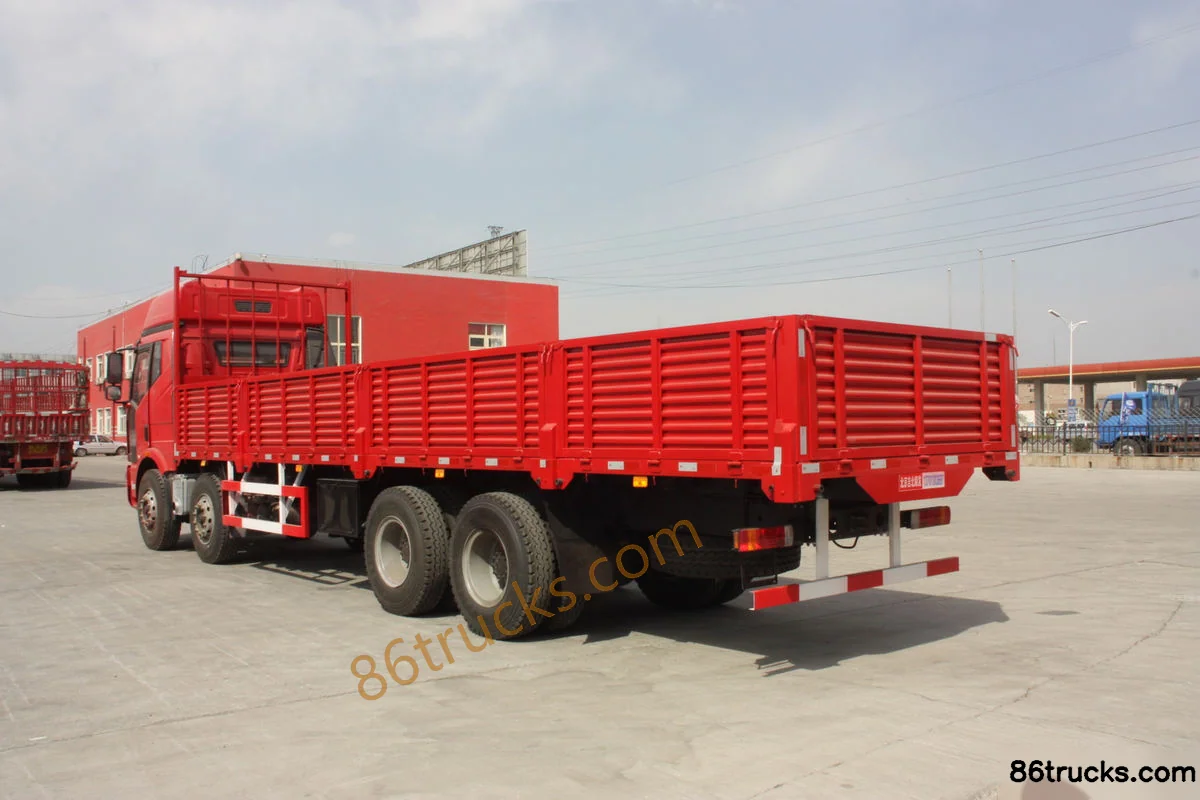

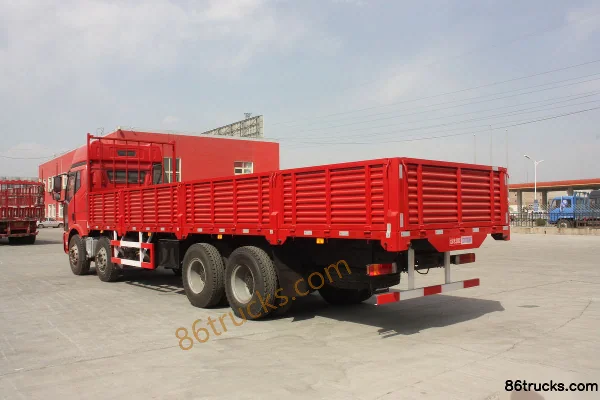

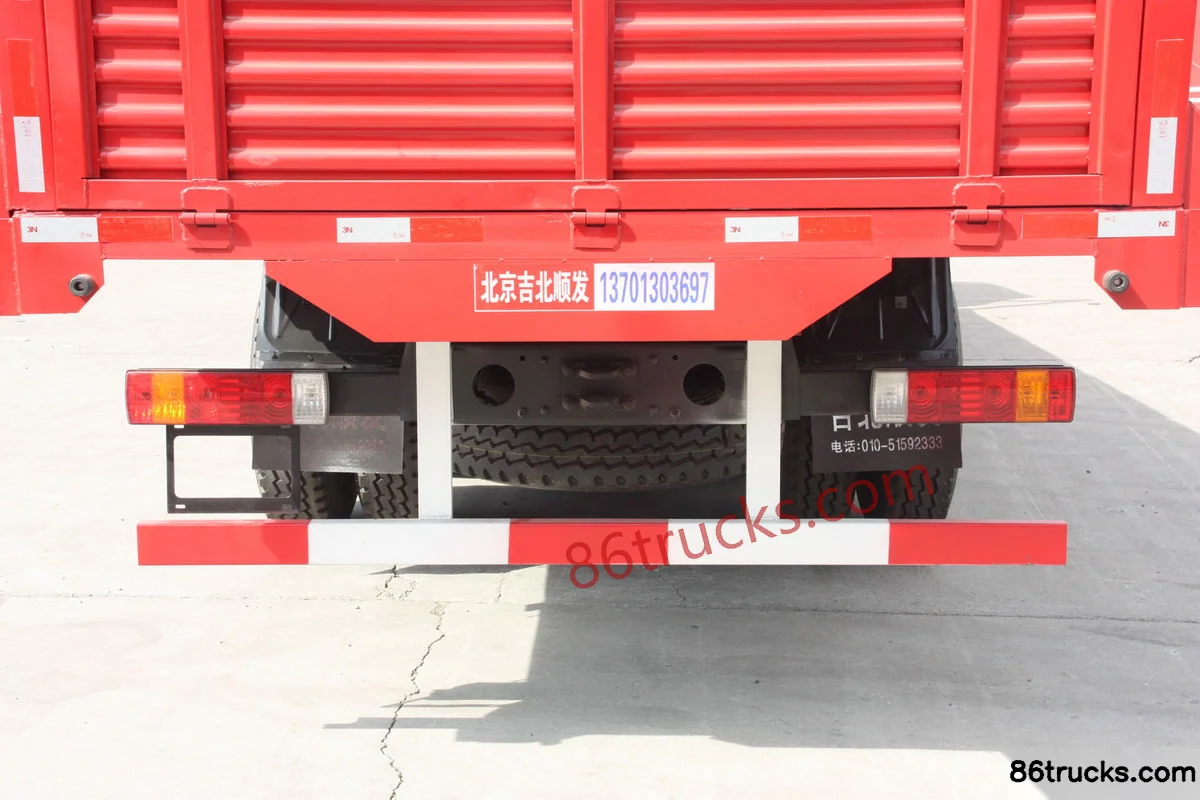

Body3

12 photos

FAQ

What is the export price of FAW Jiefang J6M Heavy Truck Standard Load 280hp 8X4(12 wheels) 9.5m Van Truck, and what does it include?

FAW Jiefang J6M Heavy Truck Standard Load 280hp 8X4(12 wheels) 9.5m Van Truck export reference is about From $37,222; MSRP is ¥26.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang J6M Heavy Truck Standard Load 280hp 8X4(12 wheels) 9.5m Van Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J6M Heavy Truck Standard Load 280hp 8X4(12 wheels) 9.5m Van Truck?

Key specs of FAW Jiefang J6M Heavy Truck Standard Load 280hp 8X4(12 wheels) 9.5m Van Truck: Drive: 8x4; Horsepower: 280 hp; Emission: China V; Fuel: Diesel; Engine: Xichai8L; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6M Heavy Truck Standard Load 280hp 8X4(12 wheels) 9.5m Van Truck suited for?

FAW Jiefang J6M Heavy Truck Standard Load 280hp 8X4(12 wheels) 9.5m Van Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang J6M Heavy Truck Standard Load 280hp 8X4(12 wheels) 9.5m Van Truck differ from other variants in the same series?

FAW Jiefang J6M Heavy Truck Standard Load 280hp 8X4(12 wheels) 9.5m Van Truck belongs to FAW Jiefang J6M Near-Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6M Heavy Truck Standard Load 280hp 8X4(12 wheels) 9.5m Van Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.
