Karry Green Card C 116hp 4X2(6 wheels) 3.9m Extended Cab Flatbed Light Truck (Medium Body)

Export reference
MSRP N/A
Horsepower: 116
Emission: China V
Fuel: Diesel
Engine: Isuzu493
Transmission: WLY
Curb Weight:: 2.565ton
seating capacity: 2Personnel
Rated payload: 1.8ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Karry Green Card C 116hp 4X2(6 wheels) 3.9m Extended Cab Flatbed Light Truck (Medium Body) is a Light Truck featuring 3.9m cargo length, stake body cargo body, 2Personnel volume and 1.8t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Isuzu493 engine, 116 hp, 4X2 (6 wheels) drive and China V emissions.

China V 116 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SQR1044H16D
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 3.9m
engine: IsuzuJE493ZLQ5
transmission: WLYWLY6T100
Rear Axle Ratio: 5.375
Cab length: 5.995m
Cab width: 2m
Cab height: 2.34m
Front track width: 1609mm
rear track: 1485mm
Curb Weight: 2.565ton
Rated payload: 1.8ton
GVWR: 4.495ton
Max. speed: 100km/h
Origin: Kaifeng, Henan
tonnage class: Light Truck
Approach angle: 22°
departure angle: 17°
market segment: Building materials, agricultural products
Front/rear suspension: 1.125/1.51m
Energy Type: Diesel
Engine parameters
Engine Brand: Jiangxi Isuzu
Engine Model: Jiangxi IsuzuJE493ZLQ5
Engine info: Isuzu493
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.771L
Emission standard: China V
Max output power: 85kW
Max hp: 116Horsepower
Max torque: 285N·m
Max torque speed: 2000rpm
Rated speed: 3200rpm
Engine Type: Inline, water-cooled, common rail, turbocharged intercooled, four-stroke
Transmission Parameters
Transmission Model: WLYWLY6T100
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.9m
Cargo box width: 1.9m
Cargo box height: 0.4m
*Cargo box interior width: 1.8999999761581
Cab parameters
Cab: mid-body
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 1877kg
rear axle description: 5T
rear axle allowable load: 2618kg
Axle ratio: 5.375
Leaf spring count: 9/7+5
Tire
Tire Size: 7.00-16LT 8PR,7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

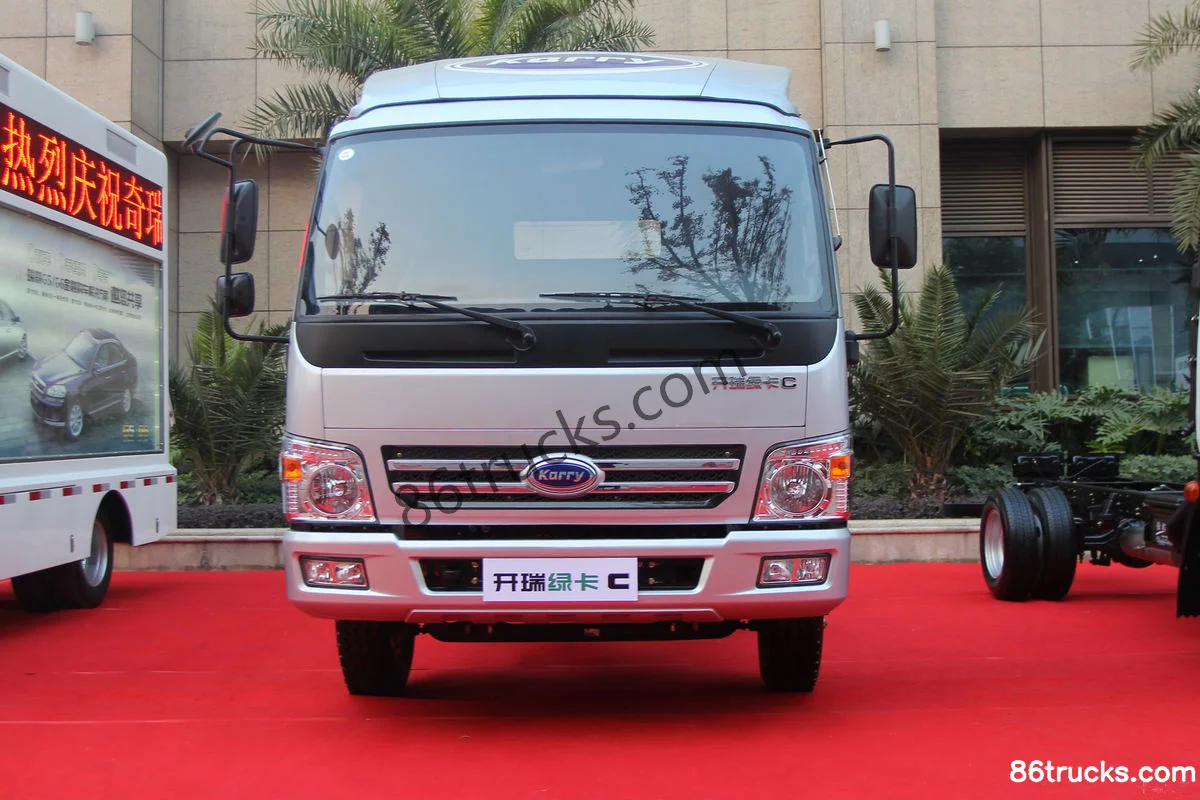

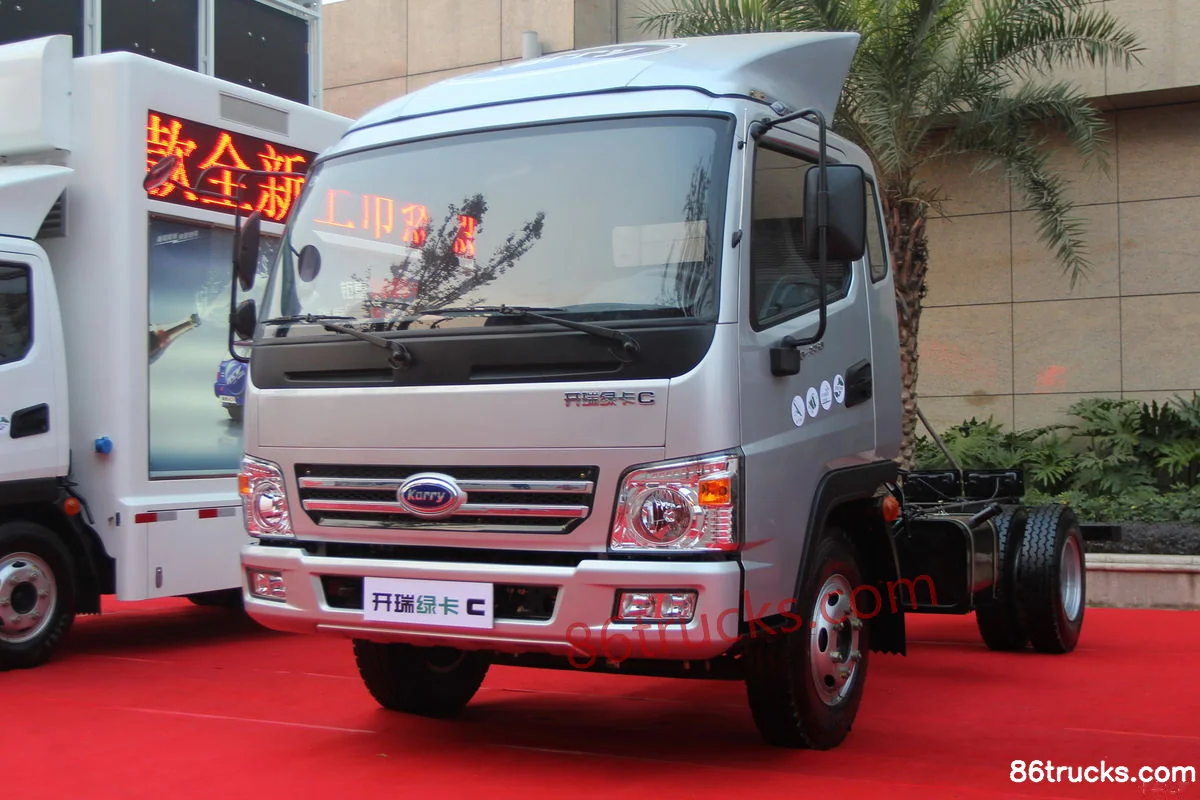

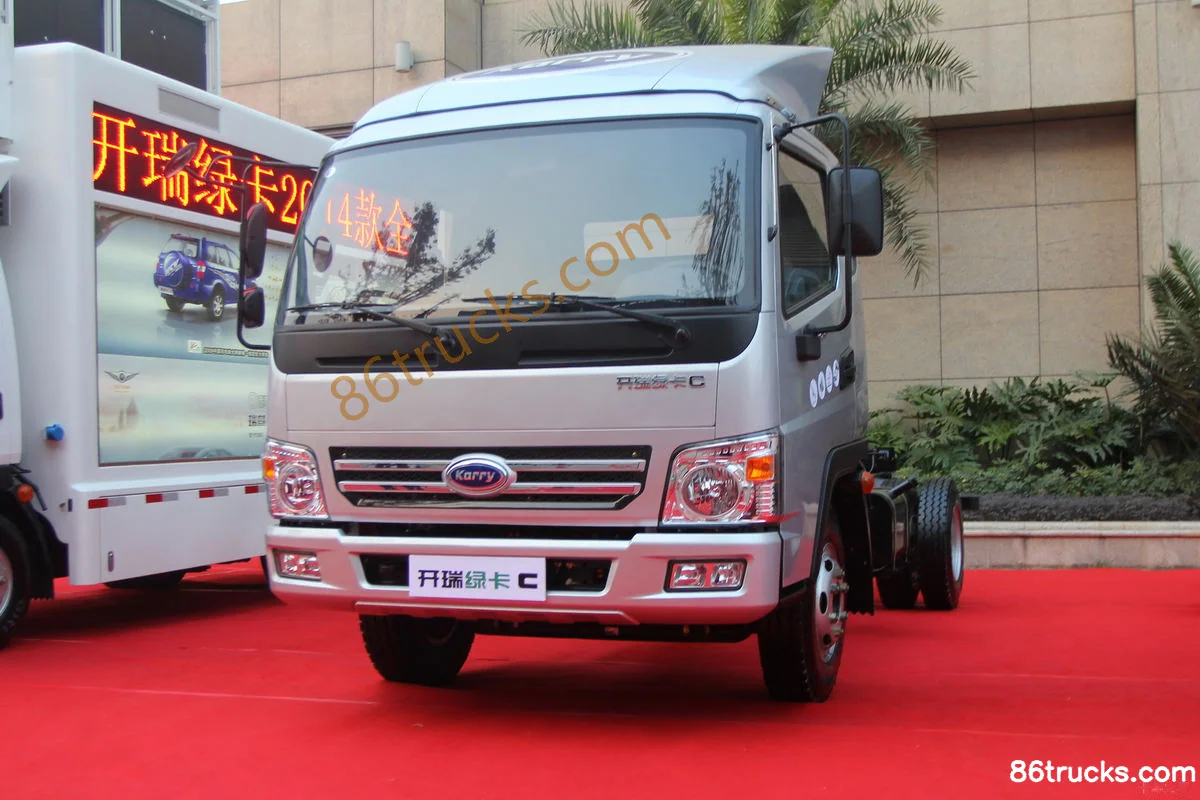

Exterior3

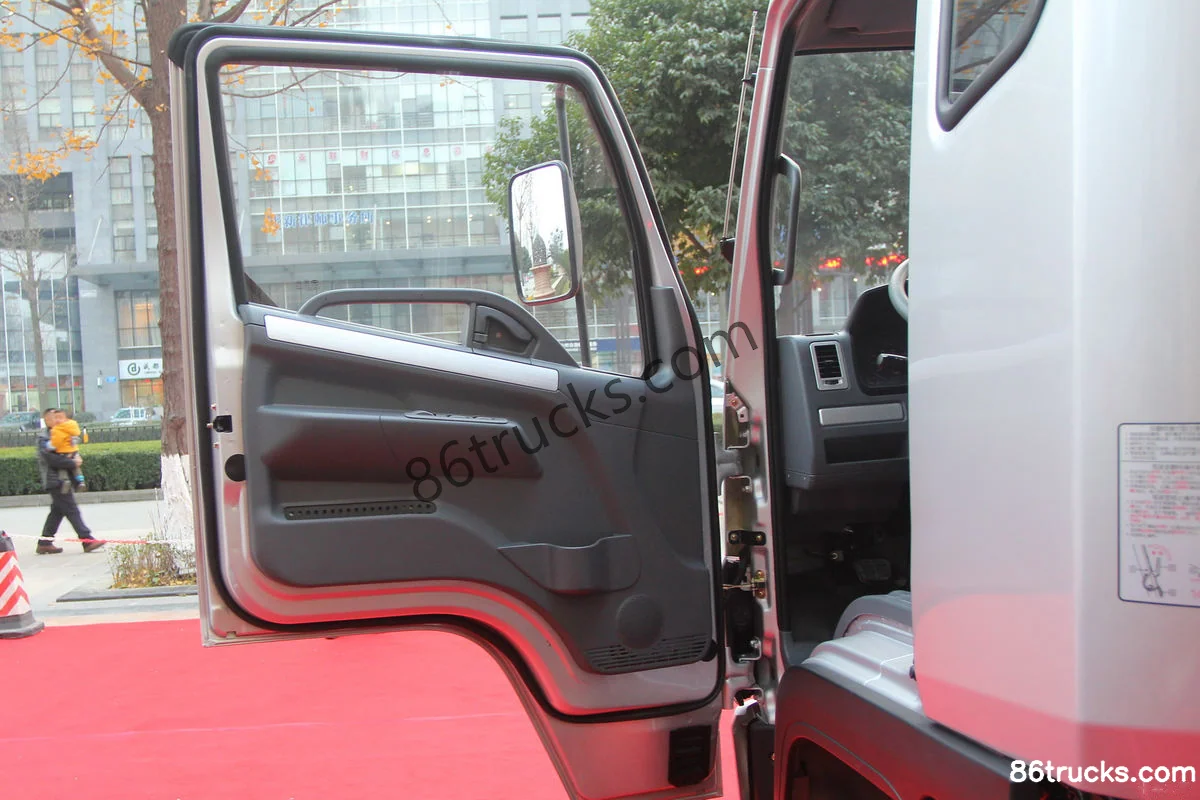

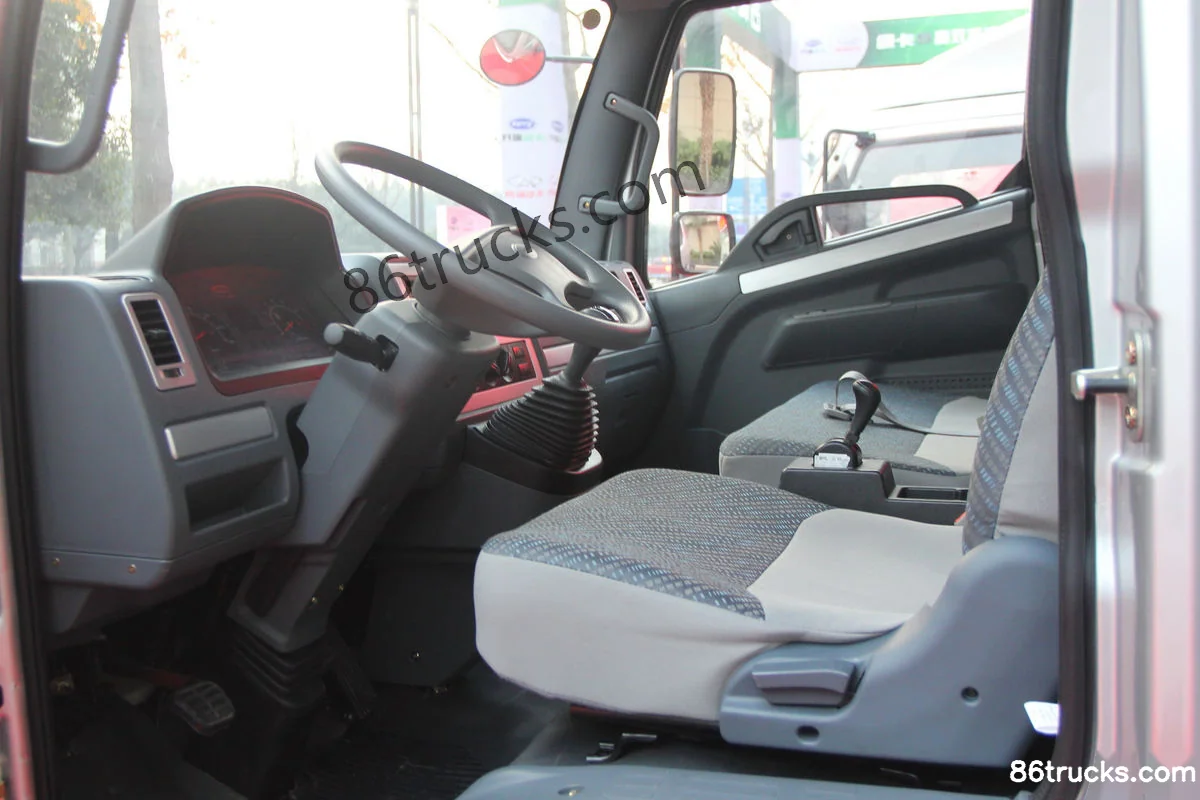

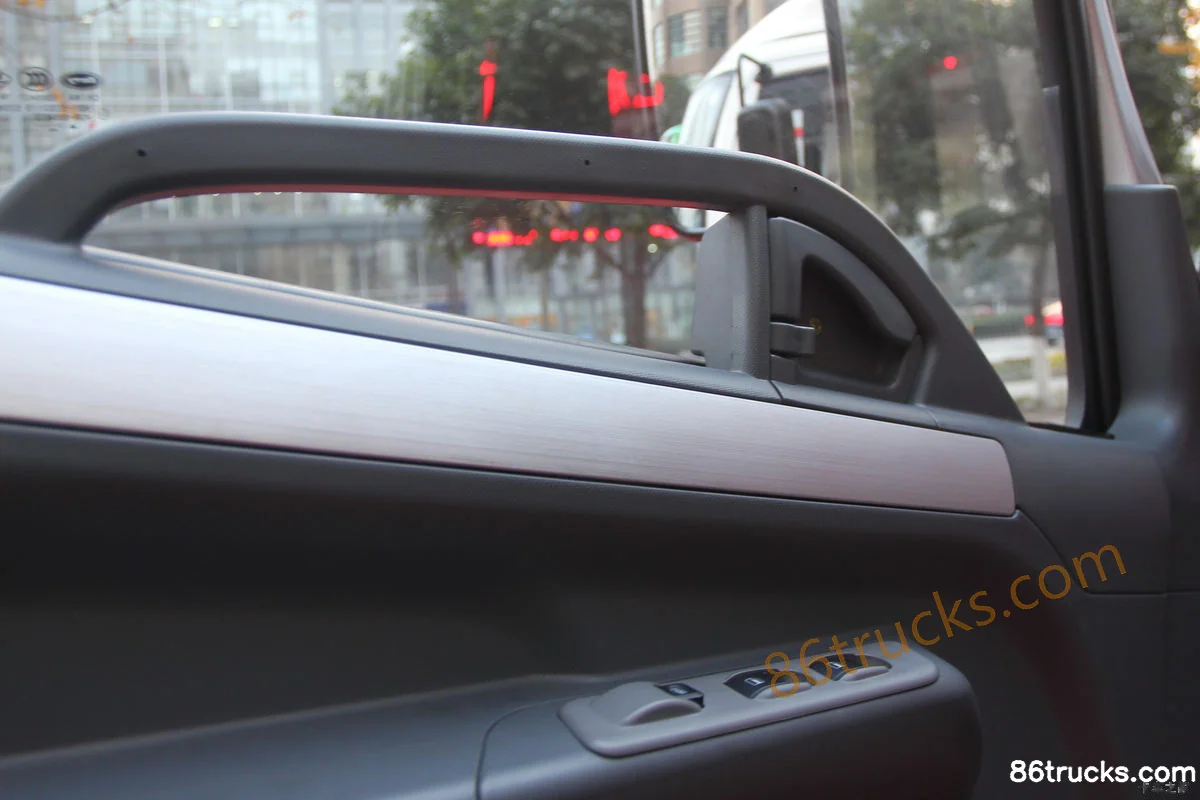

Cab3

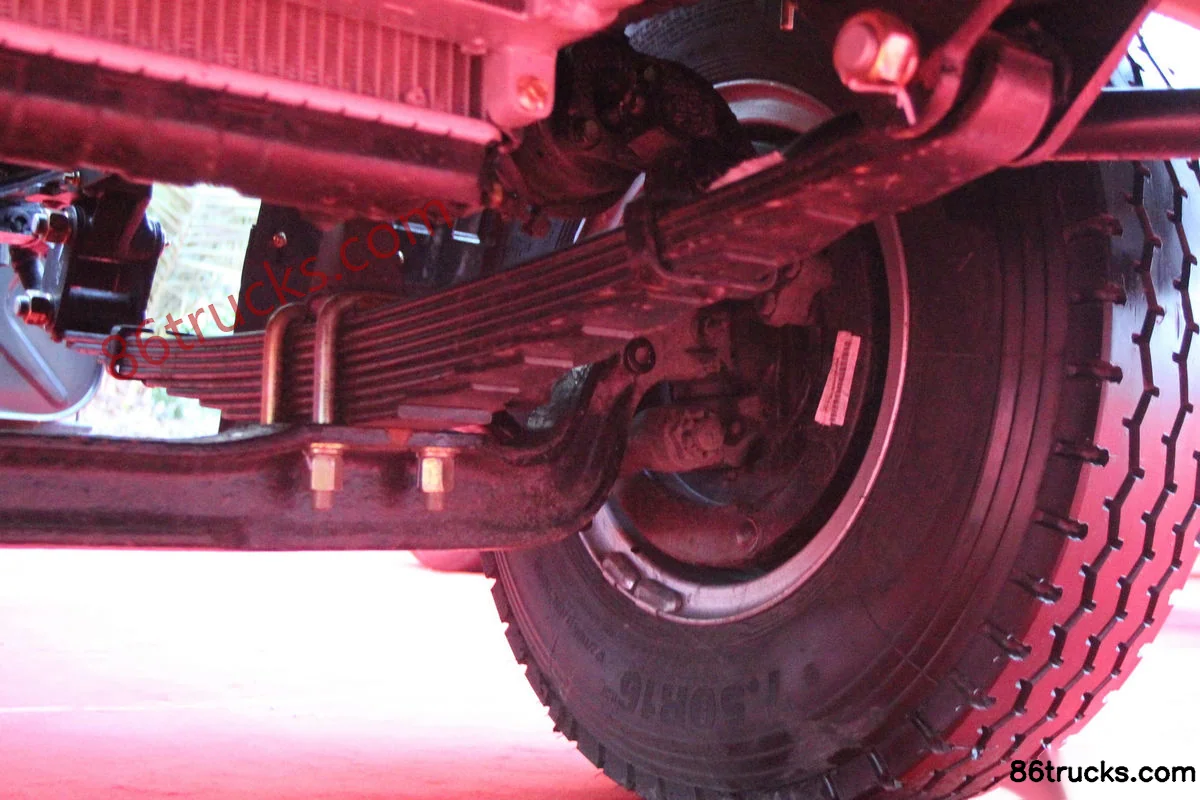

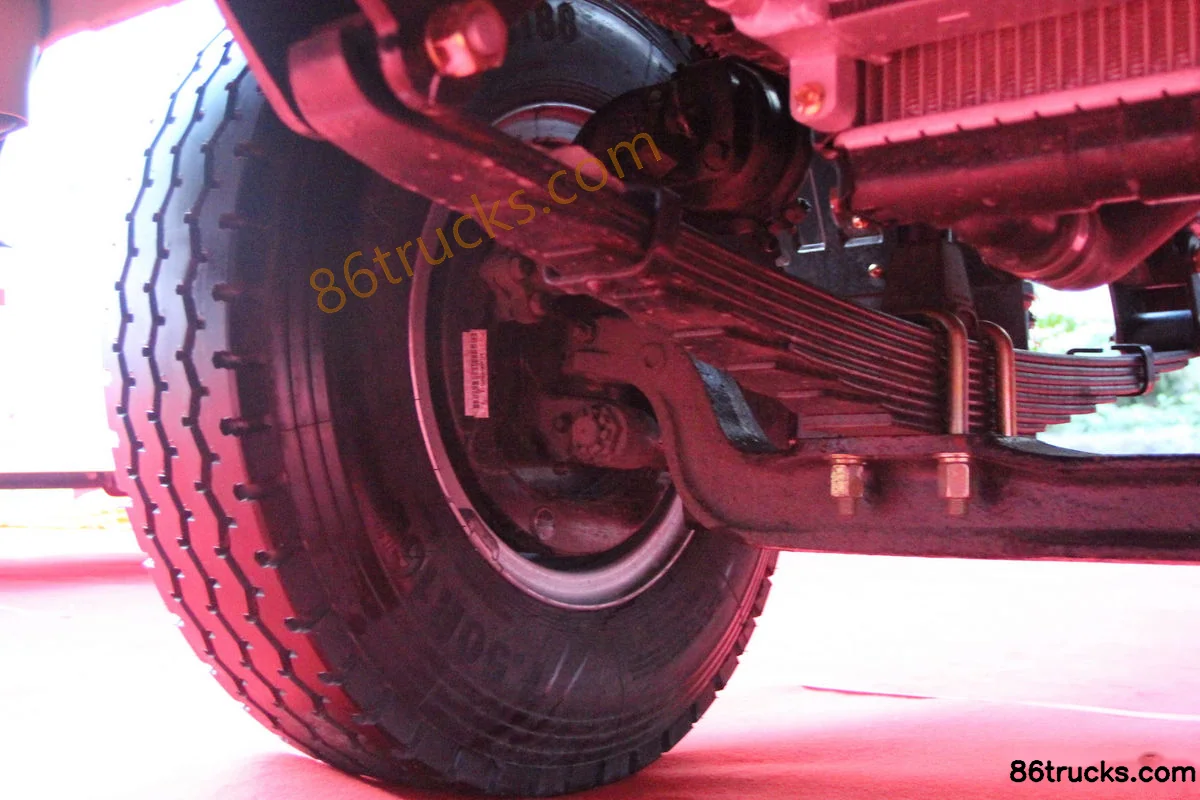

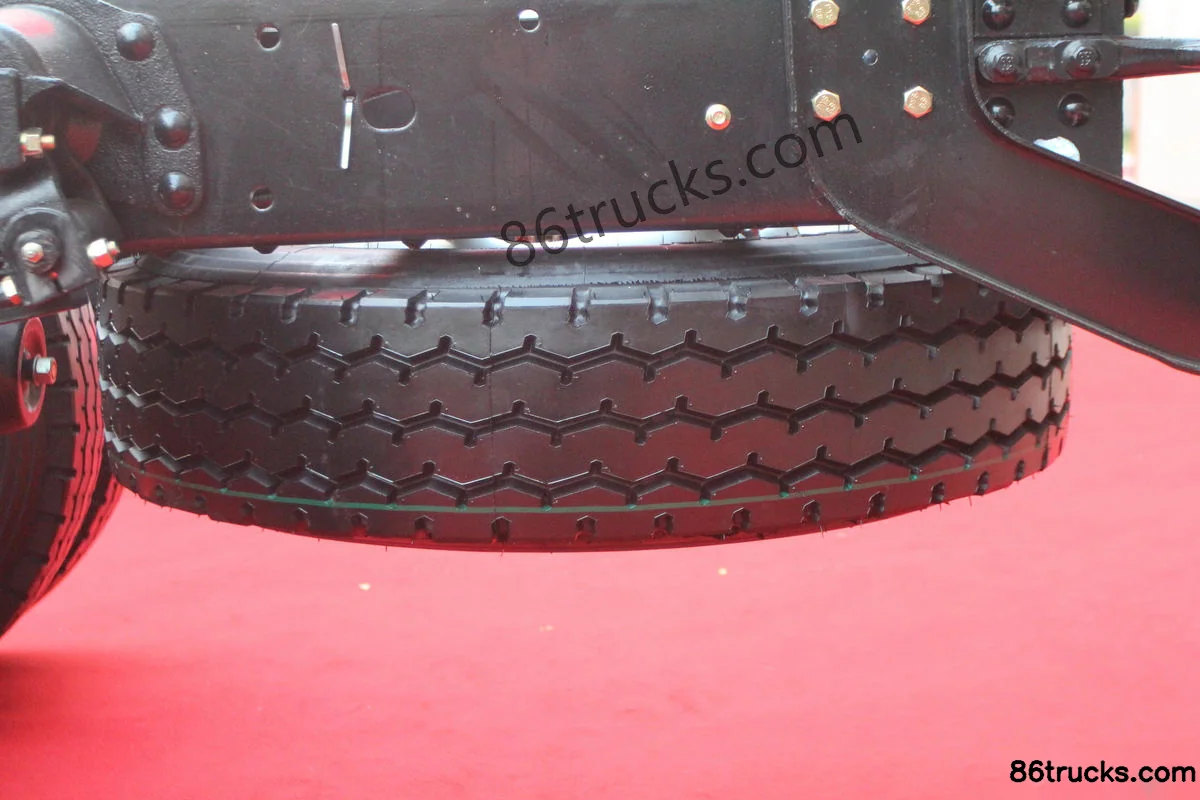

Chassis3

9 photos

FAQ

What emission standard does Karry Green Card C 116hp 4X2(6 wheels) 3.9m Extended Cab Flatbed Light Truck (Medium Body) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Karry Green Card C 116hp 4X2(6 wheels) 3.9m Extended Cab Flatbed Light Truck (Medium Body)?

Key specs of Karry Green Card C 116hp 4X2(6 wheels) 3.9m Extended Cab Flatbed Light Truck (Medium Body): Drive: 4x2; Horsepower: 116 hp; Emission: China V; Fuel: Diesel; Engine: Isuzu493; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Karry Green Card C 116hp 4X2(6 wheels) 3.9m Extended Cab Flatbed Light Truck (Medium Body) suited for?

Karry Green Card C 116hp 4X2(6 wheels) 3.9m Extended Cab Flatbed Light Truck (Medium Body) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Karry Green Card C 116hp 4X2(6 wheels) 3.9m Extended Cab Flatbed Light Truck (Medium Body) differ from other variants in the same series?

Karry Green Card C 116hp 4X2(6 wheels) 3.9m Extended Cab Flatbed Light Truck (Medium Body) belongs to Karry Green Card C Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Karry Green Card C 116hp 4X2(6 wheels) 3.9m Extended Cab Flatbed Light Truck (Medium Body)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Karry Green Card C 116hp 4X2(6 wheels) 3.9m Extended Cab Flatbed Light Truck (Medium Body)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
