JAC Shuailing H330 130 hp 4X2(6 wheels) 4.12m single-row box light truck

Export reference
From $15,694
MSRP ¥11.3M CNY
Horsepower: 130
Emission: China IV
Fuel: Diesel
Engine: WeichaiVM494
Transmission: Lu'an
Curb Weight:: 2.85ton
seating capacity: 3Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The JAC Shuailing H330 130 hp 4X2(6 wheels) 4.12m single-row box light truck is a Light Truck featuring 4.12m cargo length, Van body cargo body, 3Personnel volume and 1.495t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a WeichaiVM494 engine, 130 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 130 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5043XXYP71K1C2
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3308mm
Box length class: 4.2m
engine: WeichaiWP3Q130E401
transmission: Lu'an LC6T450
Rear Axle Ratio: 4.33
Cab length: 5.995m
Cab width: 2.18m
Cab height: 3.07m
Front track width: 1665mm
rear track: 1525mm
Curb Weight: 2.85ton
Rated payload: 1.495ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 22°
departure angle: 15°
market segment: Urban Distribution
Front/rear suspension: 1.11/1.577m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP3Q130E401
Engine info: WeichaiVM494
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.97L
Emission standard: China IV
Max output power: 96kW
Max hp: 130Horsepower
Max torque: 350N·m
Max torque speed: 1400-1800rpm
Rated speed: 3000rpm
Engine Type: Common Rail EGR DOC POC
Transmission Parameters
Transmission Model: Lu'an LC6T450
Transmission Brand: Lu'an
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.12m
Cargo box width: 2.06m
Cargo box height: 2m
*Cargo box interior width: 2.0599999427795
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank capacity: 120L
Chassis Specs
Front axle allowable load: 1615kg
rear axle description: stamped-welded integral axle
rear axle allowable load: 2880kg
Axle ratio: 4.33
Leaf spring count: 11/8+6
Tire
Tire Size: 7.00R16
Number of tires: 6pcs
Control configuration
ABS:

Photos

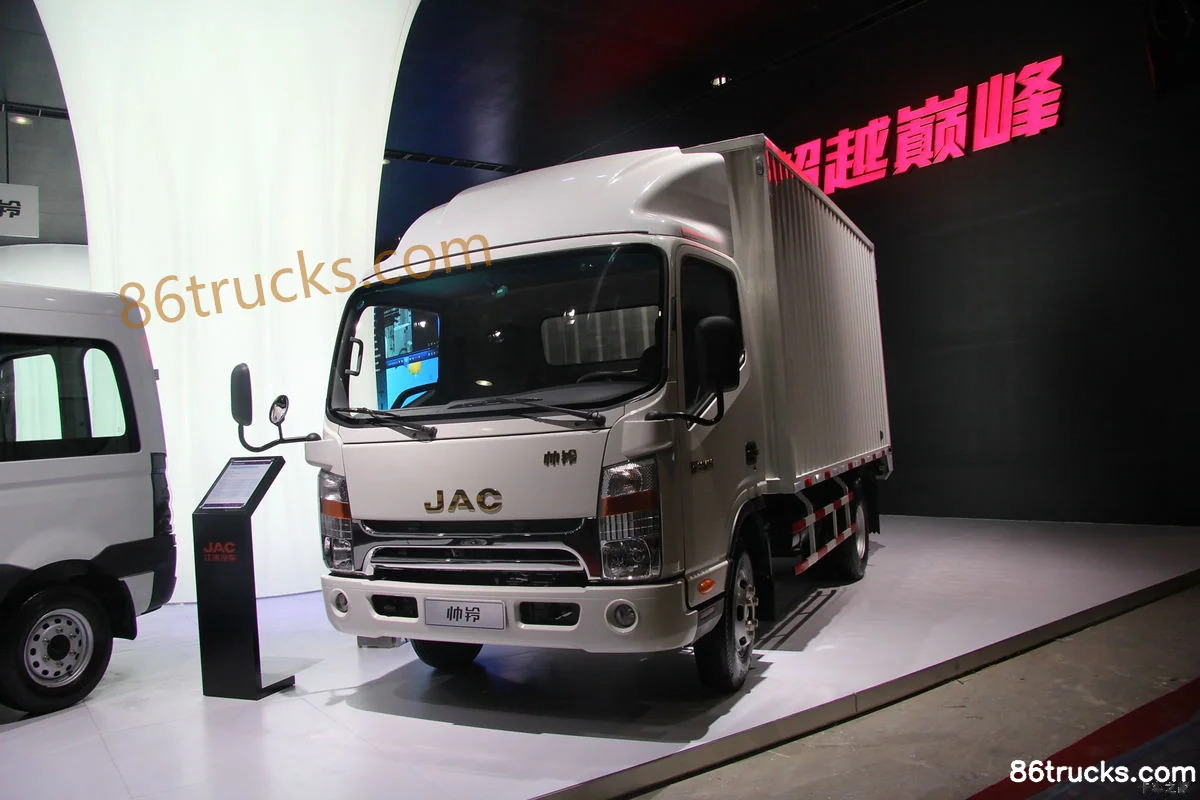

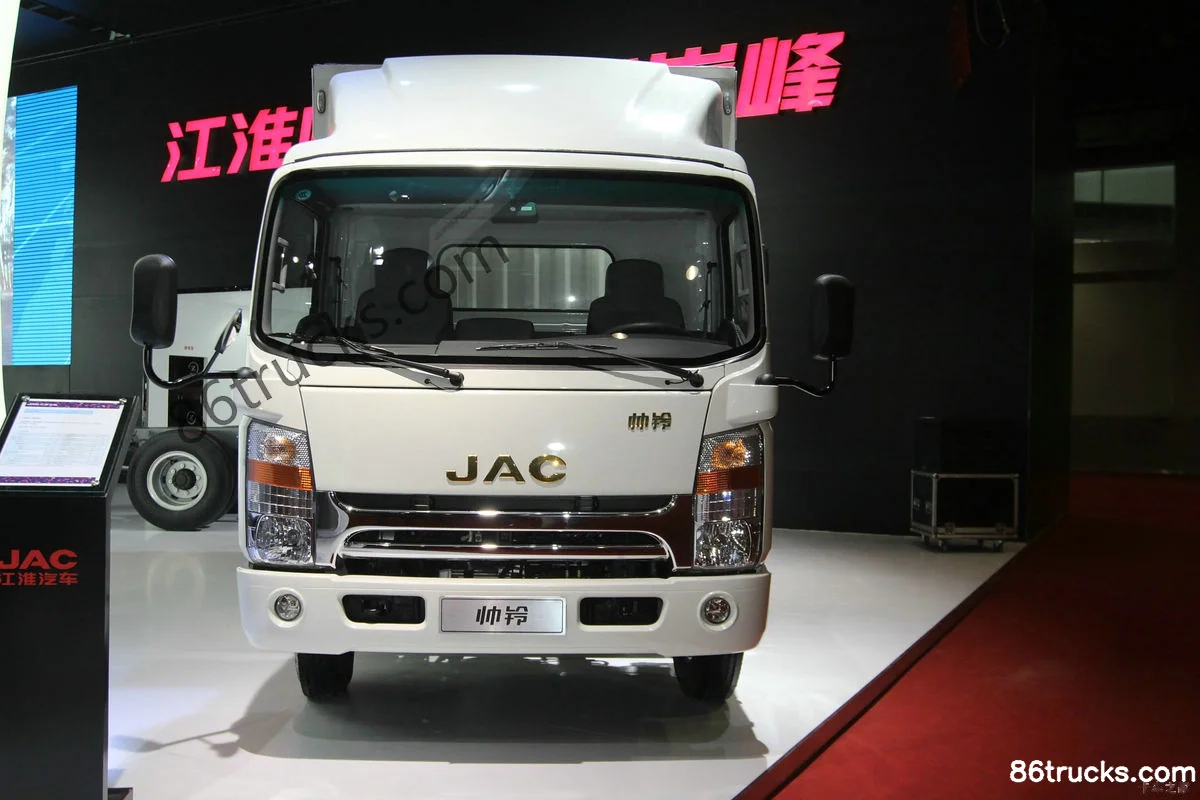

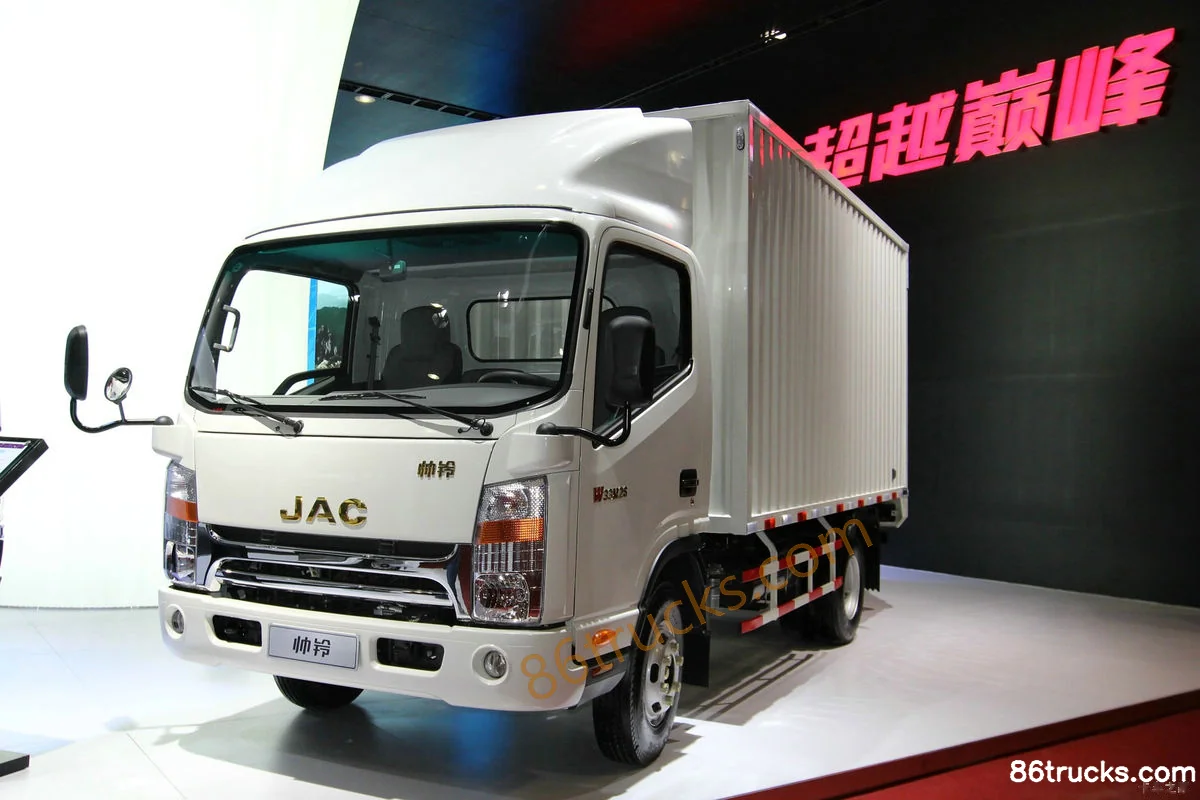

Exterior3
