Dongfeng T3 220hp 4X2(6 wheels) 6.85m Crew Cab Wing Opening Van Cargo Truck

Export reference
MSRP N/A
Horsepower: 220
Emission: China VI
Fuel: Diesel
Engine: Weichai4.6L
Transmission: Fast Gear
Curb Weight:: 7.875ton
seating capacity: 3Personnel
Rated payload: 9.93ton
Drive 4X2 (6 wheels)
Cargo box type: Wing Van

Overview

The Dongfeng T3 220hp 4X2(6 wheels) 6.85m Crew Cab Wing Opening Van Cargo Truck is a Medium-duty truck featuring 6.85m cargo length, Wing Van cargo body, 3Personnel volume and 9.93t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Weichai4.6L engine, 220 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 220 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): EQ5186XYKL6D31
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 5250mm
Box length class: 6.8m
engine: WeichaiWP4.6NQ220E61A
transmission: Fast Gear8JS85TC
Rear Axle Ratio: 4.875
Cab length: 9m
Cab width: 2.55m
Cab height: 3.7m
Front track width: 1750mm
rear track: 1800mm
Curb Weight: 7.875ton
Rated payload: 9.93ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Shiyan, Hubei
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle: 14°
market segment: Building materials, agricultural products
Front/rear suspension: 1.28/2.47m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP4.6NQ220E61A
Engine info: Weichai4.6L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.58L
Emission standard: China VI
Max output power: 162kW
Max hp: 220Horsepower
Max torque: 850N·m
Max torque speed: 1300-1600rpm
Rated speed: 2300rpm
Engine Type: Common Rail+EGR+DOC+DPF+SCR
Transmission Parameters
Transmission Model: Fast Gear8JS85TC
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Wing Van
Cargo box length: 6.85m
Cargo box width: 2.4m
Cargo box height: 2.4m
*Cargo box interior width: 2.4
Cab parameters
Cab: T3 Flat Roof Extended Cab
seating capacity: 3Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 280L
Chassis Specs
Front axle allowable load: 6500kg
Frame Dimensions: 230mm
rear axle description: 8T
rear axle allowable load: 11500kg
Axle ratio: 4.875
Leaf spring count: 10/10+8
Aluminum wheels:
Tire
Tire Size: 275/80R22.5
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
EBS electronic braking system:
clutch booster:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: pneumatic
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Radio:
LCD instrument cluster:
Service brake
Engine brake:
Brake Type: Air brake
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
LED taillight:
smart configuration
Telematics System:
Cruise control (CCS):
adaptive cruise control (ACC):
Tire Pressure Monitoring System (TPMS):

Photos

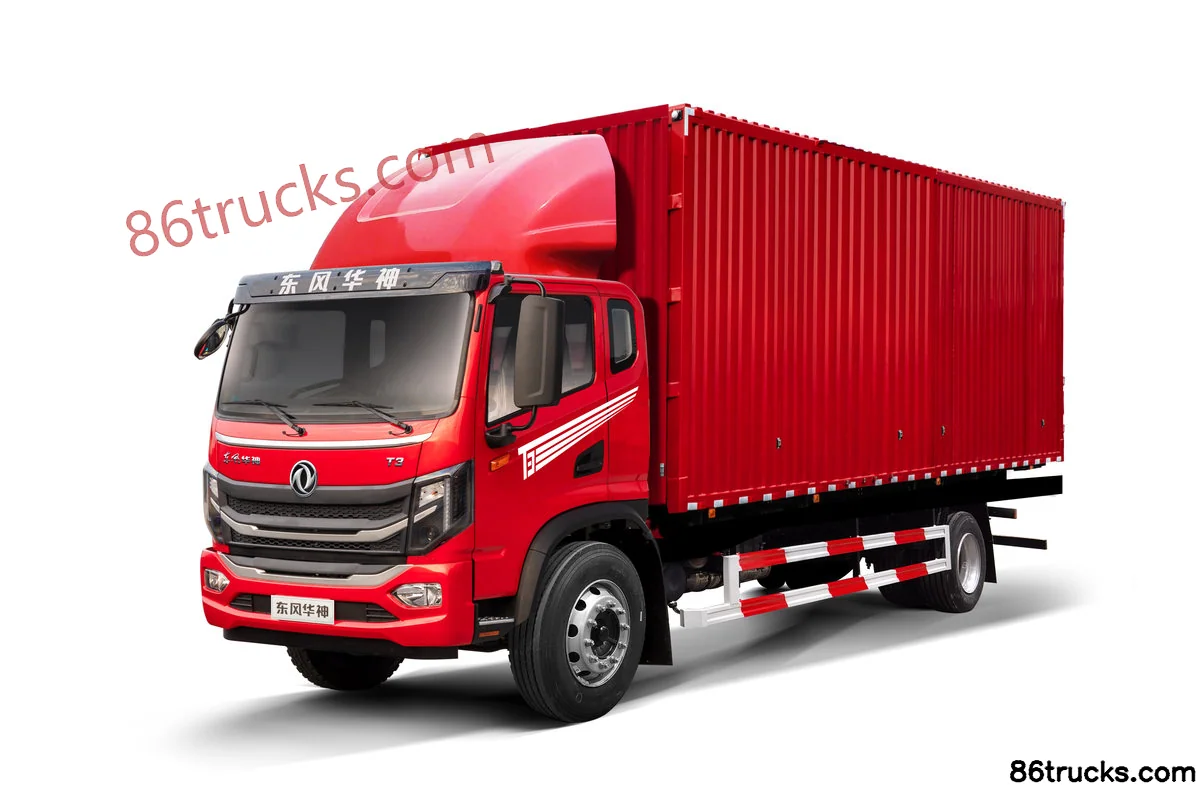

Exterior1

1 photos

FAQ

What emission standard does Dongfeng T3 220hp 4X2(6 wheels) 6.85m Crew Cab Wing Opening Van Cargo Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng T3 220hp 4X2(6 wheels) 6.85m Crew Cab Wing Opening Van Cargo Truck?

Key specs of Dongfeng T3 220hp 4X2(6 wheels) 6.85m Crew Cab Wing Opening Van Cargo Truck: Drive: 4x2; Horsepower: 220 hp; Emission: China VI; Fuel: Diesel; Engine: Weichai4.6L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng T3 220hp 4X2(6 wheels) 6.85m Crew Cab Wing Opening Van Cargo Truck suited for?

Dongfeng T3 220hp 4X2(6 wheels) 6.85m Crew Cab Wing Opening Van Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dongfeng T3 220hp 4X2(6 wheels) 6.85m Crew Cab Wing Opening Van Cargo Truck differ from other variants in the same series?

Dongfeng T3 220hp 4X2(6 wheels) 6.85m Crew Cab Wing Opening Van Cargo Truck belongs to Dongfeng T3 medium truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng T3 220hp 4X2(6 wheels) 6.85m Crew Cab Wing Opening Van Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng T3 220hp 4X2(6 wheels) 6.85m Crew Cab Wing Opening Van Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
