Feidi D3 Series 130hp 4X2(6 wheels) 5.7m Semi-row Stake Light Truck (Yangchai)

Export reference
From $16,111
MSRP ¥11.6M CNY
Horsepower: 130
Emission: China IV
Fuel: Diesel
Engine: Yangchai4102
Transmission: Shaochi
Curb Weight:: 4.31ton
seating capacity: 3Personnel
Rated payload: 4.99ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Feidi D3 Series 130hp 4X2(6 wheels) 5.7m Semi-row Stake Light Truck (Yangchai) is a Light Truck featuring 5.66m cargo length, Stake type cargo body, 3Personnel volume and 4.99t payload. Its segment focus covers Agricultural product transport, green channel and industrial product transport, matching those duty cycles. On the powertrain side, it comes with a Yangchai4102 engine, 130 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 130 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): FD5091CCYP8K4
Type: stake truck
Drive type: 4X2
Wheelbase: 4360mm
Box length class: 5.7m
engine: YangchaiYZ4DA1-40
transmission: Shao Chi 8A45X
Rear Axle Ratio: 10.38
Cab length: 7.88m
Cab width: 2.3m
Cab height: 3.625m
Front track width: 1770mm
rear track: 1600mm
Curb Weight: 4.31ton
Rated payload: 4.99ton
GVWR: 9.495ton
Max. speed: 90km/h
Origin: Rizhao, Shandong
tonnage class: Light Truck
Approach angle: 26°
departure angle: 15°
market segment: Agricultural product transport, green channel, industrial product transport
Front/rear suspension: 1.18/2.34m
Energy Type: Diesel
Engine parameters
Engine Brand: Yangchai
Engine Model: YangchaiYZ4DA1-40
Engine info: Yangchai4102
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.66L
Emission standard: China IV
Max output power: 95kW
Max hp: 130Horsepower
Max torque: 380N·m
Max torque speed: 1000-1600rpm
Rated speed: 2900rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Model: Shao Chi 8A45X
Transmission Brand: Shaochi
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 5.66m
Cargo box width: 2.1m
Cargo box height: 0.5m
*Cargo box interior width: 2.0999999046326
Cab parameters
Cab: Flat roof
Cab width: 1995mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
Driver seat type: Rigid connection seat
Lower Bunk Width: 500mm
fuel tank
Fuel tank material: Plastic
Fuel tank capacity: 100L
Chassis Specs
Front axle allowable load: 3800kg
Frame Dimensions: 220x80x8+4mm
rear axle description: 1093
rear axle allowable load: 5695kg
Axle ratio: 10.38
Leaf spring count: 8/8+8
Tire
Tire brand: Chaoyang
Tire Size: 8.25R16
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
interior configuration
Power Windows:
Exterior features
Air deflector:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Service brake
Brake Type: Air brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

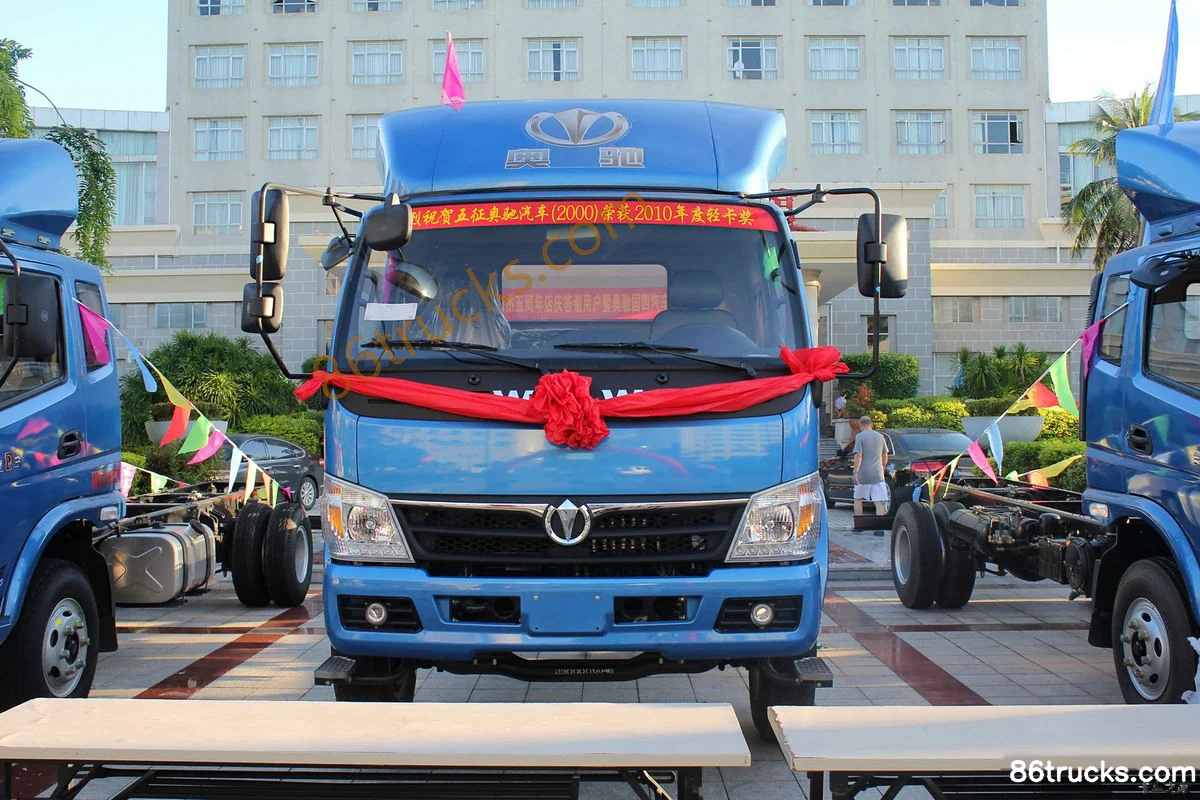

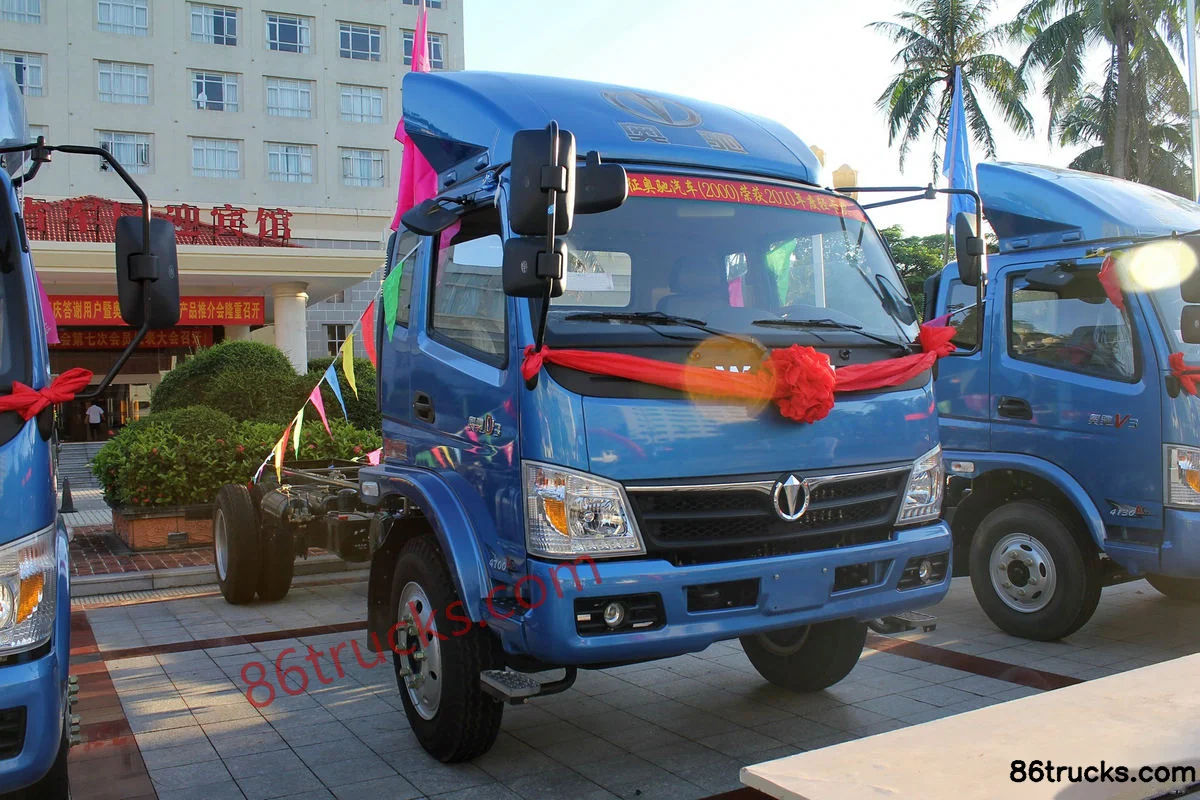

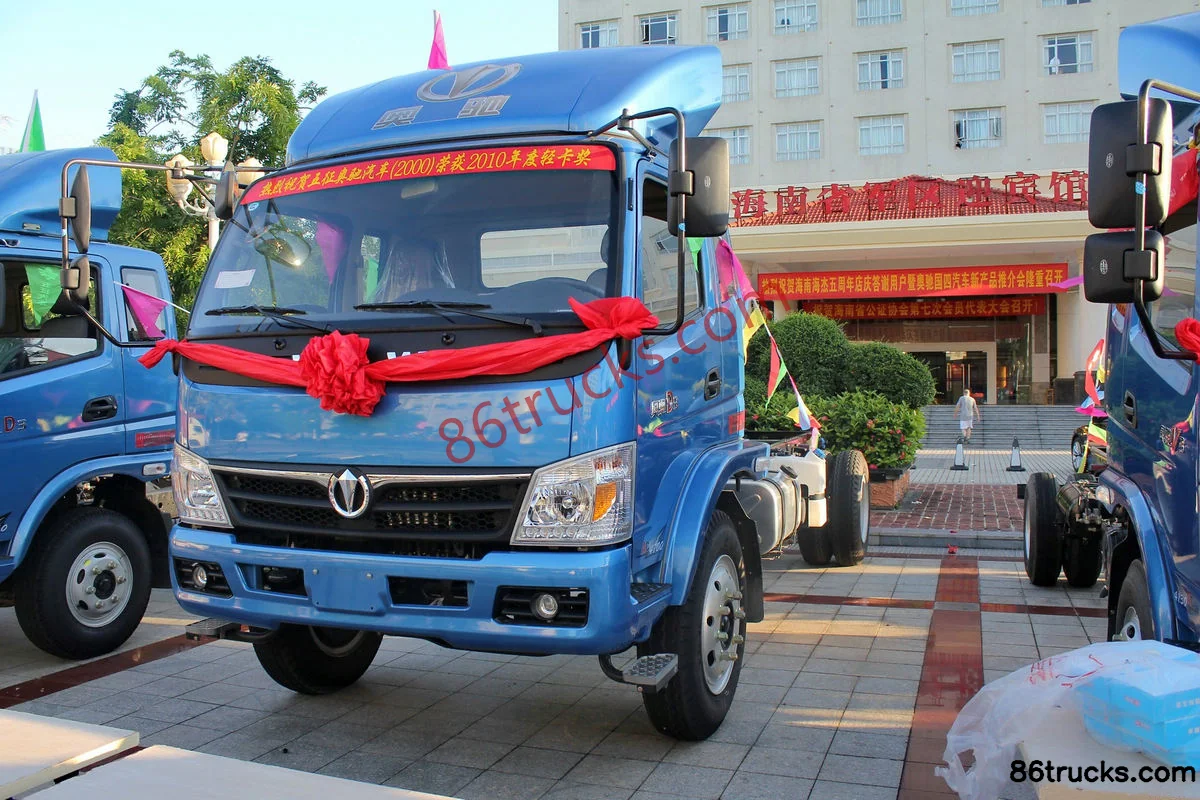

Exterior3

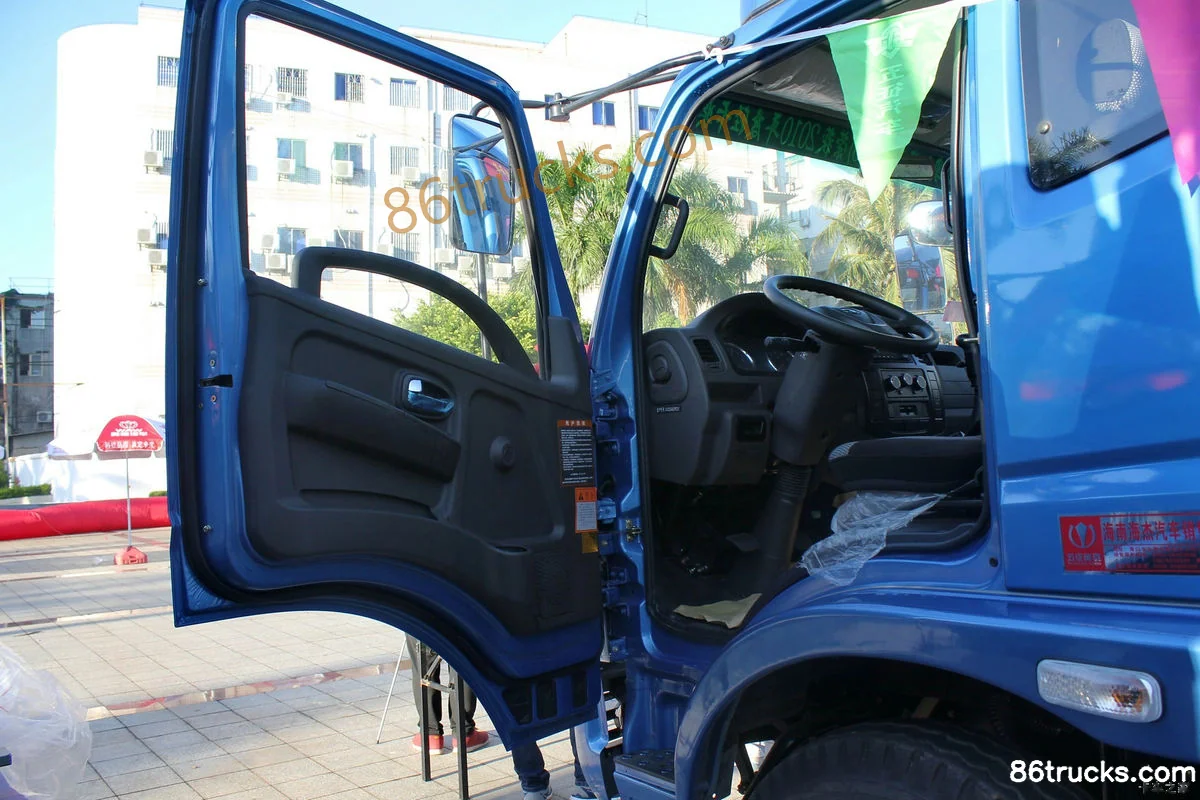

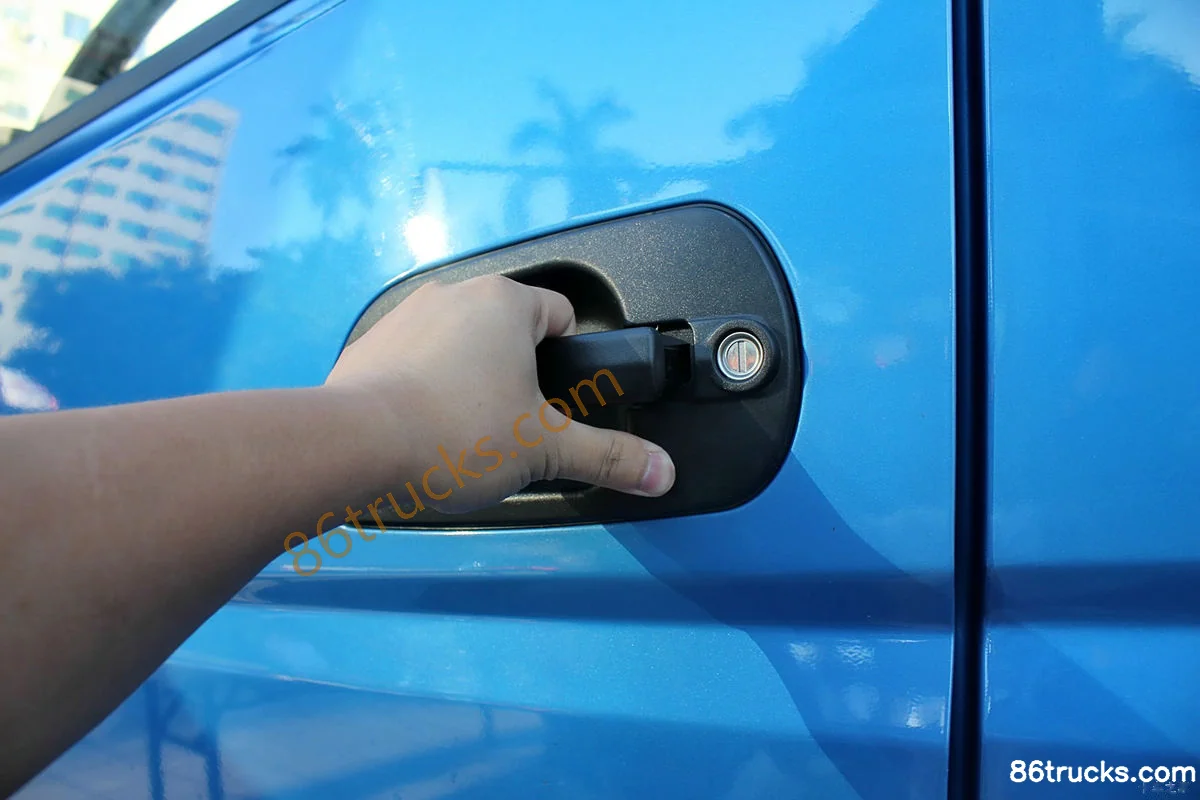

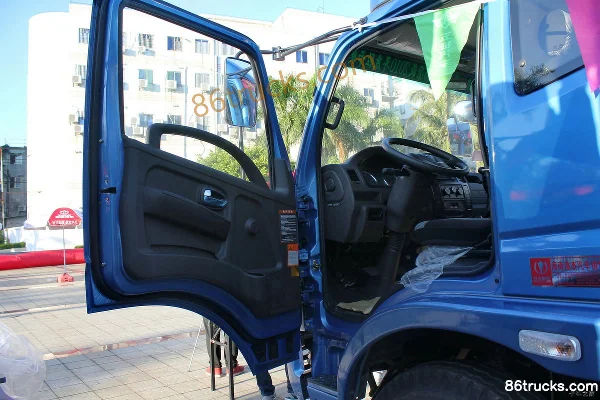

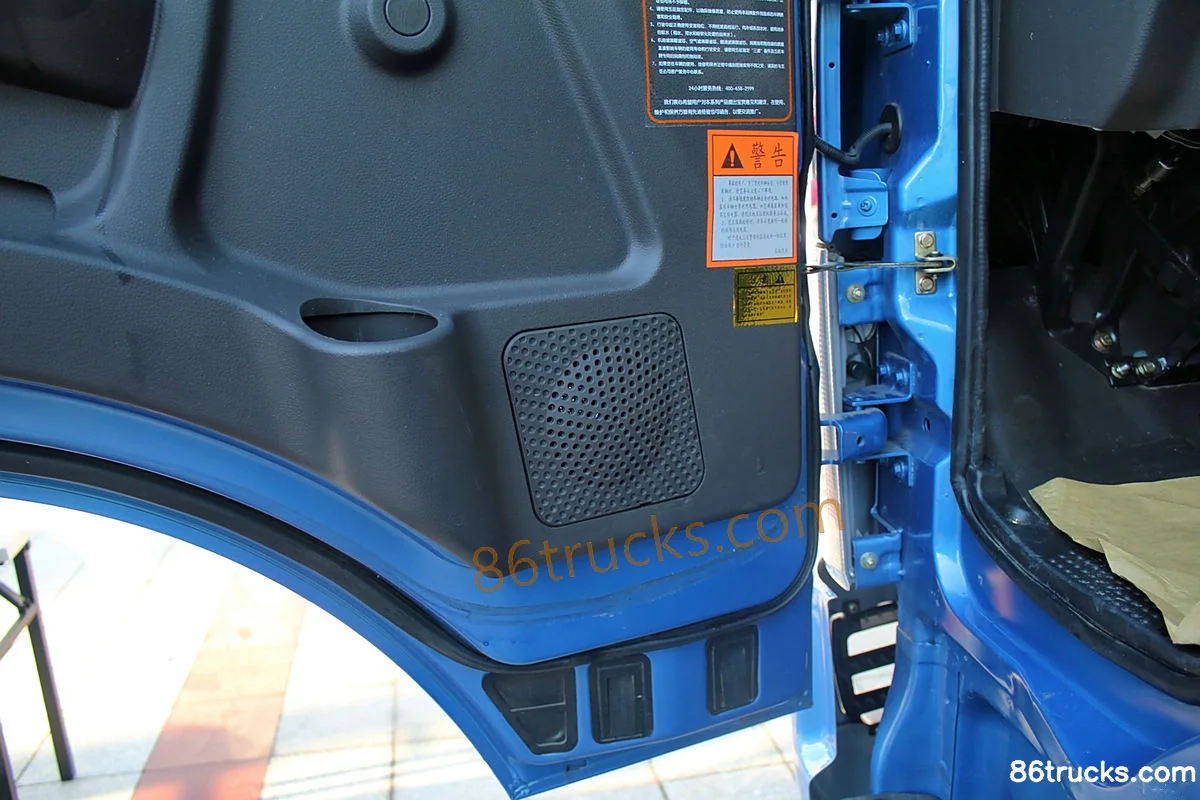

Cab3

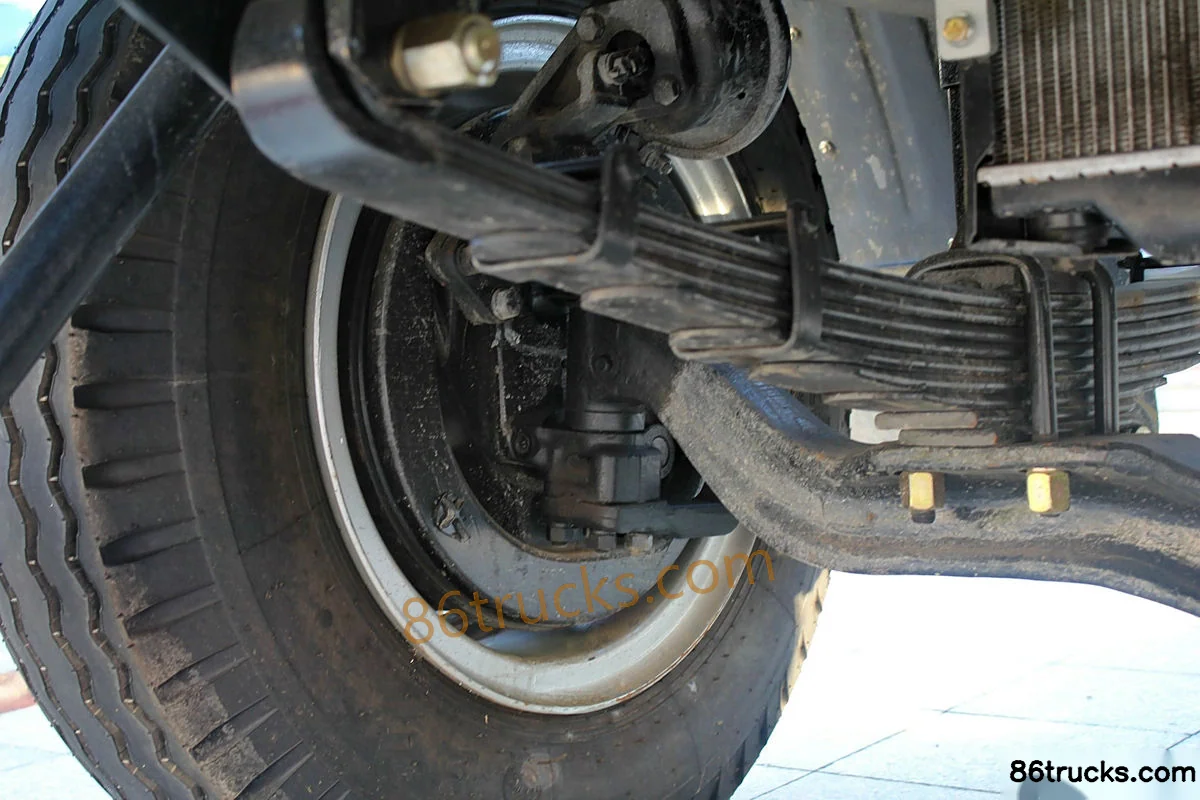

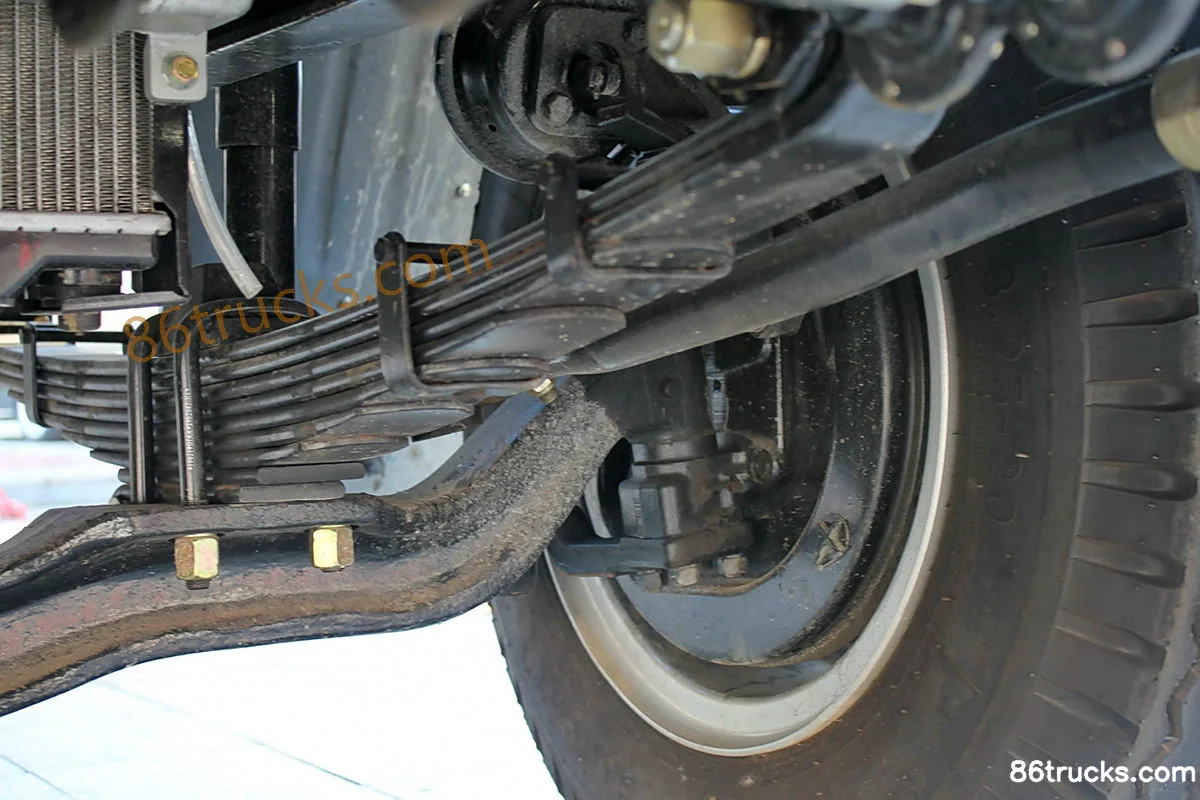

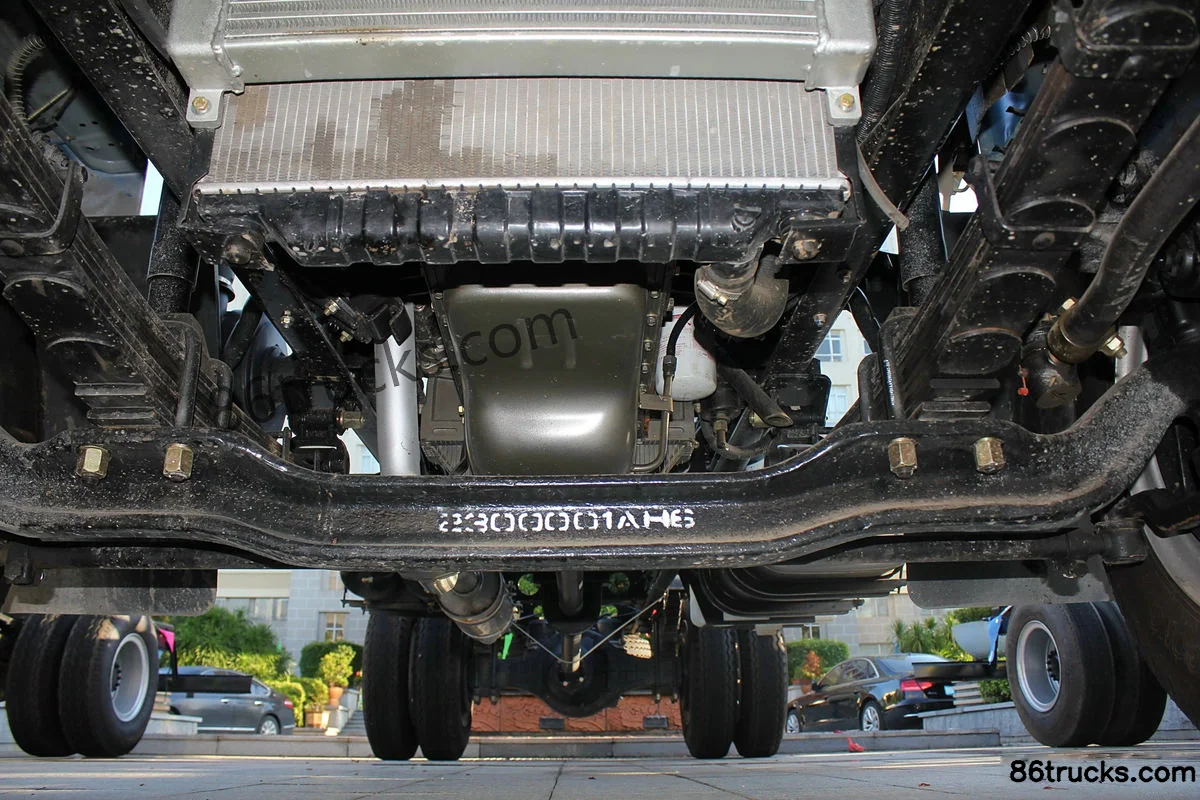

Chassis3

9 photos

FAQ

What is the export price of Feidi D3 Series 130hp 4X2(6 wheels) 5.7m Semi-row Stake Light Truck (Yangchai), and what does it include?

Feidi D3 Series 130hp 4X2(6 wheels) 5.7m Semi-row Stake Light Truck (Yangchai) export reference is about From $16,111; MSRP is ¥11.6M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Feidi D3 Series 130hp 4X2(6 wheels) 5.7m Semi-row Stake Light Truck (Yangchai) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Feidi D3 Series 130hp 4X2(6 wheels) 5.7m Semi-row Stake Light Truck (Yangchai)?

Key specs of Feidi D3 Series 130hp 4X2(6 wheels) 5.7m Semi-row Stake Light Truck (Yangchai): Drive: 4x2; Horsepower: 130 hp; Emission: China IV; Fuel: Diesel; Engine: Yangchai4102; Transmission: Shaochi. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Feidi D3 Series 130hp 4X2(6 wheels) 5.7m Semi-row Stake Light Truck (Yangchai) suited for?

Feidi D3 Series 130hp 4X2(6 wheels) 5.7m Semi-row Stake Light Truck (Yangchai) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Feidi D3 Series 130hp 4X2(6 wheels) 5.7m Semi-row Stake Light Truck (Yangchai) differ from other variants in the same series?

Feidi D3 Series 130hp 4X2(6 wheels) 5.7m Semi-row Stake Light Truck (Yangchai) belongs to Aochi D Series Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Feidi D3 Series 130hp 4X2(6 wheels) 5.7m Semi-row Stake Light Truck (Yangchai)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Feidi D3 Series 130hp 4X2(6 wheels) 5.7m Semi-row Stake Light Truck (Yangchai)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
