Dongfeng Yiwei 5 4X2(6 wheels) 9.8m pure electric cargo truck, CATL 400.6kWh

Export reference
MSRP N/A
Rated payload:: 7.17ton
Wheelbase:: 7100mm
Cargo box type:: Van body
Model code (announced):: LZ5180XXYH5AZSEV01
Type:: enclosed cargo truck
Box length class:: 9.8m
Dongfeng Yiwei 5 4X2(6 wheels) 9.8m pure electric cargo truck, CATL 400.6kWh exterior
View more photos (9)
Drive 4X2 (6 wheels)
Battery Brand: CATL
Motor 1 Brand: Fangsheng
Curb Weight: 10.7ton

Overview

The Dongfeng Yiwei 5 4X2(6 wheels) 9.8m pure electric cargo truck, CATL 400.6kWh is a Medium-duty truck featuring CATL battery/range, Fangsheng motor, 4X2 (6 wheels) drive and 7.17t payload.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): LZ5180XXYH5AZSEV01
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 7100mm
Box length class: 9.8m
Cab length: 12m
Cab width: 2.55m
Cab height: 4m
Curb Weight: 10.7ton
Rated payload: 7.17ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Liuzhou, Guangxi
tonnage class: Medium-duty truck
Energy Type: Electric
electric motor
Motor 1 Brand: Fangsheng
Motor 1 Model: TZ240XQ-FSR01
Motor Type: Permanent magnet synchronous motor
total rated power: 210kW
Peak power: 350kW
Battery/Charging
Charging method: Dual-gun 500A fast charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 400.6kWh
fast charge time:
fast charge range: 20%-80%
Cargo box parameters
Cargo box type: Van body
Cargo box length: 9.8m
Cargo box width: 2.48m
Cargo box height: 2.7m
Cab parameters
Cab: H53S
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500kg
rear axle description: 10.5T electric drive axle
rear axle allowable load: 11500kg
Tire
Tire Size: 275/80R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
Stability control system:
Power steering: Electric Power Steering
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
Service brake
Brake Type: Air brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):
AEB automatic emergency braking system:

Photos

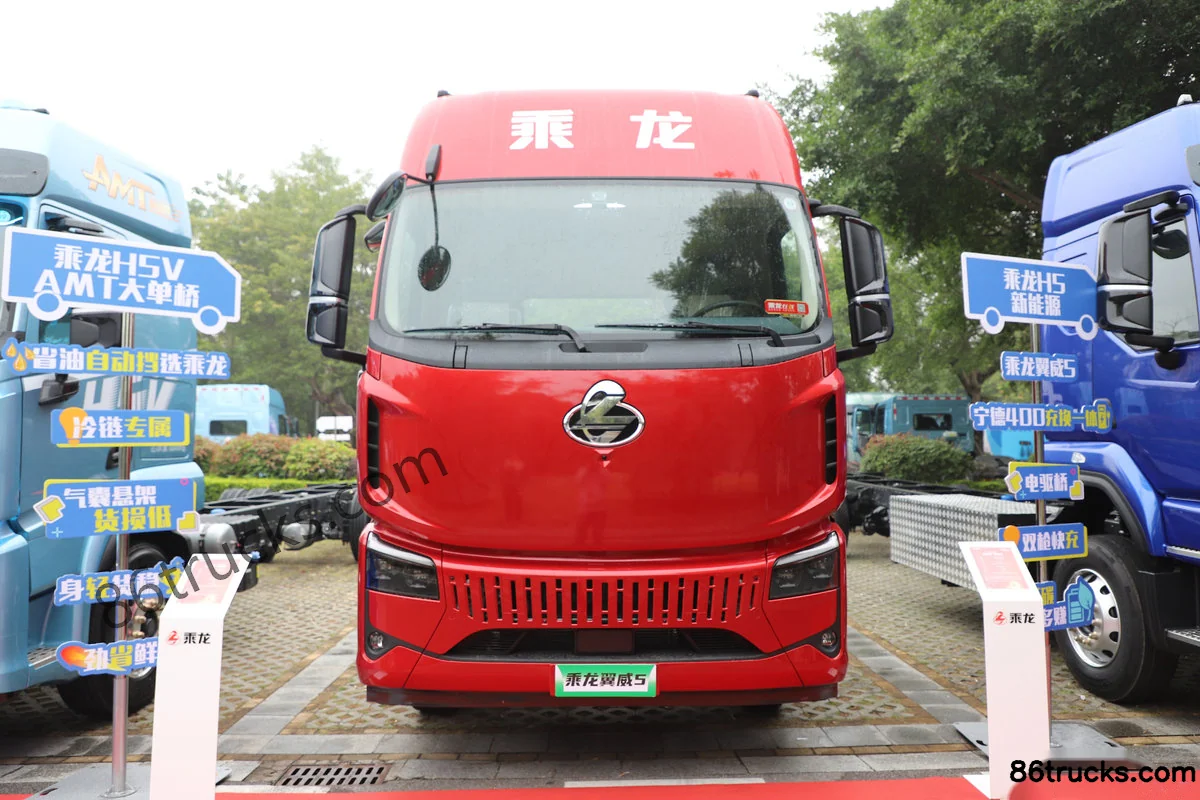

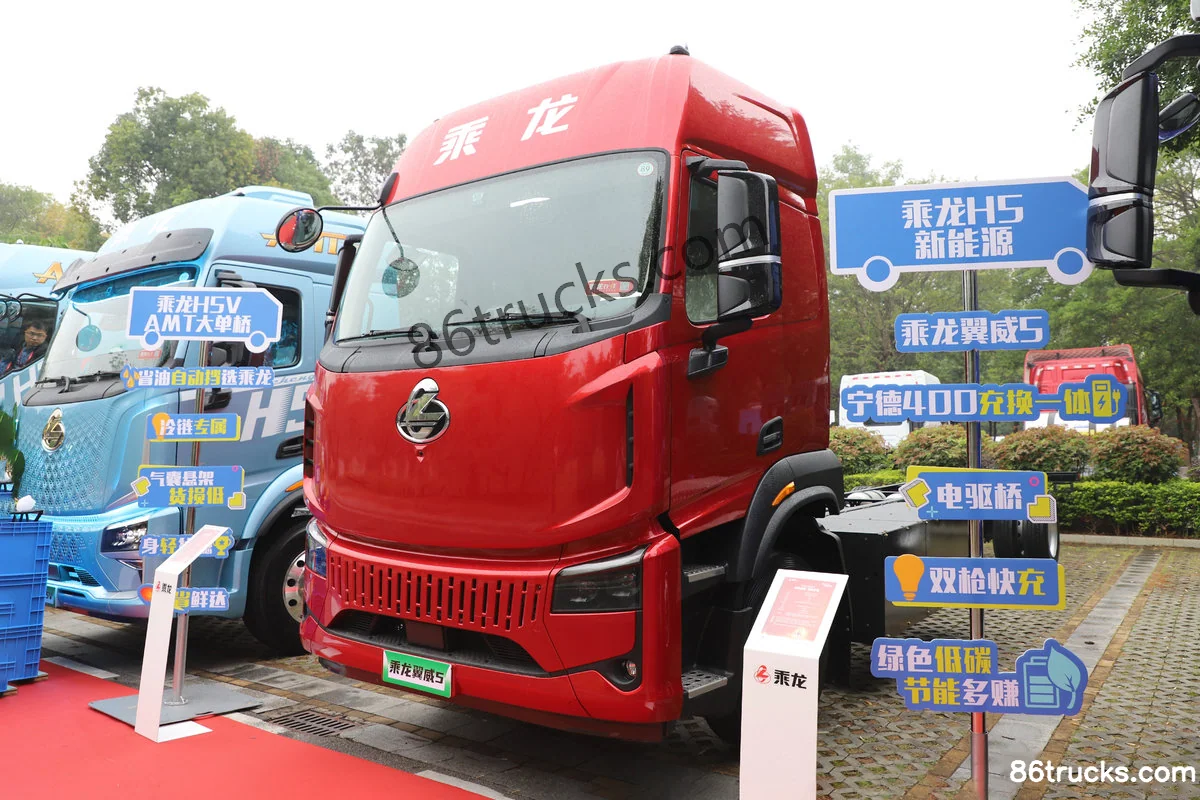

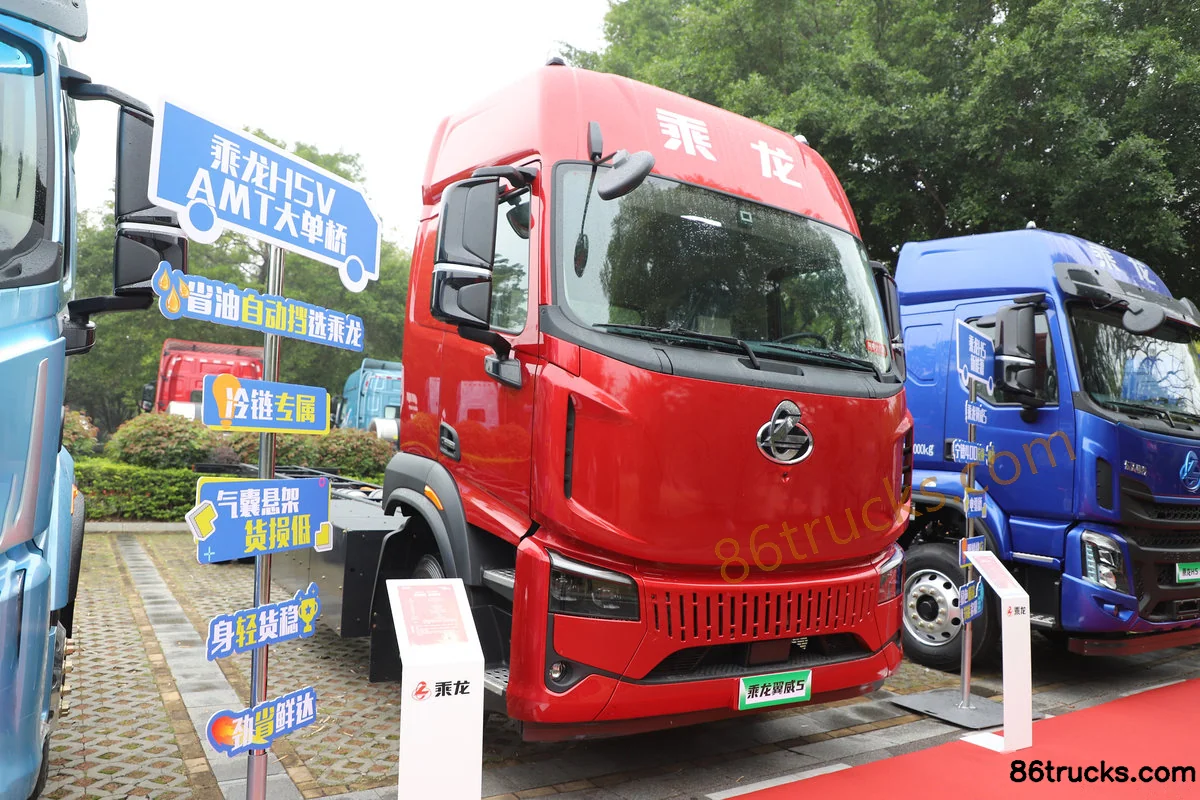

Exterior3

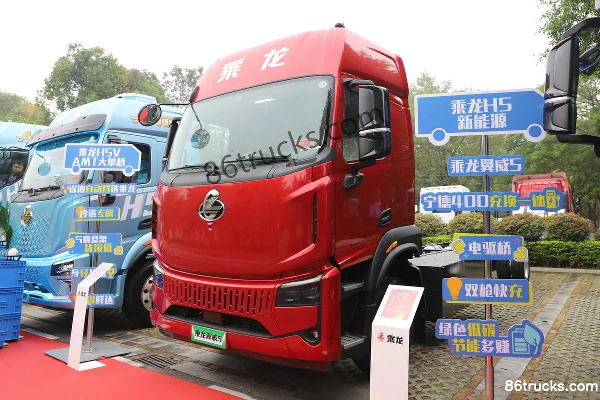

Dongfeng Yiwei 5 4X2(6 wheels) 9.8m pure electric cargo truck, CATL 400.6kWh Exterior (1) | 86Trucks Dongfeng Yiwei 5 4X2(6 wheels) 9.8m pure electric cargo truck, CATL 400.6kWh Exterior (2) | 86Trucks Dongfeng Yiwei 5 4X2(6 wheels) 9.8m pure electric cargo truck, CATL 400.6kWh Exterior (3) | 86Trucks

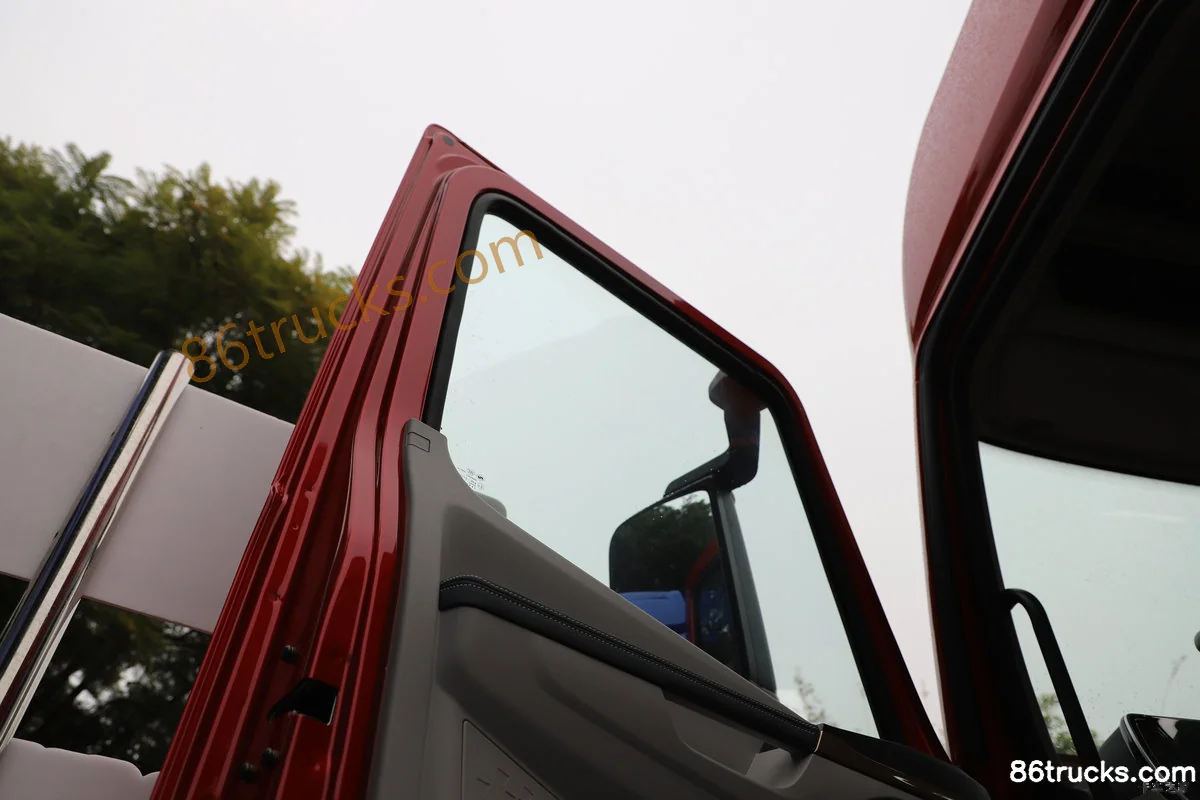

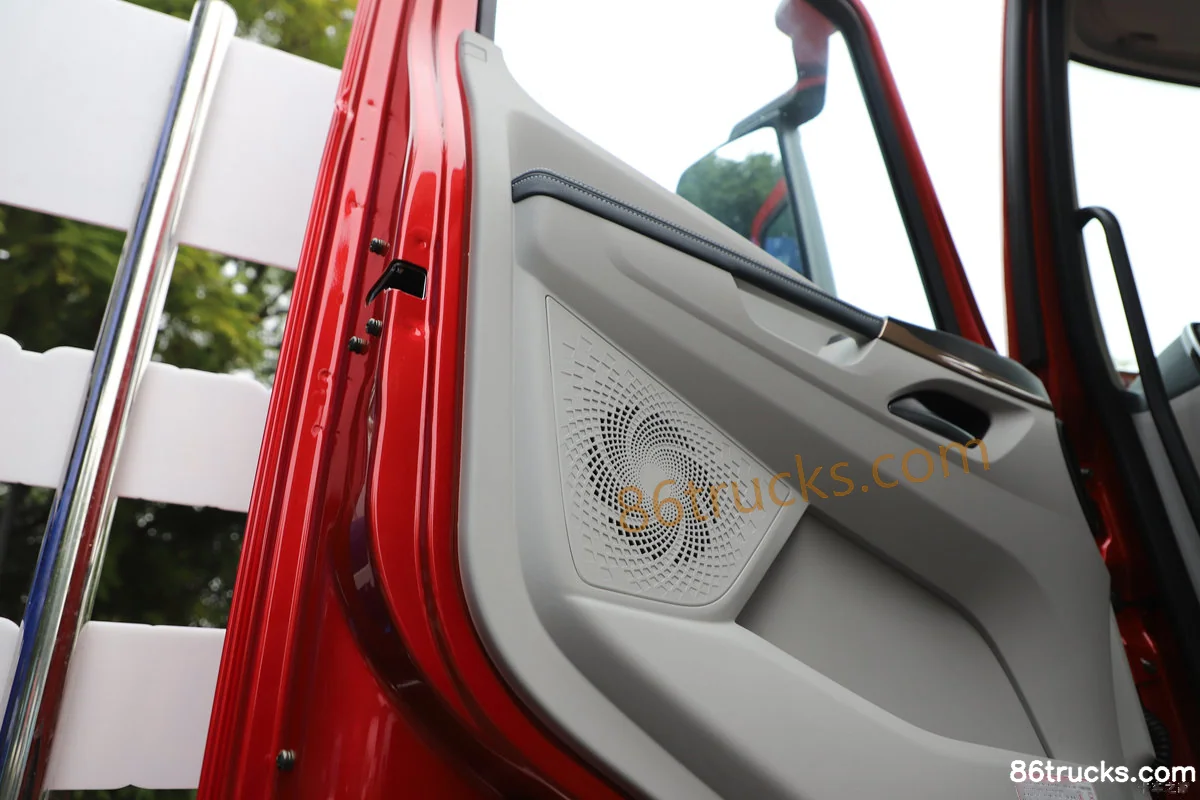

Cab3

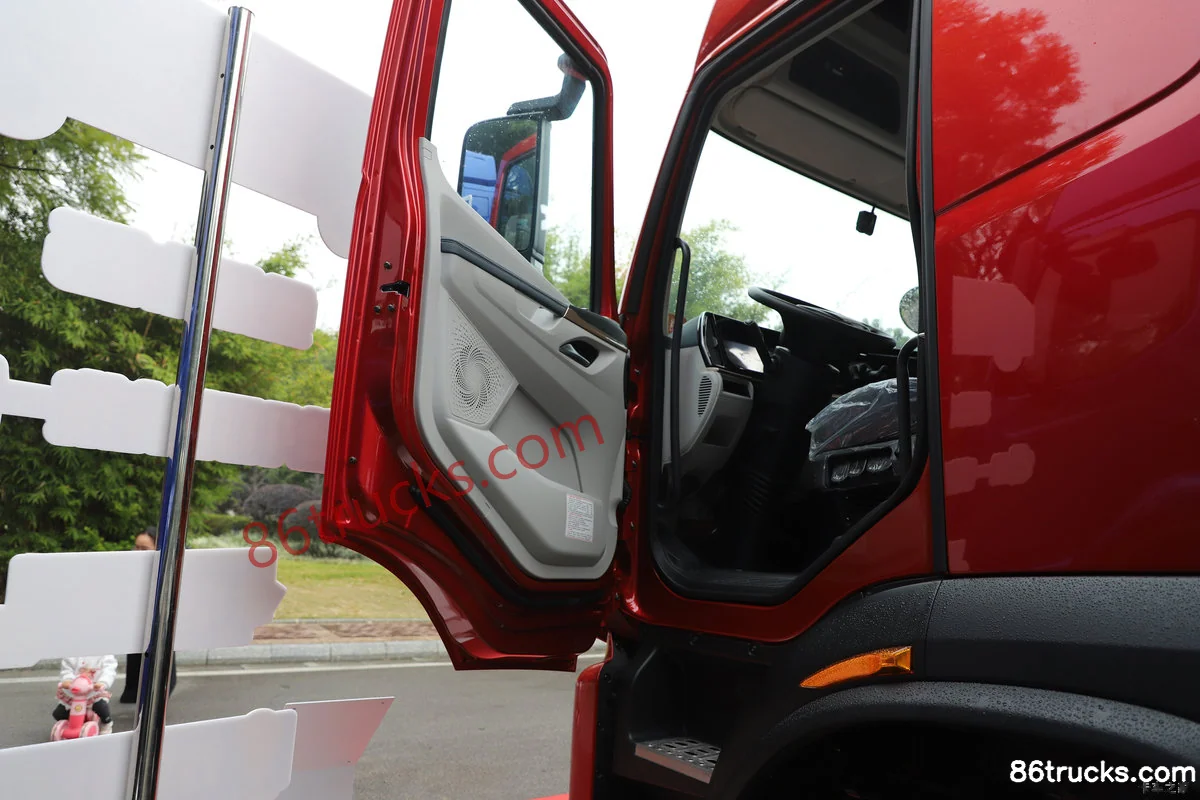

Dongfeng Yiwei 5 4X2(6 wheels) 9.8m pure electric cargo truck, CATL 400.6kWh Cab (1) | 86Trucks Dongfeng Yiwei 5 4X2(6 wheels) 9.8m pure electric cargo truck, CATL 400.6kWh Cab (2) | 86Trucks Dongfeng Yiwei 5 4X2(6 wheels) 9.8m pure electric cargo truck, CATL 400.6kWh Cab (3) | 86Trucks

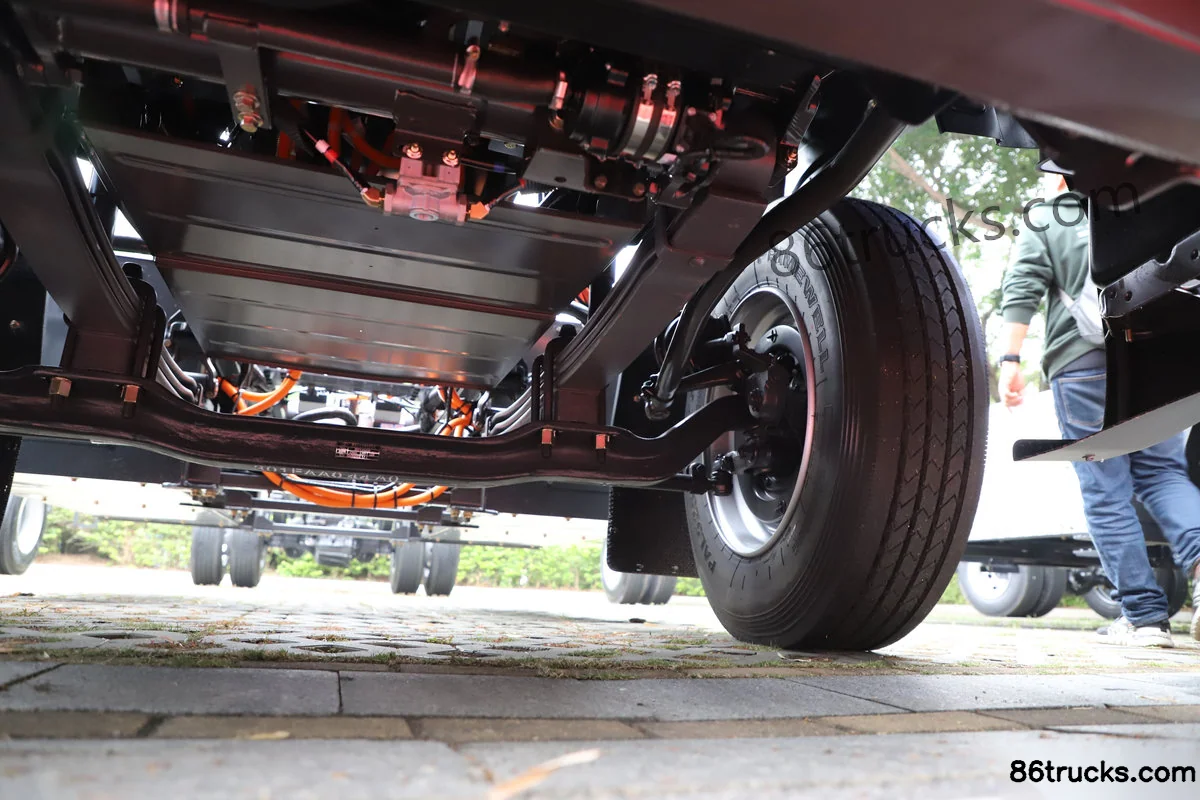

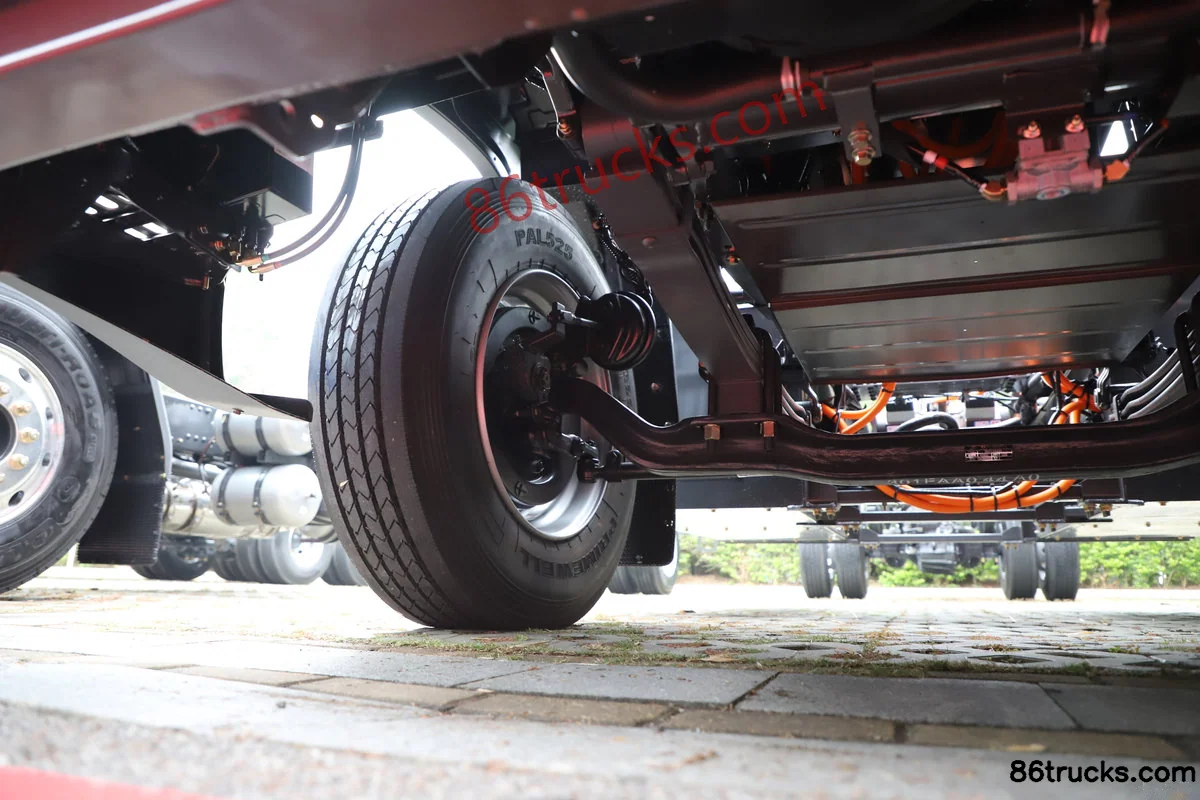

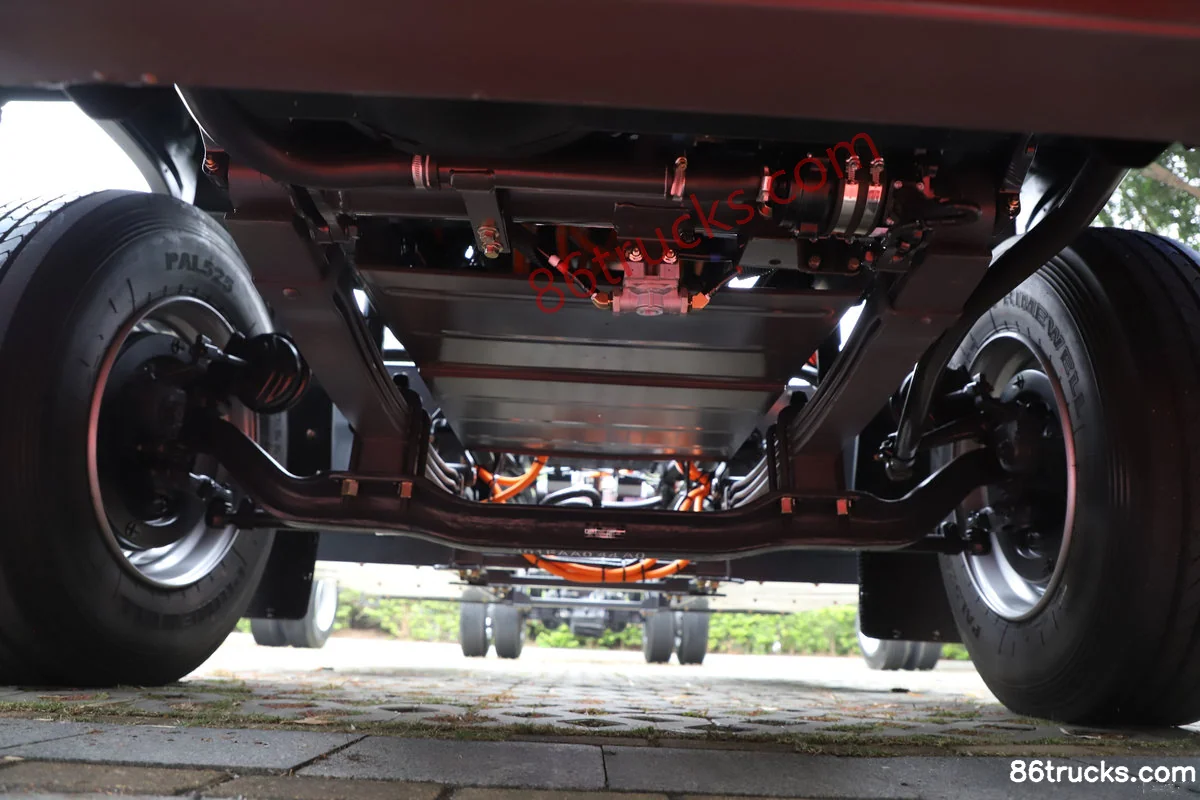

Chassis3

Dongfeng Yiwei 5 4X2(6 wheels) 9.8m pure electric cargo truck, CATL 400.6kWh Chassis (1) | 86Trucks Dongfeng Yiwei 5 4X2(6 wheels) 9.8m pure electric cargo truck, CATL 400.6kWh Chassis (2) | 86Trucks Dongfeng Yiwei 5 4X2(6 wheels) 9.8m pure electric cargo truck, CATL 400.6kWh Chassis (3) | 86Trucks

9 photos

FAQ

What are the key specs of Dongfeng Yiwei 5 4X2(6 wheels) 9.8m pure electric cargo truck, CATL 400.6kWh?

Key specs of Dongfeng Yiwei 5 4X2(6 wheels) 9.8m pure electric cargo truck, CATL 400.6kWh: Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Yiwei 5 4X2(6 wheels) 9.8m pure electric cargo truck, CATL 400.6kWh suited for?

Dongfeng Yiwei 5 4X2(6 wheels) 9.8m pure electric cargo truck, CATL 400.6kWh is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Dongfeng Yiwei 5 4X2(6 wheels) 9.8m pure electric cargo truck, CATL 400.6kWh differ from other variants in the same series?

Dongfeng Yiwei 5 4X2(6 wheels) 9.8m pure electric cargo truck, CATL 400.6kWh belongs to Dongfeng Yiwei 5 Heavy Truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Yiwei 5 4X2(6 wheels) 9.8m pure electric cargo truck, CATL 400.6kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Yiwei 5 4X2(6 wheels) 9.8m pure electric cargo truck, CATL 400.6kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
