JAC Kangling X1 1.5L 113hp 4X2(6 wheels) 3.64m Single Row Van Micro Truck (China VI)

Export reference
From $7,361
MSRP ¥5.3M CNY
Horsepower: 113
Emission: China VI
Fuel: gasoline
Engine: Liuji gasoline 1.5L
Transmission: JAC
Curb Weight:: 1.745ton
seating capacity: 2Personnel
Rated payload: 0.745ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The JAC Kangling X1 1.5L 113hp 4X2(6 wheels) 3.64m Single Row Van Micro Truck (China VI) is a mini truck featuring 3.64m cargo length, Van body cargo body, 2Personnel volume and 0.745t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a Liuji gasoline 1.5L engine, 113 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 113 gasoline 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5031XXYPW5E1B4S
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 2850mm
Box length class: 3.6m
engine: Wuling LiujiLJ4A15Q6
transmission: JACML515A
Cab length: 5.4m
Cab width: 1.73m
Cab height: 2.5m
Front track width: 1260mm
rear track: 1180mm
Curb Weight: 1.745ton
Rated payload: 0.745ton
GVWR: 2.62ton
Max. speed: 100km/h
Origin: Hefei, Anhui
tonnage class: mini truck
Approach angle: 23.5°
departure angle: 16°
market segment: Urban Distribution
Remarks: Solid paint, heater, non-tilting, electronic power steering, MP3
Front/rear suspension: 0.985/1.565m
Energy Type: gasoline
Engine parameters
Engine Brand: Wuling Liuji
Engine Model: Wuling LiujiLJ4A15Q6
Engine info: Liuji gasoline 1.5L
Number of cylinders: 4cylinder
fuel type: gasoline
Cylinder arrangement: Inline
Displacement: 1.499L
Emission standard: China VI
Max output power: 83kW
Max hp: 113Horsepower
Max torque: 147N·m
Engine Oil Change Interval: 20000 km
Transmission Parameters
Transmission Model: JACML515A
Transmission Brand: JAC
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 3.64m
Cargo box width: 1.61m
Cargo box height: 1.75m
*Cargo box interior width: 1.6100000143051
Cab parameters
Cab: Single Row
Cab width: 1560mm
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 945kg
rear axle allowable load: 1675kg
Leaf spring count: 3/5
Tire
Tire Size: 175/75R16LT (dual rear tires)
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
Load-sensing proportioning valve (SABS):
automatic slack adjuster:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
AC control type: Manual
Power interface:
Seat material: Fabric
Exterior features
Air deflector:
Wiper type: Frameless wiper blade
Service brake
Engine brake: none
Brake Type: Hydraulic brake
Parking brake: parking brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
Multimedia features
External audio input (AUX/USB/iPod etc.):
Radio:
standard instrument cluster:
lighting configuration
Headlight brand: Danyang Jincheng
Front fog lamp:
Halogen Headlights:
maintenance service
Vehicle Warranty Period: Max 3 Years or 500,000 km
24-hour service hotline: 4008009933
Rescue service: 24 hours

Photos

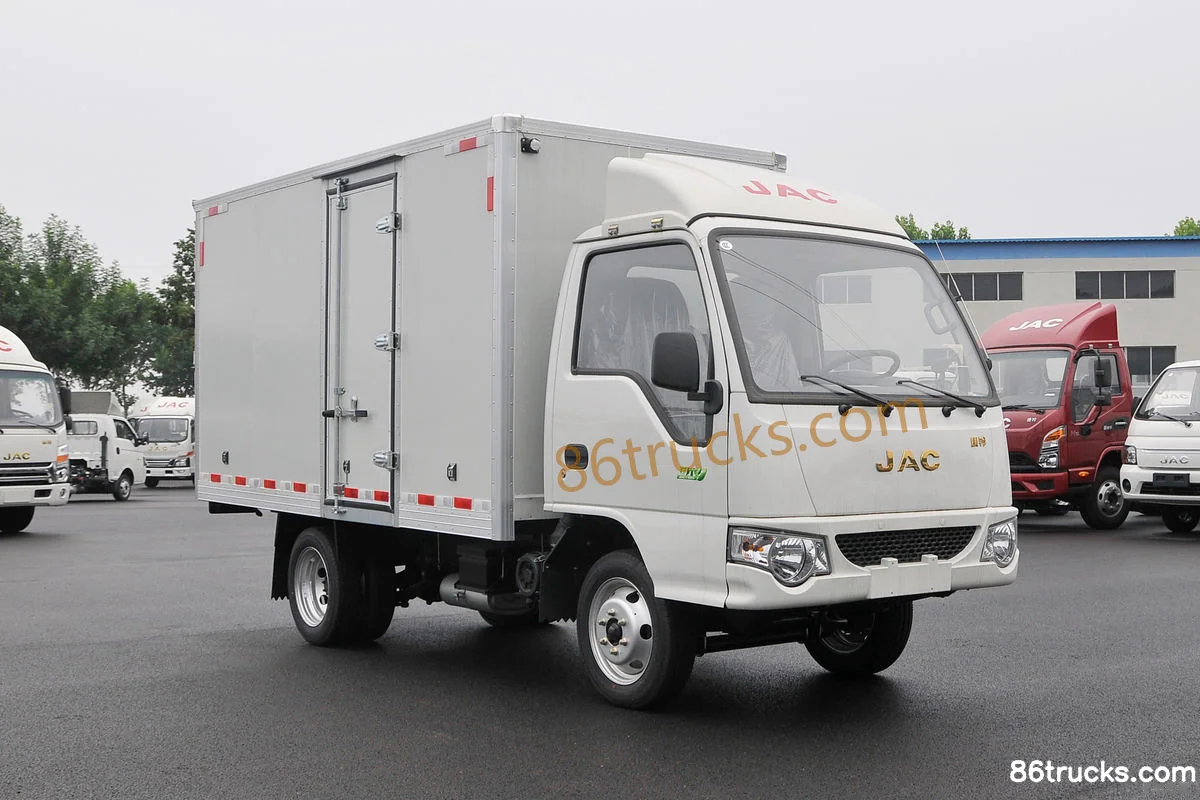

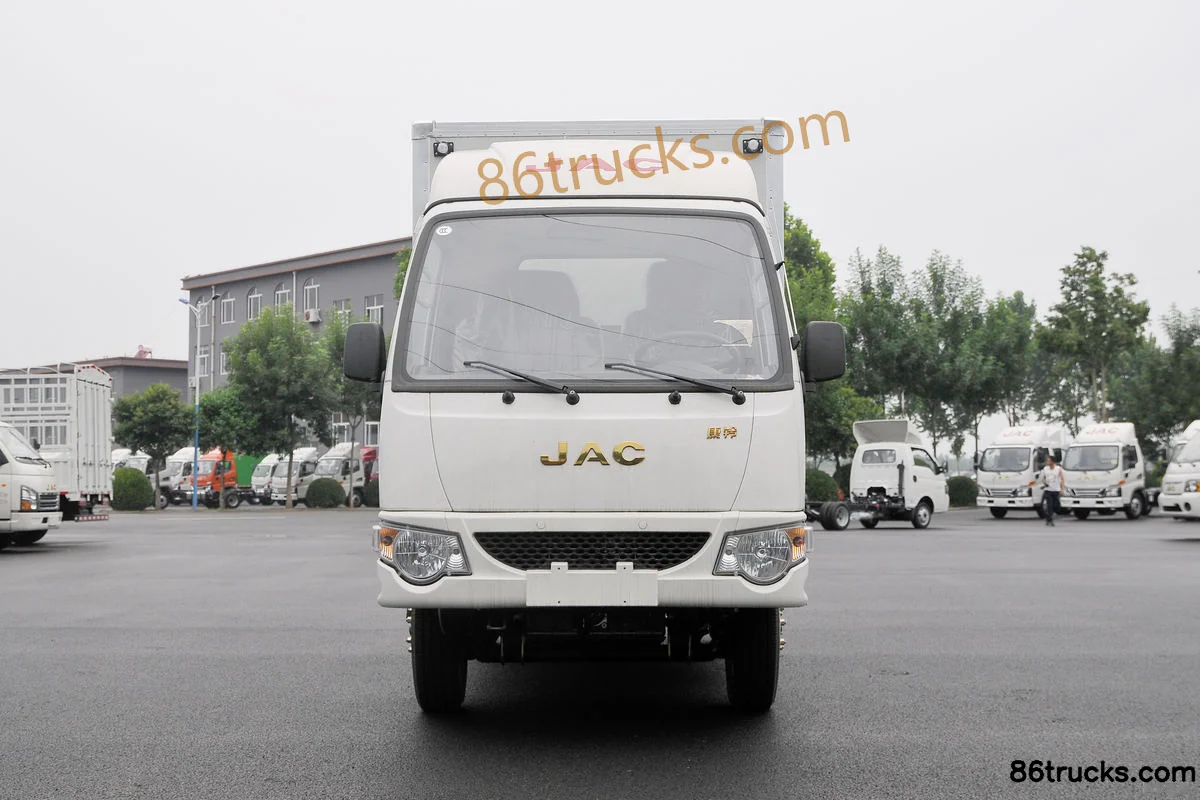

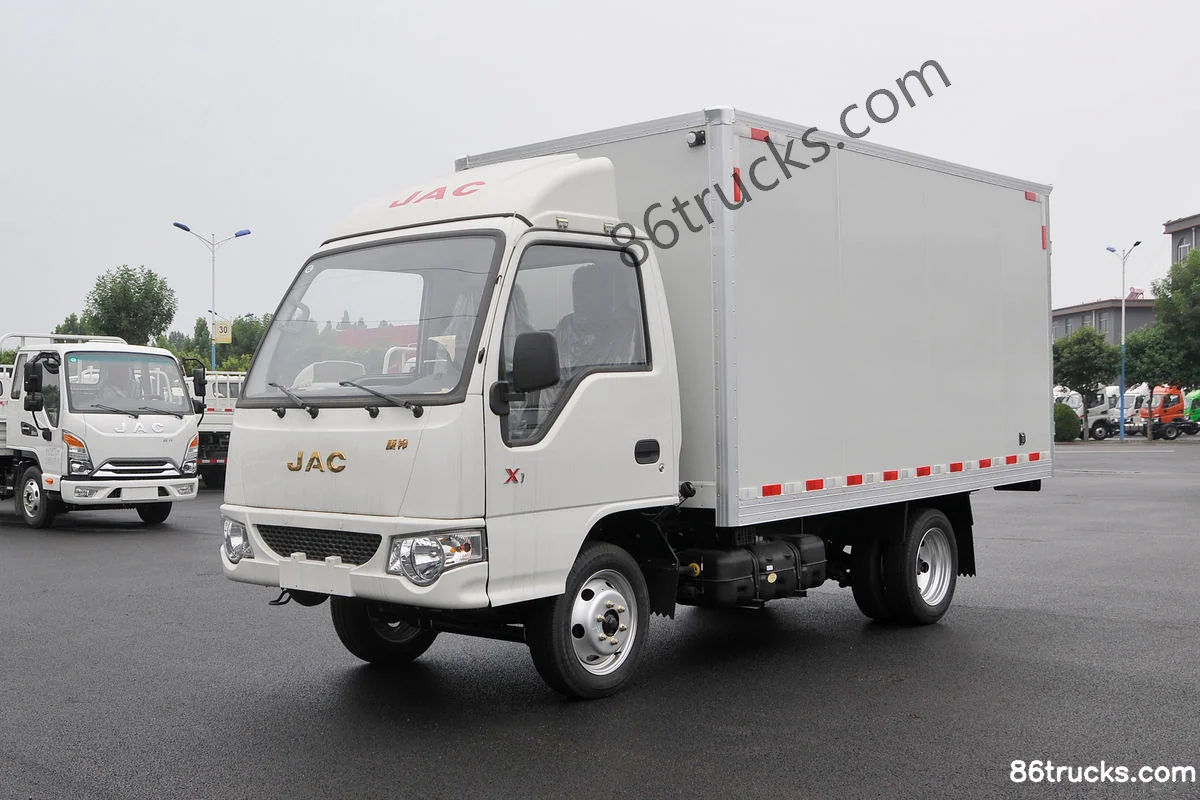

Exterior3

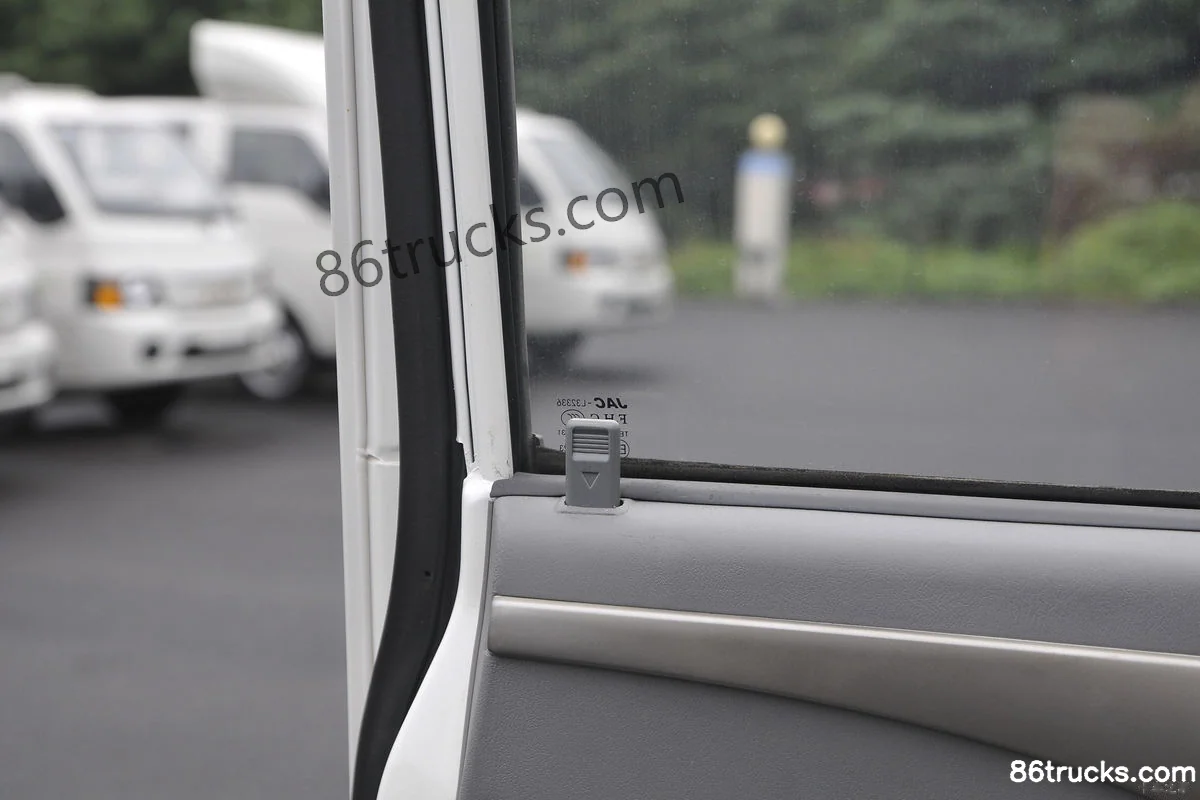

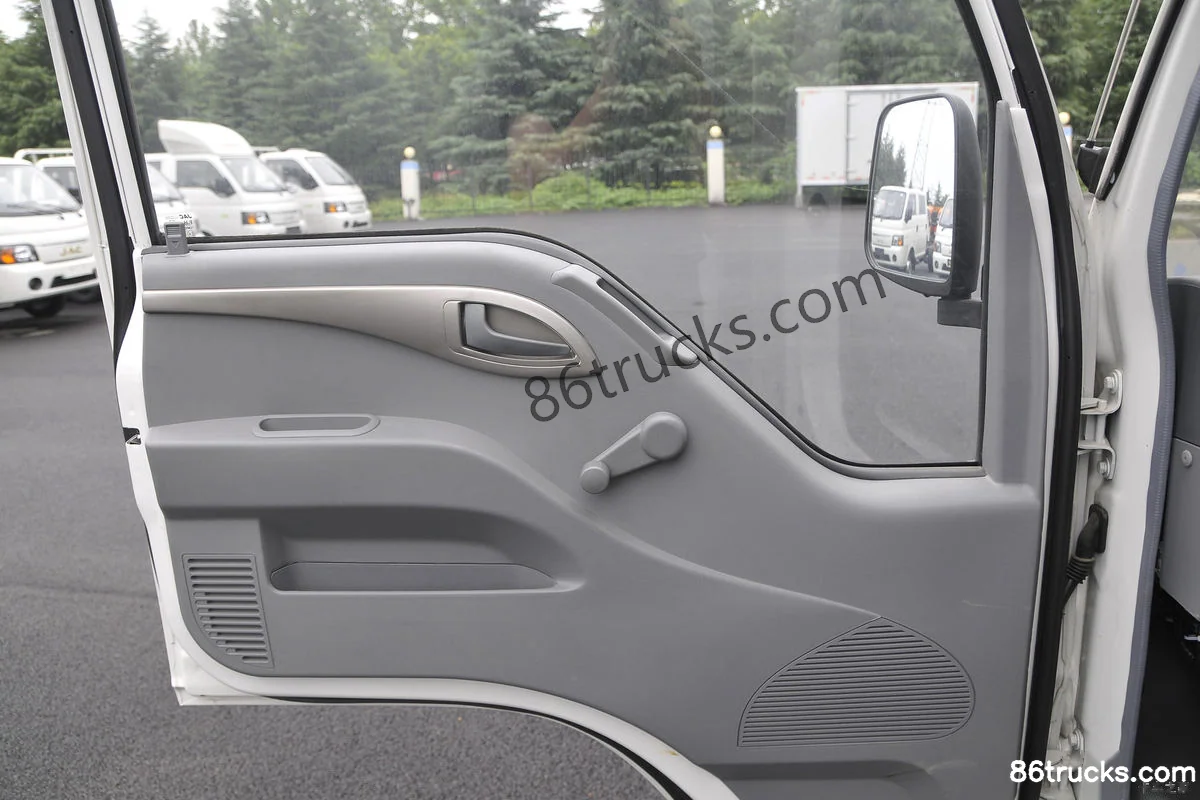

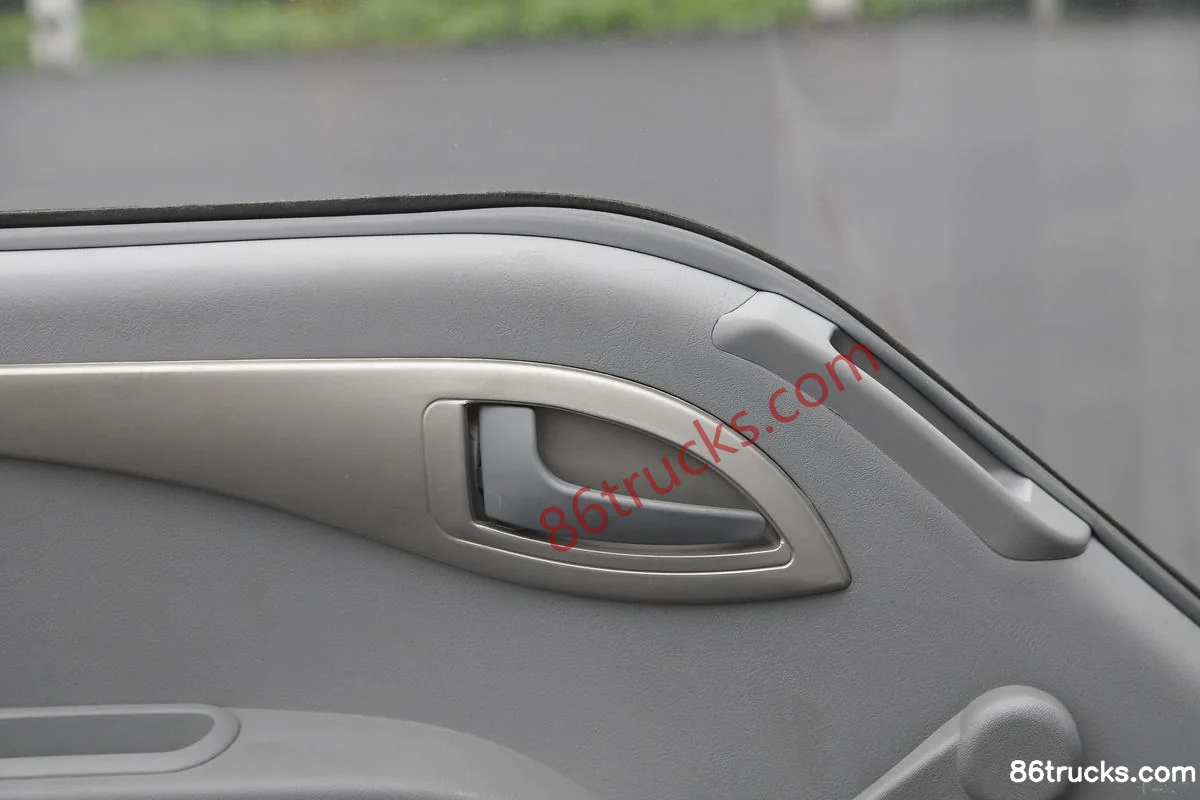

Cab3

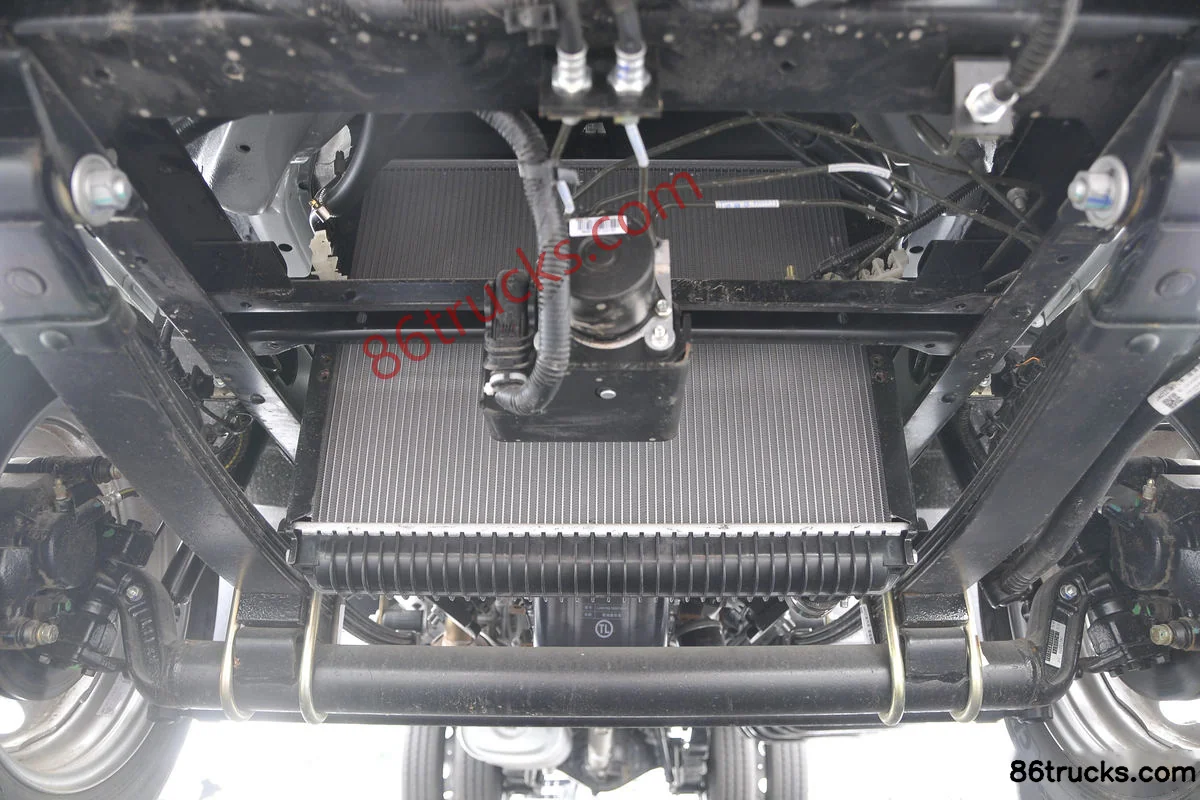

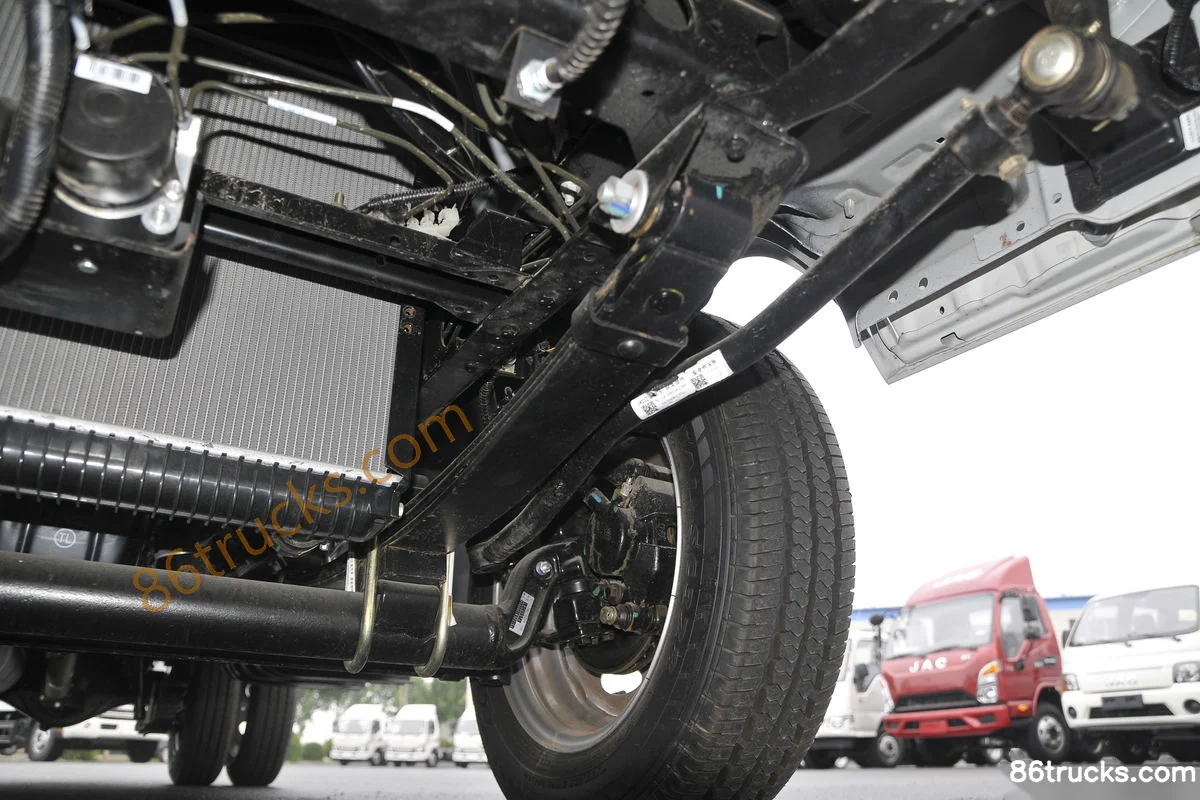

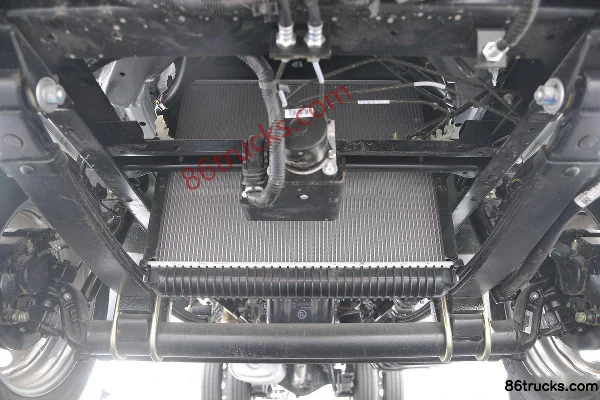

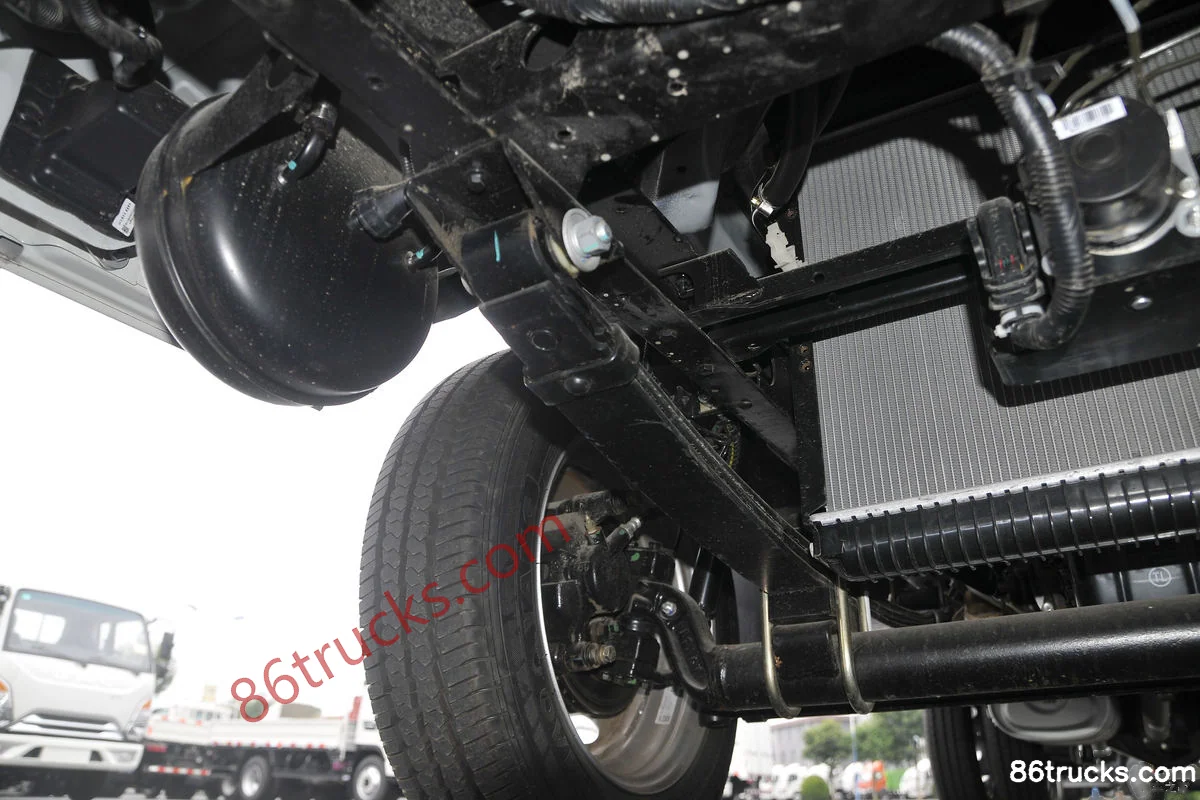

Chassis3

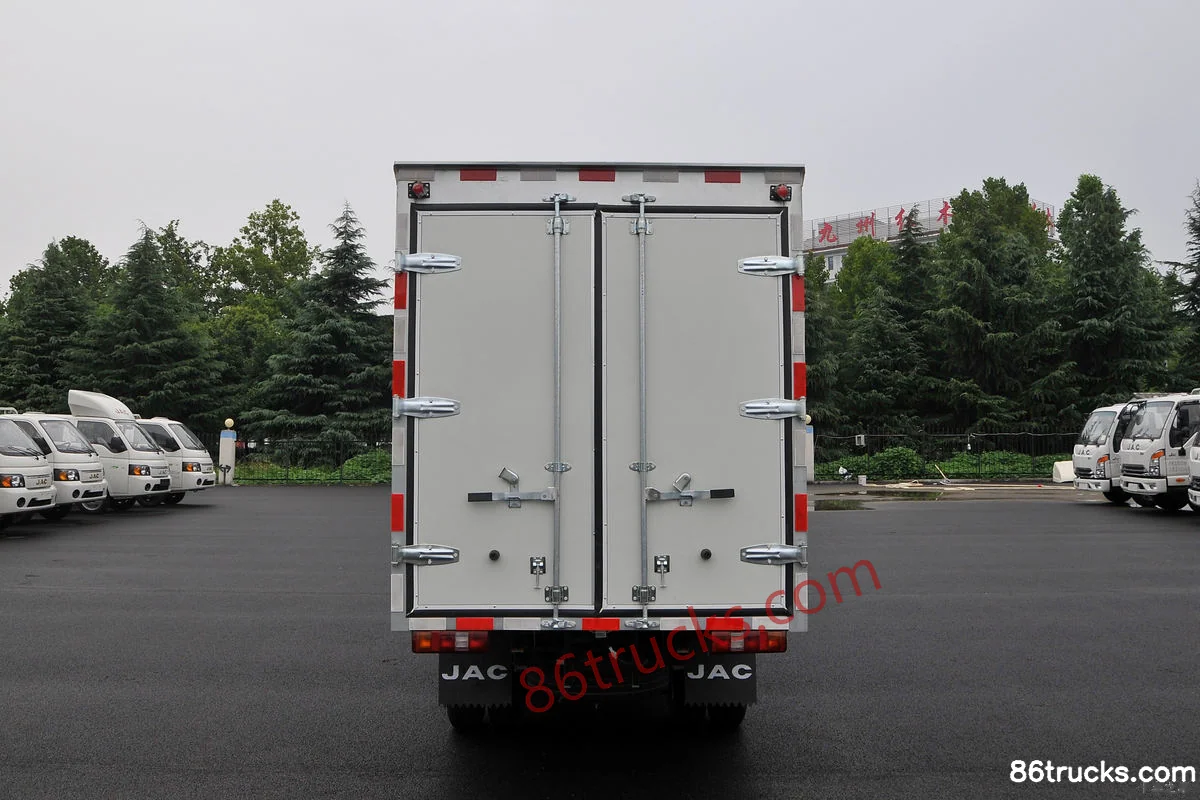

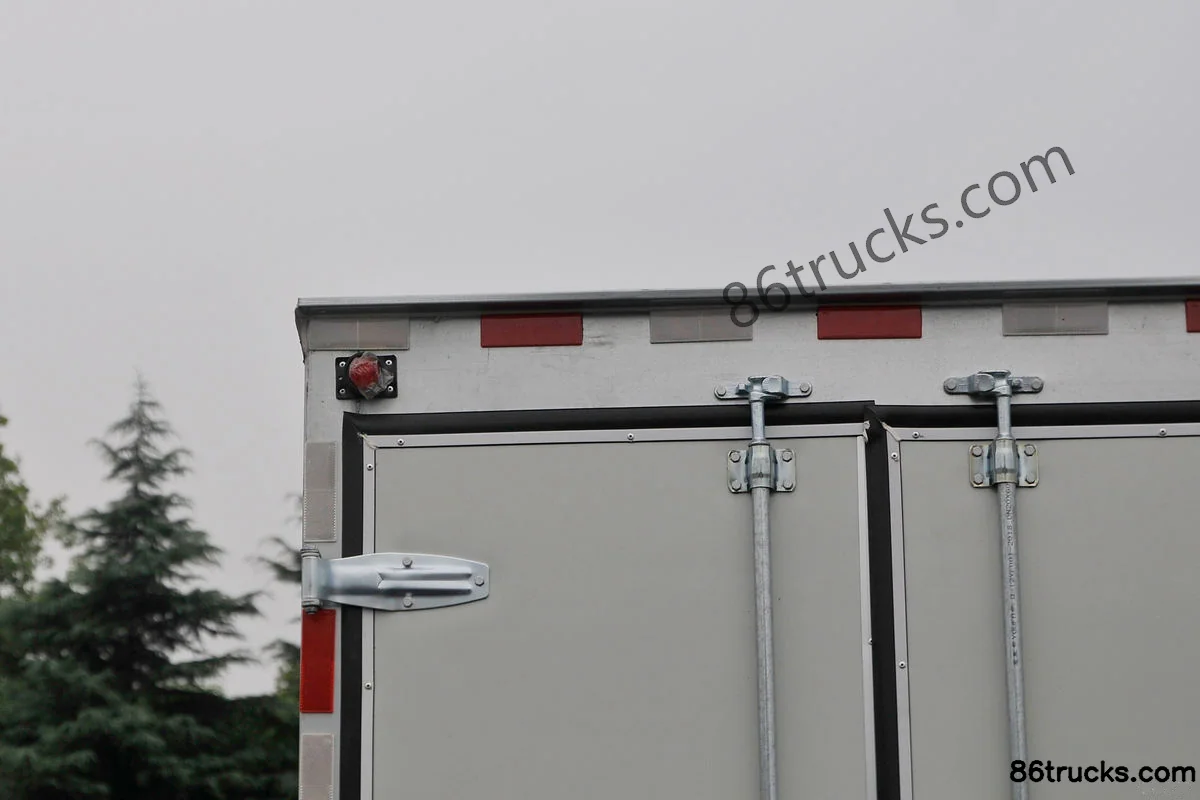

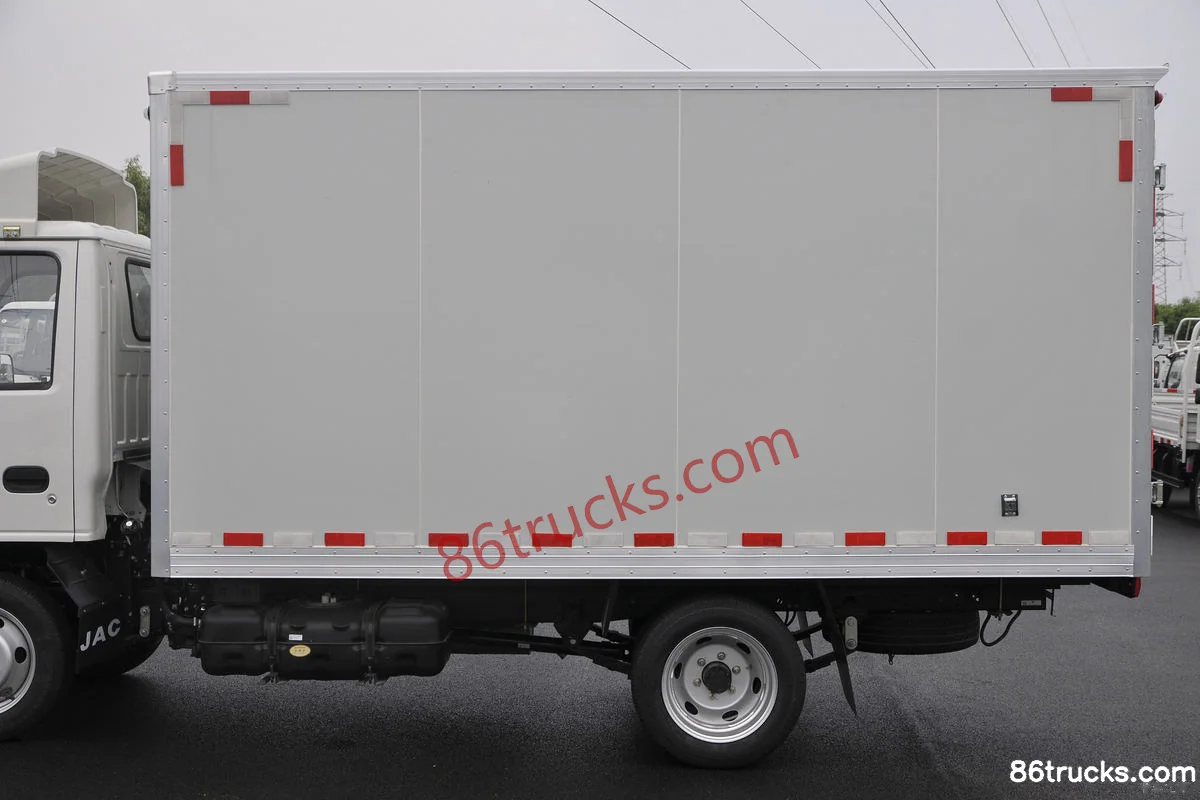

Body3

12 photos

FAQ

What is the export price of JAC Kangling X1 1.5L 113hp 4X2(6 wheels) 3.64m Single Row Van Micro Truck (China VI), and what does it include?

JAC Kangling X1 1.5L 113hp 4X2(6 wheels) 3.64m Single Row Van Micro Truck (China VI) export reference is about From $7,361; MSRP is ¥5.3M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Kangling X1 1.5L 113hp 4X2(6 wheels) 3.64m Single Row Van Micro Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Kangling X1 1.5L 113hp 4X2(6 wheels) 3.64m Single Row Van Micro Truck (China VI)?

Key specs of JAC Kangling X1 1.5L 113hp 4X2(6 wheels) 3.64m Single Row Van Micro Truck (China VI): Drive: 4x2; Horsepower: 113 hp; Emission: China VI; Fuel: gasoline; Engine: Liuji gasoline 1.5L; Transmission: JAC. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Kangling X1 1.5L 113hp 4X2(6 wheels) 3.64m Single Row Van Micro Truck (China VI) suited for?

JAC Kangling X1 1.5L 113hp 4X2(6 wheels) 3.64m Single Row Van Micro Truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Kangling X1 1.5L 113hp 4X2(6 wheels) 3.64m Single Row Van Micro Truck (China VI) differ from other variants in the same series?

JAC Kangling X1 1.5L 113hp 4X2(6 wheels) 3.64m Single Row Van Micro Truck (China VI) belongs to JACX1 Mini Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Kangling X1 1.5L 113hp 4X2(6 wheels) 3.64m Single Row Van Micro Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Kangling X1 1.5L 113hp 4X2(6 wheels) 3.64m Single Row Van Micro Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
