Foton Aoling V Card 1.6L 105 hp 4X2(6 wheels) CNG 3.535m Crew Cab Flatbed Light Truck

Export reference
From $9,972
MSRP ¥7.18M CNY
Horsepower: 105
Emission: China VI
Fuel: Compressed Natural Gas (CNG)
Engine: Dongan1.6L
Transmission: Dongan
Curb Weight:: 1.84ton
Air tank capacity: 90+90L
Rated payload: 1.52ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Foton Aoling V Card 1.6L 105 hp 4X2(6 wheels) CNG 3.535m Crew Cab Flatbed Light Truck is a mini truck featuring 3.535m cargo length, stake body cargo body, 90+90L volume and 1.52t payload. On the powertrain side, it comes with a Dongan1.6L engine, 105 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 105 Compressed Natural Gas (CNG) 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ1031V4JC6-AB1
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3000mm
Box length class: 3.5m
engine: DonganDAM16KLC
transmission: DonganDAT18R
Rear Axle Ratio: 5.375
Cab length: 5.565m
Cab width: 1.9m
Cab height: 2.135m
Front track width: 1515mm
rear track: 1440mm
Curb Weight: 1.84ton
Rated payload: 1.52ton
GVWR: 3.49ton
Max. speed: 100km/h
Origin: Shandong Zhucheng
tonnage class: mini truck
Approach angle: 16°
departure angle: 16°
Front/rear suspension: 1.09/1.475m
Energy Type: Compressed Natural Gas (CNG)
Engine parameters
Engine Brand: Dongan
Engine Model: DonganDAM16KLC
Engine info: Dongan1.6L
Number of cylinders: 4cylinder
fuel type: Compressed Natural Gas (CNG)
Cylinder arrangement: Inline
Displacement: 1.597L
Emission standard: China VI
Max output power: 77kW
Max hp: 105Horsepower
Max torque: 134N·m
Max torque speed: 4400rpm
Rated speed: 6000rpm
Transmission Parameters
Transmission Model: DonganDAT18R
Transmission Brand: Dongan
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.535m
Cargo box width: 1.81m
Cargo box height: 0.36m
*Cargo box interior width: 1.81
fuel tank
Air tank capacity: 90+90L
Fuel tank material: Plastic
Fuel tank capacity: 15L
Cab parameters
Cab width: 1730mm
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 1400kg
Frame Dimensions: 714/760-130×50×4mm
rear axle description: 2.5T rear axle
rear axle allowable load: 2090kg
Axle ratio: 5.375
Leaf spring count: 3/5+2
Tire
Tire Size: 185R14LT 6PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Optional manual.
Power Windows:
Electric Heated Rearview Mirror:
Seat material: Fabric
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Multimedia features
Center Console Color Screen:
Bluetooth / hands-free calling:
lighting configuration
Front fog lamp:
daytime running lights:
Halogen Headlights:
Service brake
Brake Type: Hydraulic brake
Parking brake: parking brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

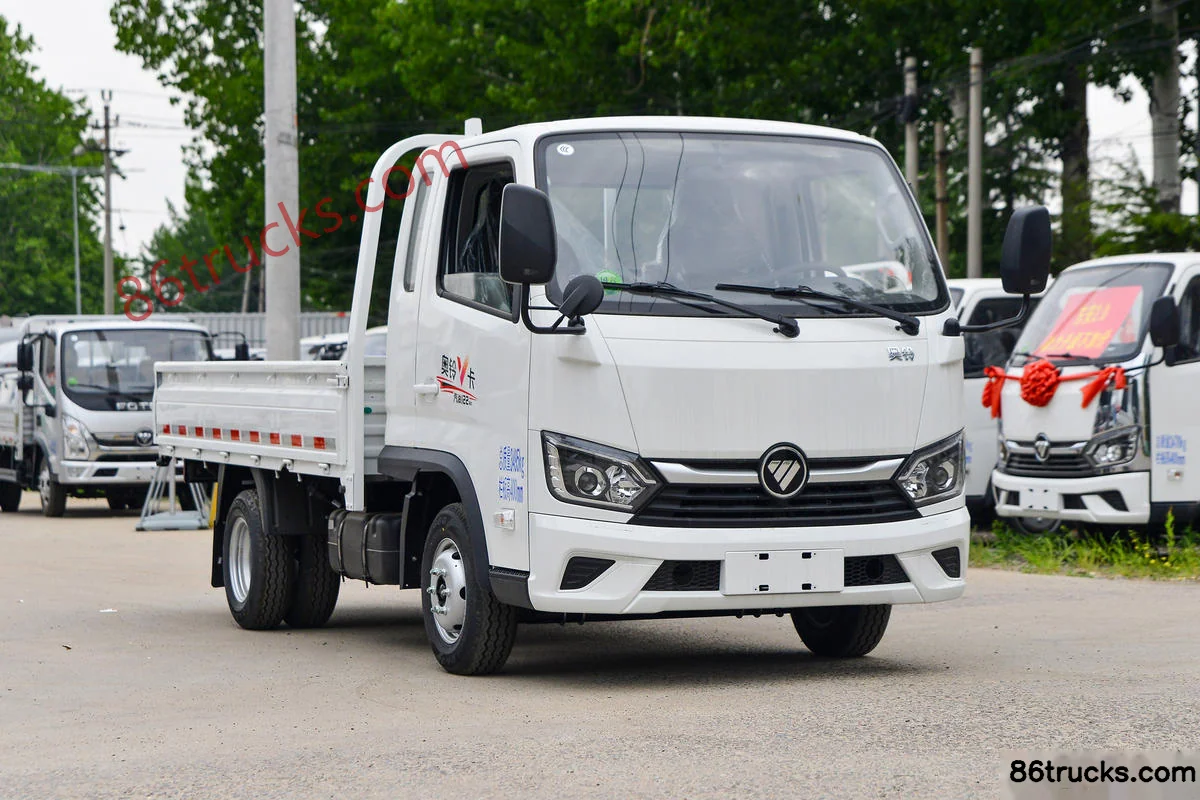

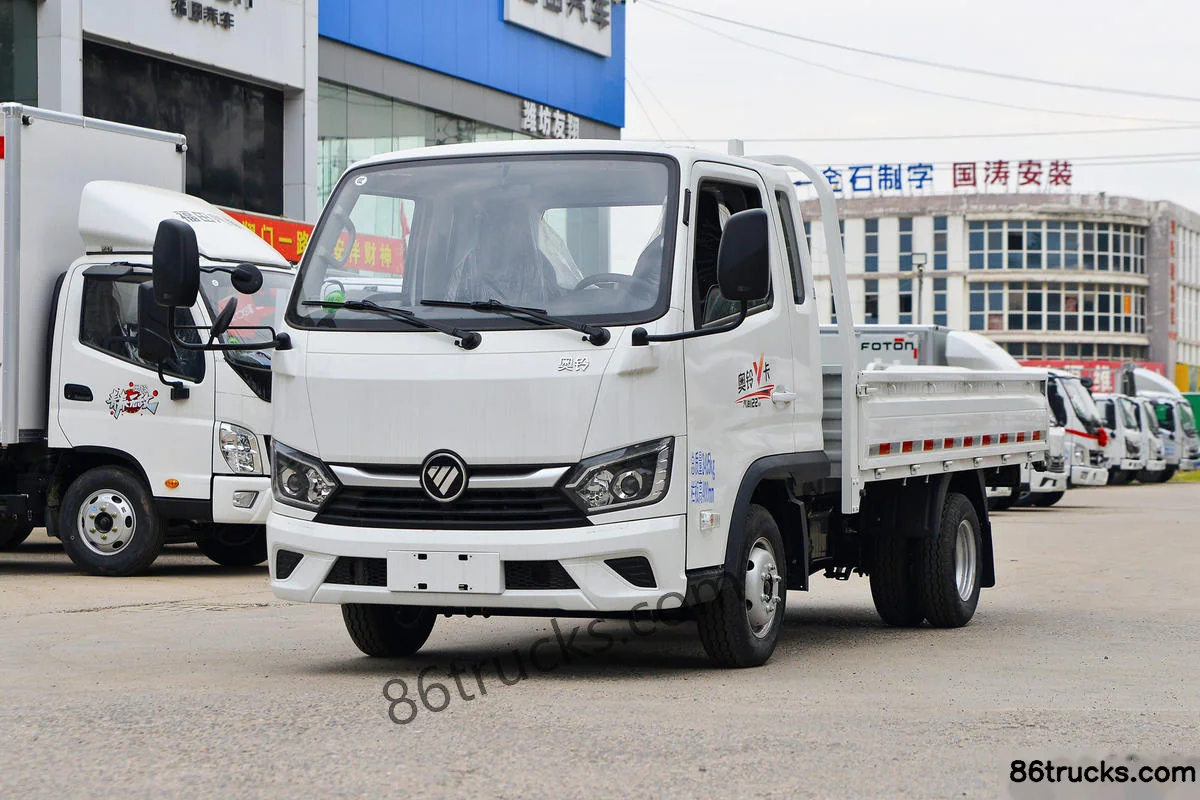

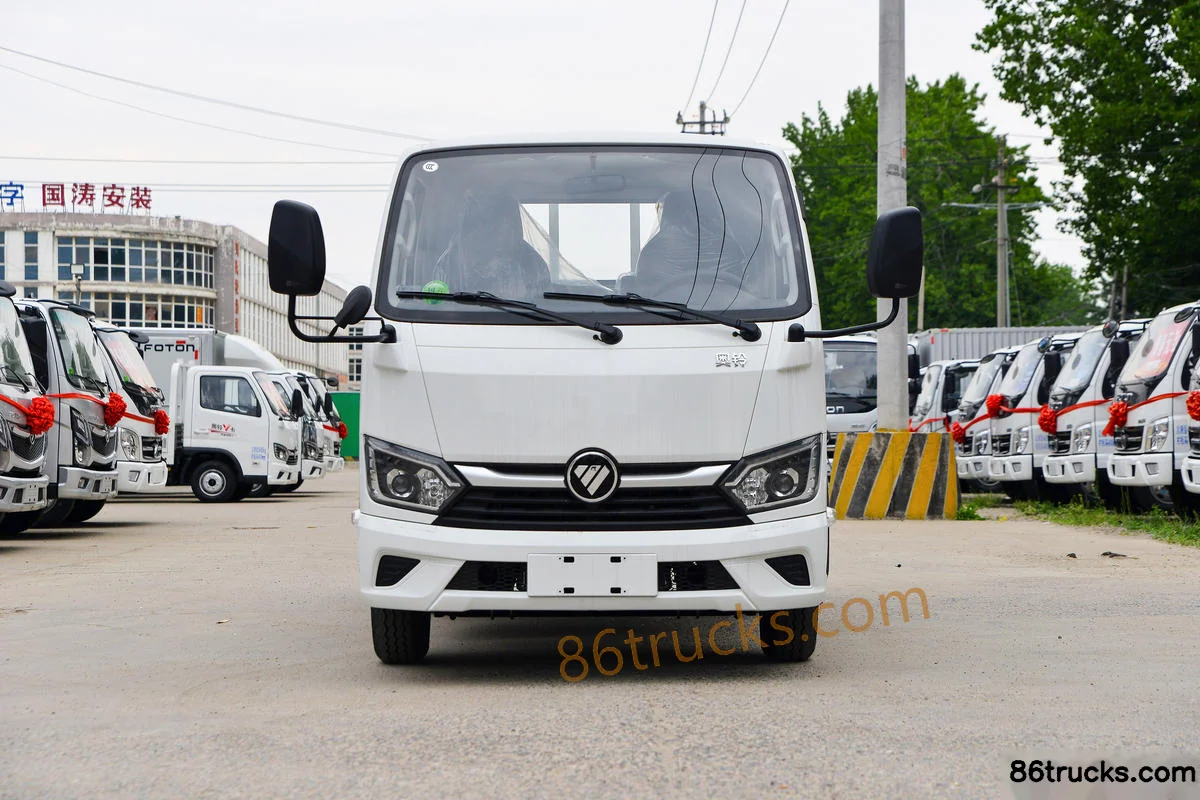

Exterior3

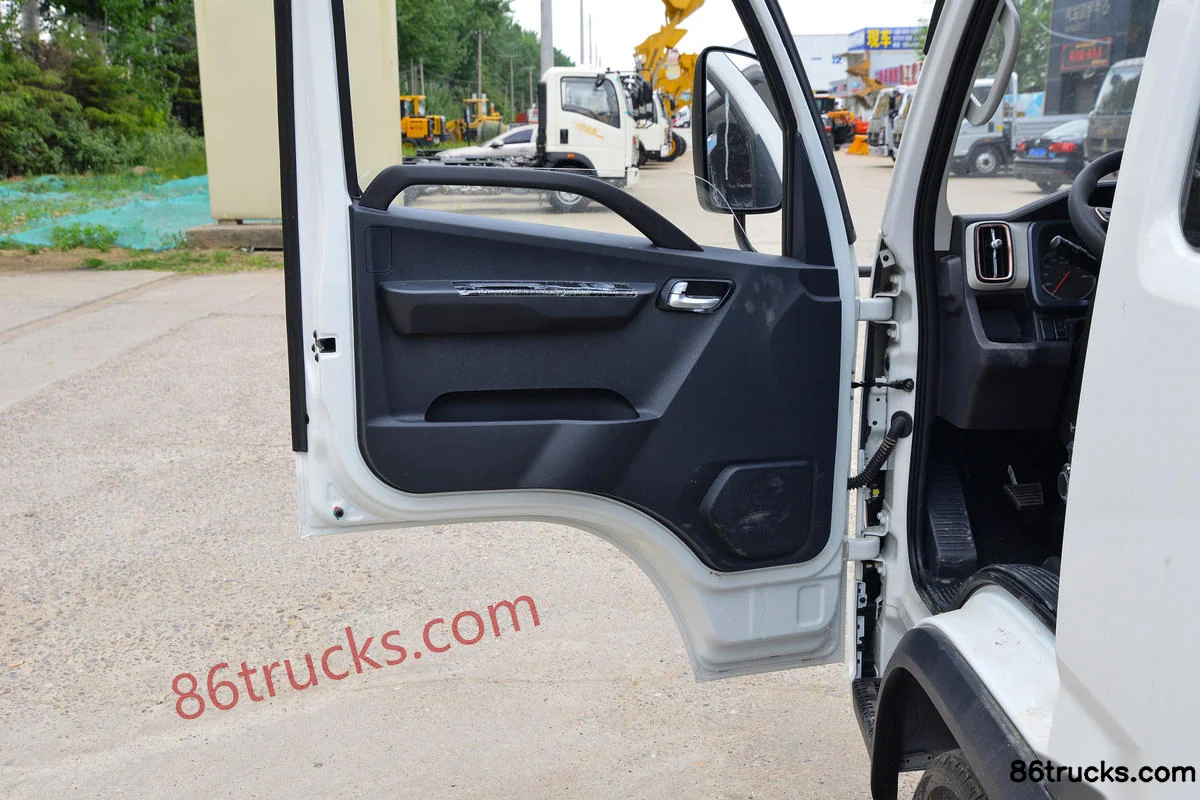

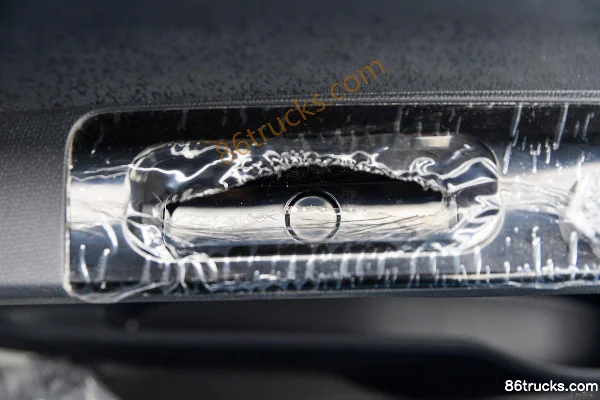

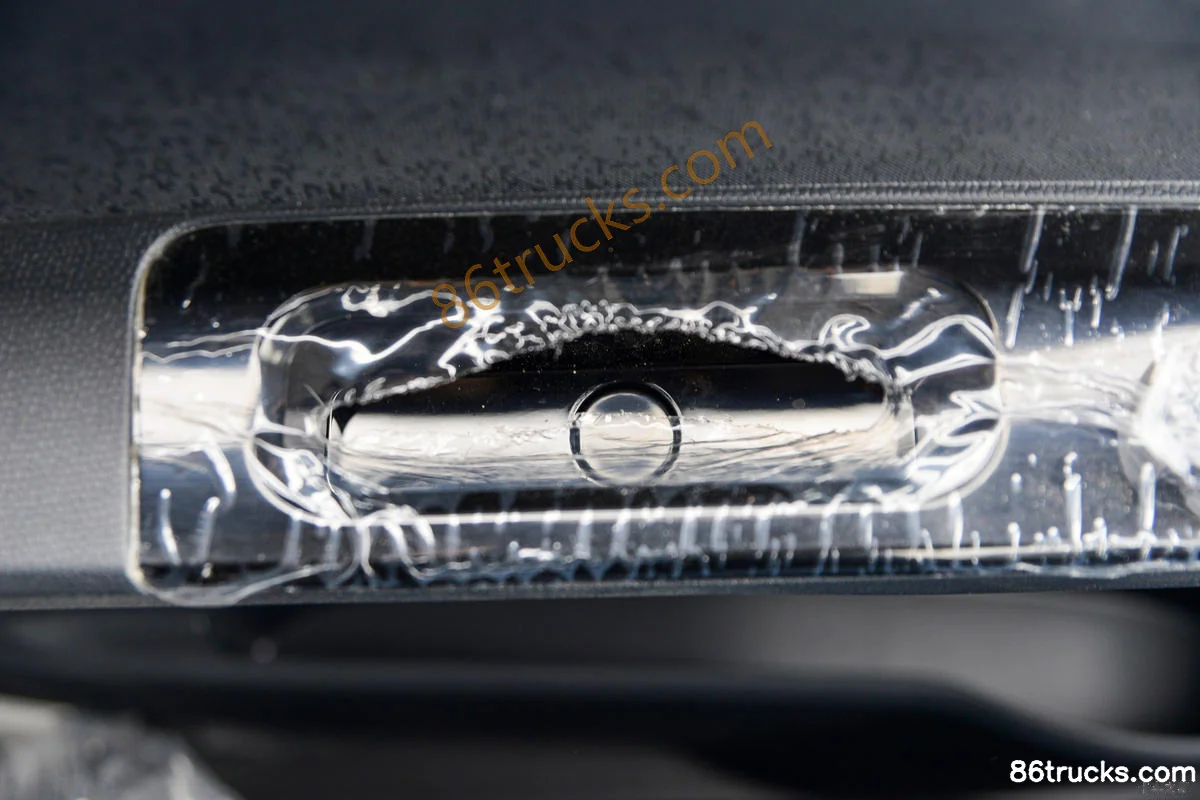

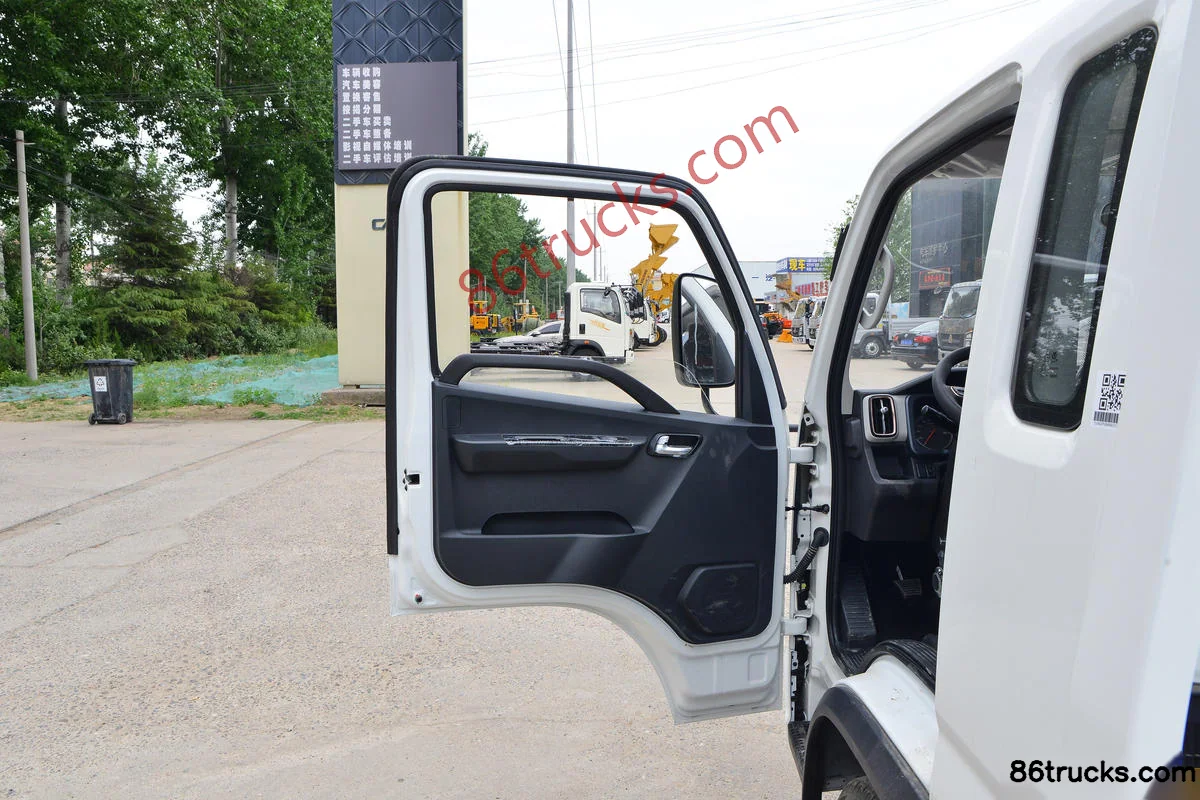

Cab3

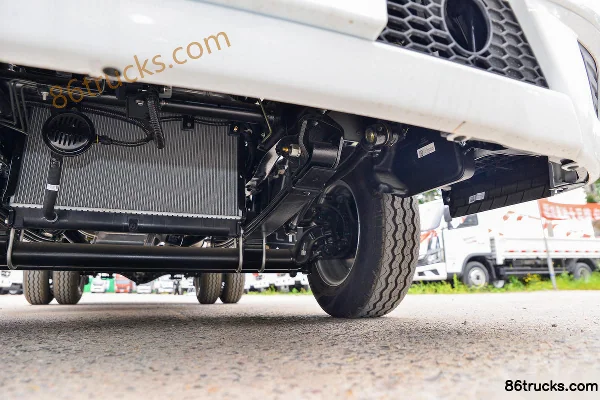

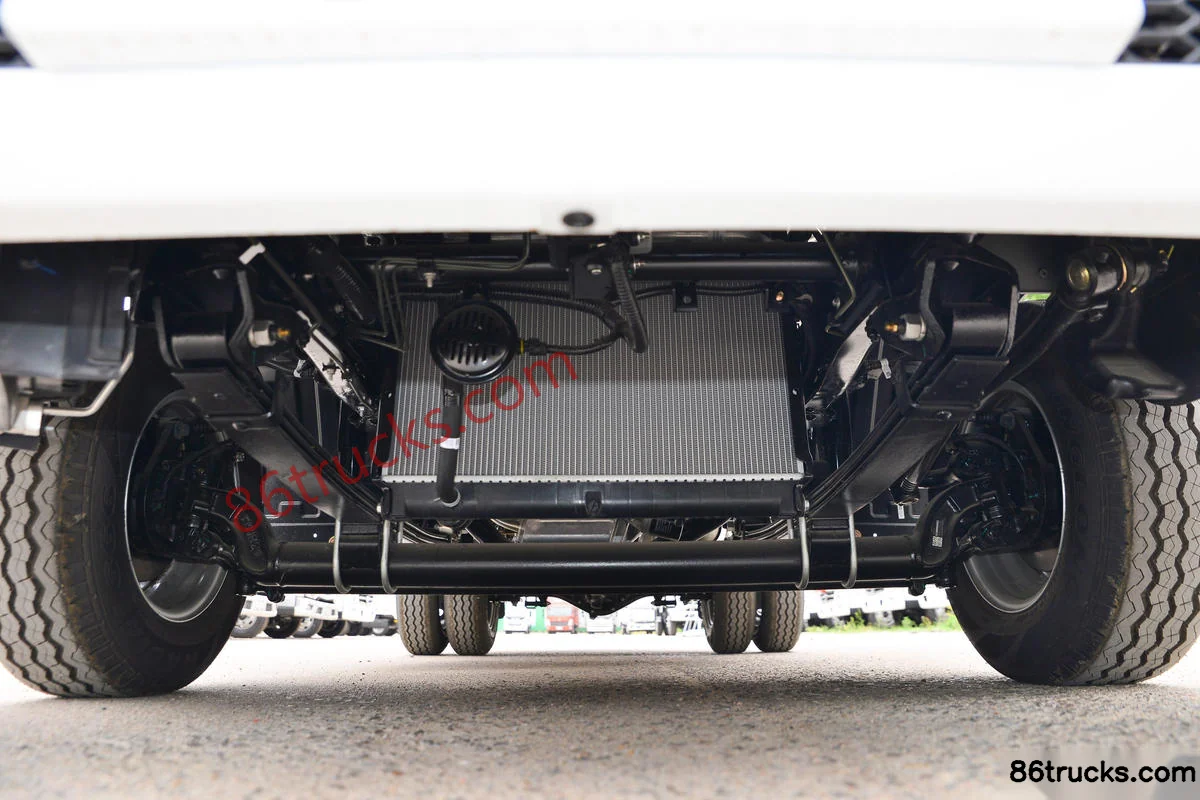

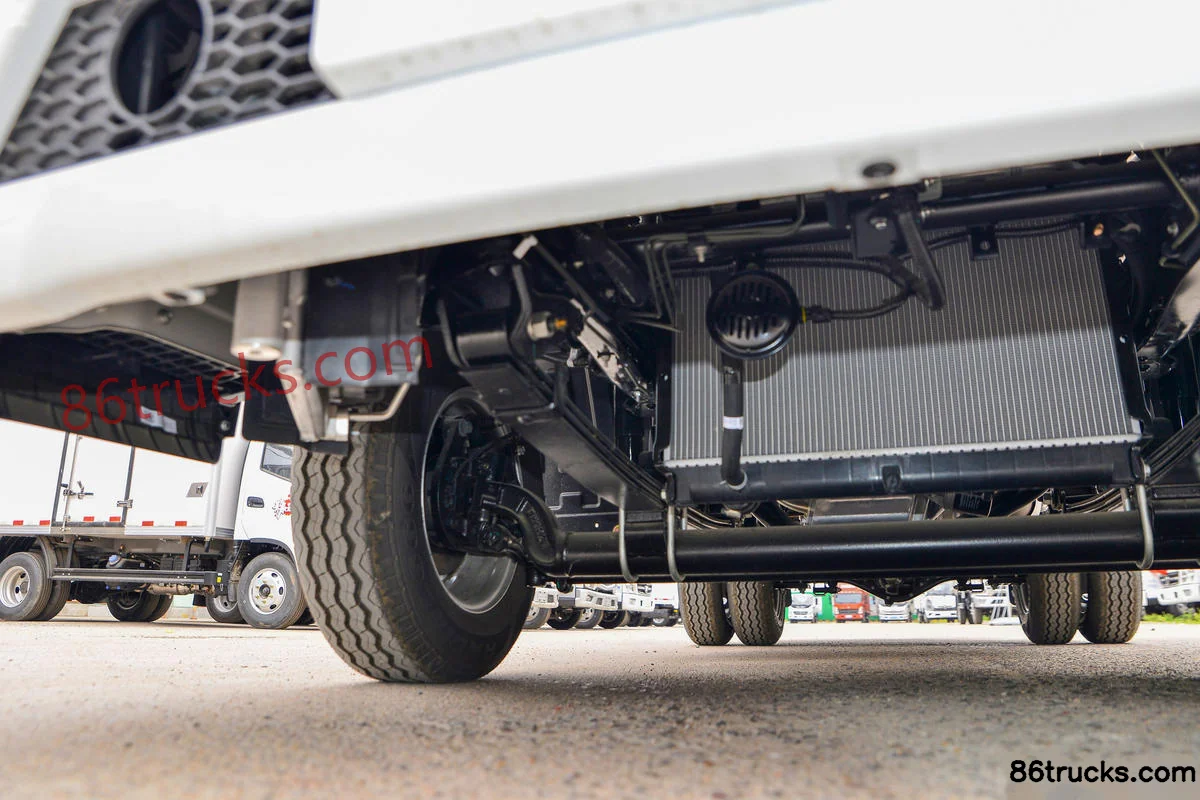

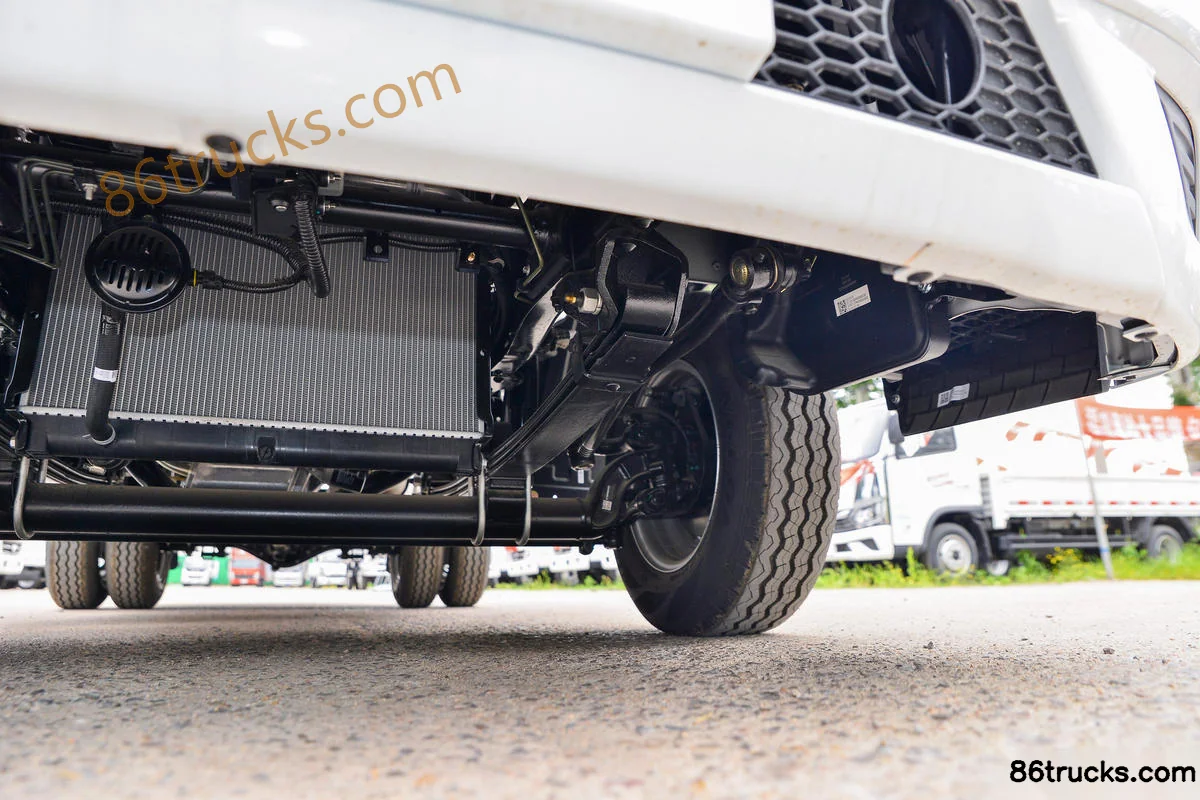

Chassis3

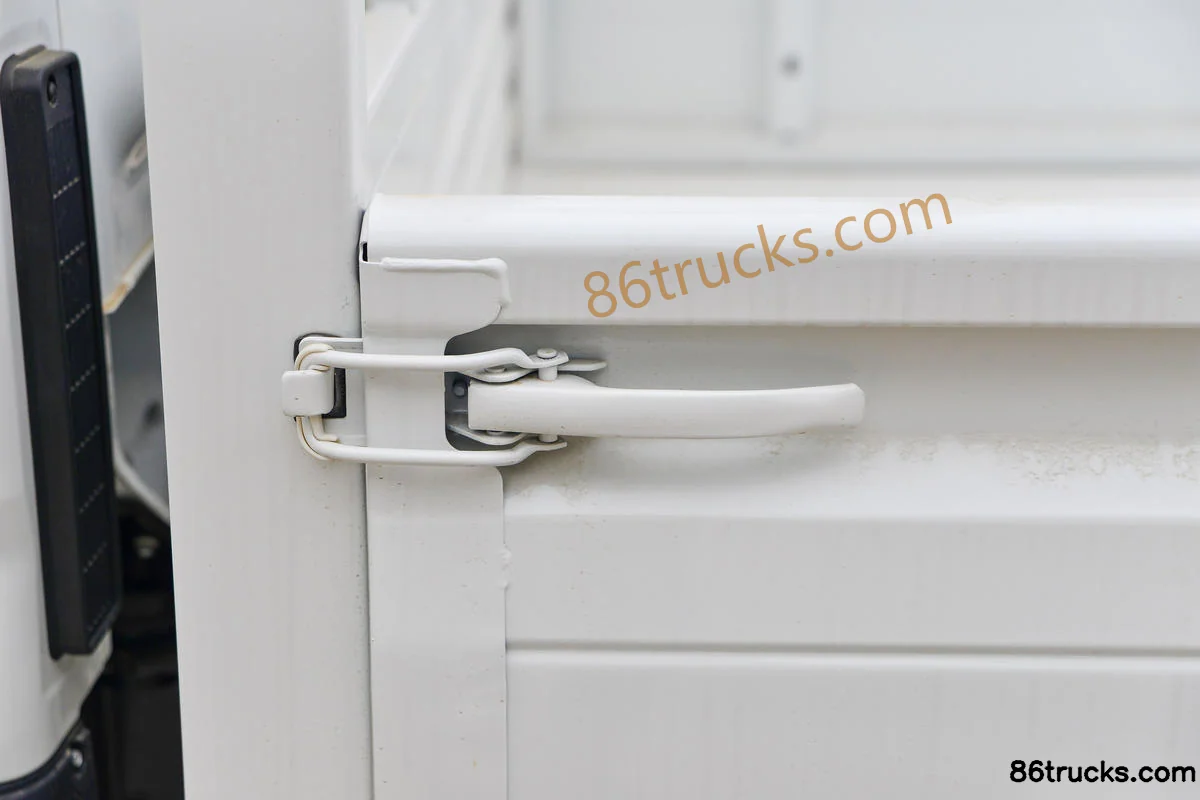

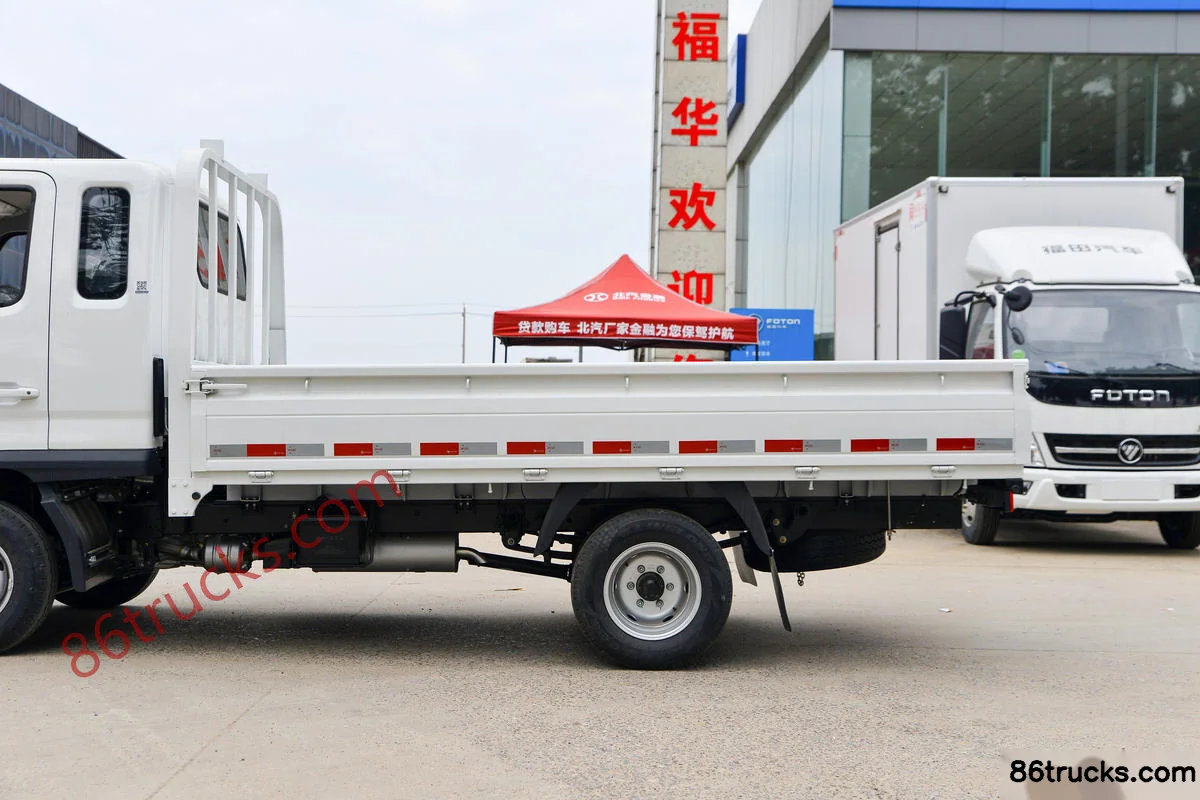

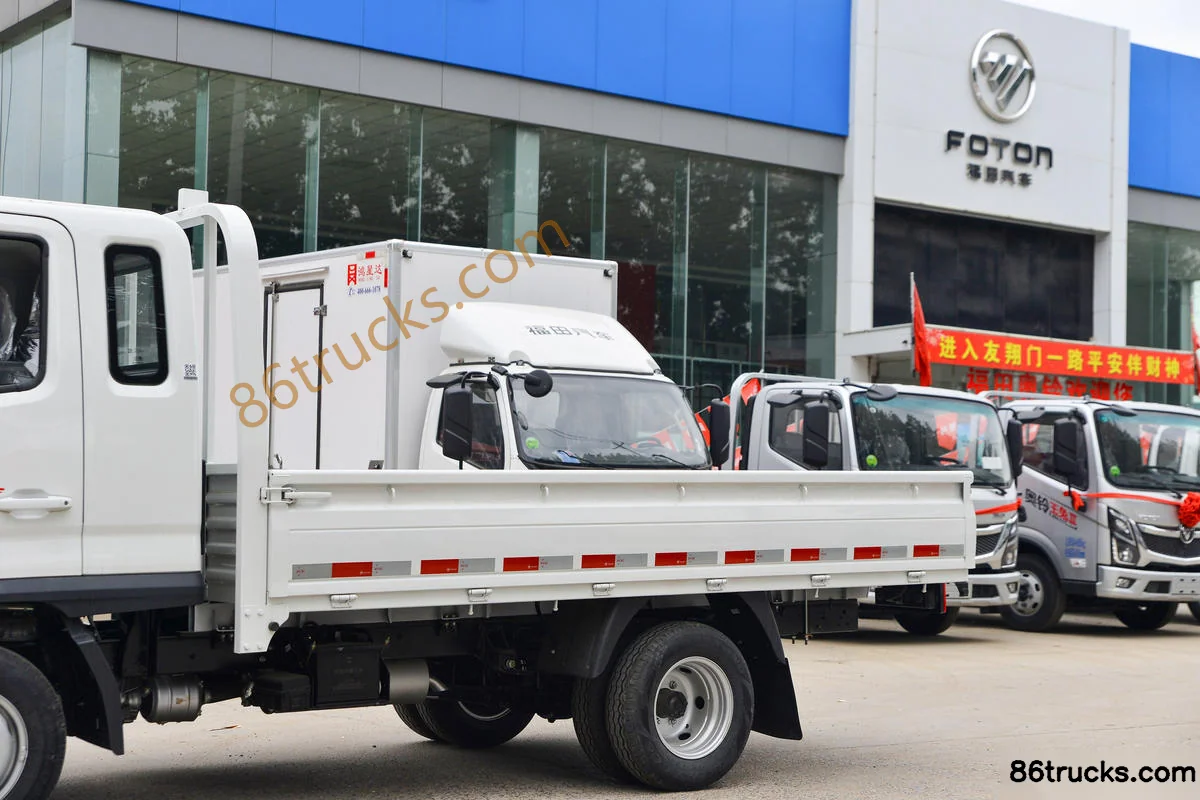

Body3

12 photos

FAQ

What is the export price of Foton Aoling V Card 1.6L 105 hp 4X2(6 wheels) CNG 3.535m Crew Cab Flatbed Light Truck, and what does it include?

Foton Aoling V Card 1.6L 105 hp 4X2(6 wheels) CNG 3.535m Crew Cab Flatbed Light Truck export reference is about From $9,972; MSRP is ¥7.18M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Aoling V Card 1.6L 105 hp 4X2(6 wheels) CNG 3.535m Crew Cab Flatbed Light Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Aoling V Card 1.6L 105 hp 4X2(6 wheels) CNG 3.535m Crew Cab Flatbed Light Truck?

Key specs of Foton Aoling V Card 1.6L 105 hp 4X2(6 wheels) CNG 3.535m Crew Cab Flatbed Light Truck: Drive: 4x2; Horsepower: 105 hp; Emission: China VI; Fuel: Compressed Natural Gas (CNG); Engine: Dongan1.6L; Transmission: Dongan. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Aoling V Card 1.6L 105 hp 4X2(6 wheels) CNG 3.535m Crew Cab Flatbed Light Truck suited for?

Foton Aoling V Card 1.6L 105 hp 4X2(6 wheels) CNG 3.535m Crew Cab Flatbed Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Aoling V Card 1.6L 105 hp 4X2(6 wheels) CNG 3.535m Crew Cab Flatbed Light Truck differ from other variants in the same series?

Foton Aoling V Card 1.6L 105 hp 4X2(6 wheels) CNG 3.535m Crew Cab Flatbed Light Truck belongs to Foton V Card (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Aoling V Card 1.6L 105 hp 4X2(6 wheels) CNG 3.535m Crew Cab Flatbed Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Aoling V Card 1.6L 105 hp 4X2(6 wheels) CNG 3.535m Crew Cab Flatbed Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
