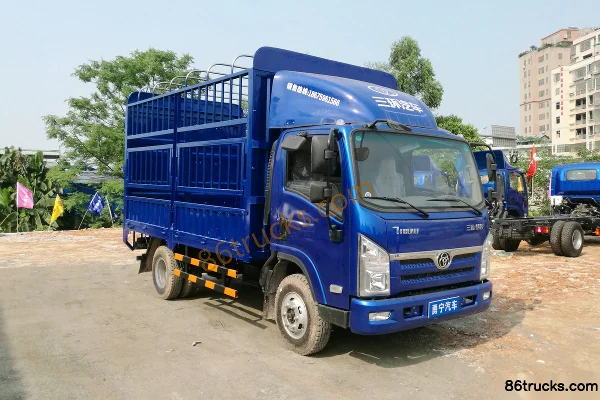

Sanhuan Shitong T3 Chuangke 160hp 4X2(6 wheels) 4.15m single-row cab stake truck

Export reference
From $18,889
MSRP ¥13.6M CNY
Horsepower: 160
Emission: China V
Fuel: Diesel
Engine: Yuchai 4-cylinder
Transmission: Fast Gear
Curb Weight:: 2.355ton
seating capacity: 3Personnel
Rated payload: 1.94ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Sanhuan Shitong T3 Chuangke 160hp 4X2(6 wheels) 4.15m single-row cab stake truck is a Light Truck featuring 4.15m cargo length, Stake type cargo body, 3Personnel volume and 1.94t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Yuchai 4-cylinder engine, 160 hp, 4X2 (6 wheels) drive and China V emissions.

China V 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): STQ5043CCYN5
Type: stake truck
Drive type: 4X2
Wheelbase: 3650mm
Box length class: 4.2m
engine: YuchaiYC4E160-56
transmission: Fast Gear8JS85TE
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.4m
Cab height: 3.3m
Front track width: 1670mm
rear track: 1585mm
Curb Weight: 2.355ton
Rated payload: 1.94ton
GVWR: 4.49ton
Max. speed: 88km/h
Origin: Shiyan, Hubei
tonnage class: Light Truck
Approach angle: 22°
departure angle: 16°
market segment: Agricultural product transport, green channel
Front/rear suspension: 1.155/1.54m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4E160-56
Engine info: Yuchai 4-cylinder
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.26L
Emission standard: China V
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 600N·m
Max torque speed: 1300-1600rpm
Rated speed: 2600rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear8JS85TE
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 4.15m
Cargo box width: 2.3m
*Cargo box interior width: 2.2999999523163
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 140L
Chassis Specs
Front axle allowable load: 1710kg
rear axle description: 9T
rear axle allowable load: 2780kg
Axle ratio: 4.875
Leaf spring count: 8/10+7,3/10+7
Tire
Tire Size: 7.50R16LT 6PR,8.25R16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
Reverse Camera:
Remote key:
Exterior features
Air deflector:
Multimedia features
GPS/Beidou driving recorder:
Bluetooth / hands-free calling:

Photos

0 photos

FAQ

What is the export price of Sanhuan Shitong T3 Chuangke 160hp 4X2(6 wheels) 4.15m single-row cab stake truck, and what does it include?

Sanhuan Shitong T3 Chuangke 160hp 4X2(6 wheels) 4.15m single-row cab stake truck export reference is about From $18,889; MSRP is ¥13.6M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sanhuan Shitong T3 Chuangke 160hp 4X2(6 wheels) 4.15m single-row cab stake truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sanhuan Shitong T3 Chuangke 160hp 4X2(6 wheels) 4.15m single-row cab stake truck?

Key specs of Sanhuan Shitong T3 Chuangke 160hp 4X2(6 wheels) 4.15m single-row cab stake truck: Drive: 4x2; Horsepower: 160 hp; Emission: China V; Fuel: Diesel; Engine: Yuchai 4-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sanhuan Shitong T3 Chuangke 160hp 4X2(6 wheels) 4.15m single-row cab stake truck suited for?

Sanhuan Shitong T3 Chuangke 160hp 4X2(6 wheels) 4.15m single-row cab stake truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sanhuan Shitong T3 Chuangke 160hp 4X2(6 wheels) 4.15m single-row cab stake truck differ from other variants in the same series?

Sanhuan Shitong T3 Chuangke 160hp 4X2(6 wheels) 4.15m single-row cab stake truck belongs to Sanhuan Shitong Chuanke Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sanhuan Shitong T3 Chuangke 160hp 4X2(6 wheels) 4.15m single-row cab stake truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sanhuan Shitong T3 Chuangke 160hp 4X2(6 wheels) 4.15m single-row cab stake truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
