Tangjun Ouling Xiaobao 88 hp 4X2(6 wheels) 3m double-row flatbed micro truck

Export reference
From $7,639
MSRP ¥5.5M CNY
Horsepower: 88
Emission: China IV
Fuel: Diesel
Engine: Quanchai485
Transmission: Mengwo
Curb Weight:: 1.7ton
seating capacity: 5Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Tangjun Ouling Xiaobao 88 hp 4X2(6 wheels) 3m double-row flatbed micro truck is a mini truck featuring 3.02m cargo length, stake body cargo body, 5Personnel volume and 1.495t payload. On the powertrain side, it comes with a Quanchai485 engine, 88 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 88 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZB1040BSD0F
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3050mm
Box length class: 3m
engine: Quanchai4B1-88C40
transmission: MengwoMW5T20
Rear Axle Ratio: 5.28
Cab length: 5.68m
Cab width: 1.74m
Cab height: 2.09m
Front track width: 1360mm
rear track: 1240mm
Curb Weight: 1.7ton
Rated payload: 1.495ton
GVWR: 3.52ton
Max. speed: 90km/h
Origin: Zibo, Shandong
tonnage class: mini truck
Approach angle: 20°
departure angle: 23°
Front/rear suspension: 1.01/1.62m
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: Quanchai4B1-88C40
Engine info: Quanchai485
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.27L
Emission standard: China IV
Max output power: 65kW
Max hp: 88Horsepower
Max torque: 225N·m
Max torque speed: 2000rpm
Rated speed: 3200rpm
Engine Type: 4-cylinder, inline, water-cooled, 4-stroke
Transmission Parameters
Transmission Model: MengwoMW5T20
Transmission Brand: Mengwo
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.02m
Cargo box width: 1.61m
Cargo box height: 0.36m
*Cargo box interior width: 1.6100000143051
Cab parameters
Cab: Xiaobaoma
seating capacity: 5Personnel
Seat rows: Double cab
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 50L
Chassis Specs
Front axle allowable load: 1160kg
rear axle description: 130 rear axle
rear axle allowable load: 2360kg
Axle ratio: 5.28
Leaf spring count: 6/5+3
Tire
Tire Size: 6.00-15 LT,6.00R15 LT
Number of tires: 6pcs
Control configuration
ABS:

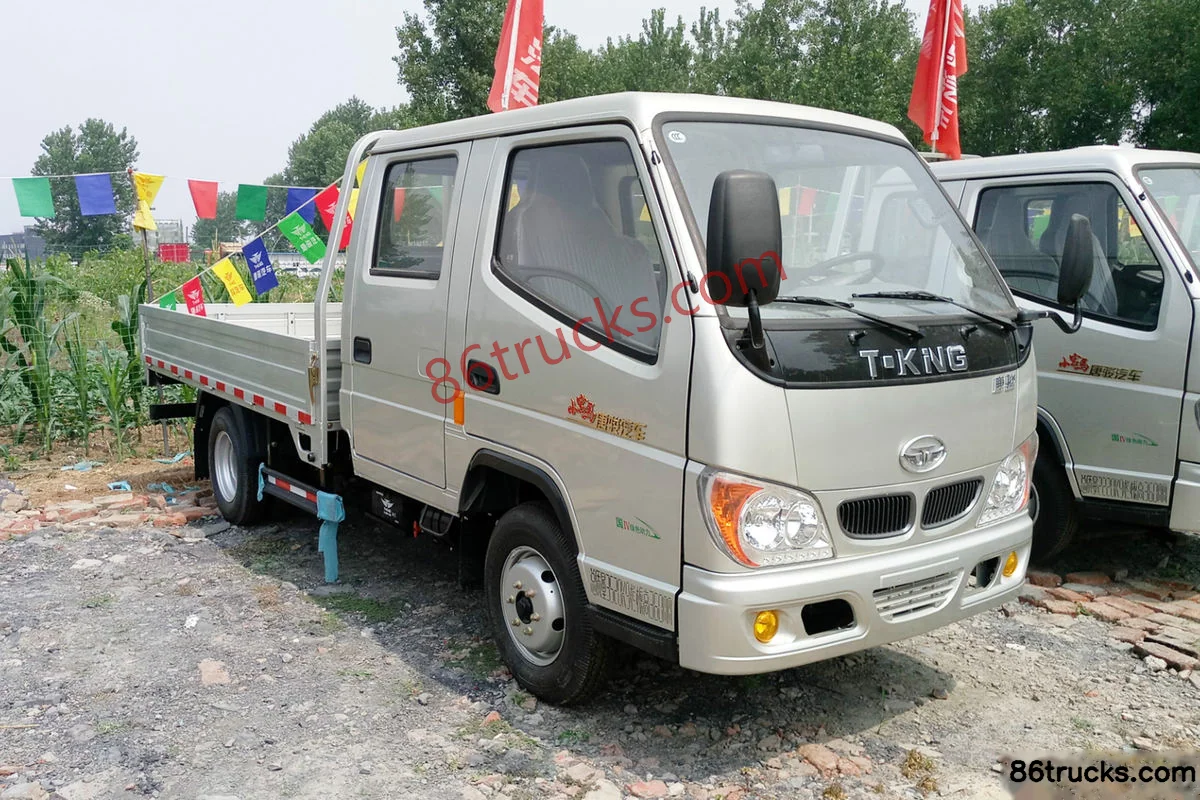

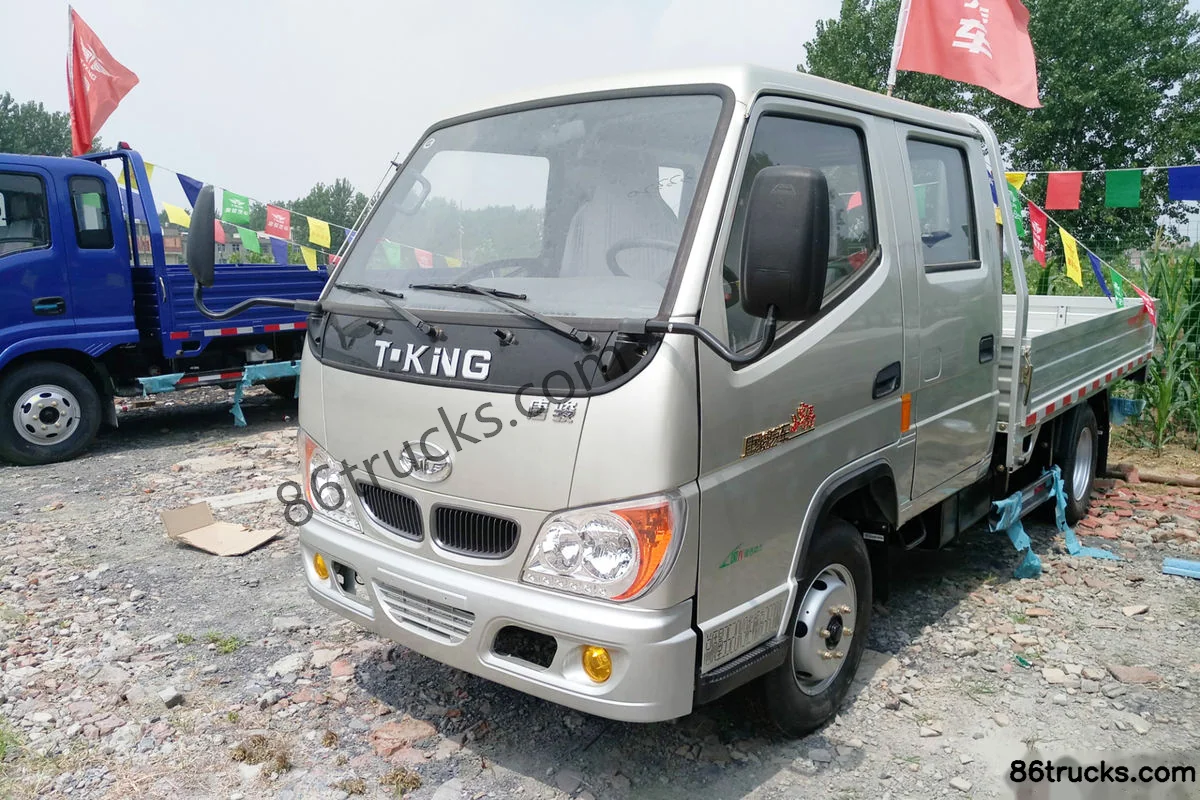

Photos

Exterior2

2 photos

FAQ

What is the export price of Tangjun Ouling Xiaobao 88 hp 4X2(6 wheels) 3m double-row flatbed micro truck, and what does it include?

Tangjun Ouling Xiaobao 88 hp 4X2(6 wheels) 3m double-row flatbed micro truck export reference is about From $7,639; MSRP is ¥5.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Tangjun Ouling Xiaobao 88 hp 4X2(6 wheels) 3m double-row flatbed micro truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Tangjun Ouling Xiaobao 88 hp 4X2(6 wheels) 3m double-row flatbed micro truck?

Key specs of Tangjun Ouling Xiaobao 88 hp 4X2(6 wheels) 3m double-row flatbed micro truck: Drive: 4x2; Horsepower: 88 hp; Emission: China IV; Fuel: Diesel; Engine: Quanchai485; Transmission: Mengwo. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Tangjun Ouling Xiaobao 88 hp 4X2(6 wheels) 3m double-row flatbed micro truck suited for?

Tangjun Ouling Xiaobao 88 hp 4X2(6 wheels) 3m double-row flatbed micro truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Tangjun Ouling Xiaobao 88 hp 4X2(6 wheels) 3m double-row flatbed micro truck differ from other variants in the same series?

Tangjun Ouling Xiaobao 88 hp 4X2(6 wheels) 3m double-row flatbed micro truck belongs to Xiaobaoma Mini Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Tangjun Ouling Xiaobao 88 hp 4X2(6 wheels) 3m double-row flatbed micro truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Tangjun Ouling Xiaobao 88 hp 4X2(6 wheels) 3m double-row flatbed micro truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
