Feidi V3 Series 95 hp 4X2(6 wheels) 4.17m Single Row Stake Truck

Export reference
From $13,194
MSRP ¥9.5M CNY
Horsepower: 95
Emission: China V
Fuel: Diesel
Engine: Yunnei 490
Transmission: WLY
Curb Weight:: 2.72ton
seating capacity: 3Personnel
Rated payload: 1.58ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Feidi V3 Series 95 hp 4X2(6 wheels) 4.17m Single Row Stake Truck is a Light Truck featuring 4.17m cargo length, Stake type cargo body, 3Personnel volume and 1.58t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Yunnei 490 engine, 95 hp, 4X2 (6 wheels) drive and China V emissions.

China V 95 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): FD5041CCYW17K5-1
Type: stake truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: Yunnei PowerYN27CRE1
transmission: WLYWLY5T30
Rear Axle Ratio: 5.571
Cab length: 5.995m
Cab width: 2.31m
Cab height: 3.25m
Front track width: 1760mm
rear track: 1590mm
Curb Weight: 2.72ton
Rated payload: 1.58ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Rizhao, Shandong
tonnage class: Light Truck
Approach angle: 22°
departure angle: 17°
market segment: Agricultural product transport, green channel
Remarks: Steering wheel material: magnesium-aluminum alloy.
Front/rear suspension: 1.12/1.515m
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN27CRE1
Engine info: Yunnei 490
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.672L
Emission standard: China V
Max output power: 70kW
Max hp: 95Horsepower
Max torque: 250N·m
Max torque speed: 1600-2600rpm
Rated speed: 3200rpm
Engine Type: 4-cylinder inline, 8-valve, turbocharged intercooled, high-pressure common rail fuel injection
Transmission Parameters
Transmission Model: WLYWLY5T30
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 4.17m
Cargo box width: 2.11m
Cargo box material: Q235A, CR780/980MS, etc.
*Cargo box interior width: 2.1099998950958
Cab parameters
Cab: Aochi V3 Single Row
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank capacity: 110L
Chassis Specs
Front axle allowable load: 1850kg
rear axle description: 1043 Rear Axle
rear axle allowable load: 2645kg
Axle ratio: 5.571
Leaf spring count: 7/7+6
Aluminum wheels:
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Stability control system:
Brake assist (EBA/BAS/BA etc.): none
Power steering:
clutch booster:
automatic slack adjuster:
interior configuration
steering wheel adjustment: Manual
AC control type: Manual
Power Windows:
Power interface:
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
side skirt:
Aluminum air tank:
Diesel primary filter heating:
Wiper type: flat wiper blades
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Radio:
standard instrument cluster: none
LCD instrument cluster:
Service brake
Engine brake: Yes
Brake Type: Air brake
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
lighting configuration
Front fog lamp:
Headlight height adjustment:
Halogen Headlights:
smart configuration
Telematics System:
Fatigue driving monitoring: none

Photos

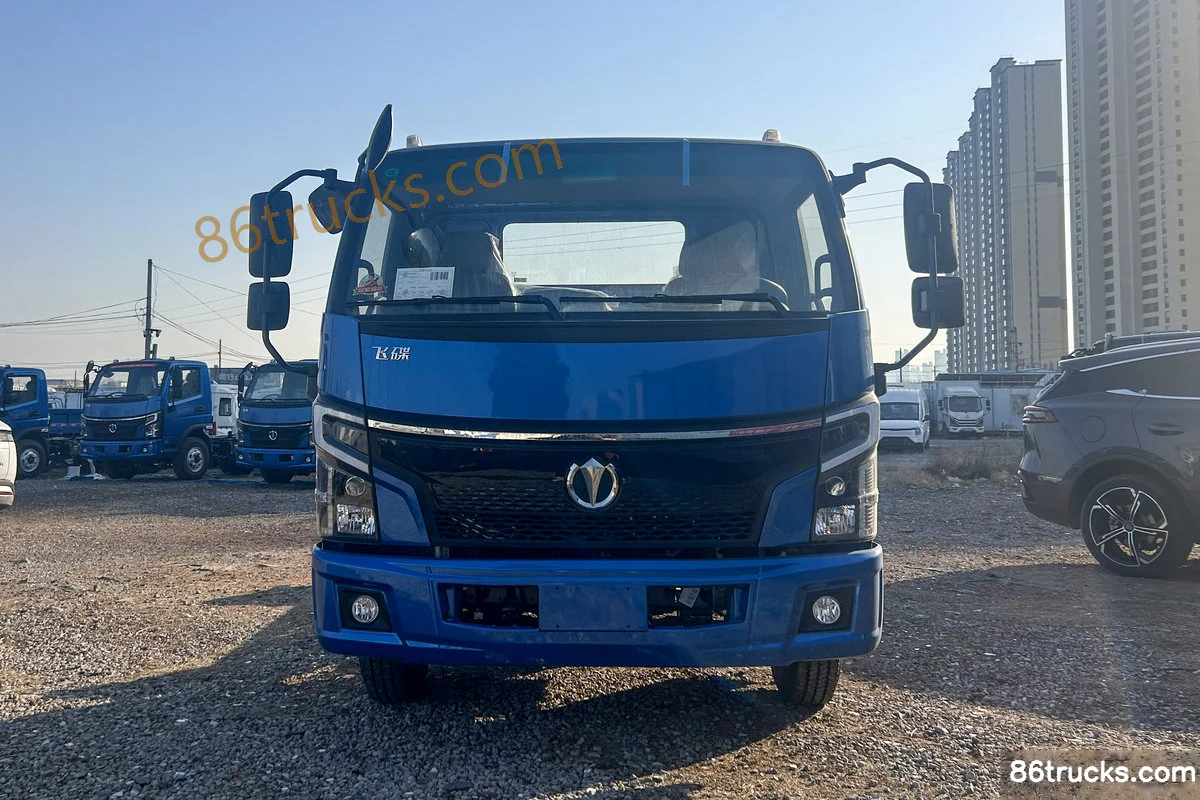

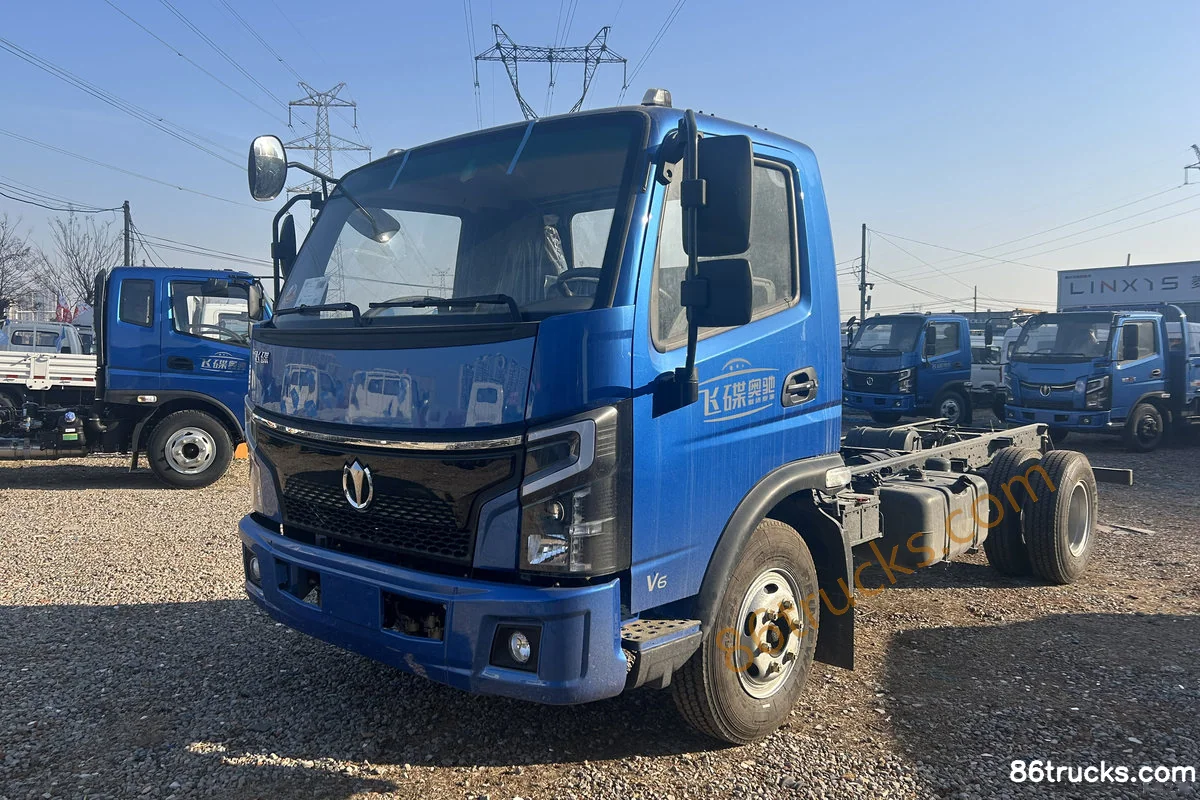

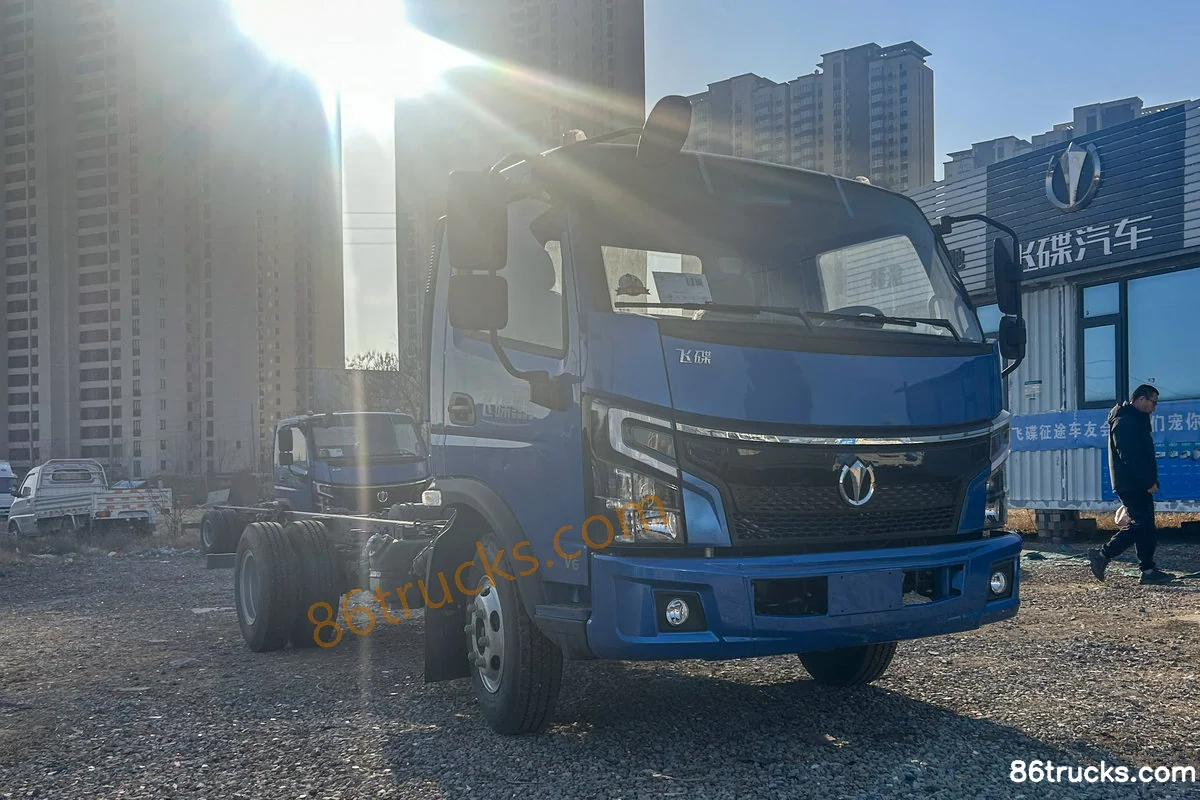

Exterior3

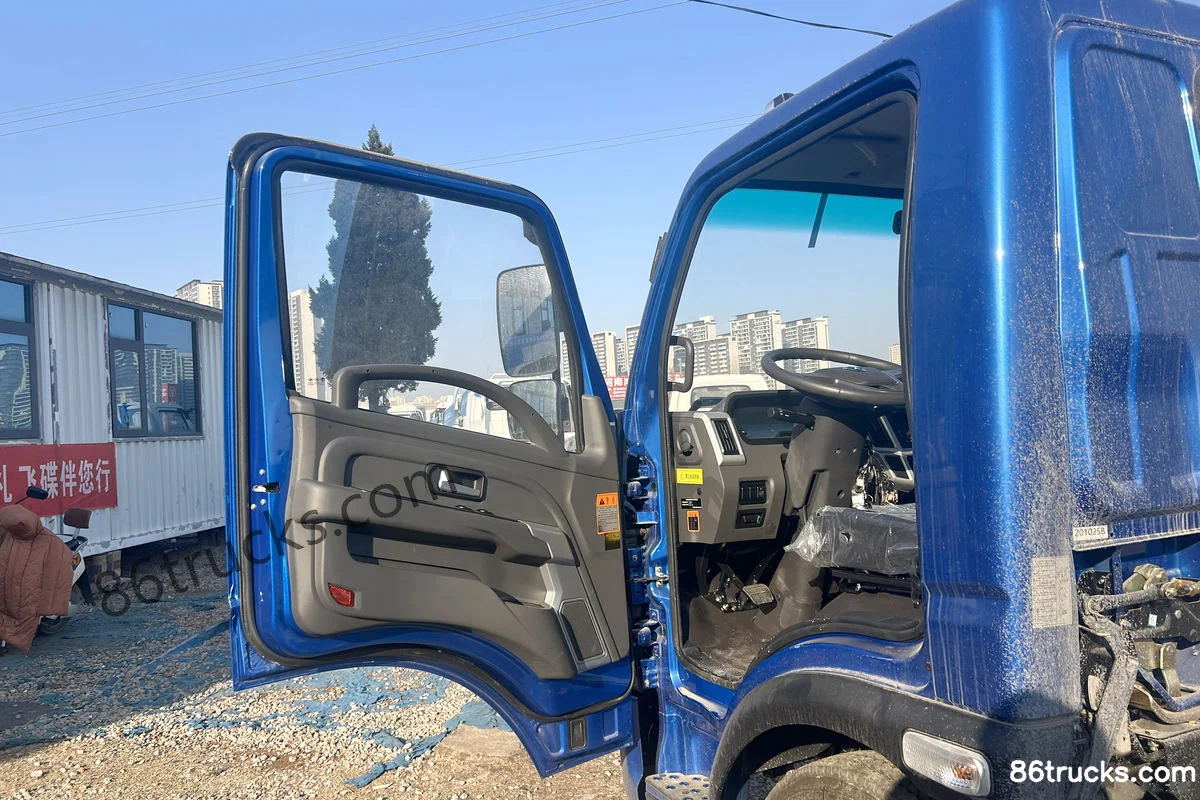

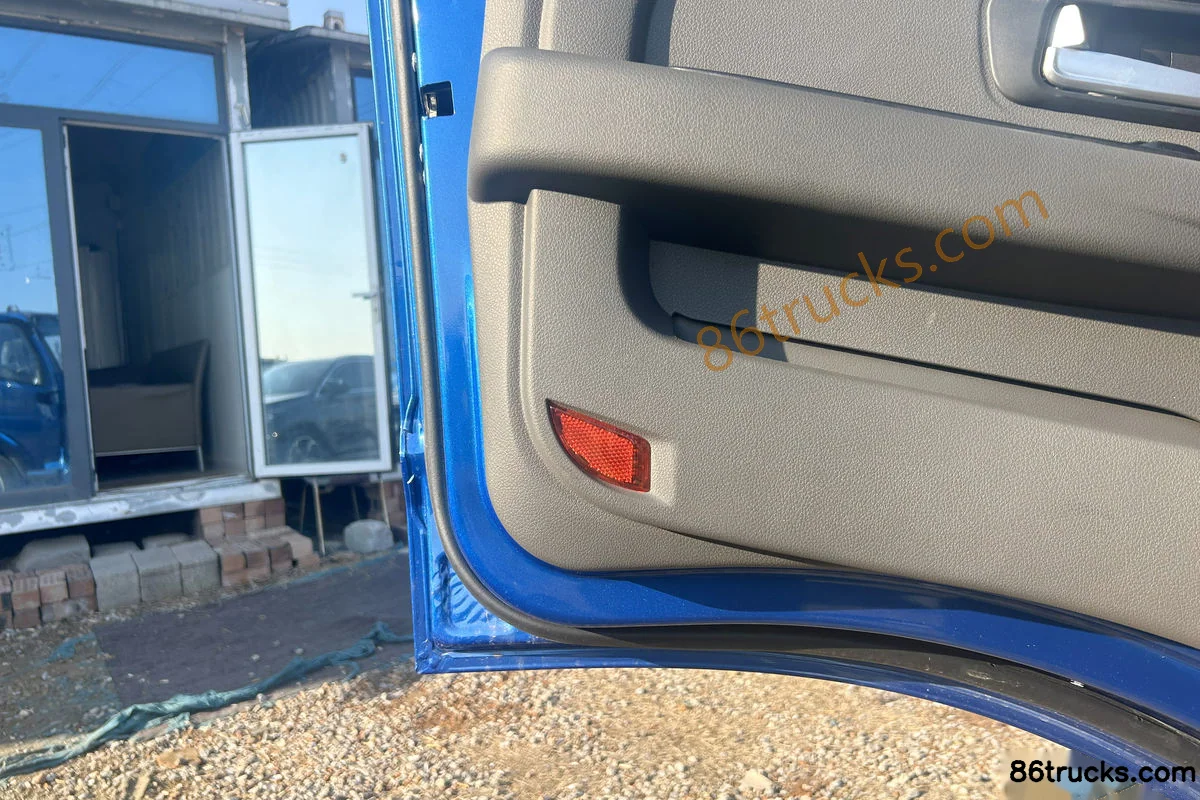

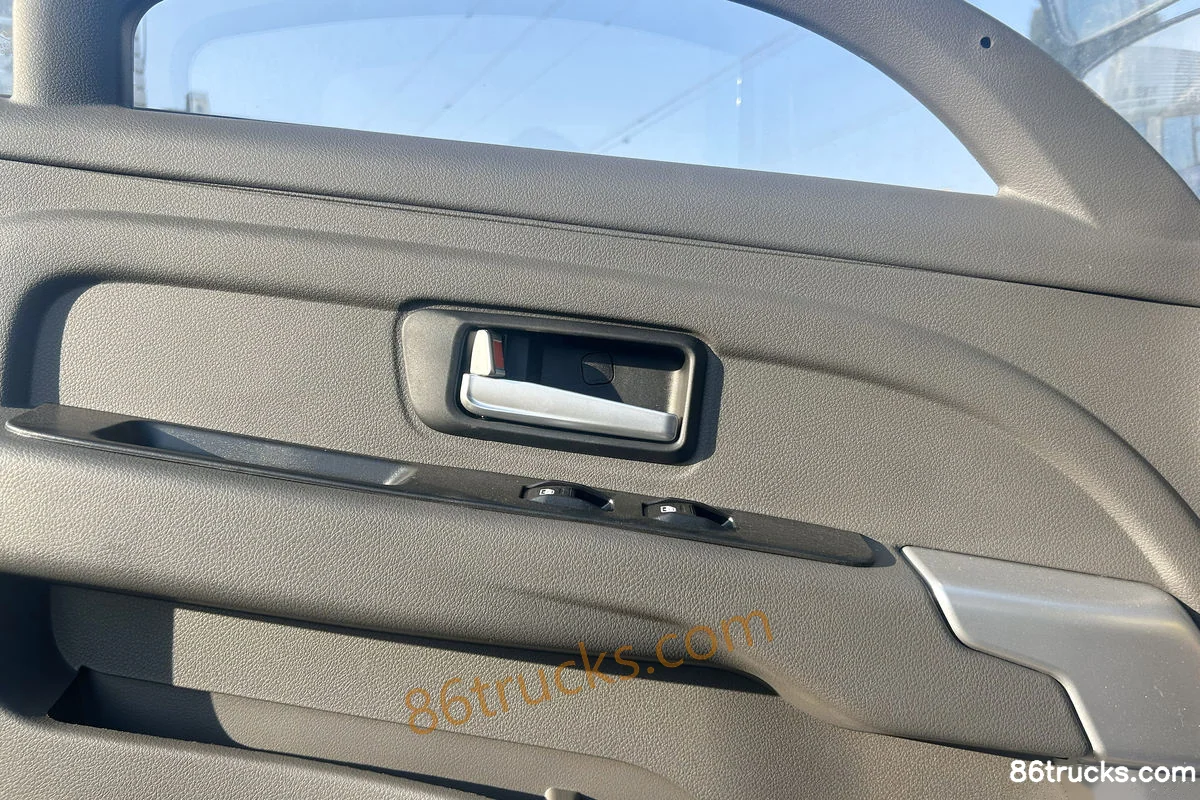

Cab3

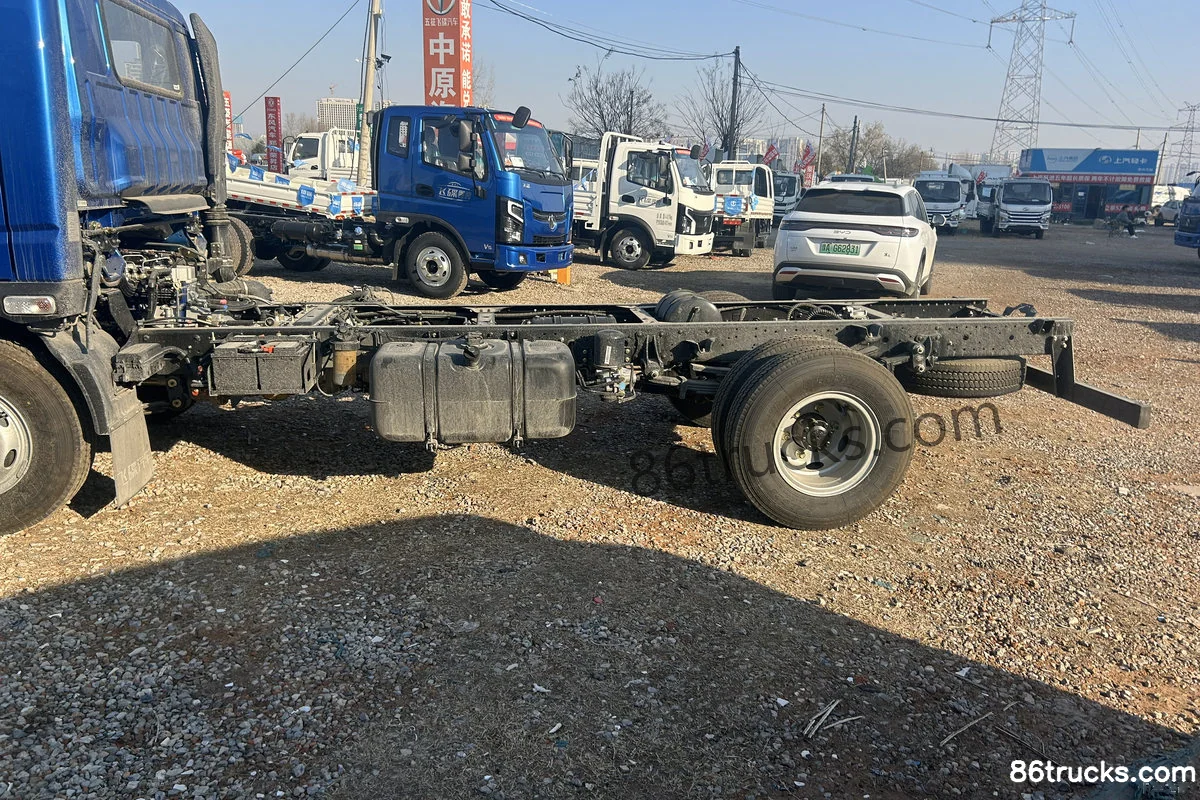

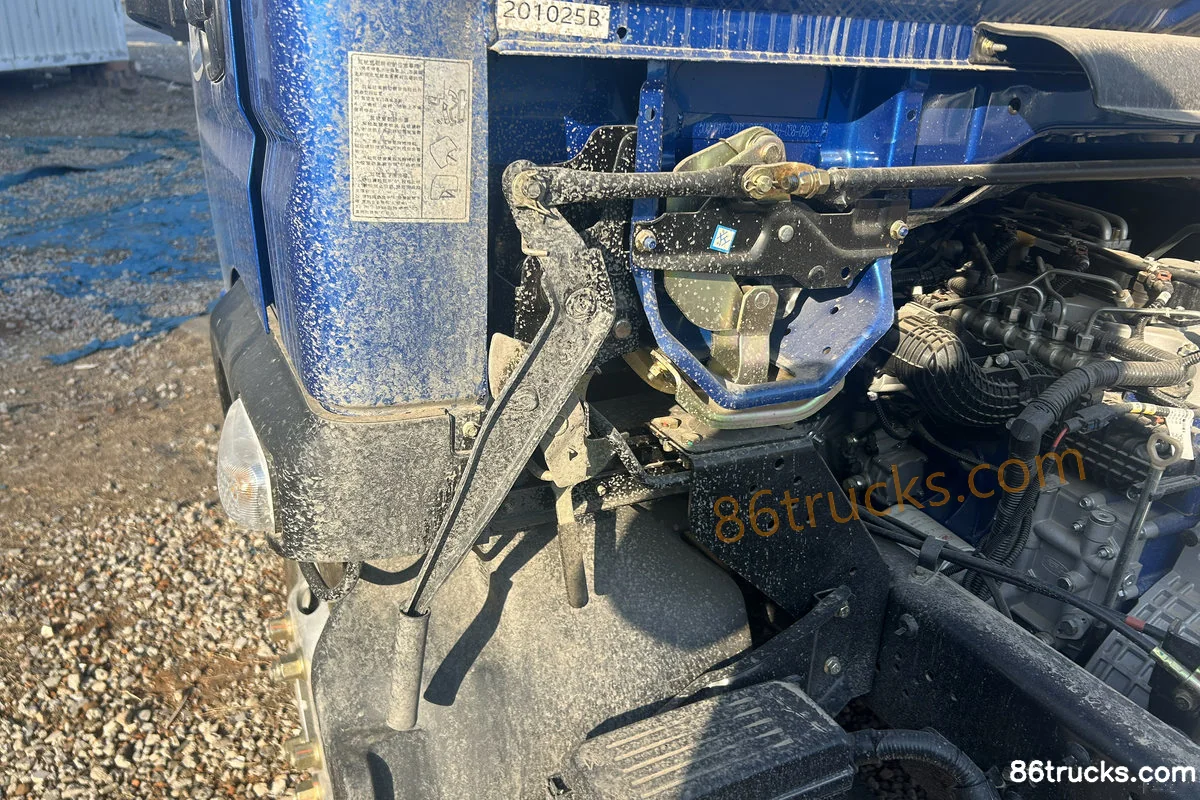

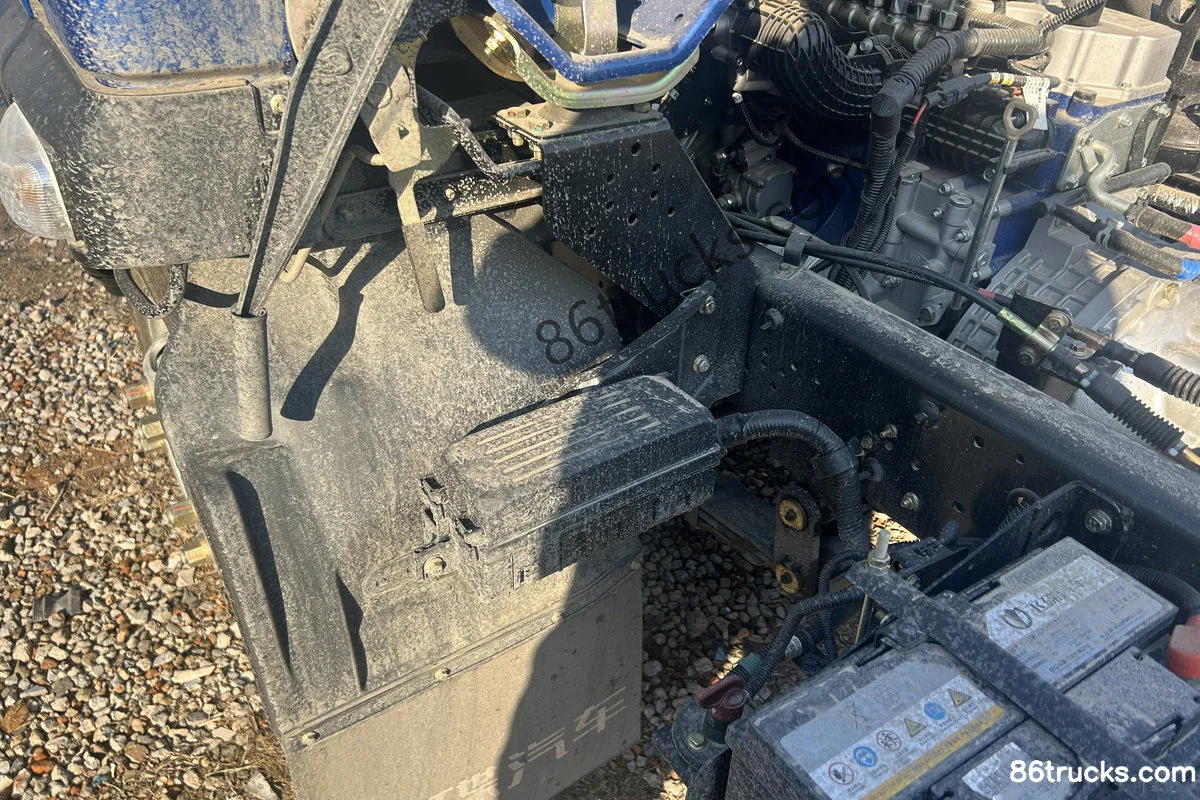

Chassis3

9 photos

FAQ

What is the export price of Feidi V3 Series 95 hp 4X2(6 wheels) 4.17m Single Row Stake Truck, and what does it include?

Feidi V3 Series 95 hp 4X2(6 wheels) 4.17m Single Row Stake Truck export reference is about From $13,194; MSRP is ¥9.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Feidi V3 Series 95 hp 4X2(6 wheels) 4.17m Single Row Stake Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Feidi V3 Series 95 hp 4X2(6 wheels) 4.17m Single Row Stake Truck?

Key specs of Feidi V3 Series 95 hp 4X2(6 wheels) 4.17m Single Row Stake Truck: Drive: 4x2; Horsepower: 95 hp; Emission: China V; Fuel: Diesel; Engine: Yunnei 490; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Feidi V3 Series 95 hp 4X2(6 wheels) 4.17m Single Row Stake Truck suited for?

Feidi V3 Series 95 hp 4X2(6 wheels) 4.17m Single Row Stake Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Feidi V3 Series 95 hp 4X2(6 wheels) 4.17m Single Row Stake Truck differ from other variants in the same series?

Feidi V3 Series 95 hp 4X2(6 wheels) 4.17m Single Row Stake Truck belongs to Feidi Aochi V6 (formerly Aochi V3) light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Feidi V3 Series 95 hp 4X2(6 wheels) 4.17m Single Row Stake Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Feidi V3 Series 95 hp 4X2(6 wheels) 4.17m Single Row Stake Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
