Sinotruk Hohan J5G Heavy Truck Light Load Edition 280 hp 6X2(8 wheels) 9.6m Flatbed Cargo Truck

Export reference
From $33,792
MSRP ¥24.33M CNY
Horsepower: 280
Emission: China V
Fuel: Diesel
Engine: SinotrukMAN7L
Transmission: Sinotruk
Curb Weight:: 9.73ton
seating capacity: 3Personnel
Rated payload: 15.14ton
Drive 6X2 (8 wheels)
Cargo box type: stake body

Overview

The Sinotruk Hohan J5G Heavy Truck Light Load Edition 280 hp 6X2(8 wheels) 9.6m Flatbed Cargo Truck is a Heavy-duty cargo trucks featuring 9.6m cargo length, stake body cargo body, 3Personnel volume and 15.14t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a SinotrukMAN7L engine, 280 hp, 6X2 (8 wheels) drive and China V emissions.

China V 280 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ1255M56C3E1
Type: Cargo Trucks
Drive type: 6X2
Wheelbase: 1800+5600mm
Box length class: 9.6m
engine: SinotrukMC07.28-50
transmission: SinotrukHW13710C2
Rear Axle Ratio: 4.11
Cab length: 11.995m
Cab width: 2.55m
Cab height: 3.28m
Front track width: 1930/1930mm
rear track: 1830mm
Curb Weight: 9.73ton
Rated payload: 15.14ton
GVWR: 25ton
Max. speed: 102km/h
Origin: Jinan, Shandong
tonnage class: Heavy-duty cargo trucks
Approach angle: 20°
departure angle: 14°
market segment: Building materials, agricultural products
Front/rear suspension: 1.55/3.045m
Version: Light-Duty Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC07.28-50
Engine info: SinotrukMAN7L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.87L
Emission standard: China V
Max output power: 206kW
Max hp: 280Horsepower
Max torque: 1100N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Model: SinotrukHW13710C2
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 9.6m
Cargo box width: 2.45m
Cargo box height: 0.55m
*Cargo box interior width: 2.4500000476837
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab

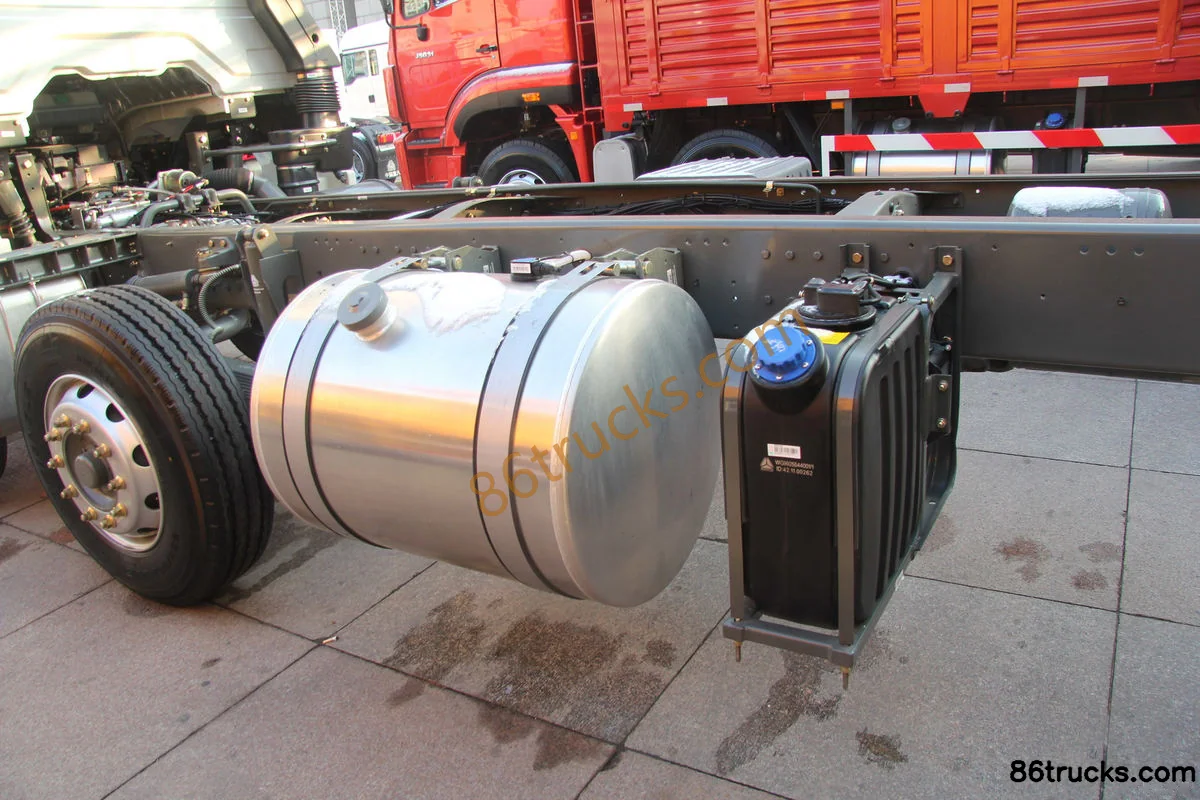

fuel tank
Fuel tank capacity: 600L
Chassis Specs
Front axle description: 153 front axle
Front axle allowable load: 6500/7000kg
Frame Dimensions: 850×250×80×(7+4)mm
rear axle description: 153 drive axle
rear axle allowable load: 11500kg
Axle ratio: 4.11
Leaf spring count: 4/4/5
Tire
Tire Size: 12R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Power Windows:
Electronic Central Lock:

Photos

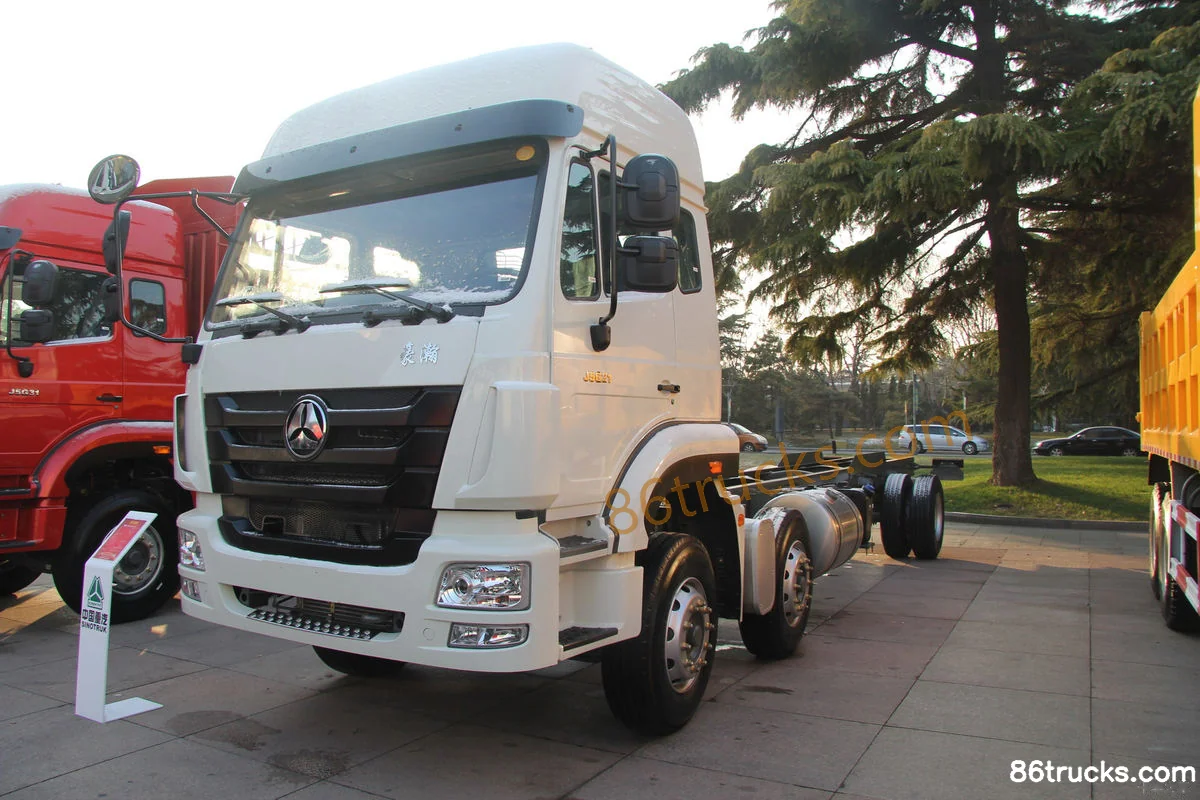

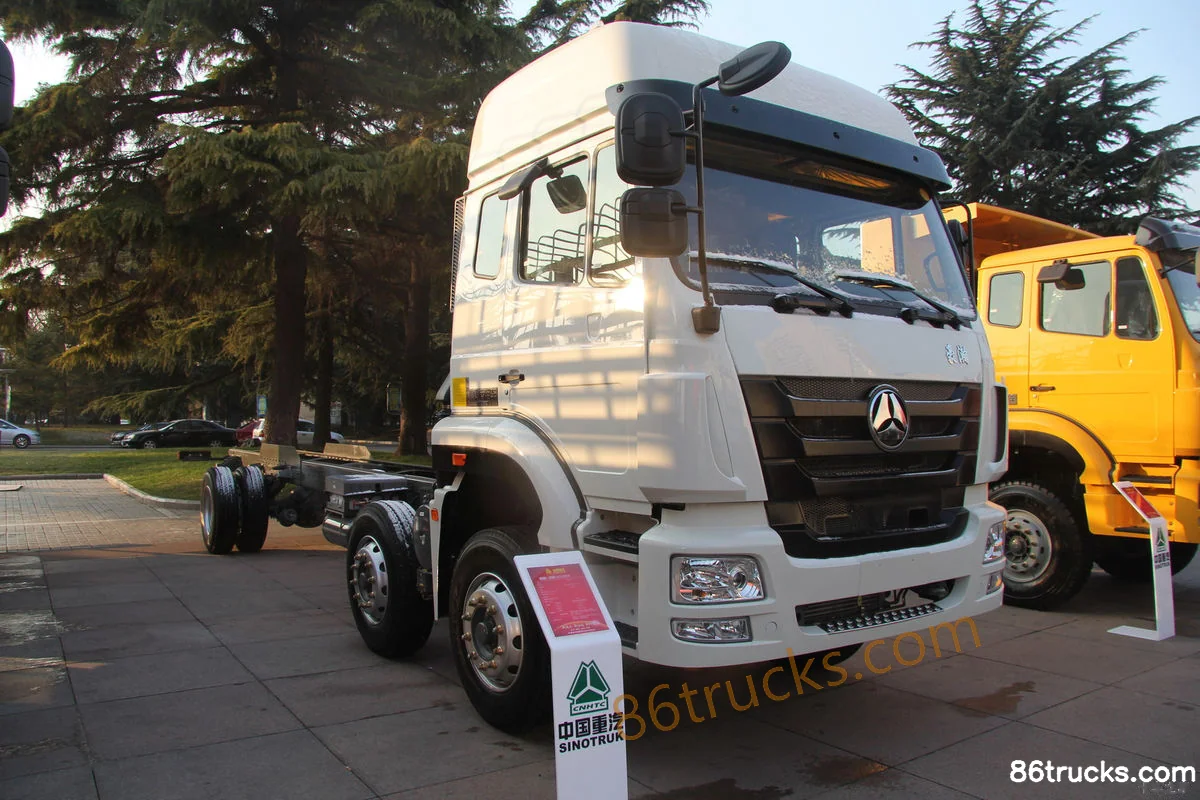

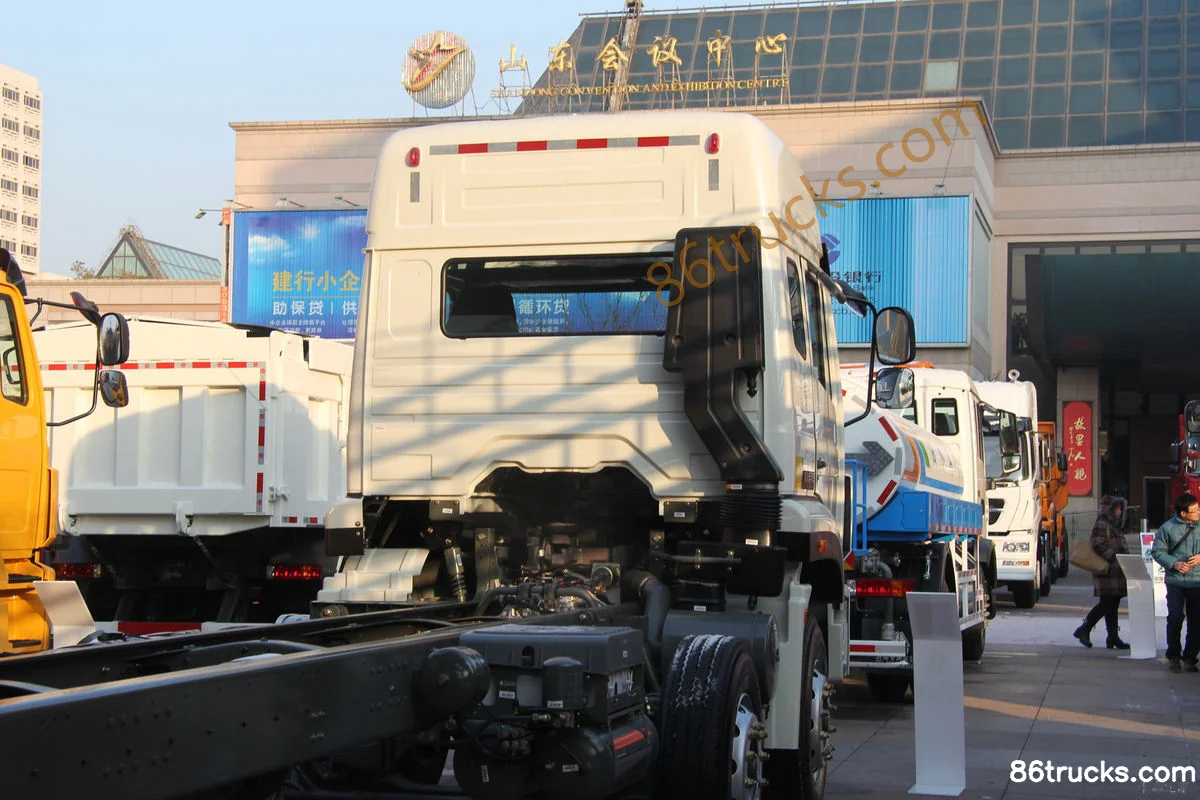

Exterior3

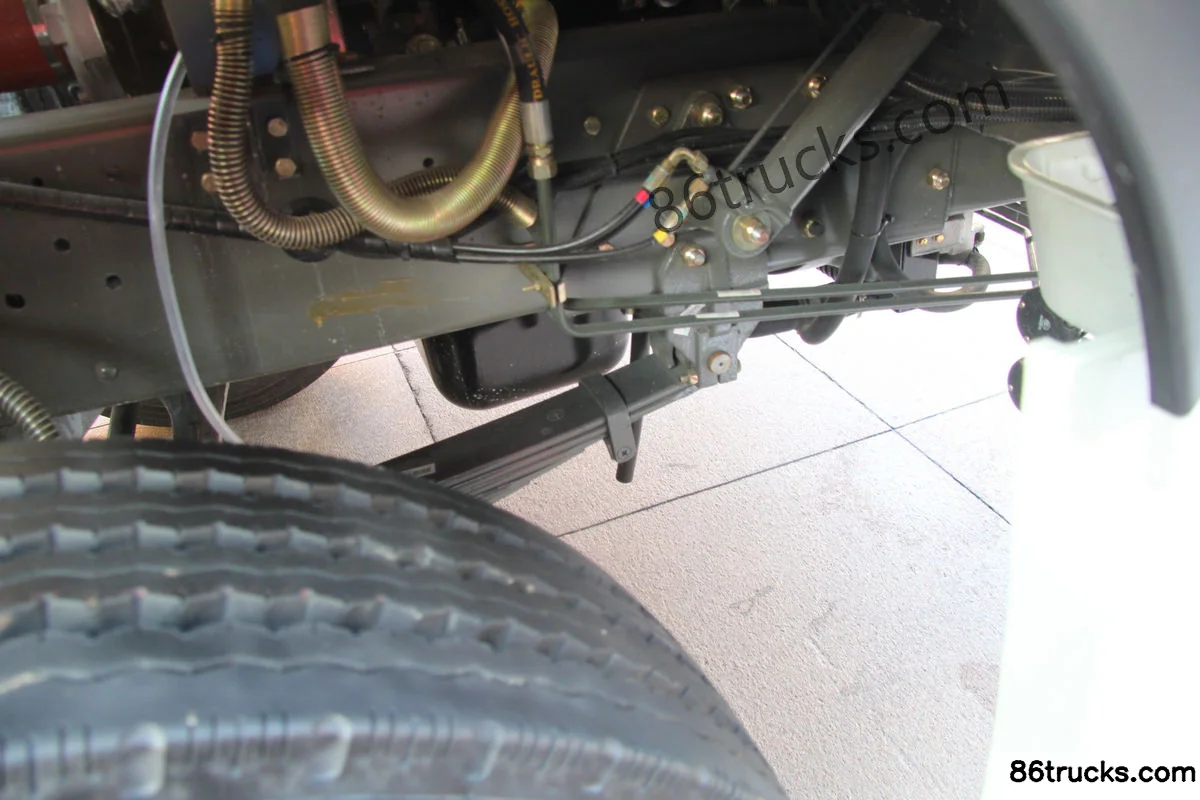

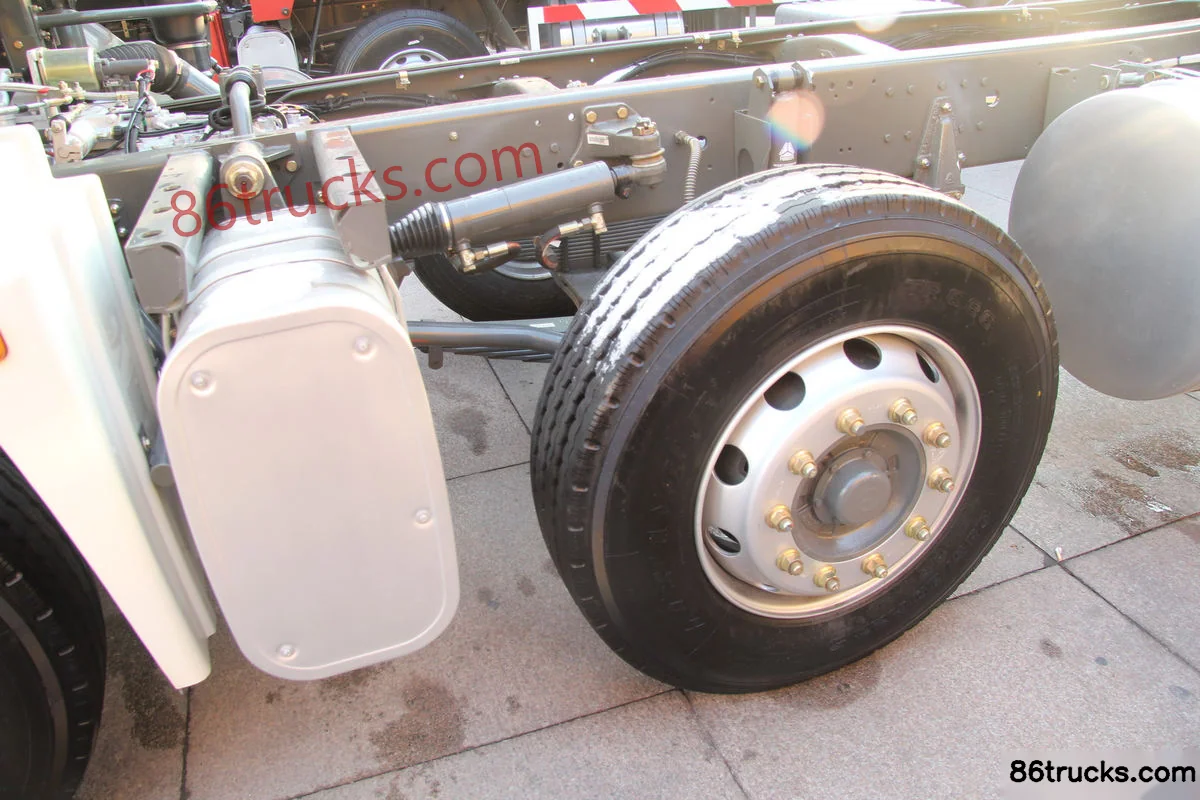

Chassis3

6 photos

FAQ

What is the export price of Sinotruk Hohan J5G Heavy Truck Light Load Edition 280 hp 6X2(8 wheels) 9.6m Flatbed Cargo Truck, and what does it include?

Sinotruk Hohan J5G Heavy Truck Light Load Edition 280 hp 6X2(8 wheels) 9.6m Flatbed Cargo Truck export reference is about From $33,792; MSRP is ¥24.33M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Hohan J5G Heavy Truck Light Load Edition 280 hp 6X2(8 wheels) 9.6m Flatbed Cargo Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Hohan J5G Heavy Truck Light Load Edition 280 hp 6X2(8 wheels) 9.6m Flatbed Cargo Truck?

Key specs of Sinotruk Hohan J5G Heavy Truck Light Load Edition 280 hp 6X2(8 wheels) 9.6m Flatbed Cargo Truck: Drive: 6x2; Horsepower: 280 hp; Emission: China V; Fuel: Diesel; Engine: SinotrukMAN7L; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Hohan J5G Heavy Truck Light Load Edition 280 hp 6X2(8 wheels) 9.6m Flatbed Cargo Truck suited for?

Sinotruk Hohan J5G Heavy Truck Light Load Edition 280 hp 6X2(8 wheels) 9.6m Flatbed Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk Hohan J5G Heavy Truck Light Load Edition 280 hp 6X2(8 wheels) 9.6m Flatbed Cargo Truck differ from other variants in the same series?

Sinotruk Hohan J5G Heavy Truck Light Load Edition 280 hp 6X2(8 wheels) 9.6m Flatbed Cargo Truck belongs to Sinotruk J5G Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Hohan J5G Heavy Truck Light Load Edition 280 hp 6X2(8 wheels) 9.6m Flatbed Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Hohan J5G Heavy Truck Light Load Edition 280 hp 6X2(8 wheels) 9.6m Flatbed Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
