Kama Ruijie 3.2T 2.8m Single Row Pure Electric Box Van Micro Truck 41.932kWh 4X2(6 wheels)

Export reference
From $22,889
MSRP ¥16.48M CNY
Rated payload:: 1.24ton
Wheelbase:: 3050mm
Cargo box type:: Van body
Model code (announced):: KMC5033XXYBEVC305D
Type:: enclosed cargo truck
Box length class:: 2.8m
Drive 4X2 (6 wheels)
CLTC range: 215km
Motor 1 Brand: Lingdian
Curb Weight: 1.78ton

Overview

The Kama Ruijie 3.2T 2.8m Single Row Pure Electric Box Van Micro Truck 41.932kWh 4X2(6 wheels) is a mini truck featuring 215km battery/range, Lingdian motor, 4X2 (6 wheels) drive and 1.24t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): KMC5033XXYBEVC305D
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3050mm
Box length class: 2.8m
Cab length: 5.095m
Cab width: 1.715m
Cab height: 2.12m
CLTC range: 215km
Curb Weight: 1.78ton
Rated payload: 1.24ton
GVWR: 3.15ton
Max. speed: 90km/h
Origin: Ganzhou, Jiangxi
tonnage class: mini truck
Energy Type: Electric
electric motor
Motor 1 Brand: Lingdian
Motor 1 Model: TZ180XSA07
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 35kW
Peak power: 70kW
total peak torque: 230N·m
total rated torque: 80N·m
Electronic Control
ECU Brand: Kama
Battery/Charging
Battery Brand: Guoxuan High-Tech
Battery type: Lithium-ion battery
Battery capacity: 41.932kWh
Battery total voltage: 332.8V
Energy Density: 142.7
Battery Model: IFP42100140A-63Ah
Cargo box parameters
Cargo box type: Van body
Cargo box length: 2.8m
Cargo box width: 1.615m
Cargo box height: 1.65m
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1460kg
rear axle allowable load: 1690kg
Tire
Tire Size: 185R14LT 8PR
Number of tires: 4pcs
Control configuration
ABS:

Photos

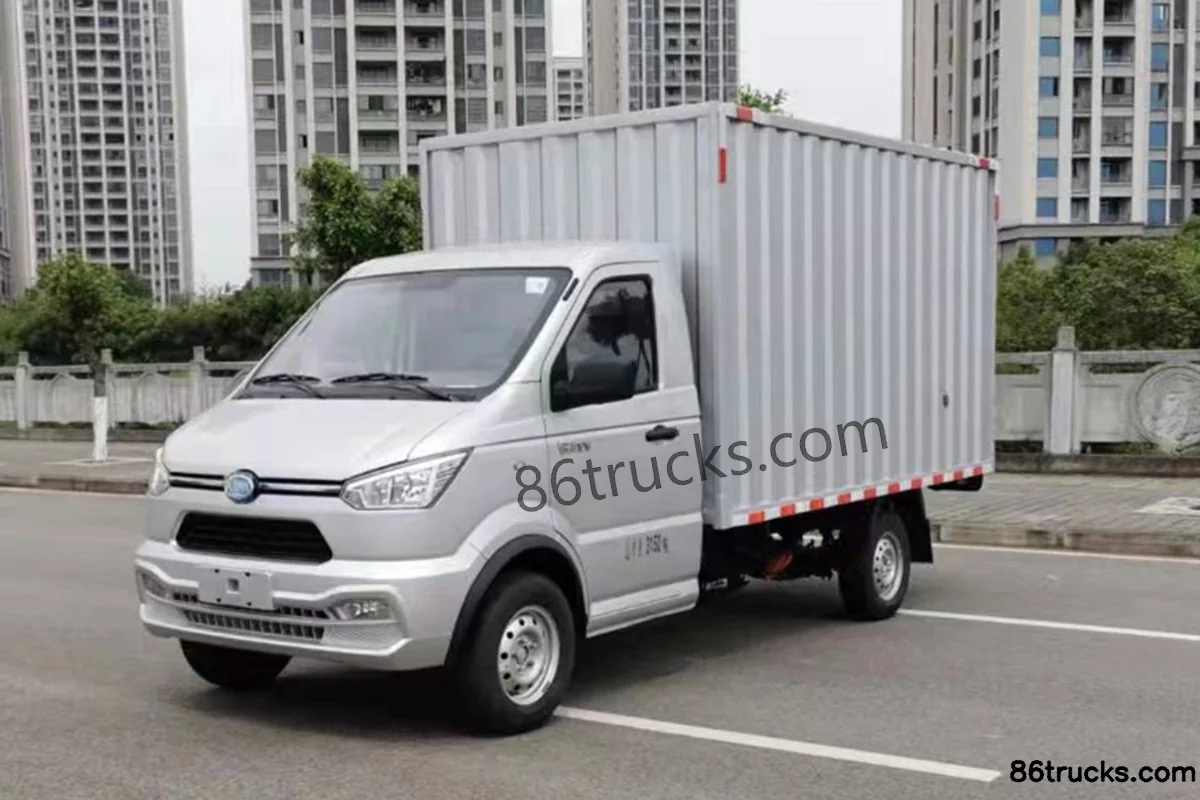

Exterior1

1 photos

FAQ

What is the export price of Kama Ruijie 3.2T 2.8m Single Row Pure Electric Box Van Micro Truck 41.932kWh 4X2(6 wheels), and what does it include?

Kama Ruijie 3.2T 2.8m Single Row Pure Electric Box Van Micro Truck 41.932kWh 4X2(6 wheels) export reference is about From $22,889; MSRP is ¥16.48M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Kama Ruijie 3.2T 2.8m Single Row Pure Electric Box Van Micro Truck 41.932kWh 4X2(6 wheels)?

Key specs of Kama Ruijie 3.2T 2.8m Single Row Pure Electric Box Van Micro Truck 41.932kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Kama Ruijie 3.2T 2.8m Single Row Pure Electric Box Van Micro Truck 41.932kWh 4X2(6 wheels) suited for?

Kama Ruijie 3.2T 2.8m Single Row Pure Electric Box Van Micro Truck 41.932kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Kama Ruijie 3.2T 2.8m Single Row Pure Electric Box Van Micro Truck 41.932kWh 4X2(6 wheels) differ from other variants in the same series?

Kama Ruijie 3.2T 2.8m Single Row Pure Electric Box Van Micro Truck 41.932kWh 4X2(6 wheels) belongs to Kama Ruijie Mini Truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kama Ruijie 3.2T 2.8m Single Row Pure Electric Box Van Micro Truck 41.932kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kama Ruijie 3.2T 2.8m Single Row Pure Electric Box Van Micro Truck 41.932kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
