JAC Junling 109 hp 4X2(6 wheels) 4.18m single-row flatbed light truck

Export reference
From $9,028
MSRP ¥6.5M CNY
Horsepower: 109
Emission: China III / Euro III
Fuel: Diesel
Engine: Chaochai4102
Transmission: Lu'an
Curb Weight:: 2.54ton
seating capacity: 3Personnel
Rated payload: 1.8ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The JAC Junling 109 hp 4X2(6 wheels) 4.18m single-row flatbed light truck is a Light Truck featuring 4.18m cargo length, stake body cargo body, 3Personnel volume and 1.8t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Chaochai4102 engine, 109 hp, 4X2 (6 wheels) drive and China III / Euro III emissions.

China III / Euro III 109 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC1045K103
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3308mm
Box length class: 4.2m
engine: ChaochaiCY4102-C3D
transmission: Lu'an LC5T28
Cab length: 5.98m
Cab width: 2.02m
Cab height: 2.25m
Front track width: 1580mm
rear track: 1395mm
Curb Weight: 2.54ton
Rated payload: 1.8ton
GVWR: 4.49ton
Max. speed: 95km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
market segment: Building materials, agricultural products
Remarks: When overall width is 2130 mm, install front and rear clearance lamps
Energy Type: Diesel
Engine parameters
Engine Brand: Chaochai
Engine Model: ChaochaiCY4102-C3D
Engine info: Chaochai4102
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.856L
Emission standard: China III / Euro III
Max output power: 80kW
Max hp: 109Horsepower
Max torque: 300N·m
Max torque speed: 1400-1800rpm
Rated speed: 2800rpm
Engine Type: Vertical inline, water-cooled, 4-stroke
Transmission Parameters
Transmission Model: Xingrui LC5T28
Transmission Brand: Lu'an
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.18m
Cargo box width: 1.9m
Cargo box height: 0.4m
*Cargo box interior width: 1.8999999761581
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank capacity: 60L
Chassis Specs
rear axle description: 2695
Leaf spring count: 3/16,5/16
Tire
Tire Size: 6.50-16/7.00-16
Number of tires: 6pcs

Photos

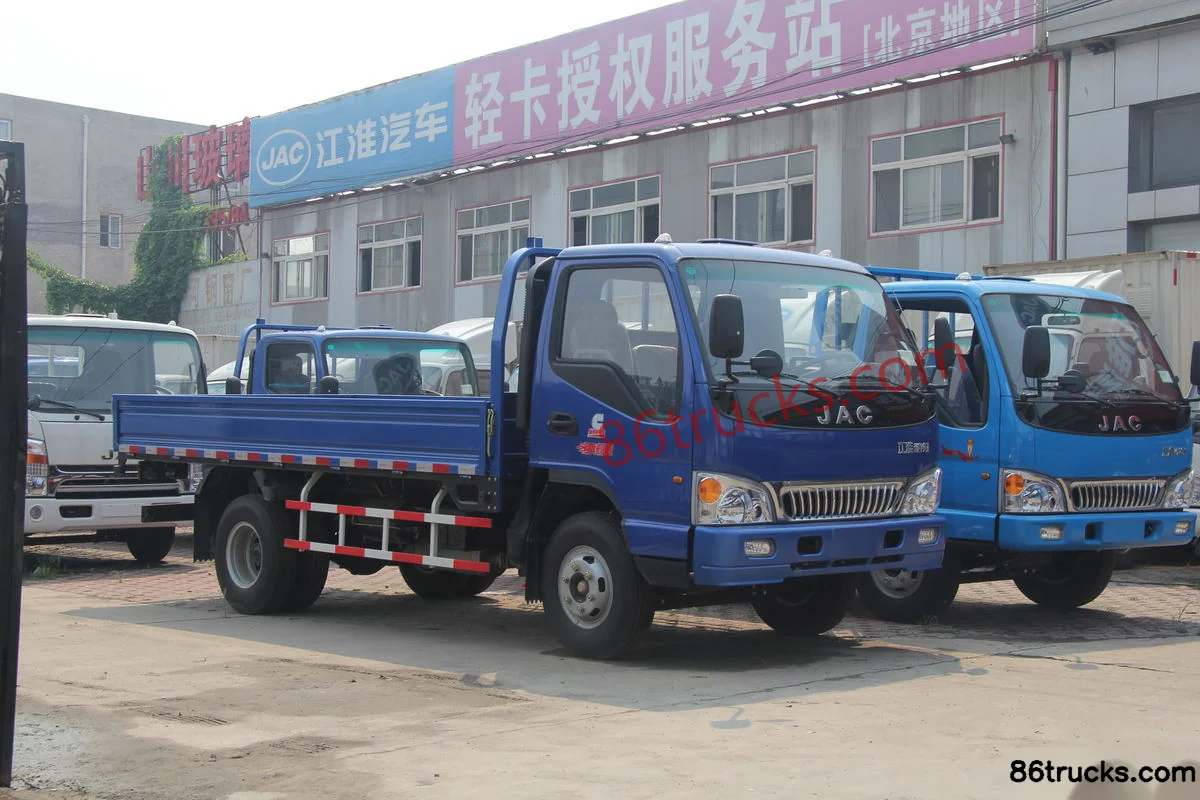

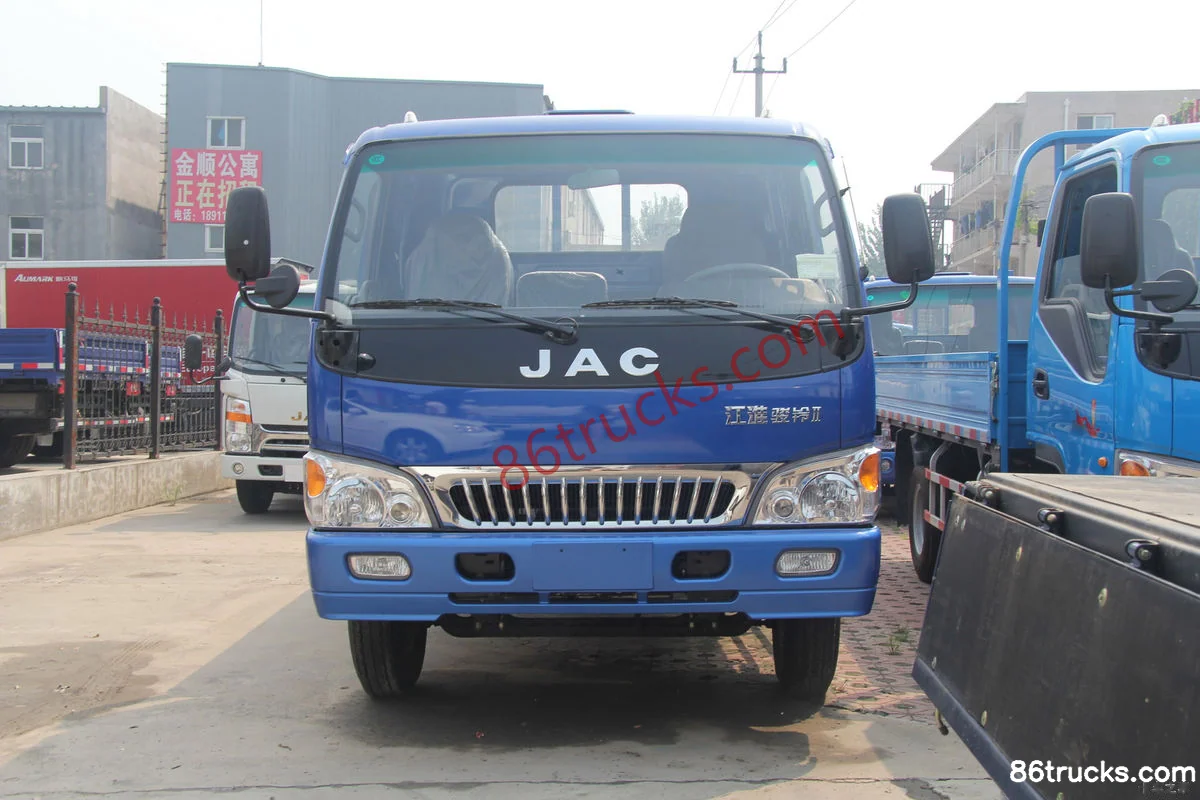

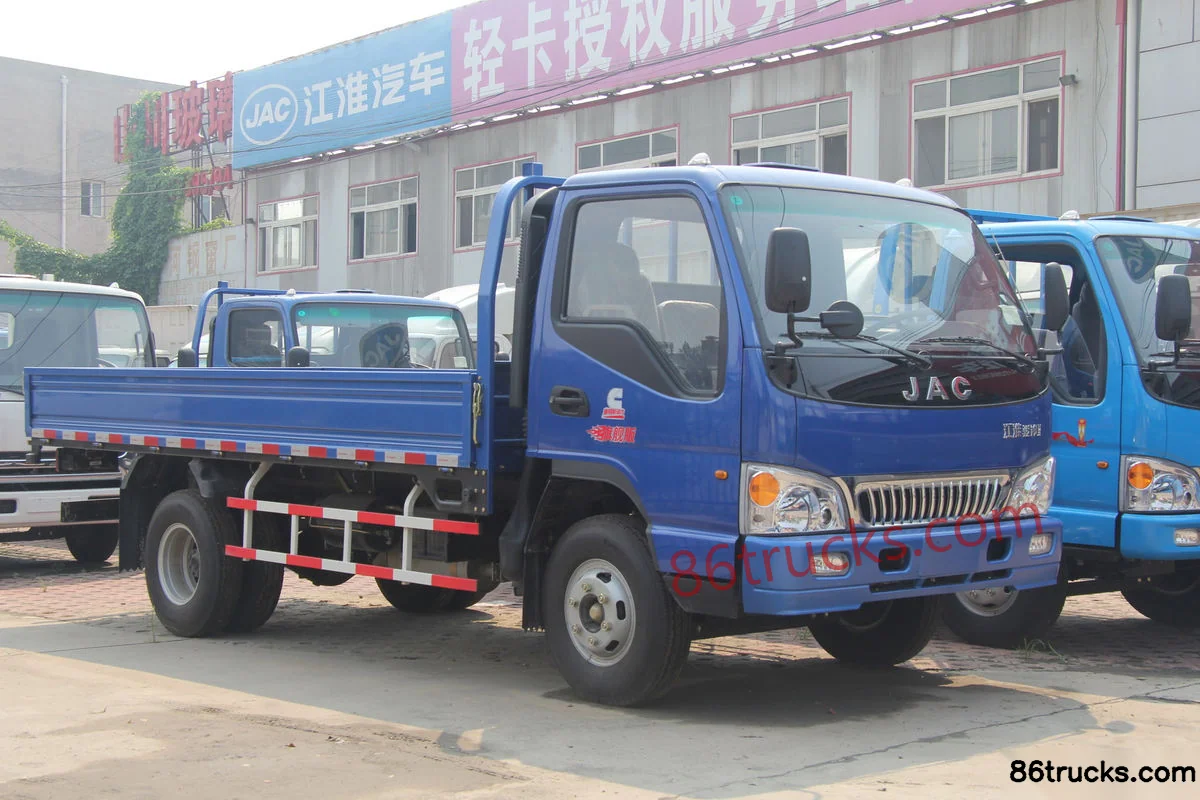

Exterior3

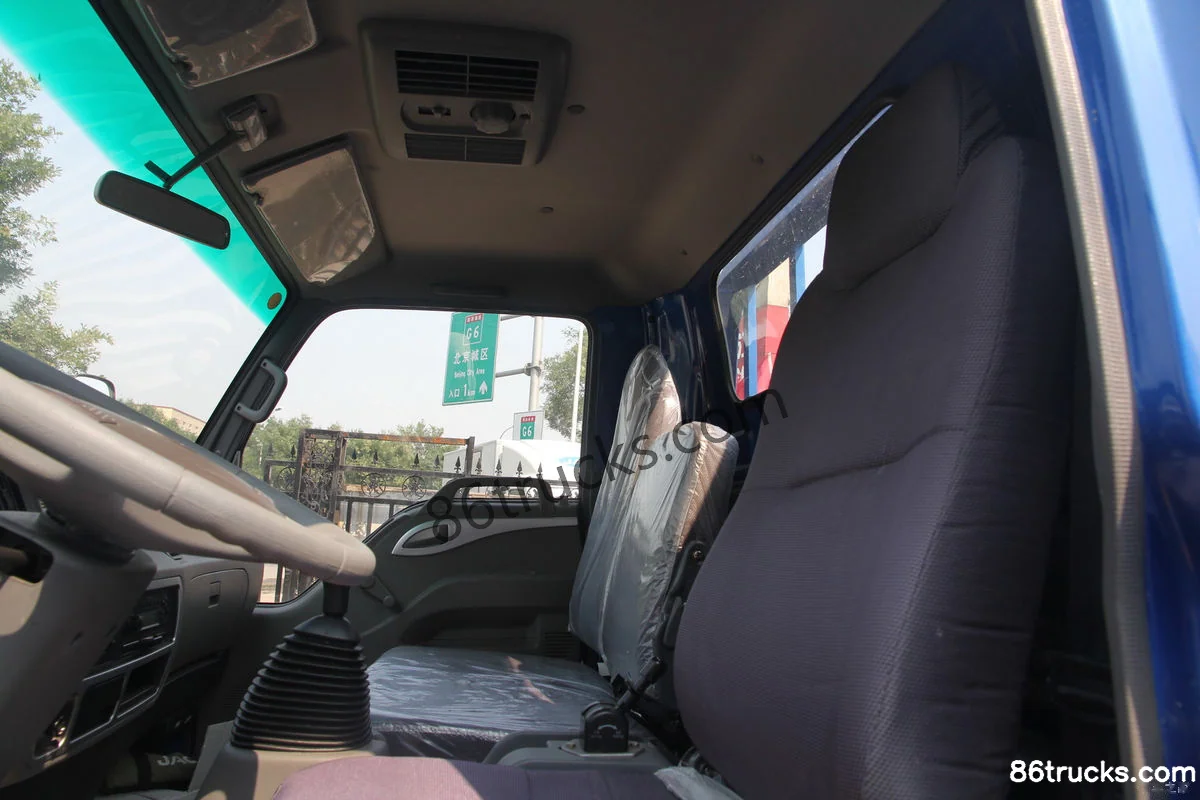

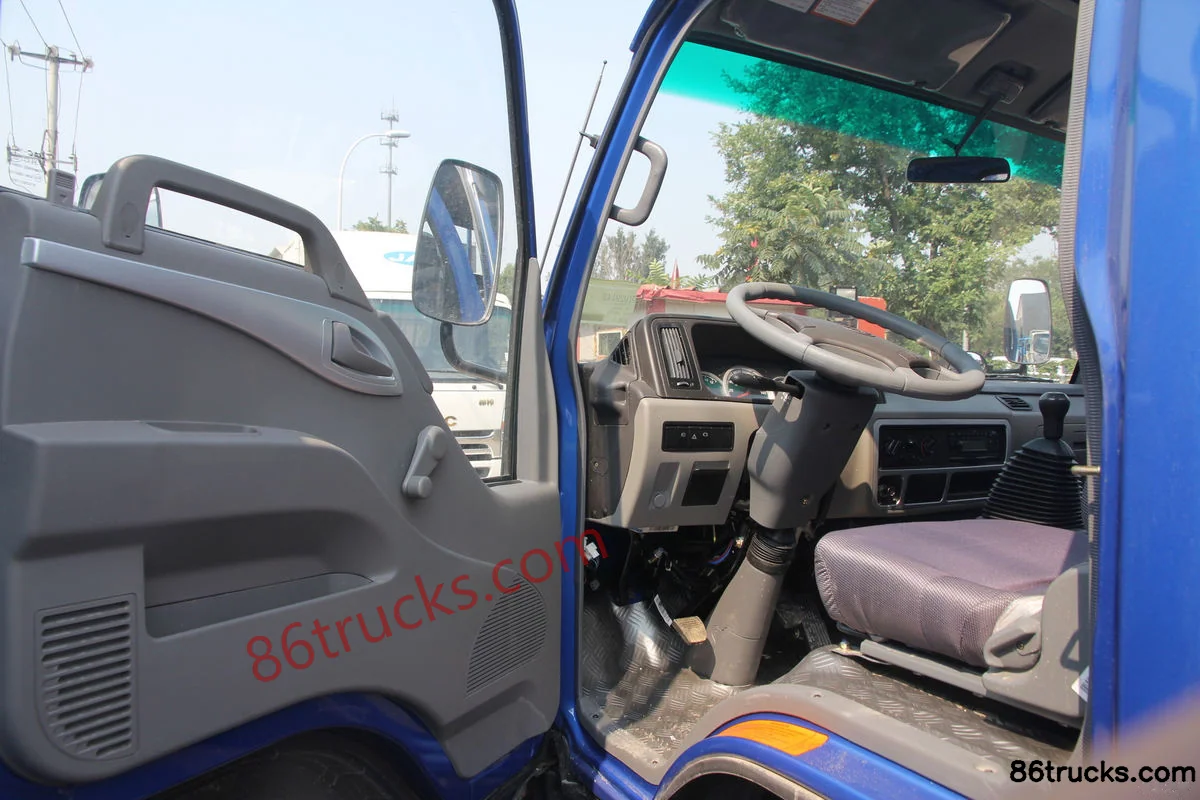

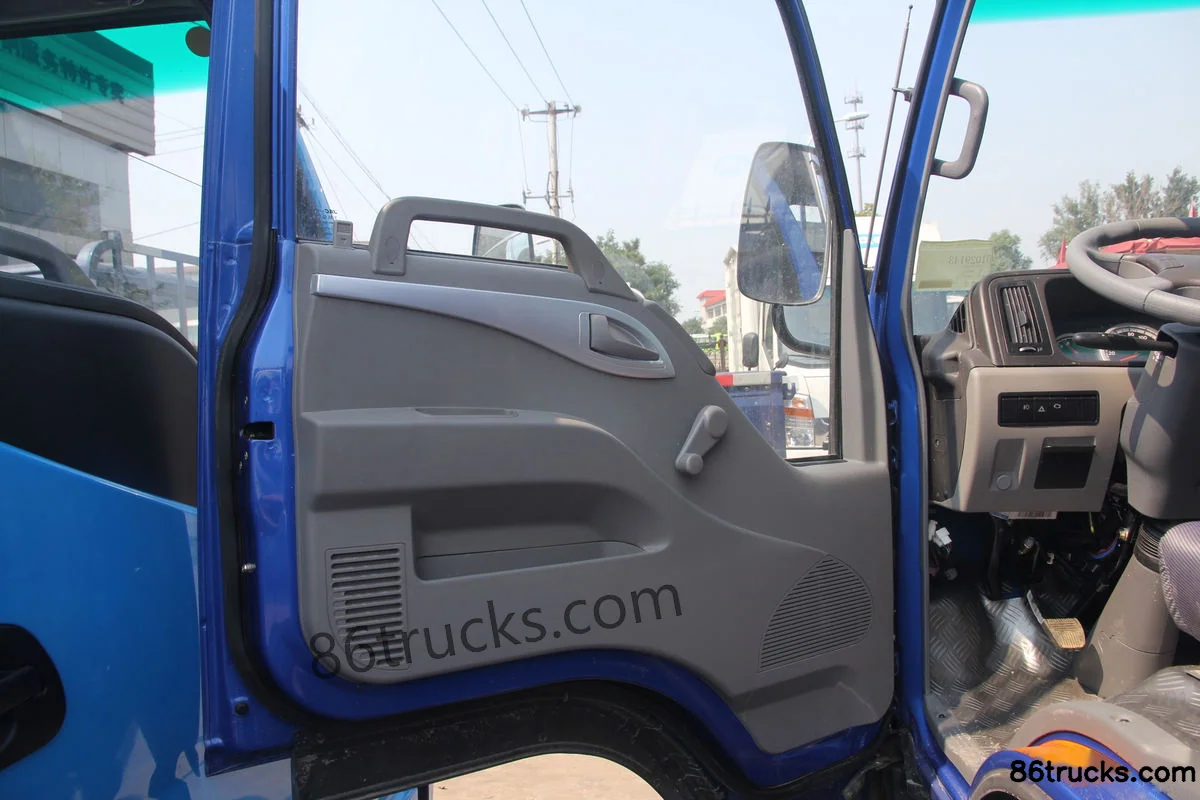

Cab3

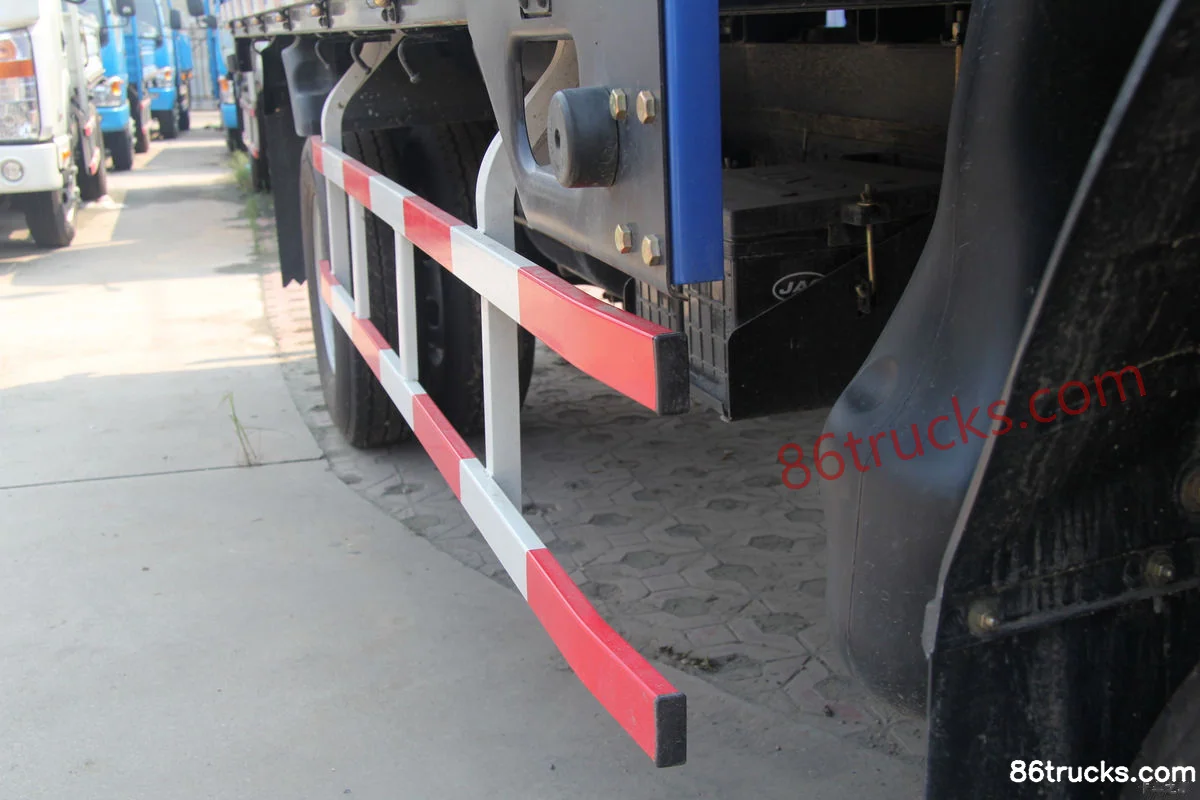

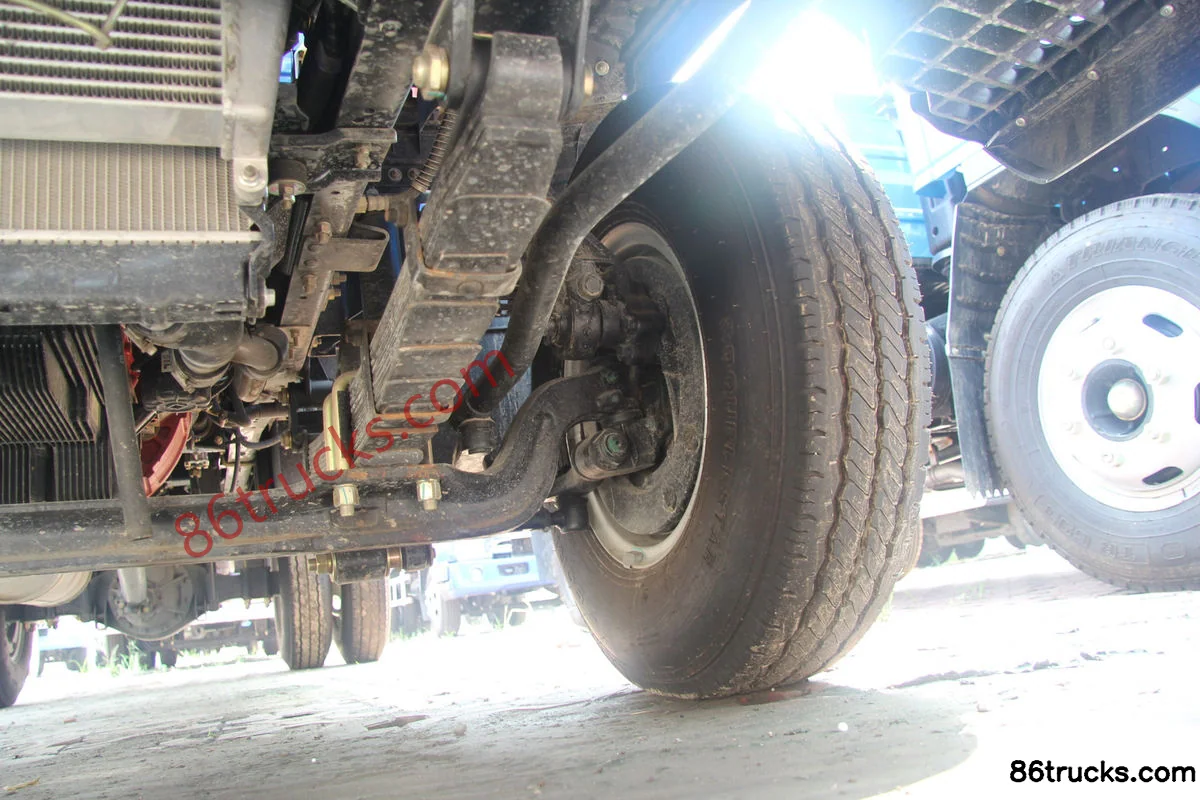

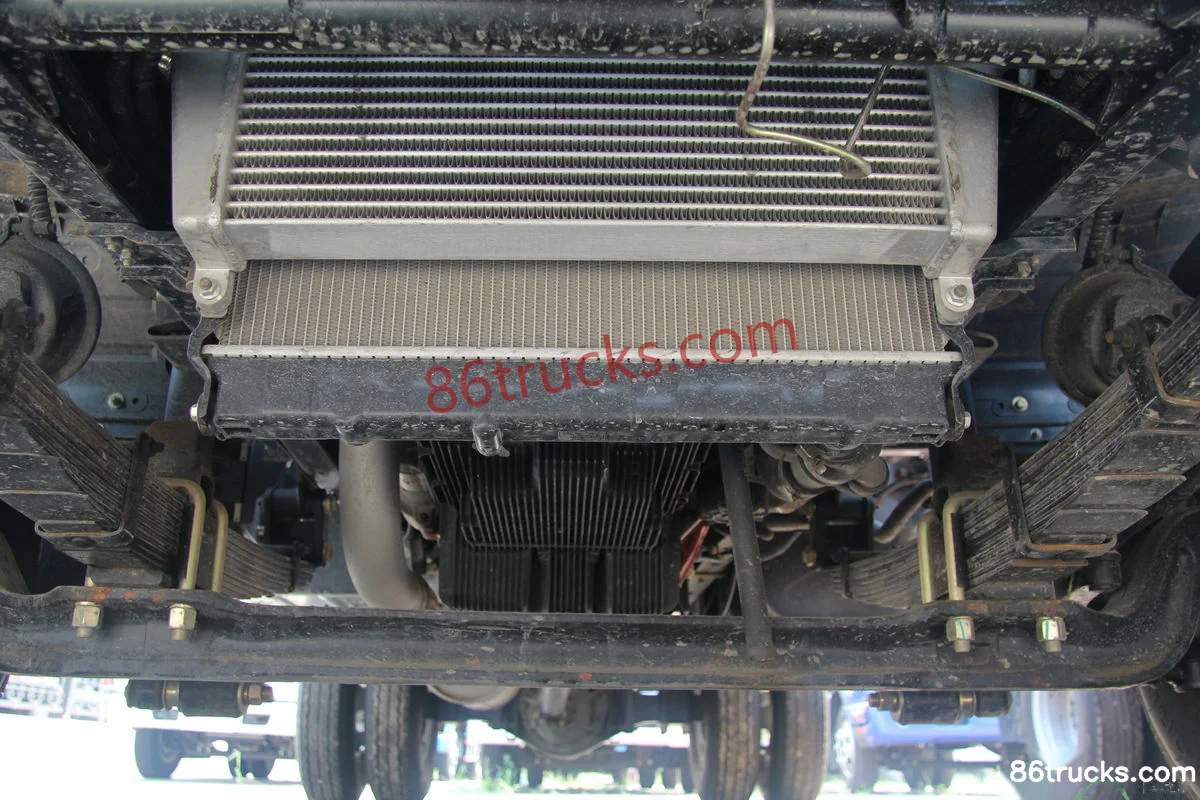

Chassis3

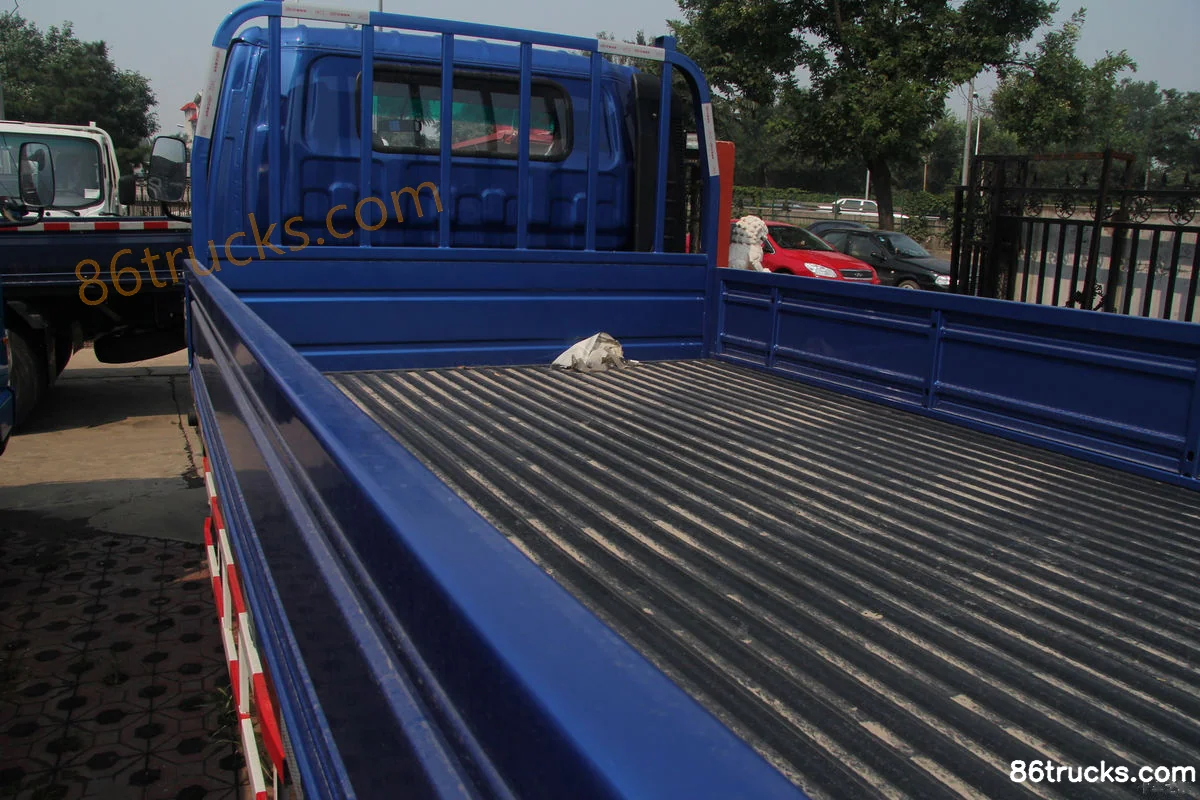

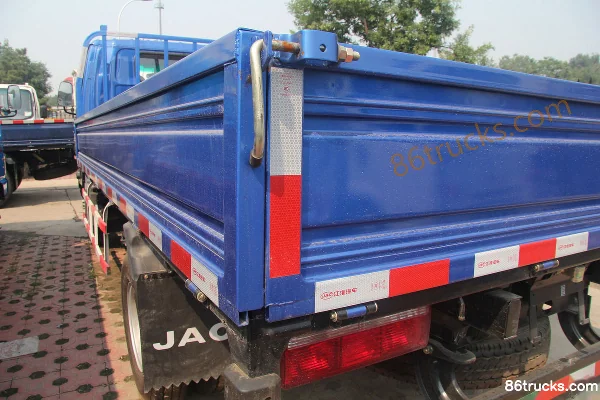

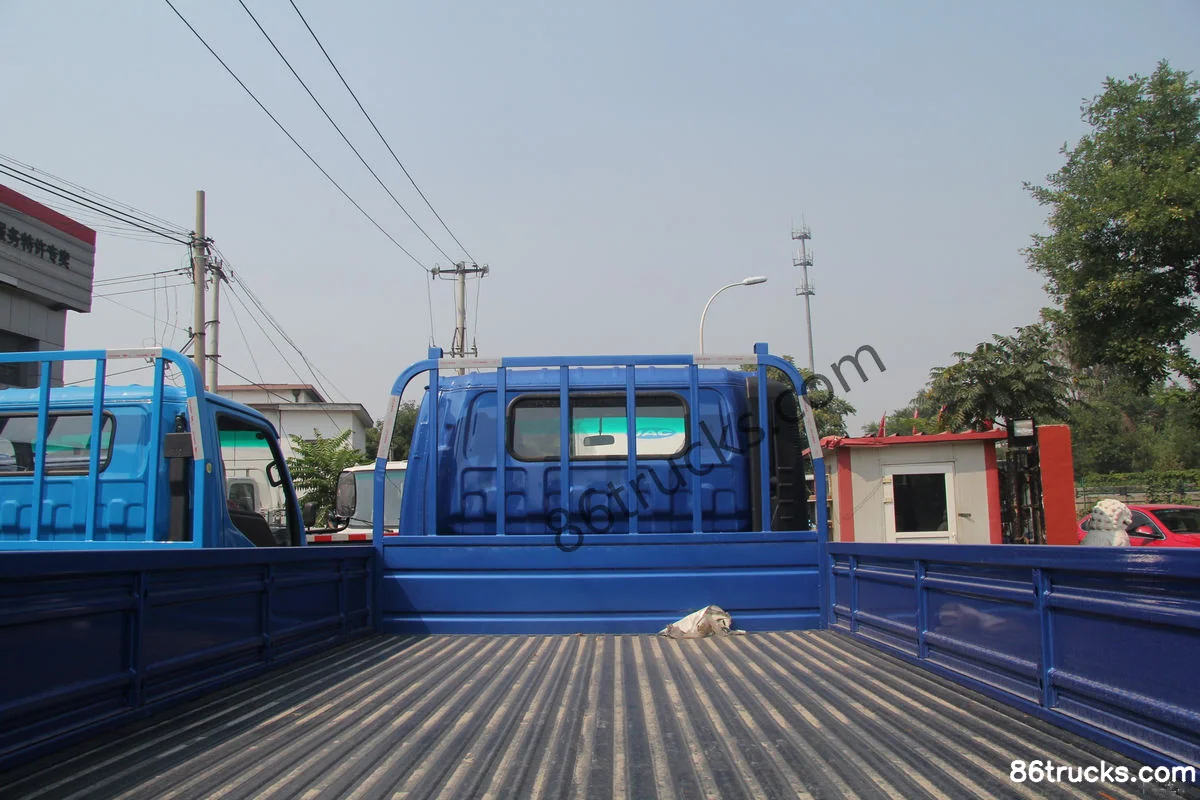

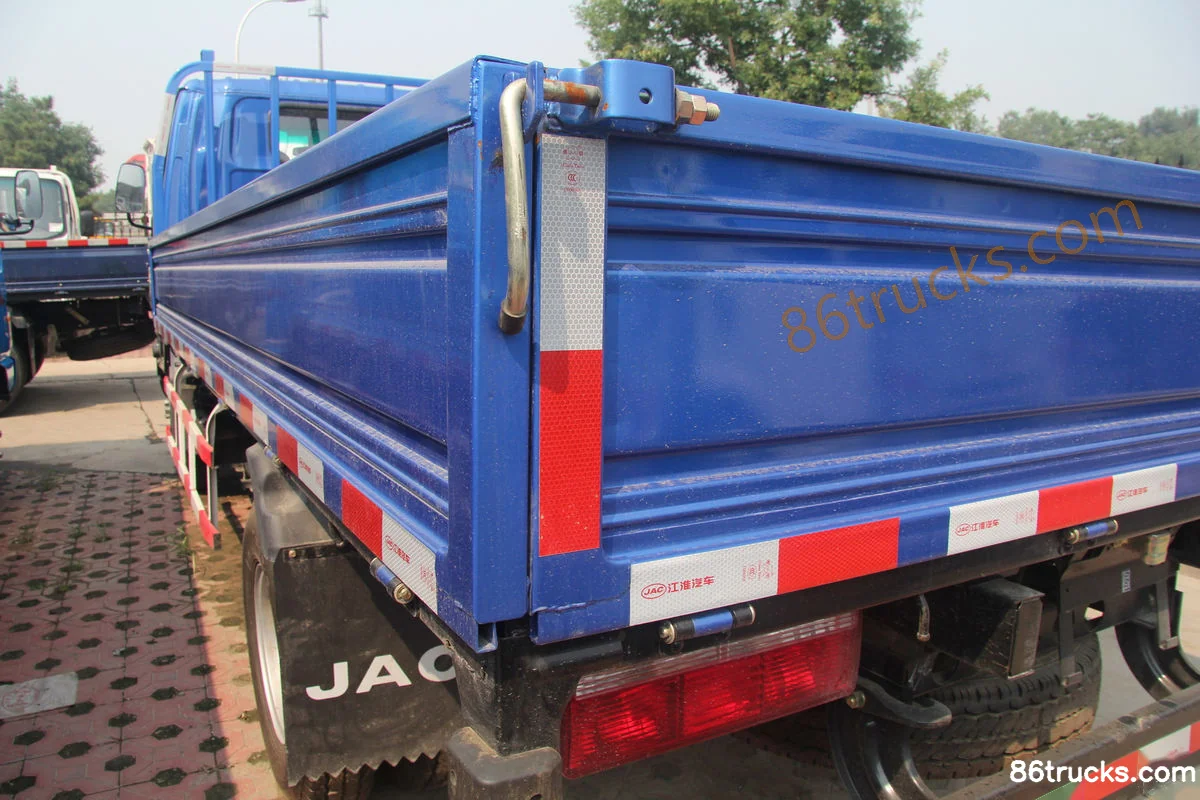

Body3

12 photos

FAQ

What is the export price of JAC Junling 109 hp 4X2(6 wheels) 4.18m single-row flatbed light truck, and what does it include?

JAC Junling 109 hp 4X2(6 wheels) 4.18m single-row flatbed light truck export reference is about From $9,028; MSRP is ¥6.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Junling 109 hp 4X2(6 wheels) 4.18m single-row flatbed light truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Junling 109 hp 4X2(6 wheels) 4.18m single-row flatbed light truck?

Key specs of JAC Junling 109 hp 4X2(6 wheels) 4.18m single-row flatbed light truck: Drive: 4x2; Horsepower: 109 hp; Emission: China III / Euro III; Fuel: Diesel; Engine: Chaochai4102; Transmission: Lu'an. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Junling 109 hp 4X2(6 wheels) 4.18m single-row flatbed light truck suited for?

JAC Junling 109 hp 4X2(6 wheels) 4.18m single-row flatbed light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Junling 109 hp 4X2(6 wheels) 4.18m single-row flatbed light truck differ from other variants in the same series?

JAC Junling 109 hp 4X2(6 wheels) 4.18m single-row flatbed light truck belongs to JAC H light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Junling 109 hp 4X2(6 wheels) 4.18m single-row flatbed light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Junling 109 hp 4X2(6 wheels) 4.18m single-row flatbed light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
