Hande 18-ton Tandem Axle (Small Wheel Hub)

Export reference
MSRP N/A
Application Scope:: For special vehicles such as off-road wide-body mining trucks
Transmission Ratio:: 9.866,10.765,11.840,12.169,13.278,14.604
Brake:: Drum Type
Axle Model: Hande 18t tandem axle
Brake size: Φ410×220
Axle Type: Drive axle

Overview

The Hande 18-ton Tandem Axle (Small Wheel Hub) is a parts product with spec Hande 18t tandem axle and Φ410×220 size.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Axle Model: Hande 18t tandem axle
Axle Type: Drive axle
Application Scope: For special vehicles such as off-road wide-body mining trucks
Rated axle load: 2×18000ton
Transmission Ratio: 9.866,10.765,11.840,12.169,13.278,14.604
Brake: Drum Type
Brake size: Φ410×220
Max output torque: 36000N·m
Wheel Bolts: Φ335-10×M22×1.5mm
Remarks: leaf spring seat center distance: 1210mm

Photos

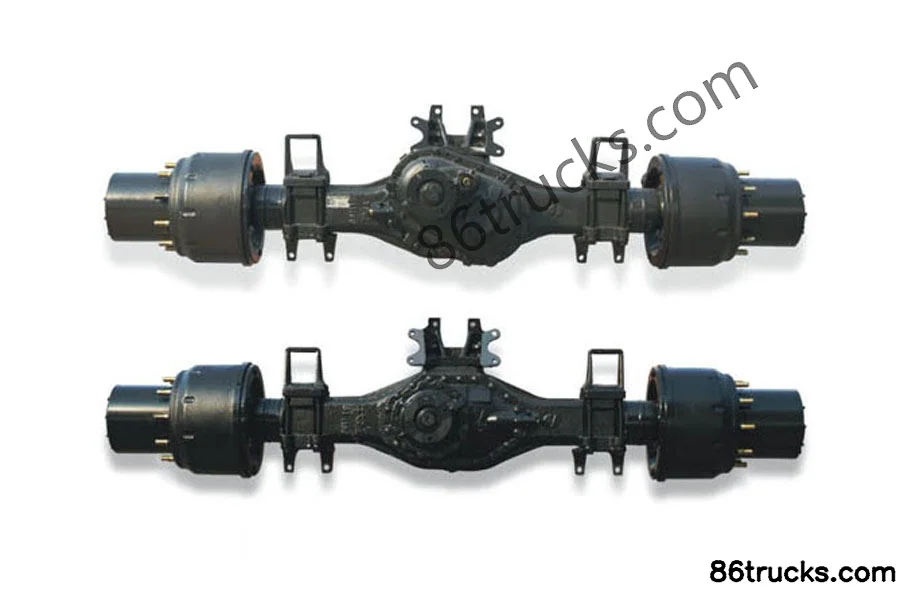

Exterior1

1 photos

FAQ

What transport jobs is Hande 18-ton Tandem Axle (Small Wheel Hub) suited for?

Match Hande 18-ton Tandem Axle (Small Wheel Hub) to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Hande 18-ton Tandem Axle (Small Wheel Hub) differ from other variants in the same series?

Hande 18-ton Tandem Axle (Small Wheel Hub) belongs to Hande Drive Axle (axle). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hande 18-ton Tandem Axle (Small Wheel Hub)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hande 18-ton Tandem Axle (Small Wheel Hub)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
