Senyuan Heavy Industry 8-ton crane truck

Export reference
From $40,278
MSRP ¥29M CNY
Model:: SMQ5128JQZ
Max travel speed:: 80km/h
Max gradeability:: 30%
Approach/departure angle:: 18/11.5°
Rated lifting capacity:: 8ton
Max lift height - base boom:: 8m
total counterweight: 12.495ton
Max output power: 105kW
Wheelbase: 4000mm
Machine dimensions: L×W×H: 9.87X2.4X3.28m

Overview

The Senyuan Heavy Industry 8-ton crane truck is a crane truck featuring 12.495ton GVW and 105kW power.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Machine dimensions: L×W×H: 9.87X2.4X3.28m
Model: SMQ5128JQZ
Wheelbase: 4000mm
total counterweight: 12.495ton
Max travel speed: 80km/h
Max gradeability: 30%
Approach/departure angle: 18/11.5°
Lifting capacity
Rated lifting capacity: 8ton
Max lift height - base boom: 8m
Max lift height: 25.5m
Boom length - main boom: 8m
Boom length - fully extended: 24.9m
Boom length - main boom + jib: 8m
Operating Parameters
Outrigger span: longitudinal × lateral: 4.2×4.8m
Engine parameters
Engine Model: ChaochaiCY4BK151
Max output power: 105kW
Rated speed: 2800rpm
Chassis Specs
Chassis Model: YBM1120DCE1

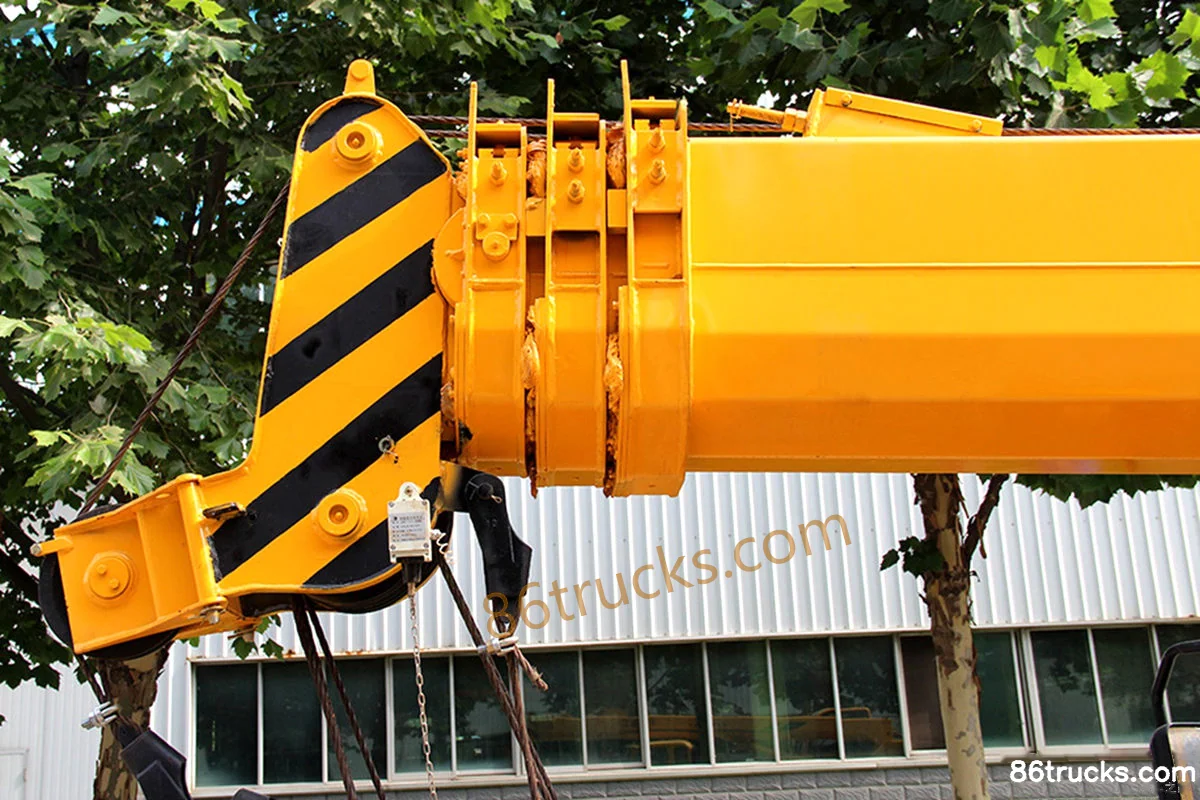

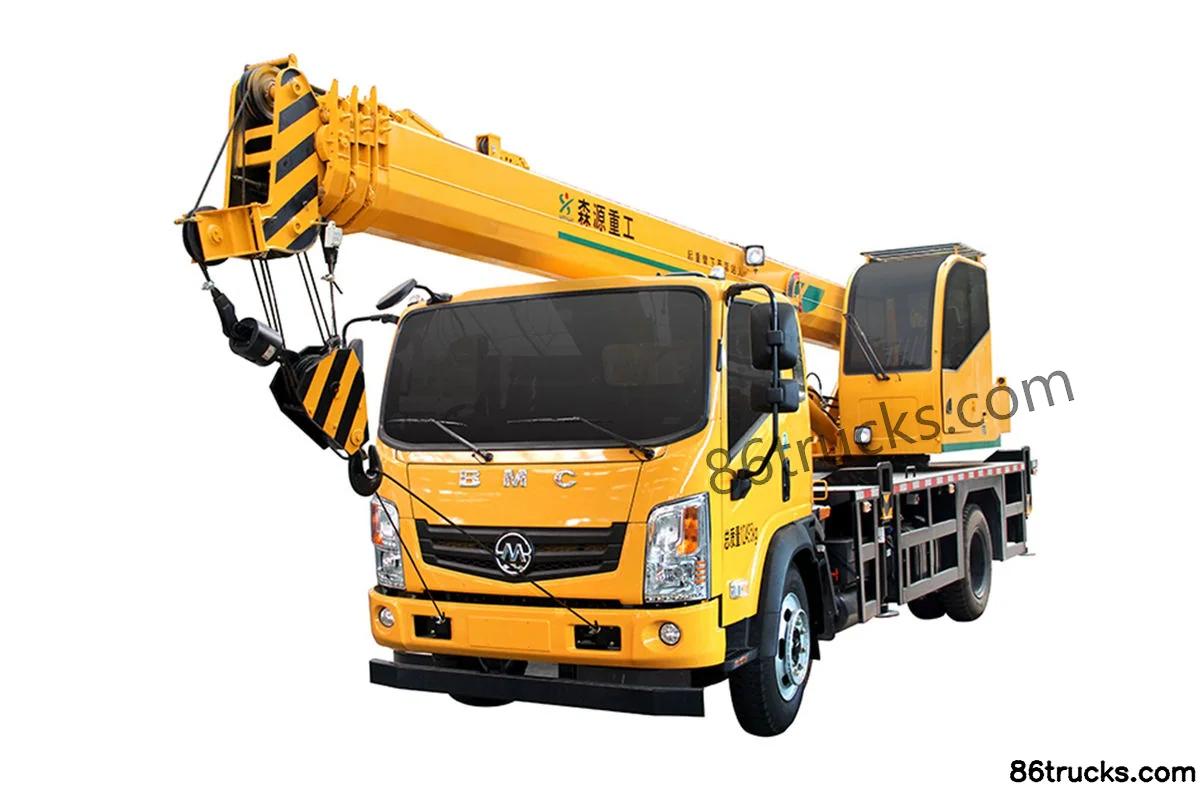

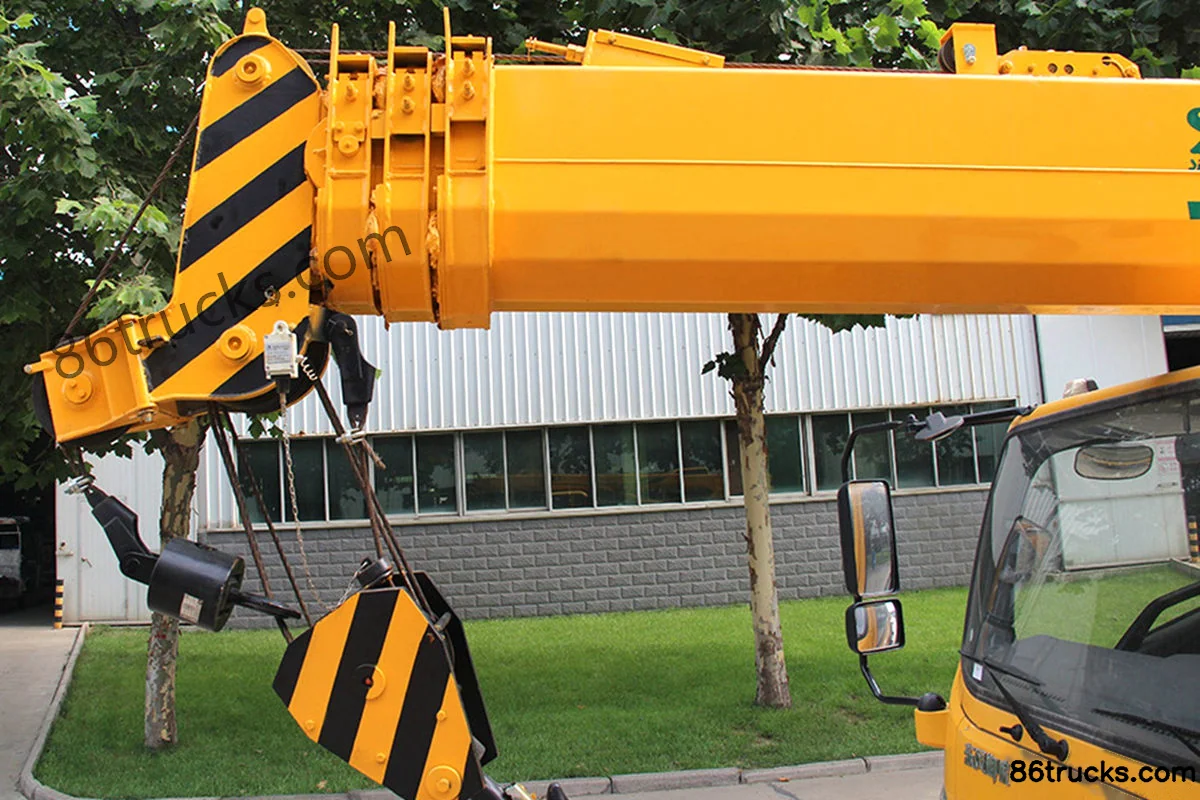

Photos

Exterior3

3 photos

FAQ

What is the export price of Senyuan Heavy Industry 8-ton crane truck, and what does it include?

Senyuan Heavy Industry 8-ton crane truck export reference is about From $40,278; MSRP is ¥29M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is Senyuan Heavy Industry 8-ton crane truck suited for?

Senyuan Heavy Industry 8-ton crane truck is a crane truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Senyuan Heavy Industry 8-ton crane truck differ from other variants in the same series?

Senyuan Heavy Industry 8-ton crane truck belongs to Senyuan Heavy Industry Senyuan (crane truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Senyuan Heavy Industry 8-ton crane truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Senyuan Heavy Industry 8-ton crane truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
