Foton AumanETX 3 Series 170 hp 4X2(6 wheels) refrigerated truck (8T rear axle)

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Curb Weight:: 7.52ton
Wheelbase:: 5600mm
Tire Size:: 8.25R20,9.00R20
Cab dimensions:: 9.99×2.55×3.85m
Rated payload: 7.95ton
Drive 4X2 (6 wheels)
Cargo box dimensions: 7.5×2.4×2.5m
Horsepower 170

Overview

The Foton AumanETX 3 Series 170 hp 4X2(6 wheels) refrigerated truck (8T rear axle) is a Refrigerated Truck featuring 7.5×2.4×2.5m cargo body, 7.95t payload, ETX-2200 flat roof cab and 5600mm wheelbase. On the powertrain side, it comes with 170 hp, 4X2 (6 wheels) drive, China IV emissions and Diesel fuel.

China IV 170 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.99×2.55×3.85m
Drive type: 4X2
Truck Type: Refrigerated Truck
Vehicle origin: Beijing
Wheelbase: 5600mm
Front track width: 1900mm
rear track: 1800mm
Curb Weight: 7.52ton
Rated payload: 7.95ton
Max. speed: 90km/h
Front/rear suspension: 1.365/3.025m
Energy Type: Diesel
Engine parameters
Injection System: Common Rail
Engine Model: DongfengISB170 40
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 5.9L
Emission standard: China IV
Max output power: 125kW
Max hp: 170Horsepower
Max torque: 630N·m
Rated speed: 2500rpm
Engine Type: 4-stroke, water-cooled, inline, direct injection, dry cylinder liner
Cargo box parameters
Cargo box dimensions: 7.5×2.4×2.5m
Cargo box width: 2.4m
Cargo box height: 2.5m
Body Parameters
Vehicle certification code: BJ5163XLC-XB
Body Brand: FotonAuman
Chassis Specs
Chassis Brand: FotonAuman
Chassis Series: AumanETX
Chassis Model: BJ5163XXY-XL
Frame Dimensions: 232mm
Steering gear: Domestic
rear axle description: 8T rear axle
Axle ratio: 4.875
Leaf spring count: 10/10+8
clutch: Φ380
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear8JS85E
Cab parameters
Cab: ETX-2200 flat roof
Tire
Tire Size: 8.25R20,9.00R20
Number of tires: 6pcs

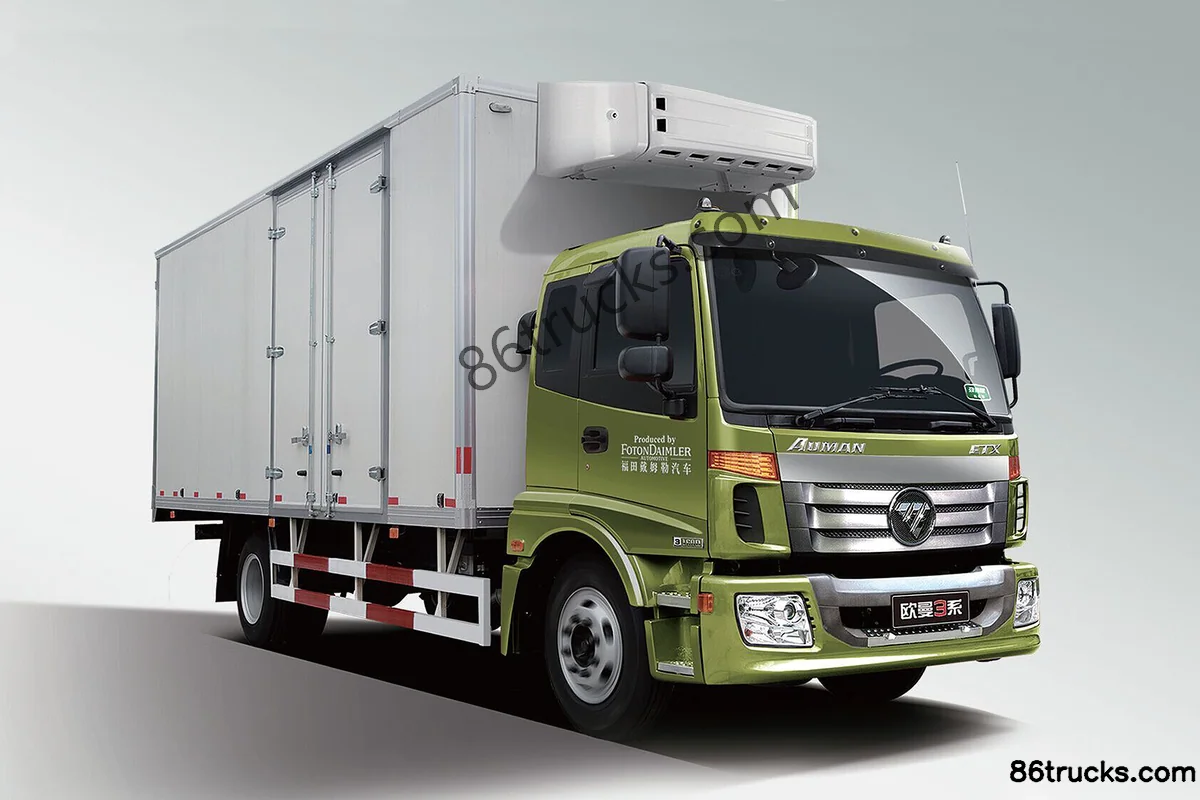

Photos

Exterior1

1 photos

FAQ

What emission standard does Foton AumanETX 3 Series 170 hp 4X2(6 wheels) refrigerated truck (8T rear axle) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton AumanETX 3 Series 170 hp 4X2(6 wheels) refrigerated truck (8T rear axle)?

Key specs of Foton AumanETX 3 Series 170 hp 4X2(6 wheels) refrigerated truck (8T rear axle): Drive: 4x2; Horsepower: 170 hp; Emission: China IV; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton AumanETX 3 Series 170 hp 4X2(6 wheels) refrigerated truck (8T rear axle) suited for?

Foton AumanETX 3 Series 170 hp 4X2(6 wheels) refrigerated truck (8T rear axle) is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton AumanETX 3 Series 170 hp 4X2(6 wheels) refrigerated truck (8T rear axle) differ from other variants in the same series?

Foton AumanETX 3 Series 170 hp 4X2(6 wheels) refrigerated truck (8T rear axle) belongs to Foton Auman ETX Heavy Truck (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton AumanETX 3 Series 170 hp 4X2(6 wheels) refrigerated truck (8T rear axle)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton AumanETX 3 Series 170 hp 4X2(6 wheels) refrigerated truck (8T rear axle)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
