Sinotruk Haohan J5G Heavy Truck Lightweight Version 260 hp 4X2(6 wheels) LNG Tractor Truck

Export reference
From $36,208
MSRP ¥26.07M CNY
Fuel: LNG (liquefied natural gas)
Gross Trailer Weight:: 30.17ton
Wheelbase:: 4200mm
Tire Size:: 12R22.5
Front axle allowable load:: 6500kg
Displacement:: 6.87L
Drive 4X2 (6 wheels)
Horsepower 260
Emission China V
Transmission Sinotruk

Overview

The Sinotruk Haohan J5G Heavy Truck Lightweight Version 260 hp 4X2(6 wheels) LNG Tractor Truck is a Heavy truck featuring 4X2 (6 wheels) drive, 260 hp, 18t GVW and China V emissions. On the powertrain side, it comes with a SinotrukMT07.26-50 engine, Sinotruk transmission and LNG (liquefied natural gas) fuel.

China V 260 LNG (liquefied natural gas) 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ4185M4213E1L
Drive type: 4X2
Wheelbase: 4200mm
engine: SinotrukMT07.26-50
transmission: SinotrukHW13710C2
Cab length: 6.75m
Cab width: 2.496m
Cab height: 3.72m
Front track width: 2022mm
rear track: 1830mm
Gross Trailer Weight: 30.17ton
Curb Weight: 7.3ton
GVWR: 18ton
Max. speed: 102km/h
Origin: Jinan, Shandong
tonnage class: Heavy truck
Remarks: Optional ratio 4.875 (with overdrive); fifth wheel (JOST90#, JOST50#)
Version: LNG Lightweight Edition
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMT07.26-50
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Cylinder arrangement: Inline
Displacement: 6.87L
Emission standard: China V
Max output power: 191kW
Max hp: 260Horsepower
Max torque: 1030N·m
Max torque speed: 1200-1500rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: SinotrukHW13710C2
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cab parameters
Cab: High roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Suspension type: Leaf spring
Front axle description: H153
Front axle allowable load: 6500kg
rear axle description: H457
rear axle allowable load: 11500kg
Axle ratio: 4.11
Leaf spring count: 3/1+-,4/9+6
fuel tank
Fuel tank capacity: 400L
Tire
Tire Size: 12R22.5
Number of tires: 6pcs
Control configuration
ABS:

Photos

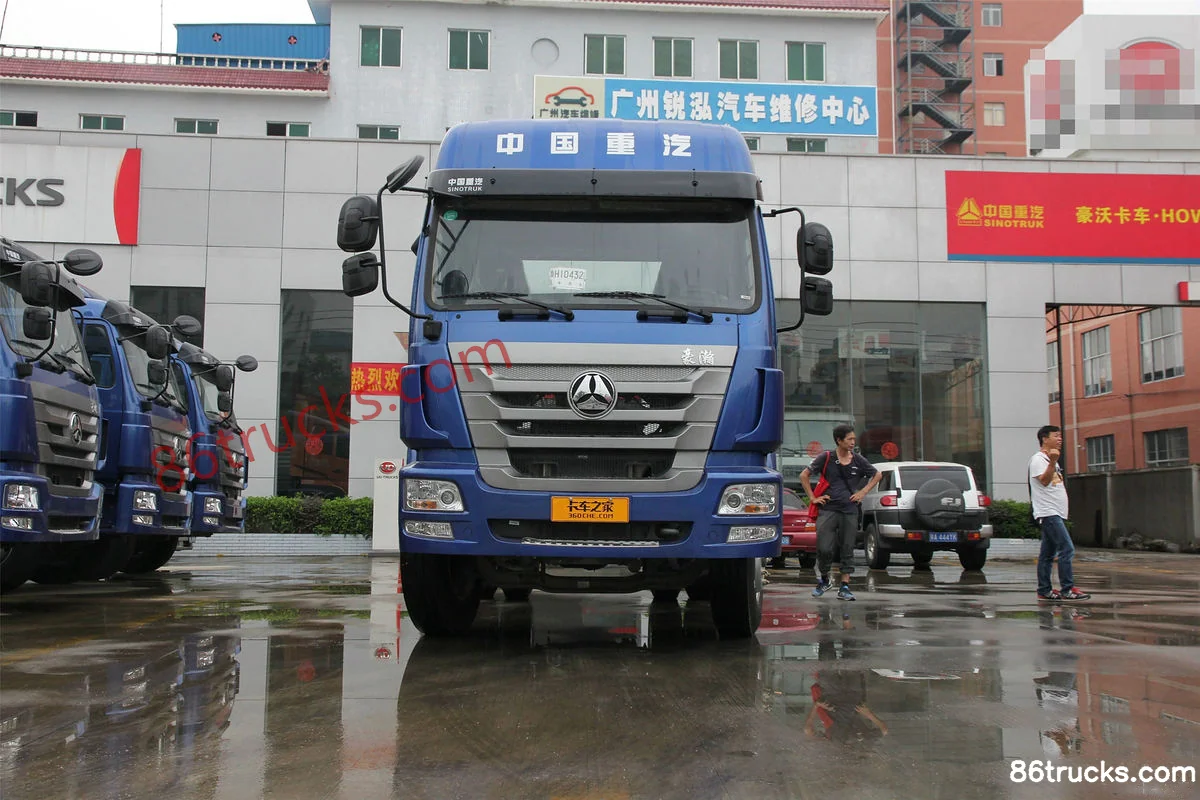

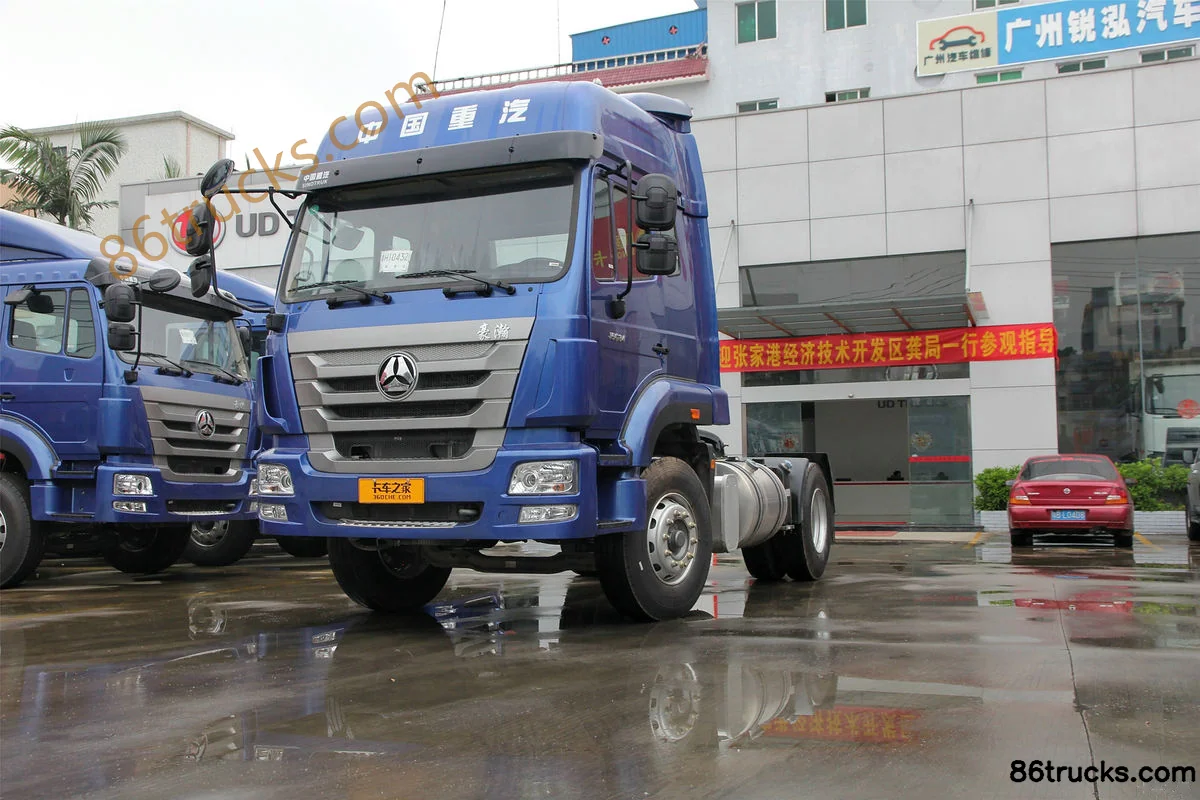

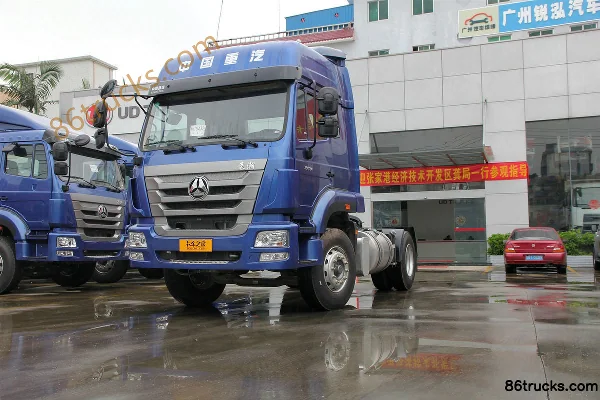

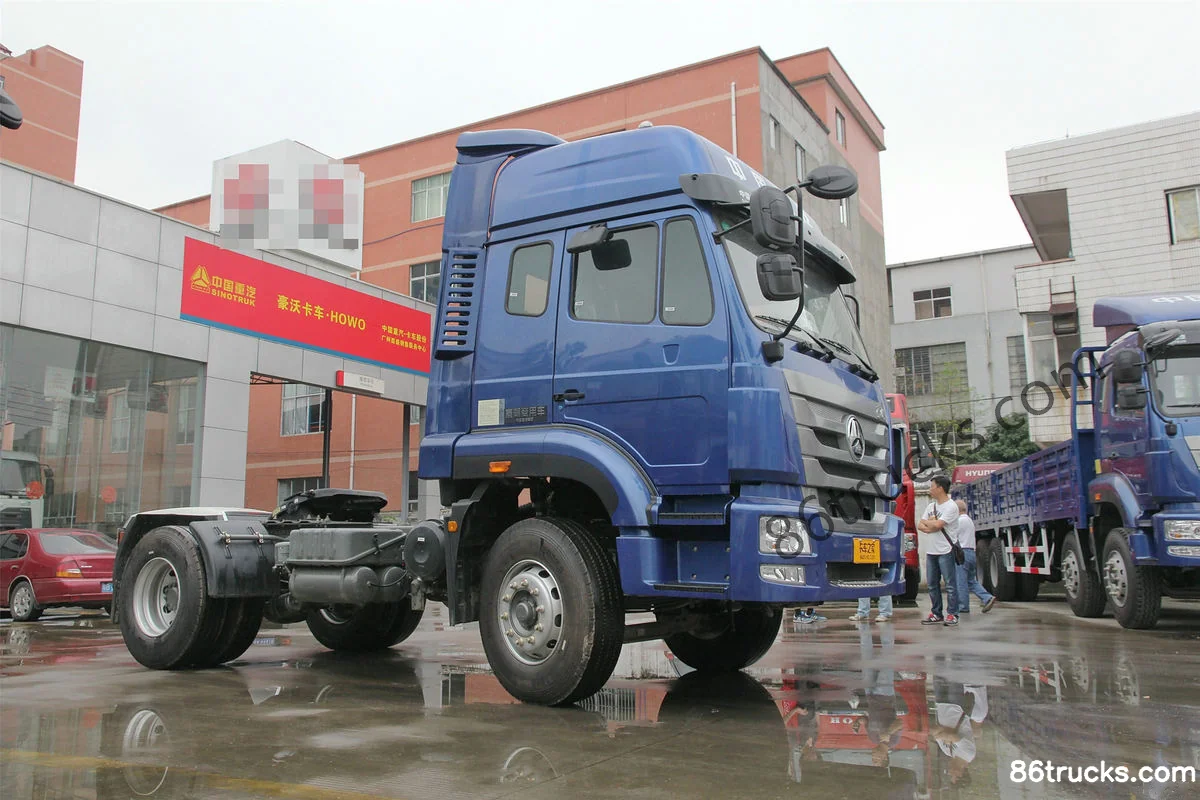

Exterior3

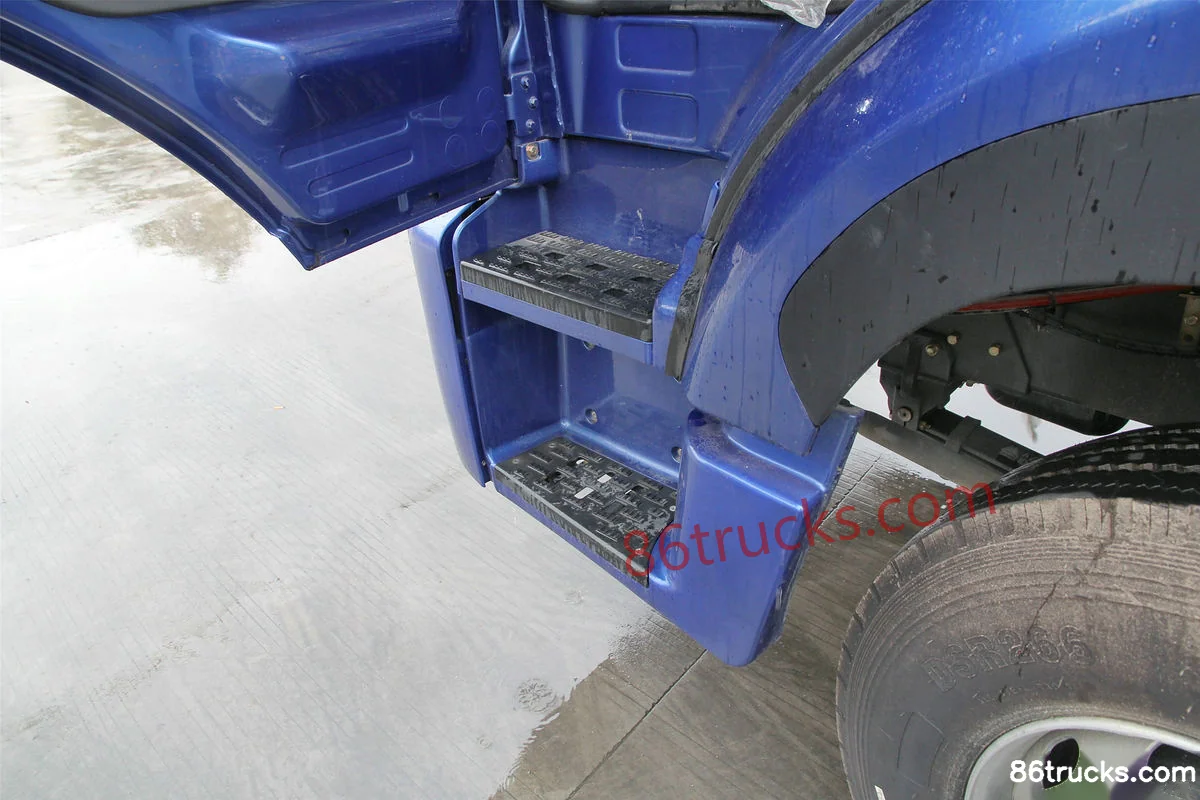

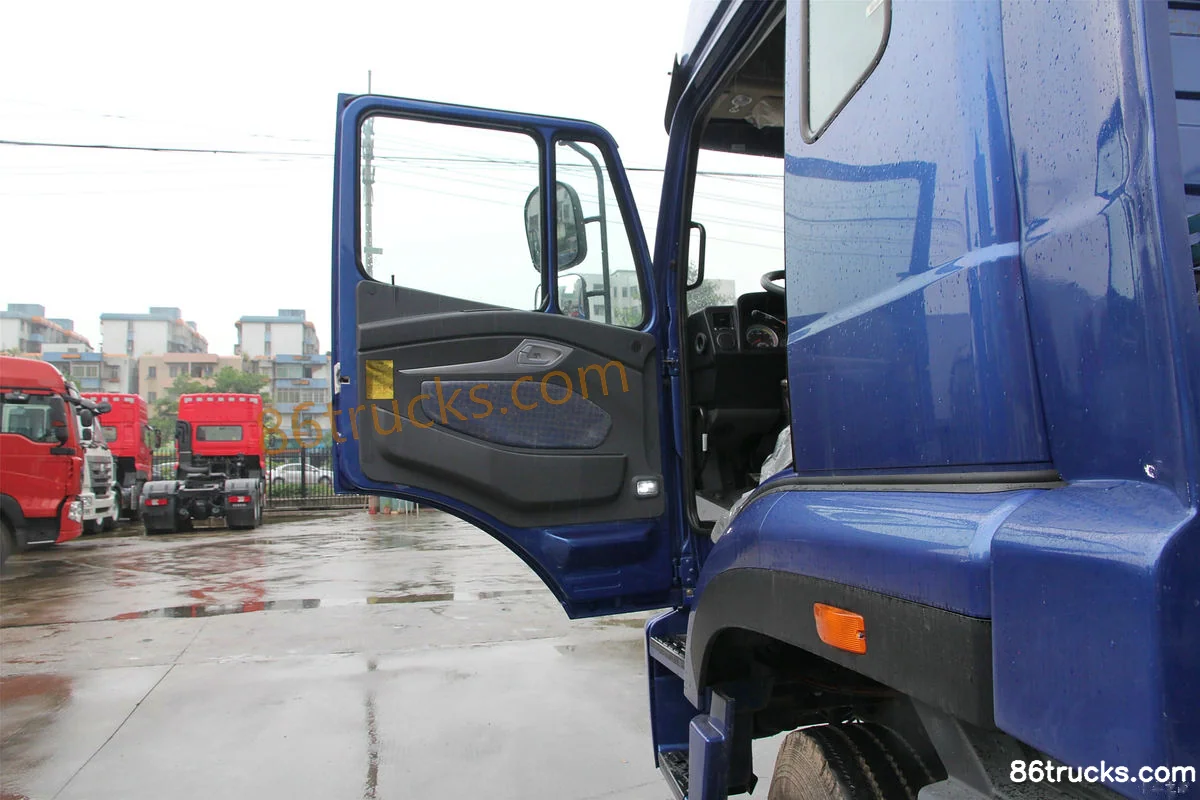

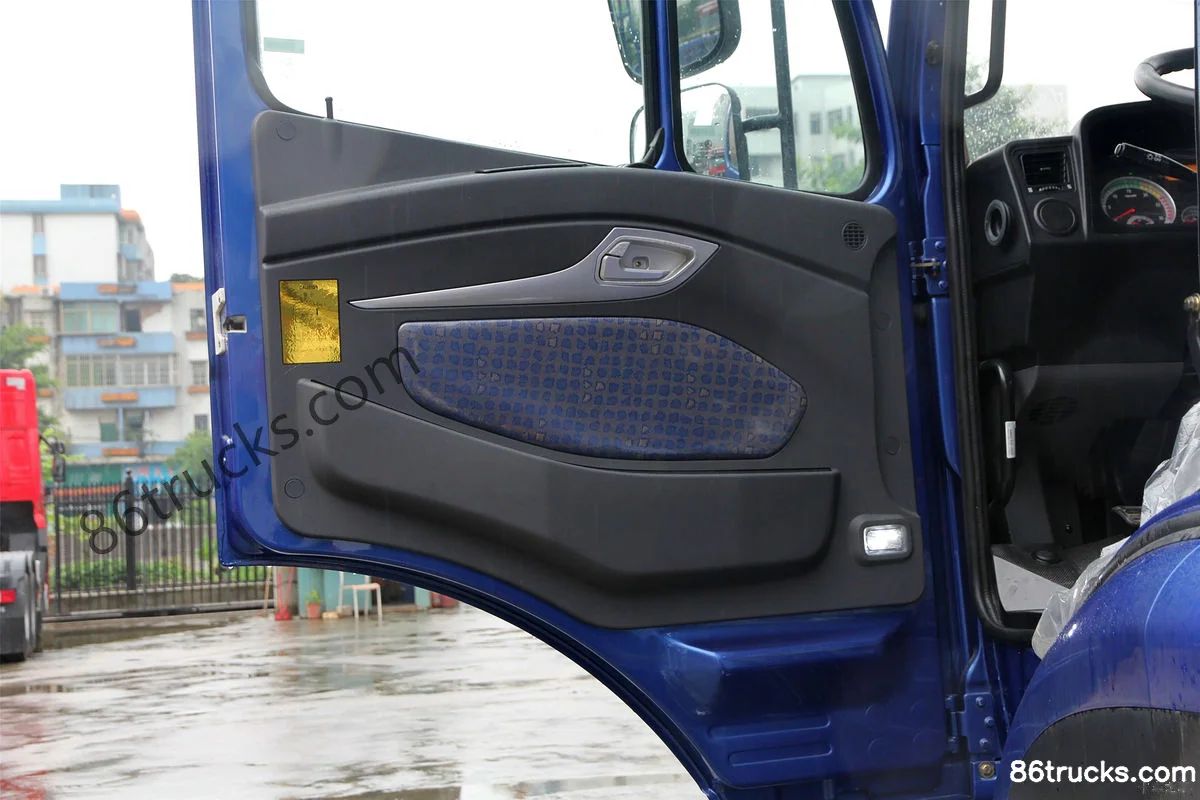

Cab3

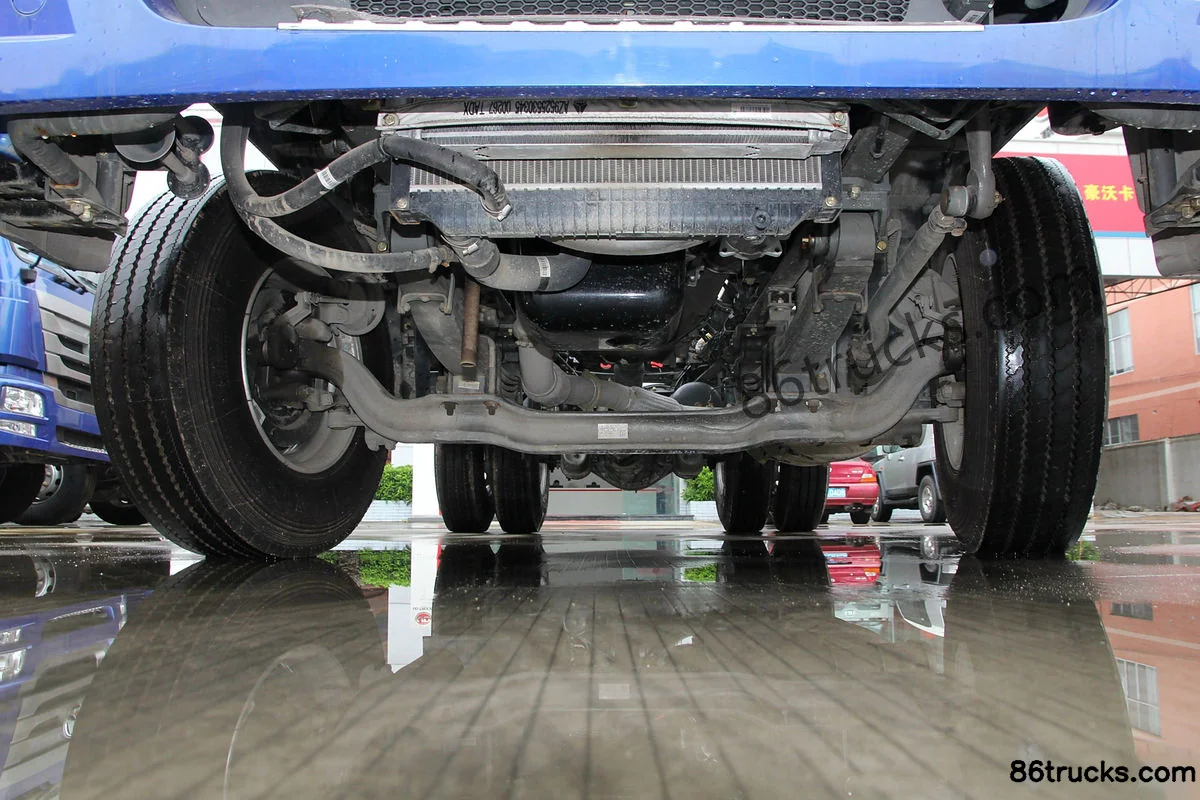

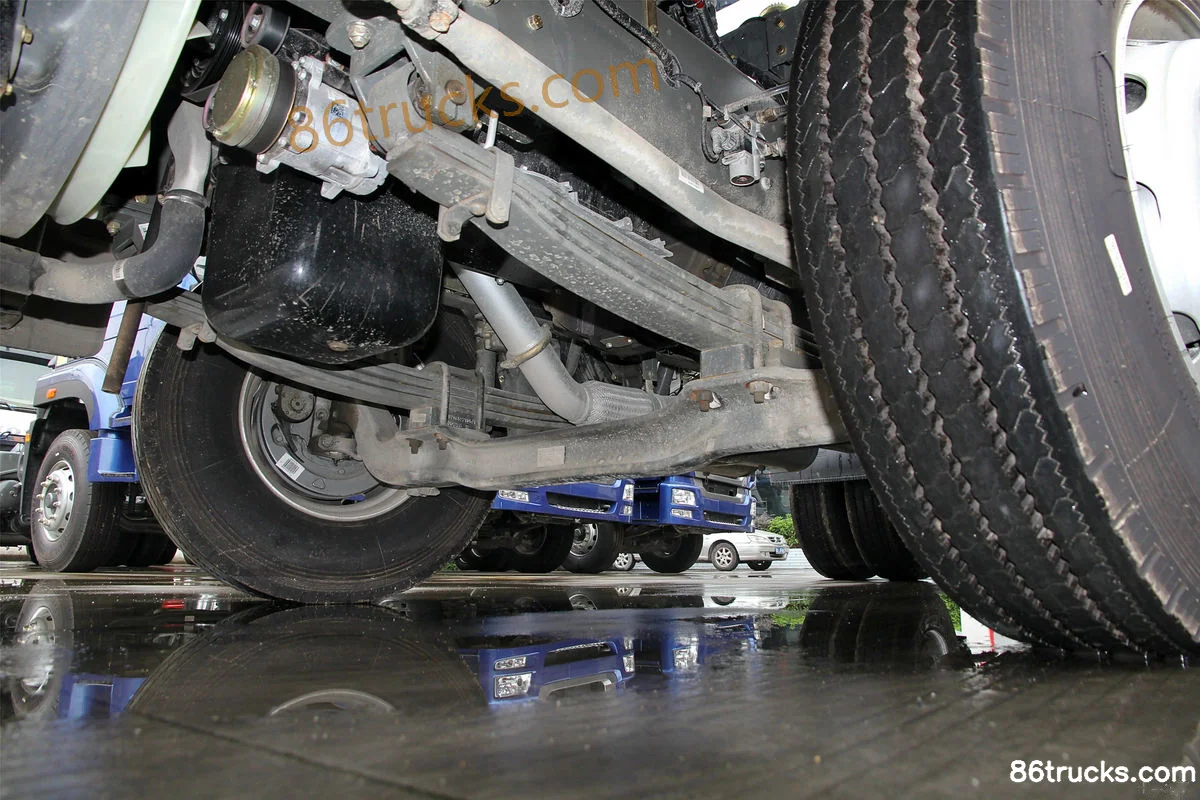

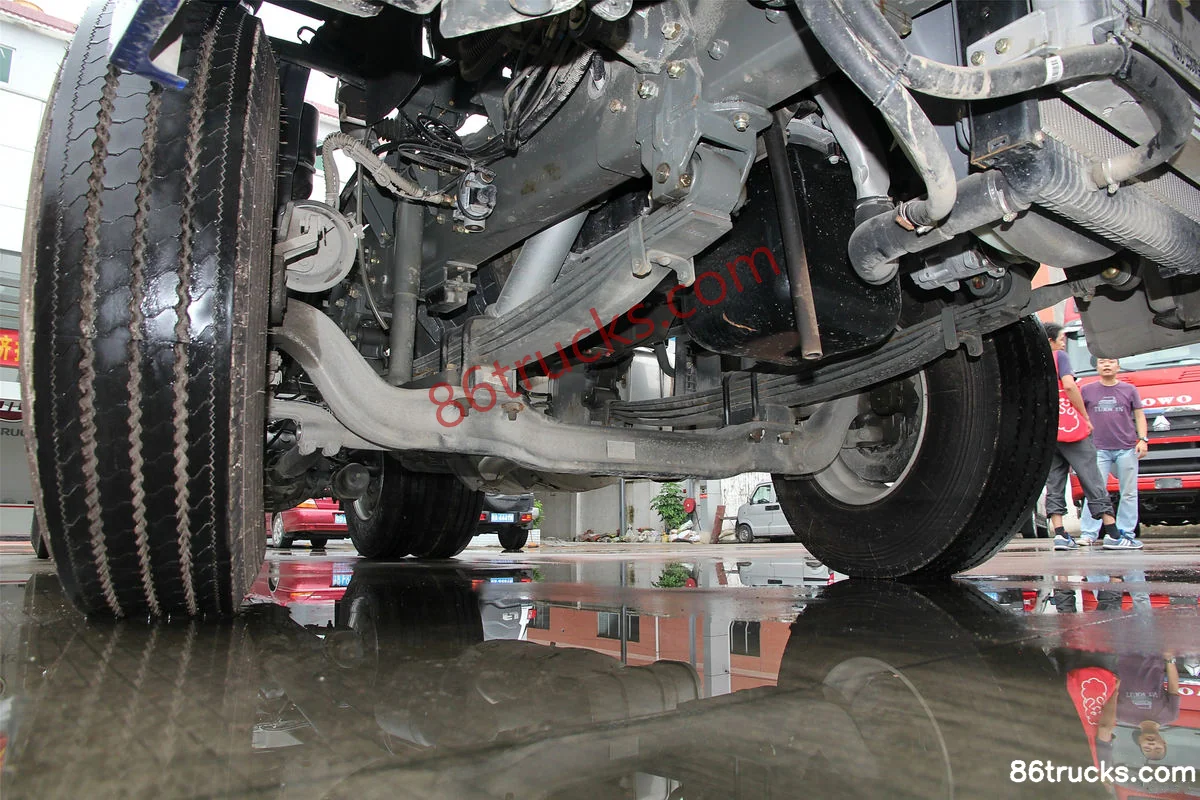

Chassis3

9 photos

FAQ

What is the export price of Sinotruk Haohan J5G Heavy Truck Lightweight Version 260 hp 4X2(6 wheels) LNG Tractor Truck, and what does it include?

Sinotruk Haohan J5G Heavy Truck Lightweight Version 260 hp 4X2(6 wheels) LNG Tractor Truck export reference is about From $36,208; MSRP is ¥26.07M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Haohan J5G Heavy Truck Lightweight Version 260 hp 4X2(6 wheels) LNG Tractor Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Haohan J5G Heavy Truck Lightweight Version 260 hp 4X2(6 wheels) LNG Tractor Truck?

Key specs of Sinotruk Haohan J5G Heavy Truck Lightweight Version 260 hp 4X2(6 wheels) LNG Tractor Truck: Drive: 4x2; Horsepower: 260 hp; Emission: China V; Fuel: LNG (liquefied natural gas); Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Haohan J5G Heavy Truck Lightweight Version 260 hp 4X2(6 wheels) LNG Tractor Truck suited for?

Sinotruk Haohan J5G Heavy Truck Lightweight Version 260 hp 4X2(6 wheels) LNG Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Sinotruk Haohan J5G Heavy Truck Lightweight Version 260 hp 4X2(6 wheels) LNG Tractor Truck differ from other variants in the same series?

Sinotruk Haohan J5G Heavy Truck Lightweight Version 260 hp 4X2(6 wheels) LNG Tractor Truck belongs to Sinotruk J5G Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Haohan J5G Heavy Truck Lightweight Version 260 hp 4X2(6 wheels) LNG Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Haohan J5G Heavy Truck Lightweight Version 260 hp 4X2(6 wheels) LNG Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
