Foton Ollin CTX Tech Edition 143hp 4X2(6 wheels) 3.8m semi-row flatbed light truck

Export reference
From $15,694
MSRP ¥11.3M CNY
Horsepower: 143
Emission: China IV
Fuel: Diesel
Engine: Fukang 3.8
Curb Weight:: 2.54ton
Wheelbase:: 3360mm
seating capacity: 3Personnel
Rated payload: 1.8ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Foton Ollin CTX Tech Edition 143hp 4X2(6 wheels) 3.8m semi-row flatbed light truck is a Light Truck featuring 3.8m cargo length, stake body cargo body, 3Personnel volume and 1.8t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Fukang 3.8 engine, 143 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 143 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ1049V9PEA-FB
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 3.8m
engine: FotonISF3.8s4R141
transmission: 6-speed
Rear Axle Ratio: 3.727
Cab length: 5.995m
Cab width: 2.15m
Cab height: 2.32m
Front track width: 1730mm
rear track: 1590mm
Curb Weight: 2.54ton
Rated payload: 1.8ton
GVWR: 4.47ton
Max. speed: 110km/h
Origin: Beijing
tonnage class: Light Truck
Approach angle: 22°
departure angle: 21°
market segment: Building materials, agricultural products
Front/rear suspension: 1.085/1.55m
Version: Tech Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF3.8s4R141
Engine info: Fukang 3.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.76L
Emission standard: China IV
Max output power: 105kW
Max hp: 143Horsepower
Max torque: 450N·m
Max torque speed: 1200-2200rpm
Rated speed: 2600rpm
Engine Type: Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection SCR
Transmission Parameters
Transmission Model: 6-speed
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.8m
Cargo box width: 2.05m
Cargo box height: 0.4m
*Cargo box interior width: 2.0499999523163
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 1430kg
rear axle description: NPR, stamped welded integral axle housing
rear axle allowable load: 3040kg
Axle ratio: 3.727
Leaf spring count: 3+1/6+7
Tire
Tire Size: 7.50R16
Number of tires: 6pcs

Photos

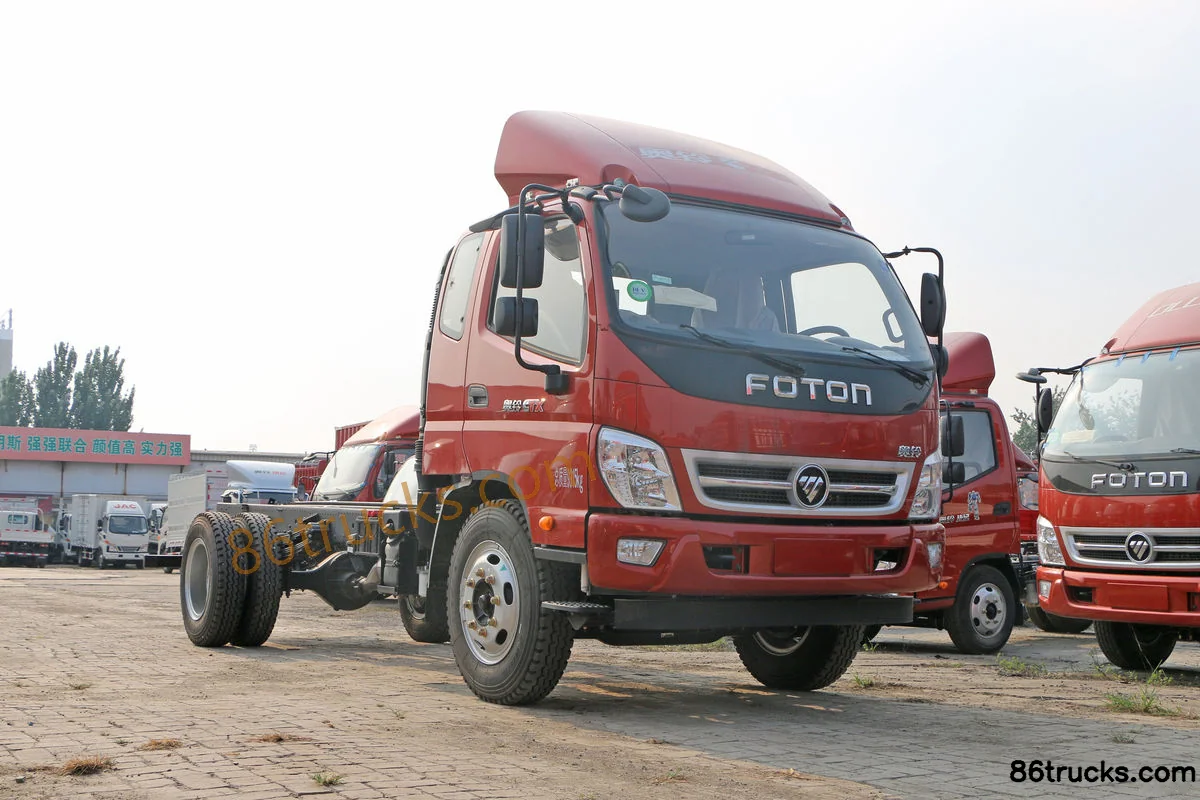

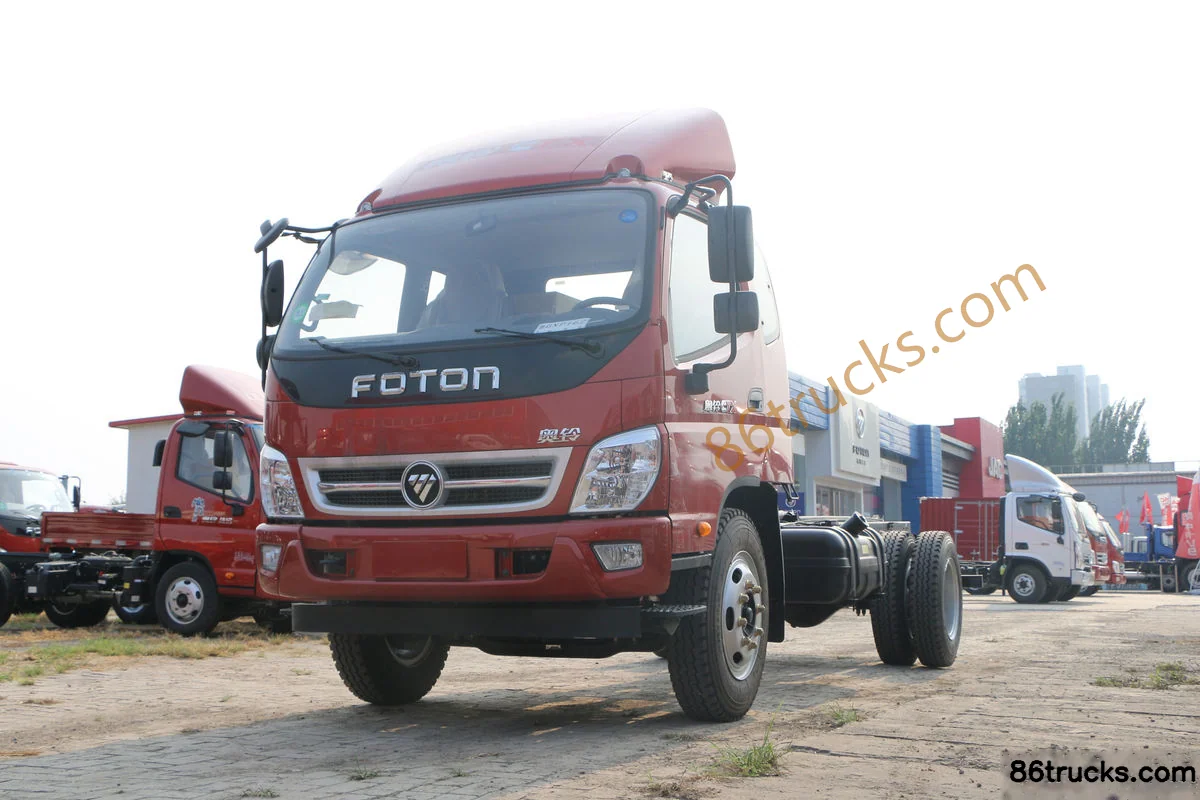

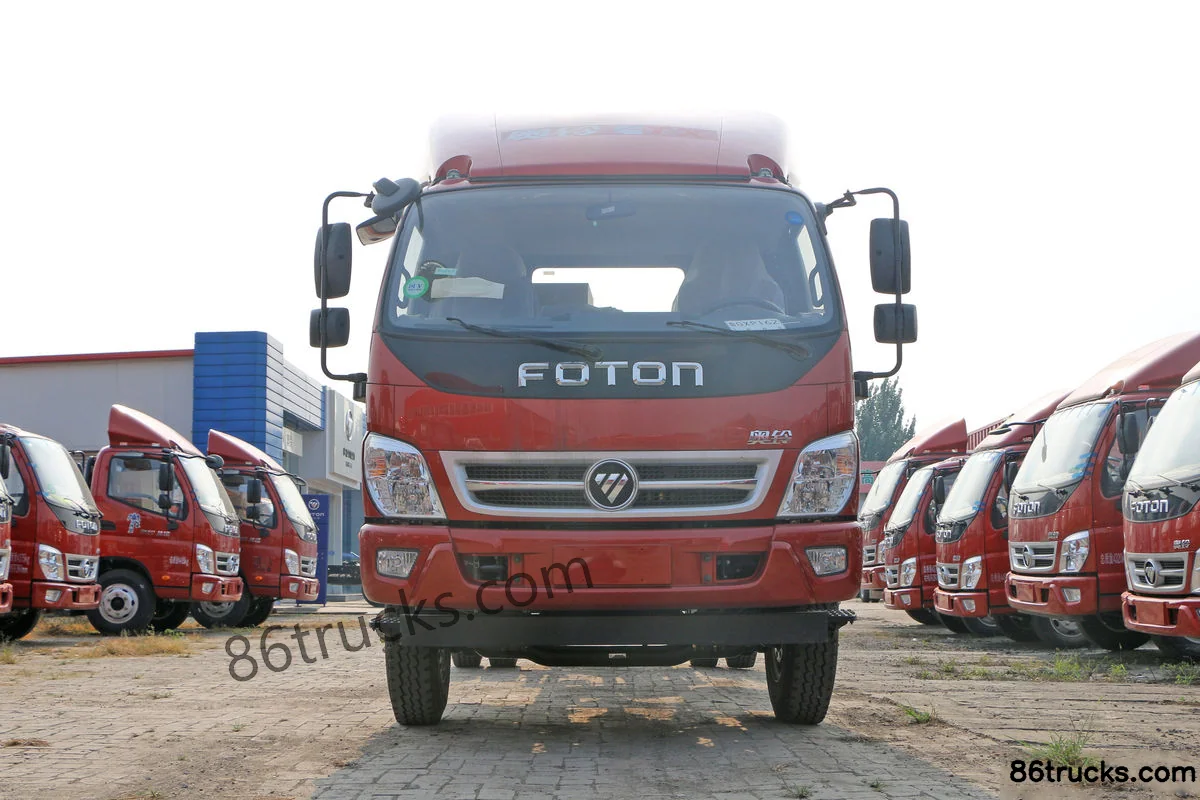

Exterior3

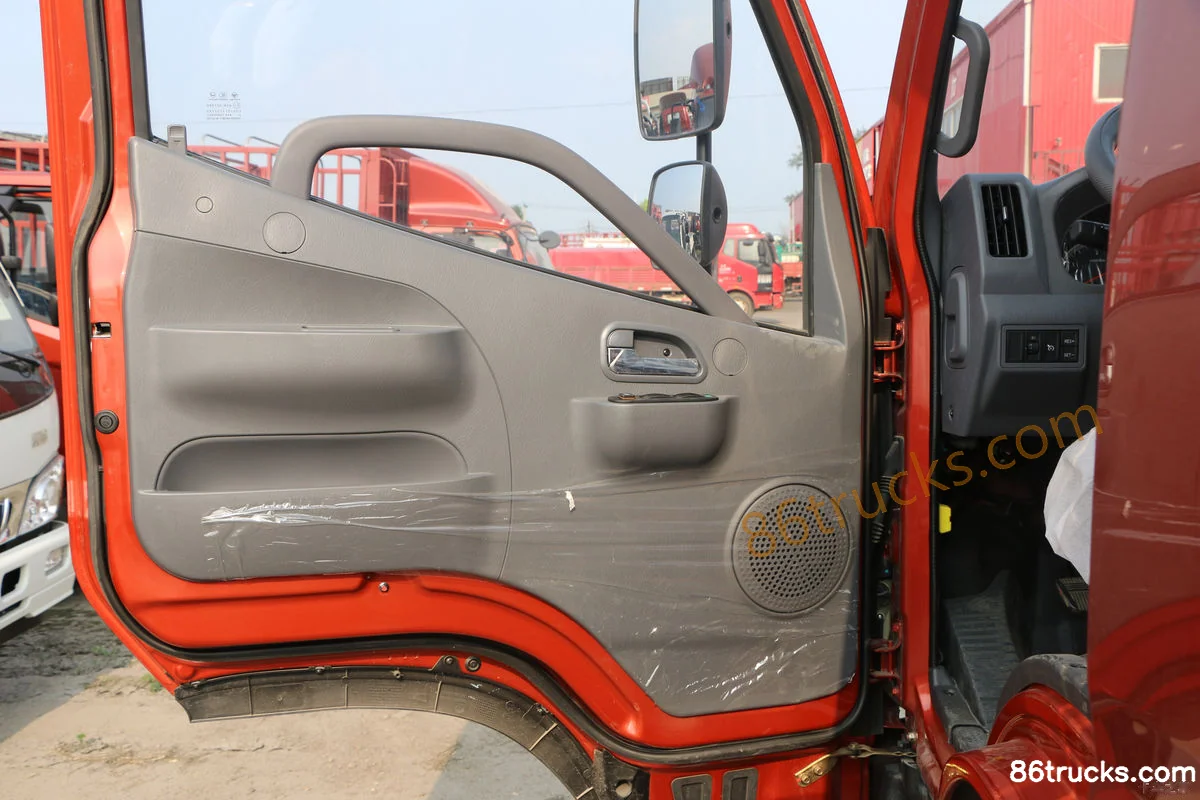

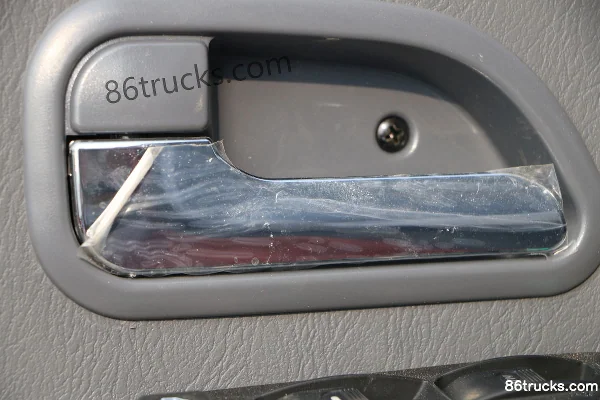

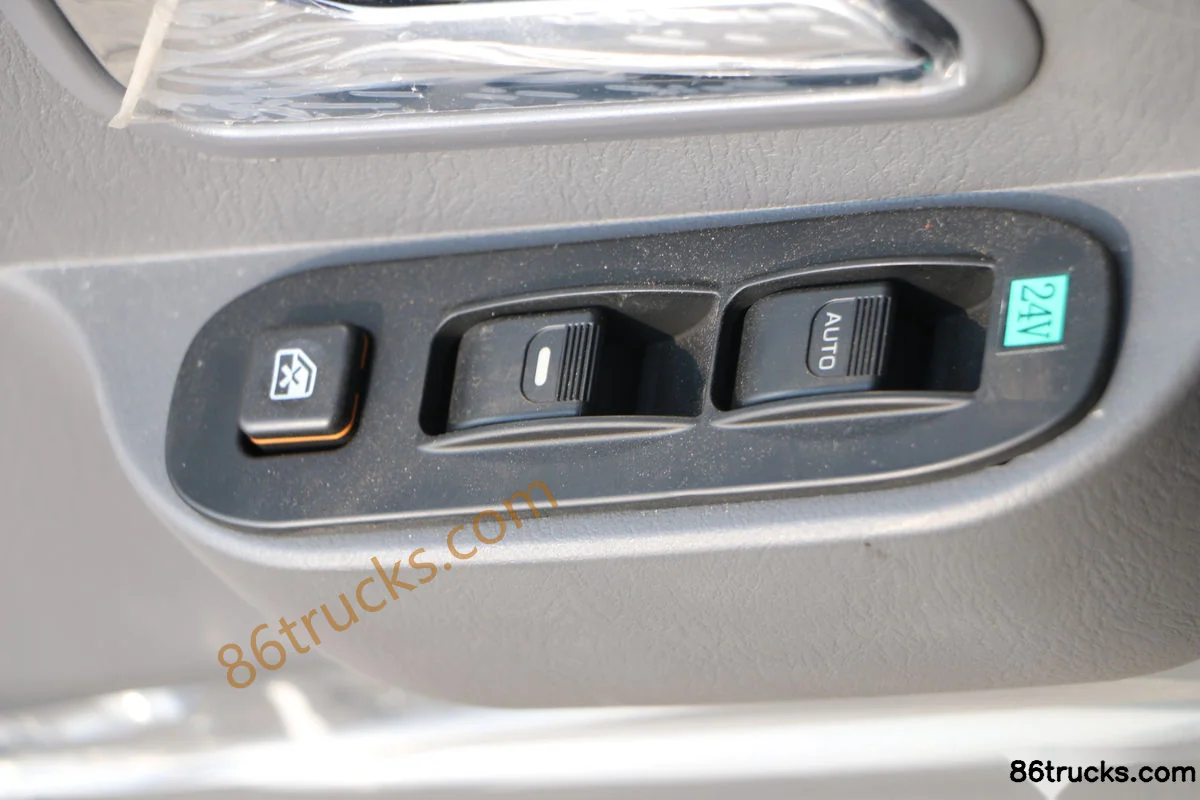

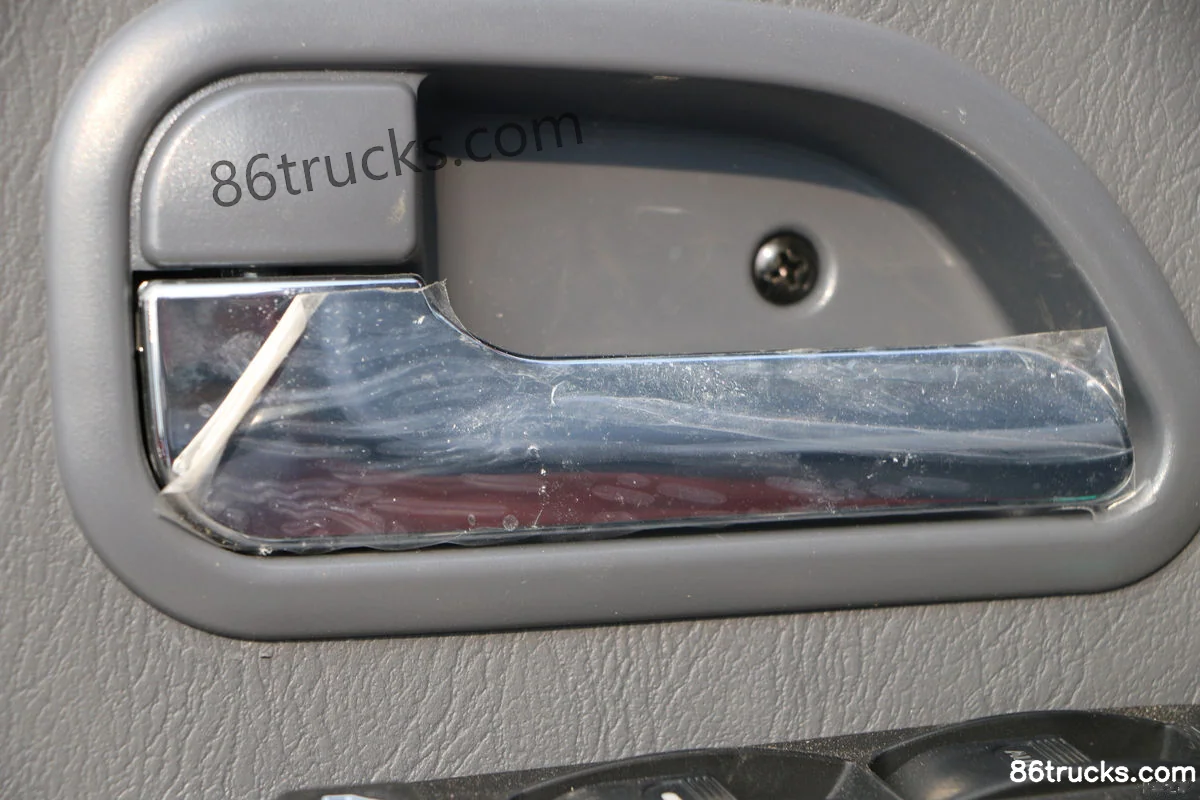

Cab3

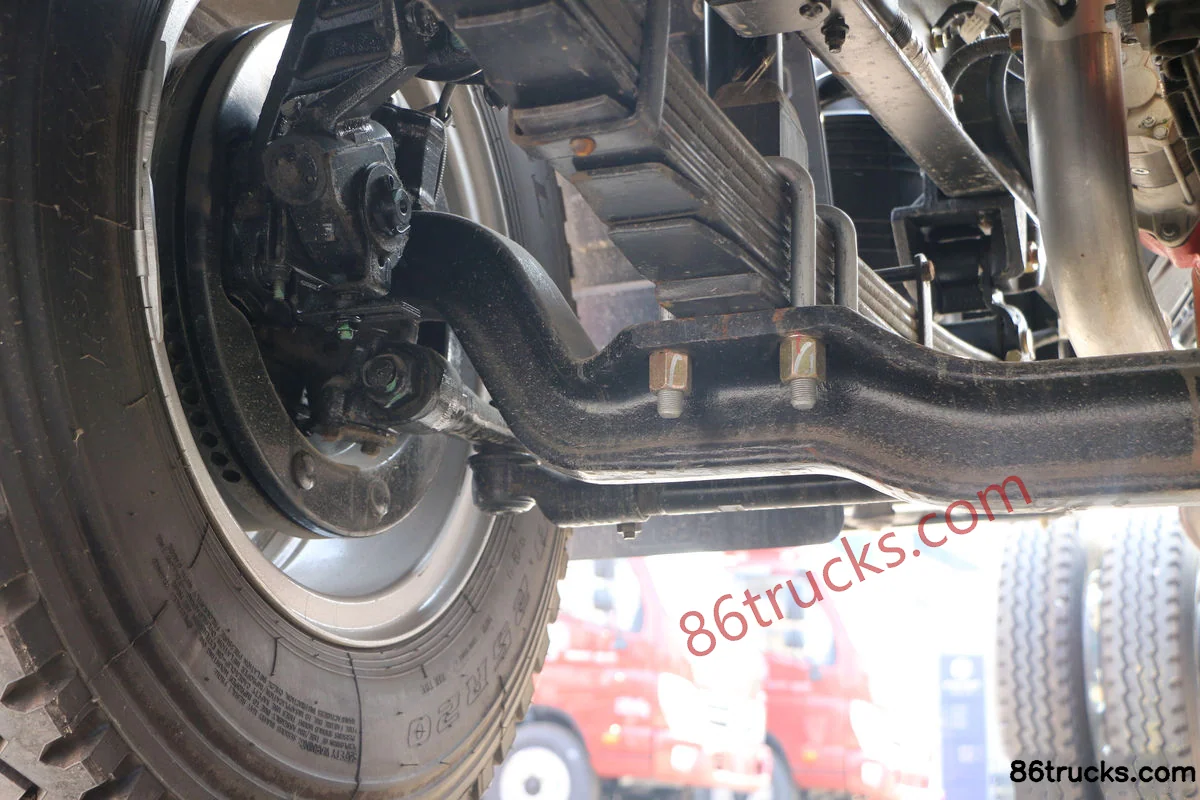

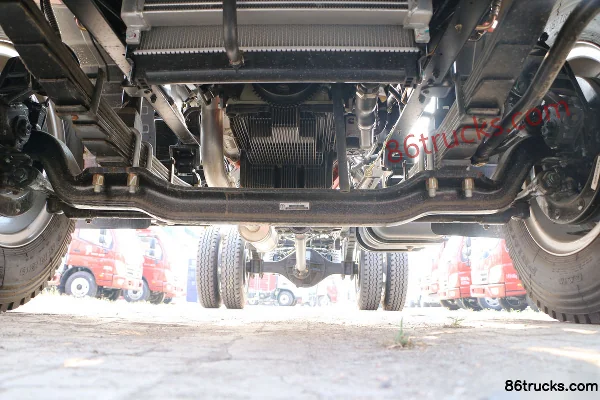

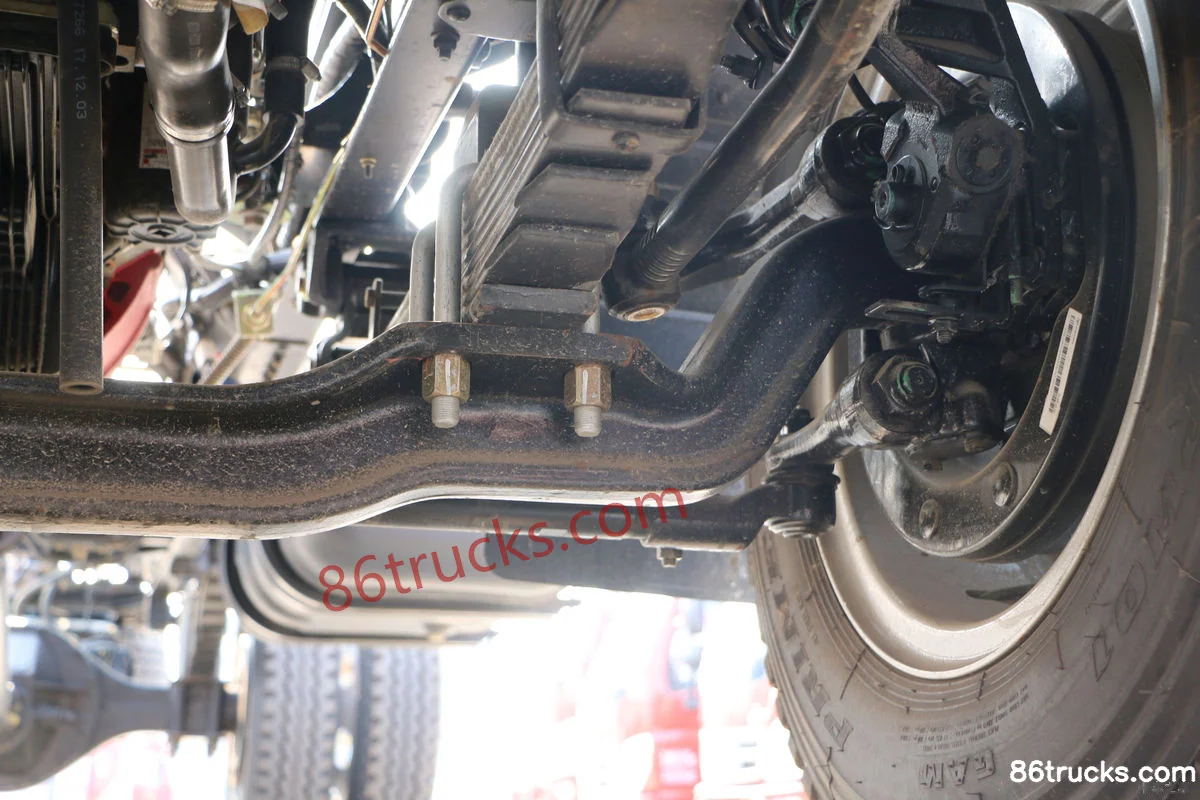

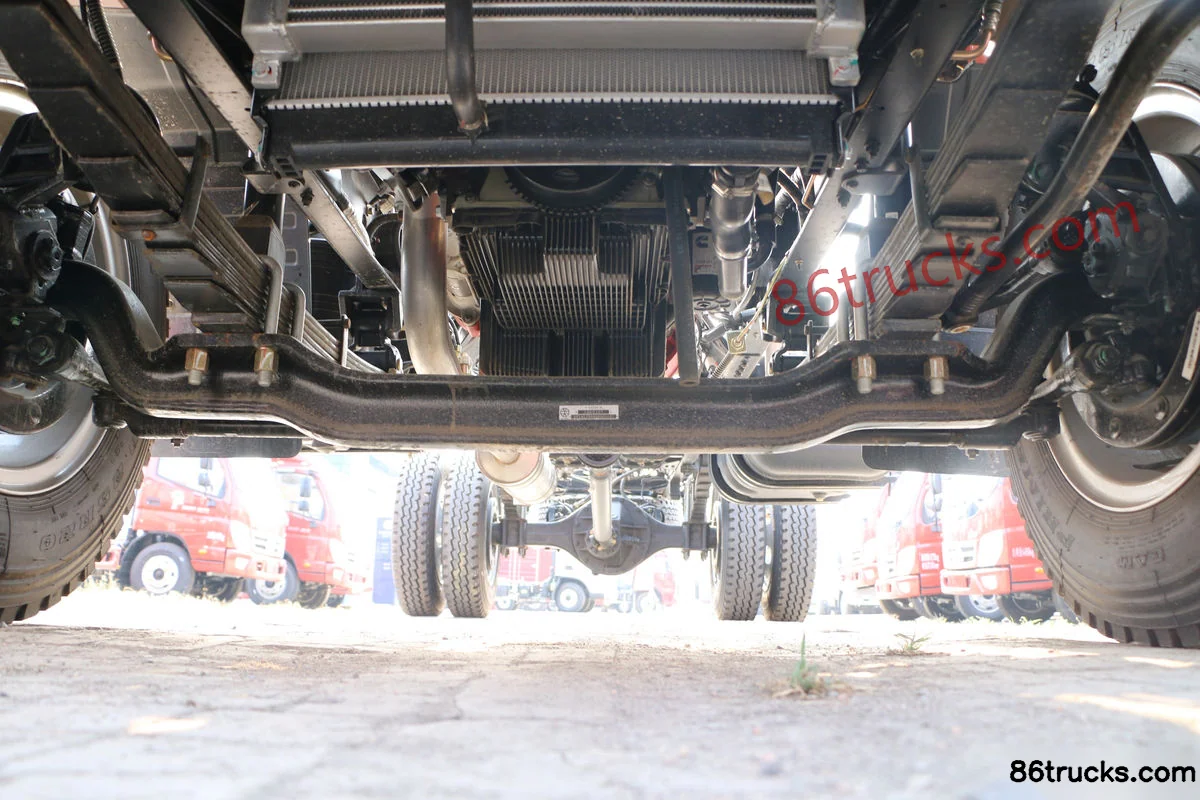

Chassis3

9 photos

FAQ

What is the export price of Foton Ollin CTX Tech Edition 143hp 4X2(6 wheels) 3.8m semi-row flatbed light truck, and what does it include?

Foton Ollin CTX Tech Edition 143hp 4X2(6 wheels) 3.8m semi-row flatbed light truck export reference is about From $15,694; MSRP is ¥11.3M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Ollin CTX Tech Edition 143hp 4X2(6 wheels) 3.8m semi-row flatbed light truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Ollin CTX Tech Edition 143hp 4X2(6 wheels) 3.8m semi-row flatbed light truck?

Key specs of Foton Ollin CTX Tech Edition 143hp 4X2(6 wheels) 3.8m semi-row flatbed light truck: Drive: 4x2; Horsepower: 143 hp; Emission: China IV; Fuel: Diesel; Engine: Fukang 3.8. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Ollin CTX Tech Edition 143hp 4X2(6 wheels) 3.8m semi-row flatbed light truck suited for?

Foton Ollin CTX Tech Edition 143hp 4X2(6 wheels) 3.8m semi-row flatbed light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Ollin CTX Tech Edition 143hp 4X2(6 wheels) 3.8m semi-row flatbed light truck differ from other variants in the same series?

Foton Ollin CTX Tech Edition 143hp 4X2(6 wheels) 3.8m semi-row flatbed light truck belongs to Foton CTX Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Ollin CTX Tech Edition 143hp 4X2(6 wheels) 3.8m semi-row flatbed light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Ollin CTX Tech Edition 143hp 4X2(6 wheels) 3.8m semi-row flatbed light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
