FAW Jiefang Qingdao JK6 Medium Truck 240 hp 4X2(6 wheels) 6.8m Grain Van Cargo Truck (Ratio 4.444)

Export reference
MSRP N/A
Horsepower: 240
Emission: China V
Fuel: Diesel
Engine: Dachai 6-cylinder
Transmission: Fast Gear
Curb Weight:: 7.88ton
seating capacity: 3Personnel
Rated payload: 9.925ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The FAW Jiefang Qingdao JK6 Medium Truck 240 hp 4X2(6 wheels) 6.8m Grain Van Cargo Truck (Ratio 4.444) is a Medium-duty truck featuring 6.8m cargo length, Stake type cargo body, 3Personnel volume and 9.925t payload. Its segment focus covers Agricultural and sideline product transport, matching those duty cycles. On the powertrain side, it comes with a Dachai 6-cylinder engine, 240 hp, 4X2 (6 wheels) drive and China V emissions.

China V 240 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5180CCYP28K1L4E5
Type: stake truck
Drive type: 4X2
Wheelbase: 5300mm
Box length class: 6.8m
engine: DachaiCA6DH1-24E5
transmission: Fast Gear8JS105TA
Rear Axle Ratio: 4.444
Cab length: 9m
Cab width: 2.55m
Cab height: 3.995m
Front track width: 1938mm
rear track: 1878mm
Curb Weight: 7.88ton
Rated payload: 9.925ton
GVWR: 18ton
Max. speed: 97km/h
Origin: Qingdao/Chengdu
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle: 14°
market segment: Agricultural and sideline product transport
Front/rear suspension: 1.41/2.29m
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiCA6DH1-24E5
Engine info: Dachai 6-cylinder
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 5.7L
Emission standard: China V
Max output power: 179kW
Max hp: 240Horsepower
Max torque: 900N·m
Max torque speed: 1200-1800rpm
Rated speed: 2500rpm
Engine Type: SCR
Transmission Parameters
Transmission Model: Fast Gear8JS105TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 6.8m
Cargo box width: 2.45m
*Cargo box interior width: 2.4500000476837
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle description: A5S
Front axle allowable load: 6500kg
Frame Dimensions: 237*75*(6.5+4)mm
rear axle description: 435 upgraded stamped-welded axle
rear axle allowable load: 11500kg
Axle ratio: 4.444
Leaf spring count: 7/7+3
clutch: Φ350
Tire
Tire Size: 275/80R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

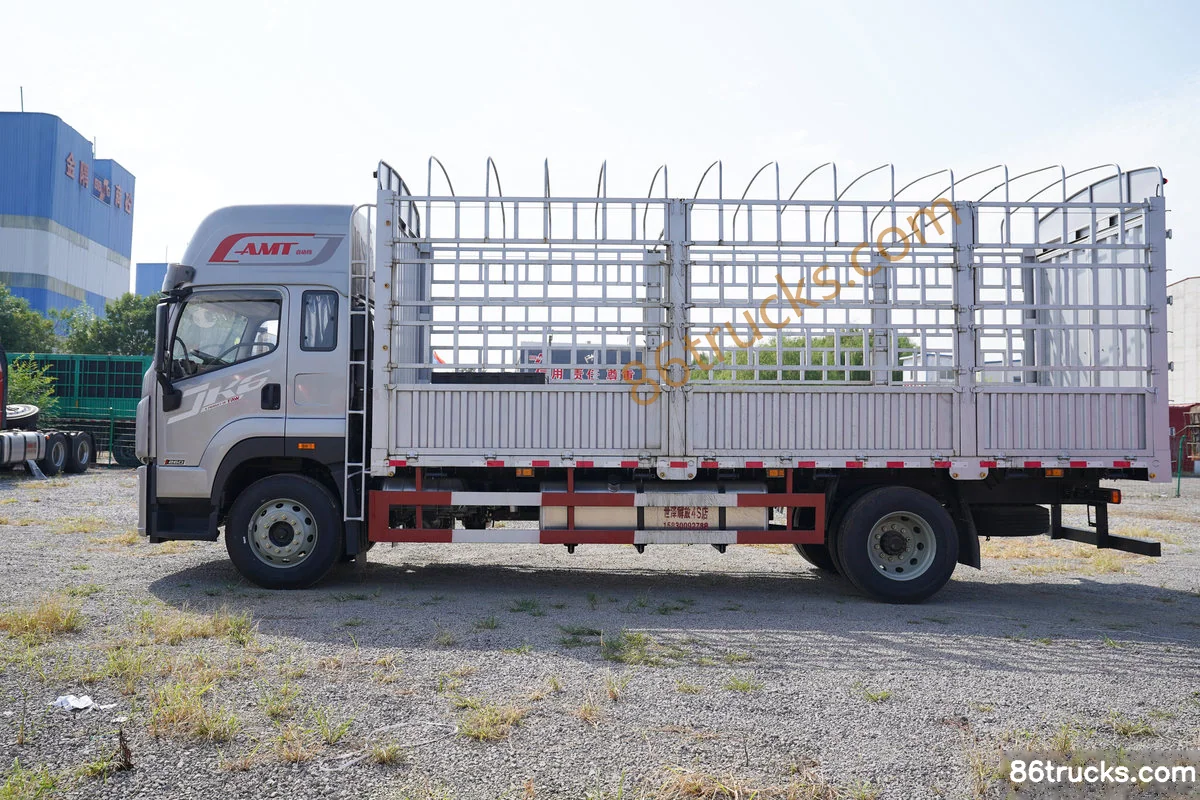

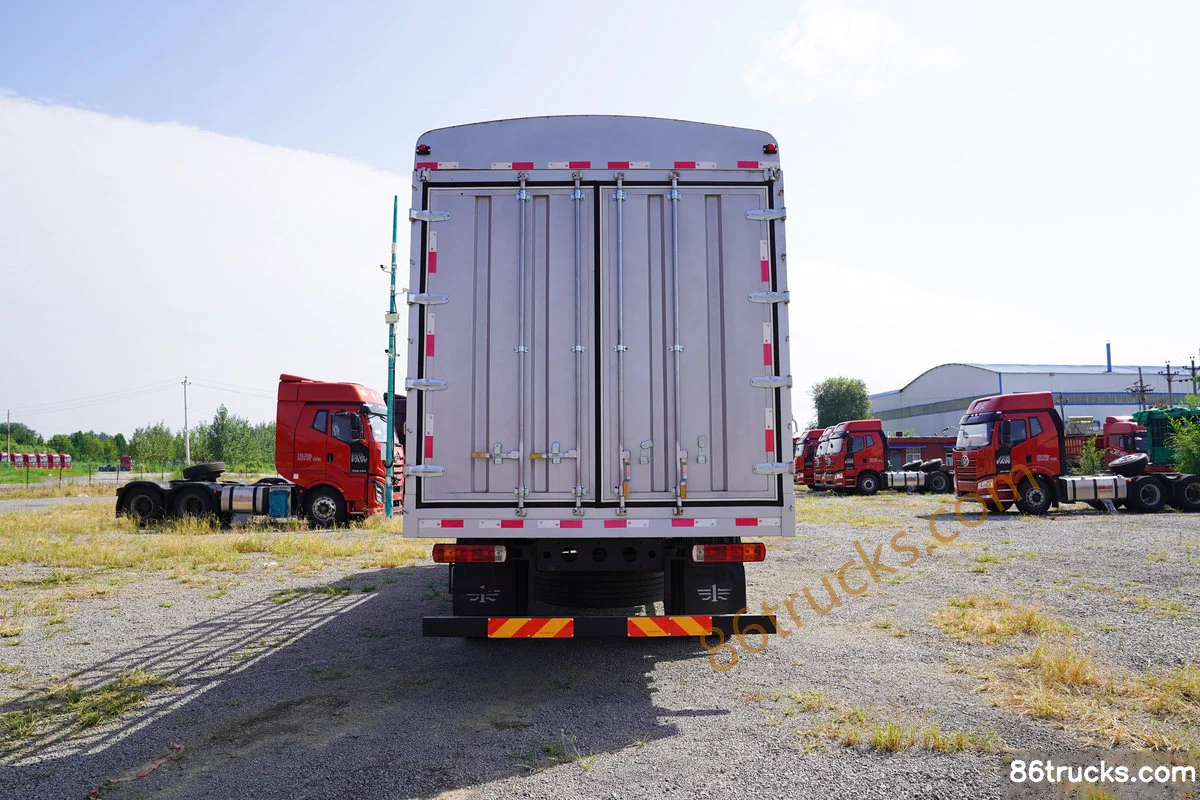

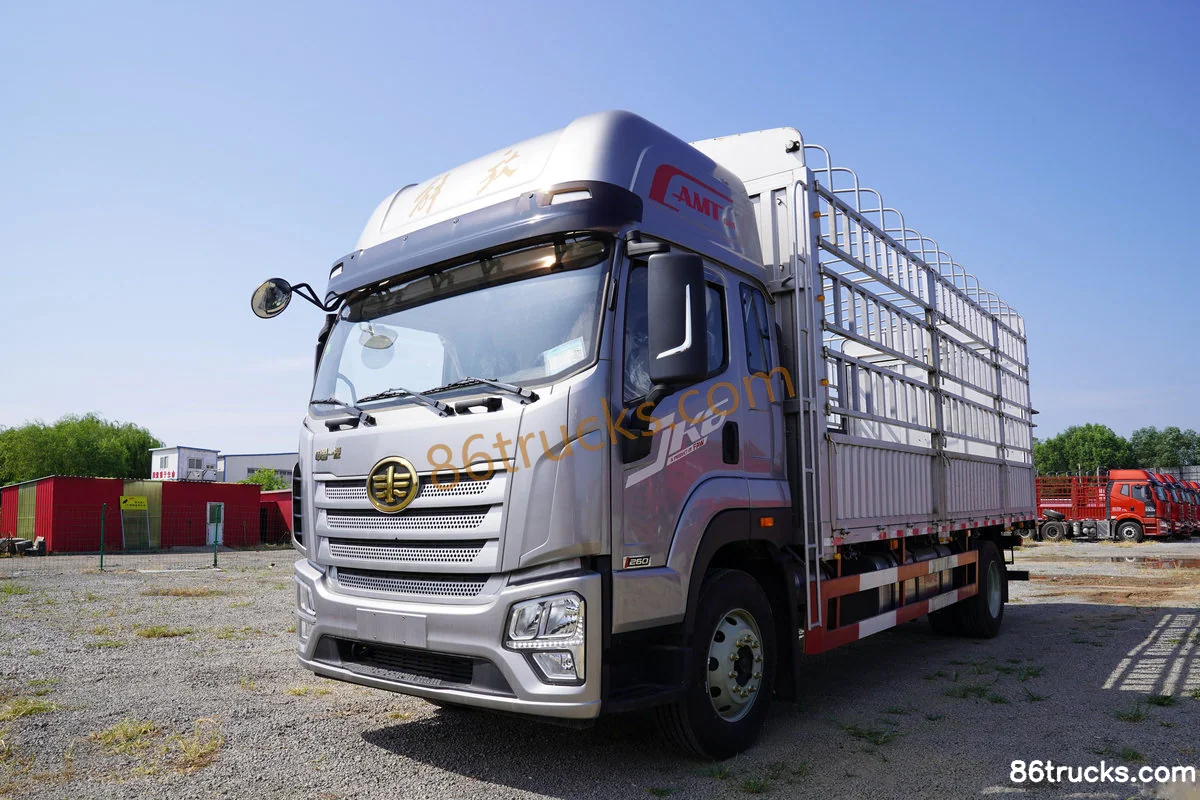

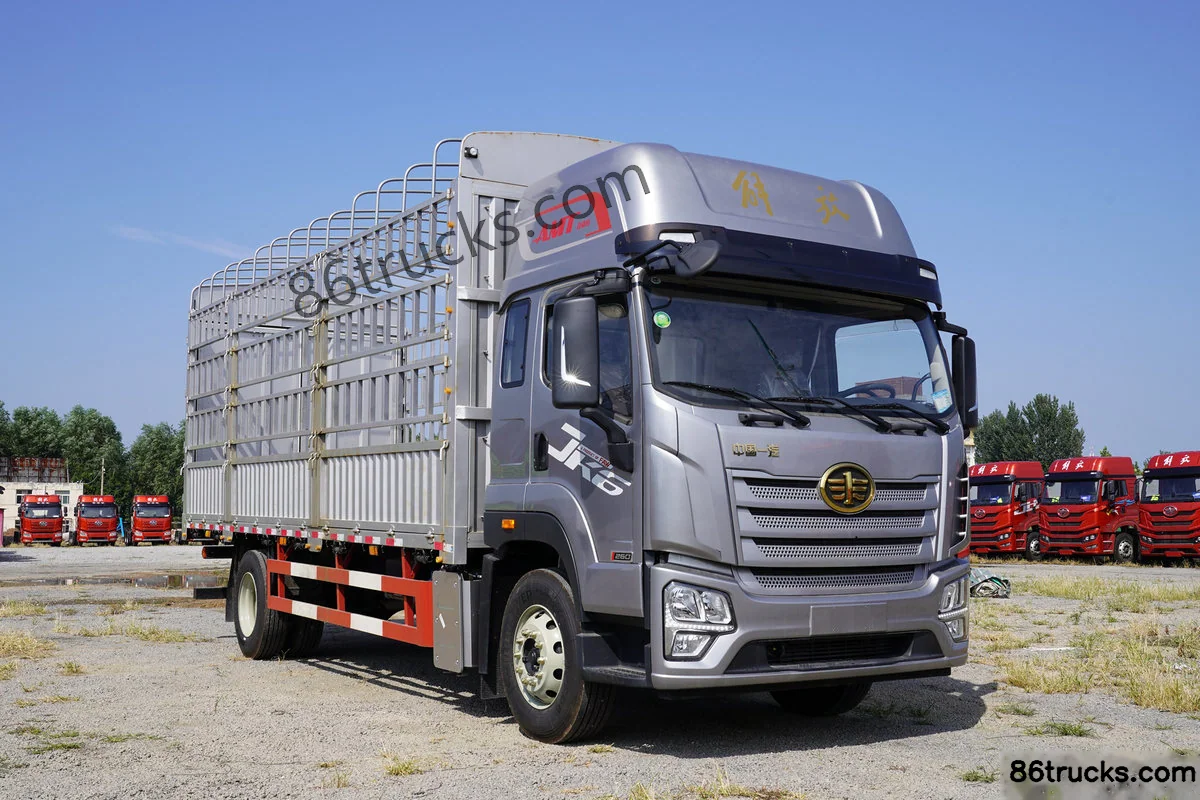

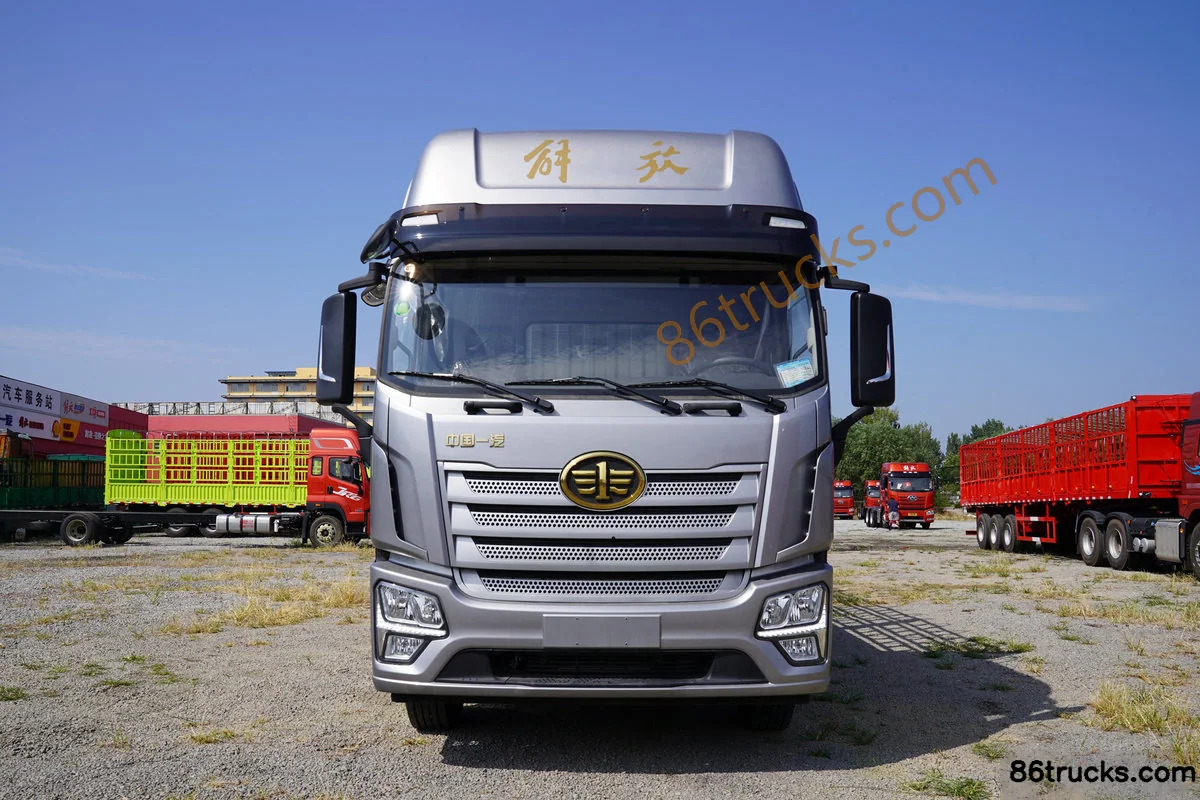

Exterior3

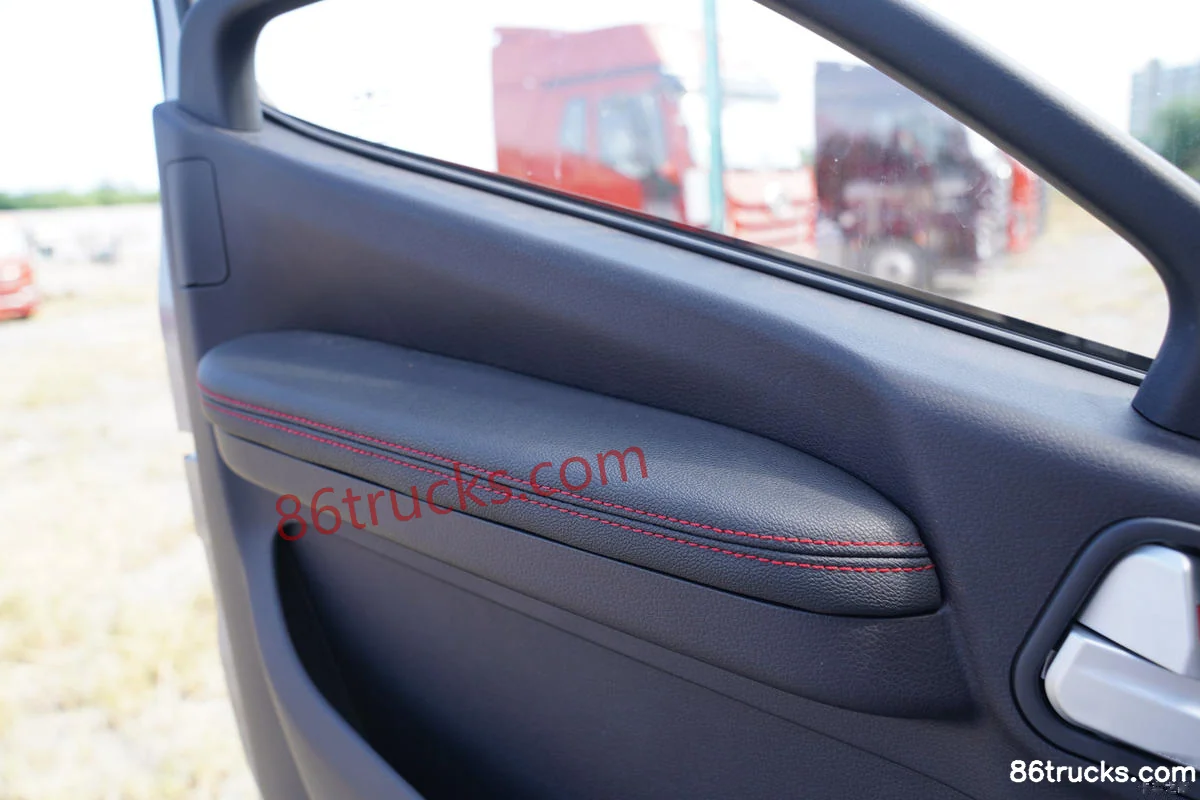

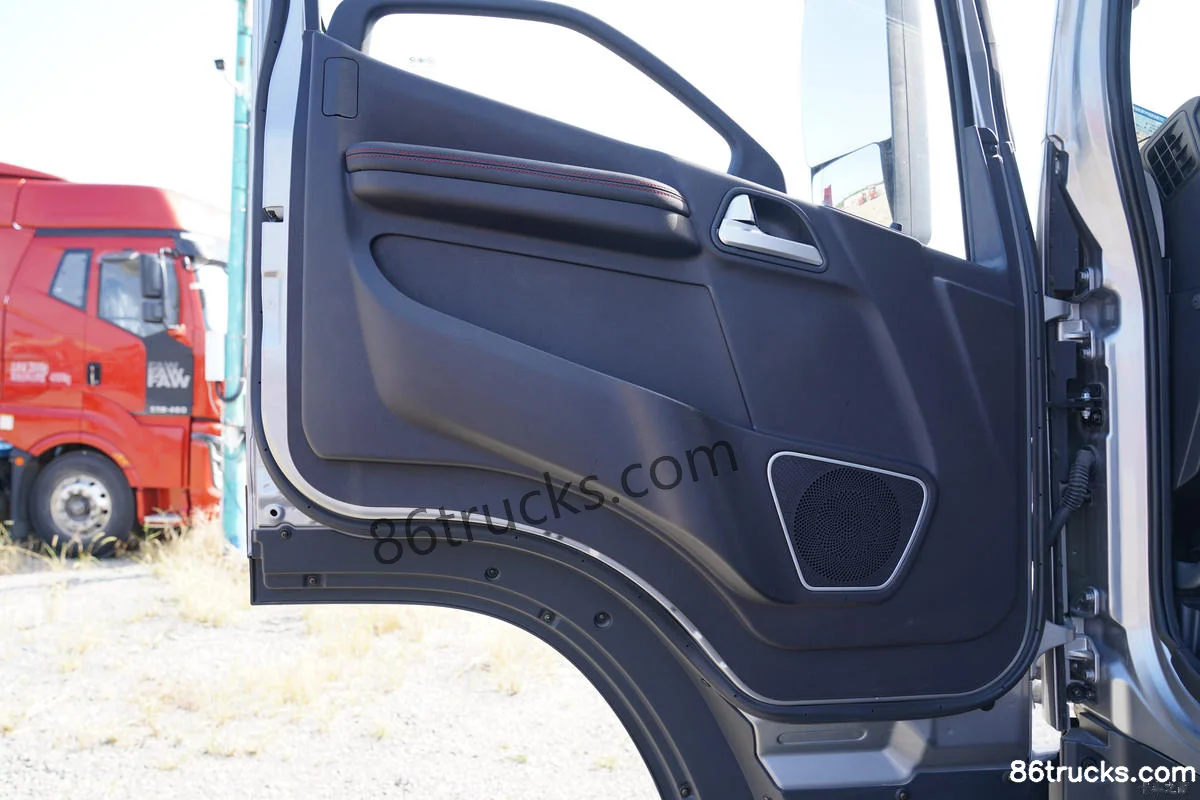

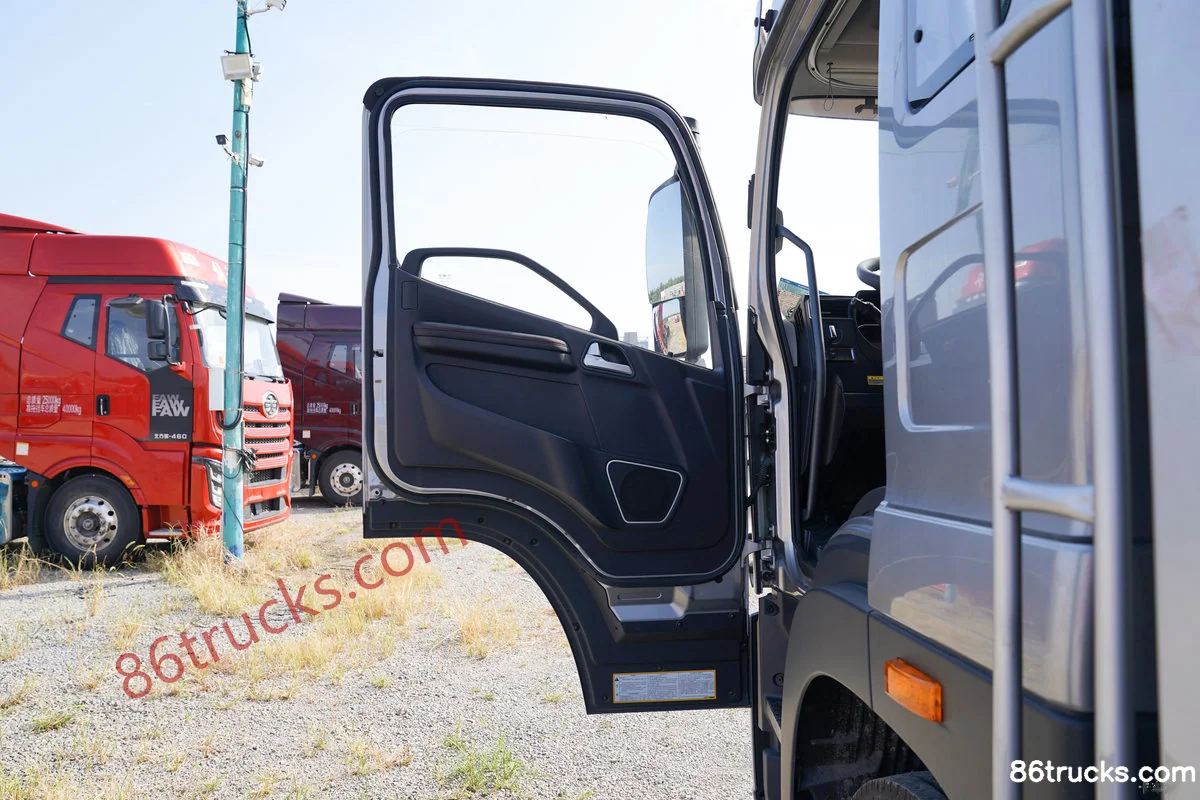

Cab3

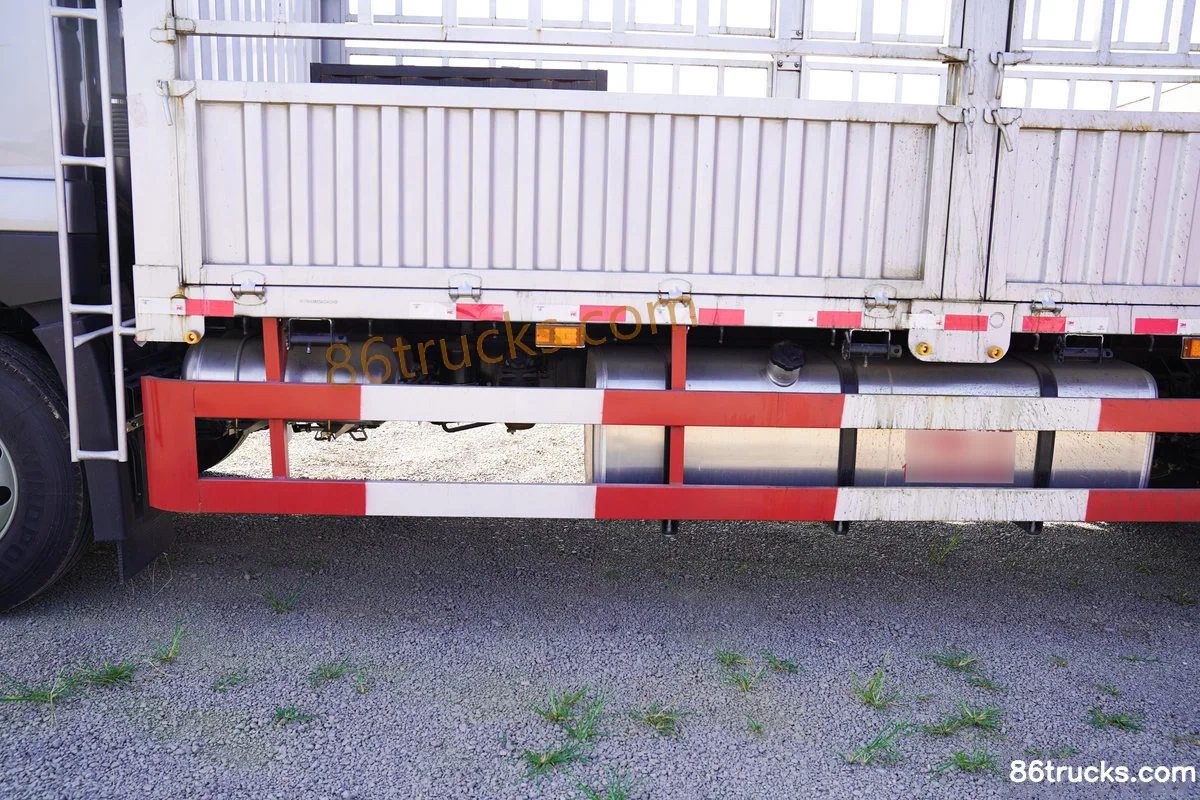

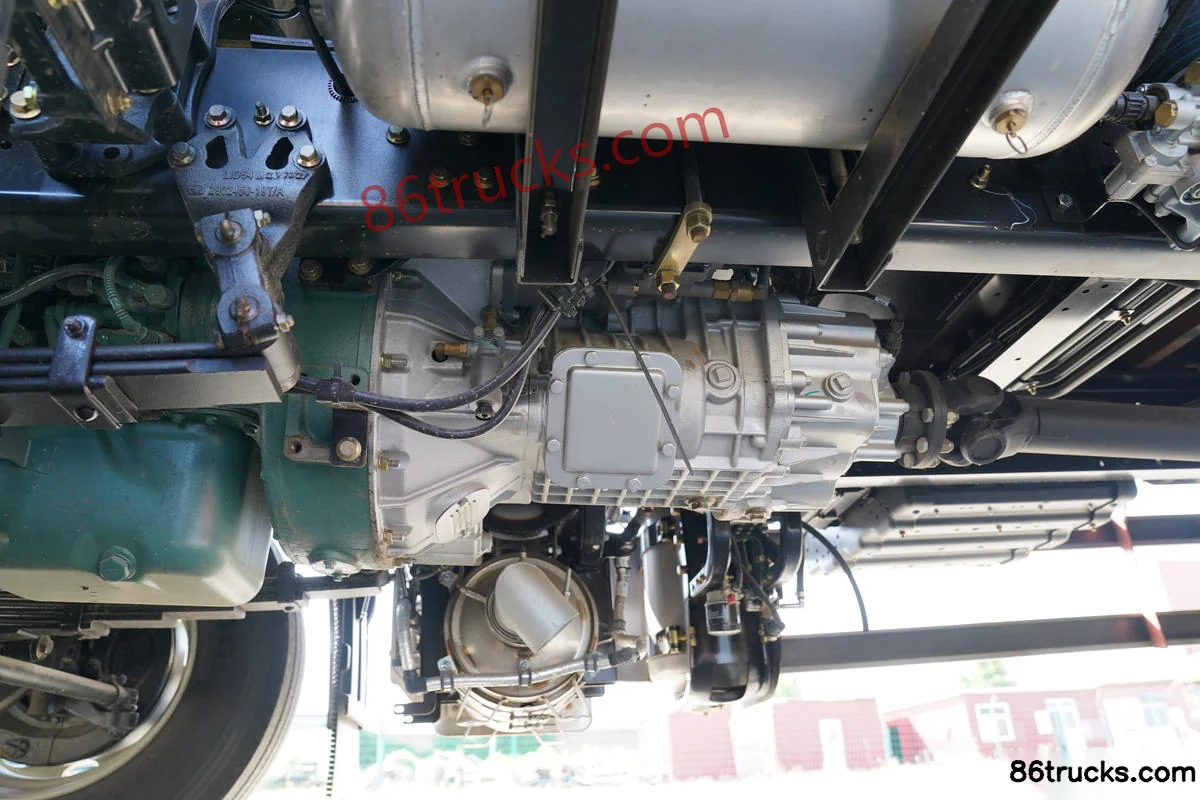

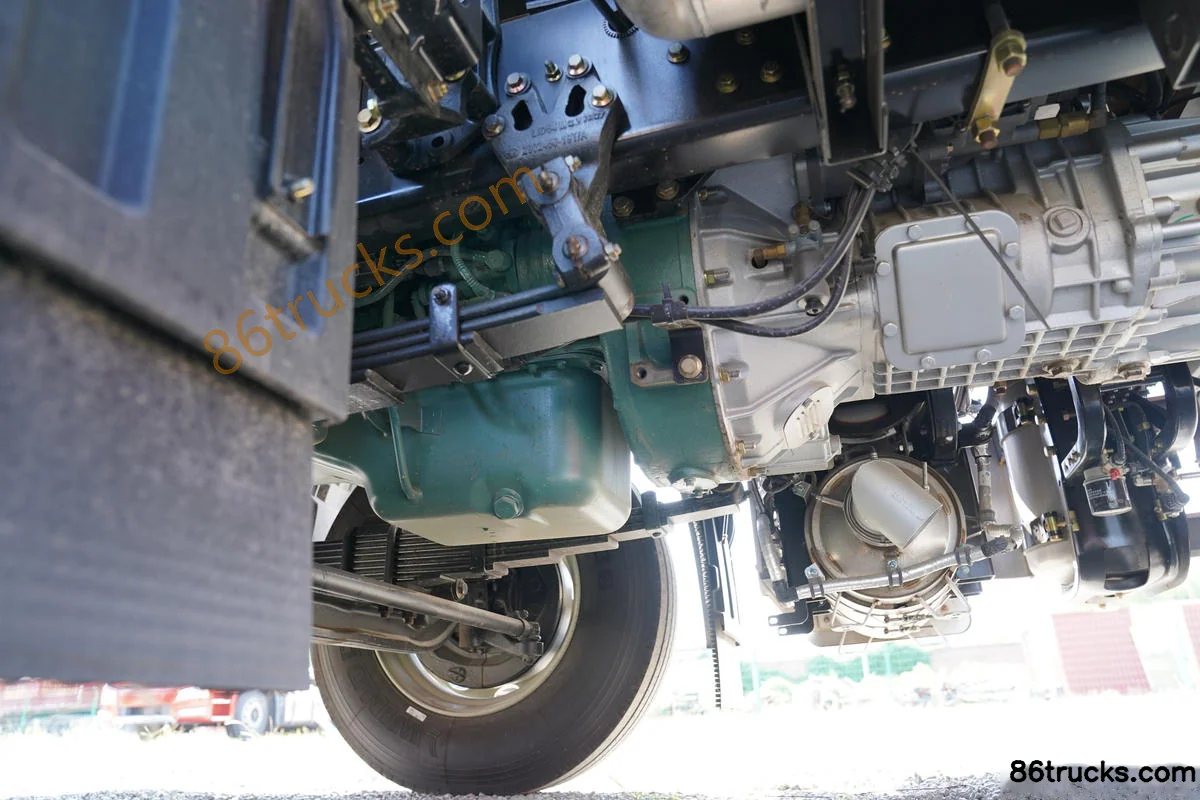

Chassis3

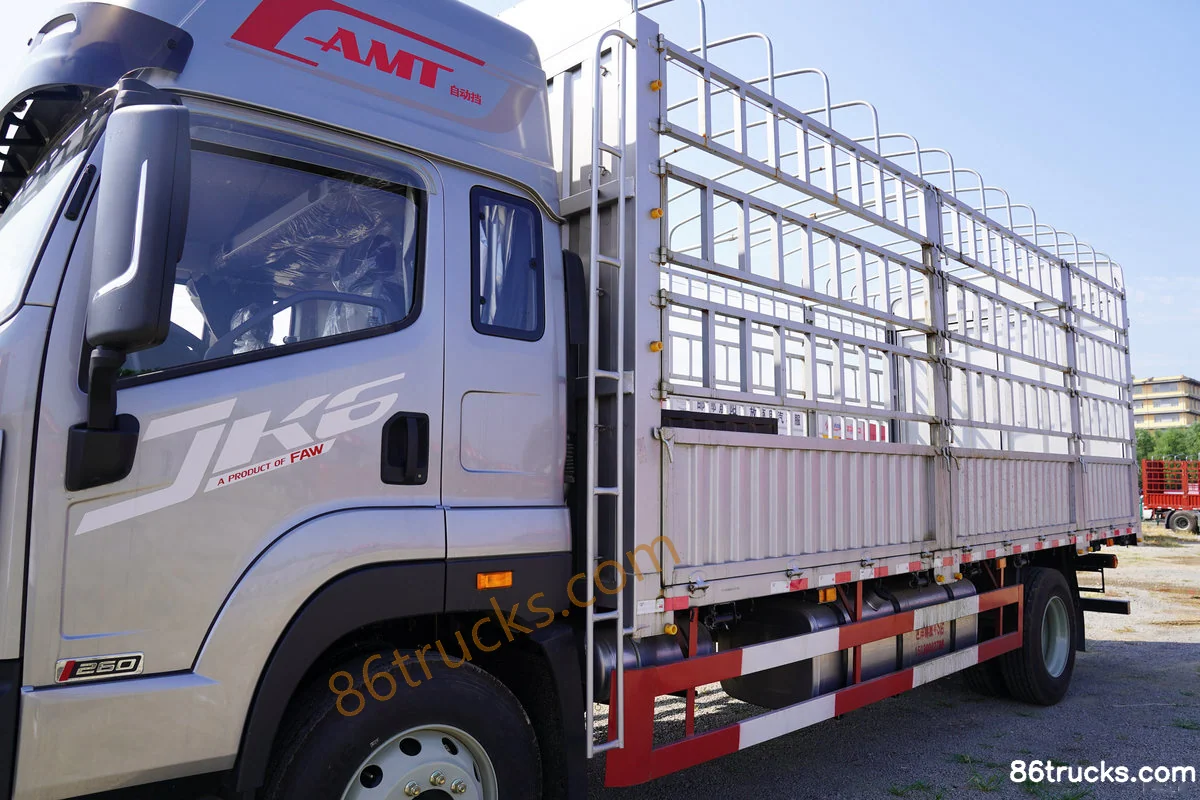

Body3

12 photos

FAQ

What emission standard does FAW Jiefang Qingdao JK6 Medium Truck 240 hp 4X2(6 wheels) 6.8m Grain Van Cargo Truck (Ratio 4.444) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao JK6 Medium Truck 240 hp 4X2(6 wheels) 6.8m Grain Van Cargo Truck (Ratio 4.444)?

Key specs of FAW Jiefang Qingdao JK6 Medium Truck 240 hp 4X2(6 wheels) 6.8m Grain Van Cargo Truck (Ratio 4.444): Drive: 4x2; Horsepower: 240 hp; Emission: China V; Fuel: Diesel; Engine: Dachai 6-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao JK6 Medium Truck 240 hp 4X2(6 wheels) 6.8m Grain Van Cargo Truck (Ratio 4.444) suited for?

FAW Jiefang Qingdao JK6 Medium Truck 240 hp 4X2(6 wheels) 6.8m Grain Van Cargo Truck (Ratio 4.444) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Qingdao JK6 Medium Truck 240 hp 4X2(6 wheels) 6.8m Grain Van Cargo Truck (Ratio 4.444) differ from other variants in the same series?

FAW Jiefang Qingdao JK6 Medium Truck 240 hp 4X2(6 wheels) 6.8m Grain Van Cargo Truck (Ratio 4.444) belongs to FAW Jiefang QingdaoJK6 (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao JK6 Medium Truck 240 hp 4X2(6 wheels) 6.8m Grain Van Cargo Truck (Ratio 4.444)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao JK6 Medium Truck 240 hp 4X2(6 wheels) 6.8m Grain Van Cargo Truck (Ratio 4.444)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
