JAC Gallop Xingyao X7 520 hp 8X4(12 wheels) 9.3m AMT Automatic Refrigerated Truck

Export reference
From $58,611
MSRP ¥42.2M CNY
Emission: China VI
Fuel: Diesel
Curb Weight:: 12.8ton
Wheelbase:: 2100+4300+1350mm
Tire Size:: 11.00R20 18PR
Cab dimensions:: 12×2.6×3.99m
Rated payload: 19.07ton
Drive 8X4 (12 wheels)
Cargo box dimensions: 9.3×2.43×2.6m
Horsepower 520

Overview

The JAC Gallop Xingyao X7 520 hp 8X4(12 wheels) 9.3m AMT Automatic Refrigerated Truck is a Refrigerated Truck featuring 9.3×2.43×2.6m cargo body, 19.07t payload, 12×2.6×3.99m cab and 2100+4300+1350mm wheelbase. On the powertrain side, it comes with 520 hp, 8X4 (12 wheels) drive, China VI emissions and Diesel fuel.

China VI 520 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 12×2.6×3.99m
Drive type: 8X4
Truck Type: Refrigerated Truck
Wheelbase: 2100+4300+1350mm
Vehicle origin: Hefei, Anhui
Front track width: 2040/2040mm
rear track: 1860/1860mm
Curb Weight: 12.8ton
Rated payload: 19.07ton
GVWR: 32ton
Max. speed: 89km/h
Front/rear suspension: 1.475/2.775m
Energy Type: Diesel
Engine parameters
Engine Model: CumminsM13NS6B520
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 12.5L
Emission standard: China VI
Max output power: 382kW
Max hp: 520Horsepower
Cargo box parameters
Cargo box dimensions: 9.3×2.43×2.6m
Cargo box width: 2.43m
Cargo box height: 2.6m
Body Parameters
Vehicle certification code: HFC5324XLCP1K6H43S
Body Brand: JAC
Chassis Specs
Chassis Brand: JAC Gallop
Chassis Series: Xingyao X7
Chassis Model: HFC1324P1K6H43S
Front axle description: Forged steel, I-beam section
rear axle description: Single-stage reduction
Axle ratio: 3.083
Leaf spring count: 3/3/2+-/2+-
Transmission Parameters
Transmission Model: EHDM-26N112C-R
Tire
Tire Size: 11.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Onboard Refrigerator:

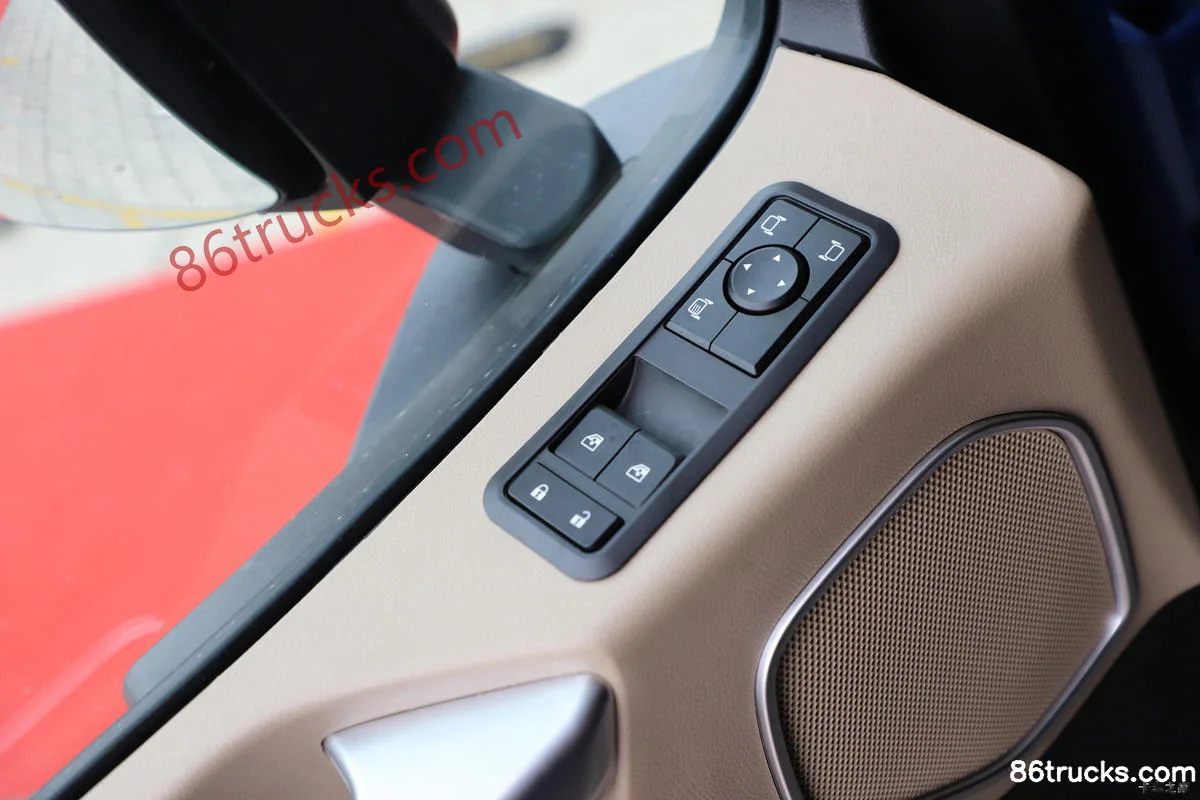

Power Windows:
Electric Heated Rearview Mirror:
smart configuration
Forward Collision Warning (FCW):
Tire Pressure Monitoring System (TPMS):
Fatigue driving monitoring:

Photos

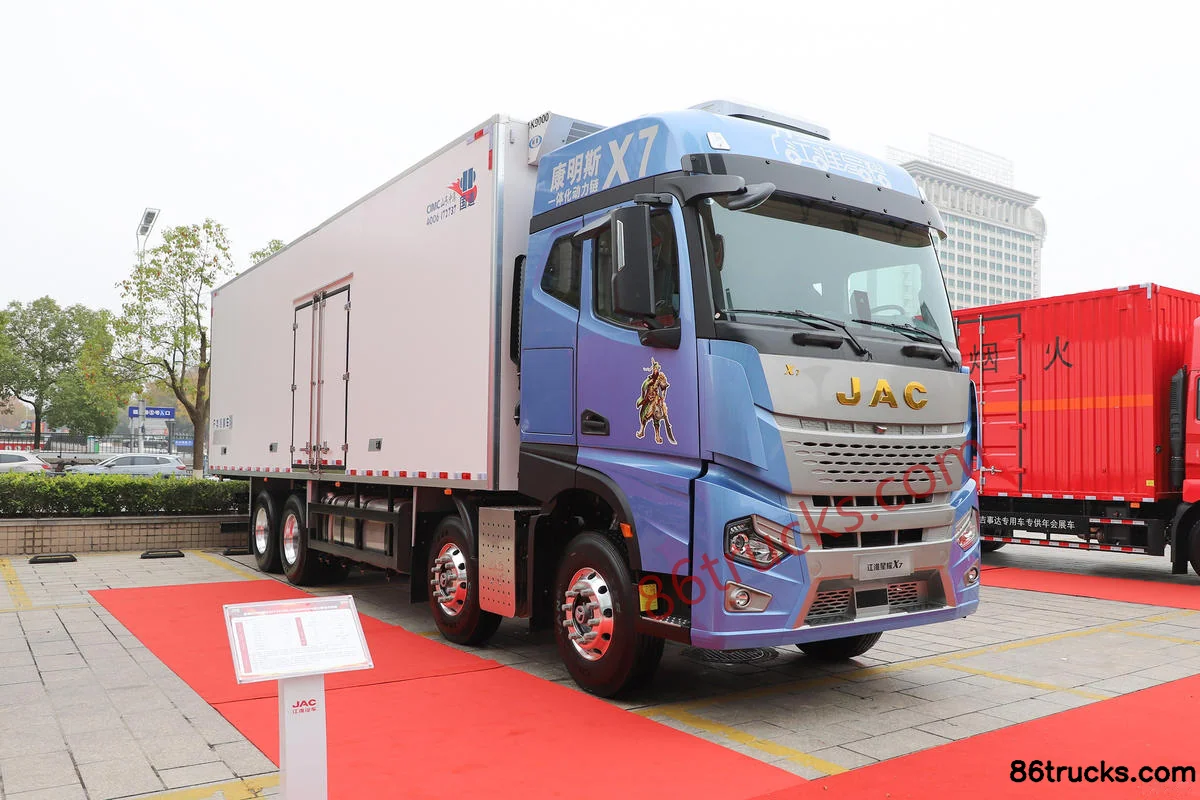

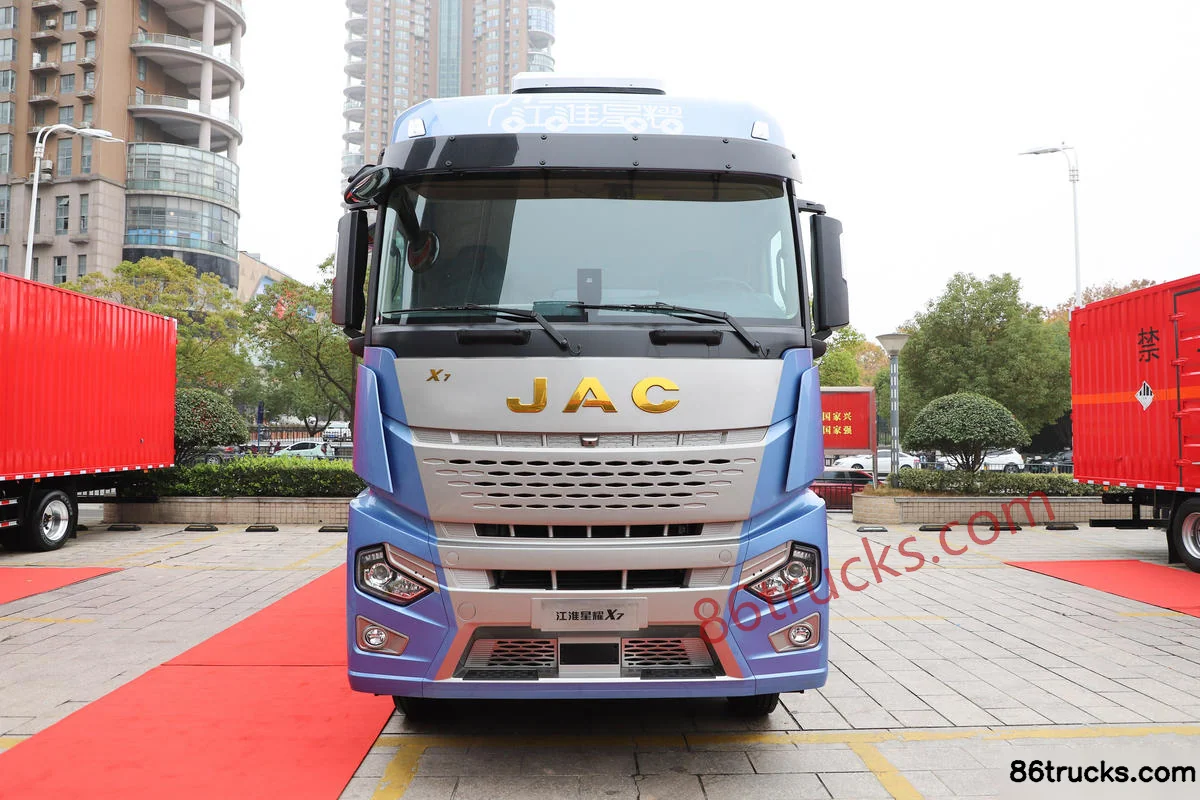

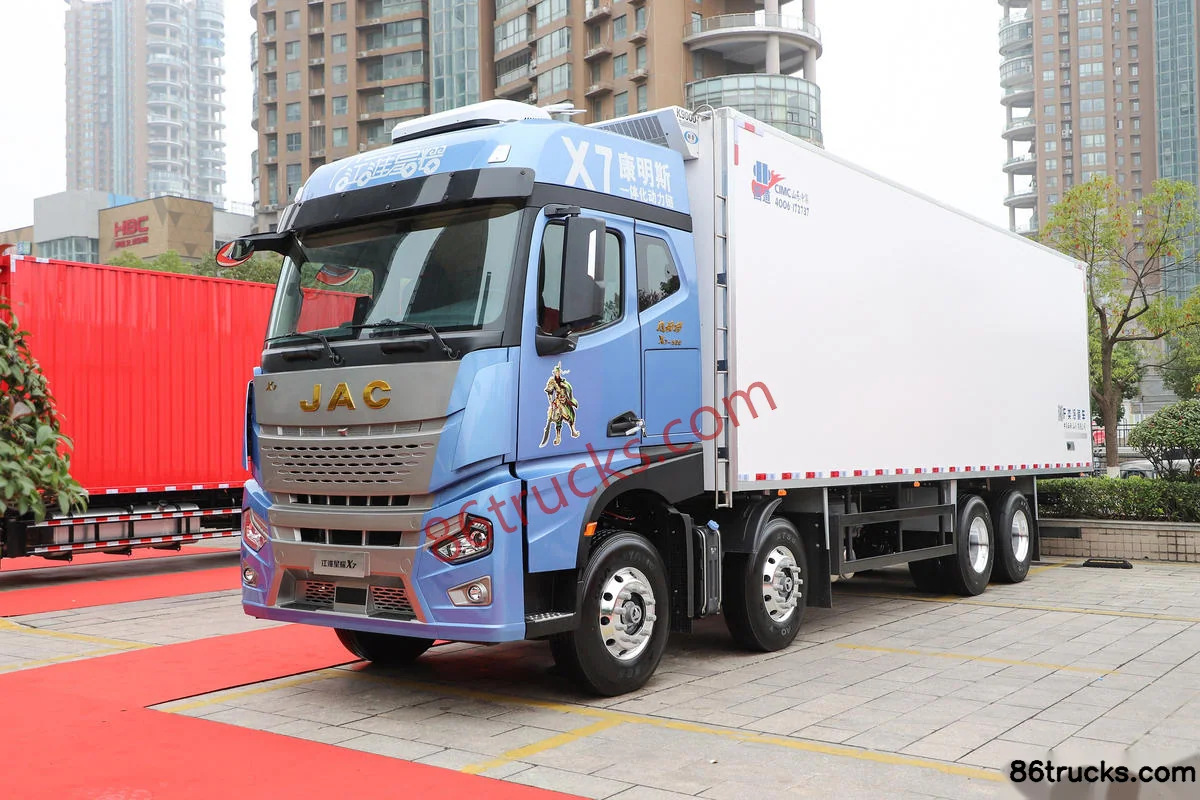

Exterior3

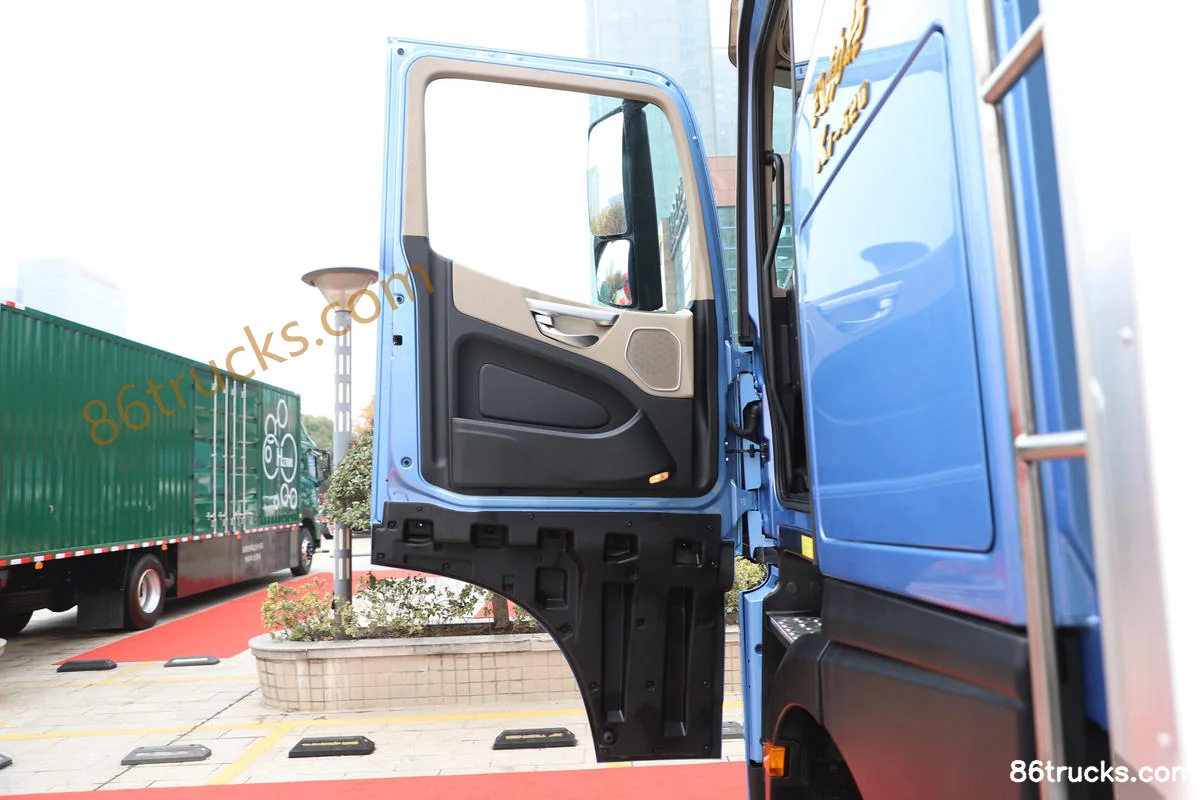

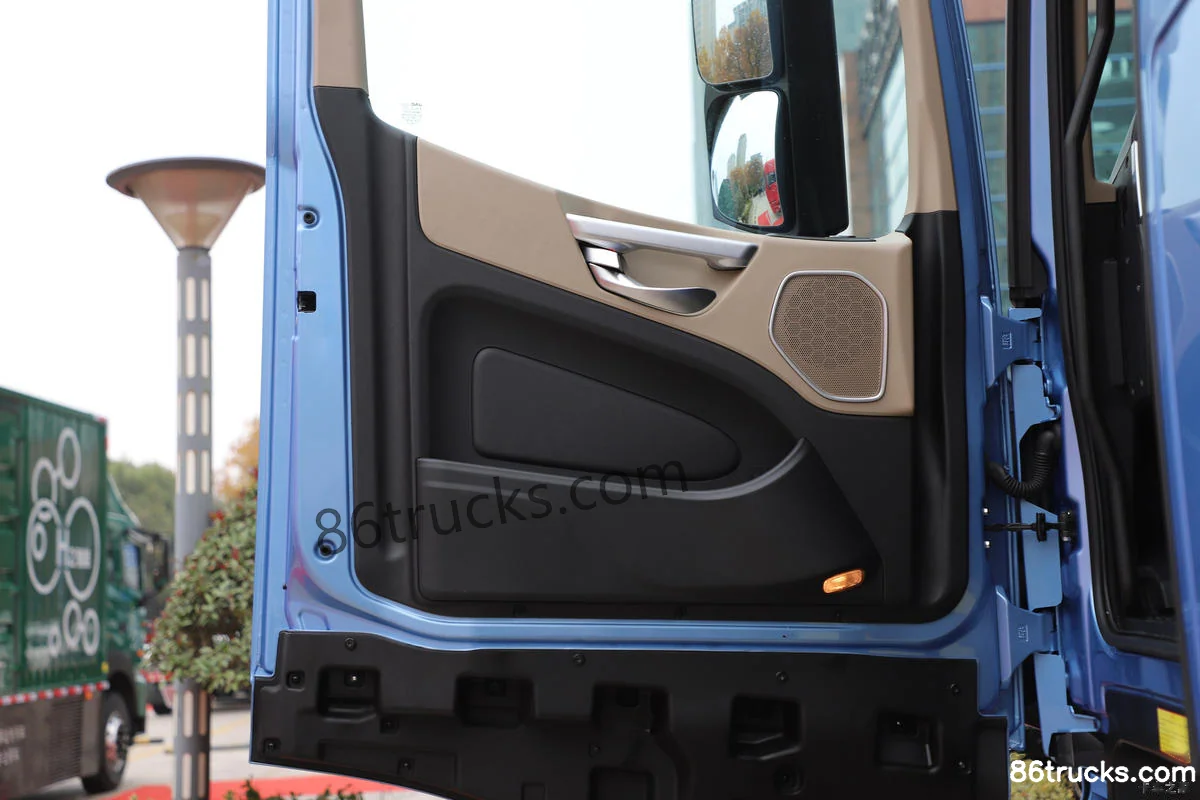

Cab3

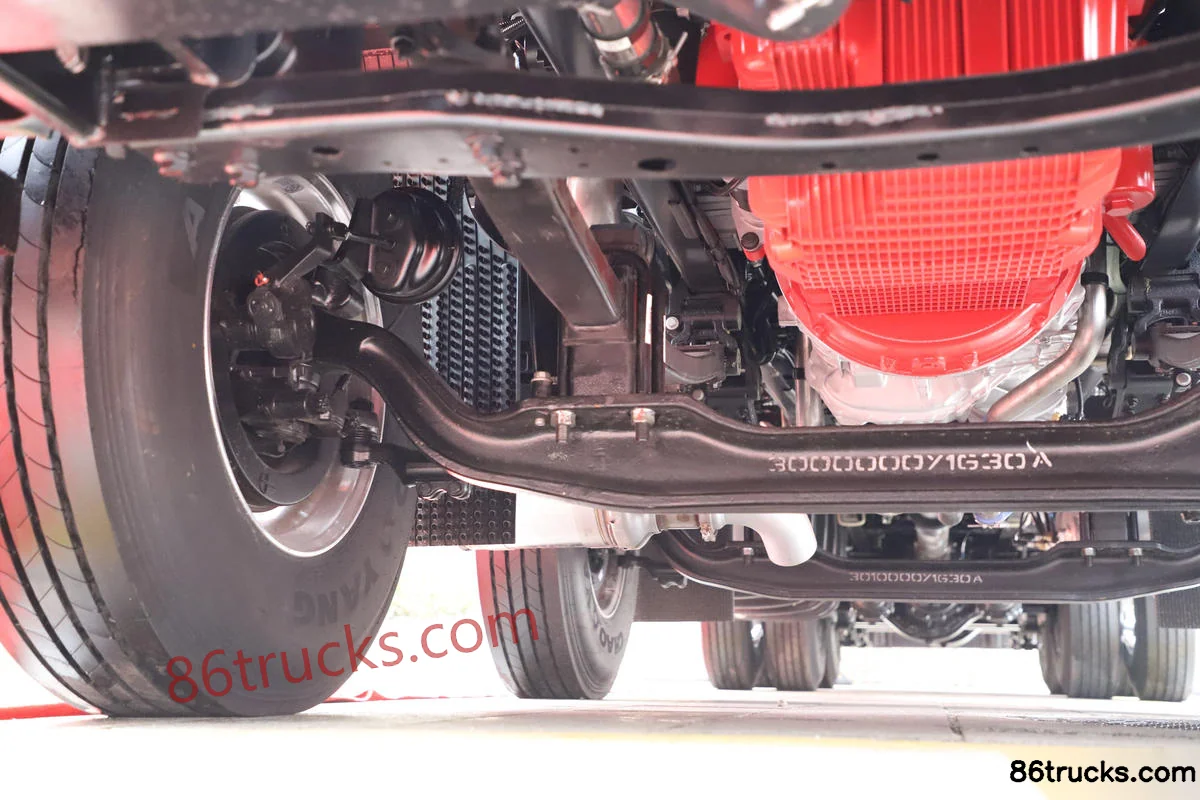

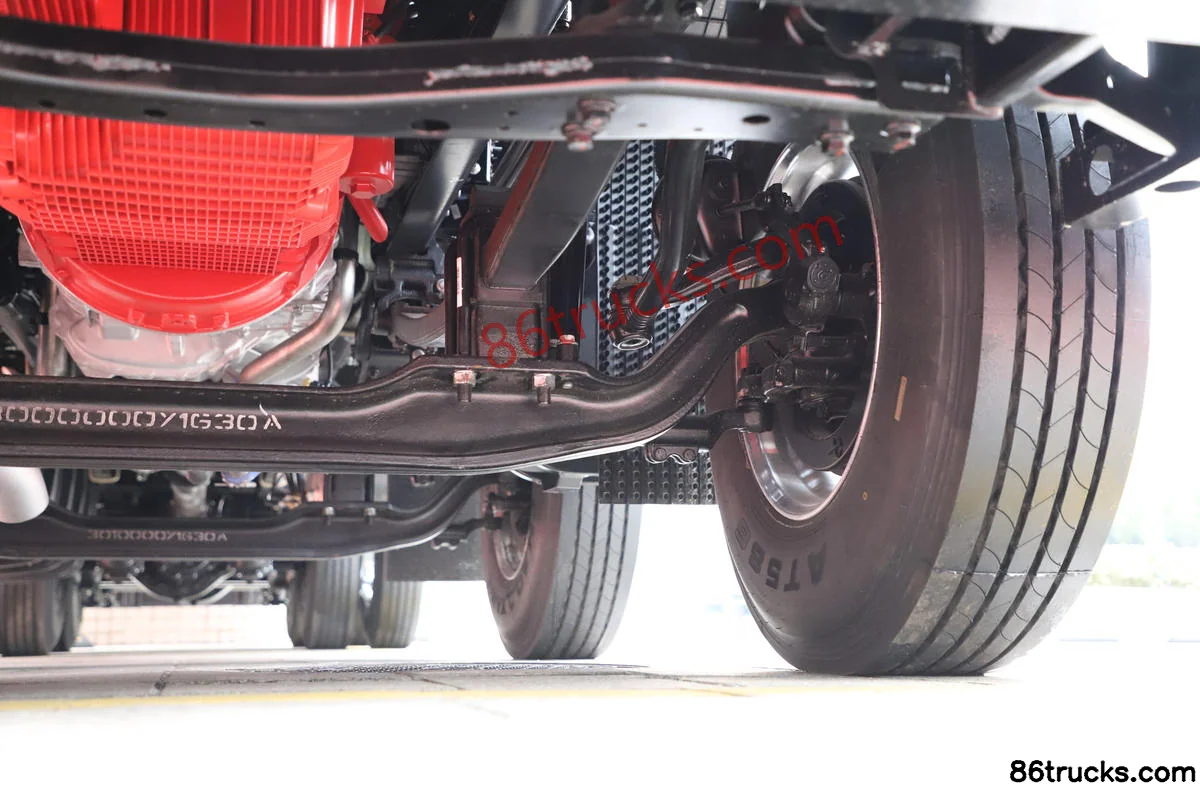

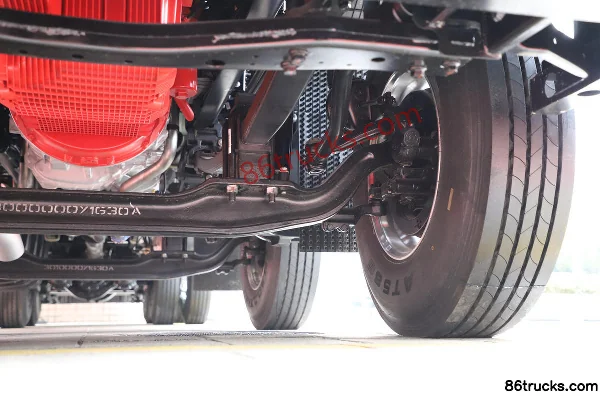

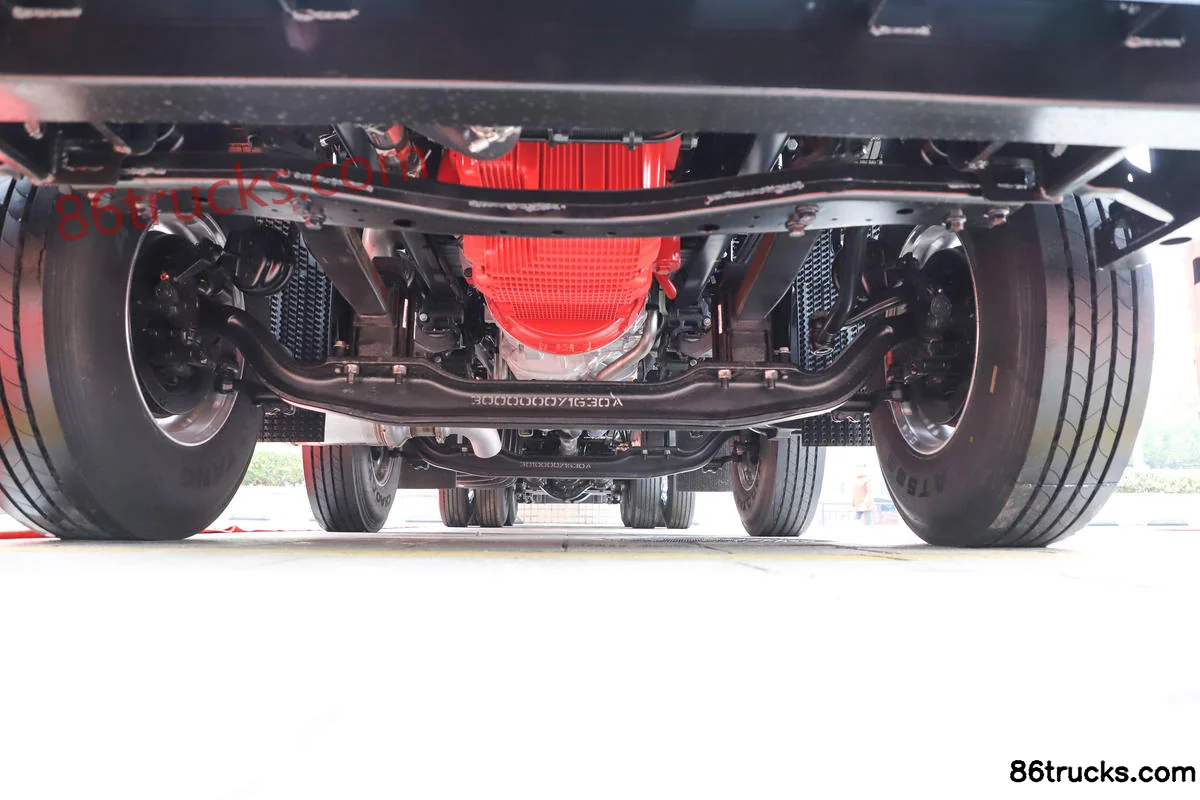

Chassis3

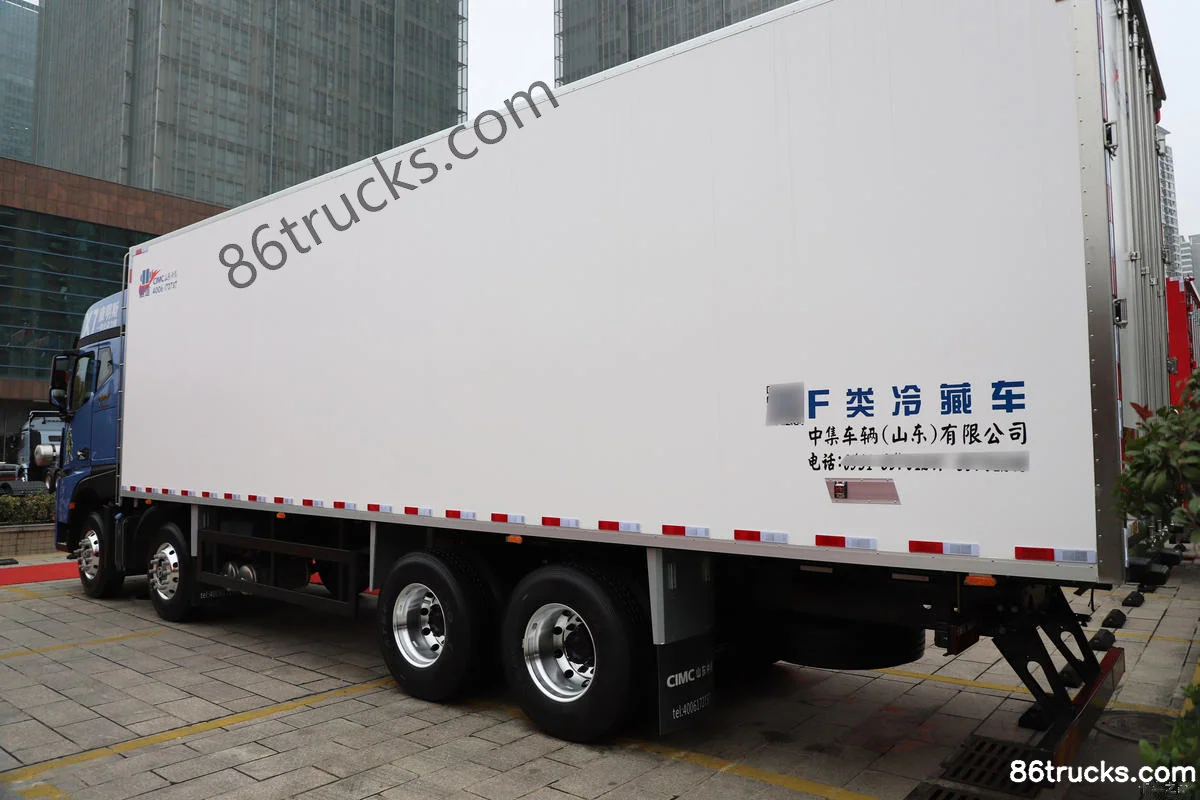

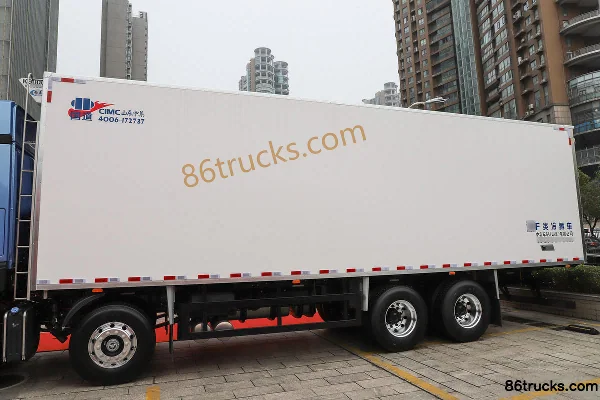

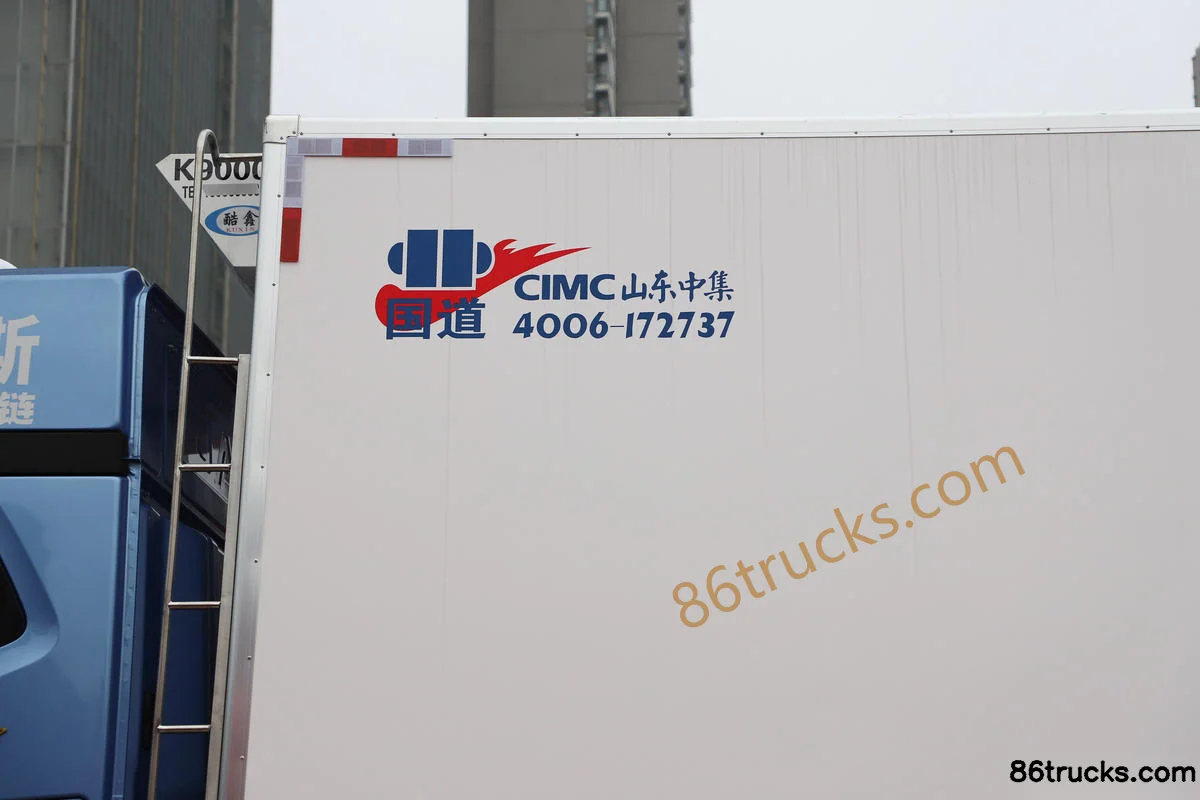

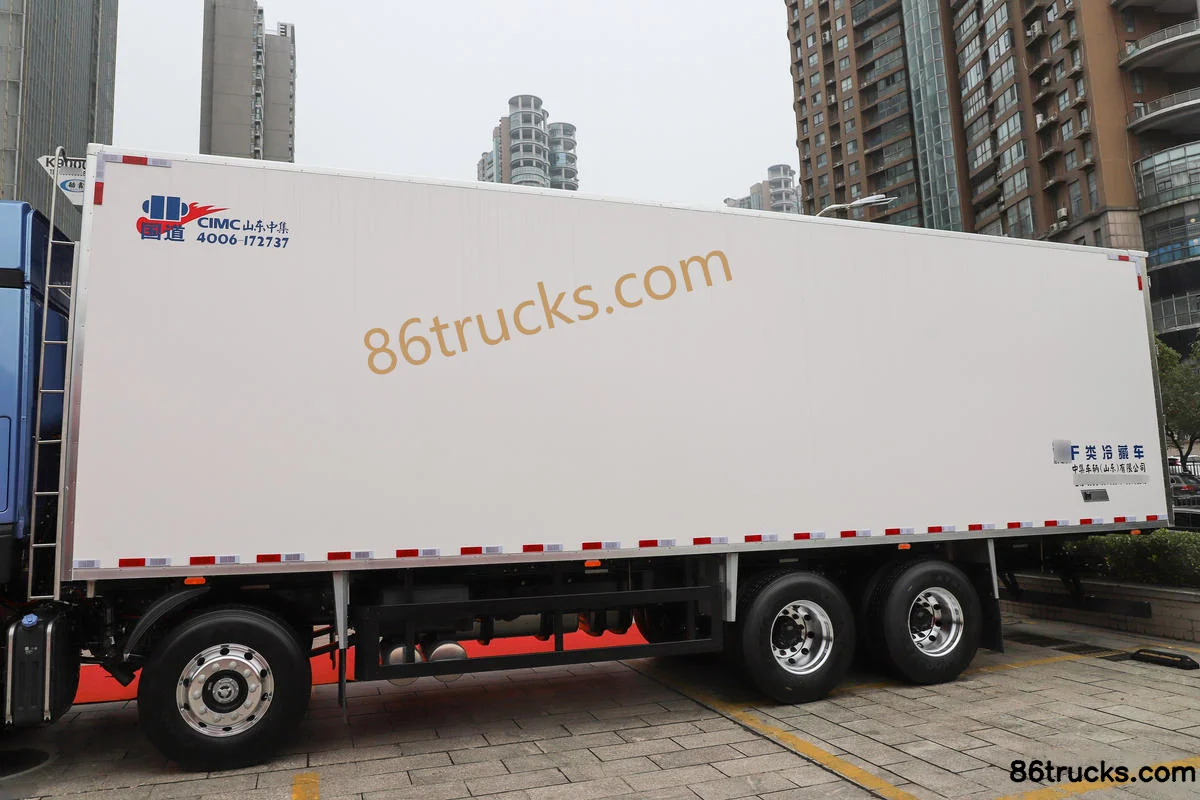

Body3

12 photos

FAQ

What is the export price of JAC Gallop Xingyao X7 520 hp 8X4(12 wheels) 9.3m AMT Automatic Refrigerated Truck, and what does it include?

JAC Gallop Xingyao X7 520 hp 8X4(12 wheels) 9.3m AMT Automatic Refrigerated Truck export reference is about From $58,611; MSRP is ¥42.2M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Gallop Xingyao X7 520 hp 8X4(12 wheels) 9.3m AMT Automatic Refrigerated Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop Xingyao X7 520 hp 8X4(12 wheels) 9.3m AMT Automatic Refrigerated Truck?

Key specs of JAC Gallop Xingyao X7 520 hp 8X4(12 wheels) 9.3m AMT Automatic Refrigerated Truck: Drive: 8x4; Horsepower: 520 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop Xingyao X7 520 hp 8X4(12 wheels) 9.3m AMT Automatic Refrigerated Truck suited for?

JAC Gallop Xingyao X7 520 hp 8X4(12 wheels) 9.3m AMT Automatic Refrigerated Truck is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Gallop Xingyao X7 520 hp 8X4(12 wheels) 9.3m AMT Automatic Refrigerated Truck differ from other variants in the same series?

JAC Gallop Xingyao X7 520 hp 8X4(12 wheels) 9.3m AMT Automatic Refrigerated Truck belongs to JAC Gallop Xingyao X7 (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop Xingyao X7 520 hp 8X4(12 wheels) 9.3m AMT Automatic Refrigerated Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop Xingyao X7 520 hp 8X4(12 wheels) 9.3m AMT Automatic Refrigerated Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
