Beiben NG80 Series Heavy Truck 336 hp 6X4(10 wheels) 6.5m Cab-over Chassis Cargo Truck

Export reference
From $44,472
MSRP ¥32.02M CNY
Horsepower: 336
Emission: China IV
Fuel: Diesel
Engine: WeichaiWP10
Transmission: Fast Gear
Curb Weight:: 10.7ton
seating capacity: 3Personnel
Rated payload: 14.17ton
Drive 6X4 (10 wheels)
Cargo box type: stake body

Overview

The Beiben NG80 Series Heavy Truck 336 hp 6X4(10 wheels) 6.5m Cab-over Chassis Cargo Truck is a Heavy-duty cargo trucks featuring 6.5m cargo length, stake body cargo body, 3Personnel volume and 14.17t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a WeichaiWP10 engine, 336 hp, 6X4 (10 wheels) drive and China IV emissions.

China IV 336 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ND12502B41J
Type: Cargo Trucks
Drive type: 6X4
Wheelbase: 4100+1450mm
Box length class: 6.5m
engine: WeichaiWP10.336E40
transmission: Fast Gear9JS180
Rear Axle Ratio: 5.263
Cab length: 9.17m
Cab width: 2.5m
Cab height: 3.27m
Front track width: 1995mm
rear track: 1800/1800mm
Curb Weight: 10.7ton
Rated payload: 14.17ton
GVWR: 25ton
Max. speed: 90km/h
Origin: Baotou, Inner Mongolia
tonnage class: Heavy-duty cargo trucks
Approach angle: 26°
departure angle: 24°
market segment: Building materials, agricultural products
Remarks: Cab: NG80B long cab flat roof. Frame section (mm): 300×90×8+6+8
Front/rear suspension: 1.41/2.26m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.336E40
Engine info: WeichaiWP10
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 9.726L
Emission standard: China IV
Max output power: 247kW
Max hp: 336Horsepower
Max torque: 1500N·m
Max torque speed: 1300-1600rpm
Rated speed: 1900rpm
Engine Type: Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled
Transmission Parameters
Transmission Model: Fast Gear9JS180
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 6.5m
Cargo box width: 2.3m
Cargo box height: 0.8m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab: Flat roof
seating capacity: 3Personnel
Seat rows: Sleeper cab

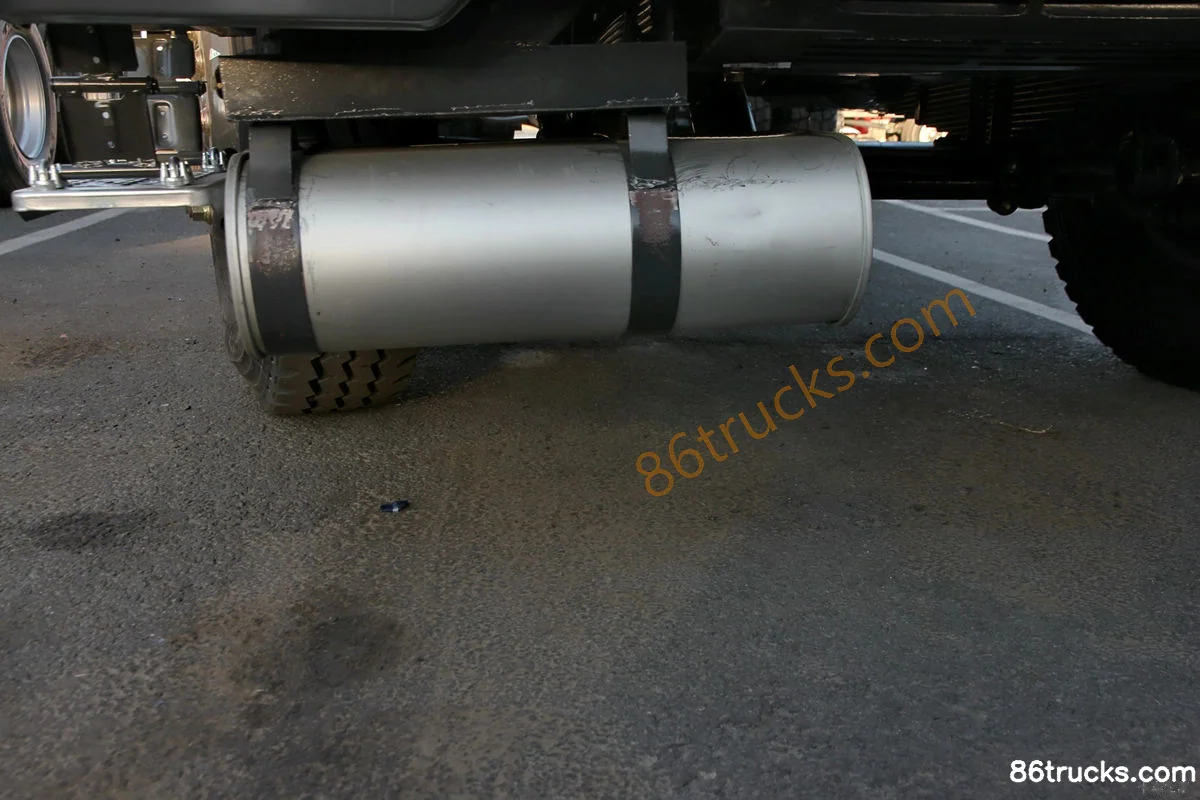

fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 300L
Chassis Specs
Front axle description: 7.5 ton
Front axle allowable load: 7000kg
rear axle description: 13t double reduction axle
rear axle allowable load: 18000 (twin axle)kg
Axle ratio: 5.263
Leaf spring count: 13/13
Tire
Tire Size: 12.00R20
Number of tires: 10pcs
Control configuration
ABS:

Photos

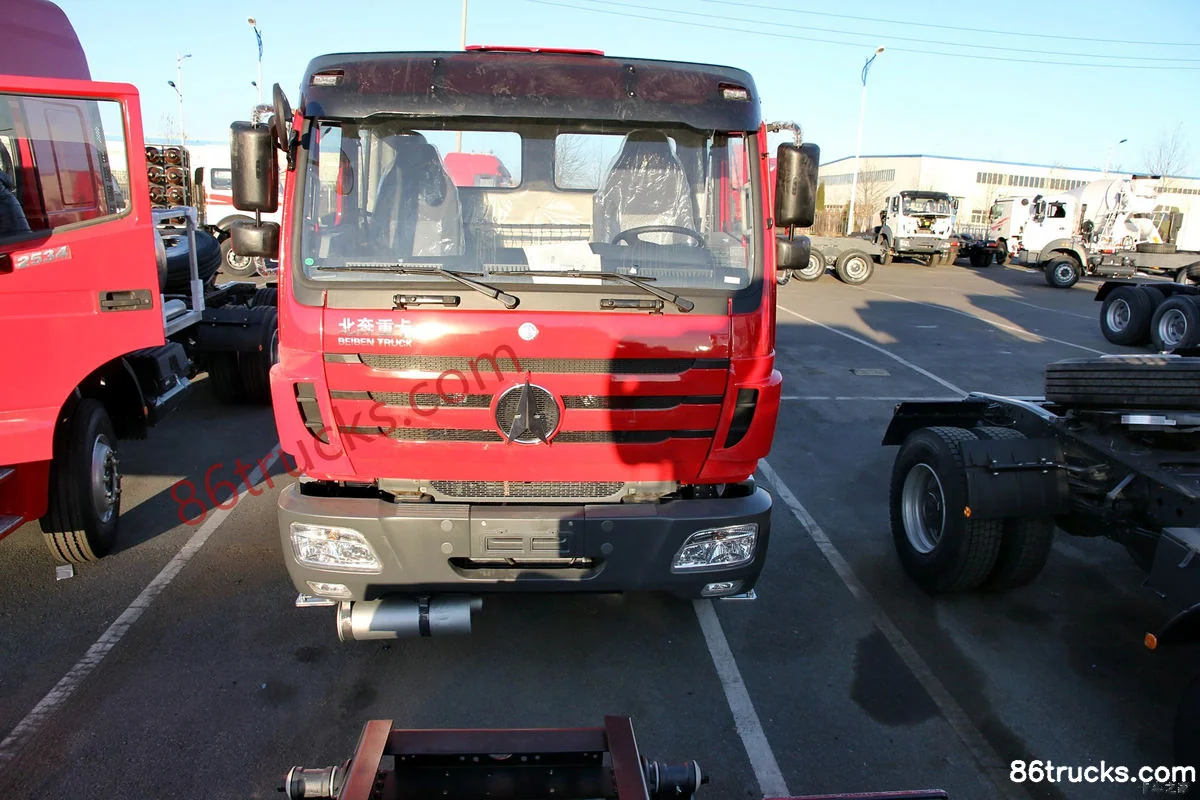

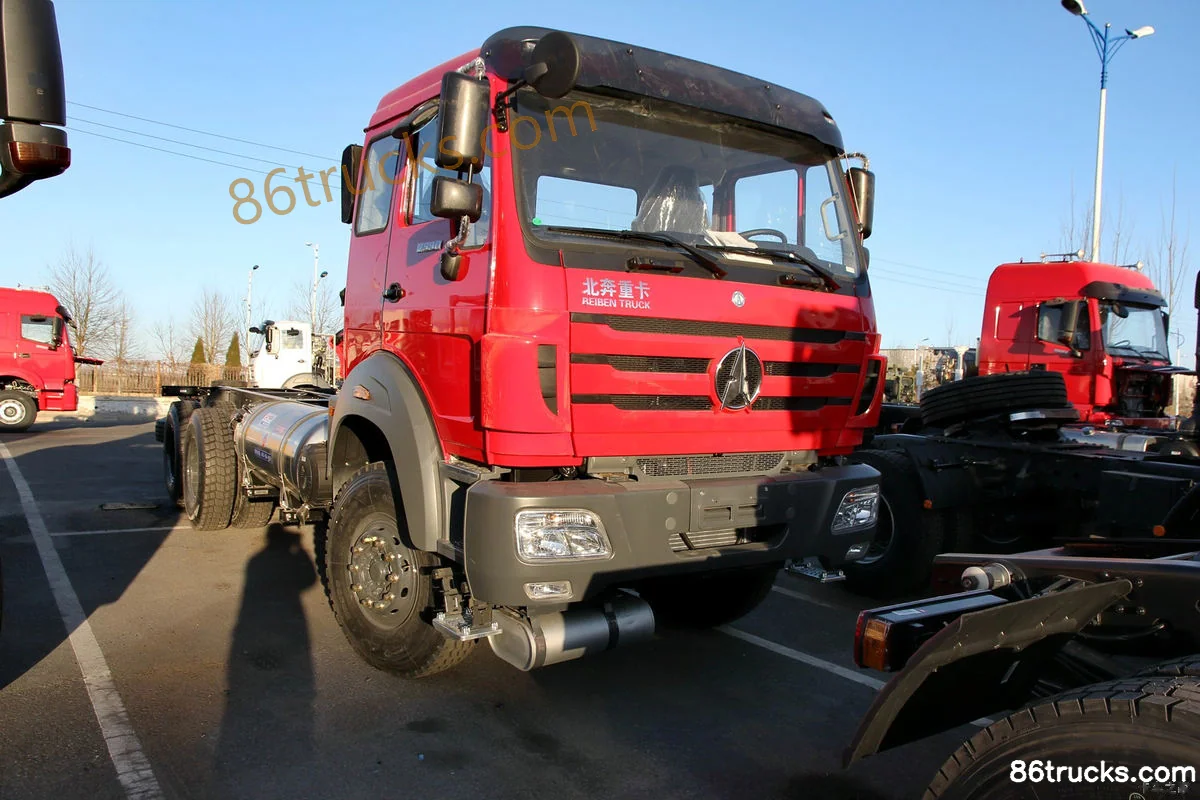

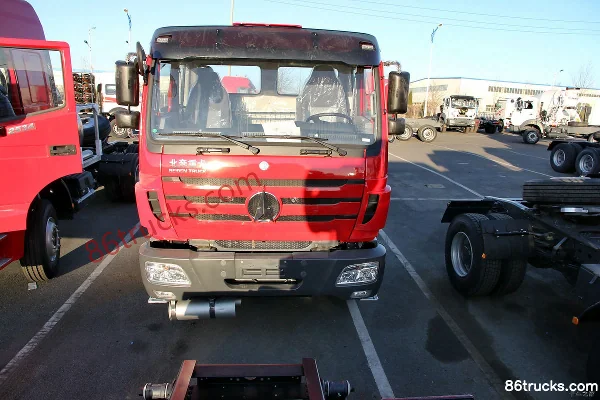

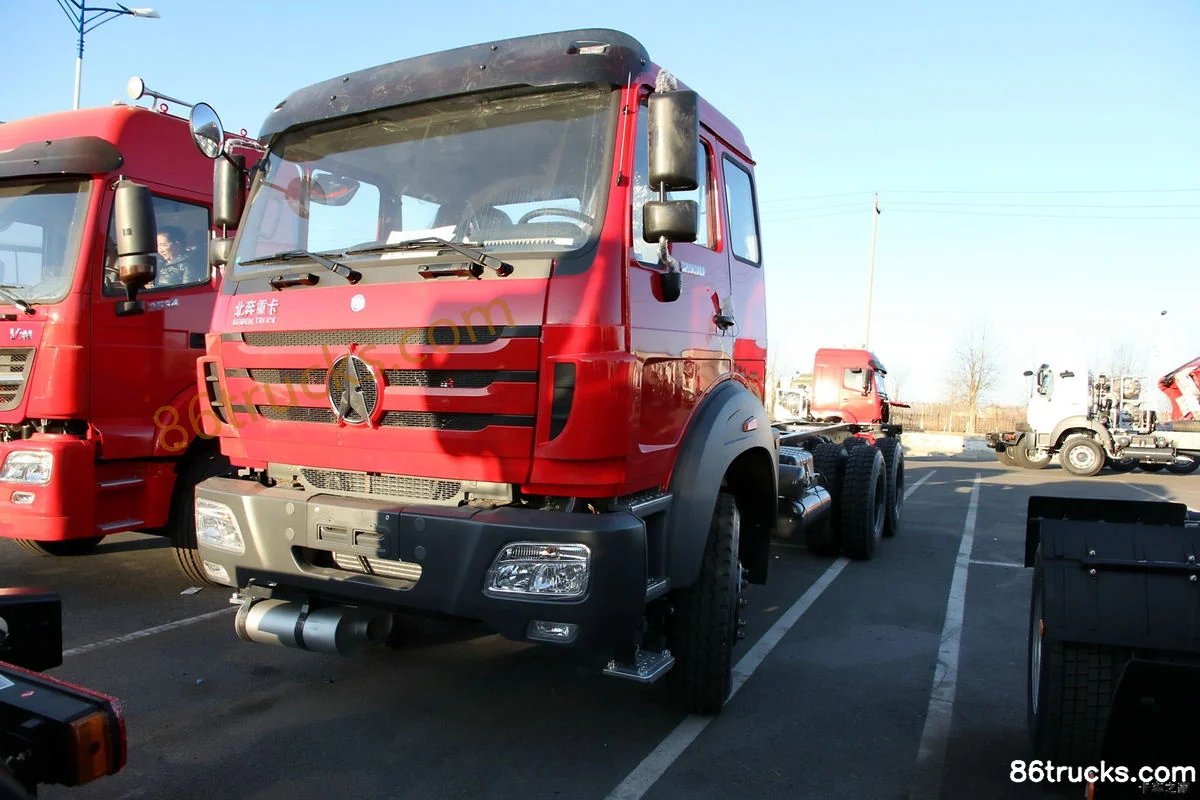

Exterior3

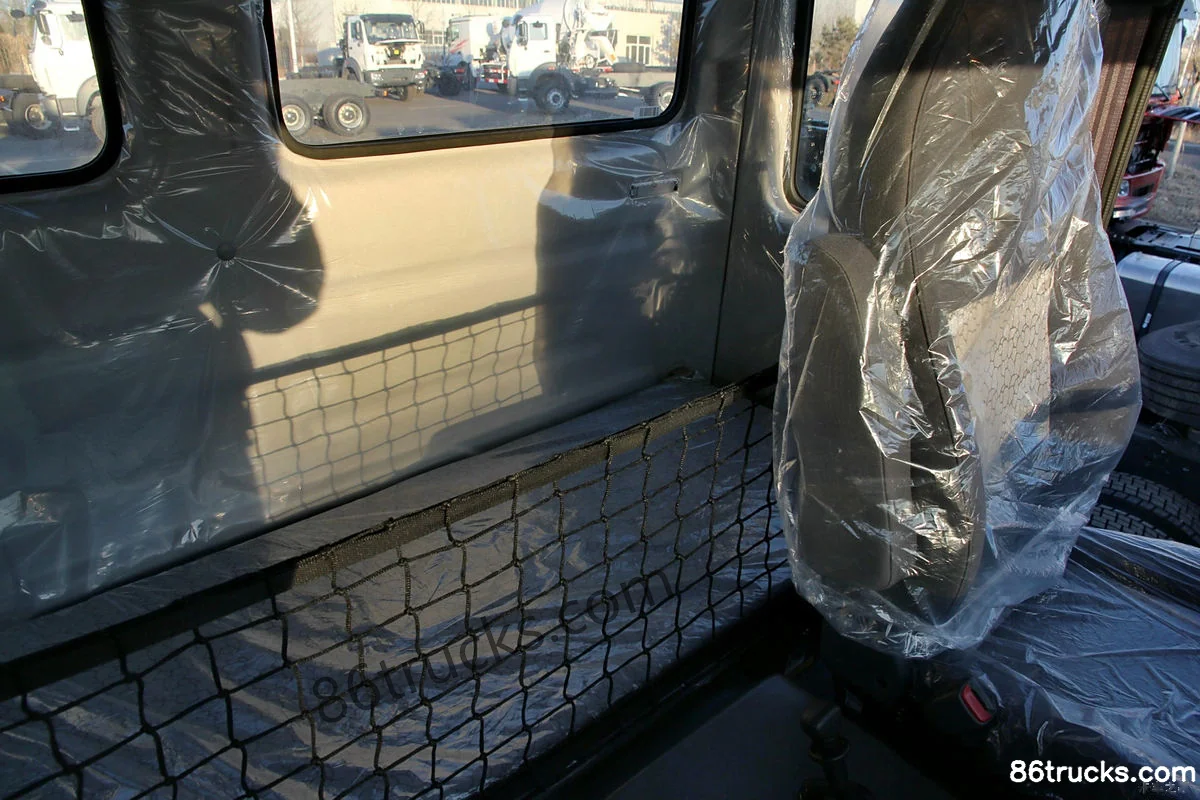

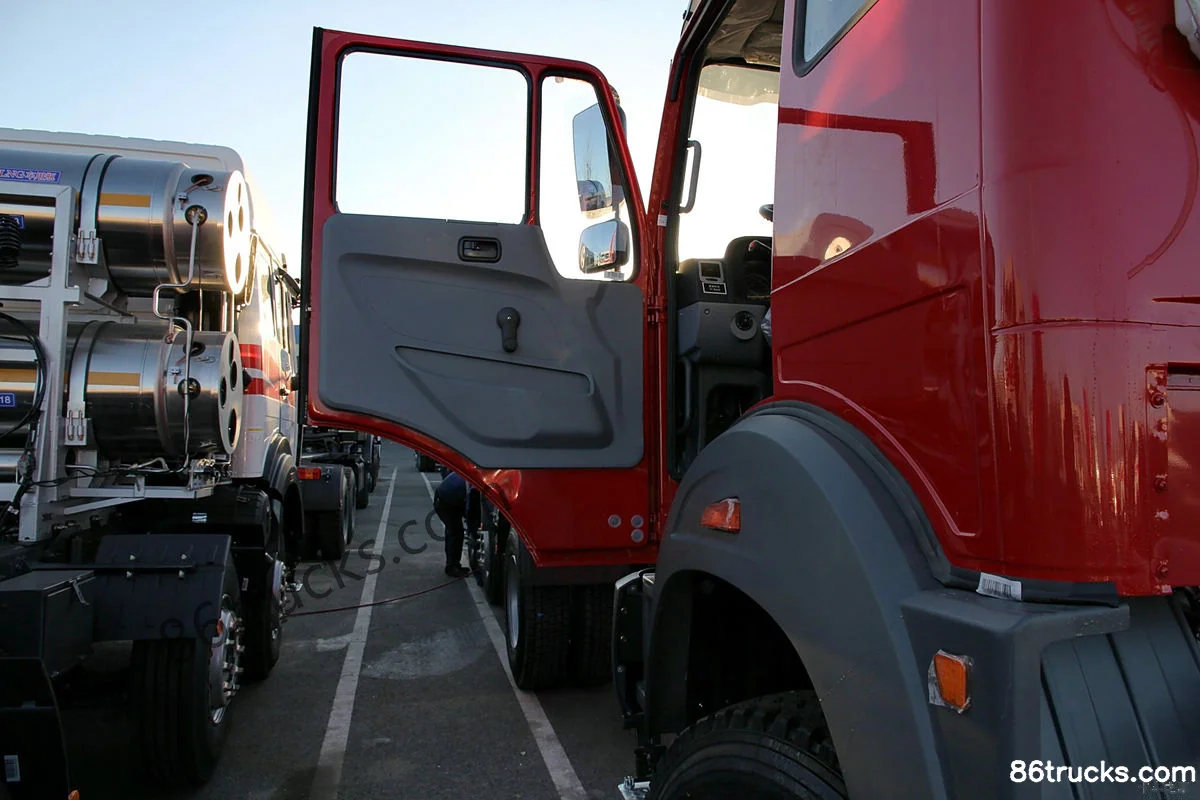

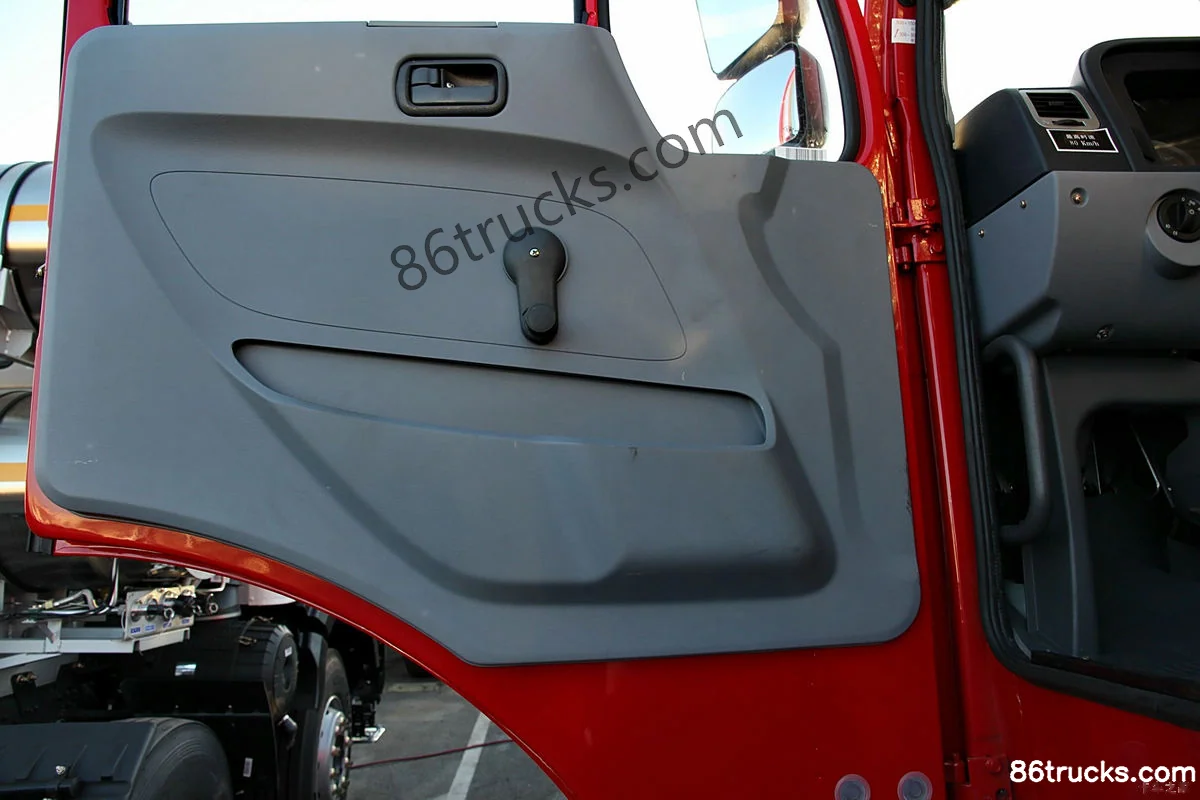

Cab3

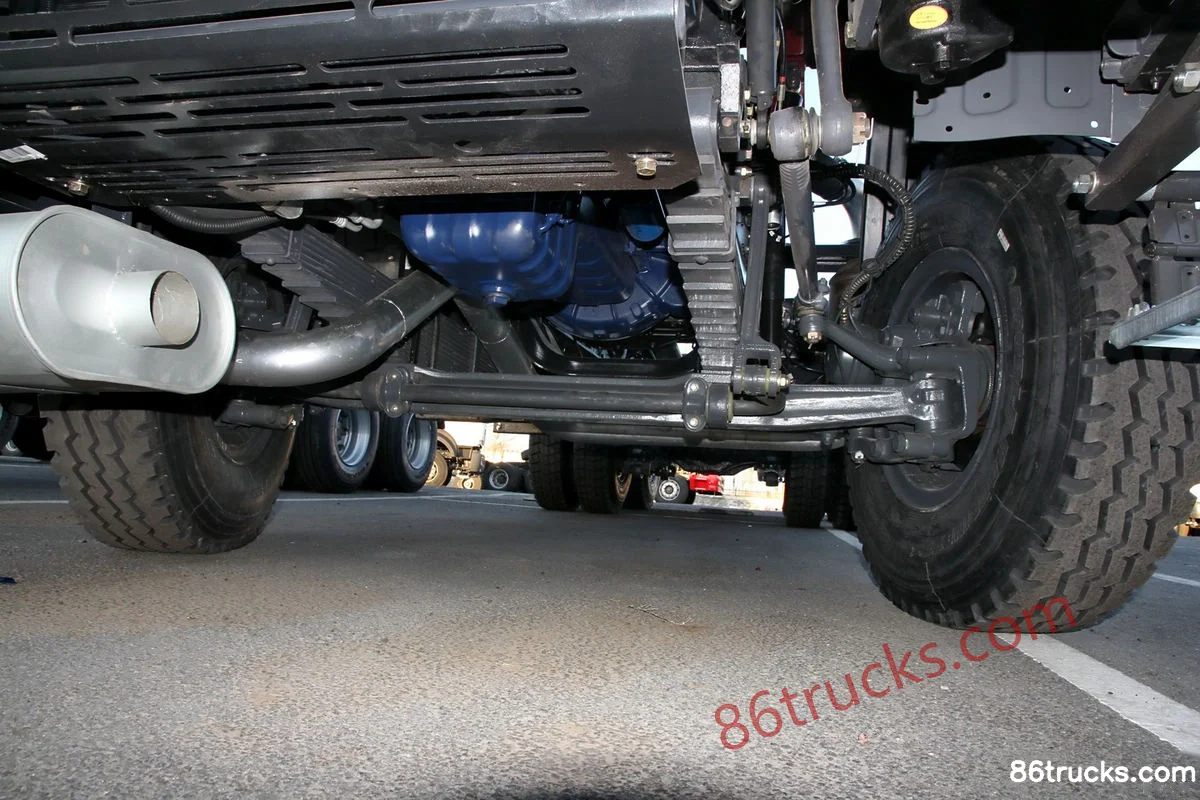

Chassis3

9 photos

FAQ

What is the export price of Beiben NG80 Series Heavy Truck 336 hp 6X4(10 wheels) 6.5m Cab-over Chassis Cargo Truck, and what does it include?

Beiben NG80 Series Heavy Truck 336 hp 6X4(10 wheels) 6.5m Cab-over Chassis Cargo Truck export reference is about From $44,472; MSRP is ¥32.02M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Beiben NG80 Series Heavy Truck 336 hp 6X4(10 wheels) 6.5m Cab-over Chassis Cargo Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Beiben NG80 Series Heavy Truck 336 hp 6X4(10 wheels) 6.5m Cab-over Chassis Cargo Truck?

Key specs of Beiben NG80 Series Heavy Truck 336 hp 6X4(10 wheels) 6.5m Cab-over Chassis Cargo Truck: Drive: 6x4; Horsepower: 336 hp; Emission: China IV; Fuel: Diesel; Engine: WeichaiWP10; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Beiben NG80 Series Heavy Truck 336 hp 6X4(10 wheels) 6.5m Cab-over Chassis Cargo Truck suited for?

Beiben NG80 Series Heavy Truck 336 hp 6X4(10 wheels) 6.5m Cab-over Chassis Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Beiben NG80 Series Heavy Truck 336 hp 6X4(10 wheels) 6.5m Cab-over Chassis Cargo Truck differ from other variants in the same series?

Beiben NG80 Series Heavy Truck 336 hp 6X4(10 wheels) 6.5m Cab-over Chassis Cargo Truck belongs to Beiben NG80 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Beiben NG80 Series Heavy Truck 336 hp 6X4(10 wheels) 6.5m Cab-over Chassis Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Beiben NG80 Series Heavy Truck 336 hp 6X4(10 wheels) 6.5m Cab-over Chassis Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
