Yuejin Shangjun X101-33 112 hp 4X2(6 wheels) 3.2m double-row stake truck (6-speed) (air brake)

Export reference
MSRP N/A
Horsepower: 112
Emission: China IV
Fuel: Diesel
Engine: SOFIM 2.8L
Transmission: NAVECO
Curb Weight:: 2.61ton

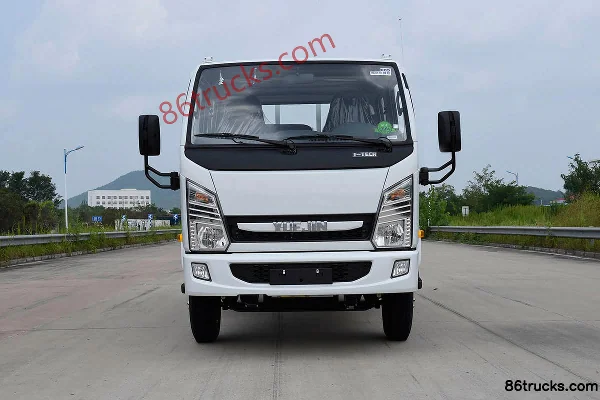

Yuejin Shangjun X101-33 112 hp 4X2(6 wheels) 3.2m double-row stake truck (6-speed) (air brake) exterior
seating capacity: 5Personnel
Rated payload: 4.335ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Yuejin Shangjun X101-33 112 hp 4X2(6 wheels) 3.2m double-row stake truck (6-speed) (air brake) is a Light Truck featuring 3.18m cargo length, Stake type cargo body, 5Personnel volume and 4.335t payload. On the powertrain side, it comes with a SOFIM 2.8L engine, 112 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 112 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): NJ5071CCYDBFS
Type: stake truck
Drive type: 4X2
Wheelbase: 3308mm
Box length class: 3.2m
engine: SOFIM SFM28112E4
transmission: NAVECO17H6S300
Cab length: 5.995m
Cab width: 2.03m
Cab height: 2.985m
Front track width: 1503mm
rear track: 1430mm
Curb Weight: 2.61ton
Rated payload: 4.335ton
GVWR: 7.335ton
Max. speed: 95km/h
Origin: Nanjing, Jiangsu
tonnage class: Light Truck
Approach angle: 25°
departure angle: 16°
Remarks: expansion tank, tread plate floor, air dryer
Front/rear suspension: 1.105/1.582m
Energy Type: Diesel
Engine parameters
Engine Brand: NAVECO
Engine Model: SOFIM SFM28112E4
Engine info: SOFIM 2.8L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.798L
Emission standard: China IV
Max output power: 82kW
Max hp: 112Horsepower
Max torque: 285N·m
Max torque speed: 1600rpm
Rated speed: 3000rpm
Engine Type: 4-stroke, inline, direct injection, water-cooled, turbocharged with intercooling, high-pressure common rail electronic injection
Transmission Parameters
Transmission Model: NAVECO17H6S300
Transmission Brand: NAVECO
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 3.18m
Cargo box width: 1.9m
Cargo box height: 0.42m
*Cargo box interior width: 1.8999999761581
Cab parameters
seating capacity: 5Personnel
Seat rows: Double cab
Chassis Specs
Front axle allowable load: 2620kg
rear axle allowable load: 4715kg
Leaf spring count: 8/9+3,7/8+6
Tire
Tire Size: 6.50R16
Number of tires: 6pcs
Control configuration
Power steering:
clutch booster:
interior configuration
AC control type: Manual
Exterior features
Air deflector:
Service brake
Brake Type: Air brake
Exhaust brake:

Photos

0 photos

FAQ

What emission standard does Yuejin Shangjun X101-33 112 hp 4X2(6 wheels) 3.2m double-row stake truck (6-speed) (air brake) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Yuejin Shangjun X101-33 112 hp 4X2(6 wheels) 3.2m double-row stake truck (6-speed) (air brake)?

Key specs of Yuejin Shangjun X101-33 112 hp 4X2(6 wheels) 3.2m double-row stake truck (6-speed) (air brake): Drive: 4x2; Horsepower: 112 hp; Emission: China IV; Fuel: Diesel; Engine: SOFIM 2.8L; Transmission: NAVECO. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Yuejin Shangjun X101-33 112 hp 4X2(6 wheels) 3.2m double-row stake truck (6-speed) (air brake) suited for?

Yuejin Shangjun X101-33 112 hp 4X2(6 wheels) 3.2m double-row stake truck (6-speed) (air brake) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Yuejin Shangjun X101-33 112 hp 4X2(6 wheels) 3.2m double-row stake truck (6-speed) (air brake) differ from other variants in the same series?

Yuejin Shangjun X101-33 112 hp 4X2(6 wheels) 3.2m double-row stake truck (6-speed) (air brake) belongs to Yuejin Shangjun X Series Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Yuejin Shangjun X101-33 112 hp 4X2(6 wheels) 3.2m double-row stake truck (6-speed) (air brake)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Yuejin Shangjun X101-33 112 hp 4X2(6 wheels) 3.2m double-row stake truck (6-speed) (air brake)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
