SAIC Hongyan Genlyon M100 Heavy Truck 480 hp 6X4(10 wheels) Tractor Truck (Flat Roof)

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 38.6ton
Wheelbase:: 3300+1400mm
Tire Size:: 12.00R20
rear axle allowable load:: 18000kg
Displacement:: 12.88L
Drive 6X4 (10 wheels)
Horsepower 480
Emission China IV
Transmission Fast Gear

Overview

The SAIC Hongyan Genlyon M100 Heavy Truck 480 hp 6X4(10 wheels) Tractor Truck (Flat Roof) is a Heavy truck featuring 6X4 (10 wheels) drive, 480 hp, 25t GVW and China IV emissions. Its segment focus covers Extra-heavy-duty, matching those duty cycles. On the powertrain side, it comes with a SAIC Fiat Powertrain HongyanC13 480 C4(F3BEE681A*T) engine, Fast Gear transmission and Diesel fuel.

China IV 480 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CQ4255HXG334HH
Drive type: 6X4
Wheelbase: 3300+1400mm
engine: SAIC Fiat Powertrain HongyanC13 480 C4(F3BEE681A*T)
transmission: Fast Gear16JSD220TA
Rear Axle Ratio: 4.769
Cab length: 6.81m
Cab width: 2.5m
Cab height: 3.965m
Front track width: 2006mm
Gross Trailer Weight: 38.6ton
rear track: 1800/1800mm
Curb Weight: 10.2ton
GVWR: 25ton
Max. speed: 95km/h
Origin: Chongqing
tonnage class: Heavy truck
market segment: Extra-heavy-duty
Remarks: Manual A/C, Power Tilt
Energy Type: Diesel
Engine parameters
Engine Brand: SAIC Fiat Powertrain Hongyan
Engine Model: SAIC Fiat Powertrain HongyanC13 480 C4(F3BEE681A*T)
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 12.88L
Emission standard: China IV
Max output power: 353kW
Max hp: 480Horsepower
Max torque: 2200N·m
Max torque speed: 1100rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: Fast Gear16JSD220TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 16Gear
Number of Reverse Gears: 2pcs
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 550L
Cab parameters
Cab: Flat roof
Seat rows: Sleeper cab
Chassis Specs
Frame Dimensions: 940-865/317 8+8mm
rear axle description: HY300M
rear axle allowable load: 18000kg
Axle ratio: 4.769
Leaf spring count: 8/12
Tire
Tire Size: 12.00R20
Number of tires: 10pcs

Photos

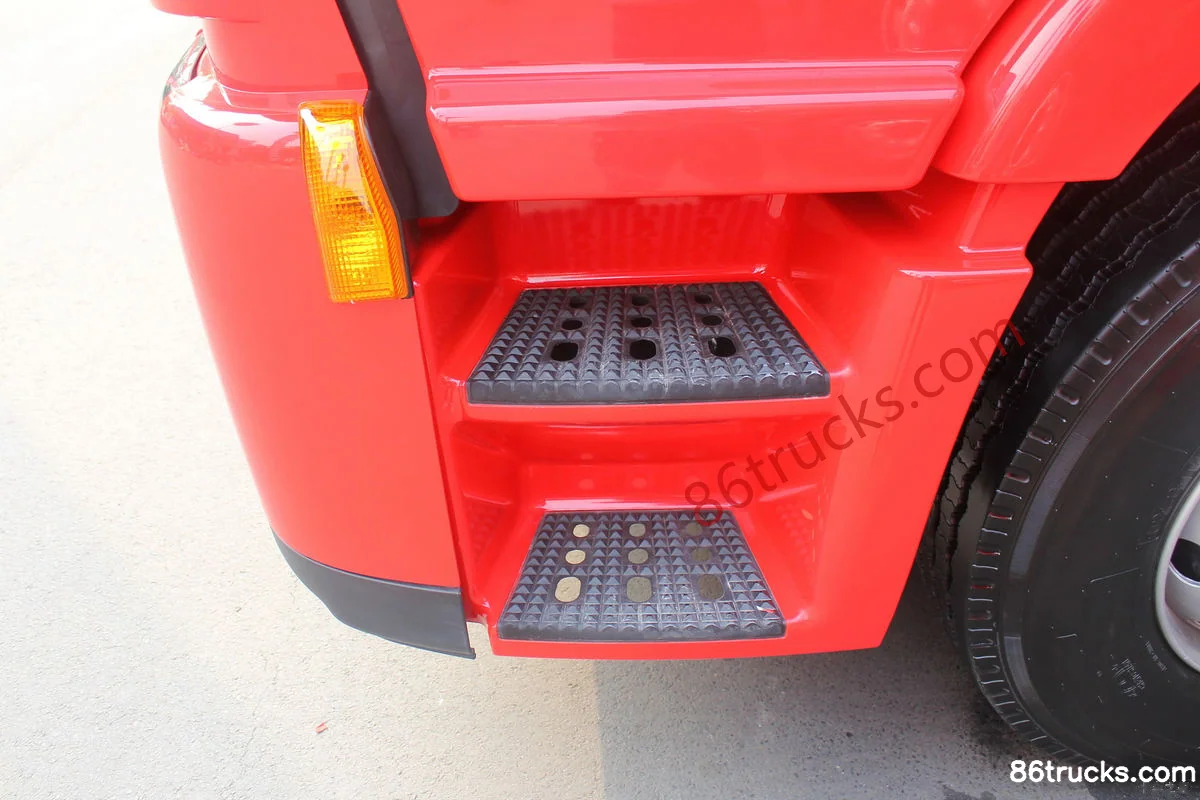

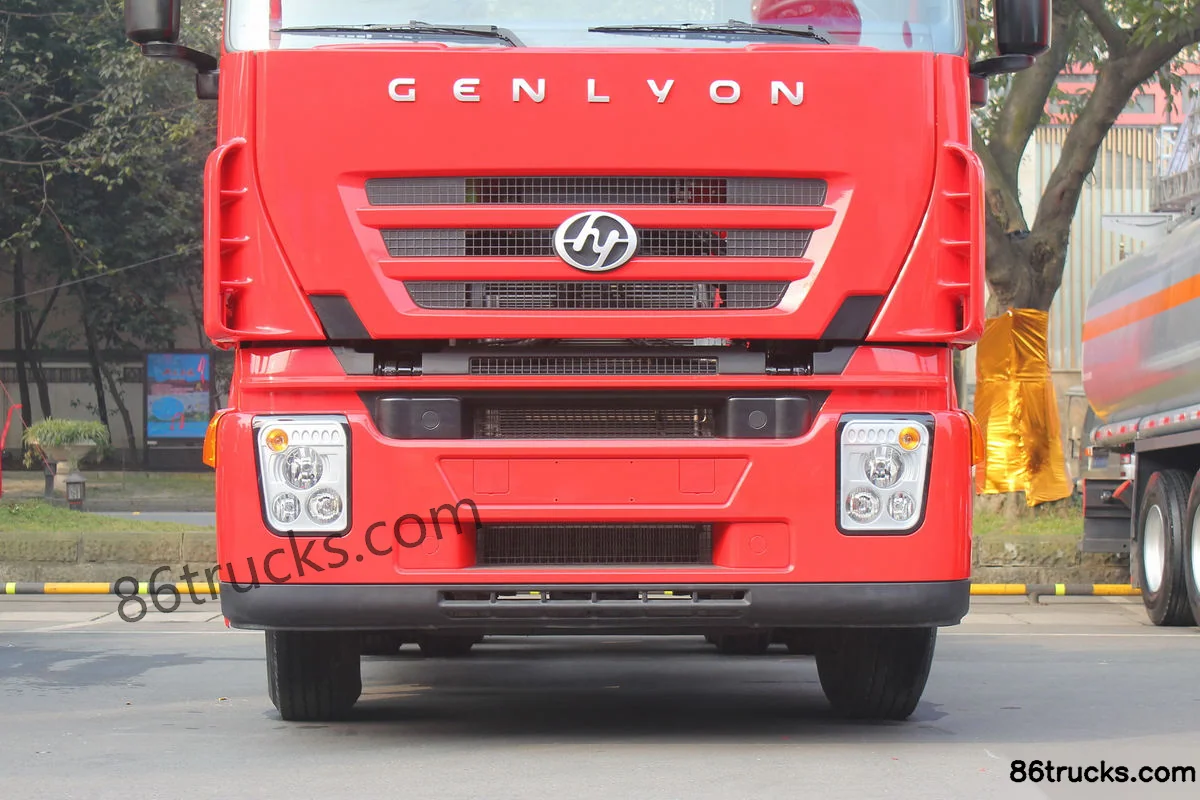

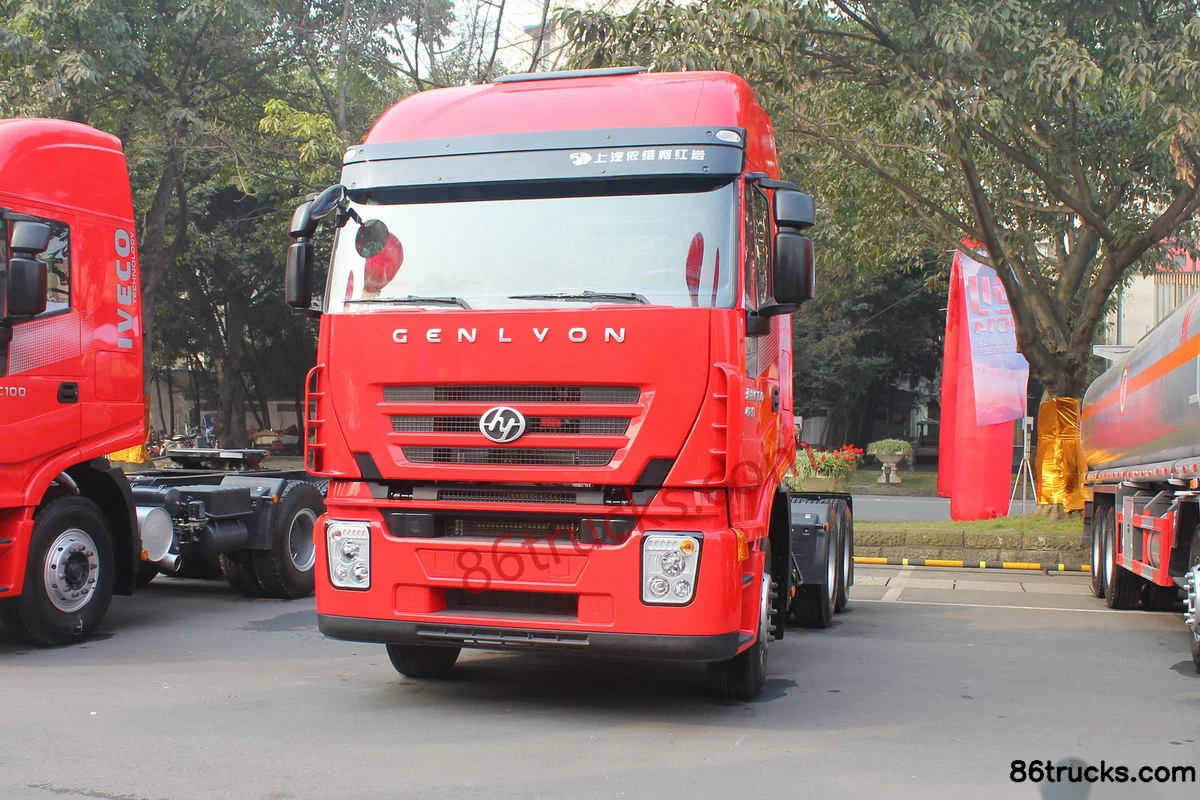

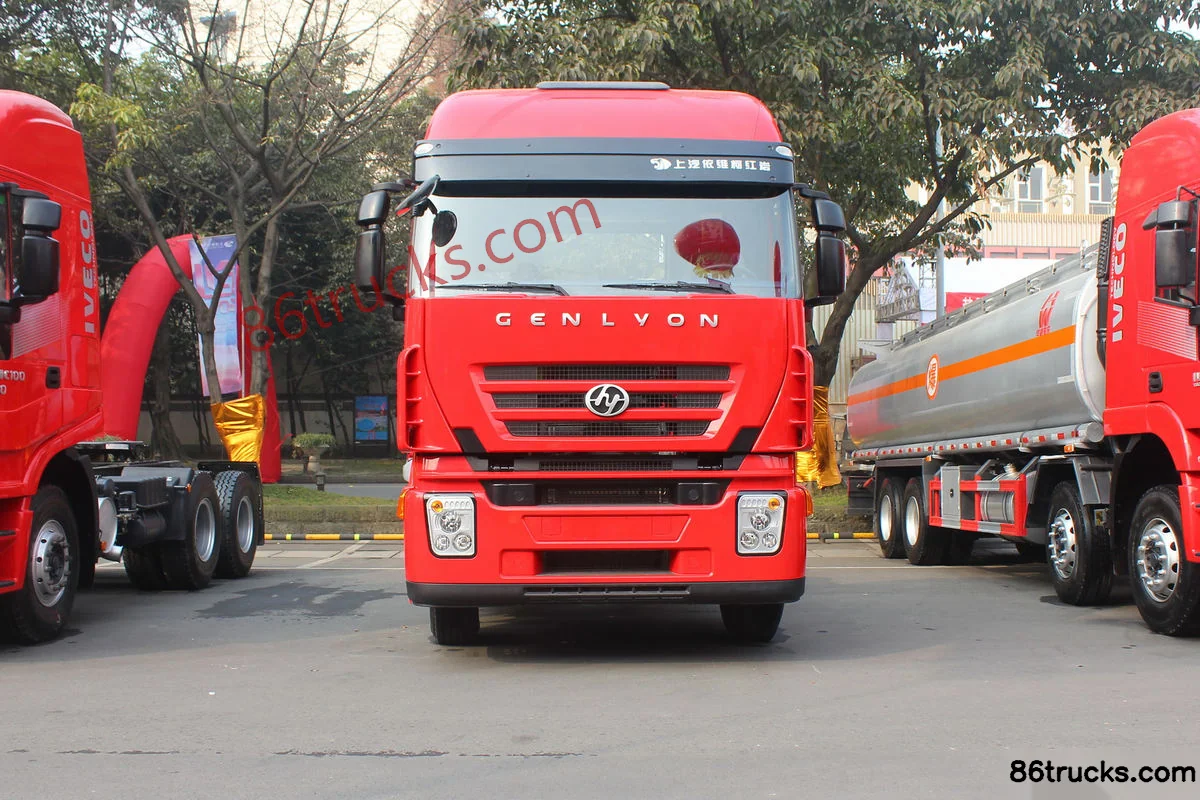

Exterior3

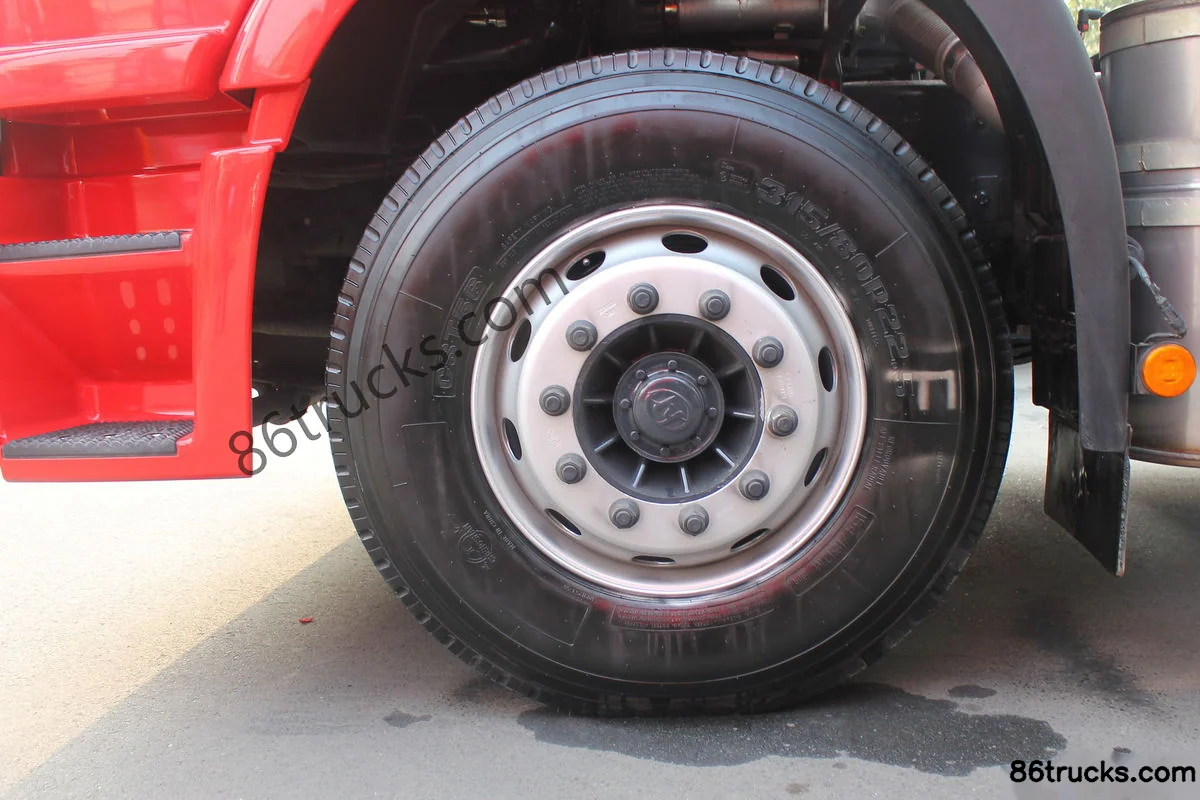

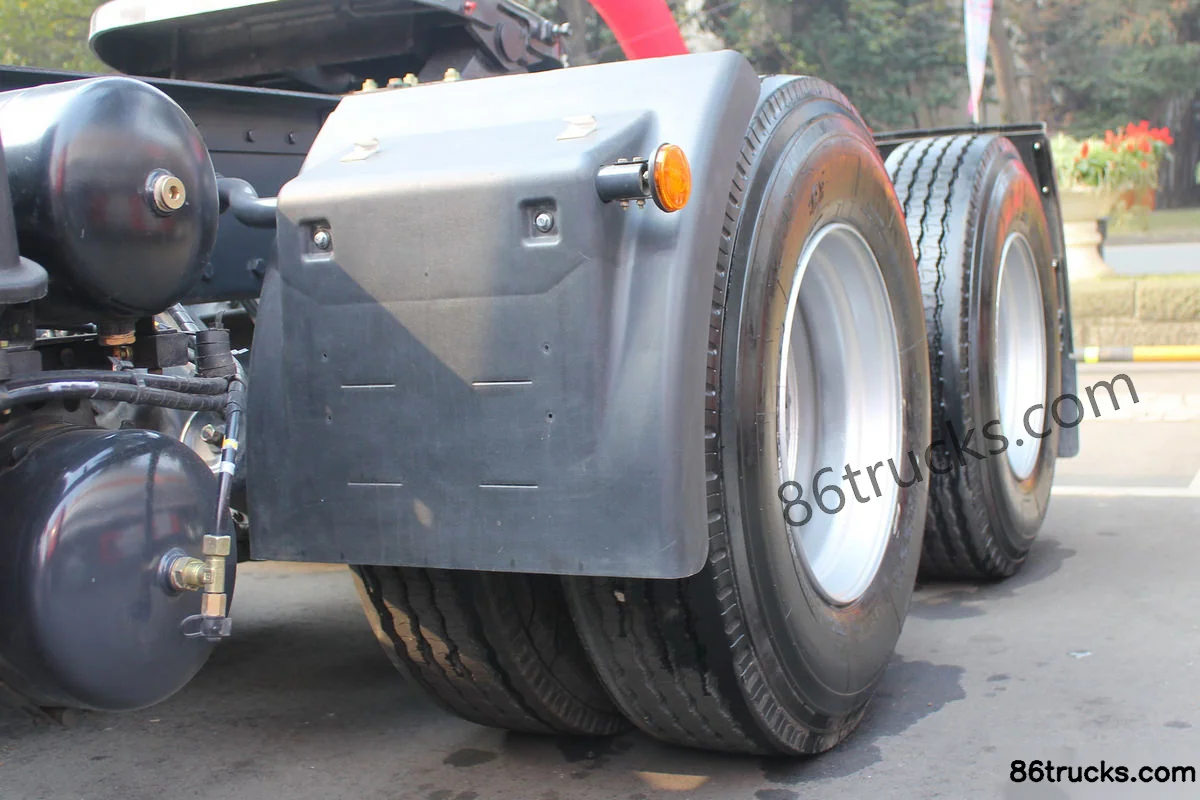

Chassis3

6 photos

FAQ

What emission standard does SAIC Hongyan Genlyon M100 Heavy Truck 480 hp 6X4(10 wheels) Tractor Truck (Flat Roof) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SAIC Hongyan Genlyon M100 Heavy Truck 480 hp 6X4(10 wheels) Tractor Truck (Flat Roof)?

Key specs of SAIC Hongyan Genlyon M100 Heavy Truck 480 hp 6X4(10 wheels) Tractor Truck (Flat Roof): Drive: 6x4; Horsepower: 480 hp; Emission: China IV; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SAIC Hongyan Genlyon M100 Heavy Truck 480 hp 6X4(10 wheels) Tractor Truck (Flat Roof) suited for?

SAIC Hongyan Genlyon M100 Heavy Truck 480 hp 6X4(10 wheels) Tractor Truck (Flat Roof) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does SAIC Hongyan Genlyon M100 Heavy Truck 480 hp 6X4(10 wheels) Tractor Truck (Flat Roof) differ from other variants in the same series?

SAIC Hongyan Genlyon M100 Heavy Truck 480 hp 6X4(10 wheels) Tractor Truck (Flat Roof) belongs to SAIC Hongyan Genlyon Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SAIC Hongyan Genlyon M100 Heavy Truck 480 hp 6X4(10 wheels) Tractor Truck (Flat Roof)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SAIC Hongyan Genlyon M100 Heavy Truck 480 hp 6X4(10 wheels) Tractor Truck (Flat Roof)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
