Foton Times H3 124 hp 4X2(6 wheels) 4.18m Single Row Cage Cargo Light Truck

Export reference
From $13,750
MSRP ¥9.9M CNY
Horsepower: 124
Emission: China V
Fuel: Diesel
Engine: Chaochai4BK
Transmission: WLY
Curb Weight:: 2.6ton
seating capacity: 3Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Foton Forland Foton Times H3 124 hp 4X2(6 wheels) 4.18m Single Row Cage Cargo Light Truck is a Light Truck featuring 4.18m cargo length, Stake type cargo body, 3Personnel volume and 1.495t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Chaochai4BK engine, 124 hp, 4X2 (6 wheels) drive and China V emissions.

China V 124 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5043CCY-J7
Type: stake truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: ChaochaiCY4BK351
transmission: WLYWLY6TS55
Rear Axle Ratio: 4.33
Cab length: 5.995m
Cab width: 2.29m
Cab height: 3.07m
Front track width: 1550mm
rear track: 1590mm
Curb Weight: 2.6ton
Rated payload: 1.495ton
GVWR: 4.29ton
Max. speed: 120km/h
Origin: Shandong Zhucheng
tonnage class: Light Truck
Approach angle: 21°
departure angle: 17°
market segment: Agricultural product transport, green channel
Remarks: Optional ratio: 4.875
Front/rear suspension: 1.13/1.505m
Energy Type: Diesel
Engine parameters
Engine Brand: Chaochai
Engine Model: ChaochaiCY4BK351
Engine info: Chaochai4BK
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.856L
Emission standard: China V
Max output power: 91kW
Max hp: 124Horsepower
Max torque: 345N·m
Max torque speed: 1000-2200rpm
Rated speed: 2800rpm
Engine Type: Vertical water-cooled, four-stroke, turbocharged intercooled, electronic control high-pressure common rail, SCR
Technology route: SCR
Transmission Parameters
Transmission Model: WLYWLY6TS55
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 4.18m
Cargo box width: 2.1m
*Cargo box interior width: 2.0999999046326
Cab parameters
Cab width: 2060mm
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank capacity: 80L
Chassis Specs
Front axle allowable load: 1700kg
rear axle description: 1080
rear axle allowable load: 2590kg
Axle ratio: 4.33
Leaf spring count: 4/6+7
Tire

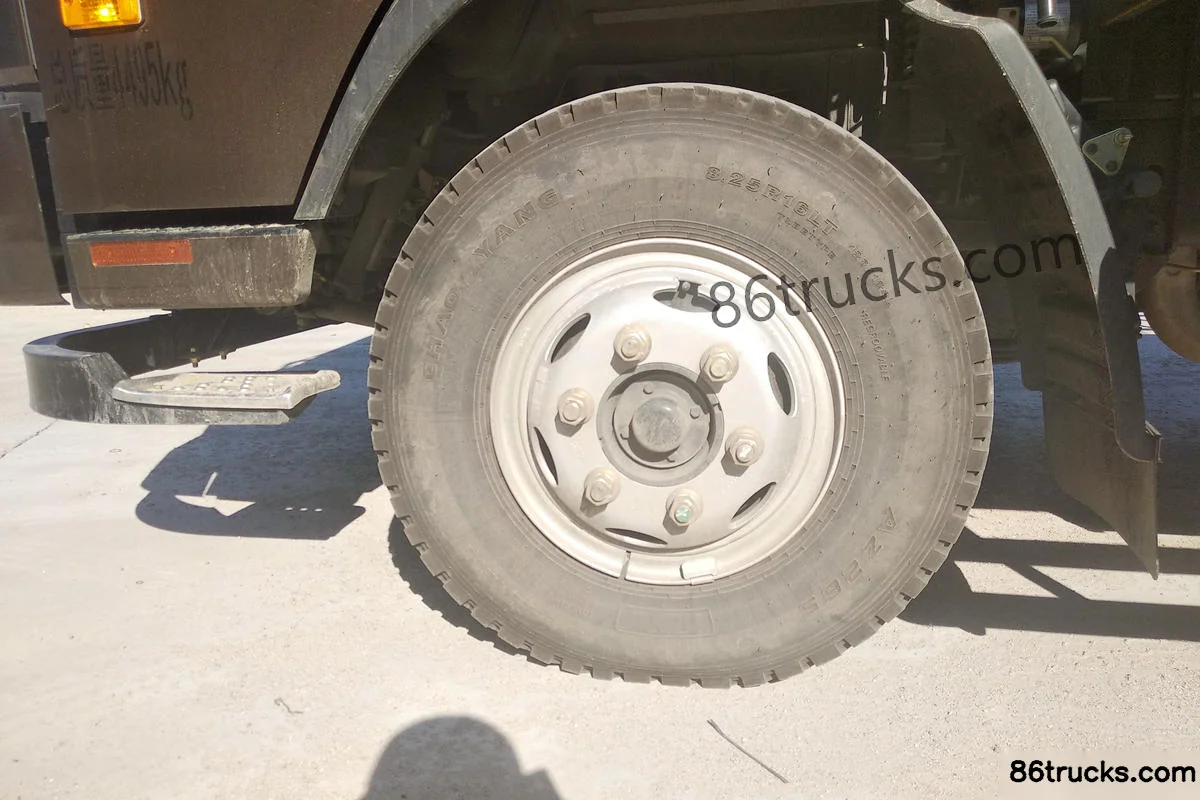

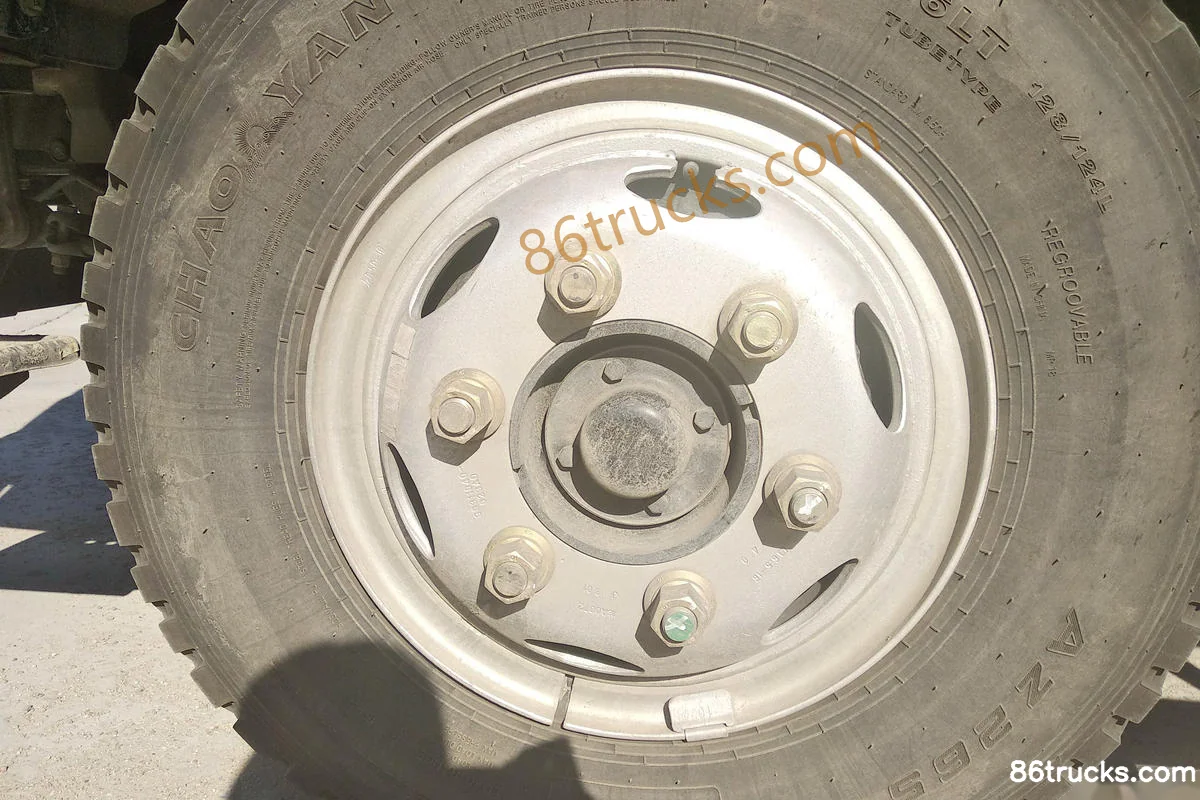

Tire Size: 7.00R16 8PR,7.50R16 6PR,8.25R16 6PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

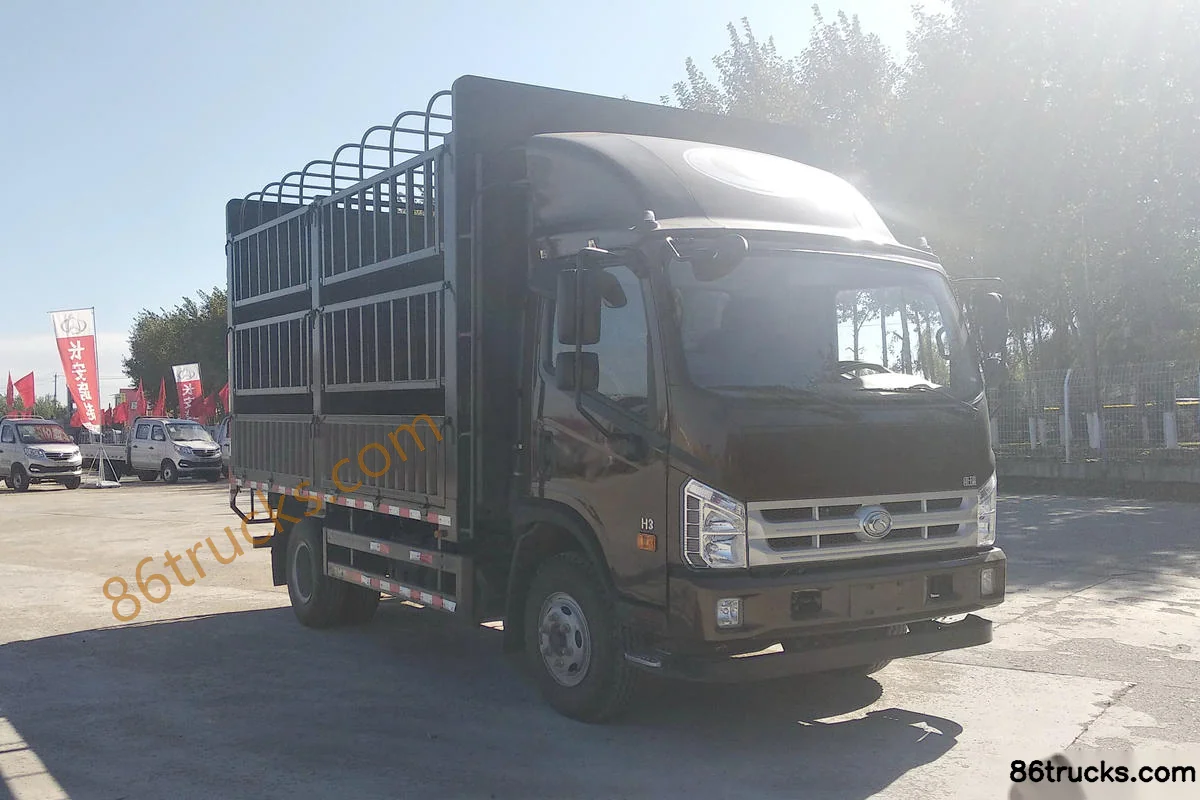

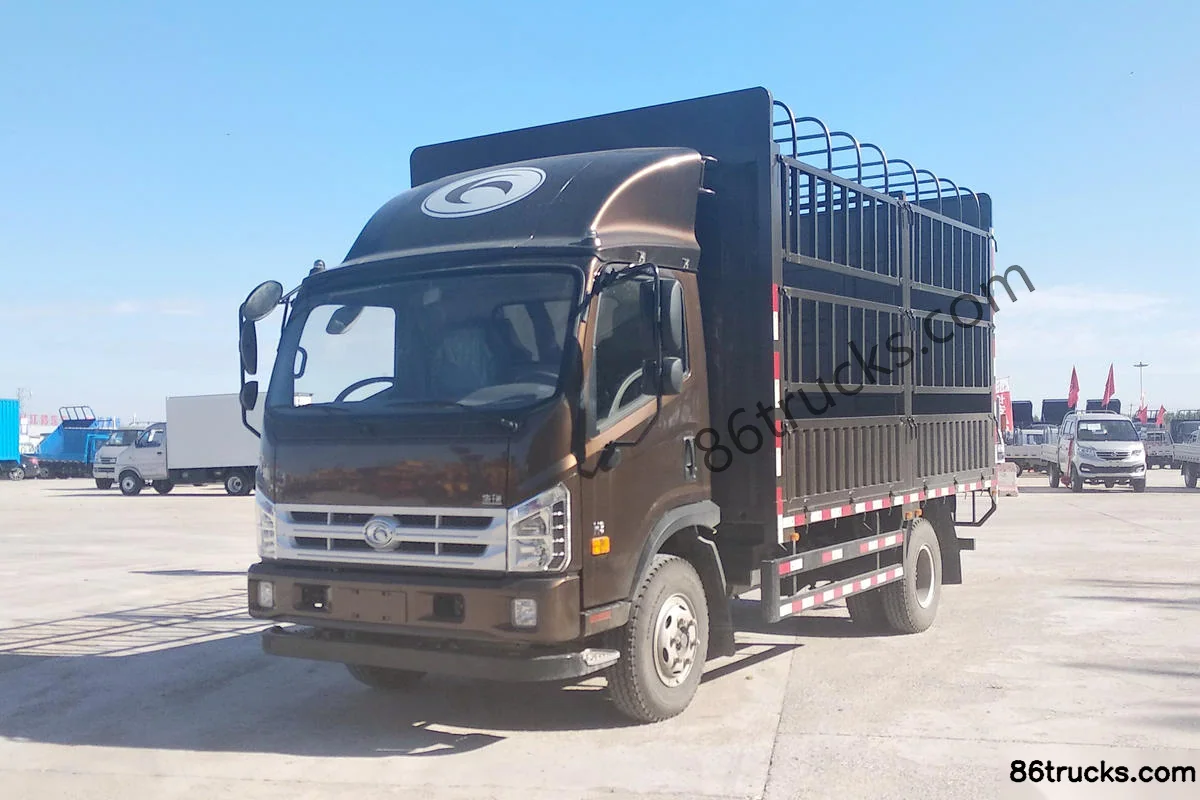

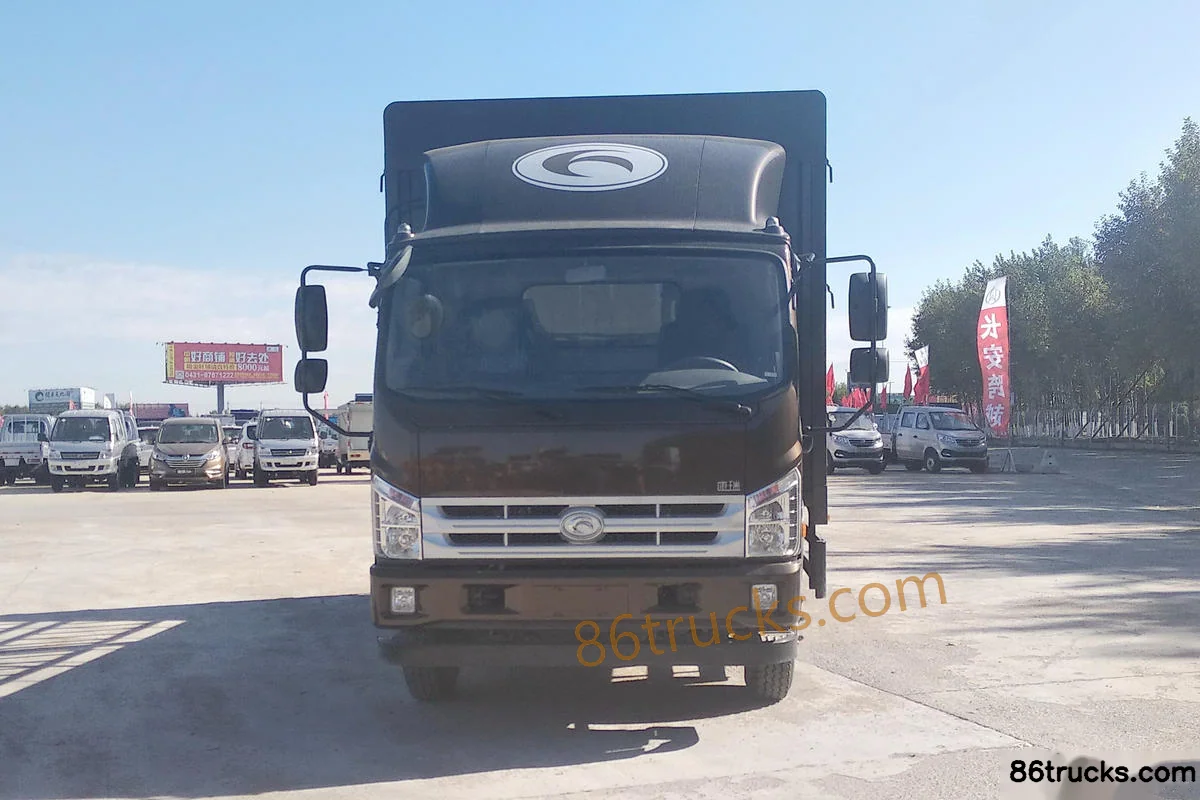

Exterior3

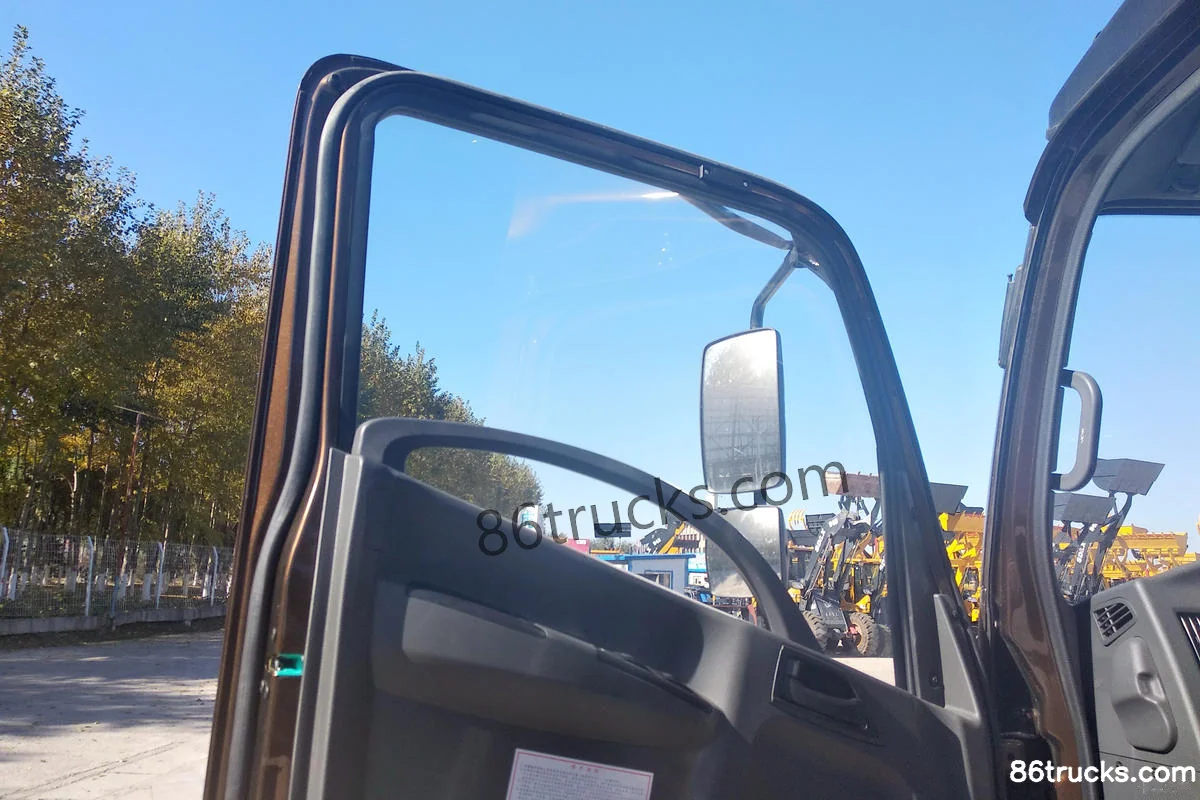

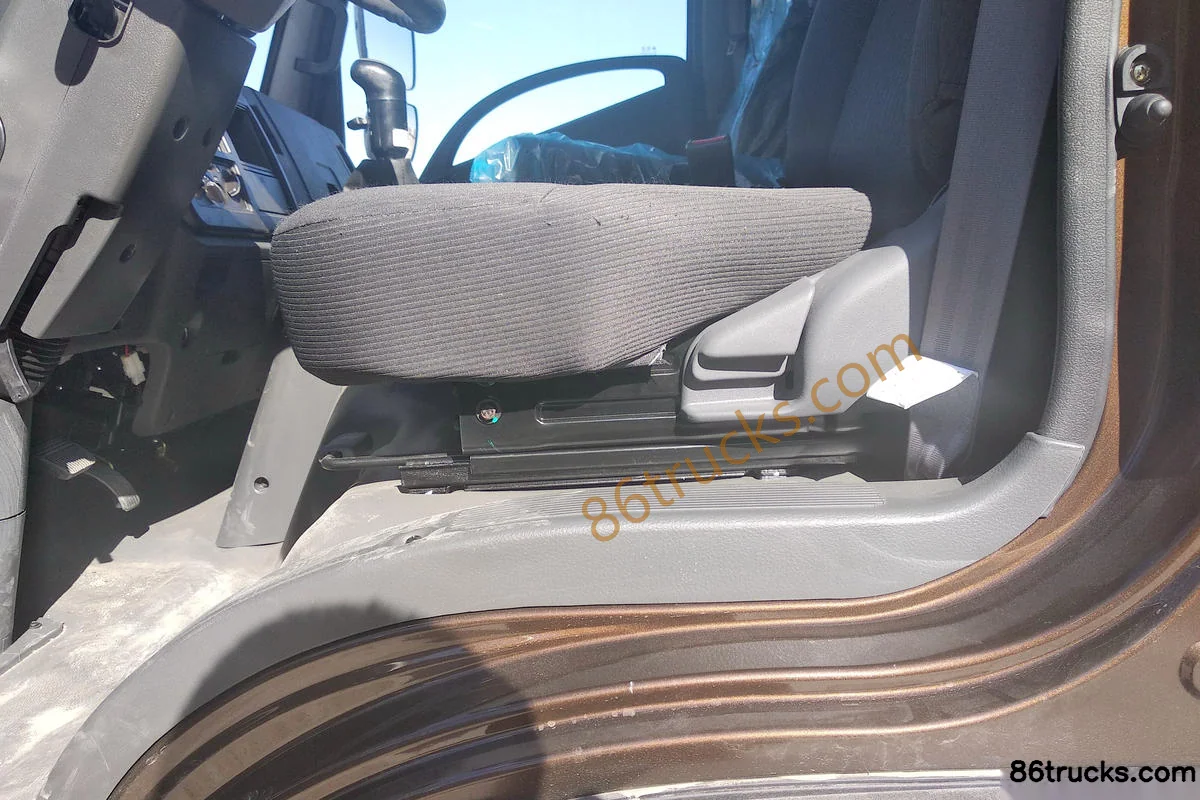

Cab3

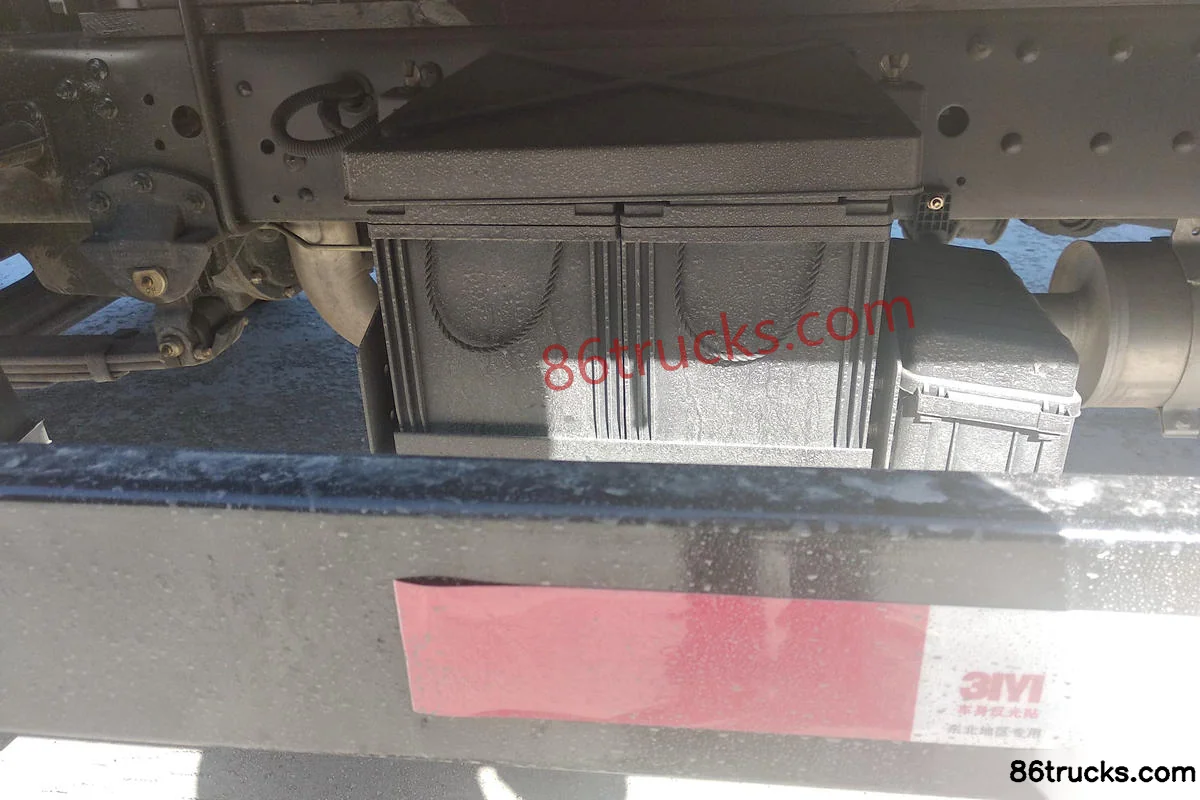

Chassis3

9 photos

FAQ

What is the export price of Foton Times H3 124 hp 4X2(6 wheels) 4.18m Single Row Cage Cargo Light Truck, and what does it include?

Foton Times H3 124 hp 4X2(6 wheels) 4.18m Single Row Cage Cargo Light Truck export reference is about From $13,750; MSRP is ¥9.9M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Times H3 124 hp 4X2(6 wheels) 4.18m Single Row Cage Cargo Light Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Times H3 124 hp 4X2(6 wheels) 4.18m Single Row Cage Cargo Light Truck?

Key specs of Foton Times H3 124 hp 4X2(6 wheels) 4.18m Single Row Cage Cargo Light Truck: Drive: 4x2; Horsepower: 124 hp; Emission: China V; Fuel: Diesel; Engine: Chaochai4BK; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Times H3 124 hp 4X2(6 wheels) 4.18m Single Row Cage Cargo Light Truck suited for?

Foton Times H3 124 hp 4X2(6 wheels) 4.18m Single Row Cage Cargo Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Times H3 124 hp 4X2(6 wheels) 4.18m Single Row Cage Cargo Light Truck differ from other variants in the same series?

Foton Times H3 124 hp 4X2(6 wheels) 4.18m Single Row Cage Cargo Light Truck belongs to Linghang H Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Times H3 124 hp 4X2(6 wheels) 4.18m Single Row Cage Cargo Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Times H3 124 hp 4X2(6 wheels) 4.18m Single Row Cage Cargo Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
