FAW Jiefang Qingdao HanV heavy truck 320hp 6X2(8 wheels) tractor truck (498 rear axle)

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 38.455ton
Wheelbase:: 1900+2450mm
Tire Size:: 12R22.5-16PR
Front axle allowable load:: 6750/6750kg
Displacement:: 7.7L
FAW Jiefang Qingdao HanV heavy truck 320hp 6X2(8 wheels) tractor truck (498 rear axle) exterior
View more photos (9)
Drive 6X2 (8 wheels)
Horsepower 320
Emission China V
Transmission FAW Jiefang

Overview

The FAW Jiefang Qingdao HanV heavy truck 320hp 6X2(8 wheels) tractor truck (498 rear axle) is a Heavy truck featuring 6X2 (8 wheels) drive, 320 hp, 25t GVW and China V emissions. Its segment focus covers Coal transport and bulk material transport, matching those duty cycles. On the powertrain side, it comes with a XichaiCA6DL1-32E5 engine, FAW Jiefang transmission and Diesel fuel.

China V 320 Diesel 6X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): CA4252P1K2T3E5A80
Drive type: 6X2
Wheelbase: 1900+2450mm
engine: XichaiCA6DL1-32E5
transmission: FAW JiefangCA10TAX130M
Rear Axle Ratio: 4.111
Cab length: 6.675m
Cab width: 2.495m
Cab height: 3.32m
Front track width: 1964/1964mm
Gross Trailer Weight: 38.455ton
rear track: 1847mm
Curb Weight: 7.35ton
GVWR: 25ton
Max. speed: 102km/h
Origin: Qingdao/Chengdu
tonnage class: Heavy truck
market segment: Coal transport, bulk material transport
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DL1-32E5
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 7.7L
Emission standard: China V
Max output power: 238kW
Max hp: 320Horsepower
Max torque: 1250N·m
Max torque speed: 1300-1700rpm
Rated speed: 2300rpm
Transmission Parameters
Transmission Model: FAW JiefangCA10TAX130M
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cab parameters
Cab: High roof
Cab suspension: Four-point air suspension
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle description: A5S
Front axle allowable load: 6750/6750kg
rear axle description: 498 stamped-welded axle
rear axle allowable load: 11500kg
Axle ratio: 4.111
Leaf spring count: 3/3/4+3
clutch: Φ430
Tire
Tire Size: 12R22.5-16PR
Number of tires: 8pcs
Control configuration
ABS:
Stability control system:
Brake assist (EBA/BAS/BA etc.):
Traction Control (ASR/TCS/TRC etc.):
EBS electronic braking system:
ASR traction control:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
automatic slack adjuster:
Exterior features
integrated mudguard:
Air deflector:
side skirt:
Aluminum air tank:
Diesel primary filter heating:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Automatic
Onboard Refrigerator:
Independent Heater:
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Reverse Camera:
Remote key:
Electronic Central Lock:
Independent AC:
smart configuration
Trailer stability system:
Telematics System:
Cruise control (CCS):
Forward Collision Warning (FCW):
Emergency Brake Assist (EBA):
adaptive cruise control (ACC):
Tire Pressure Monitoring System (TPMS):
Lane change assist (ALC):
Fatigue driving monitoring:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
lighting configuration
Headlight brand: none
Front fog lamp:
daytime running lights:
Headlight height adjustment:
LED taillight:
Halogen Headlights:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

Exterior3

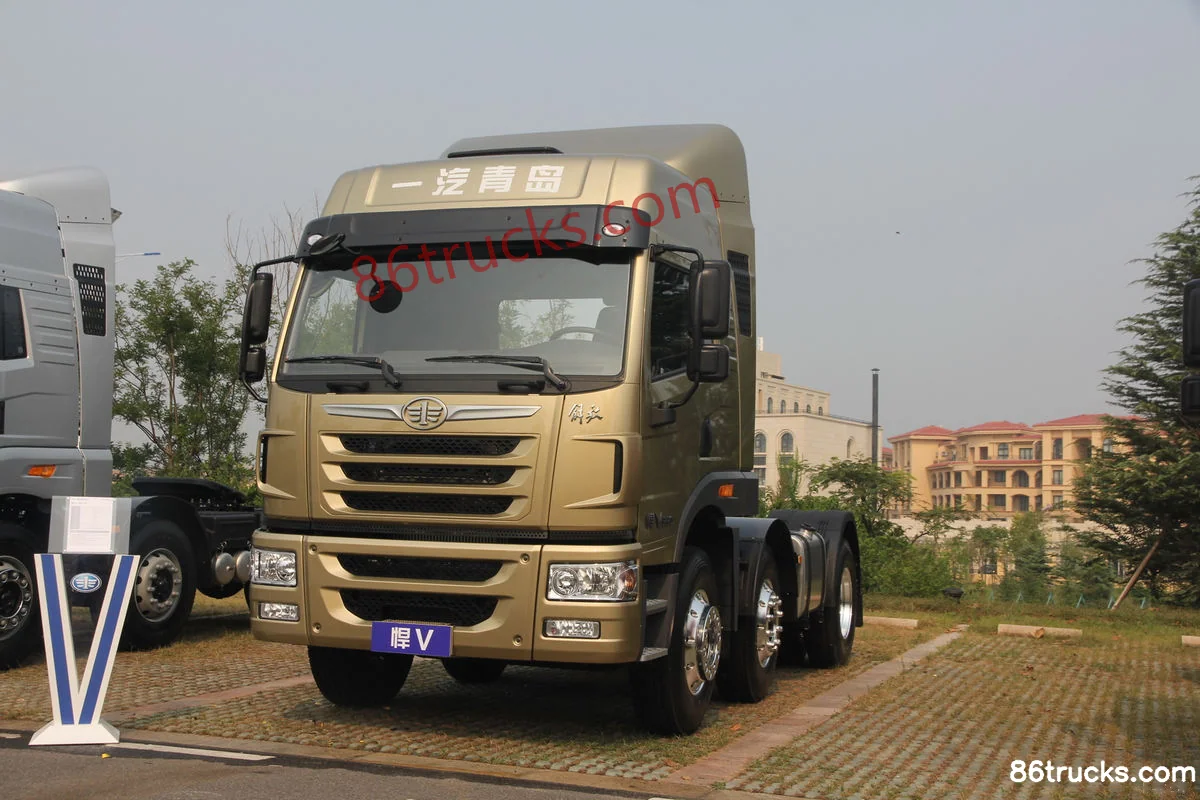

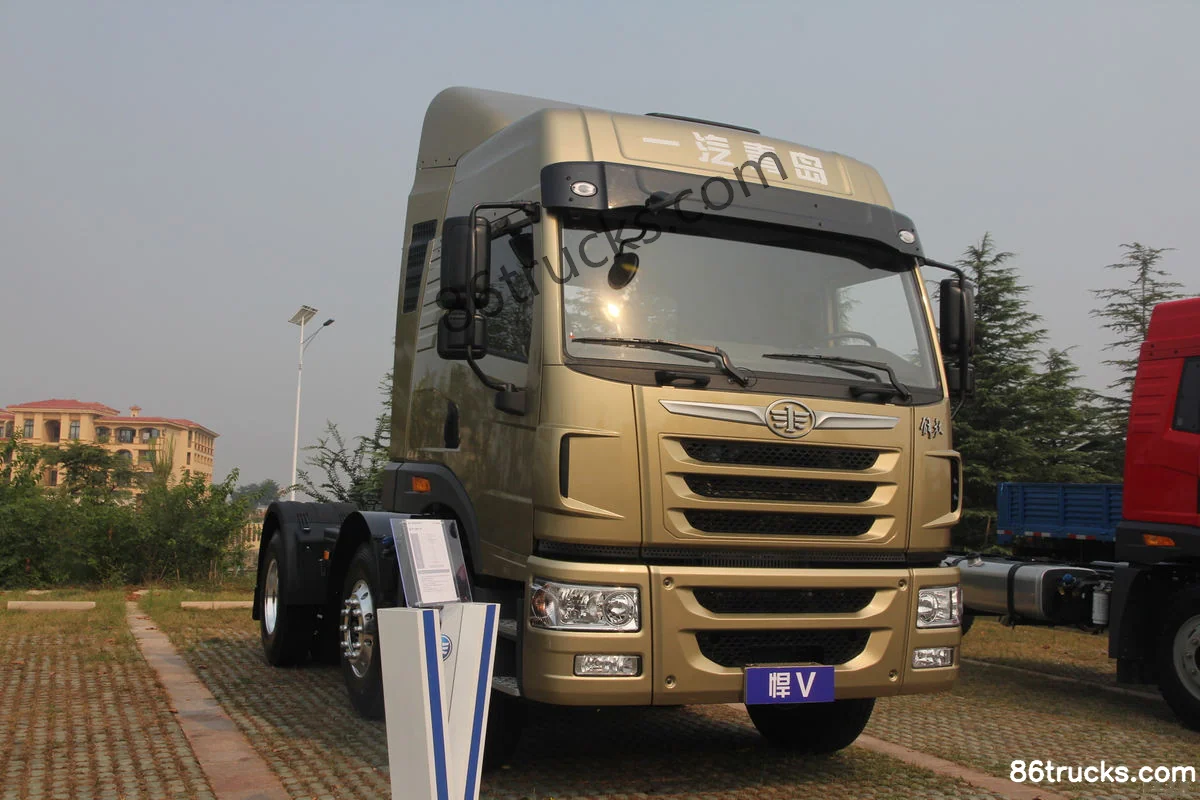

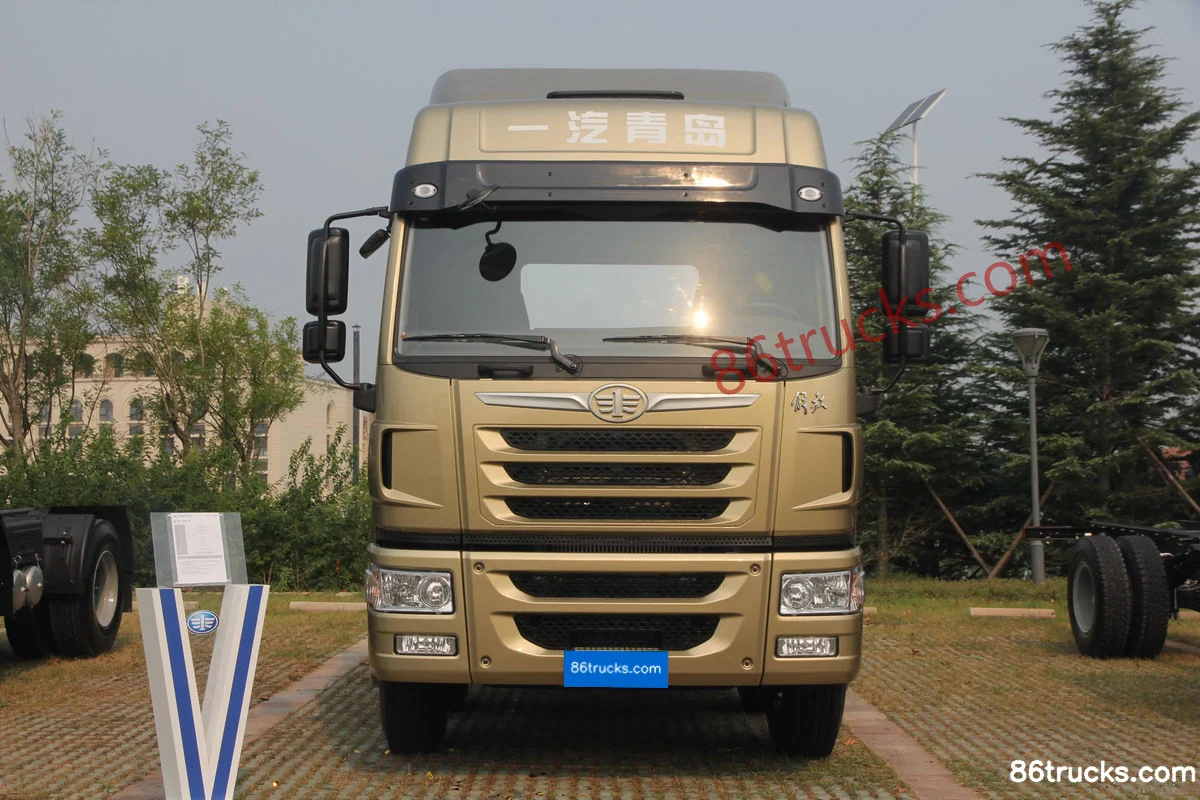

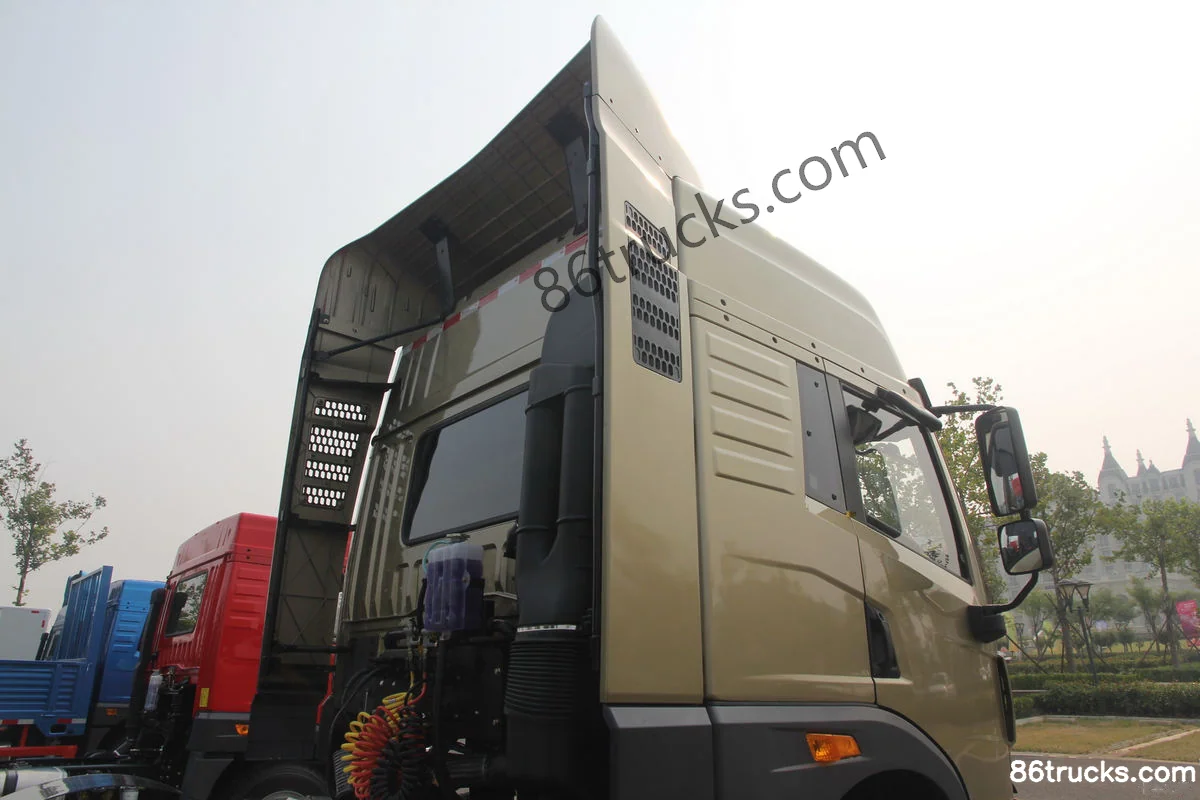

FAW Jiefang Qingdao HanV heavy truck 320hp 6X2(8 wheels) tractor truck (498 rear axle) Exterior (1) | 86Trucks FAW Jiefang Qingdao HanV heavy truck 320hp 6X2(8 wheels) tractor truck (498 rear axle) Exterior (2) | 86Trucks FAW Jiefang Qingdao HanV heavy truck 320hp 6X2(8 wheels) tractor truck (498 rear axle) Exterior (3) | 86Trucks

Cab3

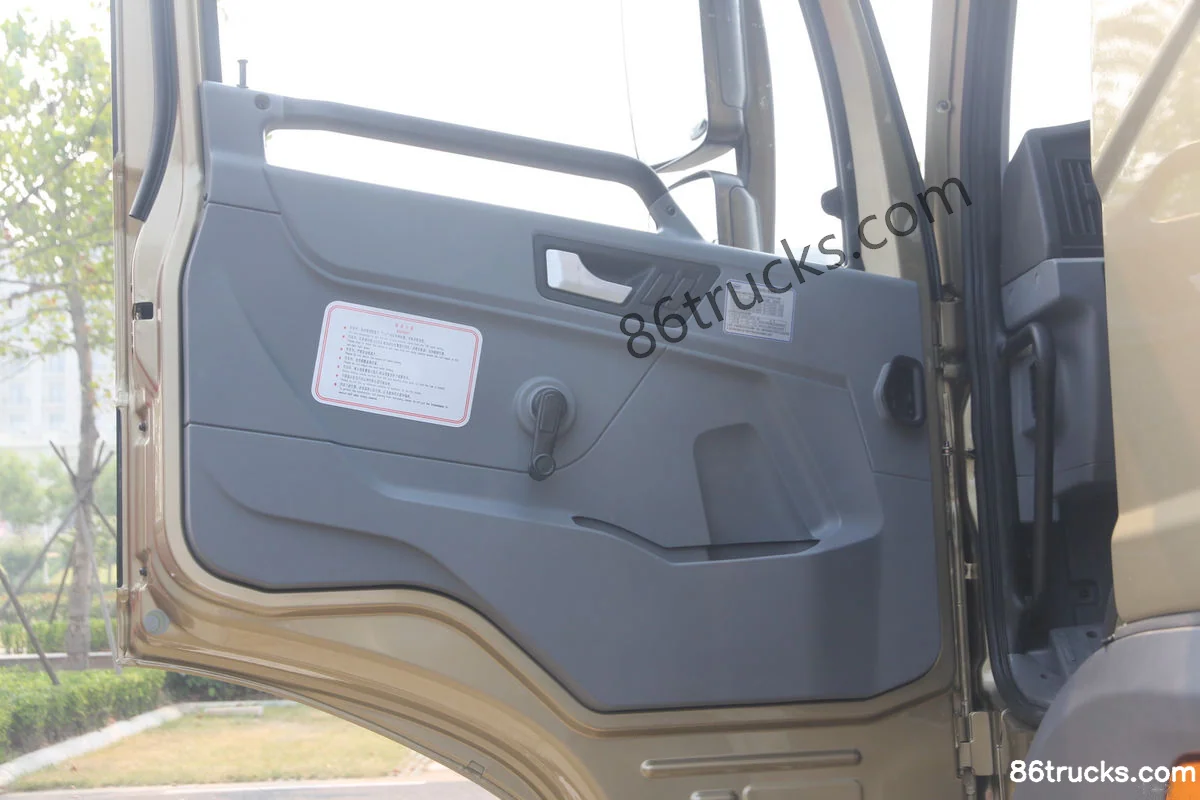

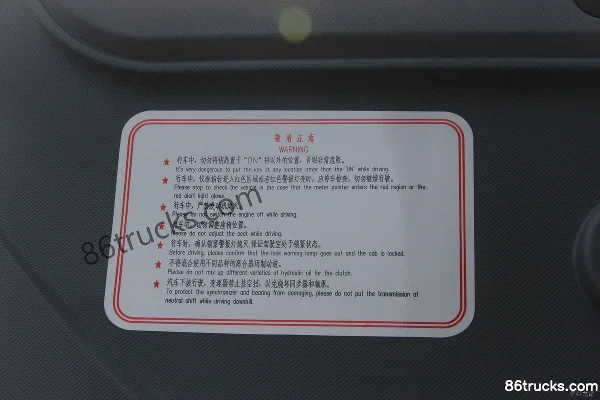

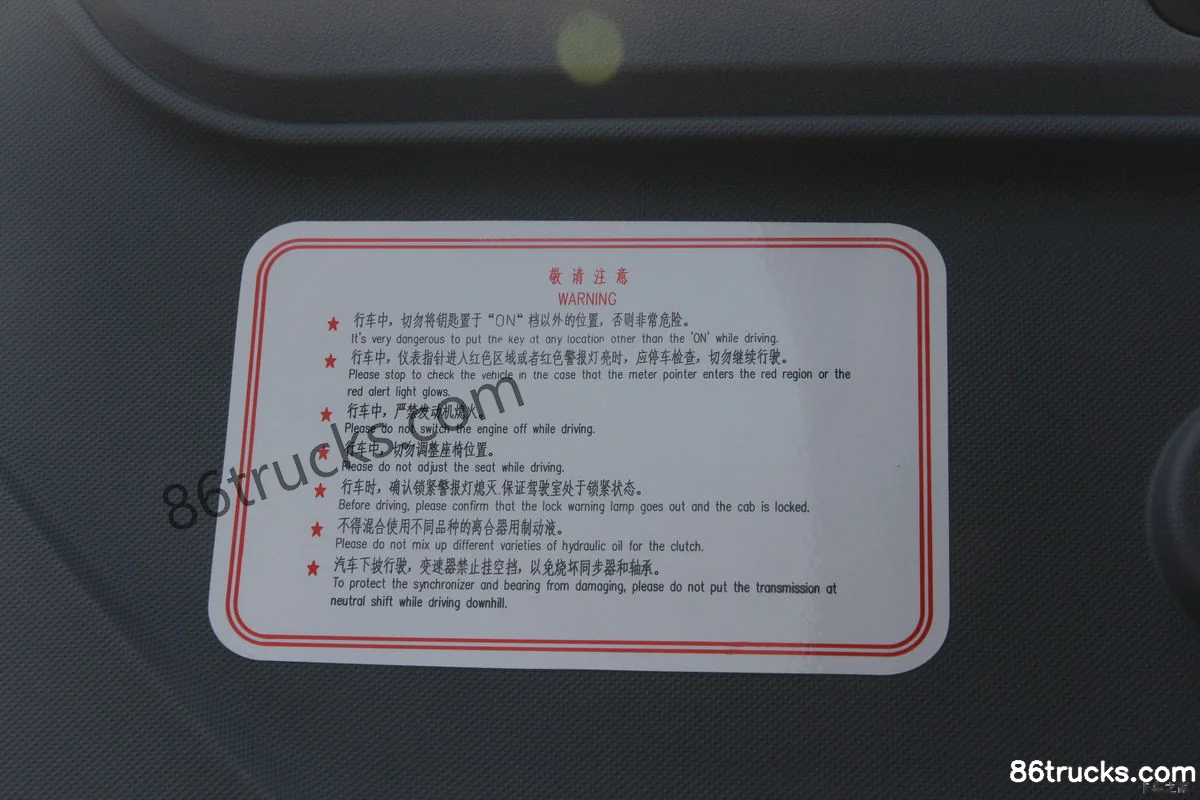

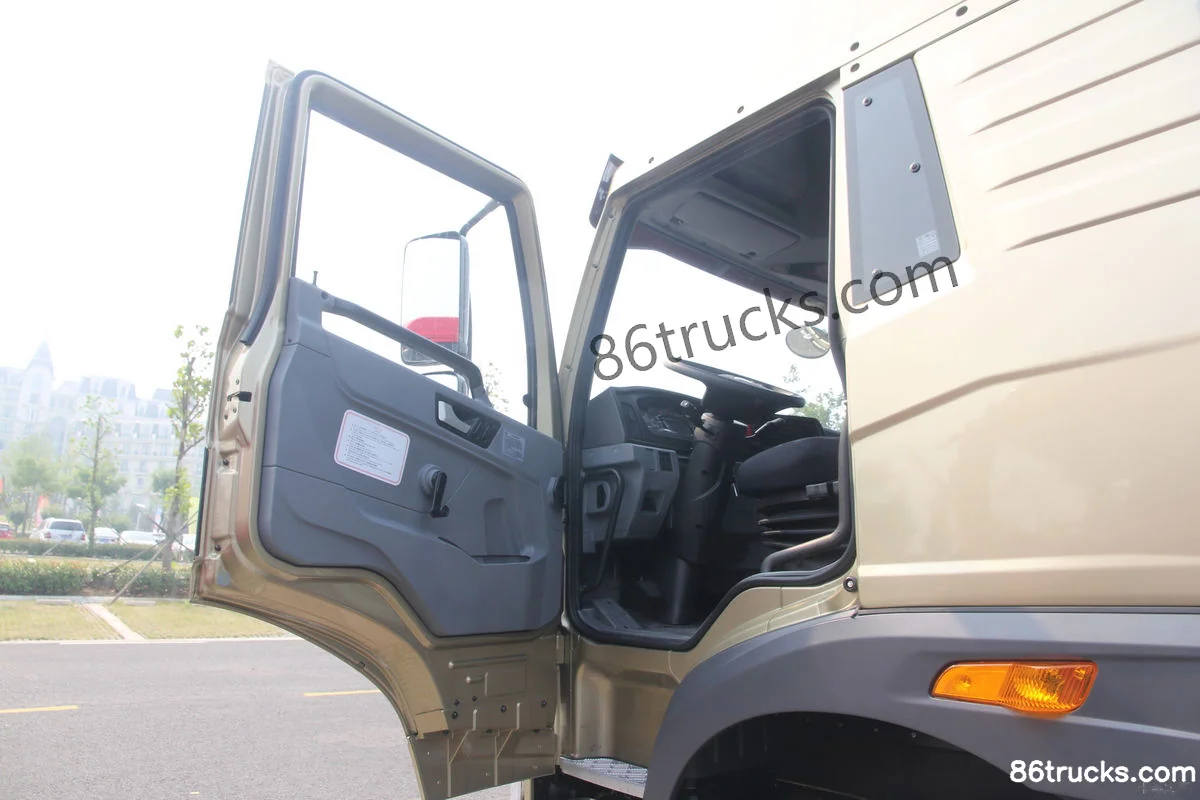

FAW Jiefang Qingdao HanV heavy truck 320hp 6X2(8 wheels) tractor truck (498 rear axle) Cab (1) | 86Trucks FAW Jiefang Qingdao HanV heavy truck 320hp 6X2(8 wheels) tractor truck (498 rear axle) Cab (2) | 86Trucks FAW Jiefang Qingdao HanV heavy truck 320hp 6X2(8 wheels) tractor truck (498 rear axle) Cab (3) | 86Trucks

Chassis3

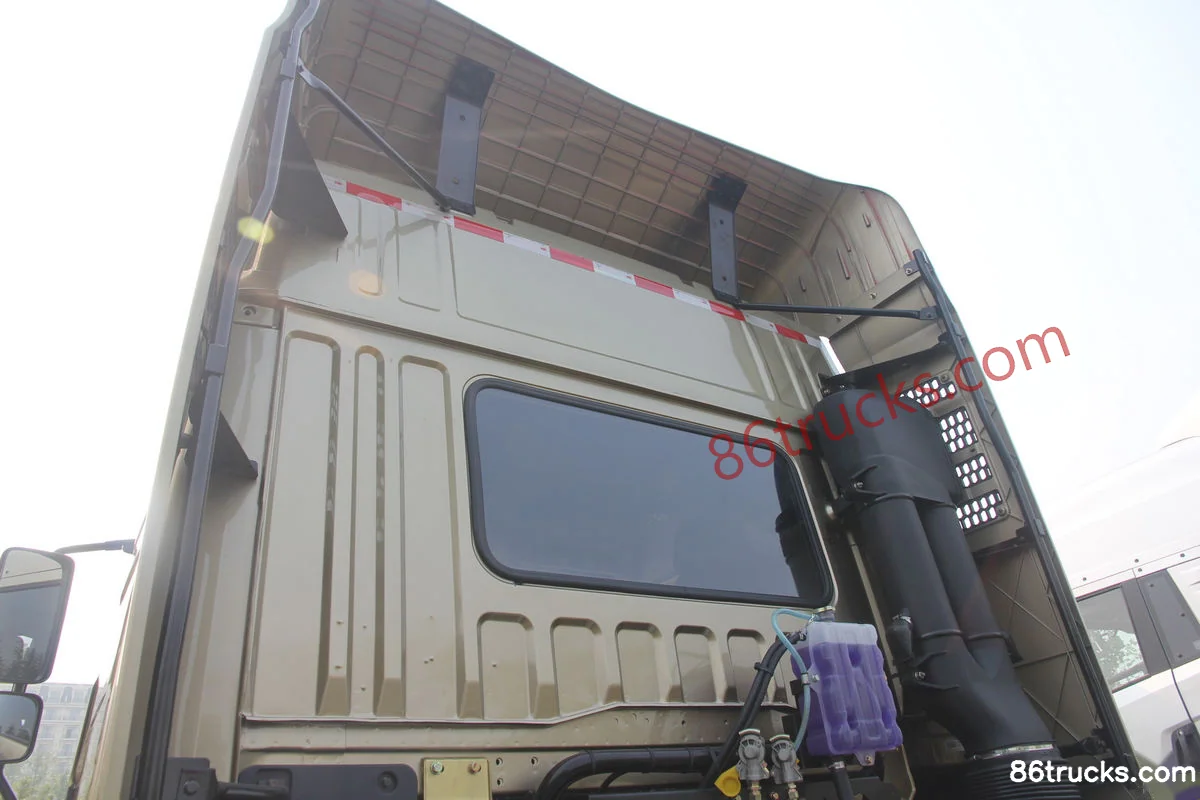

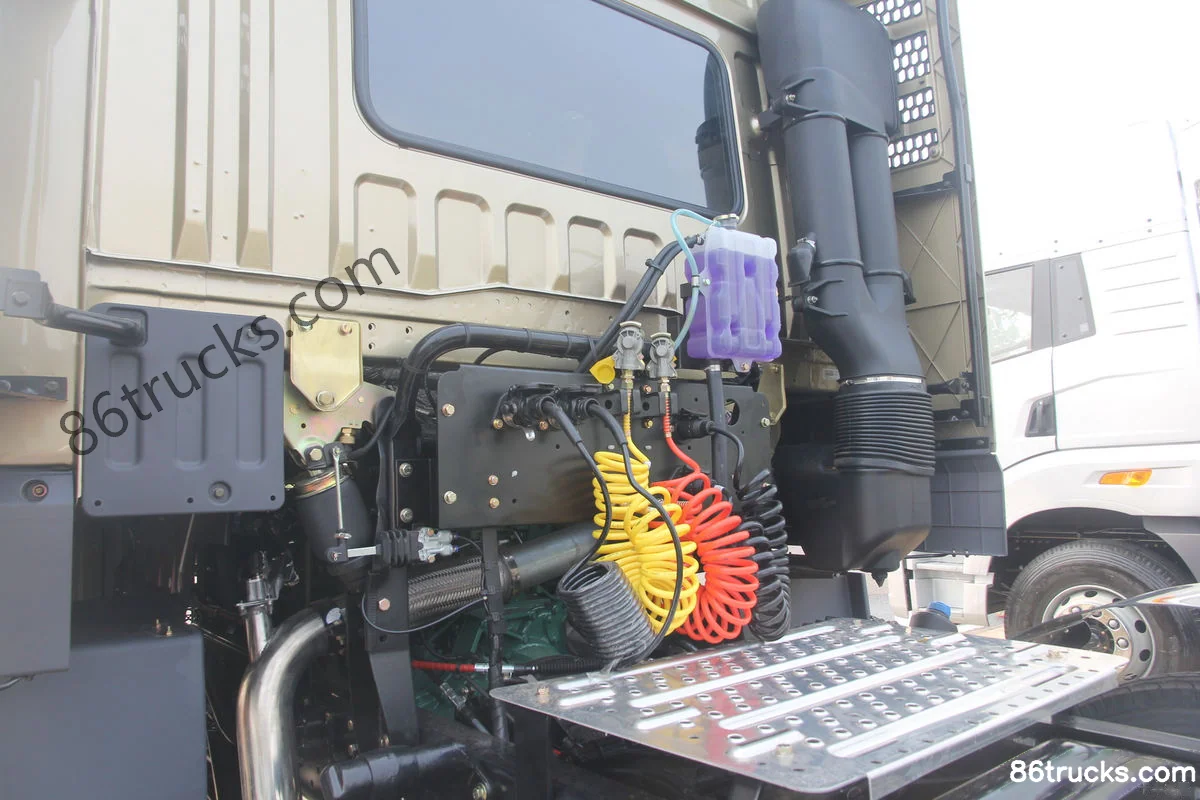

FAW Jiefang Qingdao HanV heavy truck 320hp 6X2(8 wheels) tractor truck (498 rear axle) Chassis (1) | 86Trucks FAW Jiefang Qingdao HanV heavy truck 320hp 6X2(8 wheels) tractor truck (498 rear axle) Chassis (2) | 86Trucks FAW Jiefang Qingdao HanV heavy truck 320hp 6X2(8 wheels) tractor truck (498 rear axle) Chassis (3) | 86Trucks

9 photos

FAQ

What emission standard does FAW Jiefang Qingdao HanV heavy truck 320hp 6X2(8 wheels) tractor truck (498 rear axle) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao HanV heavy truck 320hp 6X2(8 wheels) tractor truck (498 rear axle)?

Key specs of FAW Jiefang Qingdao HanV heavy truck 320hp 6X2(8 wheels) tractor truck (498 rear axle): Drive: 6x2; Horsepower: 320 hp; Emission: China V; Fuel: Diesel; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao HanV heavy truck 320hp 6X2(8 wheels) tractor truck (498 rear axle) suited for?

FAW Jiefang Qingdao HanV heavy truck 320hp 6X2(8 wheels) tractor truck (498 rear axle) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does FAW Jiefang Qingdao HanV heavy truck 320hp 6X2(8 wheels) tractor truck (498 rear axle) differ from other variants in the same series?

FAW Jiefang Qingdao HanV heavy truck 320hp 6X2(8 wheels) tractor truck (498 rear axle) belongs to FAW Jiefang Qingdao HanV heavy truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao HanV heavy truck 320hp 6X2(8 wheels) tractor truck (498 rear axle)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao HanV heavy truck 320hp 6X2(8 wheels) tractor truck (498 rear axle)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
