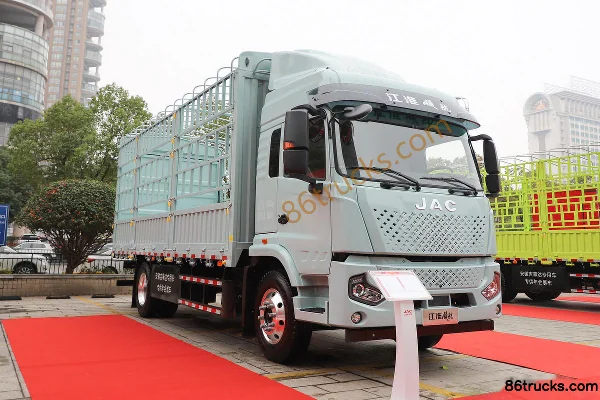

JAC Gallop A6 PLUS 240 hp 4X2(6 wheels) 6.2m stake truck

Export reference
From $27,361
MSRP ¥19.7M CNY
Horsepower: 240
Emission: China VI
Fuel: Diesel
Engine: Ankang 4-cylinder
Transmission: Fast Gear
Curb Weight:: 7.175ton
seating capacity: 3Personnel
Rated payload: 9.93ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The JAC Gallop A6 PLUS 240 hp 4X2(6 wheels) 6.2m stake truck is a Medium-duty truck featuring 6.2m cargo length, Stake type cargo body, 3Personnel volume and 9.93t payload. On the powertrain side, it comes with a Ankang 4-cylinder engine, 240 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 240 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5171CCYP3K1A45S
Type: stake truck
Drive type: 4X2
Wheelbase: 4550mm
Box length class: 6.2m
engine: Anhui CumminsB4.5NS6B240E
transmission: Fast Gear8JS85C
Rear Axle Ratio: 4.1
Cab length: 8.425m
Cab width: 2.55m
Cab height: 3.99m
Front track width: 1800mm
rear track: 1800mm
Curb Weight: 7.175ton
Rated payload: 9.93ton
GVWR: 17.3ton
Max. speed: 89km/h
Origin: Hefei, Anhui
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle: 10°
Remarks: Optional ratio 4.333
Front/rear suspension: 1.5/2.375m
Energy Type: Diesel
Engine parameters
Engine Brand: Anhui Cummins
Engine Model: Anhui CumminsB4.5NS6B240E
Engine info: Ankang 4-cylinder
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.5L
Emission standard: China VI
Max output power: 176kW
Max hp: 240Horsepower
Engine Type: DOC+DPF+SCR
Transmission Parameters
Transmission Model: Fast Gear8JS85C
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 6.2m
Cargo box width: 2.46m
*Cargo box interior width: 2.46
Cab parameters
Cab width: 2365mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 300L
Chassis Specs
Front axle description: 4T
Front axle allowable load: 6200kg
Frame Dimensions: 245mm
rear axle description: 8T
rear axle allowable load: 11100kg
Axle ratio: 4.1
Leaf spring count: 3/9+3
Tire
Tire Size: 11R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
interior configuration
AC control type: Manual
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Camera:
Electronic Central Lock:
Service brake
Brake Type: Air brake
Parking brake: Spring brake

Photos

0 photos

FAQ

What is the export price of JAC Gallop A6 PLUS 240 hp 4X2(6 wheels) 6.2m stake truck, and what does it include?

JAC Gallop A6 PLUS 240 hp 4X2(6 wheels) 6.2m stake truck export reference is about From $27,361; MSRP is ¥19.7M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Gallop A6 PLUS 240 hp 4X2(6 wheels) 6.2m stake truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop A6 PLUS 240 hp 4X2(6 wheels) 6.2m stake truck?

Key specs of JAC Gallop A6 PLUS 240 hp 4X2(6 wheels) 6.2m stake truck: Drive: 4x2; Horsepower: 240 hp; Emission: China VI; Fuel: Diesel; Engine: Ankang 4-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop A6 PLUS 240 hp 4X2(6 wheels) 6.2m stake truck suited for?

JAC Gallop A6 PLUS 240 hp 4X2(6 wheels) 6.2m stake truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Gallop A6 PLUS 240 hp 4X2(6 wheels) 6.2m stake truck differ from other variants in the same series?

JAC Gallop A6 PLUS 240 hp 4X2(6 wheels) 6.2m stake truck belongs to Gallop A6 PLUS Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop A6 PLUS 240 hp 4X2(6 wheels) 6.2m stake truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop A6 PLUS 240 hp 4X2(6 wheels) 6.2m stake truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
