JAC Gallop K5L Heavy Truck 245 hp 6X2(8 wheels) 6.2m Flatbed Cargo Truck

Export reference
From $31,917
MSRP ¥22.98M CNY
Horsepower: 245
Emission: China VI
Fuel: Diesel
Engine: Yuchai 6-cylinder
Transmission: Sinotruk
Curb Weight:: 8.1ton
seating capacity: 2Personnel
Rated payload: 16.7ton
Drive 6X2 (8 wheels)
Cargo box type: stake body

Overview

The JAC Gallop K5L Heavy Truck 245 hp 6X2(8 wheels) 6.2m Flatbed Cargo Truck is a Medium-duty truck featuring 6.2m cargo length, stake body cargo body, 2Personnel volume and 16.7t payload. Its segment focus covers Logistics Freight, matching those duty cycles. On the powertrain side, it comes with a Yuchai 6-cylinder engine, 245 hp, 6X2 (8 wheels) drive and China VI emissions.

China VI 245 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC1251P3K24D46S
Type: Cargo Trucks
Drive type: 6X2
Wheelbase: 4600+1300mm
Box length class: 6.2m
engine: YuchaiYCS06245-60
transmission: SinotrukHW90510C
Cab length: 8.49m
Cab width: 2.55m
Cab height: 3.26m
Front track width: 1920mm
rear track: 1860/1850mm
Curb Weight: 8.1ton
Rated payload: 16.7ton
GVWR: 24.995ton
Max. speed: 89km/h
Origin: Hefei, Anhui
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle: 10°
market segment: Logistics Freight
Front/rear suspension: 1.4/1.19m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCS06245-60
Engine info: Yuchai 6-cylinder
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.23L
Emission standard: China VI
Max output power: 180kW
Max hp: 245Horsepower
Max torque: 850N·m
Max torque speed: 1200-1700rpm
Rated speed: 2300rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: SinotrukHW90510C
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 6.2m
Cargo box width: 2.46m
Cargo box height: 0.6m
*Cargo box interior width: 2.460000038147
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 300L
Chassis Specs
Front axle description: 5T
Front axle allowable load: 7000kg
Frame Dimensions: 280×80×8mm
rear axle description: 153
rear axle allowable load: 17995 (two-axle group)kg
Leaf spring count: 9/9+7/3
Tire
Tire Size: 10.00R20 18PR, 11R22.5 18PR
Number of tires: 8pcs
Control configuration
ABS:
interior configuration
Steering Wheel Material: leather
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Reverse Camera:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Multimedia features
GPS/Beidou driving recorder:
Radio:
smart configuration
Cruise control (CCS):

Photos

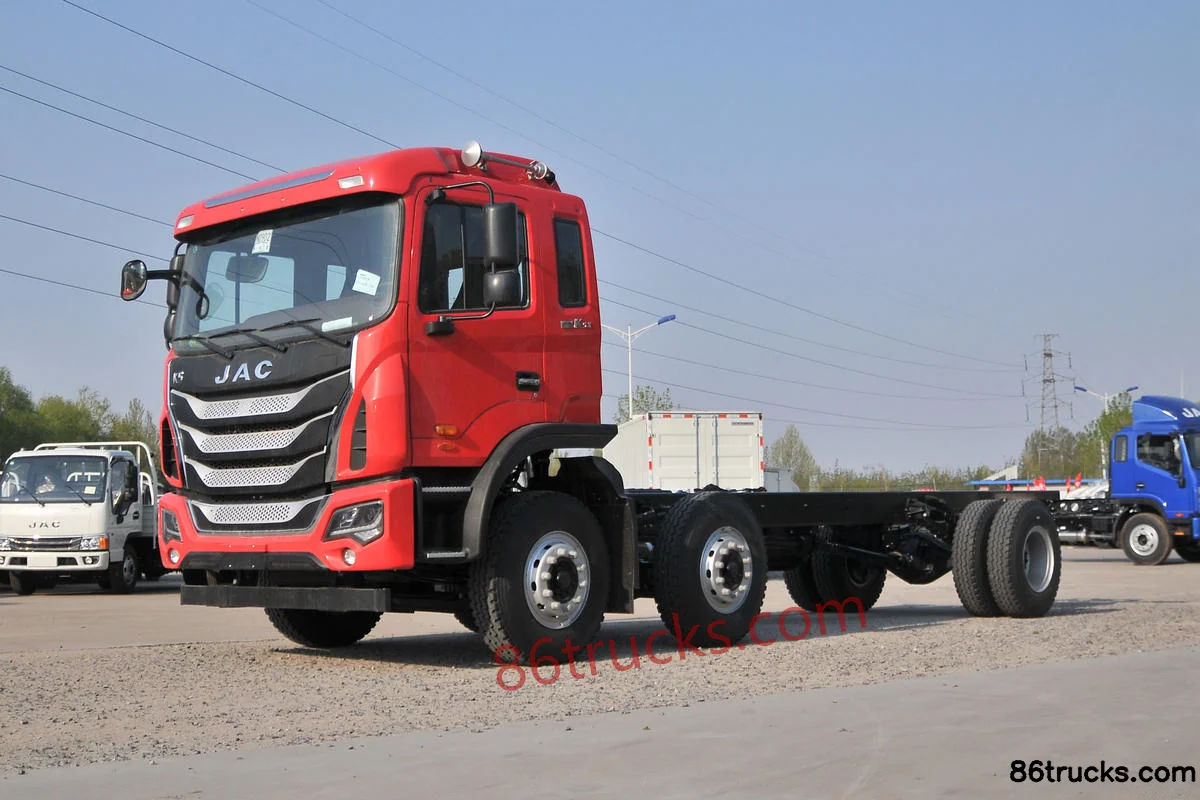

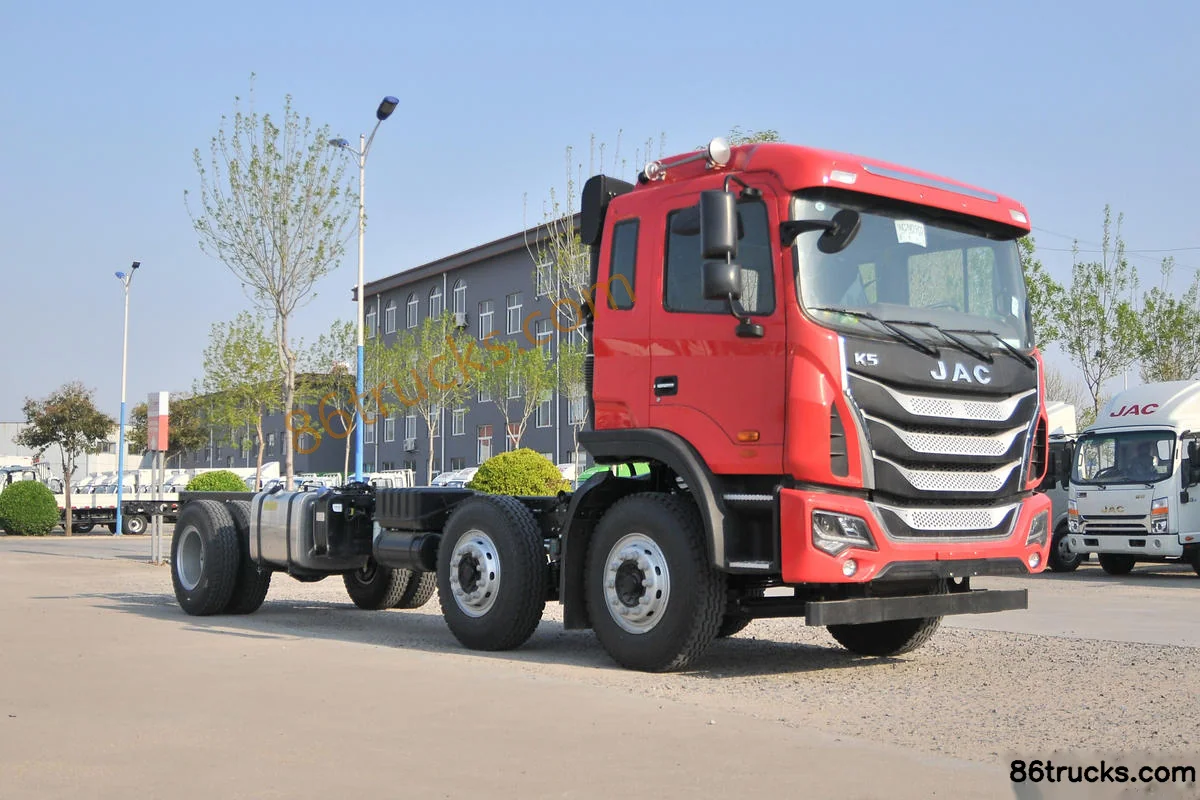

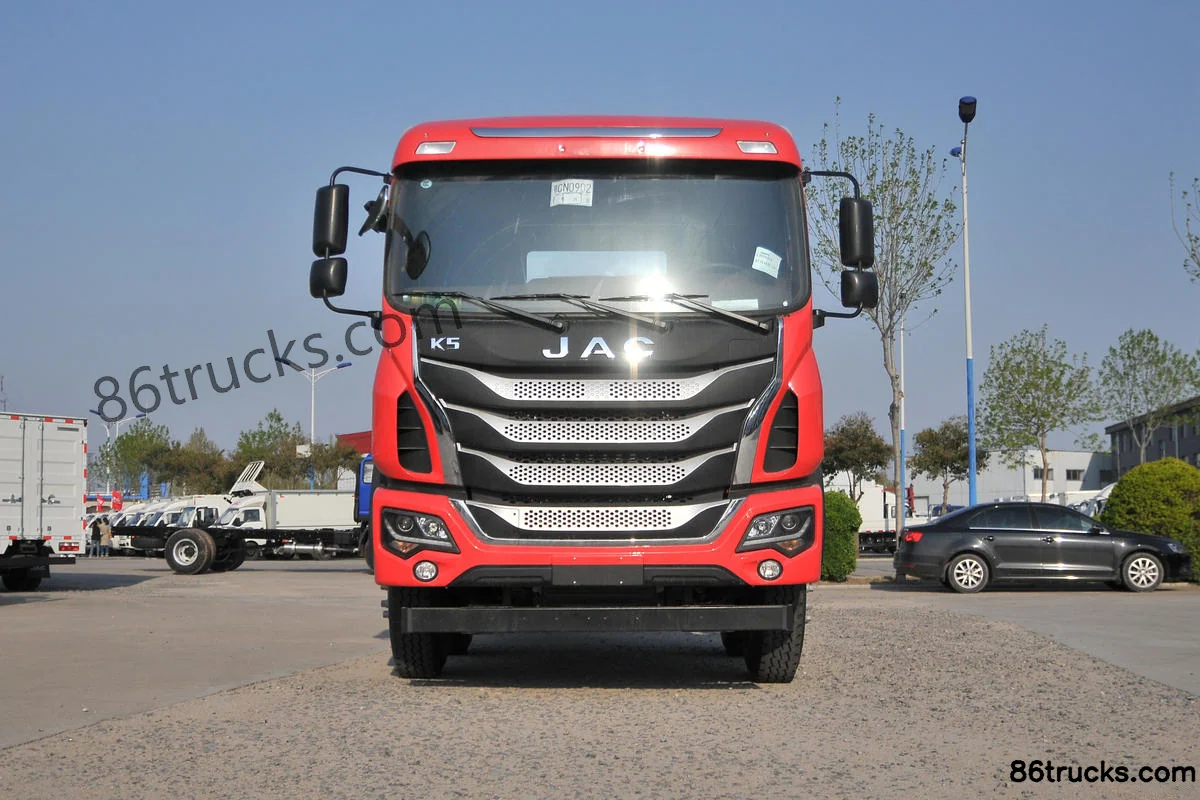

Exterior3

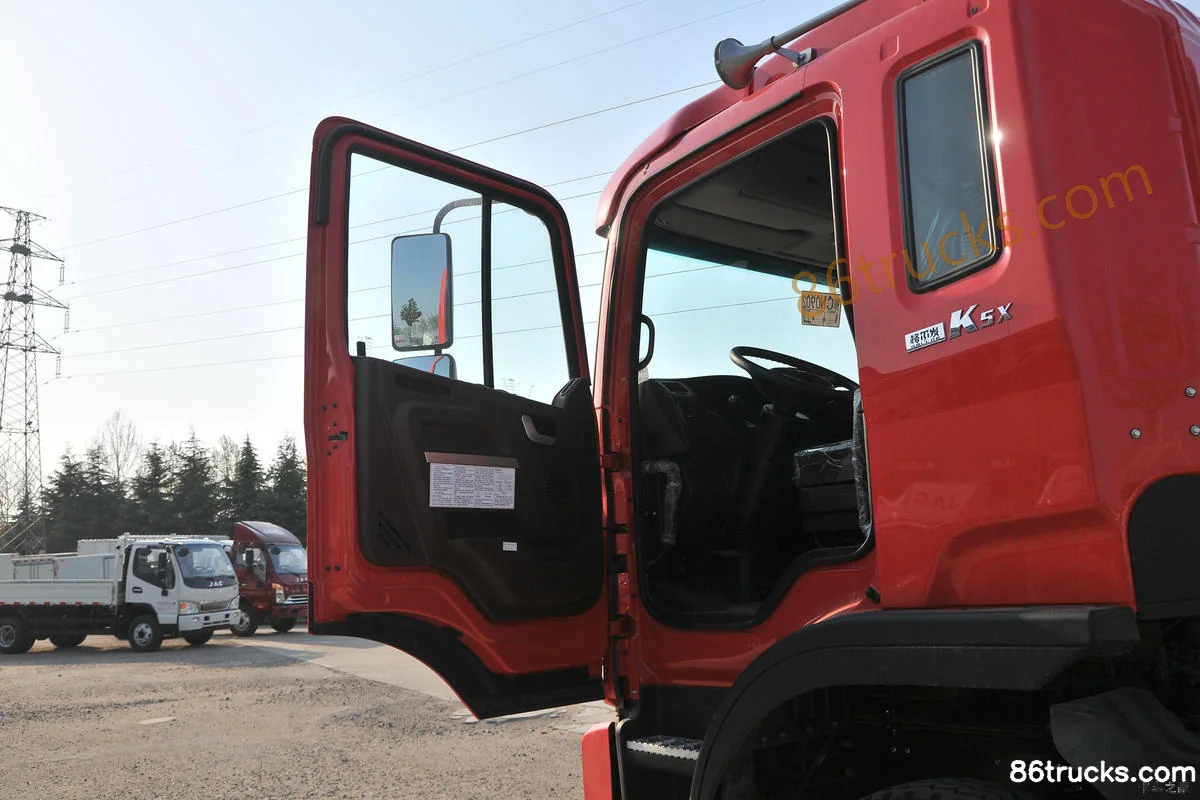

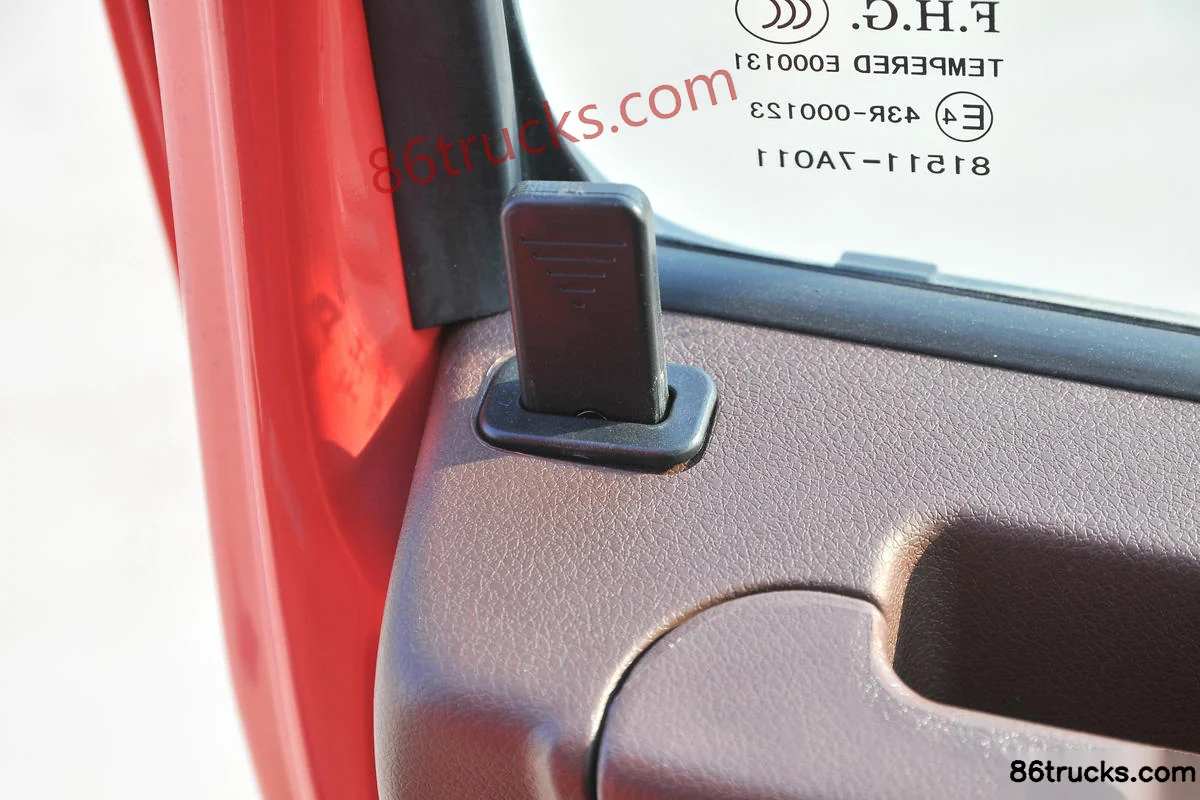

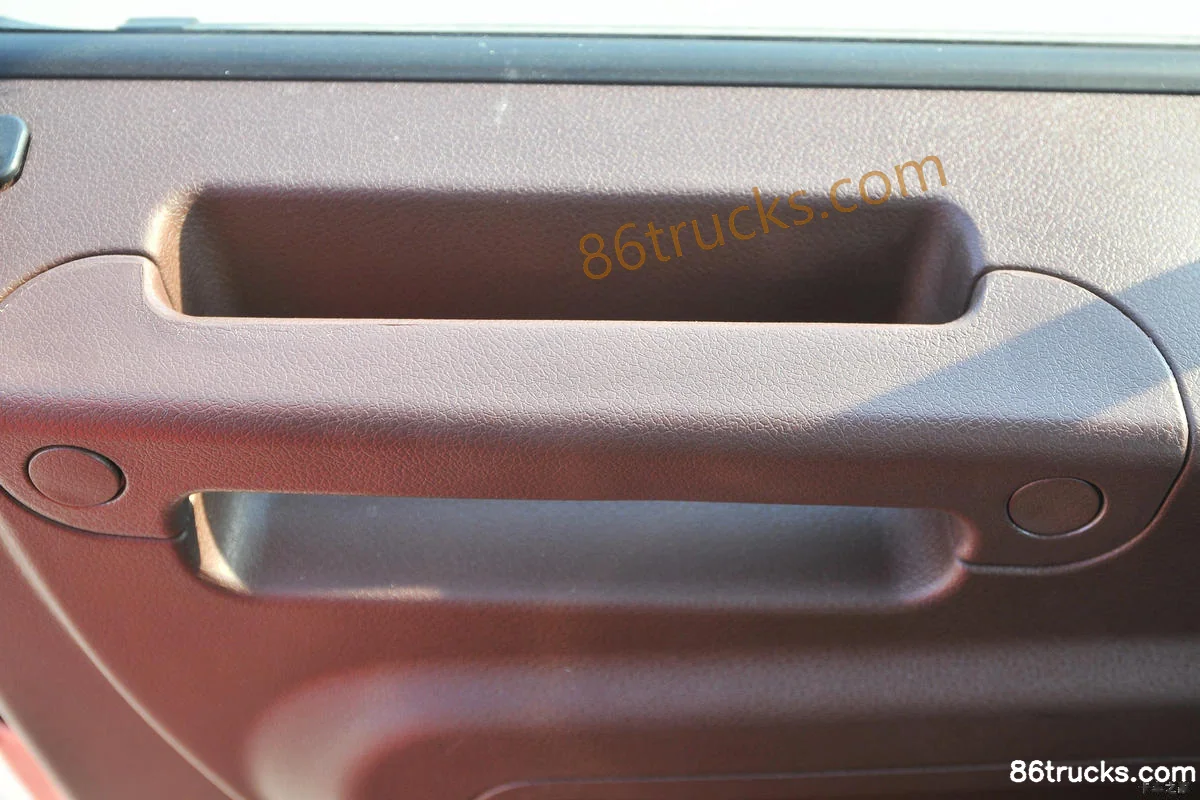

Cab3

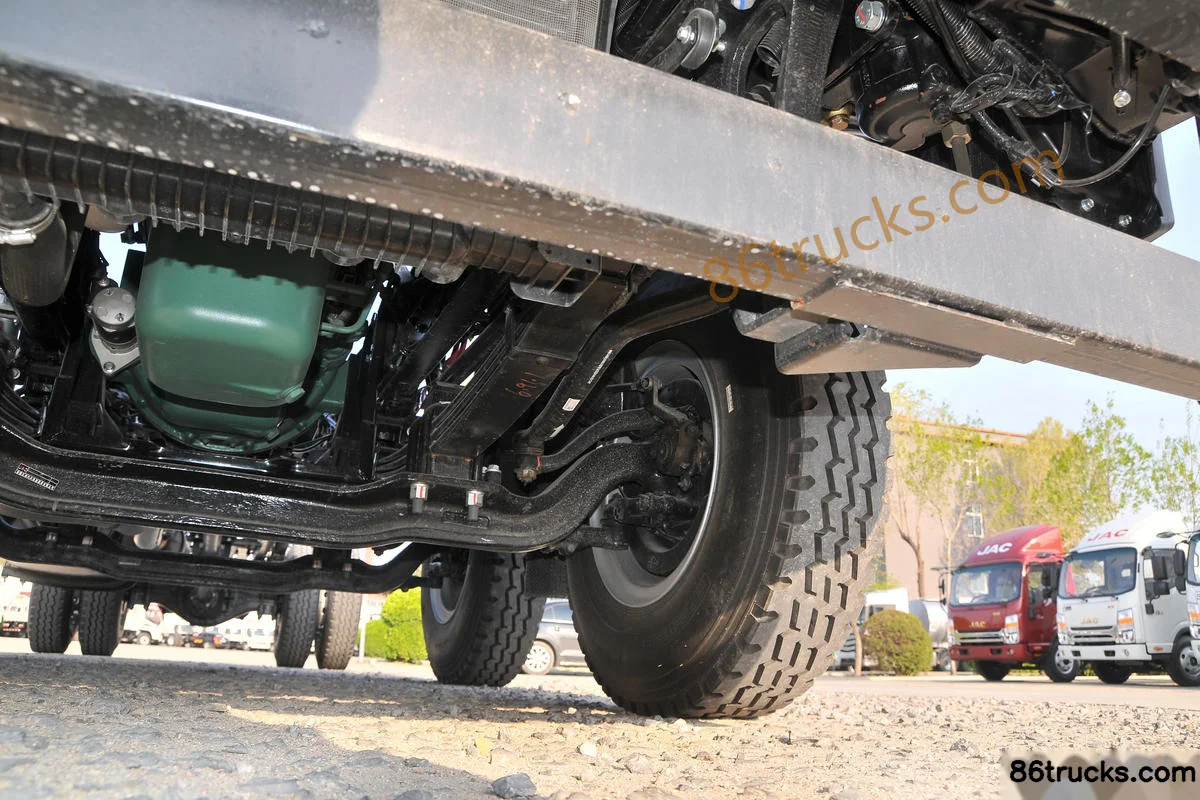

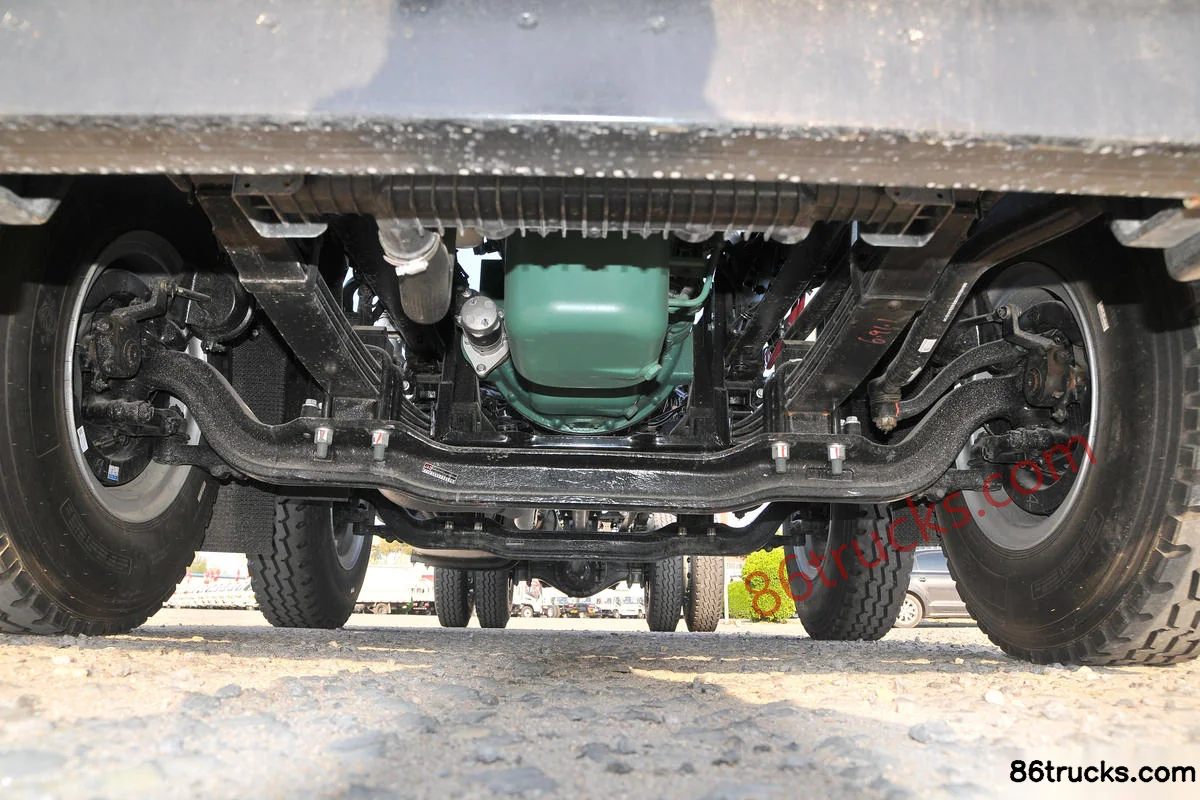

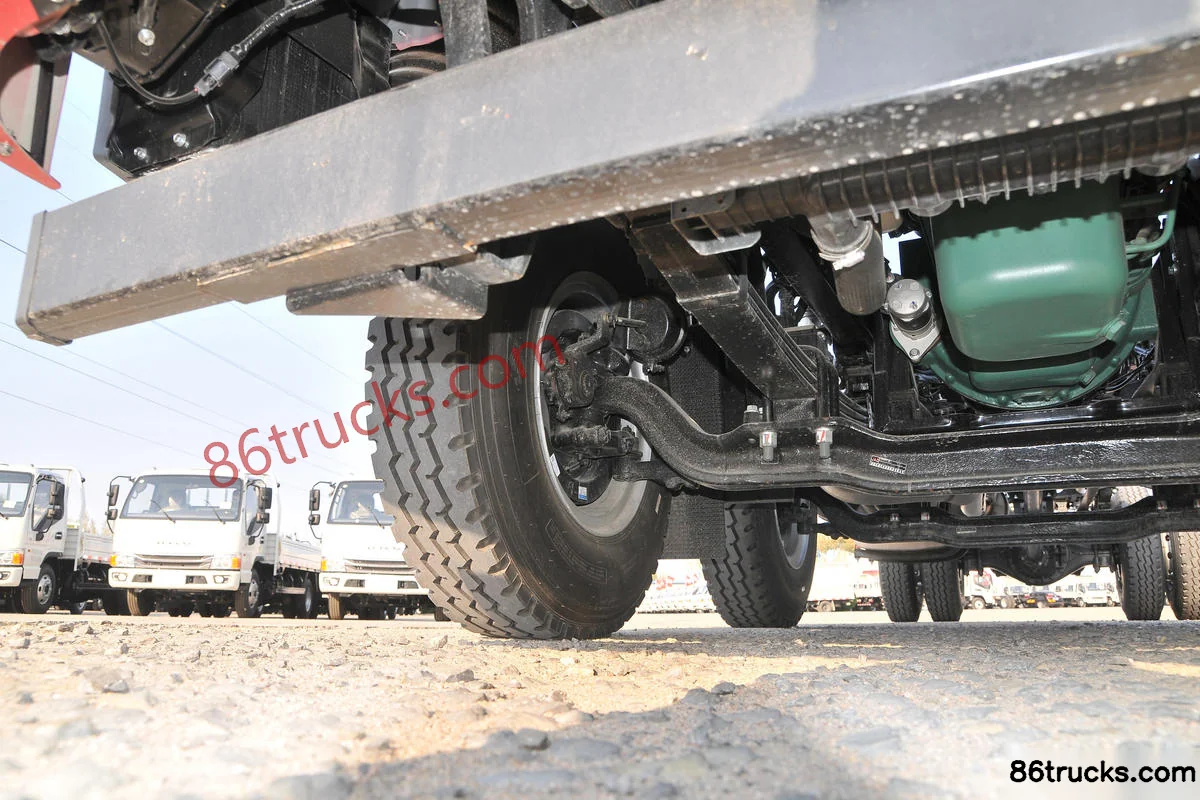

Chassis3

9 photos

FAQ

What is the export price of JAC Gallop K5L Heavy Truck 245 hp 6X2(8 wheels) 6.2m Flatbed Cargo Truck, and what does it include?

JAC Gallop K5L Heavy Truck 245 hp 6X2(8 wheels) 6.2m Flatbed Cargo Truck export reference is about From $31,917; MSRP is ¥22.98M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Gallop K5L Heavy Truck 245 hp 6X2(8 wheels) 6.2m Flatbed Cargo Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop K5L Heavy Truck 245 hp 6X2(8 wheels) 6.2m Flatbed Cargo Truck?

Key specs of JAC Gallop K5L Heavy Truck 245 hp 6X2(8 wheels) 6.2m Flatbed Cargo Truck: Drive: 6x2; Horsepower: 245 hp; Emission: China VI; Fuel: Diesel; Engine: Yuchai 6-cylinder; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop K5L Heavy Truck 245 hp 6X2(8 wheels) 6.2m Flatbed Cargo Truck suited for?

JAC Gallop K5L Heavy Truck 245 hp 6X2(8 wheels) 6.2m Flatbed Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Gallop K5L Heavy Truck 245 hp 6X2(8 wheels) 6.2m Flatbed Cargo Truck differ from other variants in the same series?

JAC Gallop K5L Heavy Truck 245 hp 6X2(8 wheels) 6.2m Flatbed Cargo Truck belongs to JAC Gallop K5 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop K5L Heavy Truck 245 hp 6X2(8 wheels) 6.2m Flatbed Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop K5L Heavy Truck 245 hp 6X2(8 wheels) 6.2m Flatbed Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
