Dongfeng Yiwei 5 6X4(10 wheels) Pure Electric Tractor Truck CATL 528kWh

Export reference
MSRP N/A
Front axle allowable load:: 7000kg
Wheelbase:: 3800+1350mm
Model code (announced):: LZ4253H5DZBEV
Front/rear track width:: Front track: 2040mm; Rear track: 1860/1860mm
Cab length:: 7.39m
GVWR:: 25ton
Dongfeng Yiwei 5 6X4(10 wheels) Pure Electric Tractor Truck CATL 528kWh exterior
View more photos (9)
Drive 6X4 (10 wheels)
Battery Brand: CATL
Motor 1 Brand: Fast Gear
Gross Trailer Weight: 36.61ton

Overview

The Dongfeng Yiwei 5 6X4(10 wheels) Pure Electric Tractor Truck CATL 528kWh is a Heavy truck featuring CATL battery/range, Fast Gear motor, 6X4 (10 wheels) drive and 7000kg payload.

6X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): LZ4253H5DZBEV
Drive type: 6X4
Wheelbase: 3800+1350mm
Front/rear track width: Front track: 2040mm; Rear track: 1860/1860mm
Cab length: 7.39m
Cab width: 2.525m
Cab height: 3.69m
Gross Trailer Weight: 36.61ton
Curb Weight: 12.26ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Liuzhou, Guangxi
tonnage class: Heavy truck
Remarks: Side-mounted + rear-mounted battery.
Energy Type: Electric
electric motor
Motor 1 Brand: Fast Gear
Motor 1 Model: TZ375XSF60-FS01
Motor Type: Permanent magnet synchronous motor
total rated power: 330kW
Peak power: 460kW
Motor 1 Peak Power: 460kW
Number of drive motors: Single motor
Battery/Charging
Charging method: Dual-gun 600A charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 528kWh
Cab parameters
seating capacity: 2Personnel
Chassis Specs
Front axle description: 153 reinforced front axle
Front axle allowable load: 7000kg
rear axle description: 2*440 rear axle/
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.571
Tire
Tire Size: 12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Service brake
Brake Type: Air brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):
Forward Collision Warning (FCW):

Photos

Exterior3

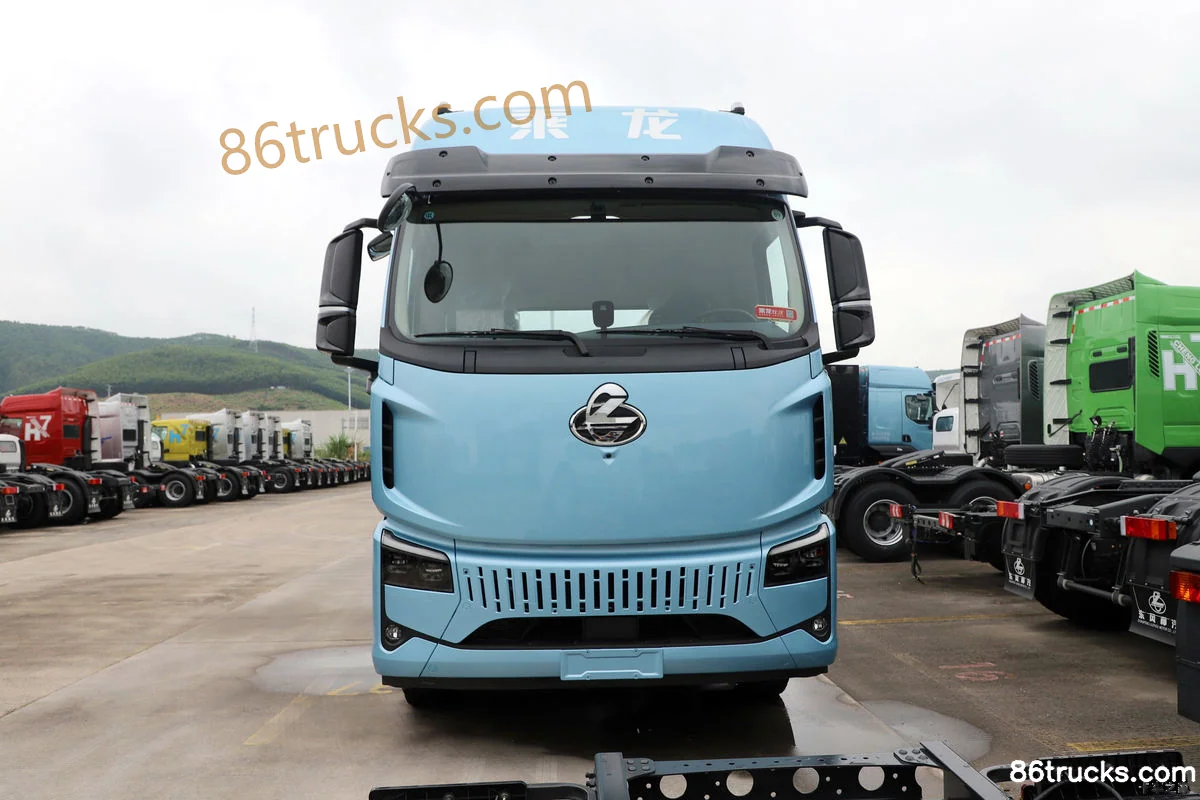

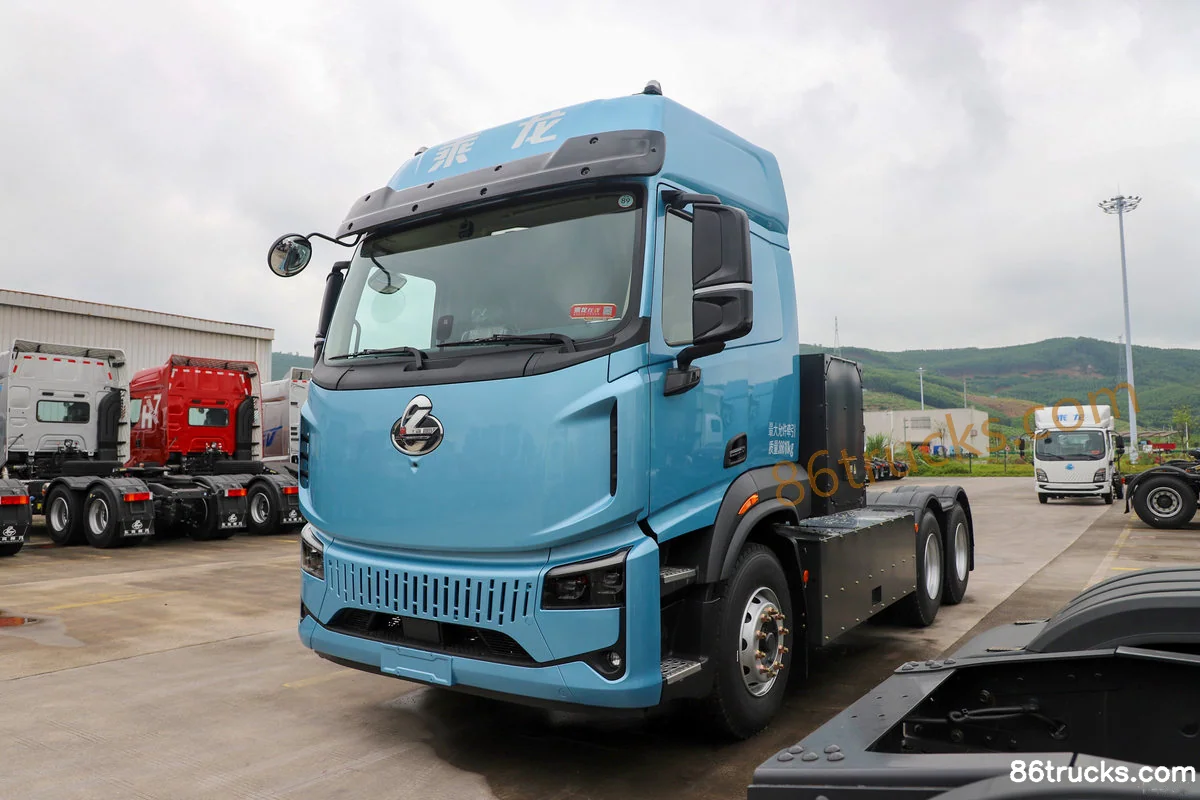

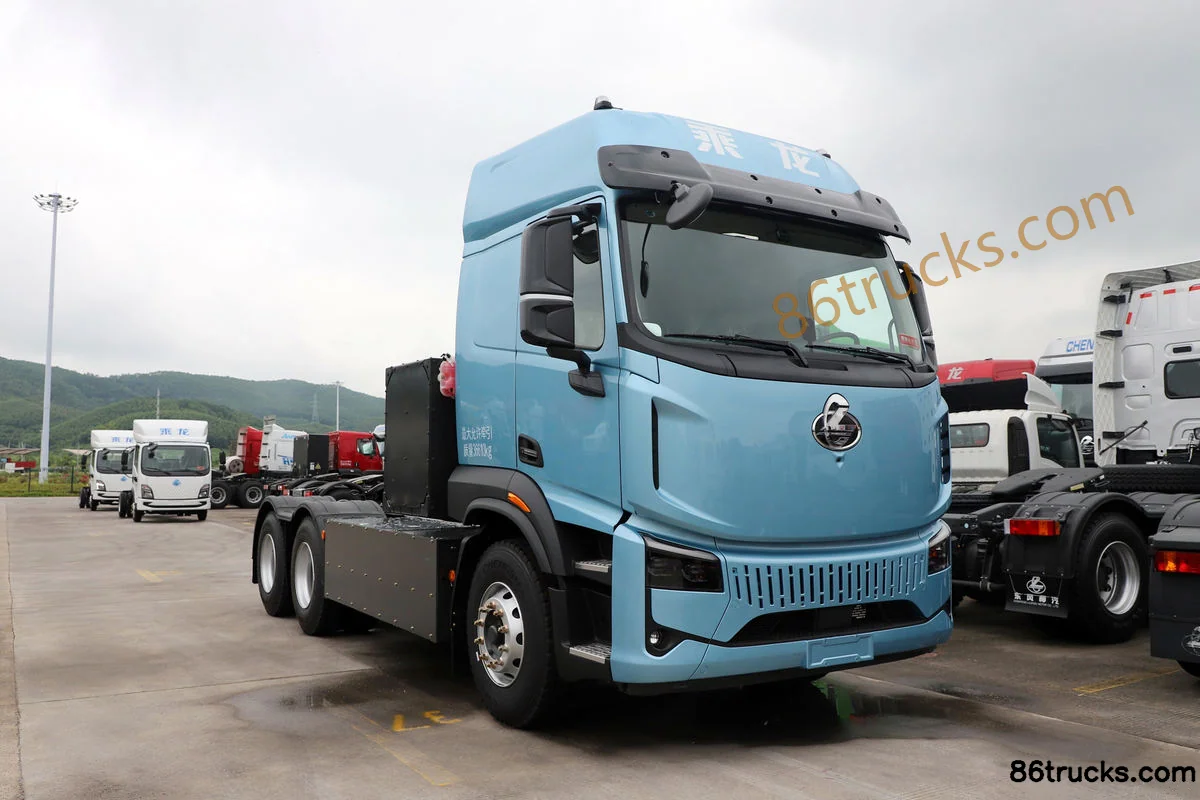

Dongfeng Yiwei 5 6X4(10 wheels) Pure Electric Tractor Truck CATL 528kWh Exterior (1) | 86Trucks Dongfeng Yiwei 5 6X4(10 wheels) Pure Electric Tractor Truck CATL 528kWh Exterior (2) | 86Trucks Dongfeng Yiwei 5 6X4(10 wheels) Pure Electric Tractor Truck CATL 528kWh Exterior (3) | 86Trucks

Cab3

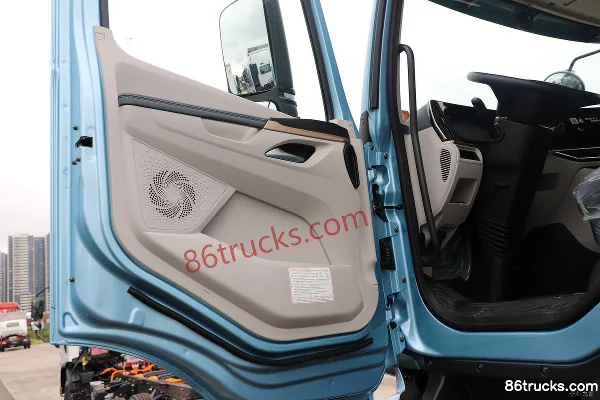

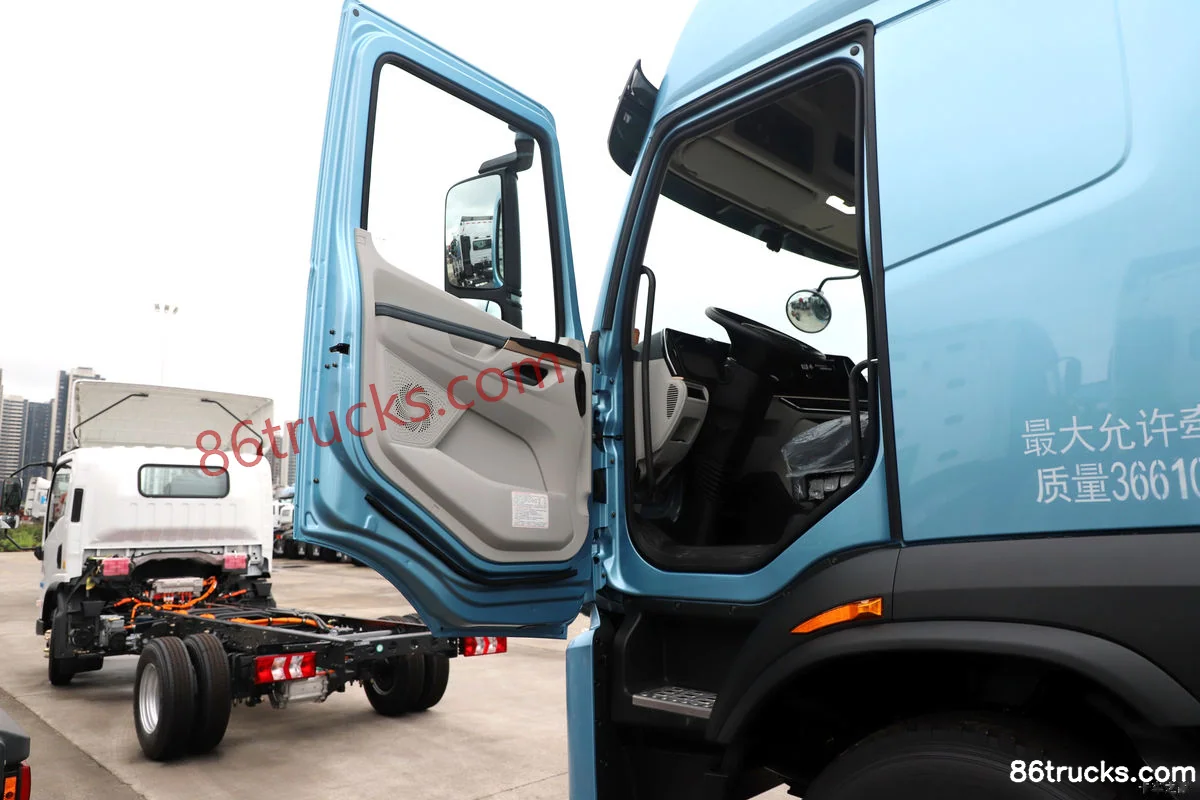

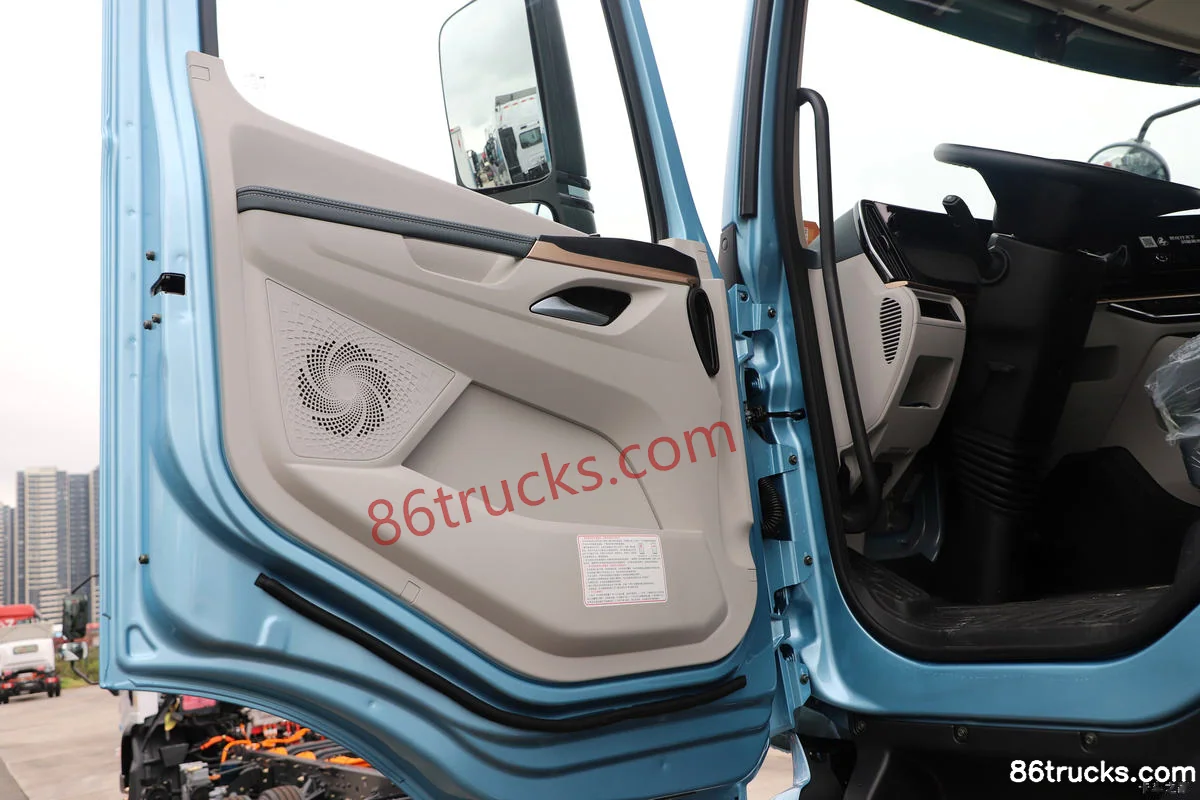

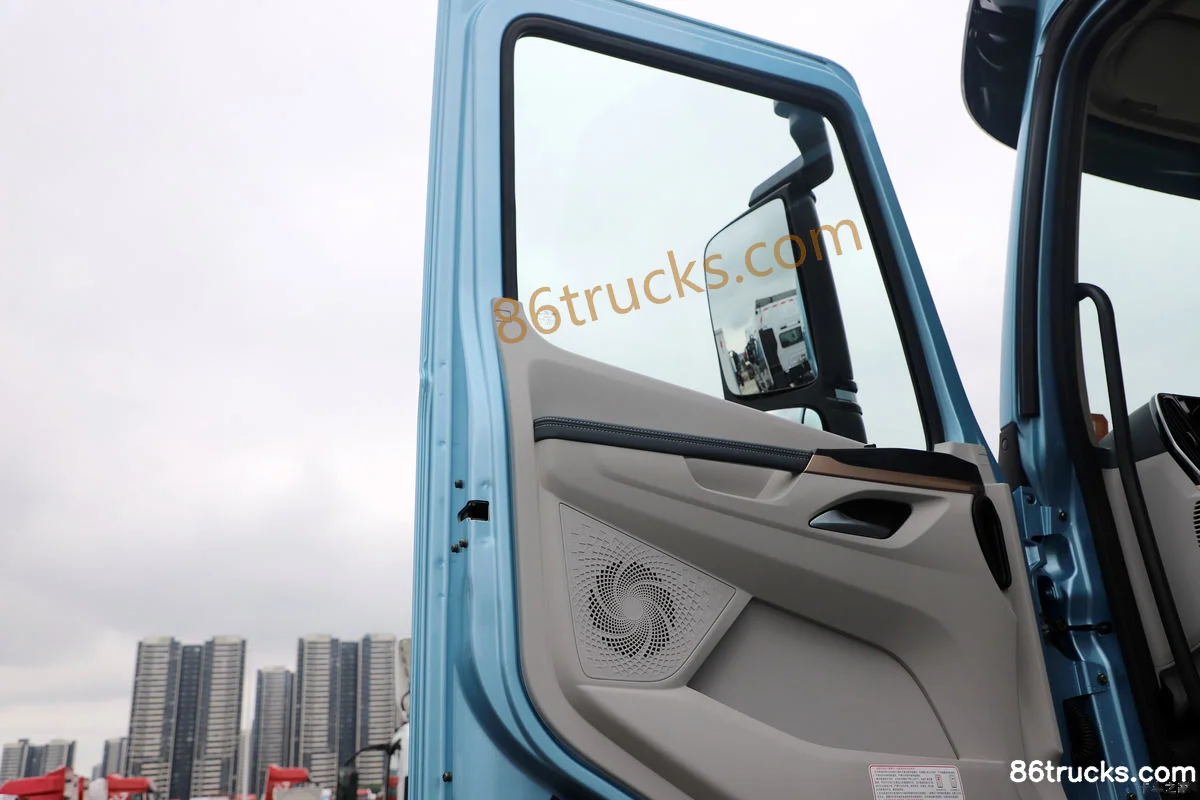

Dongfeng Yiwei 5 6X4(10 wheels) Pure Electric Tractor Truck CATL 528kWh Cab (1) | 86Trucks Dongfeng Yiwei 5 6X4(10 wheels) Pure Electric Tractor Truck CATL 528kWh Cab (2) | 86Trucks Dongfeng Yiwei 5 6X4(10 wheels) Pure Electric Tractor Truck CATL 528kWh Cab (3) | 86Trucks

Chassis3

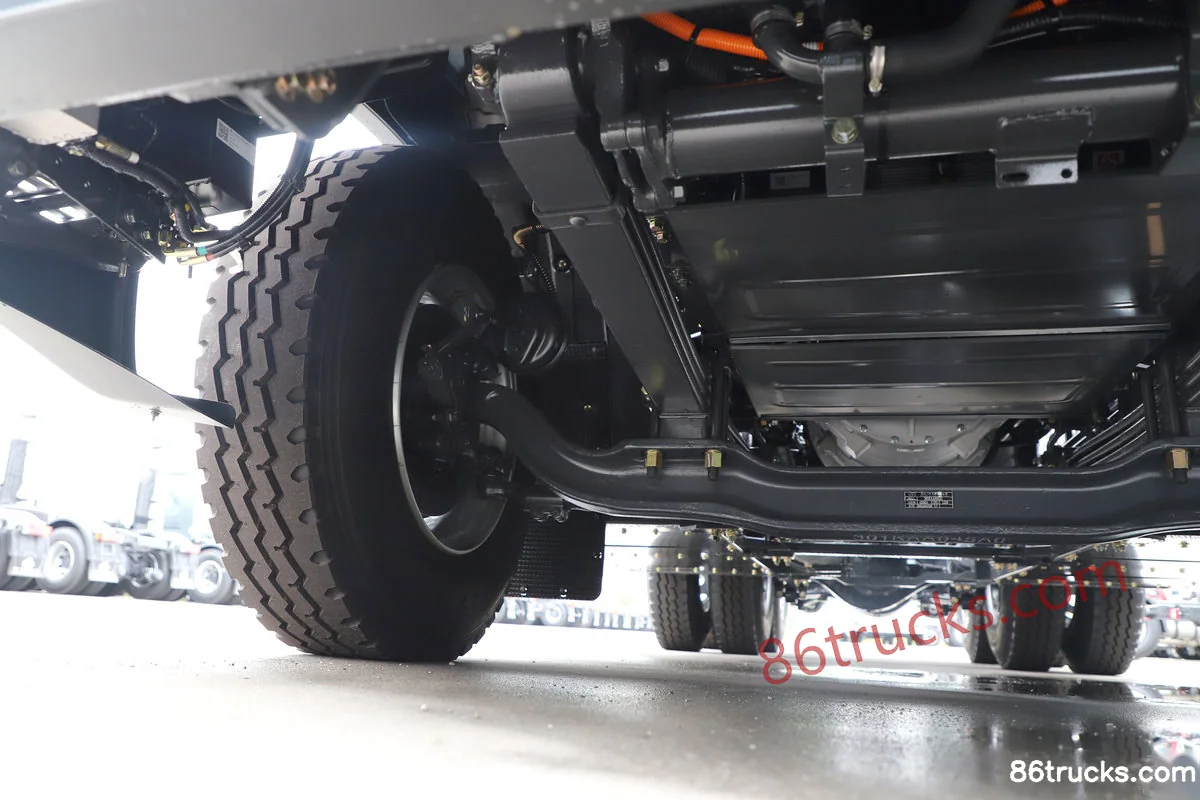

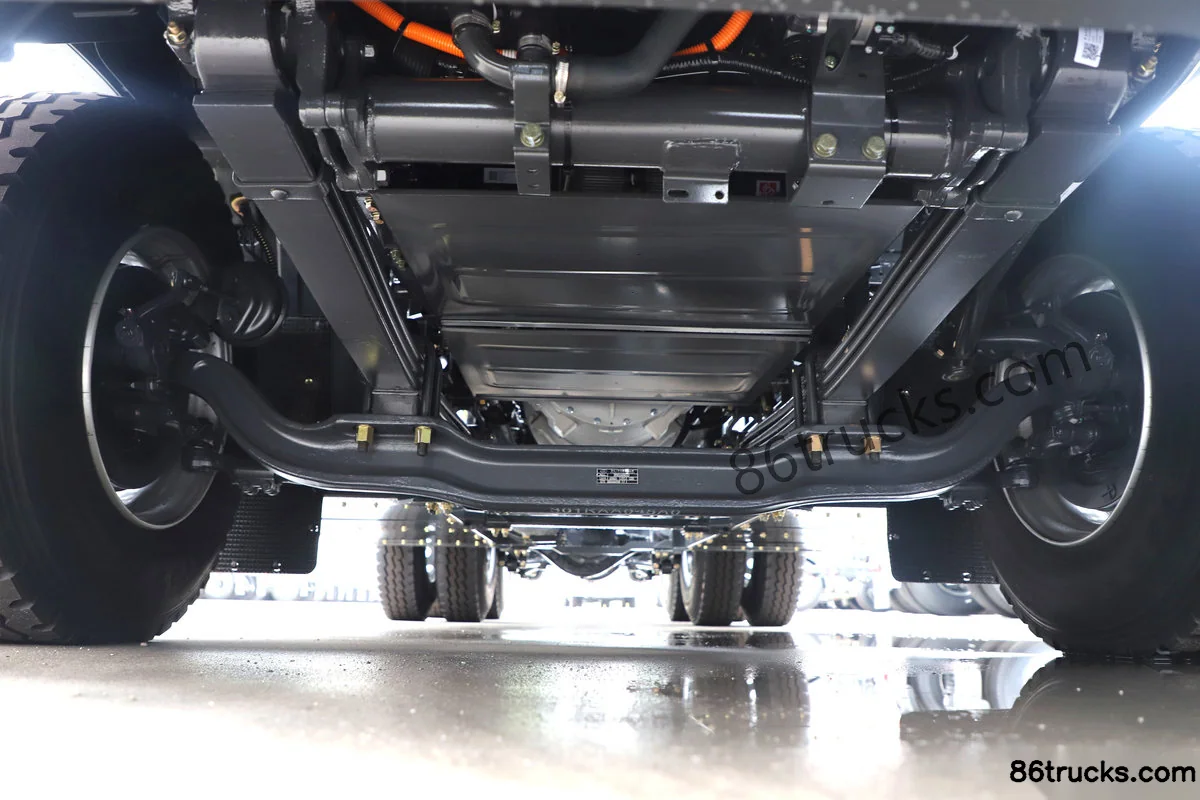

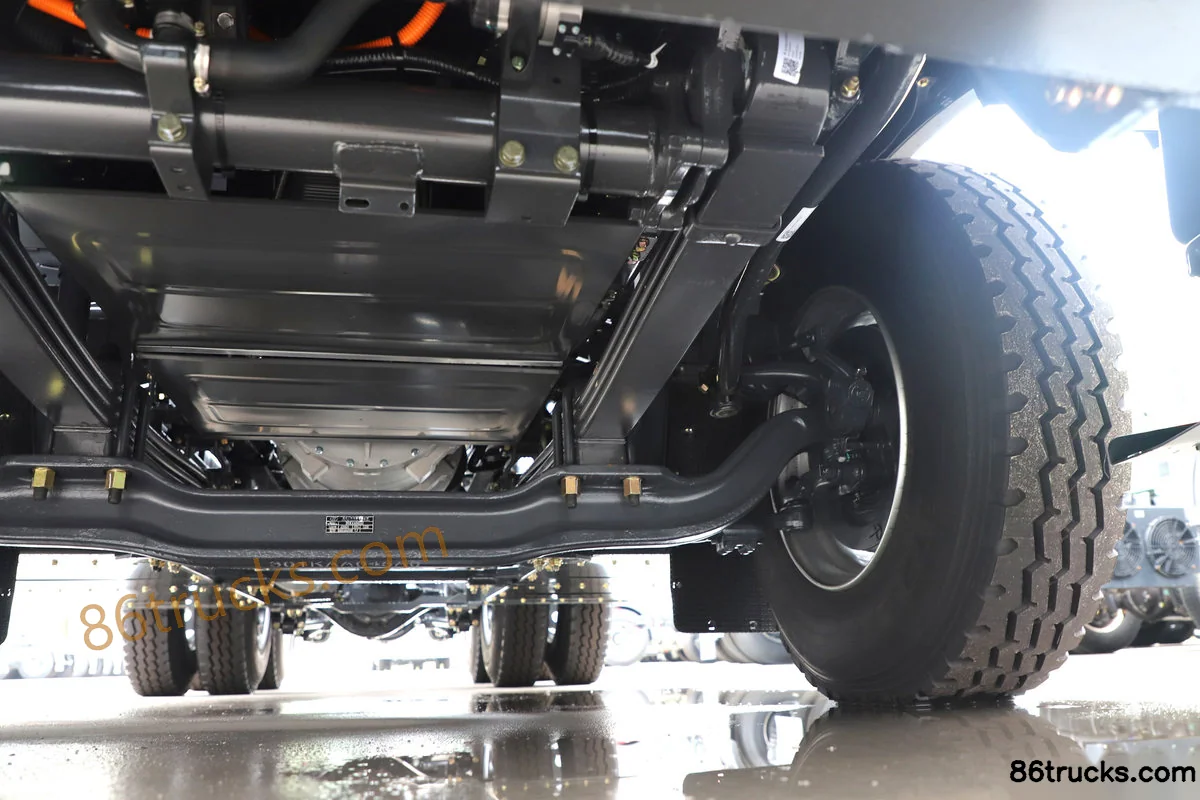

Dongfeng Yiwei 5 6X4(10 wheels) Pure Electric Tractor Truck CATL 528kWh Chassis (1) | 86Trucks Dongfeng Yiwei 5 6X4(10 wheels) Pure Electric Tractor Truck CATL 528kWh Chassis (2) | 86Trucks Dongfeng Yiwei 5 6X4(10 wheels) Pure Electric Tractor Truck CATL 528kWh Chassis (3) | 86Trucks

9 photos

FAQ

What are the key specs of Dongfeng Yiwei 5 6X4(10 wheels) Pure Electric Tractor Truck CATL 528kWh?

Key specs of Dongfeng Yiwei 5 6X4(10 wheels) Pure Electric Tractor Truck CATL 528kWh: Drive: 6x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Yiwei 5 6X4(10 wheels) Pure Electric Tractor Truck CATL 528kWh suited for?

Dongfeng Yiwei 5 6X4(10 wheels) Pure Electric Tractor Truck CATL 528kWh is a Electric Tractor Truck model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Dongfeng Yiwei 5 6X4(10 wheels) Pure Electric Tractor Truck CATL 528kWh differ from other variants in the same series?

Dongfeng Yiwei 5 6X4(10 wheels) Pure Electric Tractor Truck CATL 528kWh belongs to Dongfeng Yiwei 5 Heavy Truck (Electric Tractor Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Yiwei 5 6X4(10 wheels) Pure Electric Tractor Truck CATL 528kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Yiwei 5 6X4(10 wheels) Pure Electric Tractor Truck CATL 528kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
