FAW Jiefang Qingdao New Dawai Heavy Truck 380 hp 8X4(12 wheels) 9.5m Sleeper Cab Stake Cargo Truck

Export reference
From $40,278
MSRP ¥29M CNY
Horsepower: 380
Emission: China III / Euro III
Fuel: Diesel
Engine: WeichaiWP10
Transmission: Fast Gear
Curb Weight:: 12.77ton
seating capacity: 3Personnel
Rated payload: 18.1ton
Drive 8X4 (12 wheels)
Cargo box type: Stake type

Overview

The FAW Jiefang Qingdao New Dawai Heavy Truck 380 hp 8X4(12 wheels) 9.5m Sleeper Cab Stake Cargo Truck is a Heavy-duty cargo trucks featuring 9.5m cargo length, Stake type cargo body, 3Personnel volume and 18.1t payload. Its segment focus covers Construction material transport, agricultural byproduct transport and energy minerals, matching those duty cycles. On the powertrain side, it comes with a WeichaiWP10 engine, 380 hp, 8X4 (12 wheels) drive and China III / Euro III emissions.

China III / Euro III 380 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5310XXYP2K15L7T4EA80-1
Type: stake truck
Drive type: 8X4
Wheelbase: 1860+4660+1350mm
Box length class: 9.5m
engine: WeichaiWP10.380E32
transmission: Fast Gear12JS160TA
Rear Axle Ratio: 5.26
Cab length: 11.976m
Cab width: 2.499m
Cab height: 3.92m
Front track width: 2050/2050mm
rear track: 1847/1847mm
Curb Weight: 12.77ton
Rated payload: 18.1ton
GVWR: 31ton
Max. speed: 90km/h
Origin: Qingdao, Shandong
tonnage class: Heavy-duty cargo trucks
market segment: Construction material transport, agricultural byproduct transport, energy minerals
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.380E32
Engine info: WeichaiWP10
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 9.726L
Emission standard: China III / Euro III
Max output power: 280kW
Max hp: 380Horsepower
Max torque: 1600N·m
Max torque speed: 1500-1800rpm
Rated speed: 2200rpm
Engine Type: Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled
Transmission Parameters
Transmission Model: Fast Gear12JS160TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 9.5m
Cargo box width: 2.3m
Cargo box height: 0.8m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab: High roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 400L
Chassis Specs
Front axle description: A1H
Front axle allowable load: 6500kg
rear axle description: 300 cast wheel reduction axle
rear axle allowable load: 18000kg
Axle ratio: 5.26
Leaf spring count: 11/11/10
Tire
Tire Size: 11.00-20
Number of tires: 12pcs

Photos

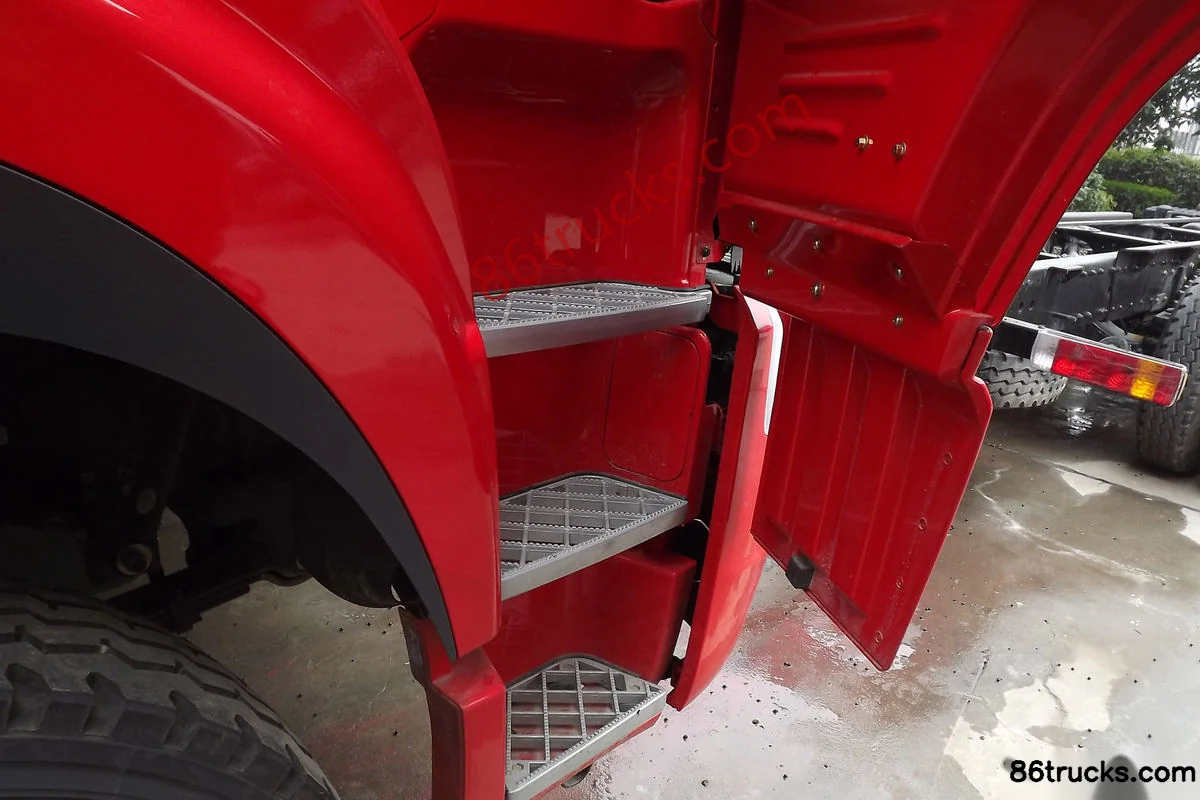

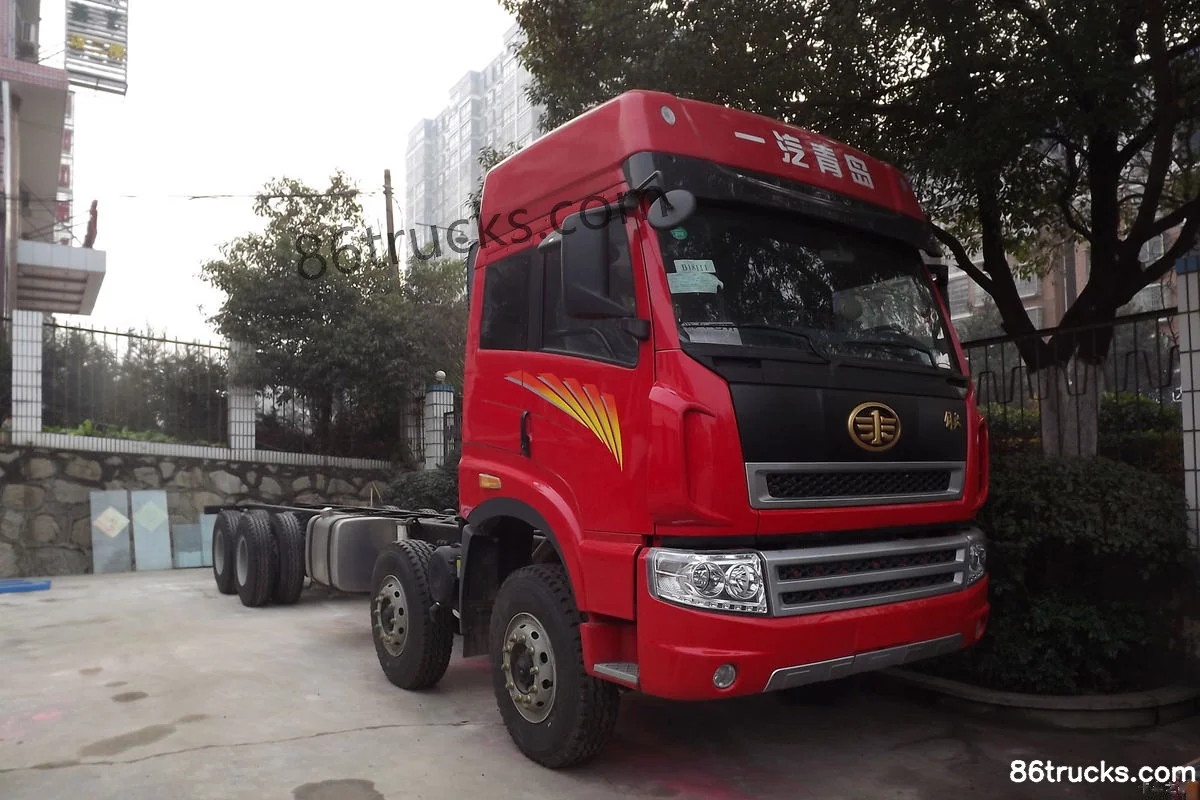

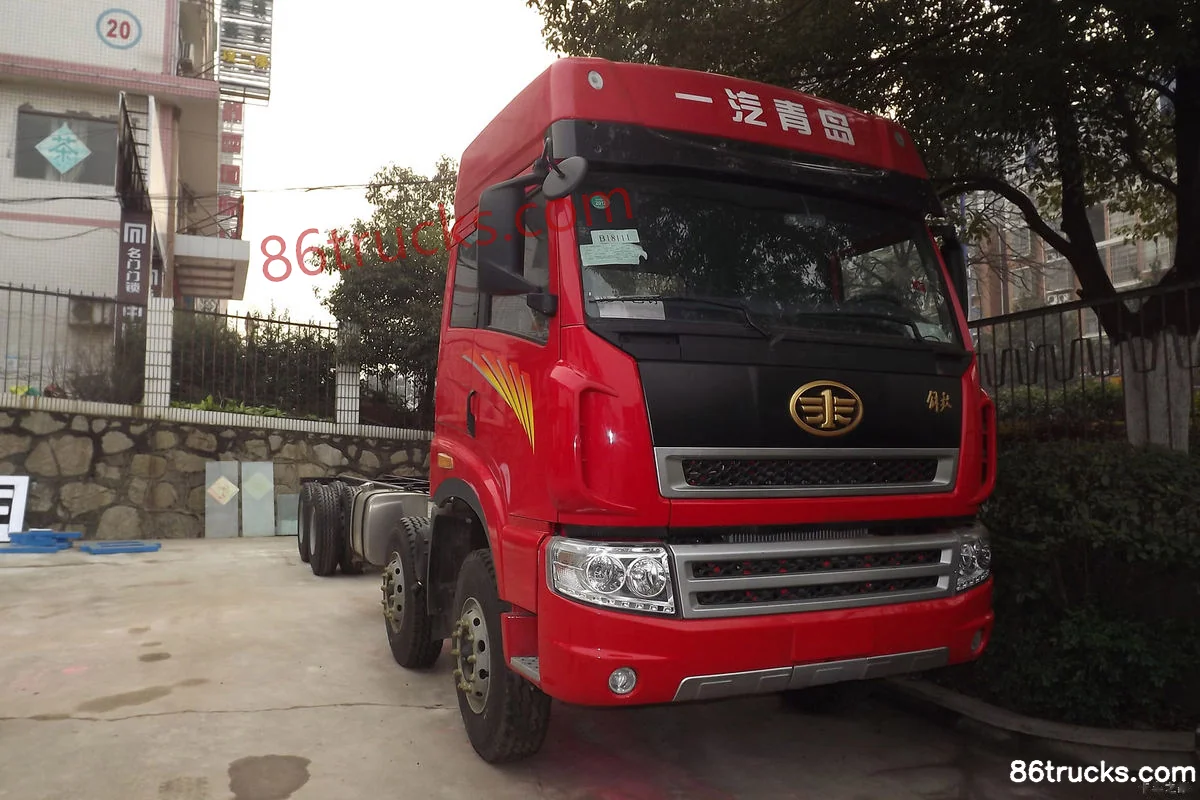

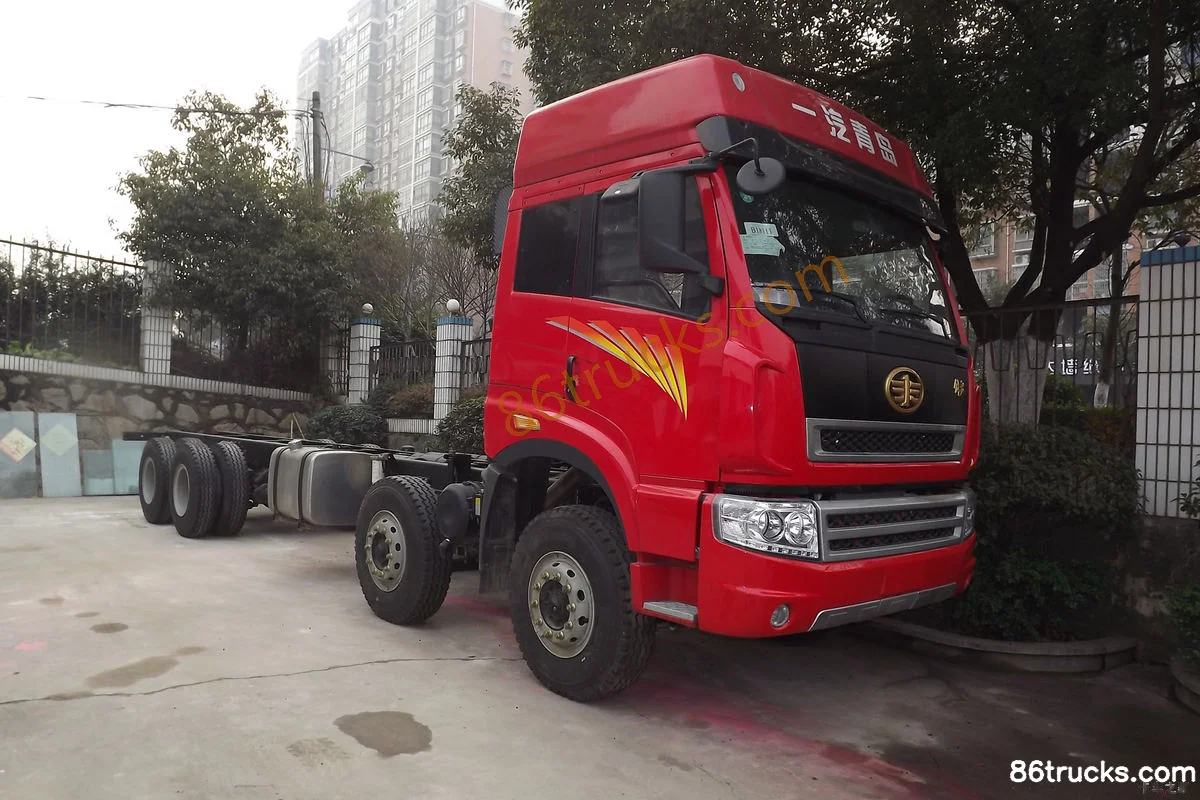

Exterior3

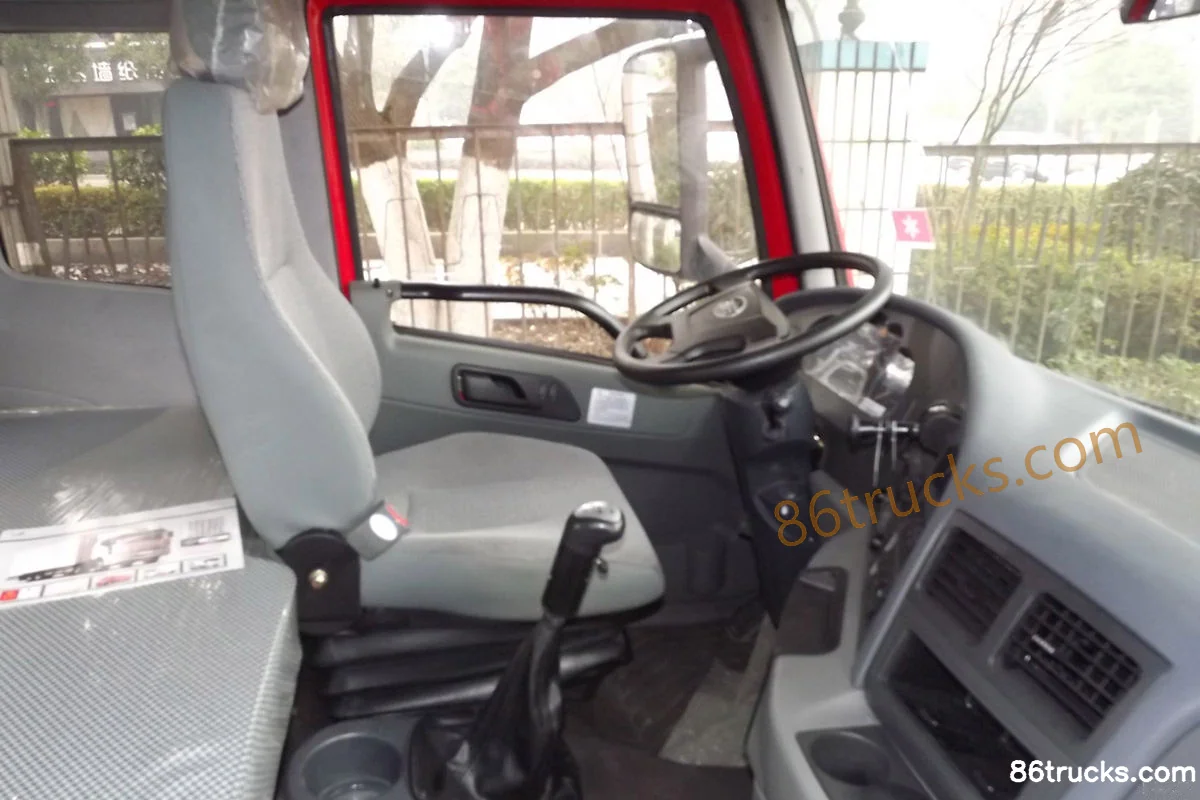

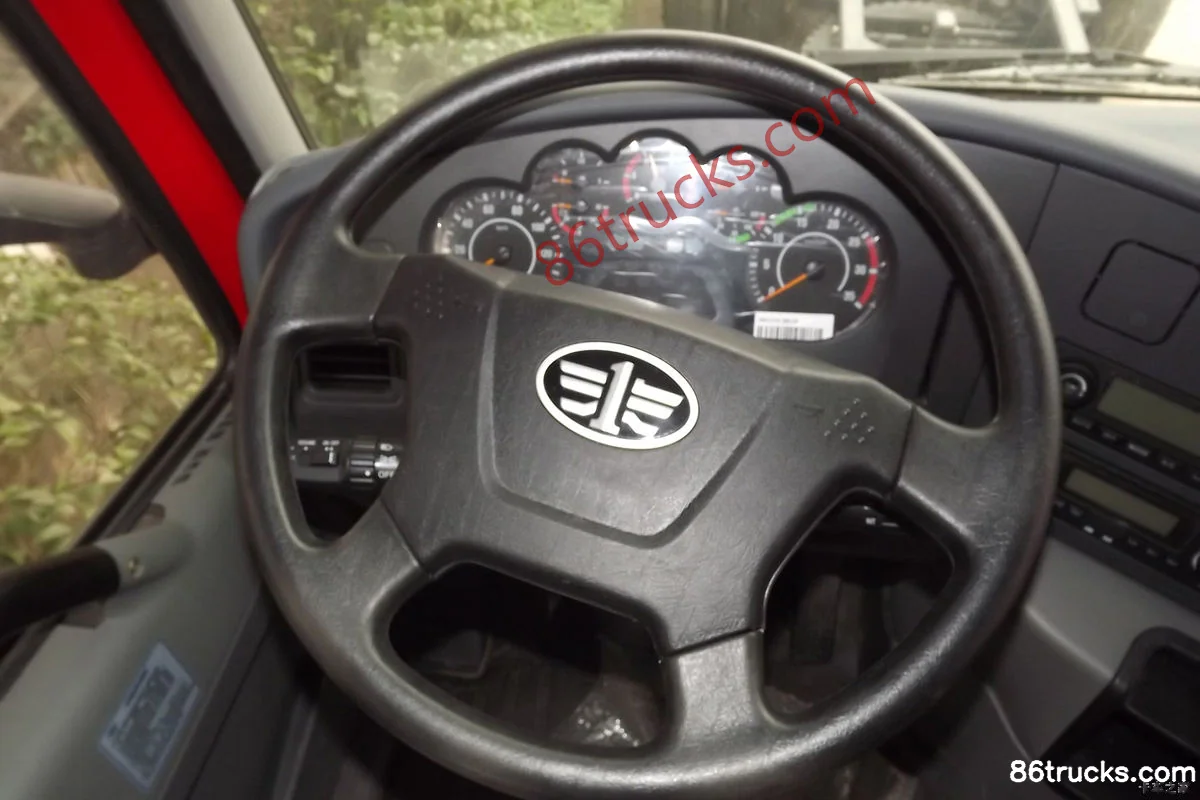

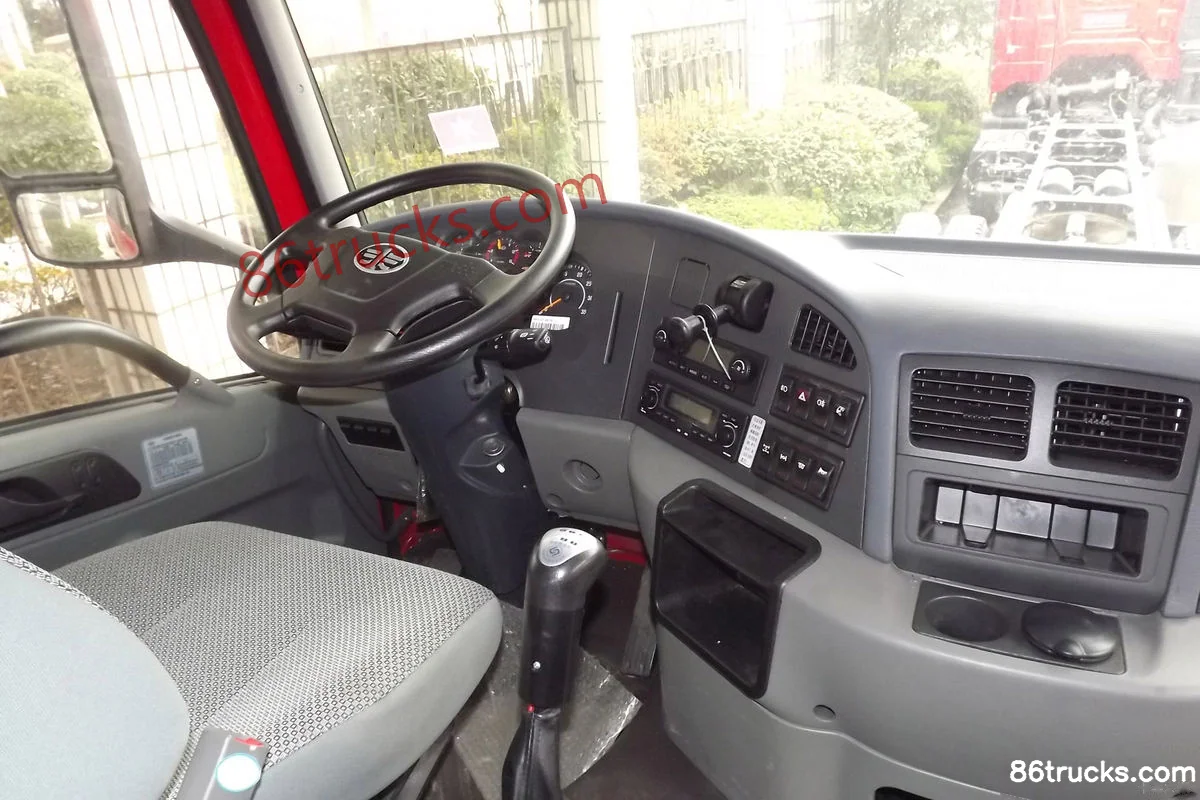

Cab3

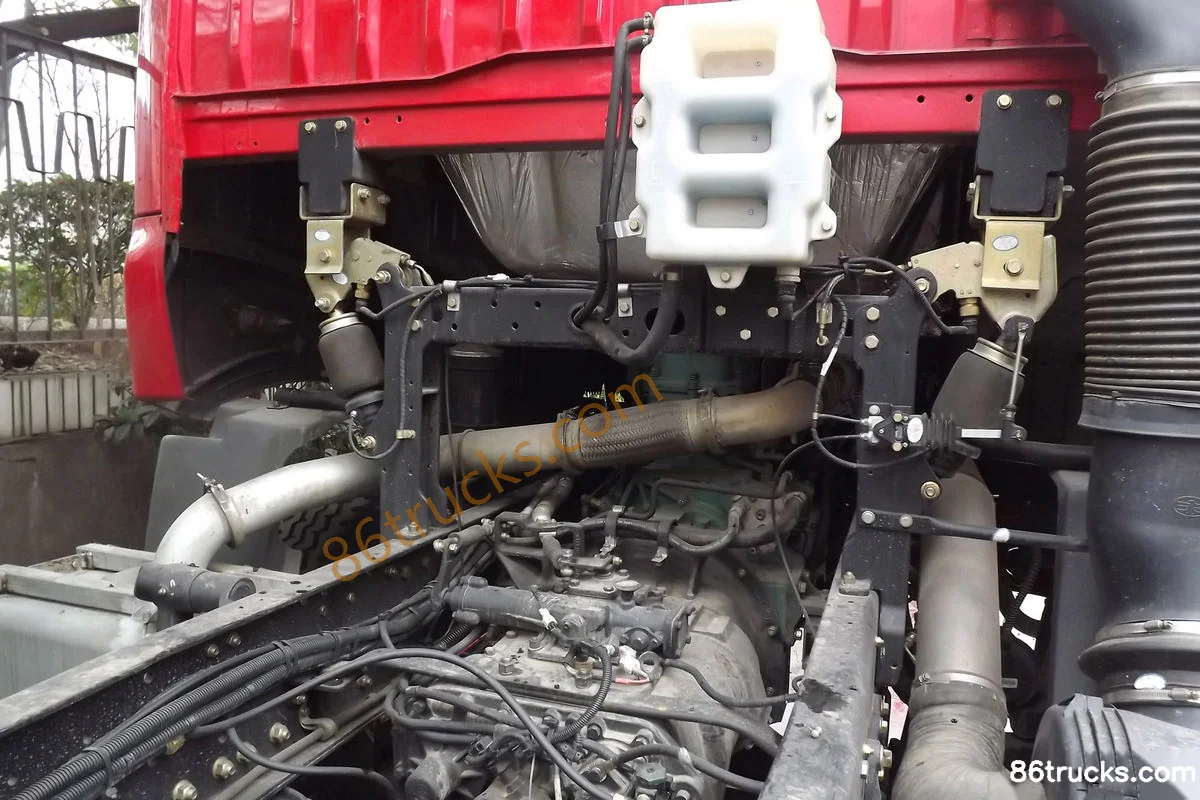

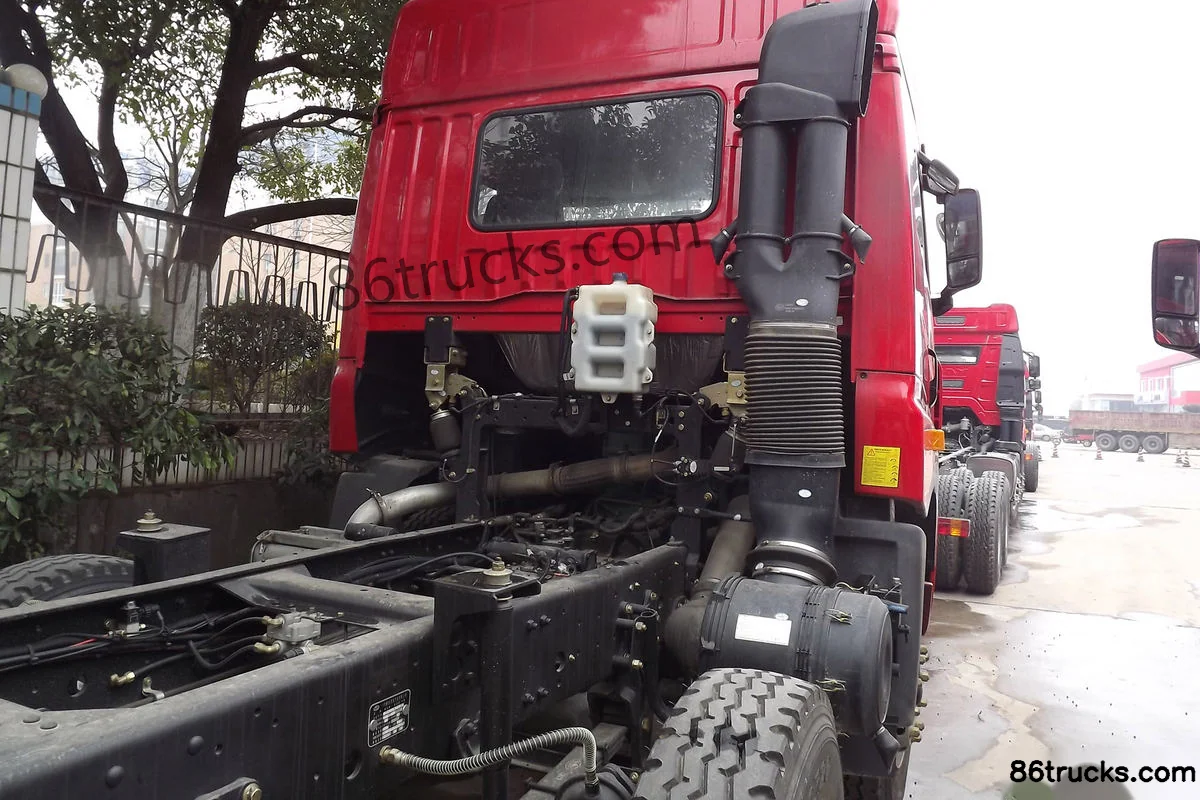

Chassis3

9 photos

FAQ

What is the export price of FAW Jiefang Qingdao New Dawai Heavy Truck 380 hp 8X4(12 wheels) 9.5m Sleeper Cab Stake Cargo Truck, and what does it include?

FAW Jiefang Qingdao New Dawai Heavy Truck 380 hp 8X4(12 wheels) 9.5m Sleeper Cab Stake Cargo Truck export reference is about From $40,278; MSRP is ¥29M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Qingdao New Dawai Heavy Truck 380 hp 8X4(12 wheels) 9.5m Sleeper Cab Stake Cargo Truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao New Dawai Heavy Truck 380 hp 8X4(12 wheels) 9.5m Sleeper Cab Stake Cargo Truck?

Key specs of FAW Jiefang Qingdao New Dawai Heavy Truck 380 hp 8X4(12 wheels) 9.5m Sleeper Cab Stake Cargo Truck: Drive: 8x4; Horsepower: 380 hp; Emission: China III / Euro III; Fuel: Diesel; Engine: WeichaiWP10; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao New Dawai Heavy Truck 380 hp 8X4(12 wheels) 9.5m Sleeper Cab Stake Cargo Truck suited for?

FAW Jiefang Qingdao New Dawai Heavy Truck 380 hp 8X4(12 wheels) 9.5m Sleeper Cab Stake Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Qingdao New Dawai Heavy Truck 380 hp 8X4(12 wheels) 9.5m Sleeper Cab Stake Cargo Truck differ from other variants in the same series?

FAW Jiefang Qingdao New Dawai Heavy Truck 380 hp 8X4(12 wheels) 9.5m Sleeper Cab Stake Cargo Truck belongs to FAW Jiefang Qingdao New Dawei Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao New Dawai Heavy Truck 380 hp 8X4(12 wheels) 9.5m Sleeper Cab Stake Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao New Dawai Heavy Truck 380 hp 8X4(12 wheels) 9.5m Sleeper Cab Stake Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
