Foton Ruivo Medium Truck 180 hp 6X2(8 wheels) 7.5m Stake Truck

Export reference
From $28,056
MSRP ¥20.2M CNY
Horsepower: 180
Emission: China IV
Fuel: Diesel
Engine: Yuchai 6-cylinder
Transmission: Fast Gear
Curb Weight:: 8.05ton
seating capacity: 3Personnel
Rated payload: 16.755ton
Drive 6X2 (8 wheels)
Cargo box type: stake body

Overview

The Foton Ruivo Medium Truck 180 hp 6X2(8 wheels) 7.5m Stake Truck is a Medium-duty truck featuring 7.5m cargo length, stake body cargo body, 3Personnel volume and 16.755t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Yuchai 6-cylinder engine, 180 hp, 6X2 (8 wheels) drive and China IV emissions.

China IV 180 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ1255VNPHE-5
Type: Cargo Trucks
Drive type: 6X2
Wheelbase: 1800+4300mm
Box length class: 7.5m
engine: YuchaiYC6J180-42
transmission: Fast Gear8JS75TB
Rear Axle Ratio: 6.167
Cab length: 9.996m
Cab width: 2.495m
Cab height: 3.5m
Front track width: 1886/1886mm
rear track: 1864mm
Curb Weight: 8.05ton
Rated payload: 16.755ton
GVWR: 25ton
Max. speed: 90km/h
Origin: Shandong Zhucheng
tonnage class: Medium-duty truck
Approach angle: 25°
departure angle: 11°
market segment: Building materials, agricultural products
Front/rear suspension: 1.36/2.8m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6J180-42
Engine info: Yuchai 6-cylinder
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.494L
Emission standard: China IV
Max output power: 132kW
Max hp: 180Horsepower
Max torque: 650N·m
Max torque speed: 1200-1700rpm
Rated speed: 2500rpm
Engine Type: Vertical, inline 6-cylinder, water-cooled, 4-stroke, electronic direct injection
Transmission Parameters
Transmission Model: Fast Gear8JS75TB
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 7.5m
Cargo box width: 2.3m
Cargo box height: 0.6m
*Cargo box interior width: 2.2999999523163
Cab parameters
Cab: Full floating high roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Chassis Specs
Front axle allowable load: 6700/6800kg
Frame Dimensions: 250×70×8+5-865mm

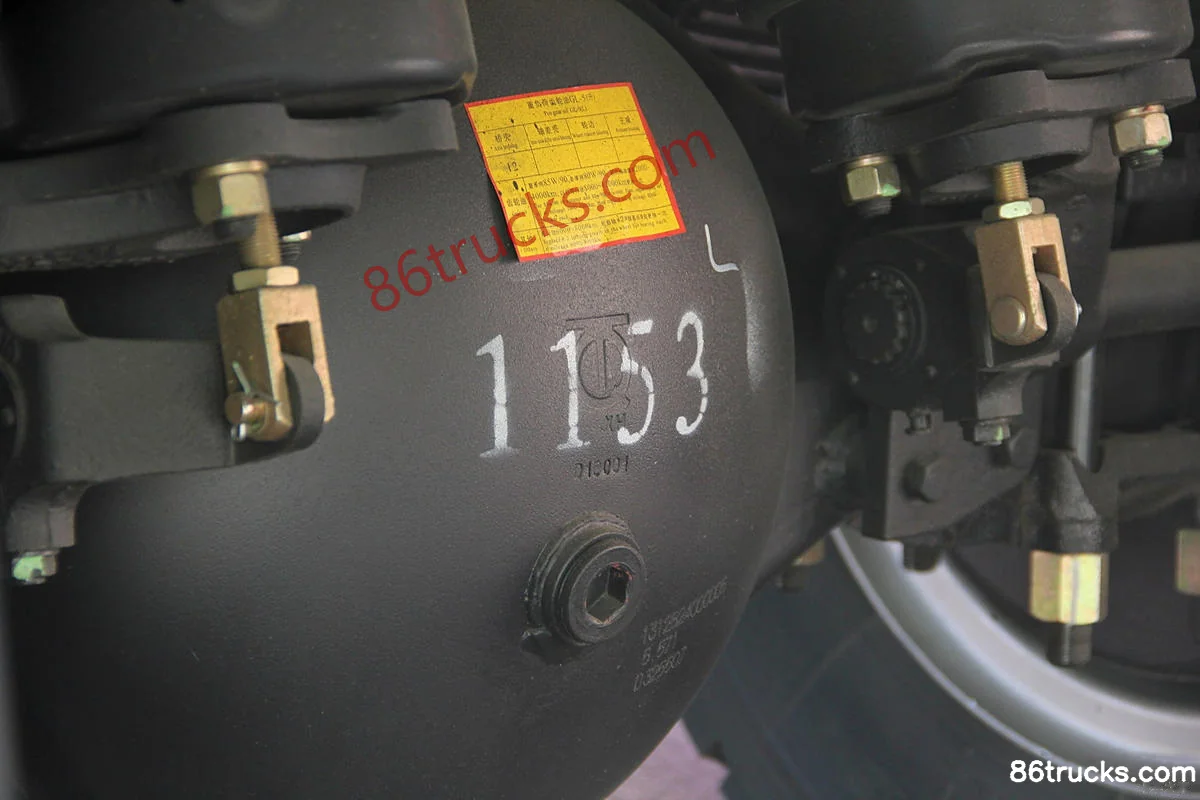

rear axle description: 1153
rear axle allowable load: 11500kg
Axle ratio: 6.167
Leaf spring count: 10/10/12+9
Tire
Tire Size: 10.00R20 (with spare tire)
Number of tires: 8pcs
Control configuration
ABS:
interior configuration
AC control type: Automatic
Independent Heater:
Power Windows:
Multimedia features
GPS/Beidou driving recorder:
Service brake
Parking brake: Spring brake

Photos

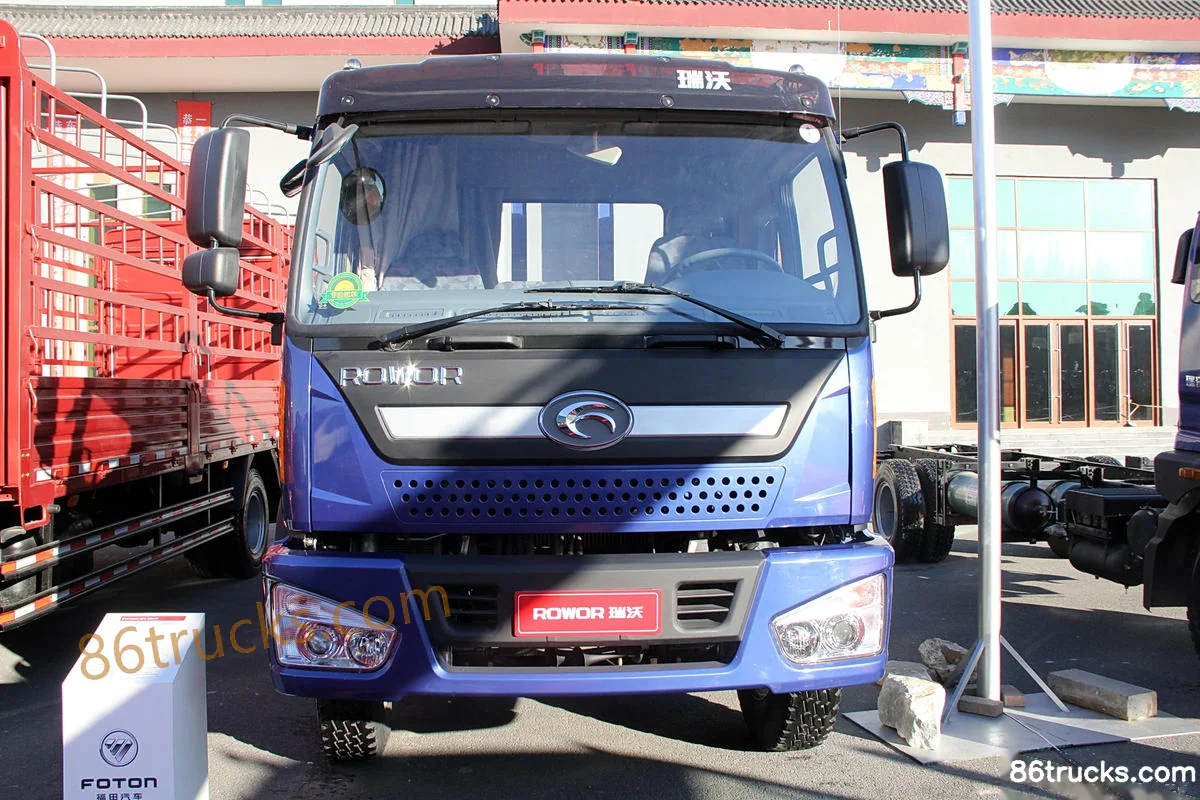

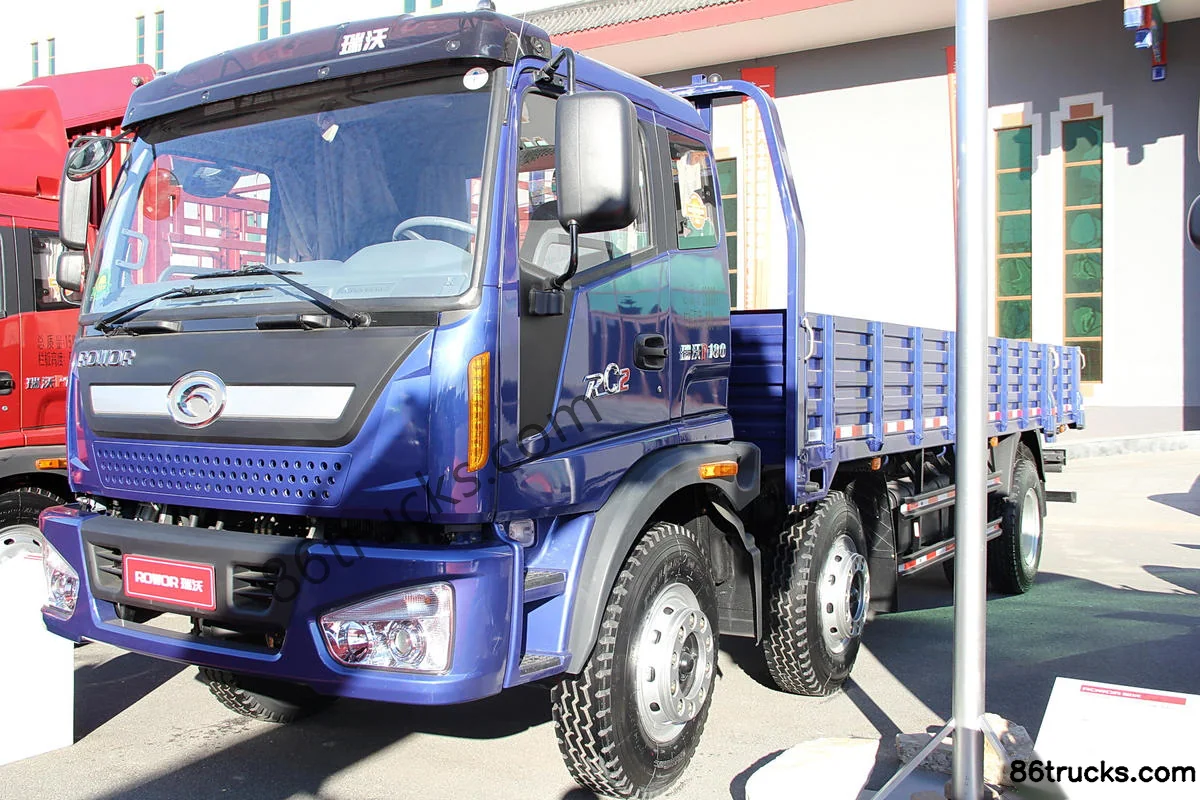

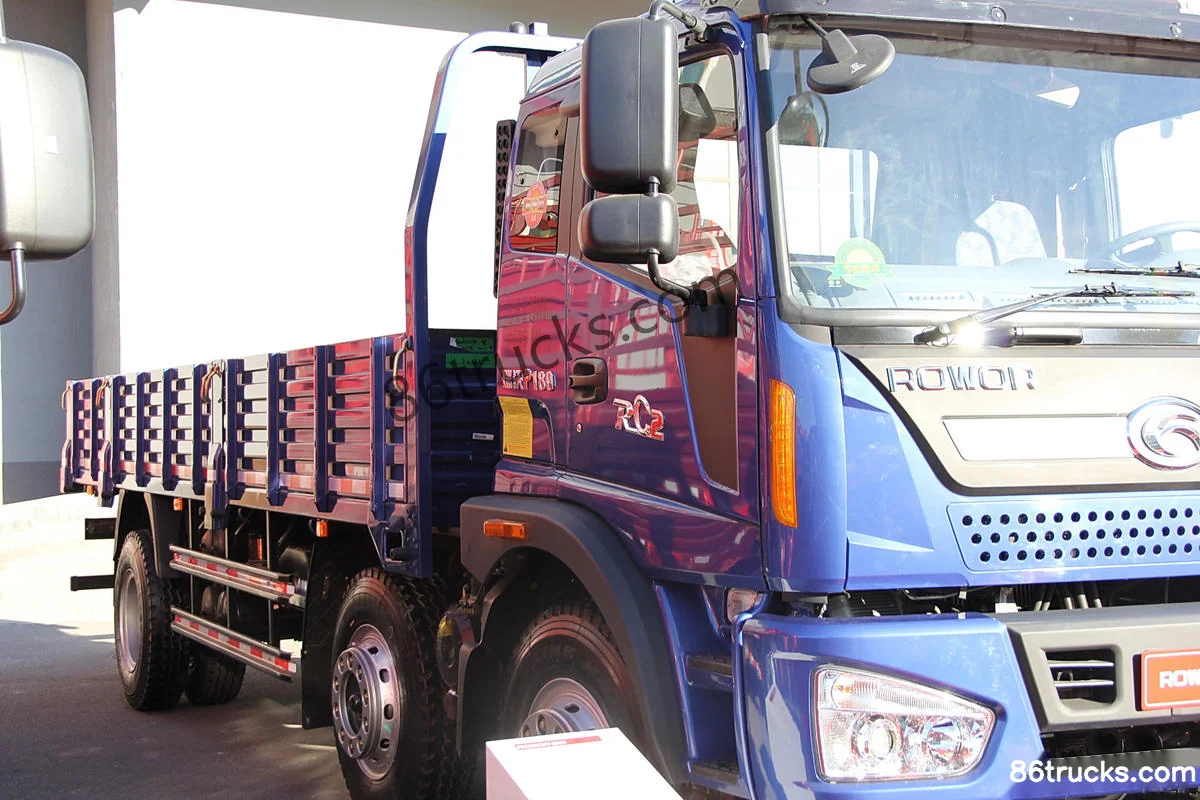

Exterior3

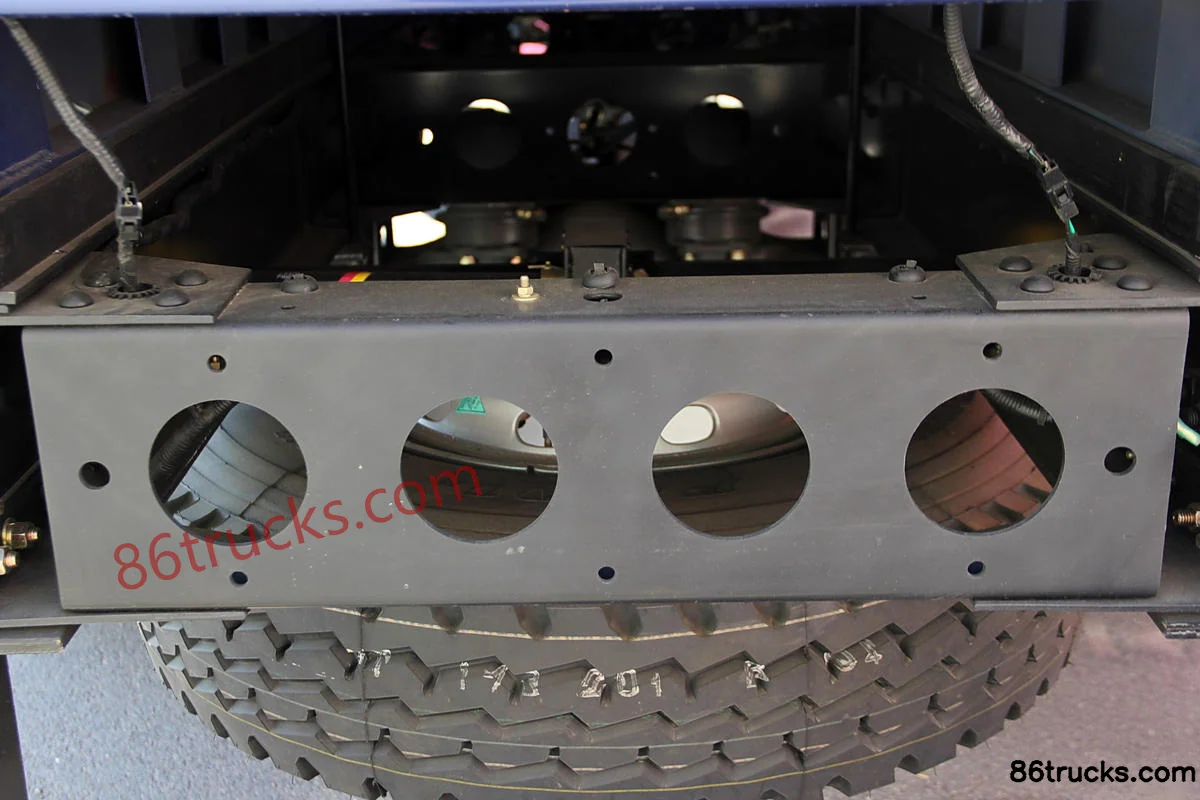

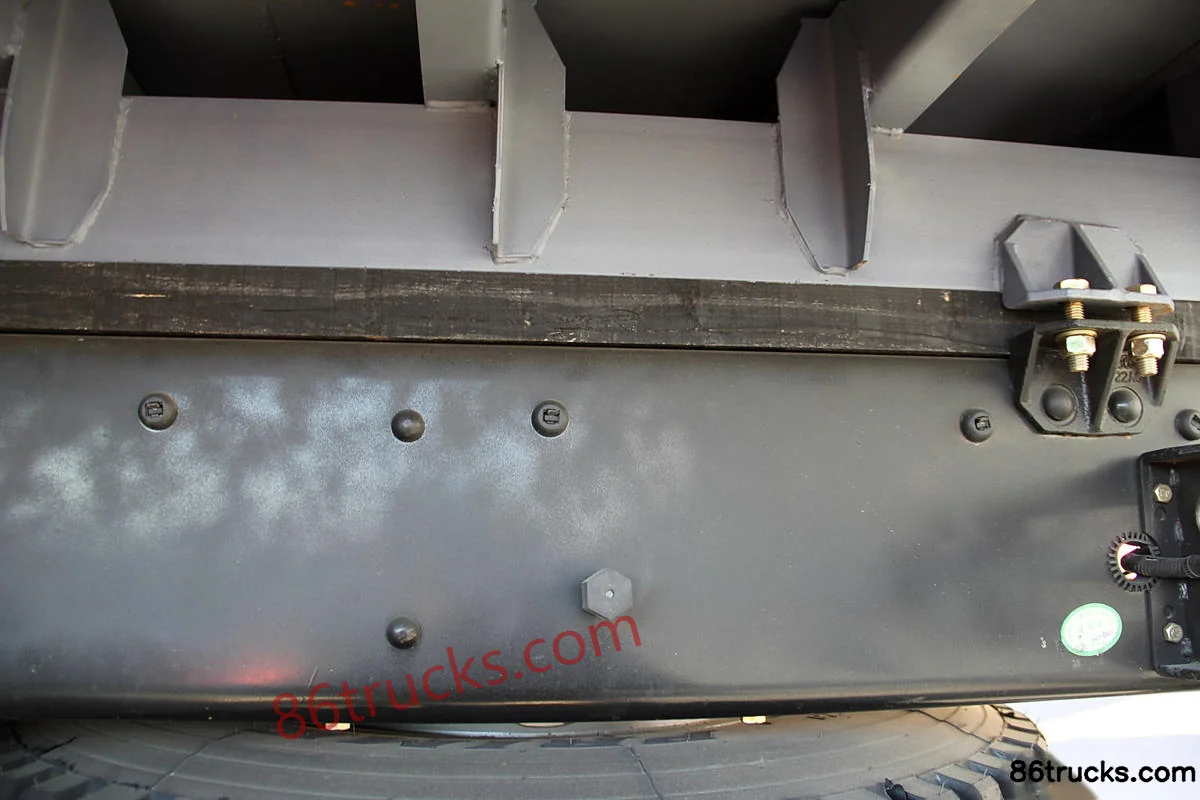

Chassis3

6 photos

FAQ

What is the export price of Foton Ruivo Medium Truck 180 hp 6X2(8 wheels) 7.5m Stake Truck, and what does it include?

Foton Ruivo Medium Truck 180 hp 6X2(8 wheels) 7.5m Stake Truck export reference is about From $28,056; MSRP is ¥20.2M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Ruivo Medium Truck 180 hp 6X2(8 wheels) 7.5m Stake Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Ruivo Medium Truck 180 hp 6X2(8 wheels) 7.5m Stake Truck?

Key specs of Foton Ruivo Medium Truck 180 hp 6X2(8 wheels) 7.5m Stake Truck: Drive: 6x2; Horsepower: 180 hp; Emission: China IV; Fuel: Diesel; Engine: Yuchai 6-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Ruivo Medium Truck 180 hp 6X2(8 wheels) 7.5m Stake Truck suited for?

Foton Ruivo Medium Truck 180 hp 6X2(8 wheels) 7.5m Stake Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Ruivo Medium Truck 180 hp 6X2(8 wheels) 7.5m Stake Truck differ from other variants in the same series?

Foton Ruivo Medium Truck 180 hp 6X2(8 wheels) 7.5m Stake Truck belongs to FotonQ5 (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Ruivo Medium Truck 180 hp 6X2(8 wheels) 7.5m Stake Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Ruivo Medium Truck 180 hp 6X2(8 wheels) 7.5m Stake Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
