JAC Sunray 5 Series Star Express 120 hp 6-seat Panel Van

Export reference
From $21,917
MSRP ¥15.78M CNY
Curb Weight:: 2.58ton
Front tire specification:: 185 R15LT
Rated payload:: 1.195ton
Displacement:: 2.8L
Model code (announced):: HFC5049XXCKMF
Cab length:: 5.84m
Drive rear-wheel drive
Horsepower 120
Emission China IV
Fuel Diesel

Overview

The JAC Sunray 5 Series Star Express 120 hp 6-seat Panel Van is a Van/Light Bus featuring rear-wheel drive drive, 120 hp, 3.755t GVW and China IV emissions. On the powertrain side, it comes with Diesel fuel.

China IV 120 Diesel rear-wheel drive

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5049XXCKMF
Drive type: rear-wheel drive
Cab length: 5.84m
Cab width: 2.098m
Cab height: 2.405m
Front track width: 1760mm
rear track: 1645mm
Curb Weight: 2.58ton
Rated payload: 1.195ton
GVWR: 3.755ton
Max. speed: 130km/h
grade: Large van (light bus)
Driver's license: A1,A2,B1,B2,C1
Version: Star Express
Energy Type: Diesel
Engine parameters
Engine Model: JACHFC4DA1-2C
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.8L
Emission standard: China IV
Max output power: 88kW
Max hp: 120Horsepower
Max torque: 250N·m
Max torque speed: 1800-2800rpm
Rated speed: 3600rpm
Transmission Parameters
Number of gears: 5Gear
shift type: Manual
Transmission Model: 5-speed manual
Body parameters
Cargo box volume: 9.7
Chassis Specs
steering assist type: hydraulic power steering
Front suspension type: Independent suspension
Body structure: Load-bearing
rear suspension type: Leaf spring
Body Parameters
Cab structure: Cargo truck
Seat count: 6Seats
Fuel tank volume: 80L
Door Parameters
Number of Doors: 4

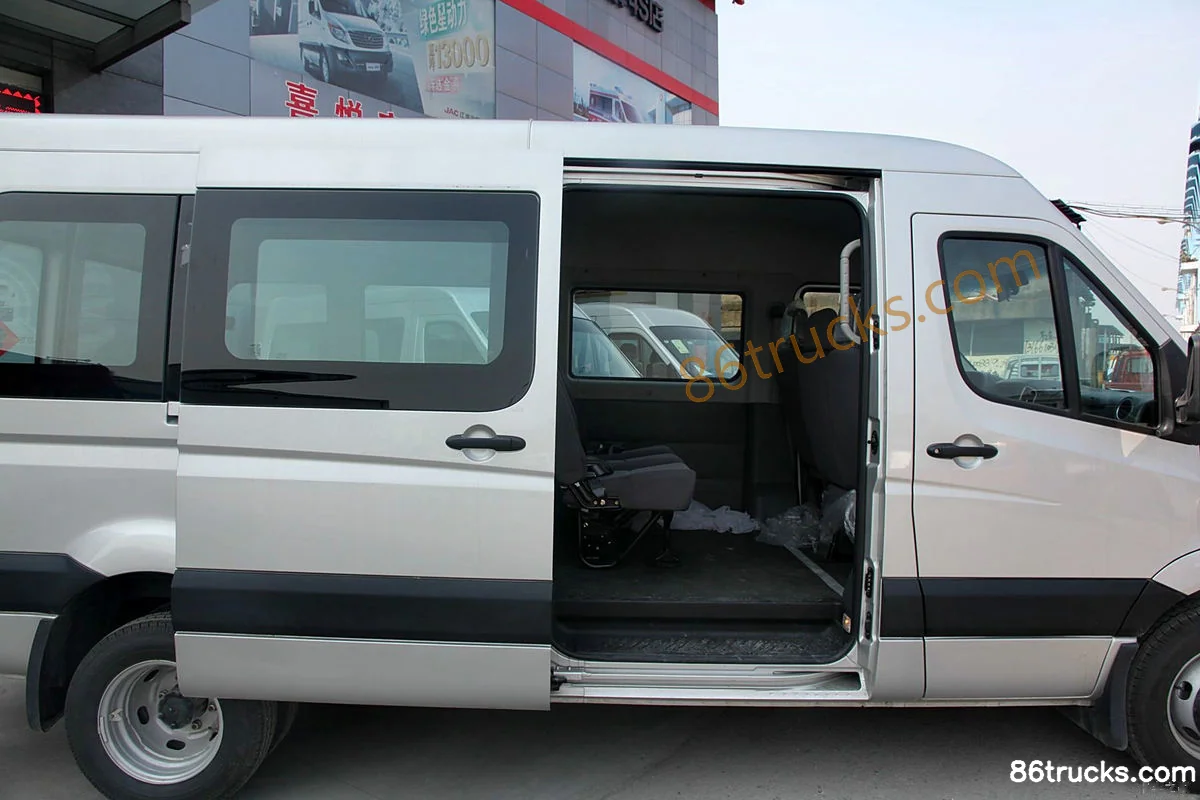

side door type: Sliding side door
Wheel brake
Front brake type: Ventilated disc brakes
rear brake type: Drum Type
Front tire specification: 185 R15LT
Rear Wheel Specification: 185 R15LT
Cab parameters
Seat rows: 2
Safety features
Seat belt reminder:
Remote key:
Control configuration
Brake force distribution (EBD/CBC etc.):
ABS:
interior configuration
Seat height adjustment:
Power-Adjustable Rearview Mirror:
Steering Wheel Material: ABS plastic
AC control type: Manual
Power Windows:
Seat material: Fabric
Reverse Camera:
Multimedia features
CD/DVD:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
lighting configuration
Front fog lamp:
Headlight height adjustment:

Photos

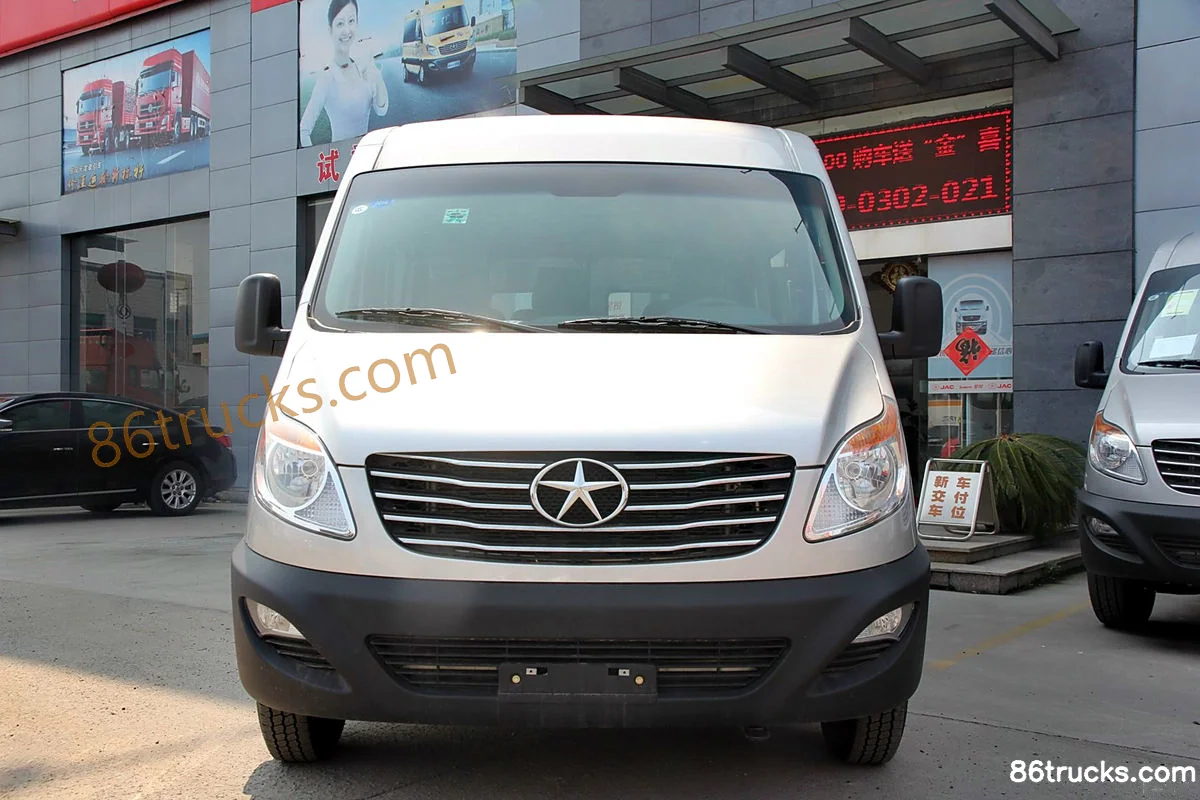

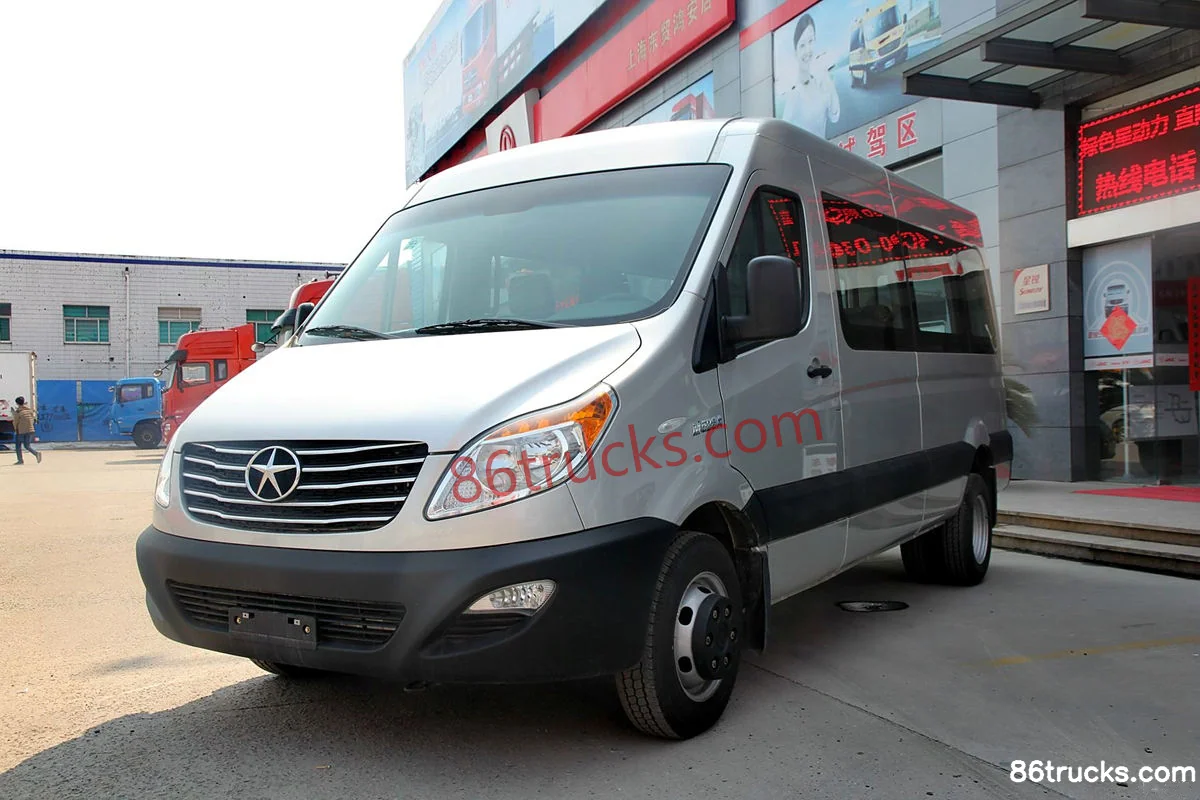

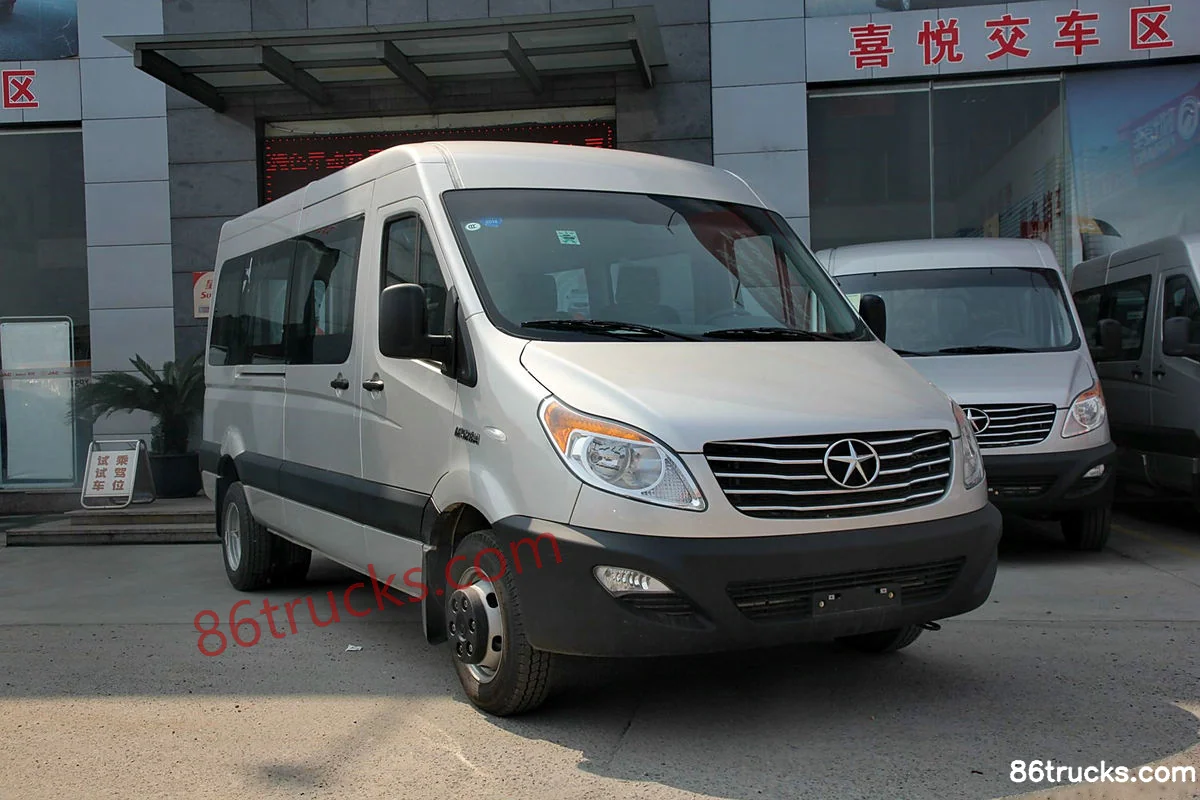

Exterior3

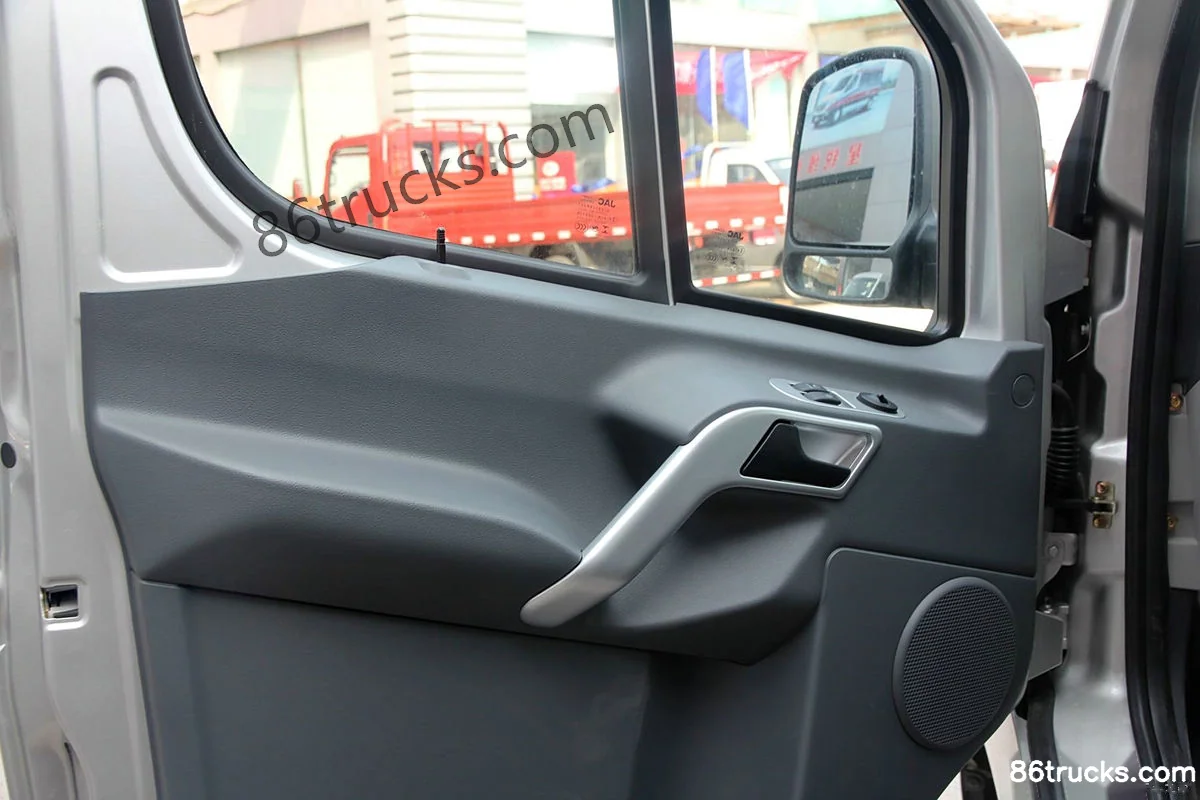

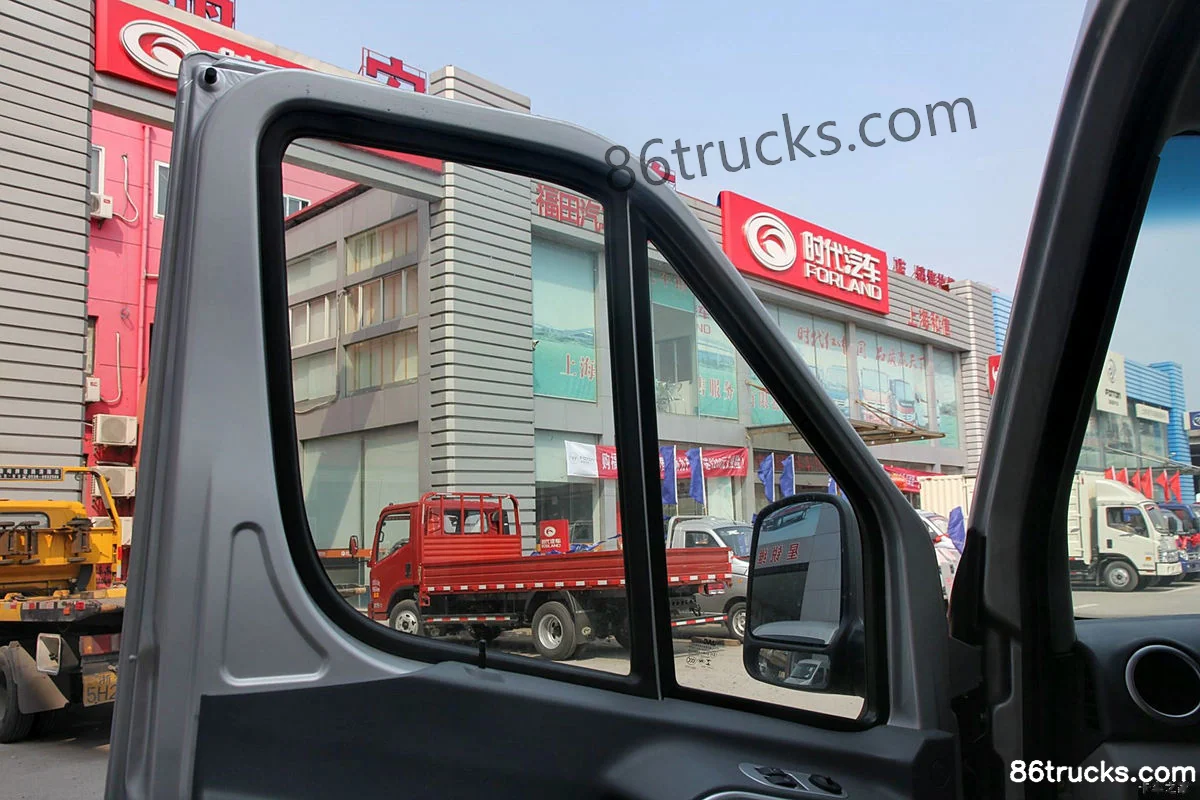

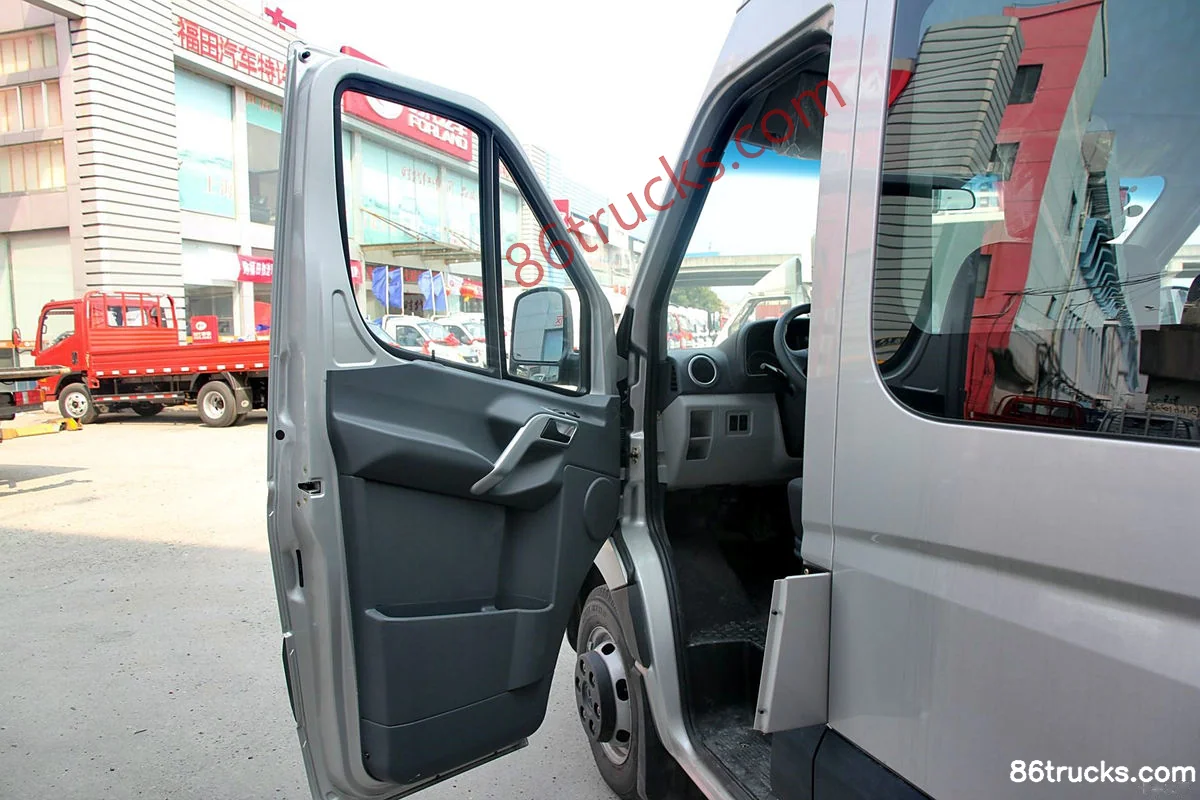

Cab3

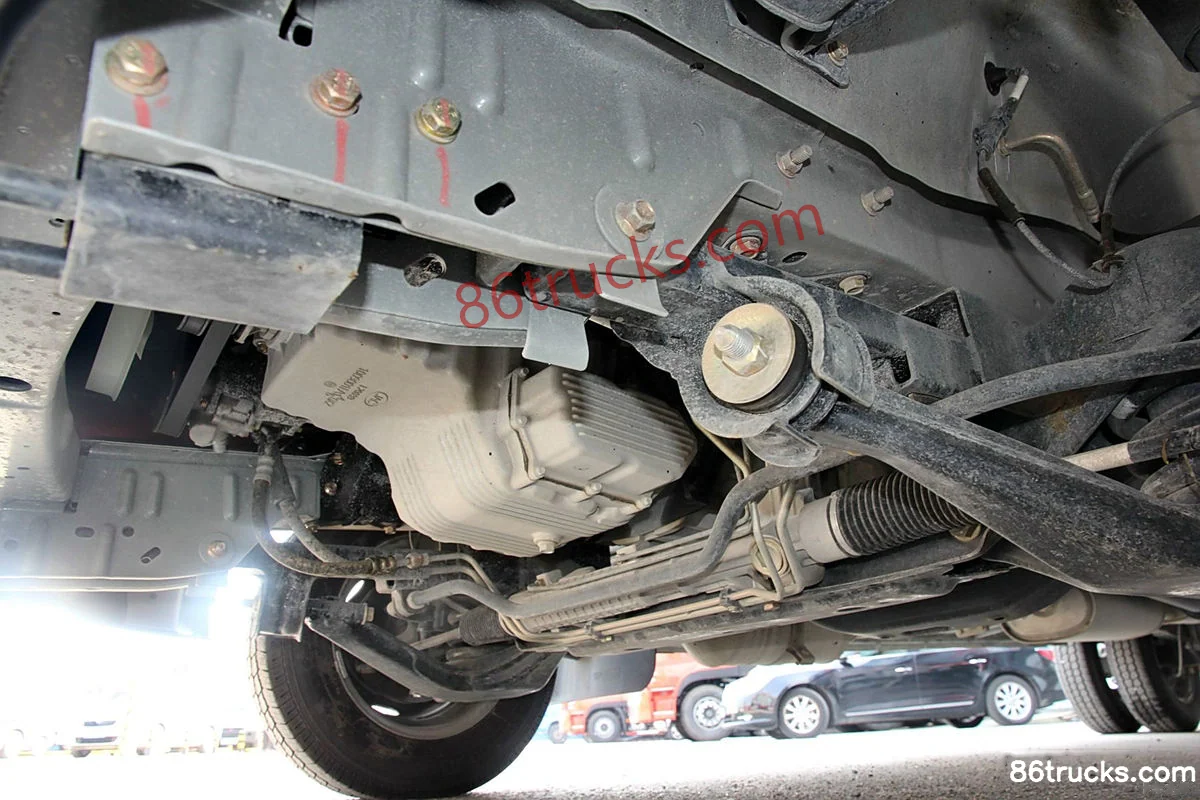

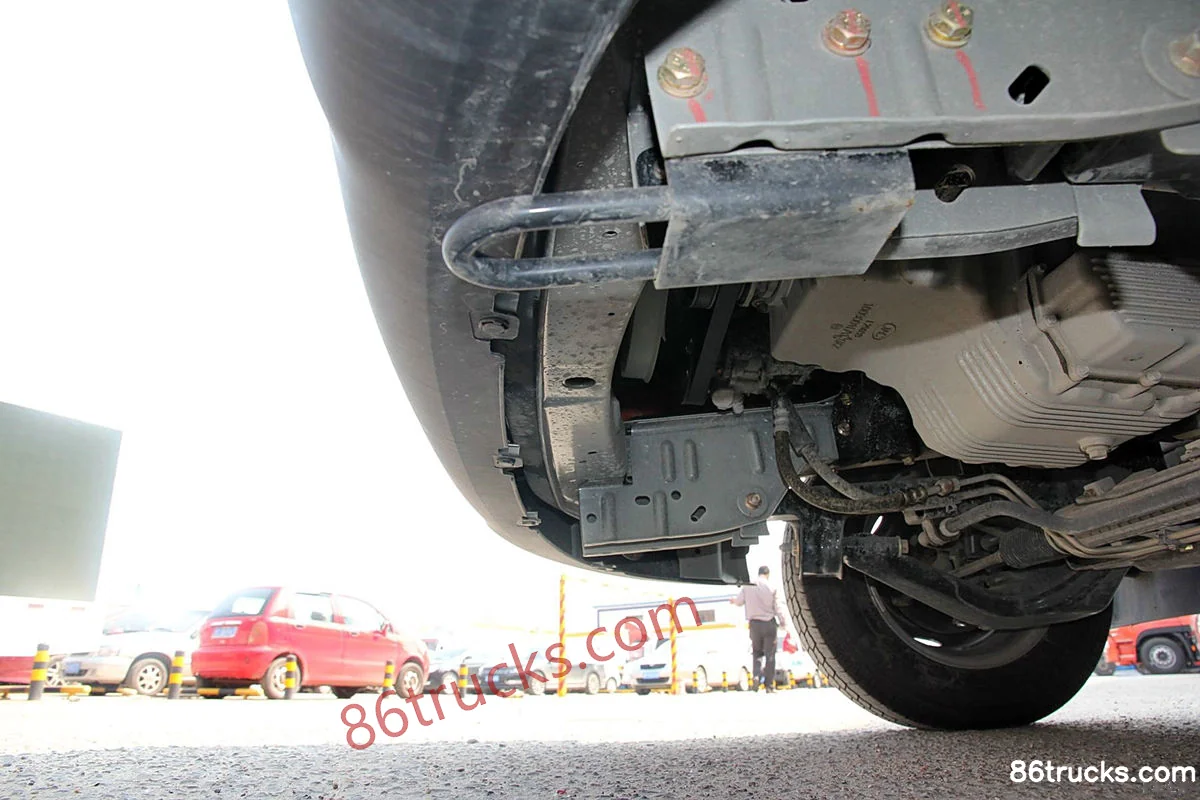

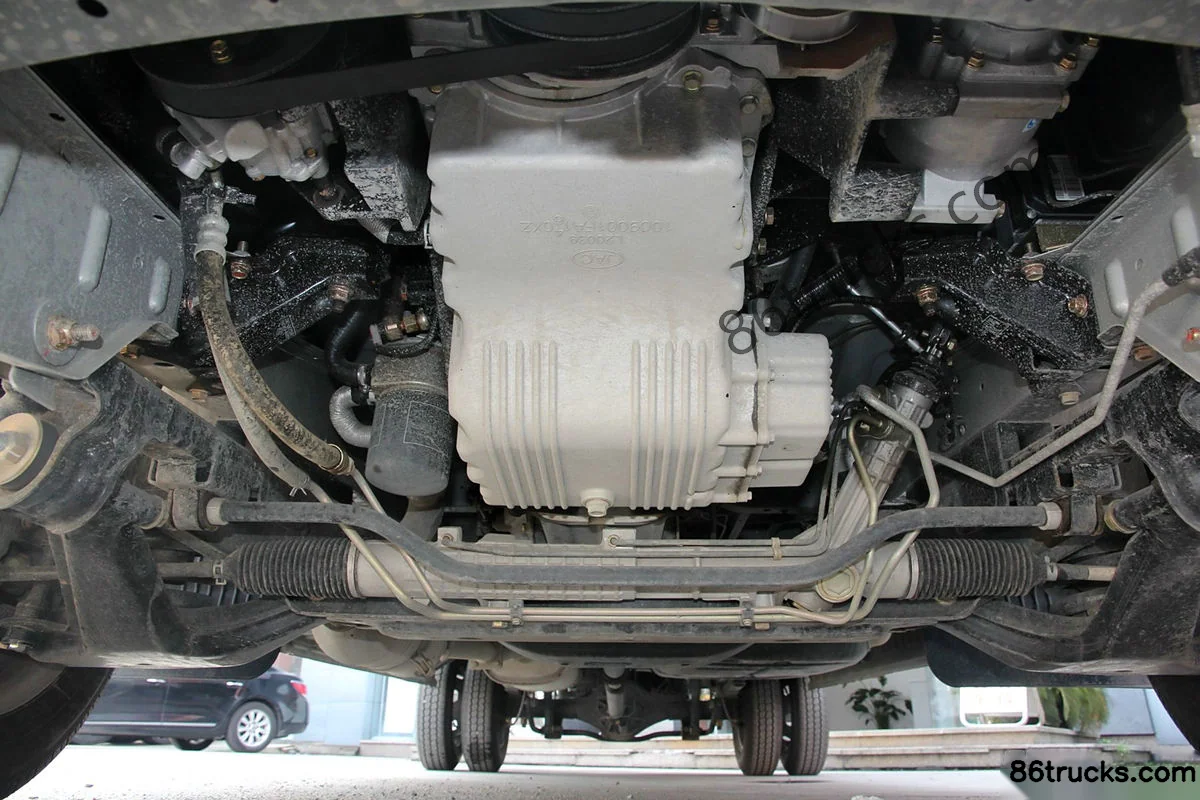

Chassis3

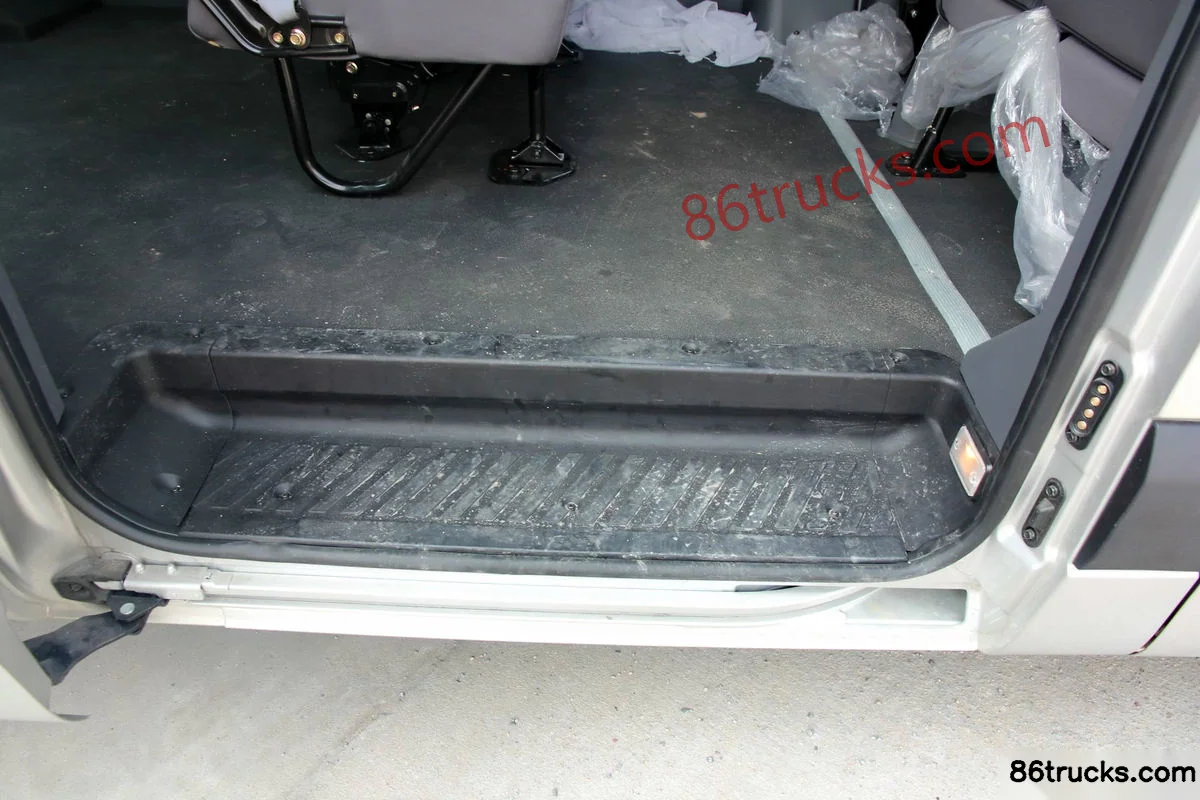

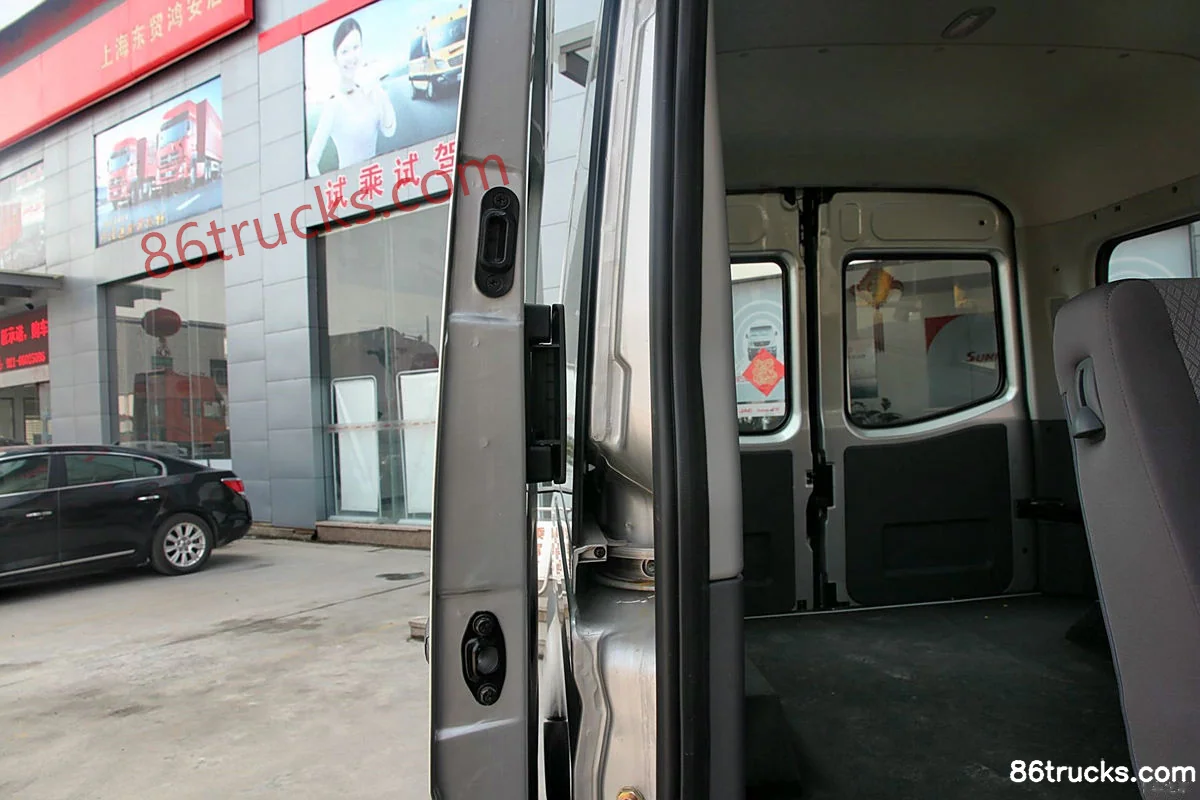

Cargo Box3

12 photos

FAQ

What is the export price of JAC Sunray 5 Series Star Express 120 hp 6-seat Panel Van, and what does it include?

JAC Sunray 5 Series Star Express 120 hp 6-seat Panel Van export reference is about From $21,917; MSRP is ¥15.78M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Sunray 5 Series Star Express 120 hp 6-seat Panel Van use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Sunray 5 Series Star Express 120 hp 6-seat Panel Van?

Key specs of JAC Sunray 5 Series Star Express 120 hp 6-seat Panel Van: Drive: rear-wheel drive; Horsepower: 120 hp; Emission: China IV; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Sunray 5 Series Star Express 120 hp 6-seat Panel Van suited for?

Match JAC Sunray 5 Series Star Express 120 hp 6-seat Panel Van to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does JAC Sunray 5 Series Star Express 120 hp 6-seat Panel Van differ from other variants in the same series?

JAC Sunray 5 Series Star Express 120 hp 6-seat Panel Van belongs to JAC Light Truck (Van/Light Bus). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Sunray 5 Series Star Express 120 hp 6-seat Panel Van?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Sunray 5 Series Star Express 120 hp 6-seat Panel Van?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
