Kama Kaijie M1 115hp 4X2(6 wheels) 3.83m Semi-row Flatbed Light Truck

Export reference
MSRP N/A
Horsepower: 115
Emission: China VI
Fuel: Diesel
Engine: Quanchai2.3L
Curb Weight:: 2.565ton
Wheelbase:: 3360mm

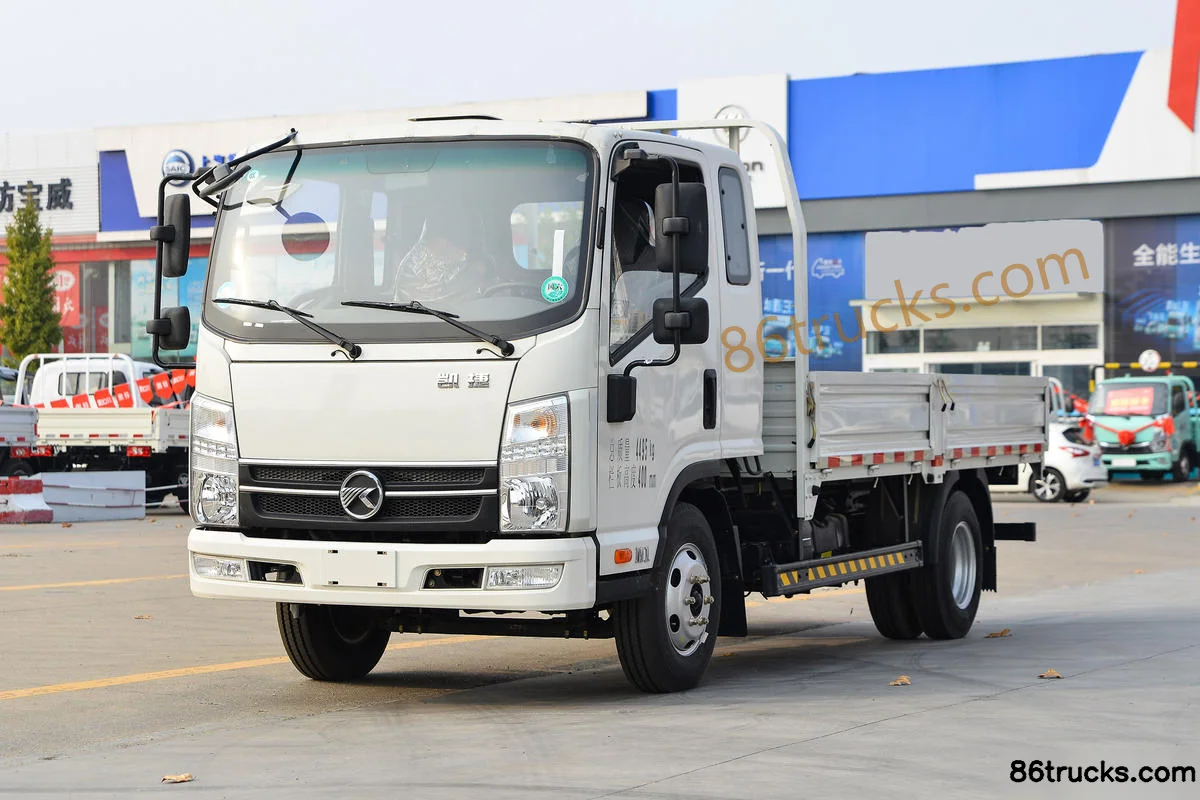

Kama Kaijie M1 115hp 4X2(6 wheels) 3.83m Semi-row Flatbed Light Truck exterior
View more photos (12)
seating capacity: 2Personnel
Rated payload: 1.8ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Kama Kaijie M1 115hp 4X2(6 wheels) 3.83m Semi-row Flatbed Light Truck is a Light Truck featuring 3.83m cargo length, stake body cargo body, 2Personnel volume and 1.8t payload. On the powertrain side, it comes with a Quanchai2.3L engine, 115 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 115 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): KMC1041Q306DP6
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 3.8m
engine: QuanchaiQ23-115E60
transmission: 5-speed gearbox
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.15m
Cab height: 2.38m
Front track width: 1530mm
rear track: 1490mm
Curb Weight: 2.565ton
Rated payload: 1.8ton
GVWR: 4.495ton
Max. speed: 100km/h
Origin: Shouguang, Shandong
tonnage class: Light Truck
Approach angle: 19°
departure angle: 19°
Front/rear suspension: 1.125/1.51m
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: QuanchaiQ23-115E60
Engine info: Quanchai2.3L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.3L
Emission standard: China VI
Max output power: 85kW
Max hp: 115Horsepower
Max torque: 320N·m
Max torque speed: 2000rpm
Rated speed: 3000rpm
Engine Type: Inline 4-cylinder, water-cooled, 4-stroke, turbocharged with intercooler, high-pressure common rail
Transmission Parameters
Transmission Model: 5-speed gearbox
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.83m
Cargo box width: 1.92m
Cargo box height: 0.4m
*Cargo box interior width: 1.92
Cab parameters
Cab width: 1760mm
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 1860kg
rear axle allowable load: 2635kg
Axle ratio: 4.875
Leaf spring count: 3/5+3
Tire
Tire Size: 7.00R16LT 8P
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Multimedia features
Bluetooth / hands-free calling:
Radio:
standard instrument cluster:
lighting configuration
Headlight height adjustment:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
smart configuration
Cruise control (CCS):

Photos

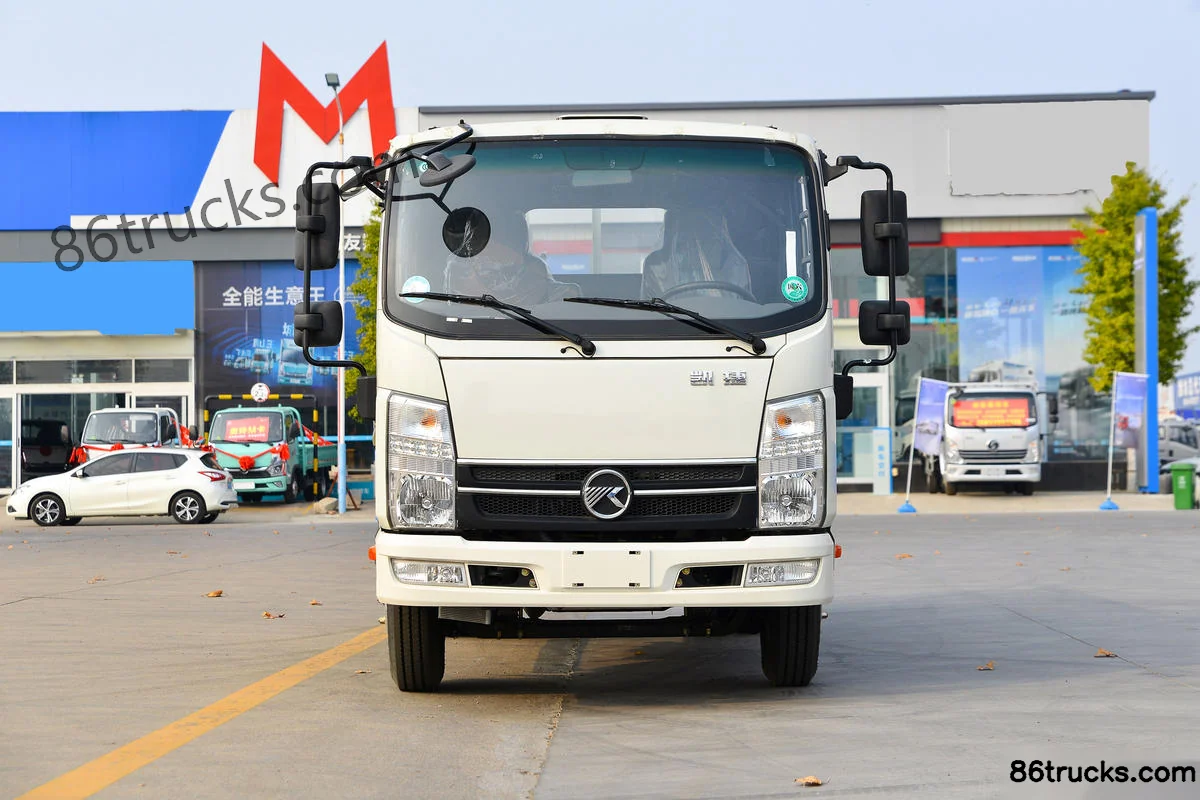

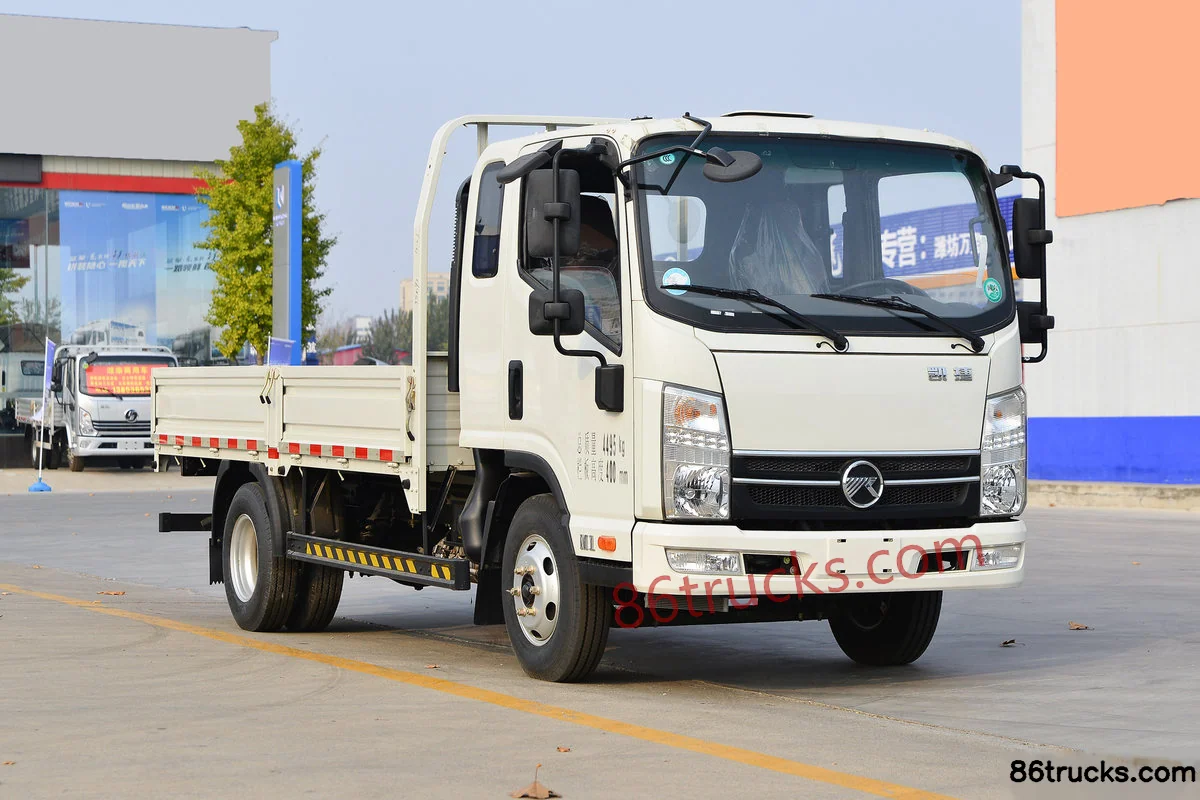

Exterior3

Kama Kaijie M1 115hp 4X2(6 wheels) 3.83m Semi-row Flatbed Light Truck Exterior (1) | 86Trucks Kama Kaijie M1 115hp 4X2(6 wheels) 3.83m Semi-row Flatbed Light Truck Exterior (2) | 86Trucks Kama Kaijie M1 115hp 4X2(6 wheels) 3.83m Semi-row Flatbed Light Truck Exterior (3) | 86Trucks

Cab3

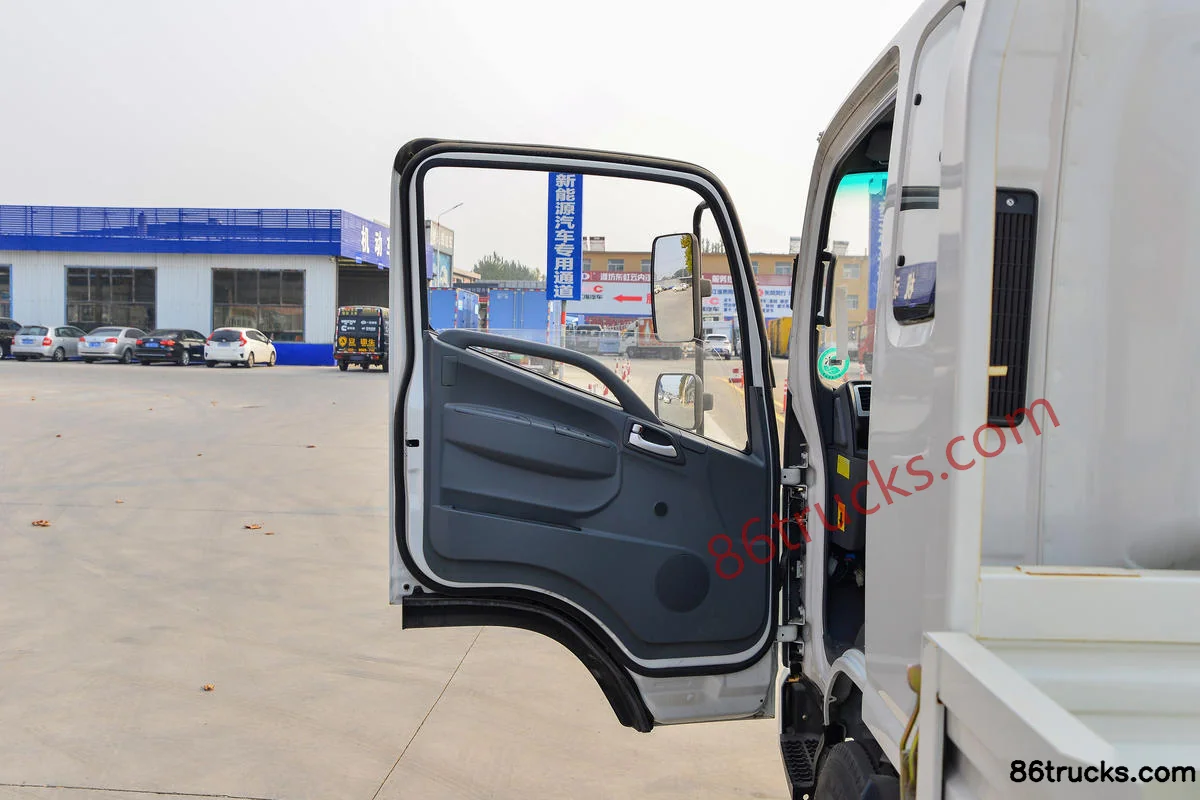

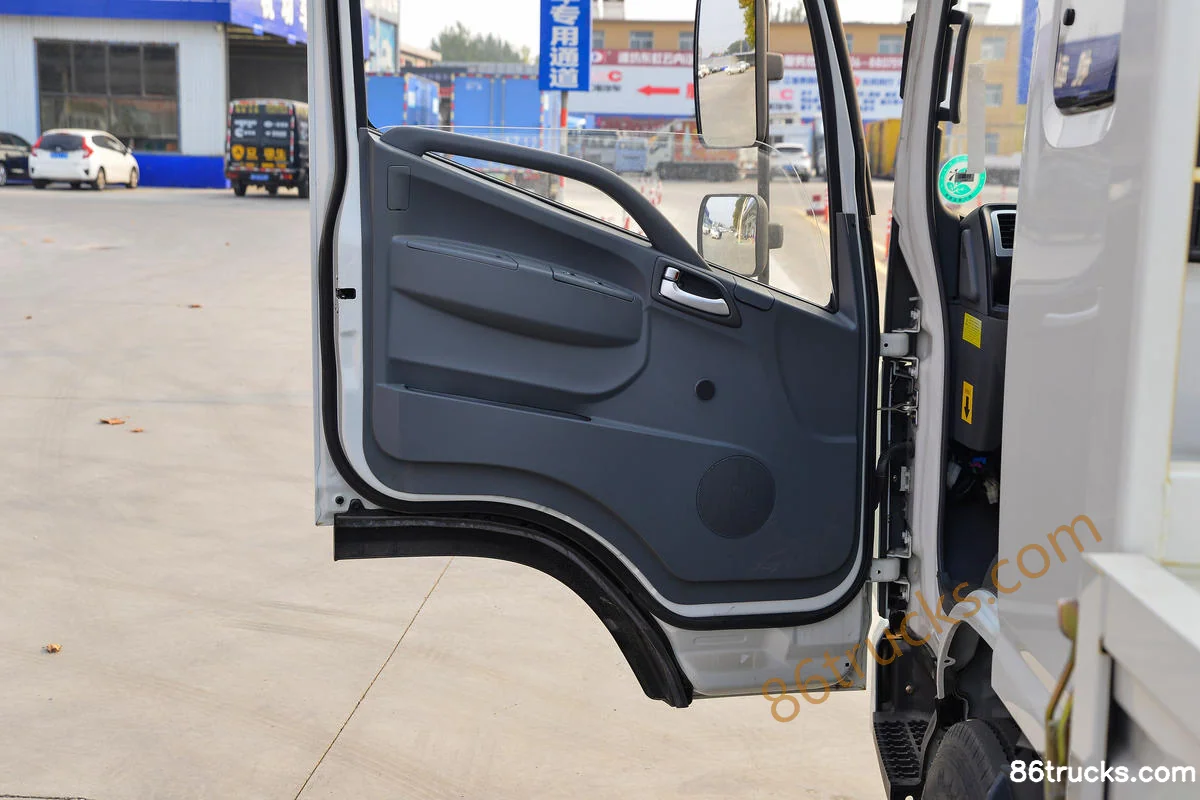

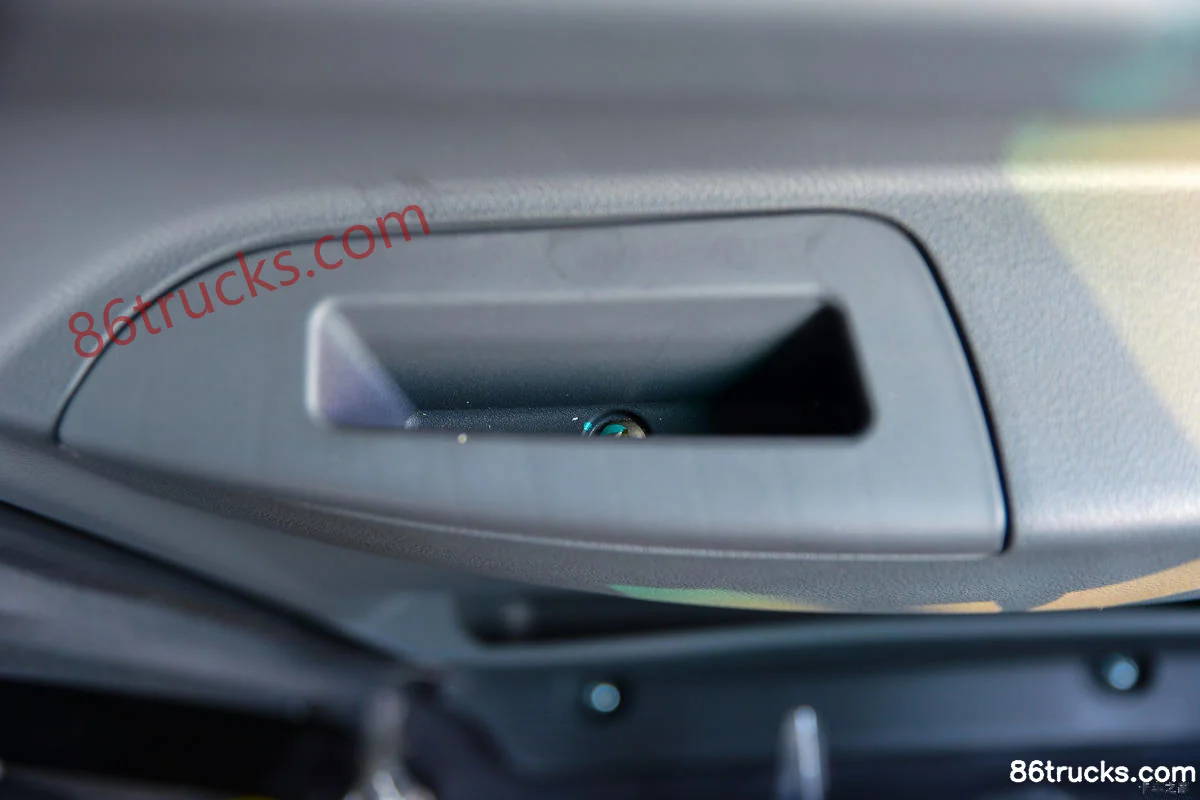

Kama Kaijie M1 115hp 4X2(6 wheels) 3.83m Semi-row Flatbed Light Truck Cab (1) | 86Trucks Kama Kaijie M1 115hp 4X2(6 wheels) 3.83m Semi-row Flatbed Light Truck Cab (2) | 86Trucks Kama Kaijie M1 115hp 4X2(6 wheels) 3.83m Semi-row Flatbed Light Truck Cab (3) | 86Trucks

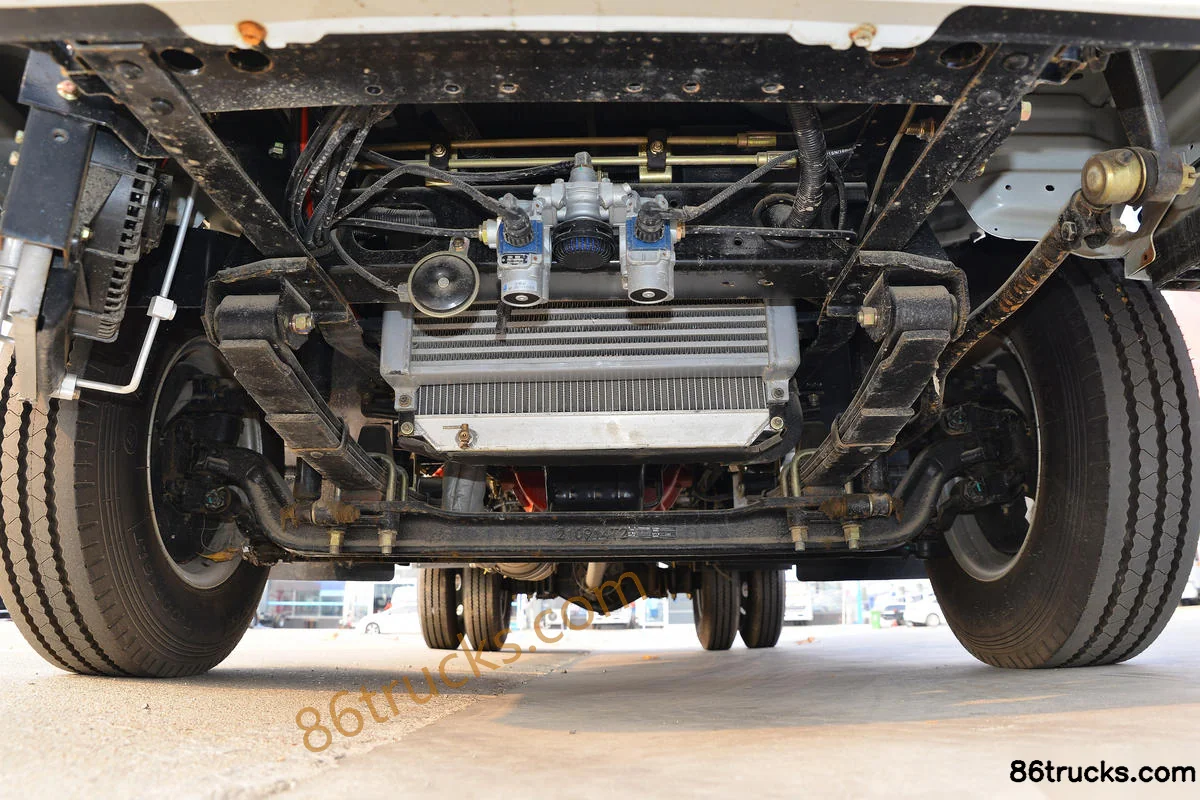

Chassis3

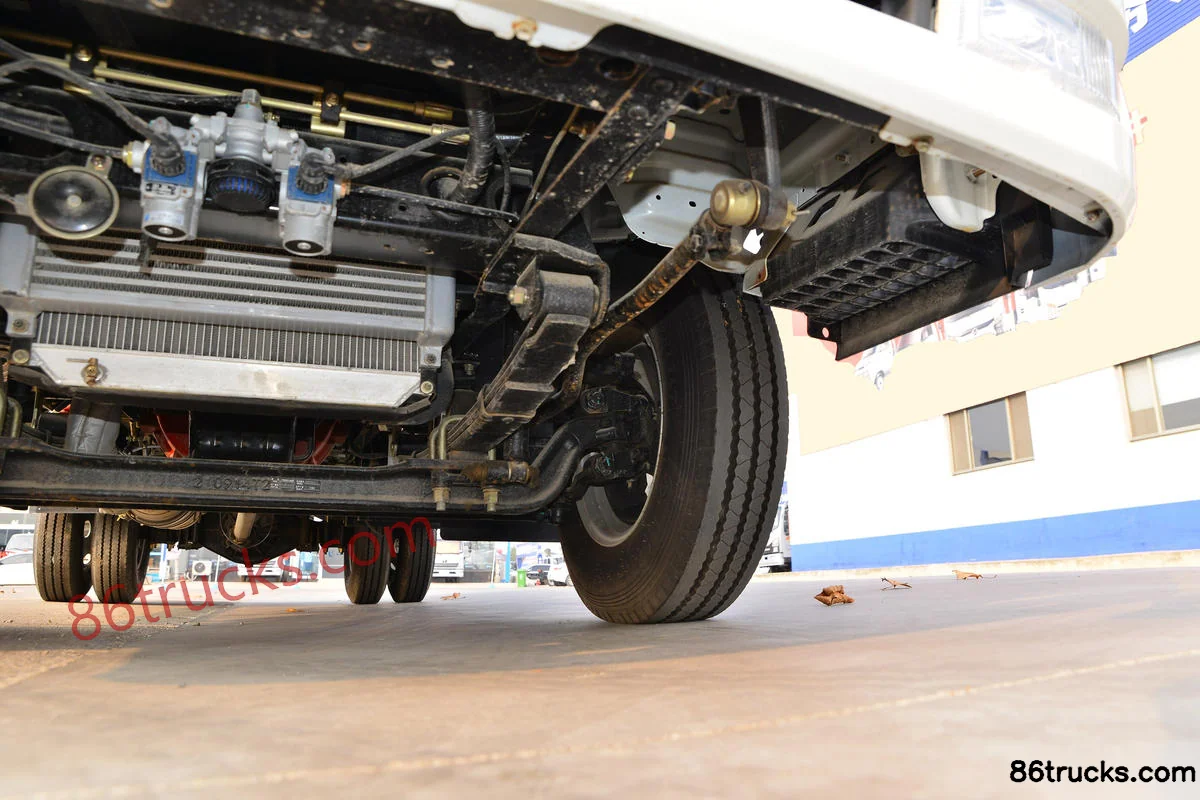

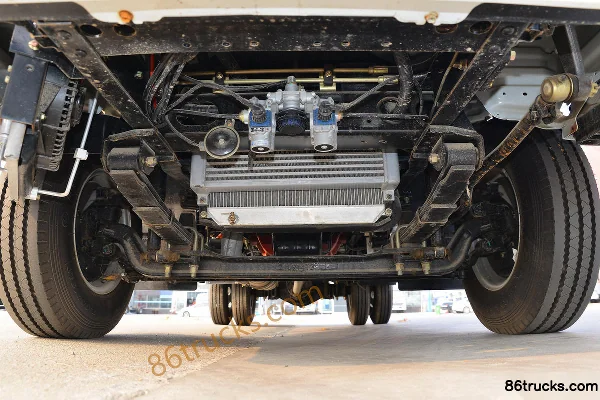

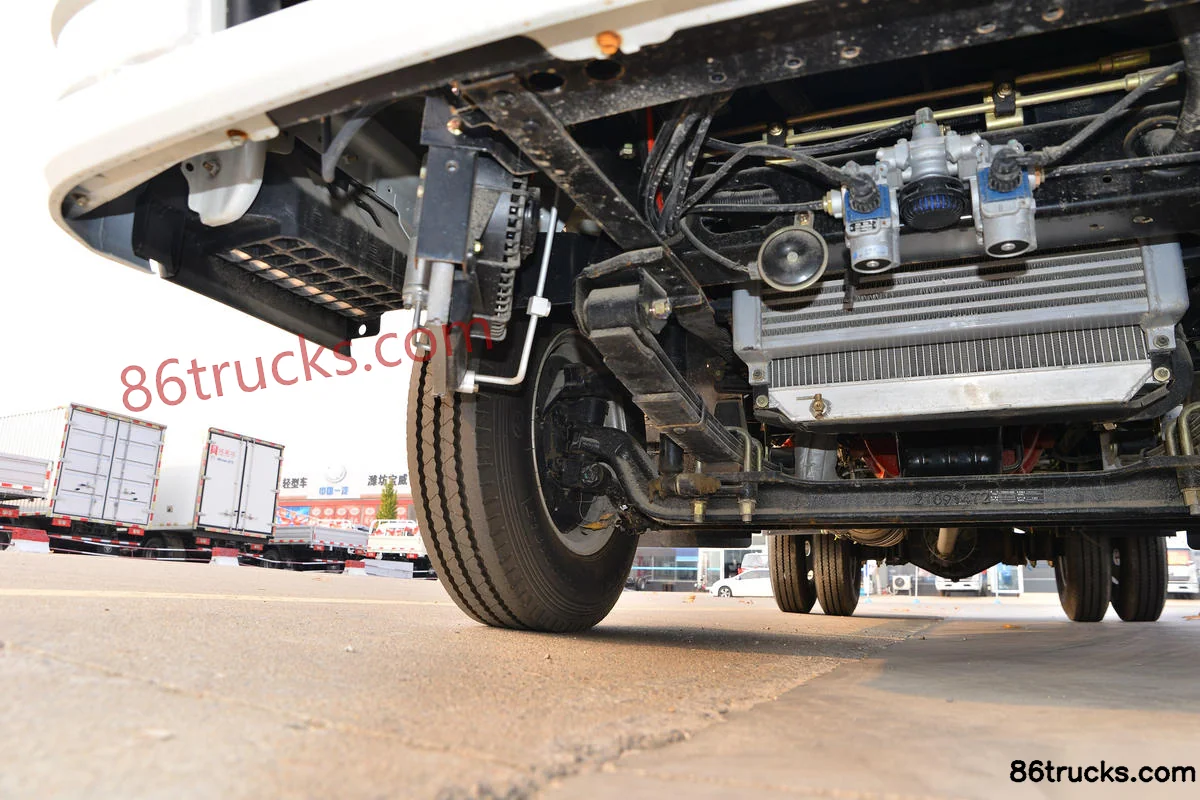

Kama Kaijie M1 115hp 4X2(6 wheels) 3.83m Semi-row Flatbed Light Truck Chassis (1) | 86Trucks Kama Kaijie M1 115hp 4X2(6 wheels) 3.83m Semi-row Flatbed Light Truck Chassis (2) | 86Trucks Kama Kaijie M1 115hp 4X2(6 wheels) 3.83m Semi-row Flatbed Light Truck Chassis (3) | 86Trucks

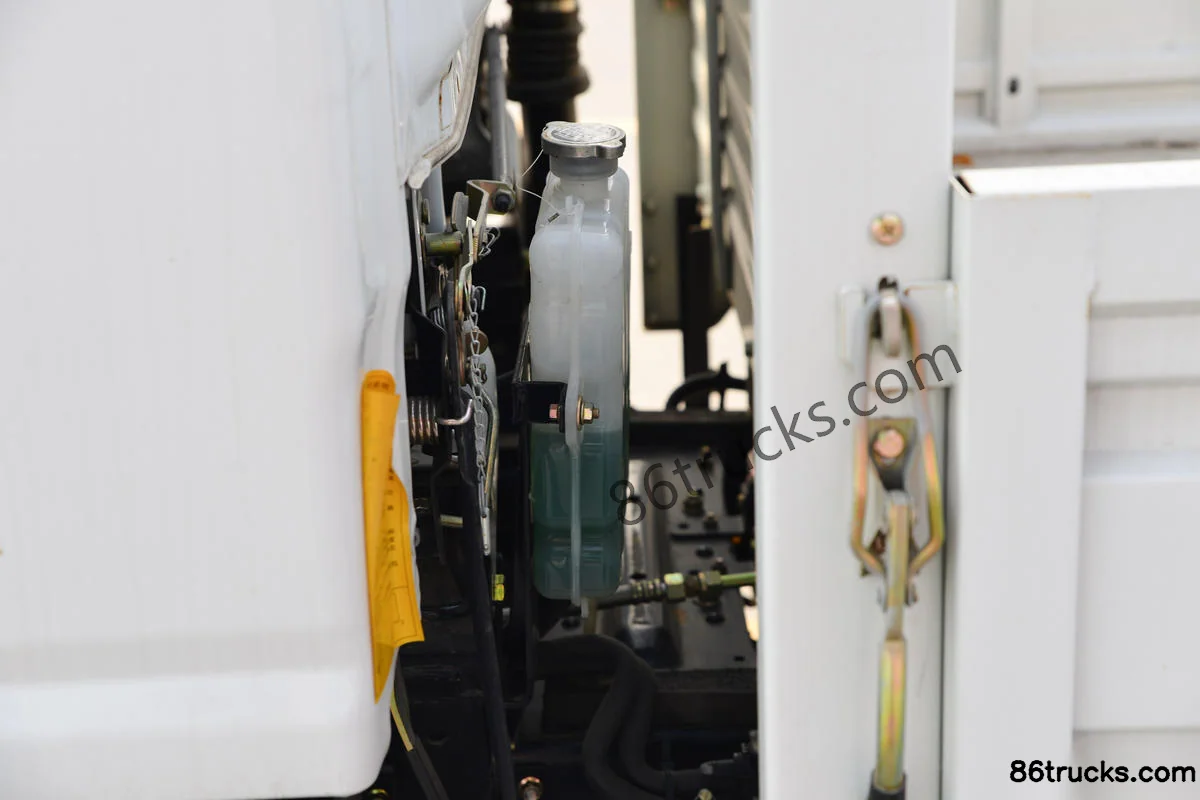

Body3

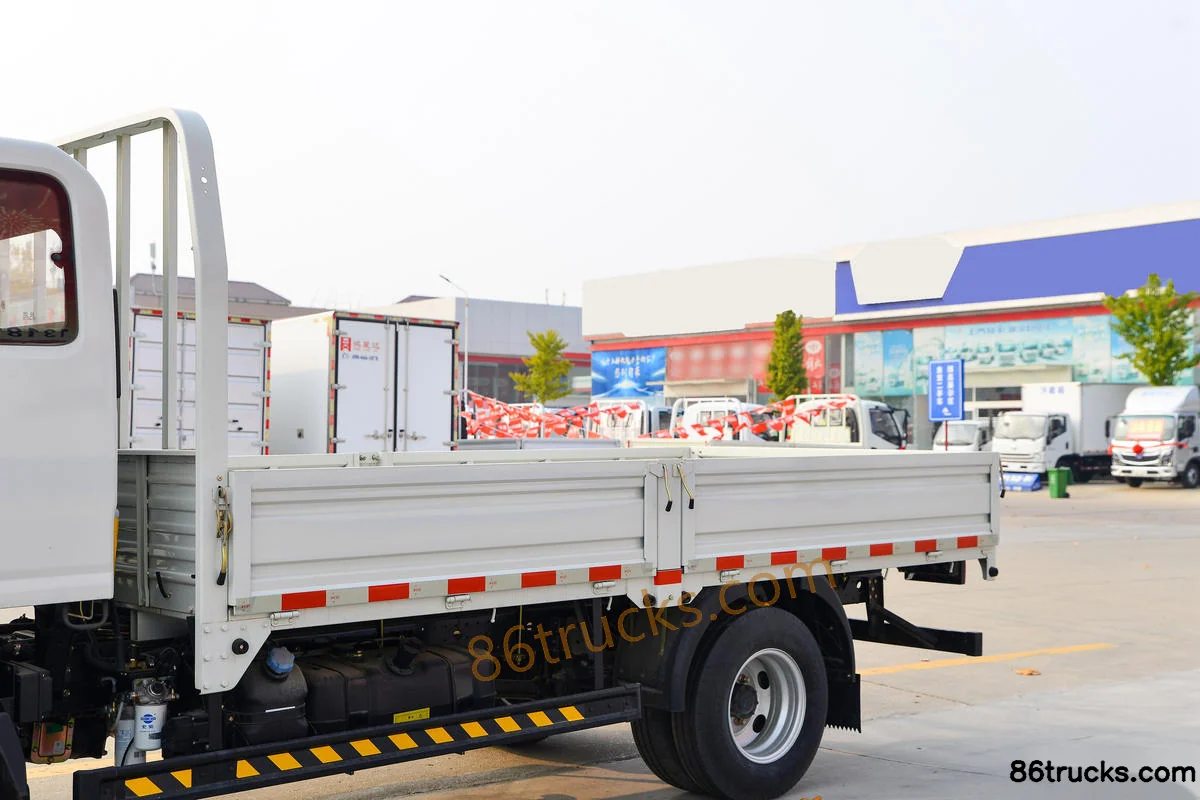

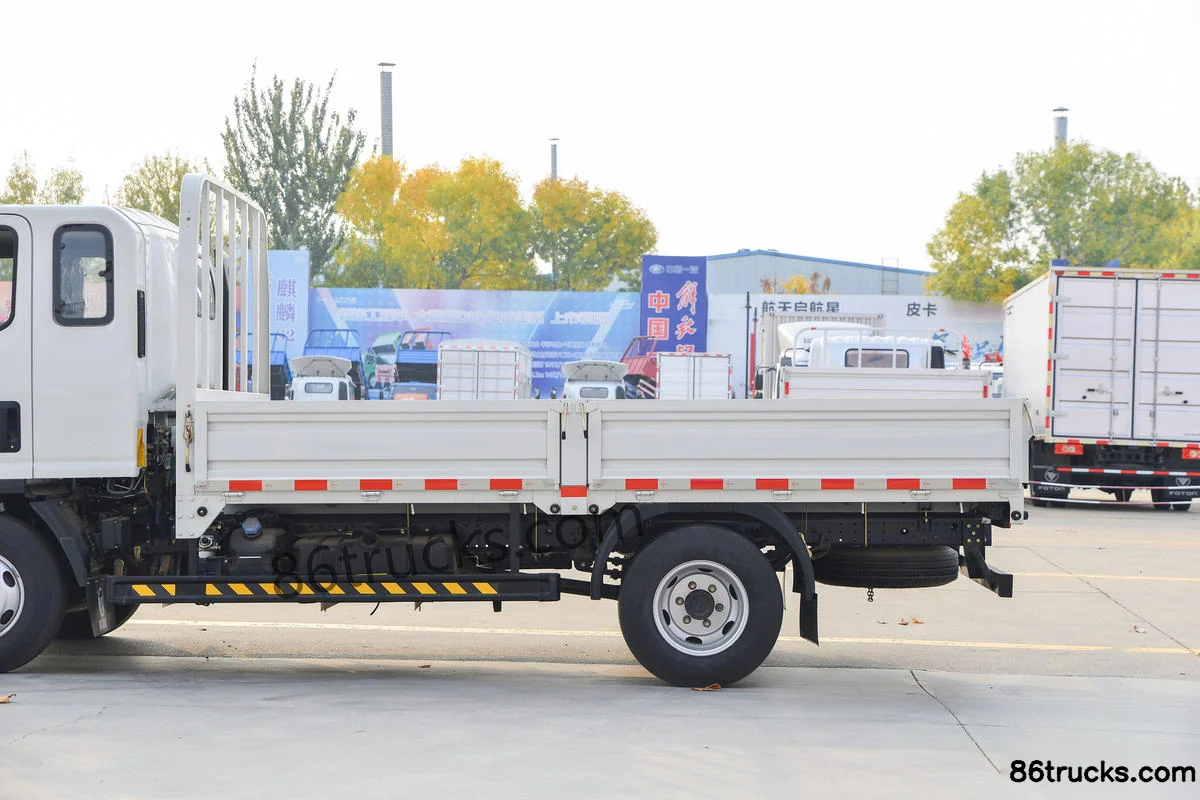

Kama Kaijie M1 115hp 4X2(6 wheels) 3.83m Semi-row Flatbed Light Truck Body (1) | 86Trucks Kama Kaijie M1 115hp 4X2(6 wheels) 3.83m Semi-row Flatbed Light Truck Body (2) | 86Trucks Kama Kaijie M1 115hp 4X2(6 wheels) 3.83m Semi-row Flatbed Light Truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does Kama Kaijie M1 115hp 4X2(6 wheels) 3.83m Semi-row Flatbed Light Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Kama Kaijie M1 115hp 4X2(6 wheels) 3.83m Semi-row Flatbed Light Truck?

Key specs of Kama Kaijie M1 115hp 4X2(6 wheels) 3.83m Semi-row Flatbed Light Truck: Drive: 4x2; Horsepower: 115 hp; Emission: China VI; Fuel: Diesel; Engine: Quanchai2.3L. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Kama Kaijie M1 115hp 4X2(6 wheels) 3.83m Semi-row Flatbed Light Truck suited for?

Kama Kaijie M1 115hp 4X2(6 wheels) 3.83m Semi-row Flatbed Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Kama Kaijie M1 115hp 4X2(6 wheels) 3.83m Semi-row Flatbed Light Truck differ from other variants in the same series?

Kama Kaijie M1 115hp 4X2(6 wheels) 3.83m Semi-row Flatbed Light Truck belongs to Kama Kaijie M1 light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kama Kaijie M1 115hp 4X2(6 wheels) 3.83m Semi-row Flatbed Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kama Kaijie M1 115hp 4X2(6 wheels) 3.83m Semi-row Flatbed Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
