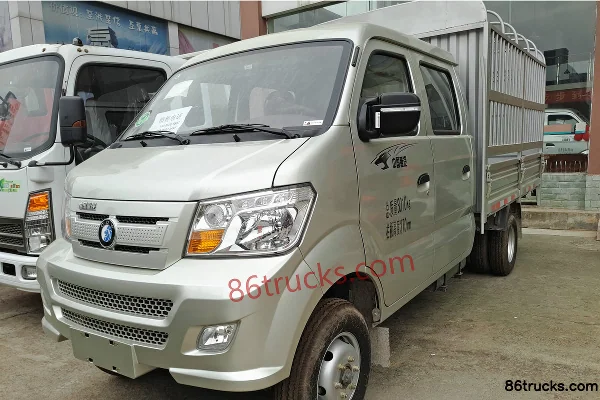

Sinotruk Wangpai W1 2.2L 112hp 4X2(6 wheels) Gasoline/CNG 2.45m Double Row Stake Mini Truck

Export reference
MSRP N/A
Horsepower: 112
Emission: China V
Fuel: Gasoline-CNG Dual Fuel
Engine: Xinchen Power2.2L
Transmission: Mengwo
Curb Weight:: 1.78ton
seating capacity: 5Personnel
Rated payload: 0.745ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Sinotruk Wangpai W1 2.2L 112hp 4X2(6 wheels) Gasoline/CNG 2.45m Double Row Stake Mini Truck is a mini truck featuring 2.45m cargo length, Stake type cargo body, 5Personnel volume and 0.745t payload. On the powertrain side, it comes with a Xinchen Power2.2L engine, 112 hp, 4X2 (6 wheels) drive and China V emissions.

China V 112 Gasoline-CNG Dual Fuel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CDW5030CCYS1M5D
Type: stake truck
Drive type: 4X2
Wheelbase: 3050mm
Box length class: 2.5m
engine: Xinchen PowerV22
transmission: MengwoMR78Q
Rear Axle Ratio: 5.375
Cab length: 5.4m
Cab width: 1.75m
Cab height: 2.42m
Front track width: 1410mm
rear track: 1420mm
Curb Weight: 1.78ton
Rated payload: 0.745ton
GVWR: 2.85ton
Max. speed: 100km/h
Origin: Chengdu, Sichuan
tonnage class: mini truck
Approach angle: 38°
departure angle: 15°
Front/rear suspension: 0.69/1.66m
Version: 2012 model
Energy Type: Gasoline-CNG Dual Fuel
Engine parameters
Engine Brand: Xinchen Power
Engine Model: Xinchen PowerV22
Engine info: Xinchen Power2.2L
Number of cylinders: 4cylinder
fuel type: Gasoline-CNG Dual Fuel
Cylinder arrangement: Inline
Displacement: 2.237L
Emission standard: China V
Max output power: 82kW
Max hp: 112Horsepower
Transmission Parameters
Transmission Model: MengwoMR78Q
Transmission Brand: Mengwo
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 2.45m
Cargo box width: 1.65m
Cargo box height: 1.7m
*Cargo box interior width: 1.65
Cab parameters
seating capacity: 5Personnel
Seat rows: Double cab
Chassis Specs
Front axle allowable load: 1400kg
Frame Dimensions: 140×5-700mm
rear axle allowable load: 1450kg
Axle ratio: 5.375
Leaf spring count: 5/7
Tire
Tire Size: 6.00-14LT 10PR
Number of tires: 4pcs
Service brake
Brake Type: Hydraulic brake

Photos

0 photos

FAQ

What emission standard does Sinotruk Wangpai W1 2.2L 112hp 4X2(6 wheels) Gasoline/CNG 2.45m Double Row Stake Mini Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Wangpai W1 2.2L 112hp 4X2(6 wheels) Gasoline/CNG 2.45m Double Row Stake Mini Truck?

Key specs of Sinotruk Wangpai W1 2.2L 112hp 4X2(6 wheels) Gasoline/CNG 2.45m Double Row Stake Mini Truck: Drive: 4x2; Horsepower: 112 hp; Emission: China V; Fuel: Gasoline-CNG Dual Fuel; Engine: Xinchen Power2.2L; Transmission: Mengwo. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Wangpai W1 2.2L 112hp 4X2(6 wheels) Gasoline/CNG 2.45m Double Row Stake Mini Truck suited for?

Sinotruk Wangpai W1 2.2L 112hp 4X2(6 wheels) Gasoline/CNG 2.45m Double Row Stake Mini Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk Wangpai W1 2.2L 112hp 4X2(6 wheels) Gasoline/CNG 2.45m Double Row Stake Mini Truck differ from other variants in the same series?

Sinotruk Wangpai W1 2.2L 112hp 4X2(6 wheels) Gasoline/CNG 2.45m Double Row Stake Mini Truck belongs to Sinotruk Wangpai W1 micro truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Wangpai W1 2.2L 112hp 4X2(6 wheels) Gasoline/CNG 2.45m Double Row Stake Mini Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Wangpai W1 2.2L 112hp 4X2(6 wheels) Gasoline/CNG 2.45m Double Row Stake Mini Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
