Kama Fuyunlai 1.6L 57 hp 4X2(6 wheels) Diesel 2.9m Single Row Stake Truck Mini Truck

Export reference
MSRP N/A
Horsepower: 57
Emission: China III / Euro III
Fuel: Diesel
Engine: Laidong 485
Curb Weight:: 1.13ton
Wheelbase:: 2560mm

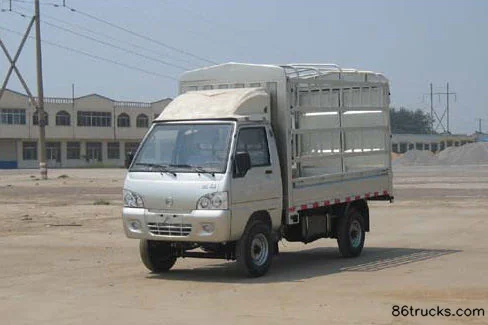

Kama Fuyunlai 1.6L 57 hp 4X2(6 wheels) Diesel 2.9m Single Row Stake Truck Mini Truck exterior
View more photos (1)
seating capacity: 2Personnel
Rated payload: 0.495ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Kama Fuyunlai 1.6L 57 hp 4X2(6 wheels) Diesel 2.9m Single Row Stake Truck Mini Truck is a Light Truck featuring 2.9m cargo length, Stake type cargo body, 2Personnel volume and 0.495t payload. On the powertrain side, it comes with a Laidong 485 engine, 57 hp, 4X2 (6 wheels) drive and China III / Euro III emissions.

China III / Euro III 57 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): KMC5020D3CS
Type: stake truck
Drive type: 4X2
Wheelbase: 2560mm
Box length class: 2.9m
engine: Huayuan Laidong3L16CR
Cab length: 4.52m
Cab width: 1.615m
Cab height: 2.58m
Front track width: 1335mm
rear track: 1335mm
Curb Weight: 1.13ton
Rated payload: 0.495ton
GVWR: 1.755ton
Max. speed: 86km/h
Origin: Shouguang, Shandong
tonnage class: Light Truck
Approach angle: 35°
departure angle: 25°
Remarks: Cargo floor to roof height: 1750mm; optional air deflector. Without OBD. Micro truck 385 four-wheel. Batch 222: wheelbase and track width extended per chassis; also extends 2011 front lamps, cargo box, and chrome grille.
Front/rear suspension: 0.79/1.17m
Energy Type: Diesel
Engine parameters
Engine Brand: Huayuan Laidong
Engine Model: Huayuan Laidong3L16CR
Engine info: Laidong 485
fuel type: Diesel
Displacement: 1.617L
Emission standard: China III / Euro III
Max output power: 42kW
Max hp: 57Horsepower
Max torque: 130N·m
Max torque speed: 2200rpm
Rated speed: 3600rpm
Engine Type: Inline
Transmission Parameters
shift method: Manual
Forward gears: 5Gear
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 2.9m
Cargo box width: 1.5m
Cargo box height: 0.32m
*Cargo box interior width: 1.5
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Leaf spring count: 5/4
Tire
Tire Size: 5.50-13
Number of tires: 4pcs

Photos

Exterior1

Kama Fuyunlai 1.6L 57 hp 4X2(6 wheels) Diesel 2.9m Single Row Stake Truck Mini Truck Exterior (1) | 86Trucks

1 photos

FAQ

What emission standard does Kama Fuyunlai 1.6L 57 hp 4X2(6 wheels) Diesel 2.9m Single Row Stake Truck Mini Truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Kama Fuyunlai 1.6L 57 hp 4X2(6 wheels) Diesel 2.9m Single Row Stake Truck Mini Truck?

Key specs of Kama Fuyunlai 1.6L 57 hp 4X2(6 wheels) Diesel 2.9m Single Row Stake Truck Mini Truck: Drive: 4x2; Horsepower: 57 hp; Emission: China III / Euro III; Fuel: Diesel; Engine: Laidong 485. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Kama Fuyunlai 1.6L 57 hp 4X2(6 wheels) Diesel 2.9m Single Row Stake Truck Mini Truck suited for?

Kama Fuyunlai 1.6L 57 hp 4X2(6 wheels) Diesel 2.9m Single Row Stake Truck Mini Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Kama Fuyunlai 1.6L 57 hp 4X2(6 wheels) Diesel 2.9m Single Row Stake Truck Mini Truck differ from other variants in the same series?

Kama Fuyunlai 1.6L 57 hp 4X2(6 wheels) Diesel 2.9m Single Row Stake Truck Mini Truck belongs to Kama K8 light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kama Fuyunlai 1.6L 57 hp 4X2(6 wheels) Diesel 2.9m Single Row Stake Truck Mini Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kama Fuyunlai 1.6L 57 hp 4X2(6 wheels) Diesel 2.9m Single Row Stake Truck Mini Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
