JAC Gallop K5L Medium Truck 240 hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck

Export reference
MSRP N/A
Horsepower: 240
Emission: China V
Fuel: Diesel
Engine: Yuchai6.9L
Transmission: Fast Gear
Curb Weight:: 7.85ton
seating capacity: 3Personnel
Rated payload: 9.955ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The JAC Gallop K5L Medium Truck 240 hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck is a Medium-duty truck featuring 6.8m cargo length, stake body cargo body, 3Personnel volume and 9.955t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Yuchai6.9L engine, 240 hp, 4X2 (6 wheels) drive and China V emissions.

China V 240 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC1181P3K2A50S2HV
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 5000mm
Box length class: 6.8m
engine: YuchaiYC6JA240-50
transmission: Fast Gear8JS105A
Rear Axle Ratio: 4.875
Cab length: 9m
Cab width: 2.55m
Cab height: 3.14m
Front track width: 1800mm
rear track: 1800mm
Curb Weight: 7.85ton
Rated payload: 9.955ton
GVWR: 18ton
Max. speed: 100km/h
Origin: Hefei, Anhui
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle: 10°
market segment: Building materials, agricultural products
Remarks: Optional ratio 5.286
Front/rear suspension: 1.4/2.6m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6JA240-50
Engine info: Yuchai6.9L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.87L
Emission standard: China V
Max output power: 177kW
Max hp: 240Horsepower
Max torque: 950N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear8JS105A
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 6.8m
Cargo box width: 2.4m
Cargo box height: 0.6m
*Cargo box interior width: 2.4000000953674
Cab parameters
Cab: K5L semi-high roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank capacity: 300L
Chassis Specs
Front axle allowable load: 6500kg
Frame Dimensions: 245×75×7mm
rear axle description: 9T rear axle
rear axle allowable load: 11500kg
Axle ratio: 4.875
Leaf spring count: 9/9+7
Tire
Tire Size: 10.00R20
Number of tires: 6pcs
Control configuration
ABS:

Photos

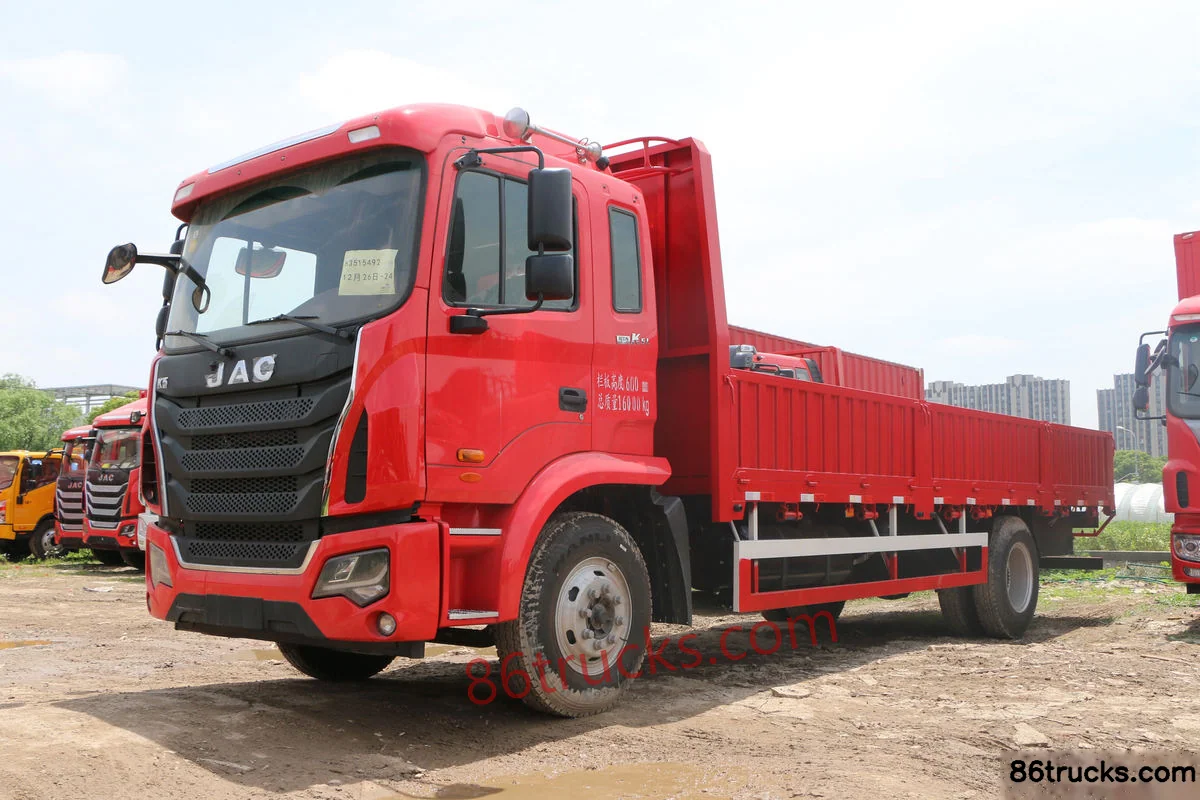

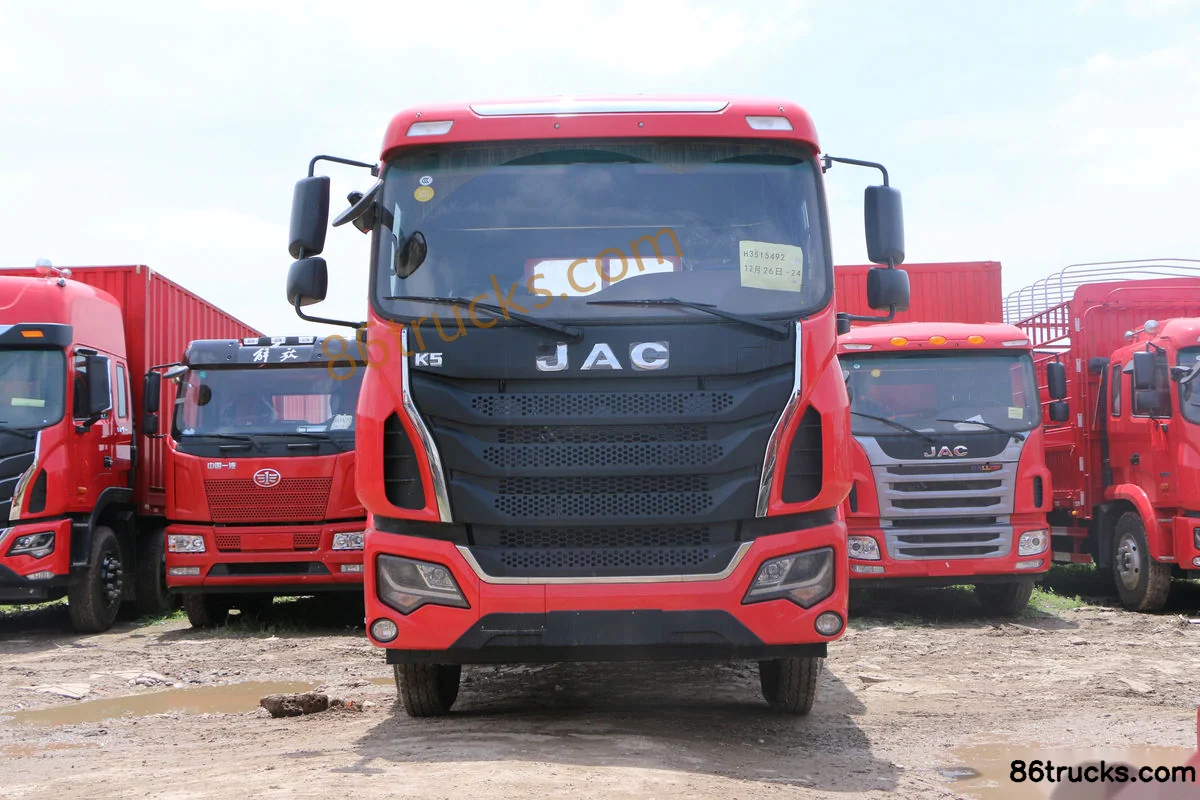

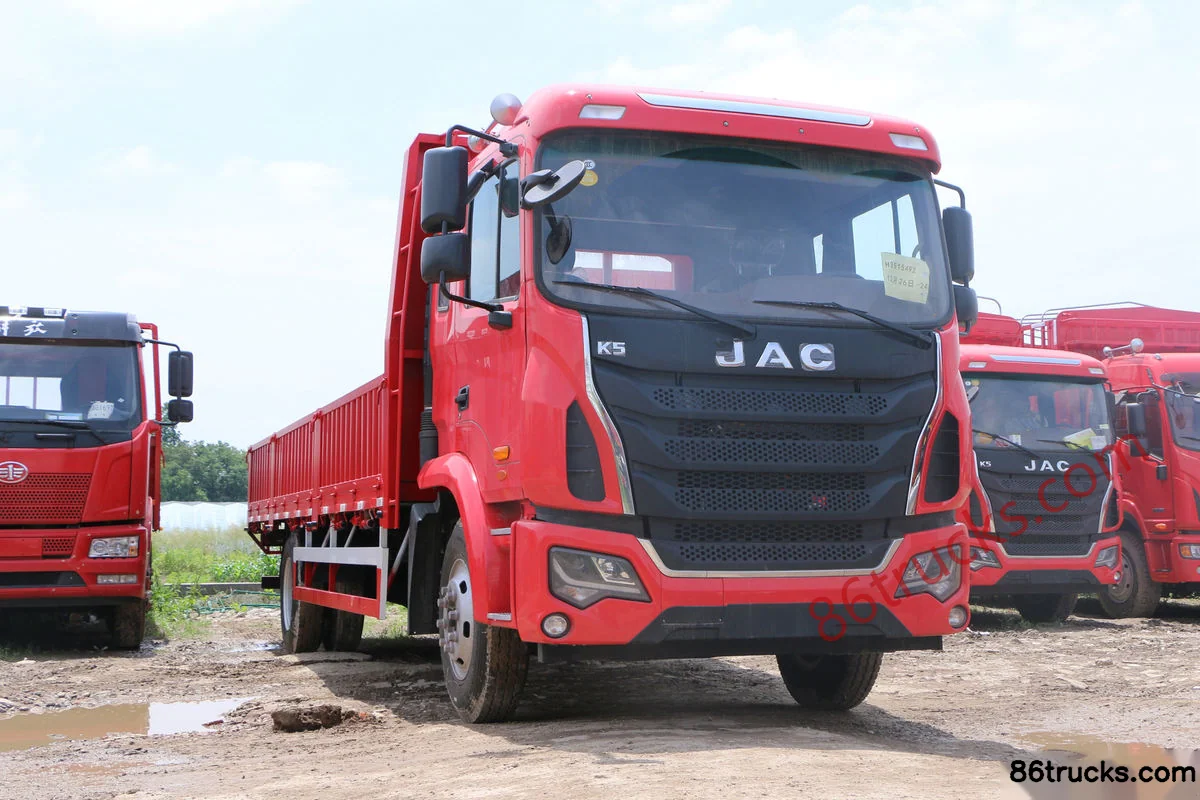

Exterior3

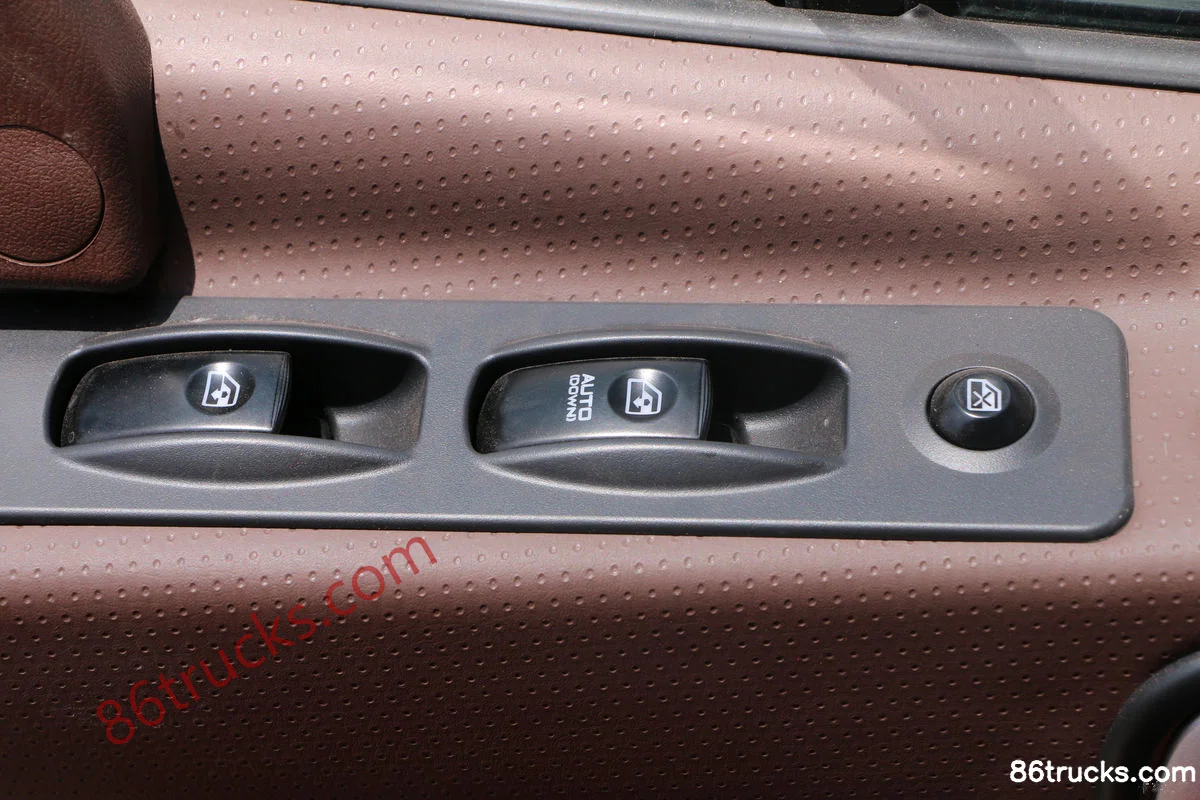

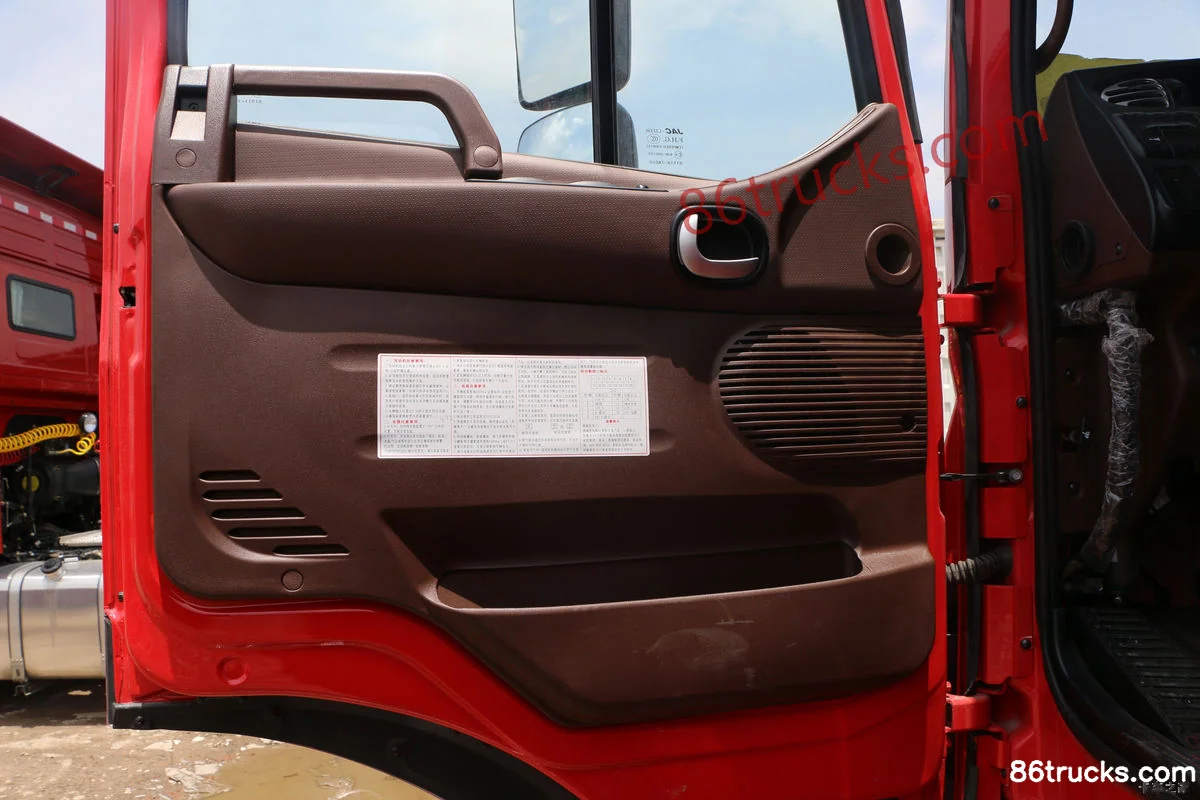

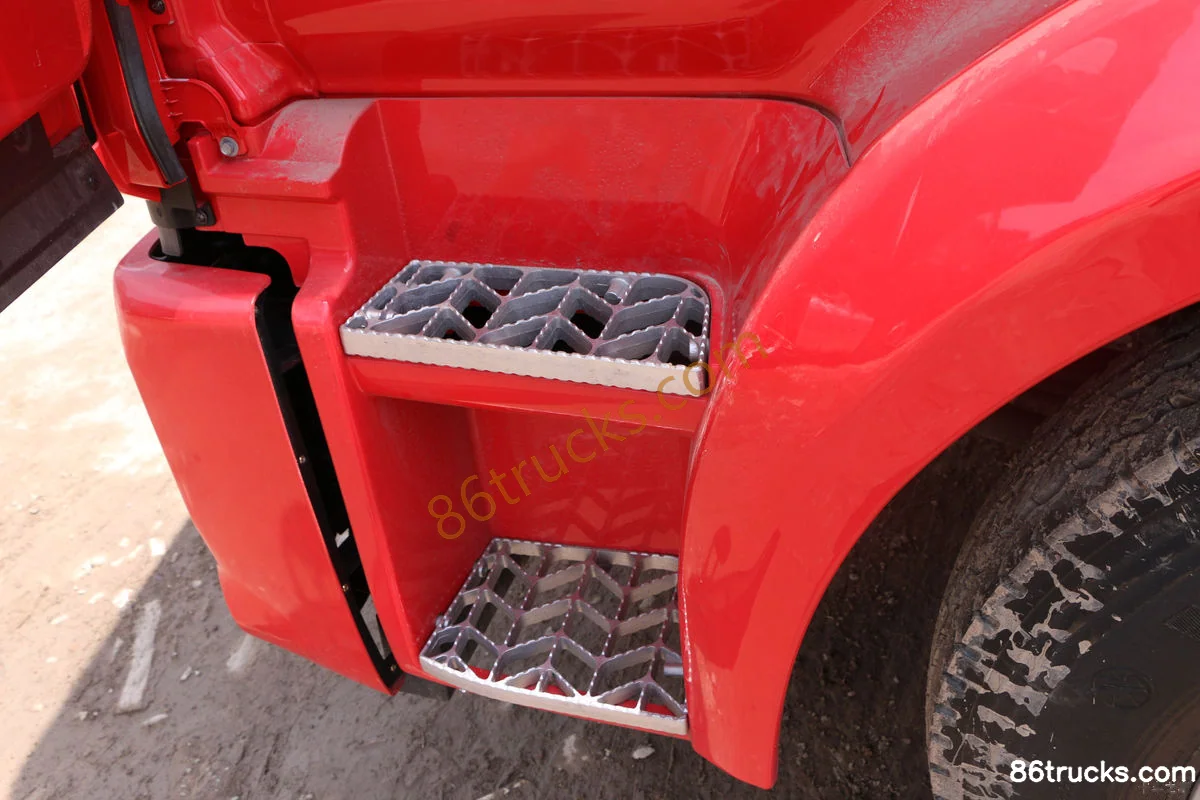

Cab3

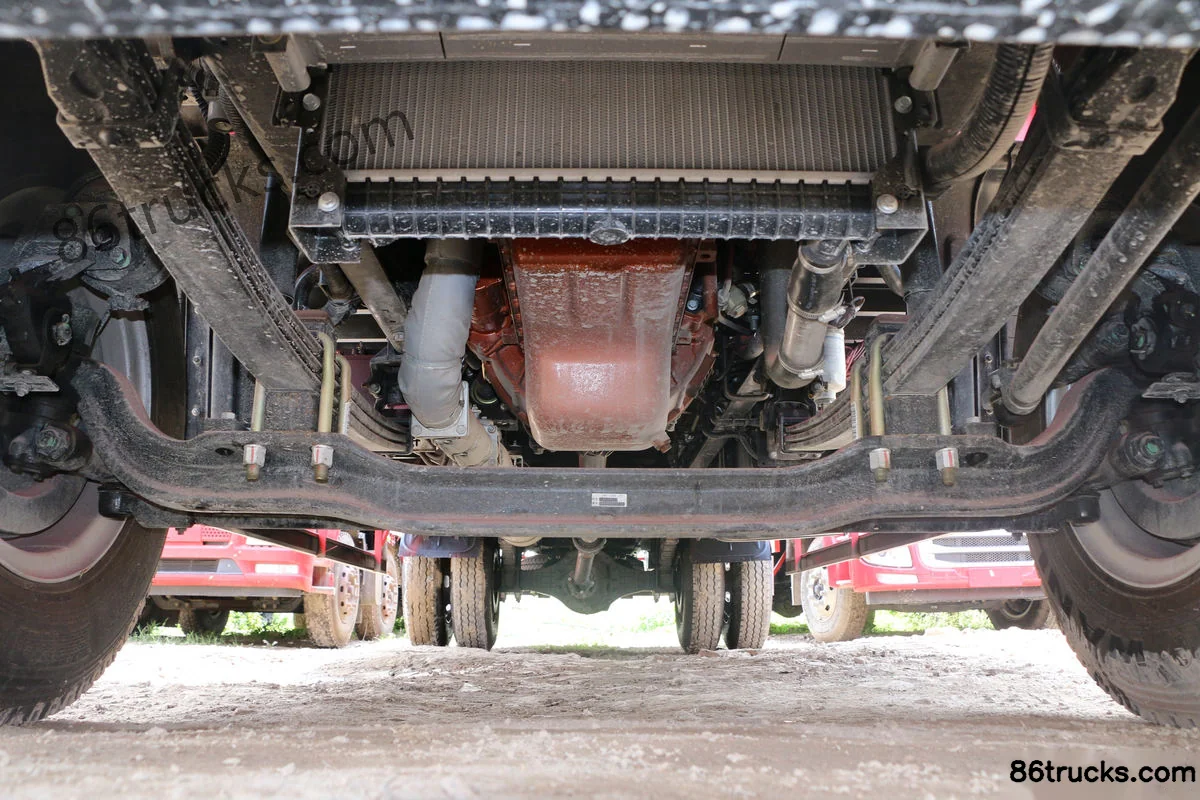

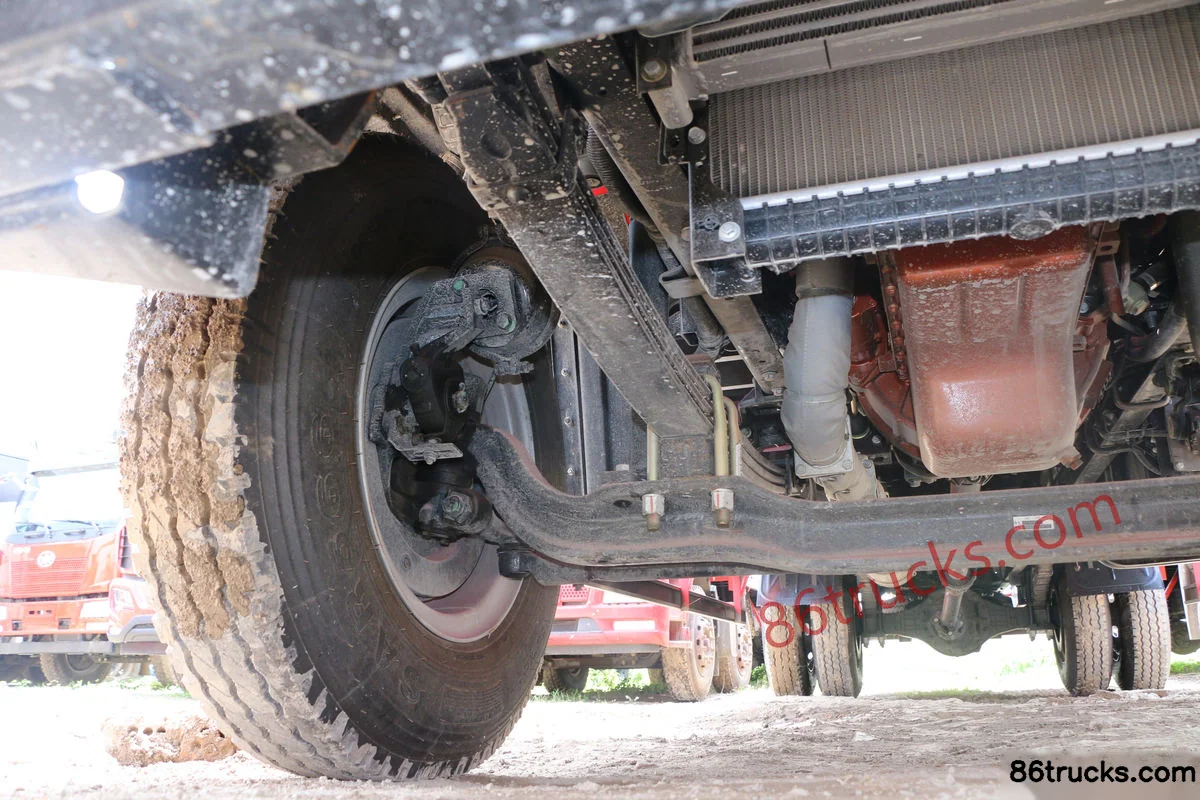

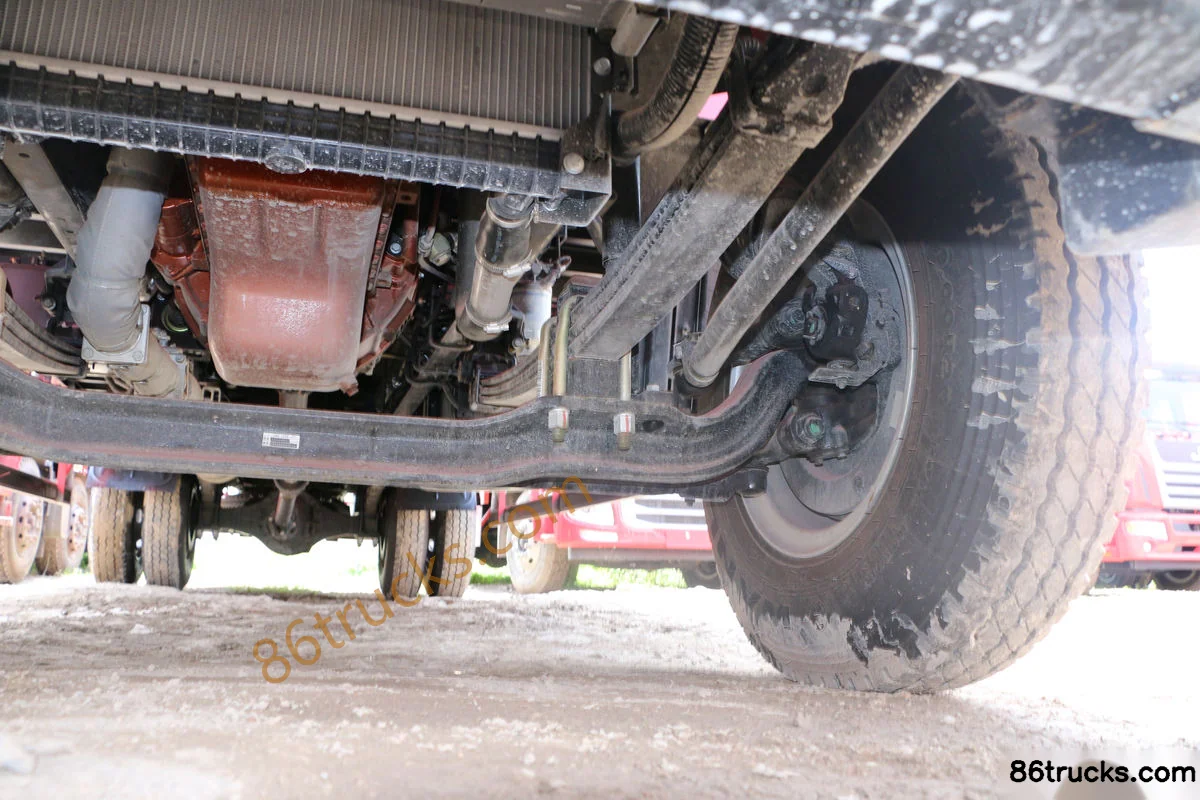

Chassis3

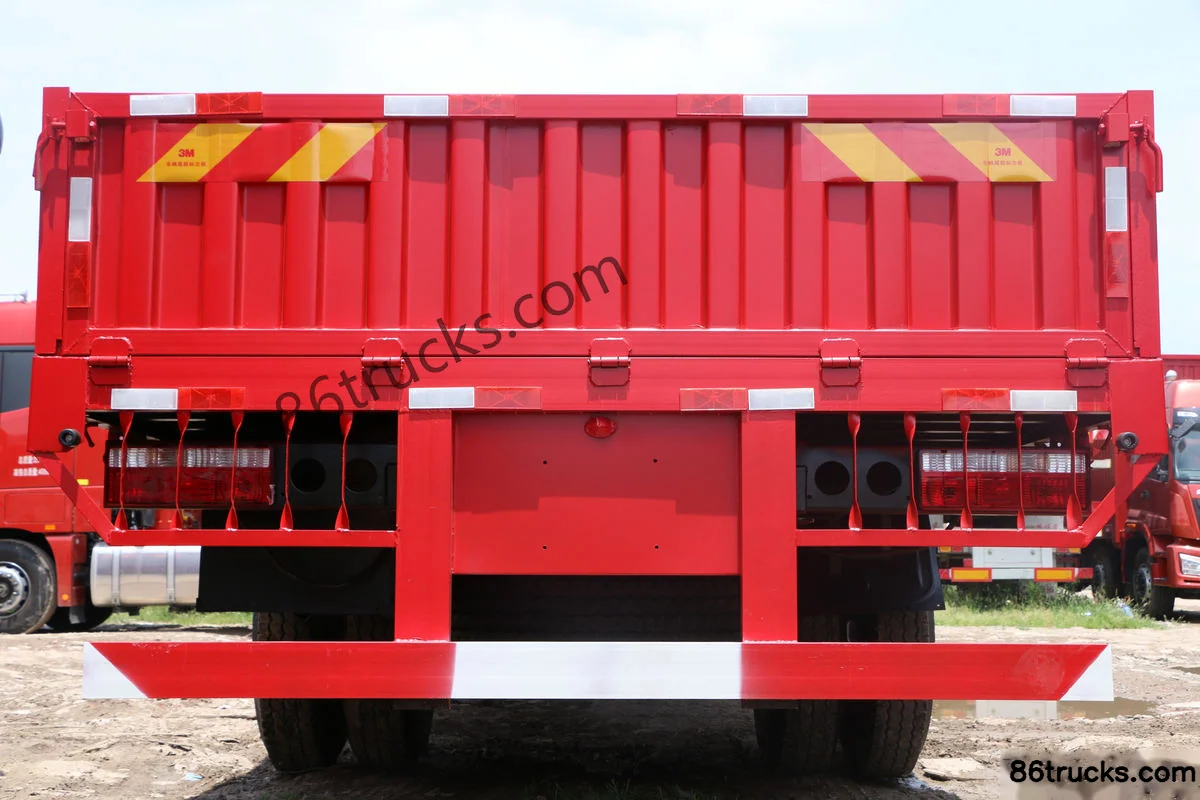

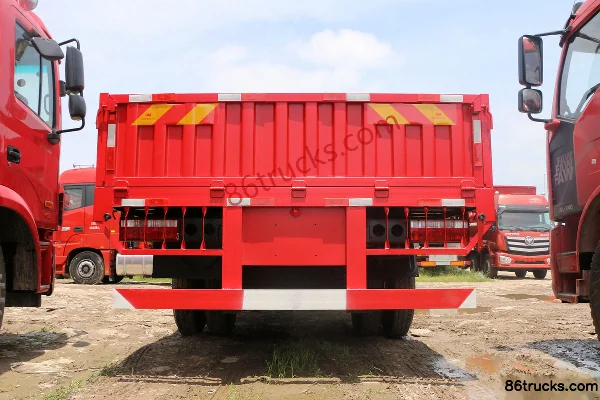

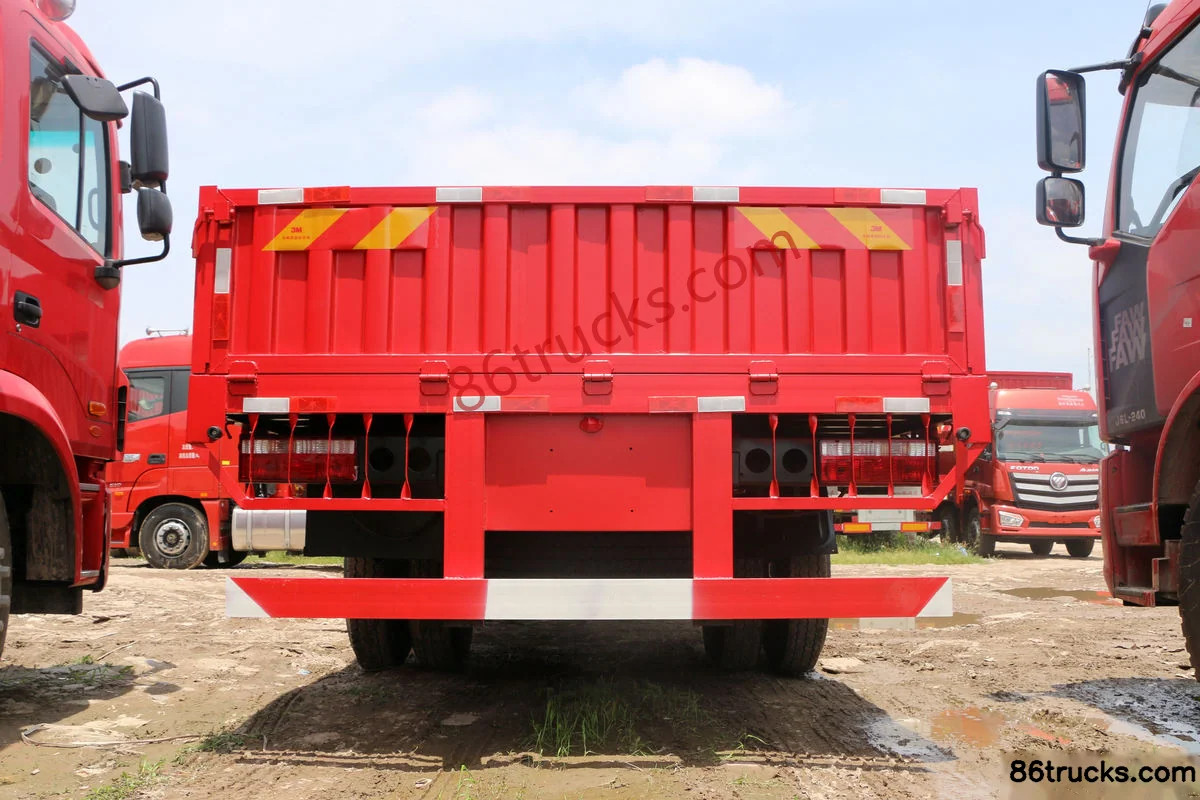

Body3

12 photos

FAQ

What emission standard does JAC Gallop K5L Medium Truck 240 hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop K5L Medium Truck 240 hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck?

Key specs of JAC Gallop K5L Medium Truck 240 hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck: Drive: 4x2; Horsepower: 240 hp; Emission: China V; Fuel: Diesel; Engine: Yuchai6.9L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop K5L Medium Truck 240 hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck suited for?

JAC Gallop K5L Medium Truck 240 hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Gallop K5L Medium Truck 240 hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck differ from other variants in the same series?

JAC Gallop K5L Medium Truck 240 hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck belongs to JAC Gallop K5 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop K5L Medium Truck 240 hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop K5L Medium Truck 240 hp 4X2(6 wheels) 6.8m Flatbed Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
