JAC Gallop K5X Medium Truck 240 hp 4X2(6 wheels) 7.77m Van Cargo Truck

Export reference
From $30,528
MSRP ¥21.98M CNY
Horsepower: 240
Emission: China V
Fuel: Diesel
Engine: Xichai 6-cylinder
Transmission: Sinotruk
Curb Weight:: 8.15ton
seating capacity: 3Personnel
Rated payload: 9.655ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The JAC Gallop K5X Medium Truck 240 hp 4X2(6 wheels) 7.77m Van Cargo Truck is a Medium-duty truck featuring 7.77m cargo length, Van body cargo body, 3Personnel volume and 9.655t payload. Its segment focus covers Building materials, LTL transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Xichai 6-cylinder engine, 240 hp, 4X2 (6 wheels) drive and China V emissions.

China V 240 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5181XXYP3K2A57S1V
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 5700mm
Box length class: 7.8m
engine: XichaiCA6DLD-24E5
transmission: SinotrukHW90510C
Rear Axle Ratio: 4.33
Cab length: 10m
Cab width: 2.55m
Cab height: 3.91m
Front track width: 1892mm
rear track: 1860mm
Curb Weight: 8.15ton
Rated payload: 9.655ton
GVWR: 18ton
Max. speed: 100km/h
Origin: Hefei, Anhui
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle: 10°
market segment: Building materials, LTL transport, green channel
Remarks: Optional ratio 4.875; digital instrument cluster; three-step entry; T-shaped bunk; optional seat ventilation/heating & dual DIN radio
Front/rear suspension: 1.4/2.9m
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DLD-24E5
Engine info: Xichai 6-cylinder
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.6L
Emission standard: China V
Max output power: 179kW
Max hp: 240Horsepower
Max torque: 940N·m
Max torque speed: 1300-1700rpm
Rated speed: 2300rpm
Transmission Parameters
Transmission Model: SinotrukHW90510C
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 7.77m
Cargo box width: 2.48m
Cargo box height: 2.5m
*Cargo box interior width: 2.4800000190735
Cab parameters
Cab tilting: Electric
seating capacity: 3Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 400L
Chassis Specs
Front axle description: 4T
Front axle allowable load: 6500kg
Frame Dimensions: 245×70×6mm
rear axle description: 9T
rear axle allowable load: 11500kg
Axle ratio: 4.33
Leaf spring count: 3/9+7
Suspension (front/rear): Leaf spring
Tire
Tire Size: 10.00R20,11.00R22.5
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Power Windows:
Power Mirrors:
Electronic Central Lock:

Photos

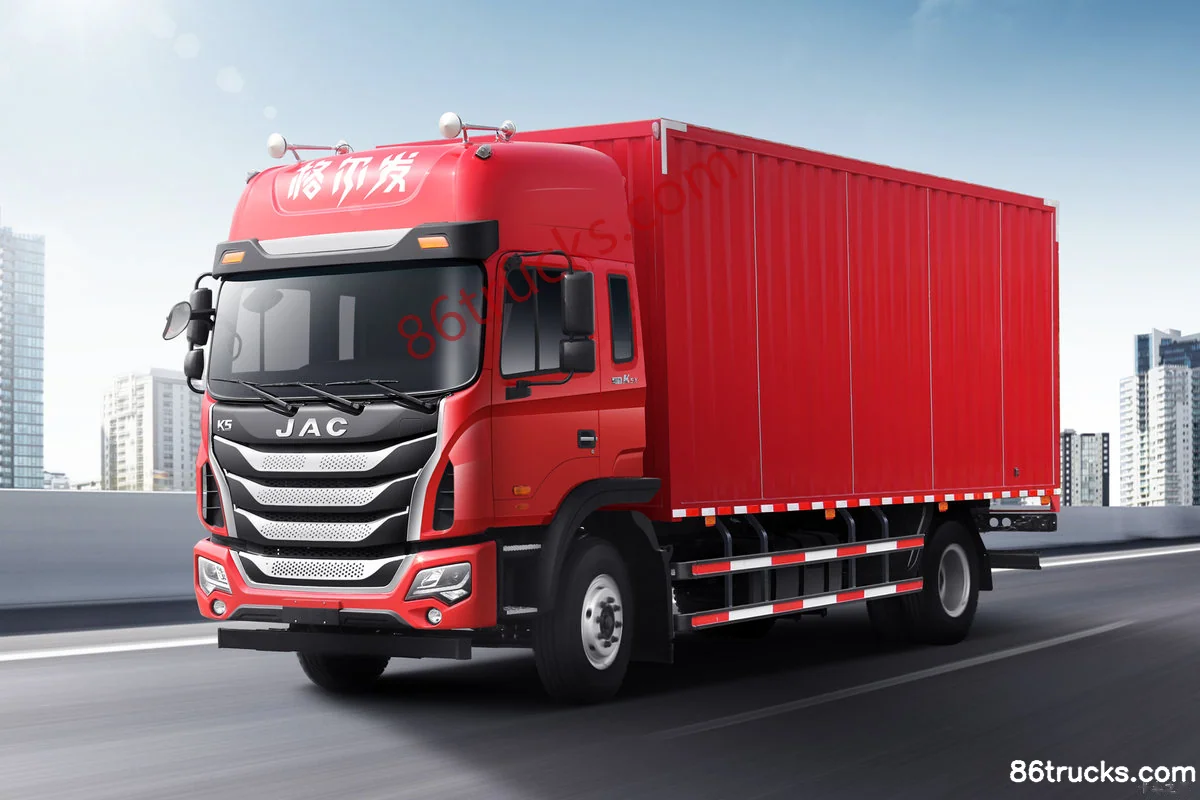

Exterior1

1 photos

FAQ

What is the export price of JAC Gallop K5X Medium Truck 240 hp 4X2(6 wheels) 7.77m Van Cargo Truck, and what does it include?

JAC Gallop K5X Medium Truck 240 hp 4X2(6 wheels) 7.77m Van Cargo Truck export reference is about From $30,528; MSRP is ¥21.98M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Gallop K5X Medium Truck 240 hp 4X2(6 wheels) 7.77m Van Cargo Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop K5X Medium Truck 240 hp 4X2(6 wheels) 7.77m Van Cargo Truck?

Key specs of JAC Gallop K5X Medium Truck 240 hp 4X2(6 wheels) 7.77m Van Cargo Truck: Drive: 4x2; Horsepower: 240 hp; Emission: China V; Fuel: Diesel; Engine: Xichai 6-cylinder; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop K5X Medium Truck 240 hp 4X2(6 wheels) 7.77m Van Cargo Truck suited for?

JAC Gallop K5X Medium Truck 240 hp 4X2(6 wheels) 7.77m Van Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Gallop K5X Medium Truck 240 hp 4X2(6 wheels) 7.77m Van Cargo Truck differ from other variants in the same series?

JAC Gallop K5X Medium Truck 240 hp 4X2(6 wheels) 7.77m Van Cargo Truck belongs to JAC Gallop K5 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop K5X Medium Truck 240 hp 4X2(6 wheels) 7.77m Van Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop K5X Medium Truck 240 hp 4X2(6 wheels) 7.77m Van Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
