Dongfeng T9E Hydraulic Brake 4.005m Single Row Electric Flatbed Mini Truck CALB 56.67kWh 4X2(6 wheels)

Export reference
MSRP N/A
Rated payload:: 1.39ton
Wheelbase:: 3200mm
Cargo box type:: stake body
Model code (announced):: DFA1031S2BEVF
Type:: Cargo Trucks
Box length class:: 4m
Dongfeng T9E Hydraulic Brake 4.005m Single Row Electric Flatbed Mini Truck CALB 56.67kWh 4X2(6 wheels) exterior
View more photos (12)
Drive 4X2 (6 wheels)
CLTC range: 260km
Motor 1 Brand: Inovance United
Curb Weight: 1.975ton

Overview

The Dongfeng T9E Hydraulic Brake 4.005m Single Row Electric Flatbed Mini Truck CALB 56.67kWh 4X2(6 wheels) is a mini truck featuring 260km battery/range, Inovance United motor, 4X2 (6 wheels) drive and 1.39t payload.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): DFA1031S2BEVF
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3200mm
Box length class: 4m
Cab length: 5.995m
Cab width: 2.09m
Cab height: 2.06m
CLTC range: 260km
Curb Weight: 1.975ton
Rated payload: 1.39ton
GVWR: 3.495ton
Max. speed: 90km/h
Origin: Xiangyang, Hubei
tonnage class: mini truck
Energy Type: Electric
electric motor
Motor 1 Brand: Inovance United
Motor 1 Model: TZ180XS133
Motor Type: Permanent magnet synchronous motor
total rated power: 55kW
Peak power: 110kW
Battery/Charging
Charging method: DC fast charge / slow charge
Battery Brand: CALB
Battery type: Lithium Iron Phosphate Battery
fast charge time:
Battery capacity: 56.67kWh
Slow charge time: 11h
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.005m
Cargo box width: 1.99m
Cargo box height: 0.355m
Cab parameters
Cab width: 1800mm
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1295kg
rear axle description: 3T
rear axle allowable load: 2200kg
Tire
Tire Size: 185R15LT 6PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering: Electric Power Steering
interior configuration
Power Windows:
Remote key:
Electronic Central Lock:
Service brake
Brake Type: Hydraulic brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type

Photos

Exterior3

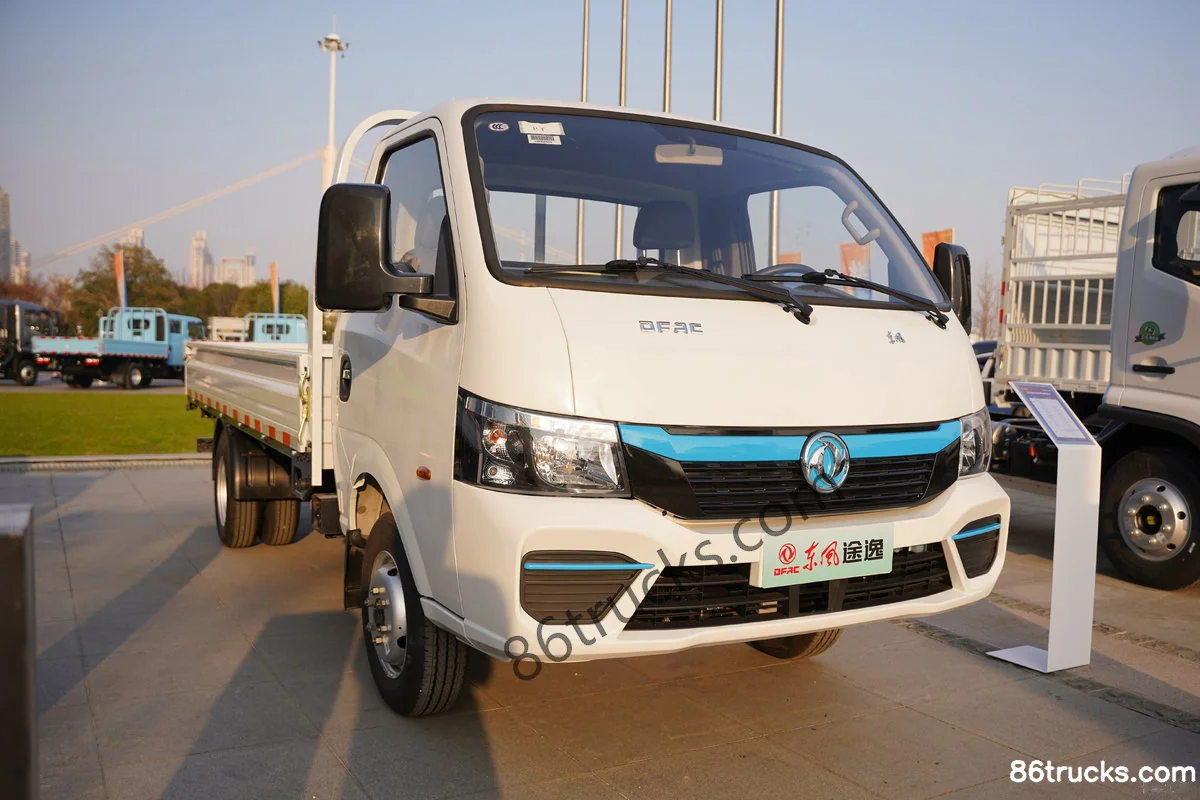

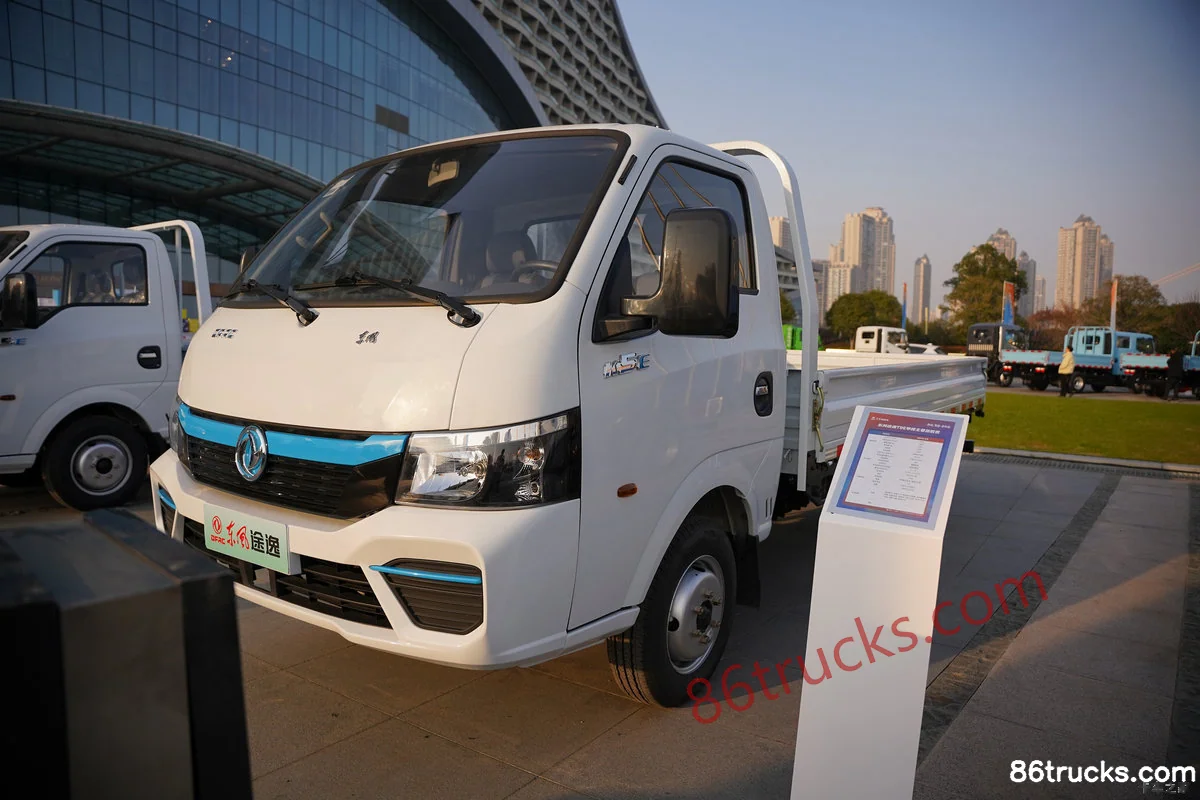

Dongfeng T9E Hydraulic Brake 4.005m Single Row Electric Flatbed Mini Truck CALB 56.67kWh 4X2(6 wheels) Exterior (1) | 86Trucks Dongfeng T9E Hydraulic Brake 4.005m Single Row Electric Flatbed Mini Truck CALB 56.67kWh 4X2(6 wheels) Exterior (2) | 86Trucks Dongfeng T9E Hydraulic Brake 4.005m Single Row Electric Flatbed Mini Truck CALB 56.67kWh 4X2(6 wheels) Exterior (3) | 86Trucks

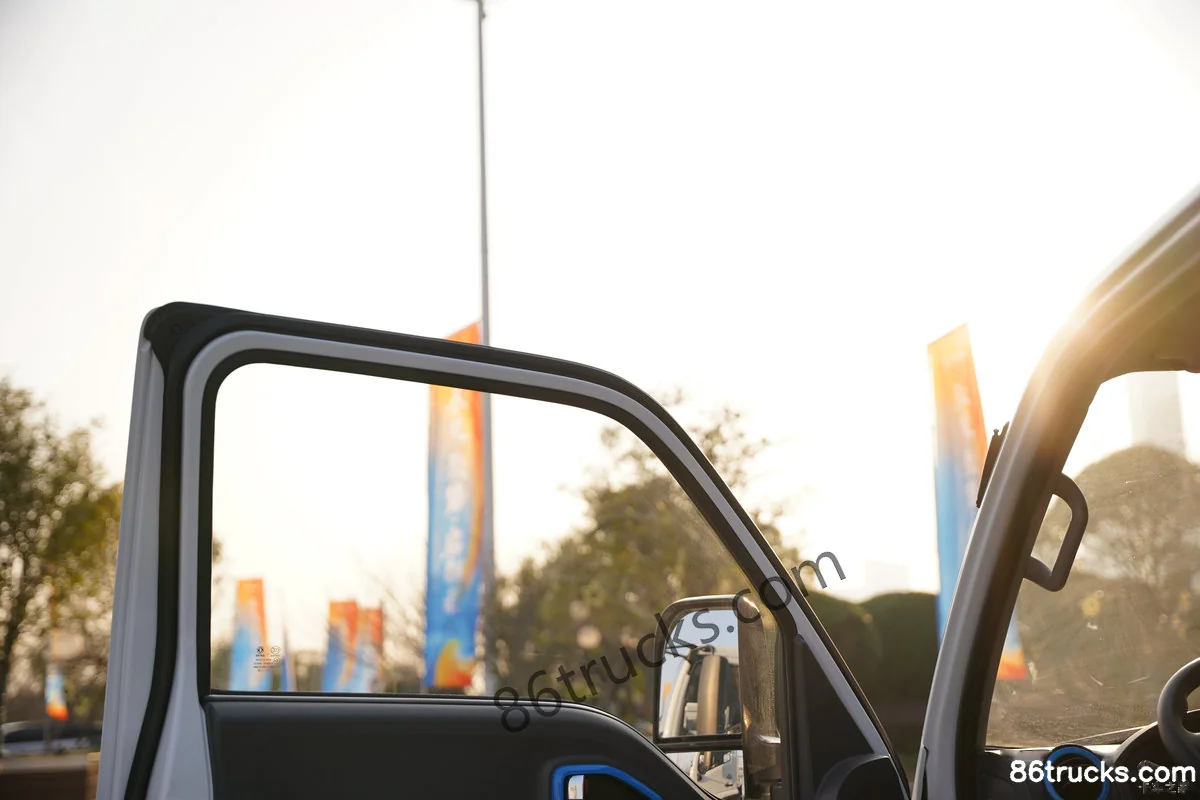

Cab3

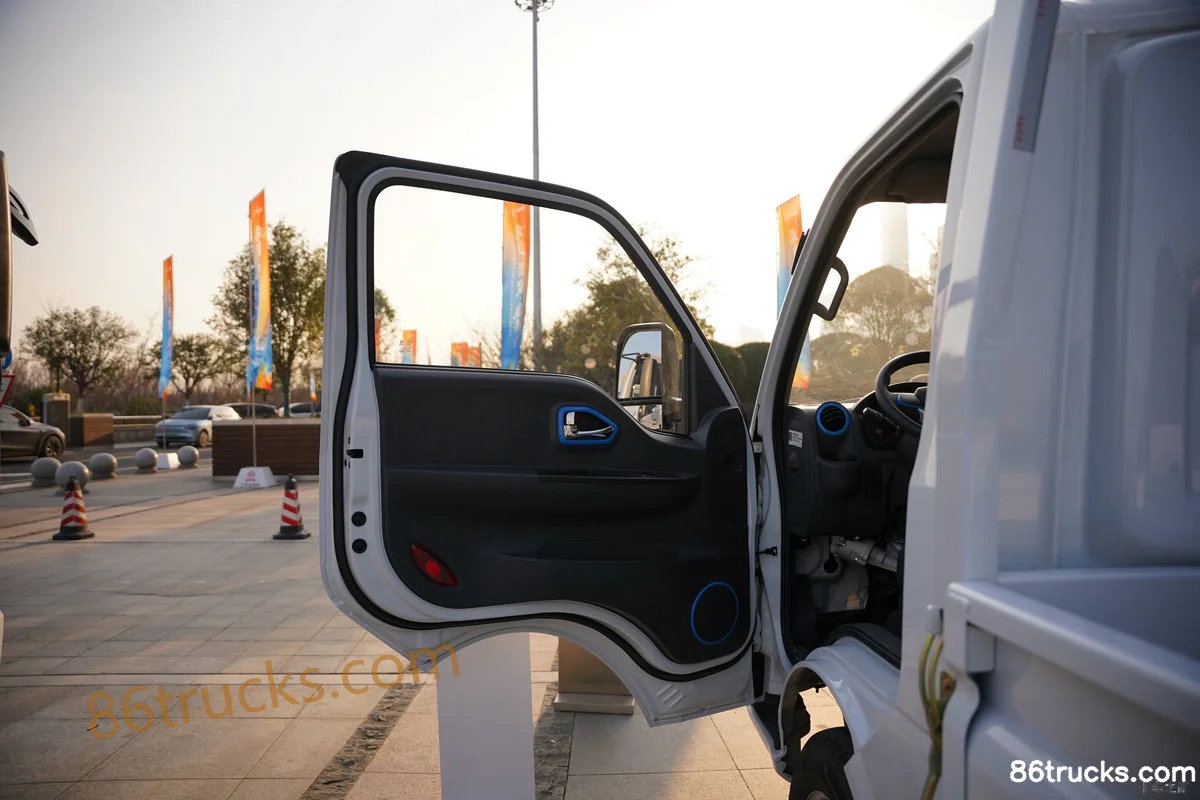

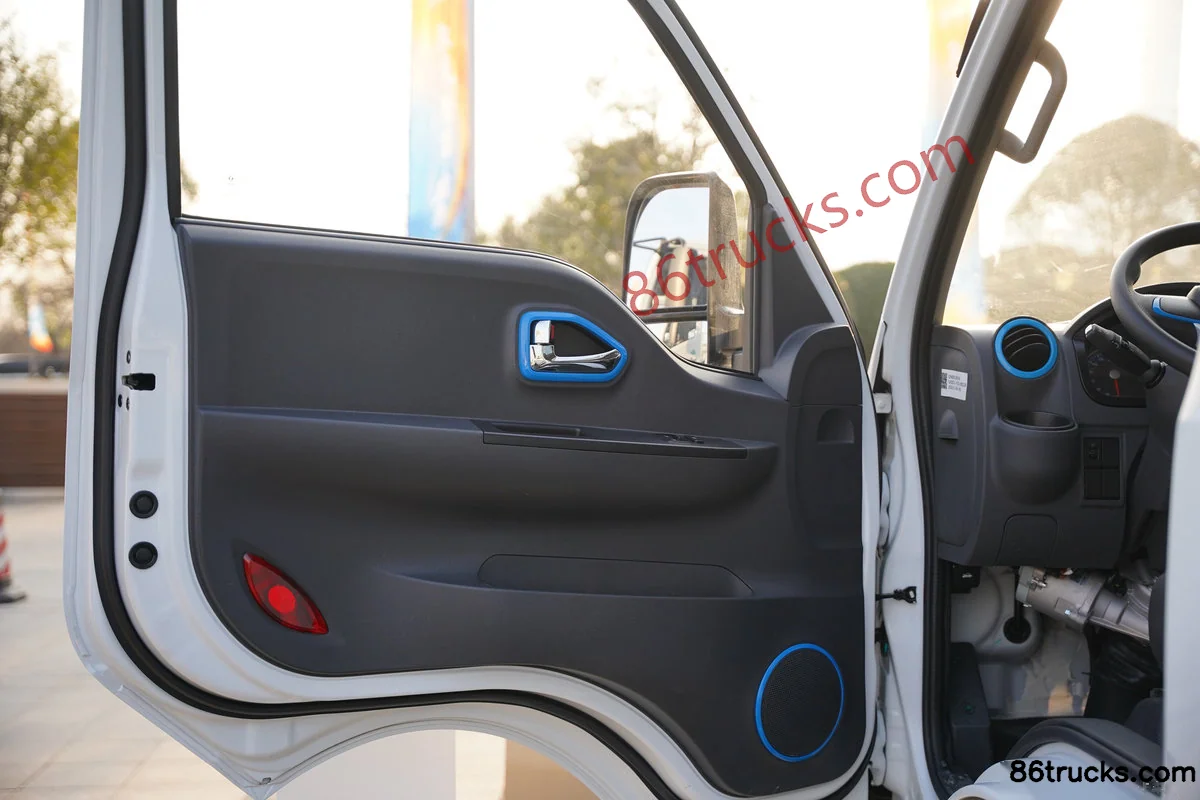

Dongfeng T9E Hydraulic Brake 4.005m Single Row Electric Flatbed Mini Truck CALB 56.67kWh 4X2(6 wheels) Cab (1) | 86Trucks Dongfeng T9E Hydraulic Brake 4.005m Single Row Electric Flatbed Mini Truck CALB 56.67kWh 4X2(6 wheels) Cab (2) | 86Trucks Dongfeng T9E Hydraulic Brake 4.005m Single Row Electric Flatbed Mini Truck CALB 56.67kWh 4X2(6 wheels) Cab (3) | 86Trucks

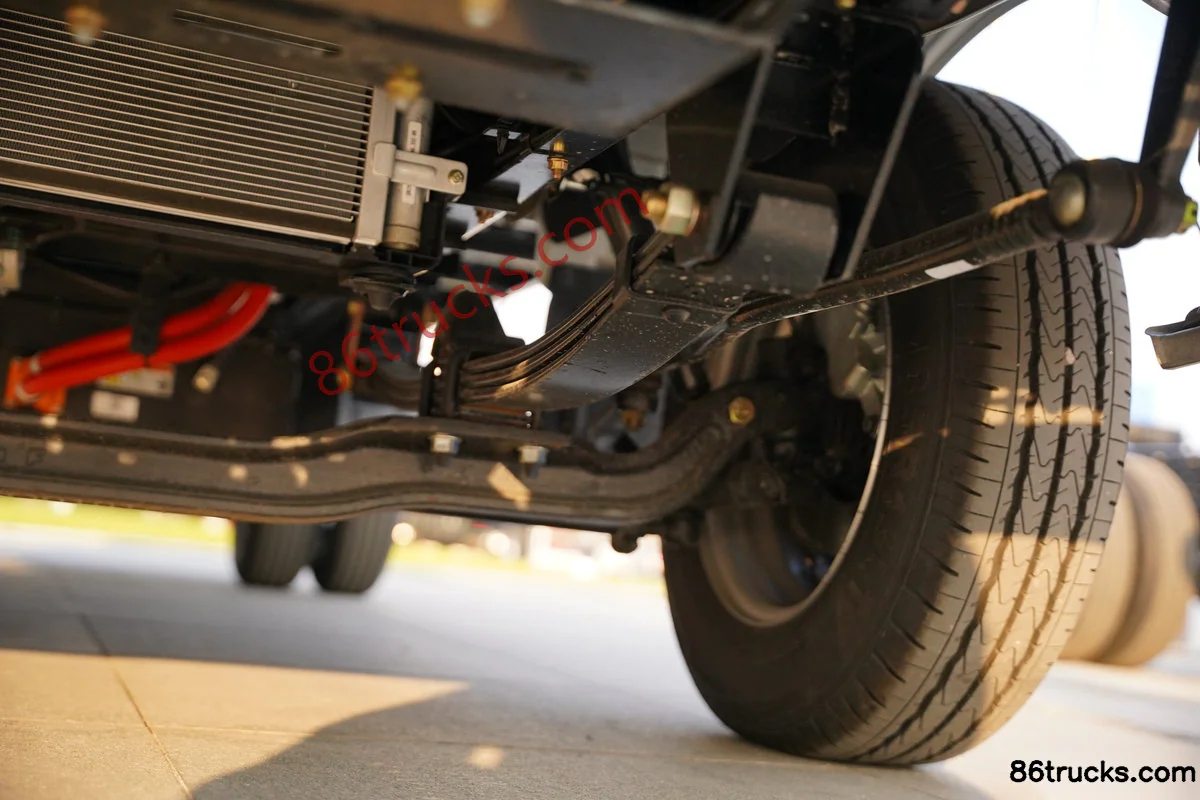

Chassis3

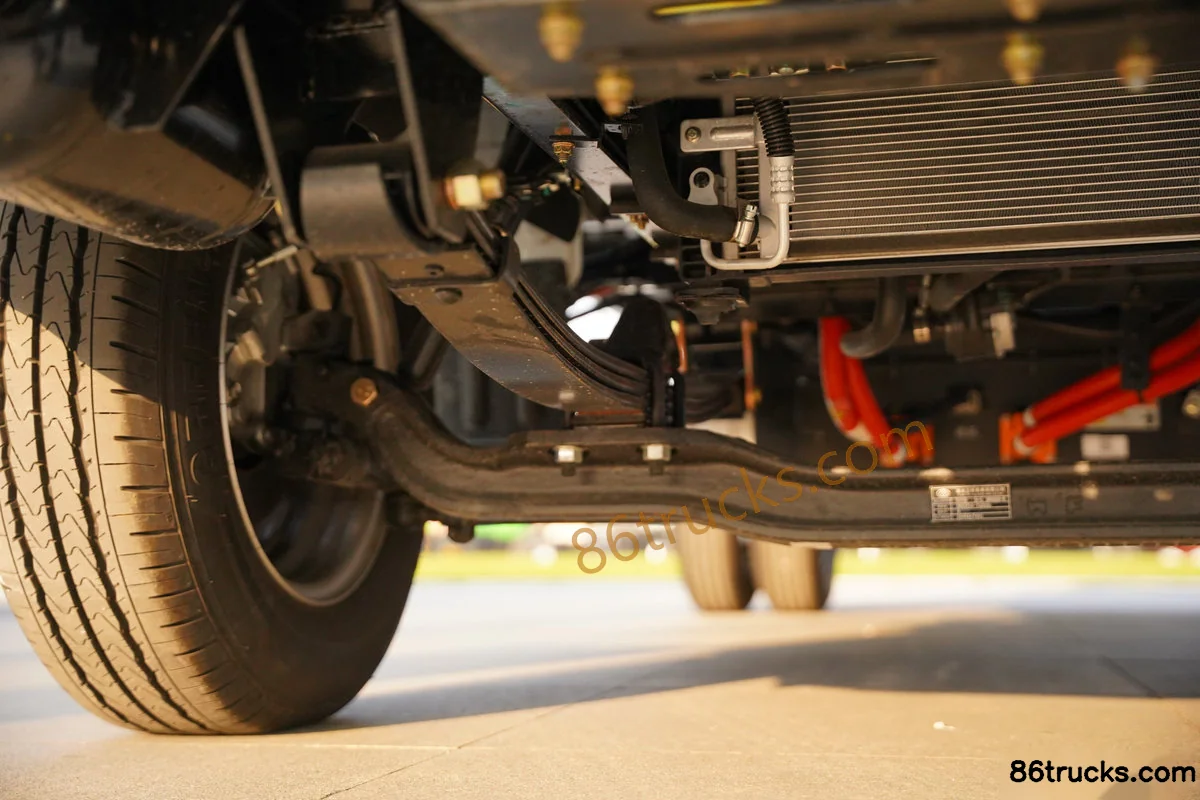

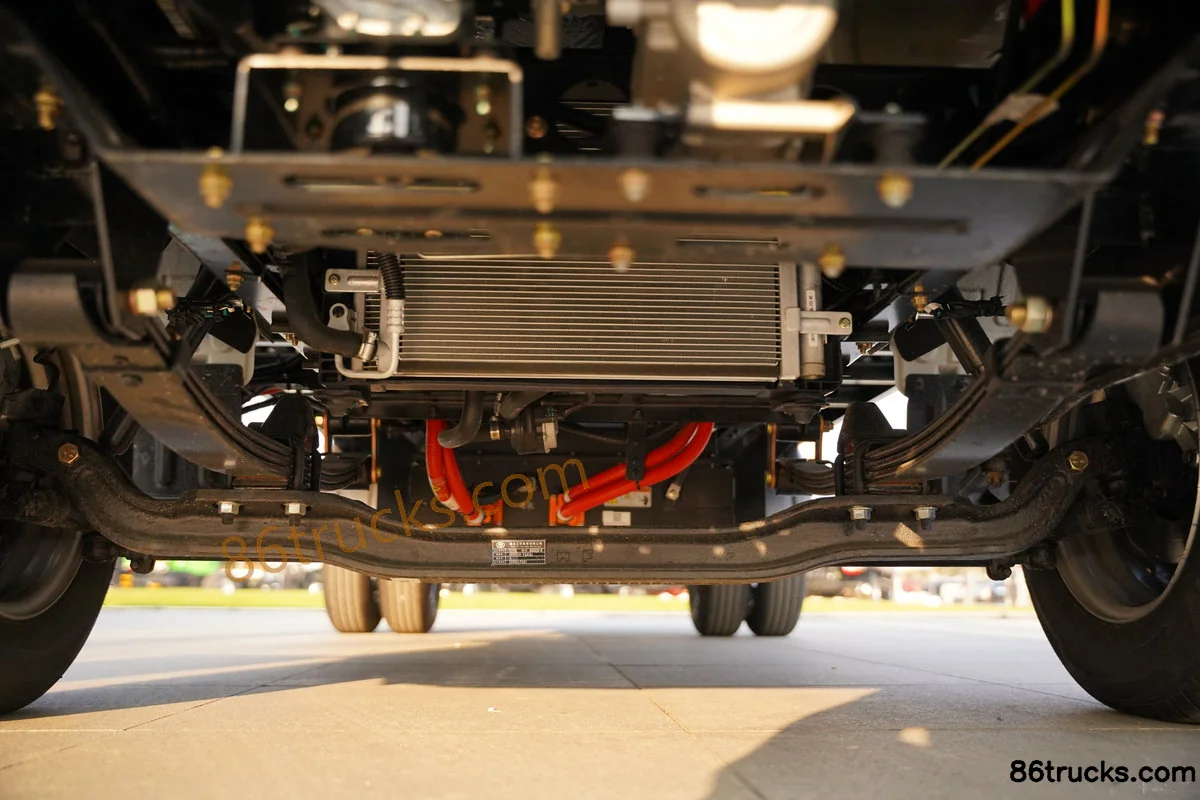

Dongfeng T9E Hydraulic Brake 4.005m Single Row Electric Flatbed Mini Truck CALB 56.67kWh 4X2(6 wheels) Chassis (1) | 86Trucks Dongfeng T9E Hydraulic Brake 4.005m Single Row Electric Flatbed Mini Truck CALB 56.67kWh 4X2(6 wheels) Chassis (2) | 86Trucks Dongfeng T9E Hydraulic Brake 4.005m Single Row Electric Flatbed Mini Truck CALB 56.67kWh 4X2(6 wheels) Chassis (3) | 86Trucks

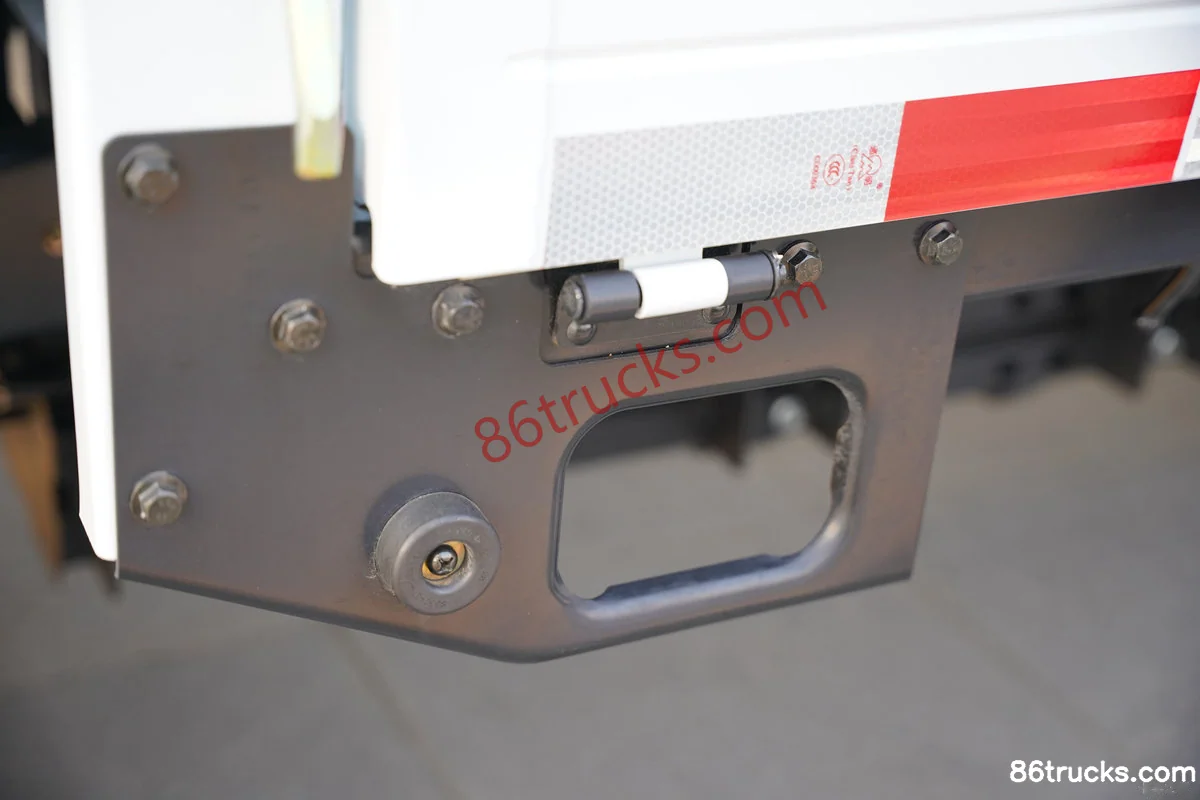

Body3

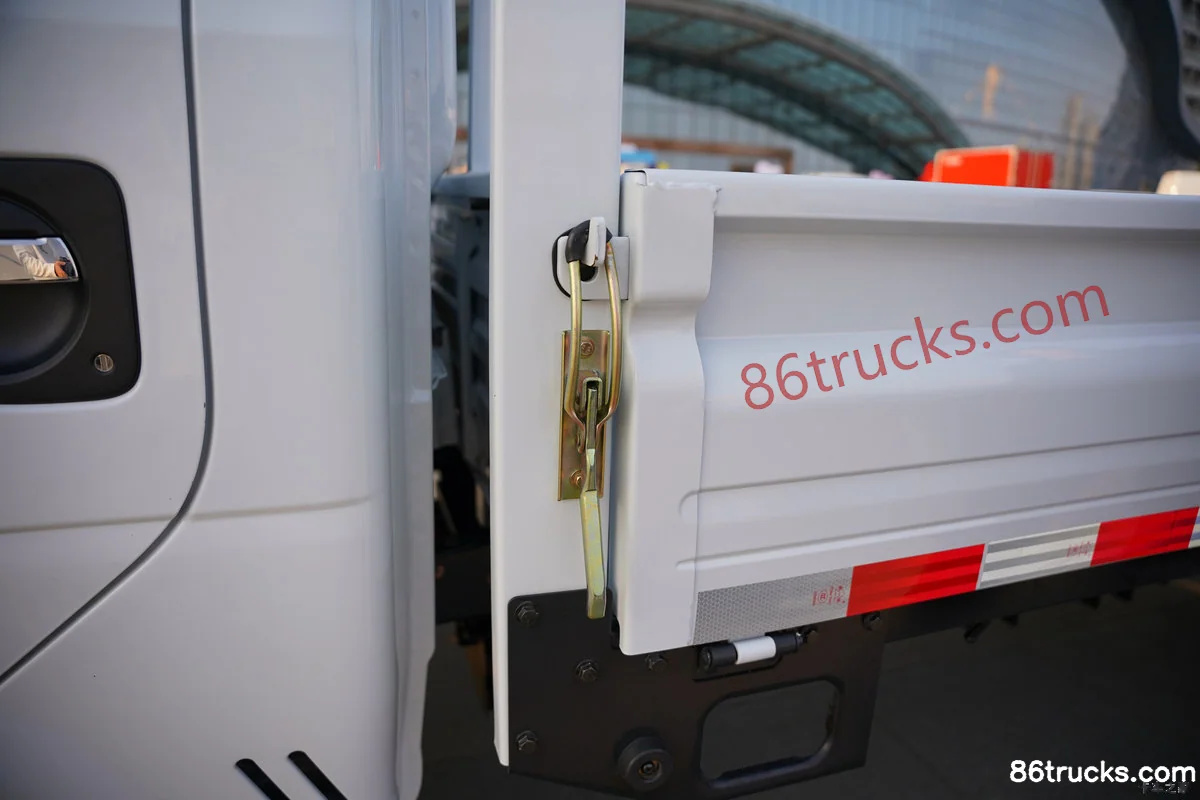

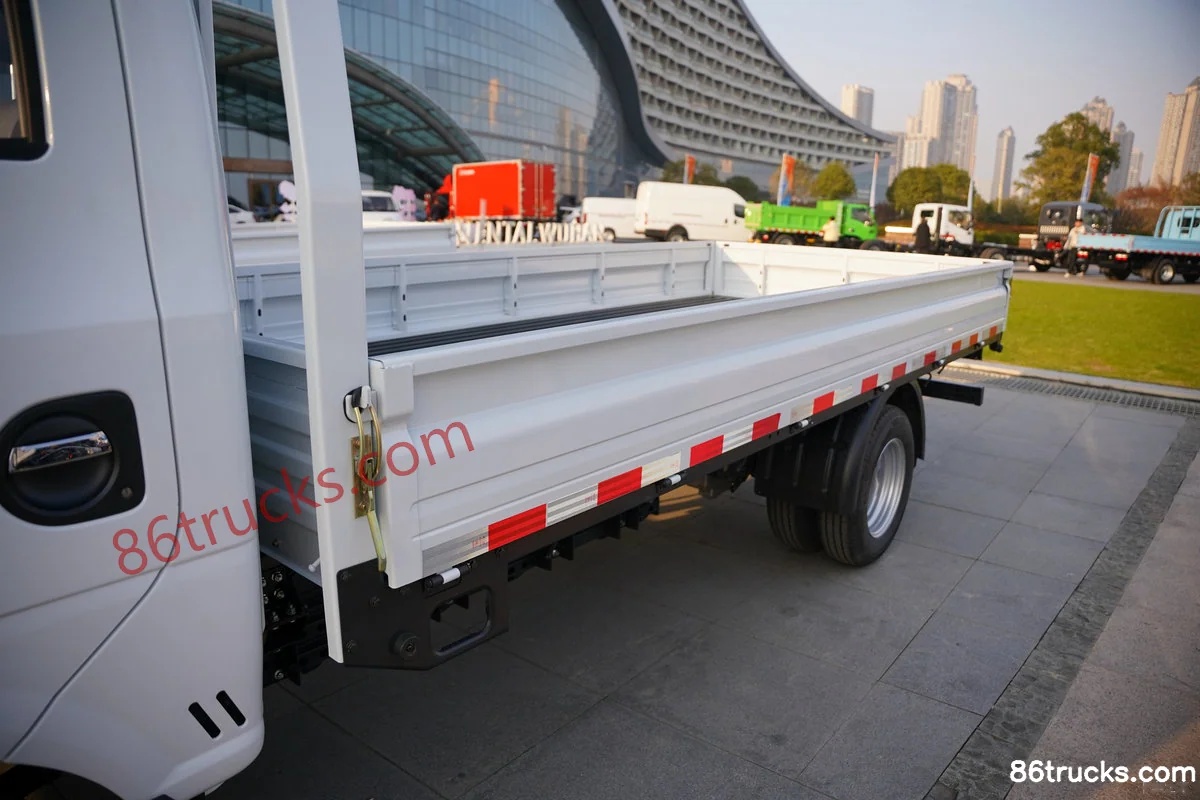

Dongfeng T9E Hydraulic Brake 4.005m Single Row Electric Flatbed Mini Truck CALB 56.67kWh 4X2(6 wheels) Body (1) | 86Trucks Dongfeng T9E Hydraulic Brake 4.005m Single Row Electric Flatbed Mini Truck CALB 56.67kWh 4X2(6 wheels) Body (2) | 86Trucks Dongfeng T9E Hydraulic Brake 4.005m Single Row Electric Flatbed Mini Truck CALB 56.67kWh 4X2(6 wheels) Body (3) | 86Trucks

12 photos

FAQ

What are the key specs of Dongfeng T9E Hydraulic Brake 4.005m Single Row Electric Flatbed Mini Truck CALB 56.67kWh 4X2(6 wheels)?

Key specs of Dongfeng T9E Hydraulic Brake 4.005m Single Row Electric Flatbed Mini Truck CALB 56.67kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng T9E Hydraulic Brake 4.005m Single Row Electric Flatbed Mini Truck CALB 56.67kWh 4X2(6 wheels) suited for?

Dongfeng T9E Hydraulic Brake 4.005m Single Row Electric Flatbed Mini Truck CALB 56.67kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Dongfeng T9E Hydraulic Brake 4.005m Single Row Electric Flatbed Mini Truck CALB 56.67kWh 4X2(6 wheels) differ from other variants in the same series?

Dongfeng T9E Hydraulic Brake 4.005m Single Row Electric Flatbed Mini Truck CALB 56.67kWh 4X2(6 wheels) belongs to Dongfeng T9E light-duty truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng T9E Hydraulic Brake 4.005m Single Row Electric Flatbed Mini Truck CALB 56.67kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng T9E Hydraulic Brake 4.005m Single Row Electric Flatbed Mini Truck CALB 56.67kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
