Feidi V1 Series 110 hp 4X2(6 wheels) 3.66m single-row flatbed light truck

Export reference
From $10,944
MSRP ¥7.88M CNY
Horsepower: 110
Emission: China V
Fuel: Diesel
Engine: WeichaiWP2.3
Transmission: Mengwo
Curb Weight:: 2.375ton
Feidi V1 Series 110 hp 4X2(6 wheels) 3.66m single-row flatbed light truck exterior
View more photos (9)
seating capacity: 2Personnel
Rated payload: 1.99ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Feidi V1 Series 110 hp 4X2(6 wheels) 3.66m single-row flatbed light truck is a Light Truck featuring 3.66m cargo length, stake body cargo body, 2Personnel volume and 1.99t payload. On the powertrain side, it comes with a WeichaiWP2.3 engine, 110 hp, 4X2 (6 wheels) drive and China V emissions.

China V 110 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): FD1040W16K5-3
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 2860mm
Box length class: 3.7m
engine: WeichaiWP2.3Q110E50
transmission: MengwoMT85
Rear Axle Ratio: 5.125
Cab length: 5.545m
Cab width: 2.01m
Cab height: 2.28m
Front track width: 1487mm
rear track: 1385mm
Curb Weight: 2.375ton
Rated payload: 1.99ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Rizhao, Shandong
tonnage class: Light Truck
Approach angle: 22°
departure angle: 17°
Remarks: Steering wheel material: magnesium-aluminum alloy.
Front/rear suspension: 1.13/1.555m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP2.3Q110E50
Engine info: WeichaiWP2.3
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.29L
Emission standard: China V
Max output power: 81kW
Max hp: 110Horsepower
Max torque: 280N·m
Max torque speed: 1700-2300rpm
Rated speed: 3200rpm
Engine Type: Common Rail+SCR
Transmission Parameters
Transmission Model: MengwoMT85
Transmission Brand: Mengwo
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.66m
Cargo box width: 1.91m
Cargo box height: 0.4m
Cargo box material: Q235A, CR780/980MS, etc.
*Cargo box interior width: 1.9099999666214
Cab parameters
Cab: Flat roof
seating capacity: 2Personnel
Seat rows: Single Row
fuel tank
Fuel tank capacity: 70L
Chassis Specs
Front axle allowable load: 1700kg
rear axle description: 1030 air brake welded
rear axle allowable load: 2795kg
Axle ratio: 5.125
Leaf spring count: 7/7+6
Aluminum wheels:
Suspension (front/rear): Leaf spring
Tire
Tire Size: 6.50R16LT 10PR
Number of tires: 6pcs
Control configuration
ABS:
Stability control system:
Brake assist (EBA/BAS/BA etc.): none
Power steering:
clutch booster:
automatic slack adjuster:
interior configuration
steering wheel adjustment: Manual
AC control type: Manual
Power Windows:
Power interface:
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
side skirt:
Aluminum air tank:
Diesel primary filter heating:
Wiper type: flat wiper blades
Service brake
Engine brake: Yes
Brake Type: Air brake
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Radio:
standard instrument cluster: none
LCD instrument cluster:
lighting configuration
Front fog lamp:
Headlight height adjustment:
Halogen Headlights:
smart configuration
Telematics System:
Fatigue driving monitoring: none

Photos

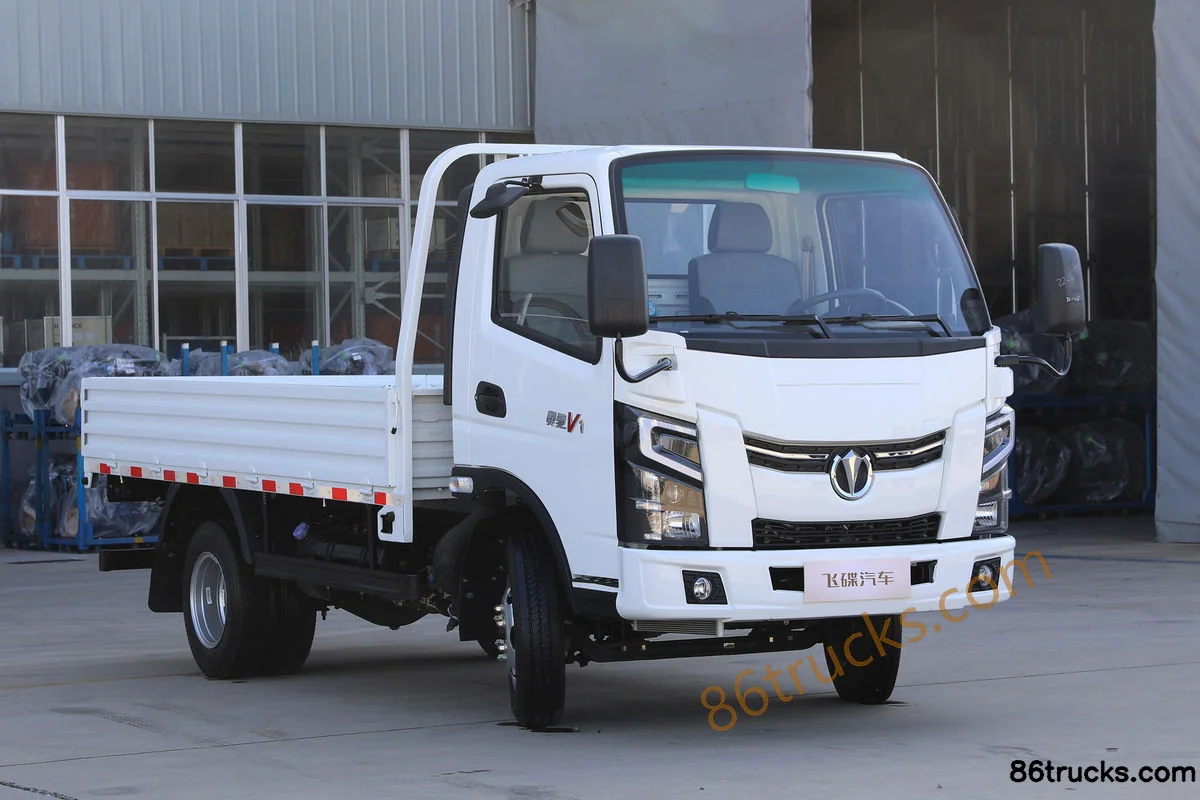

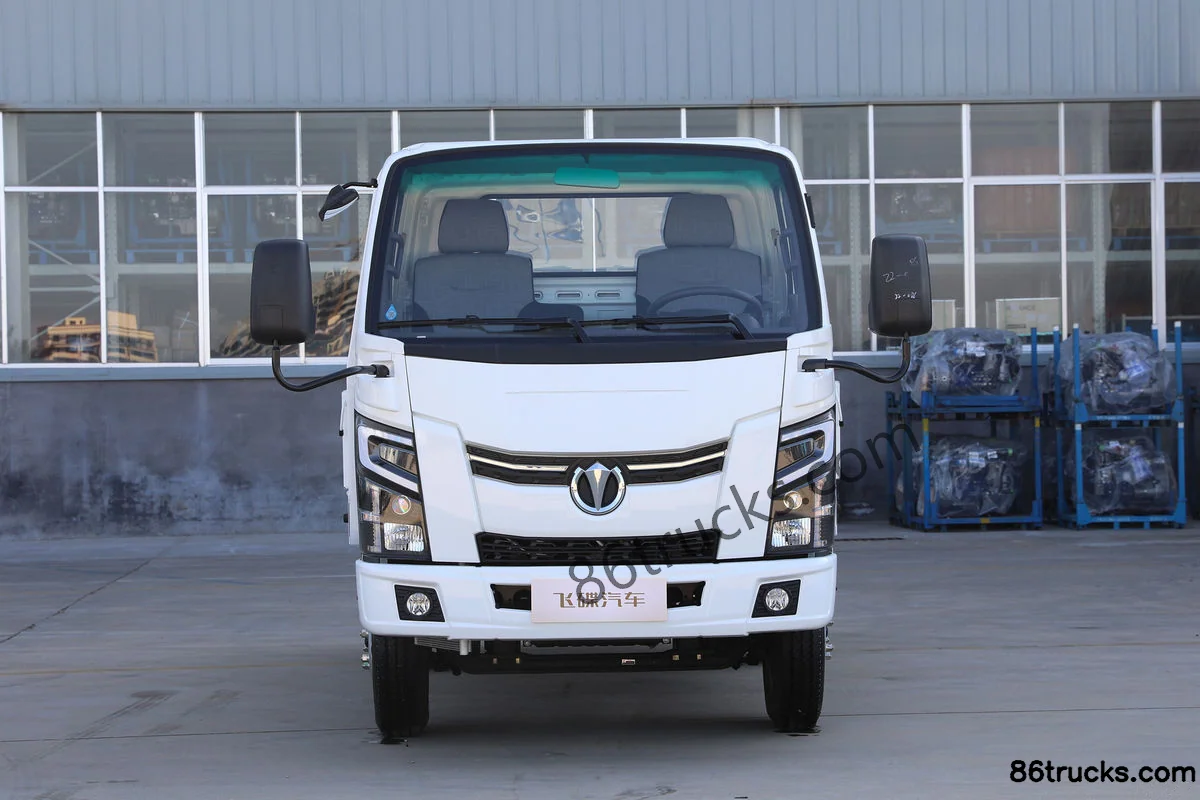

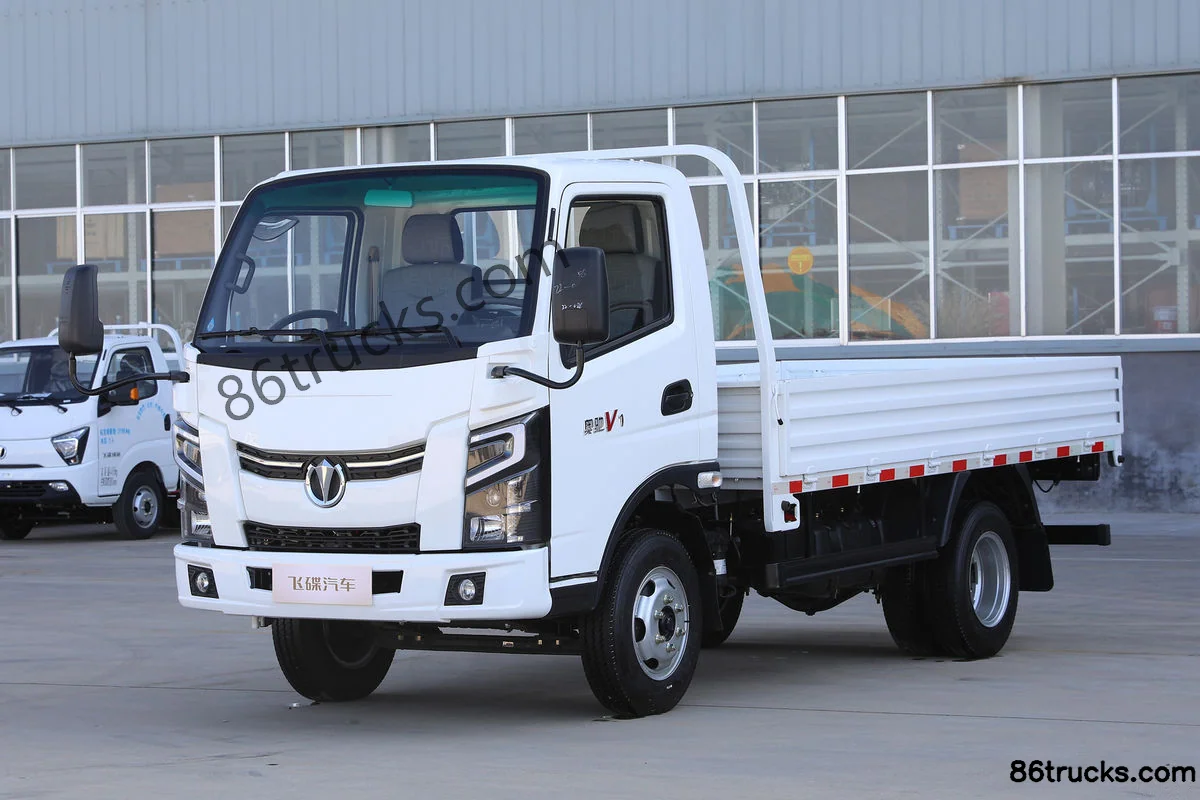

Exterior3

Feidi V1 Series 110 hp 4X2(6 wheels) 3.66m single-row flatbed light truck Exterior (1) | 86Trucks Feidi V1 Series 110 hp 4X2(6 wheels) 3.66m single-row flatbed light truck Exterior (2) | 86Trucks Feidi V1 Series 110 hp 4X2(6 wheels) 3.66m single-row flatbed light truck Exterior (3) | 86Trucks

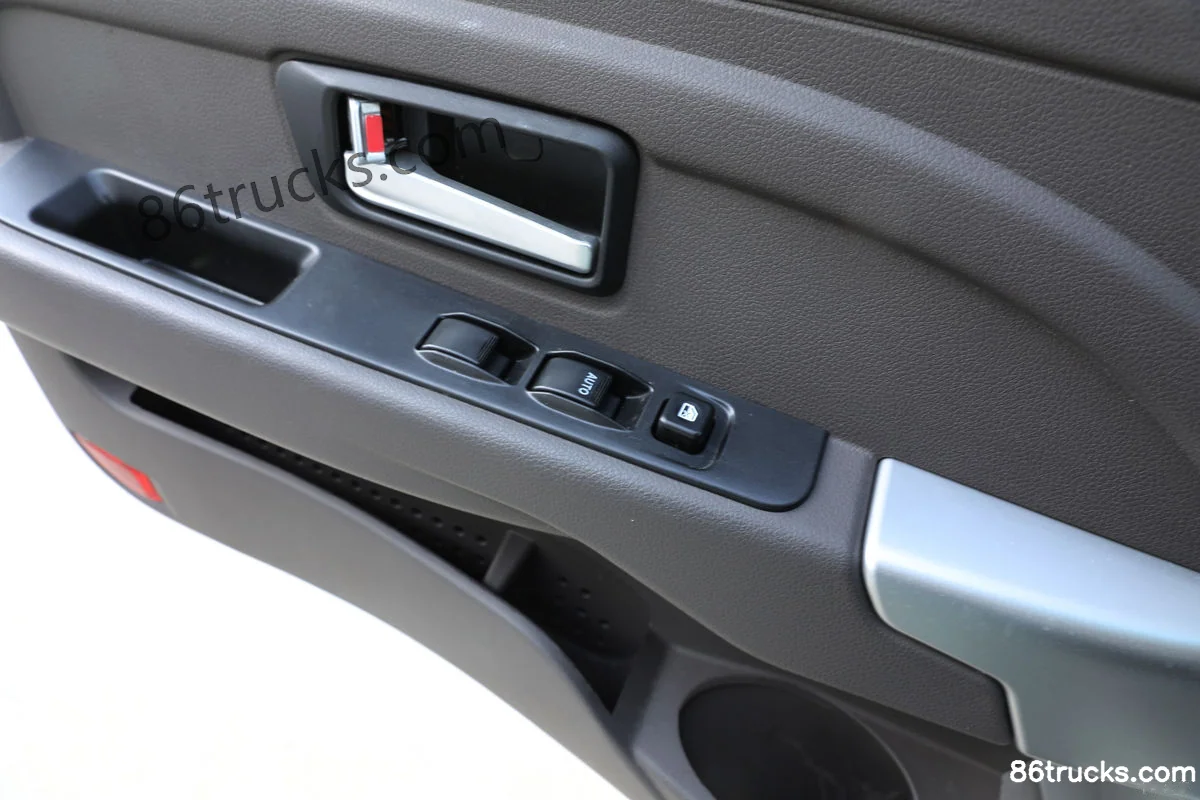

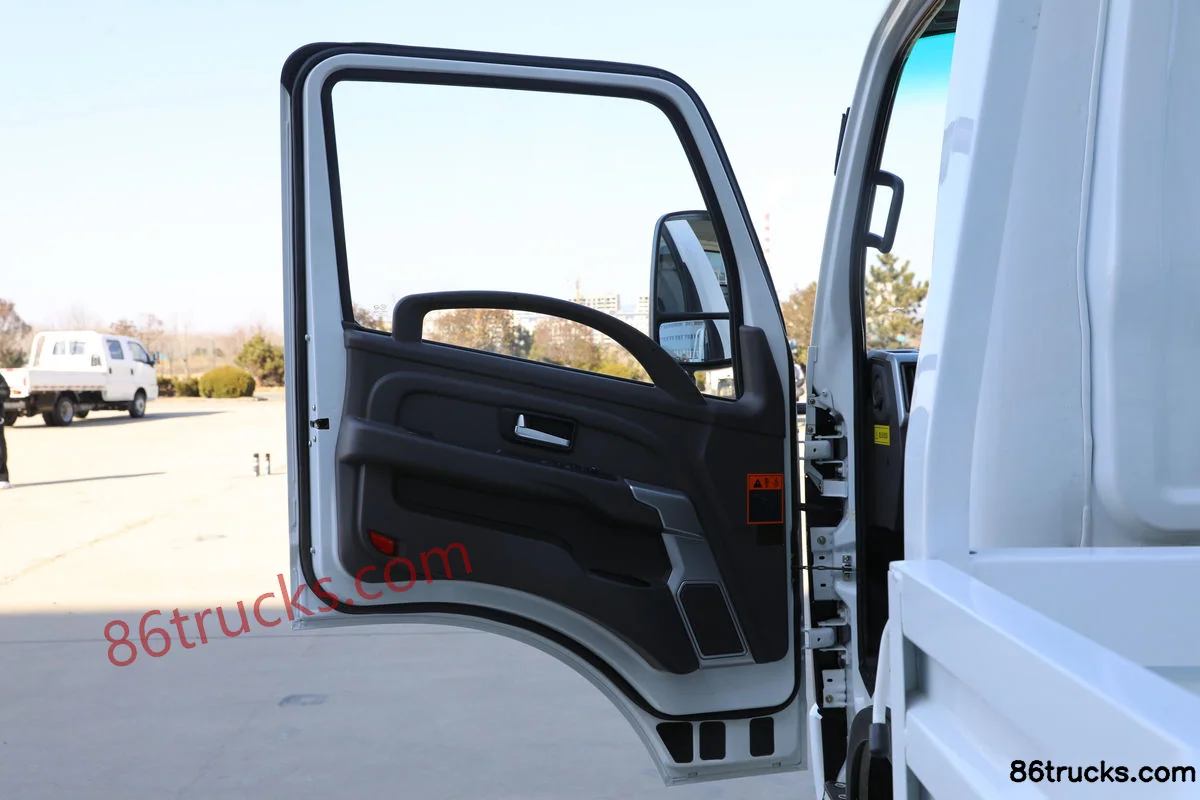

Cab3

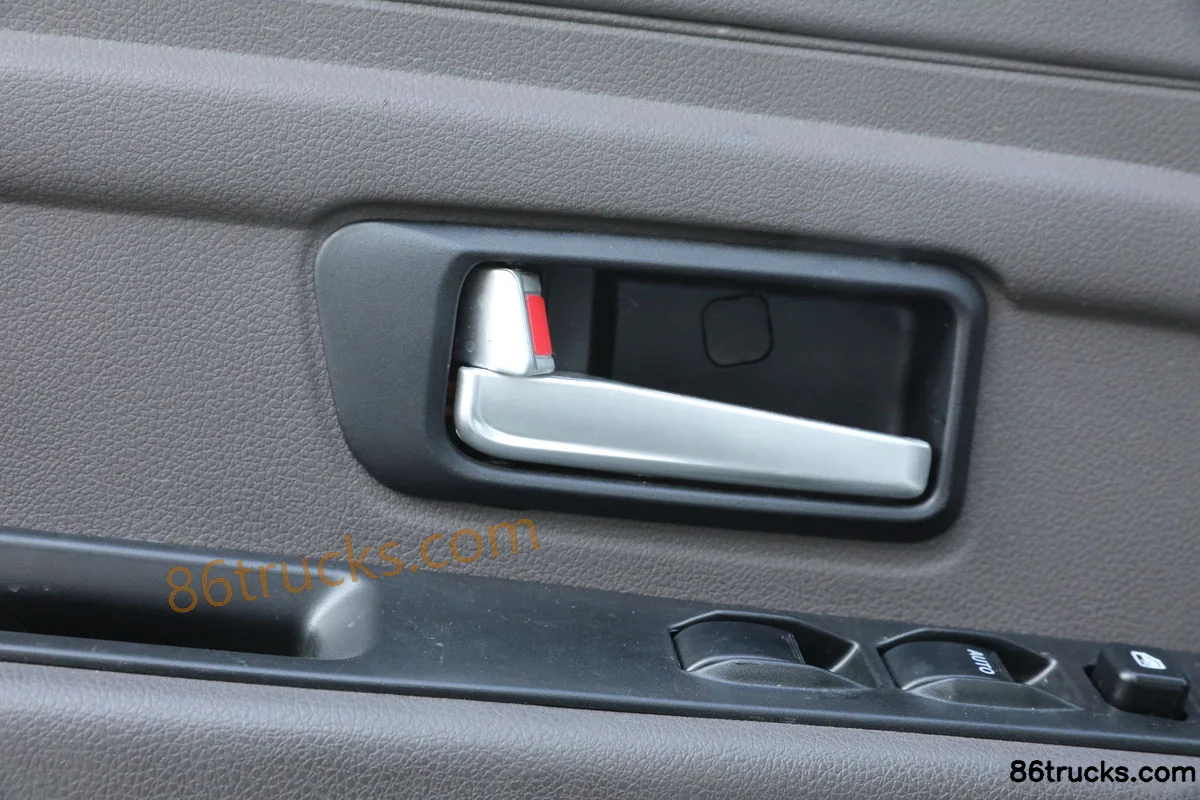

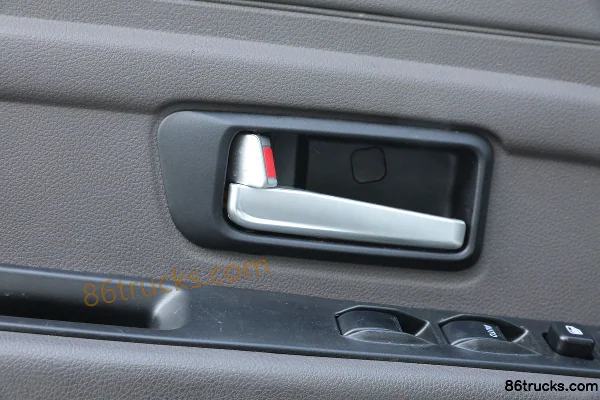

Feidi V1 Series 110 hp 4X2(6 wheels) 3.66m single-row flatbed light truck Cab (1) | 86Trucks Feidi V1 Series 110 hp 4X2(6 wheels) 3.66m single-row flatbed light truck Cab (2) | 86Trucks Feidi V1 Series 110 hp 4X2(6 wheels) 3.66m single-row flatbed light truck Cab (3) | 86Trucks

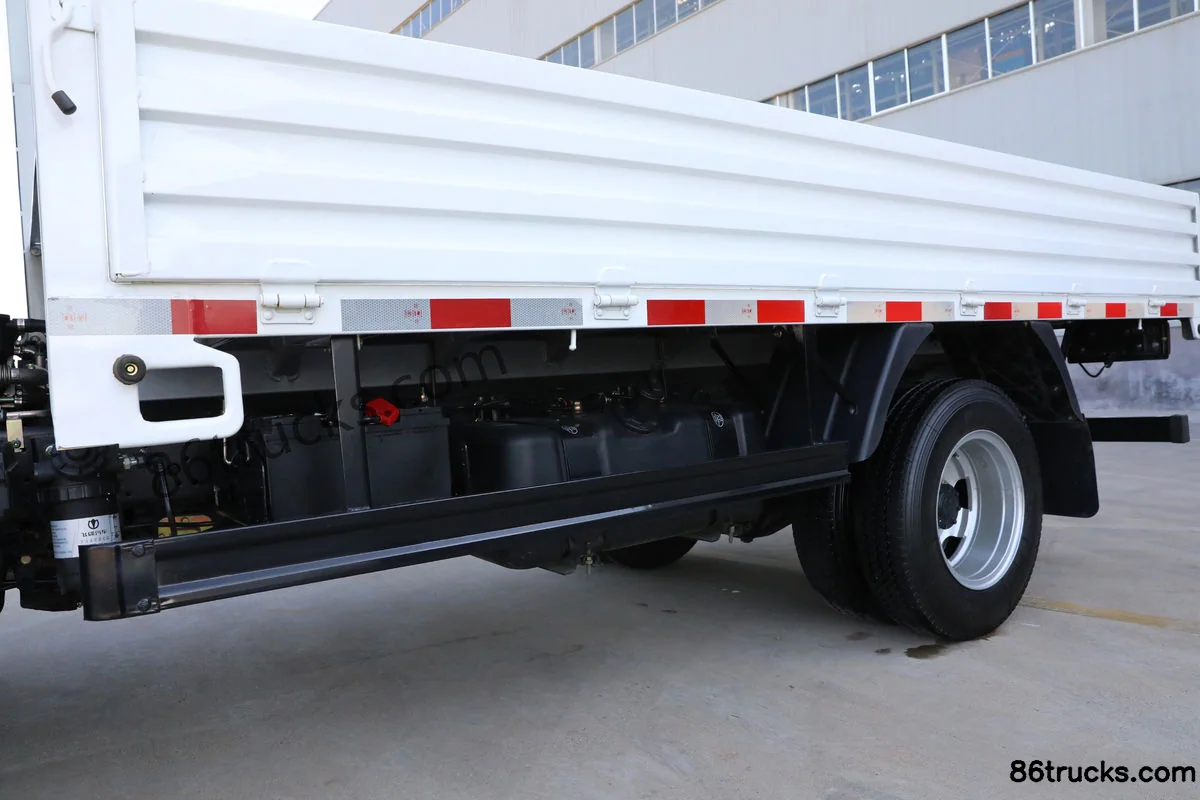

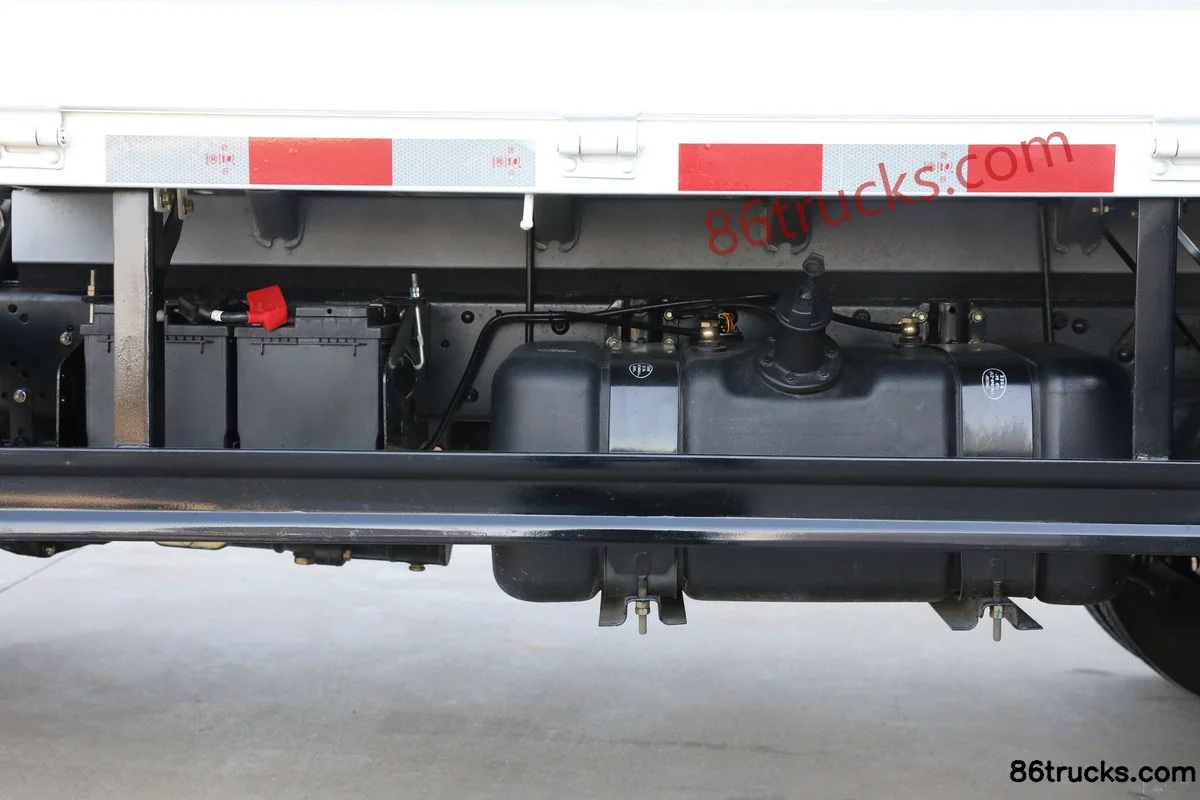

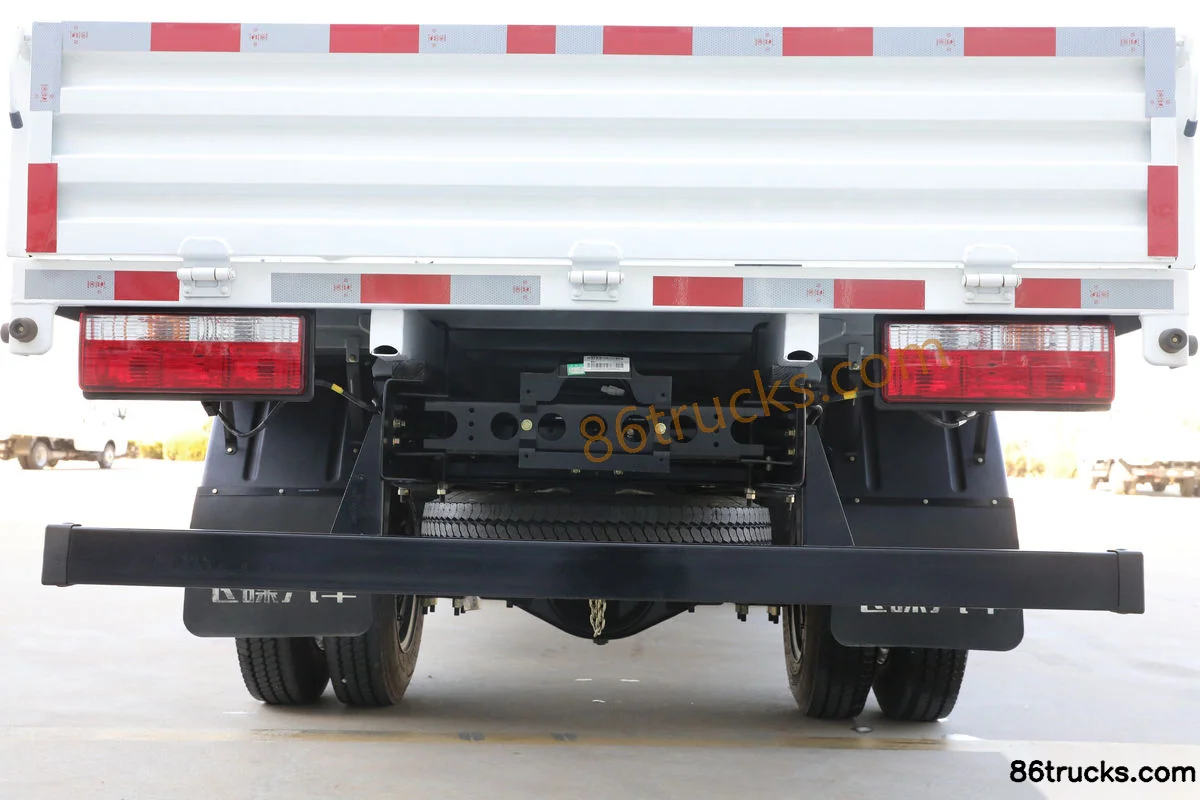

Chassis3

Feidi V1 Series 110 hp 4X2(6 wheels) 3.66m single-row flatbed light truck Chassis (1) | 86Trucks Feidi V1 Series 110 hp 4X2(6 wheels) 3.66m single-row flatbed light truck Chassis (2) | 86Trucks Feidi V1 Series 110 hp 4X2(6 wheels) 3.66m single-row flatbed light truck Chassis (3) | 86Trucks

9 photos

FAQ

What is the export price of Feidi V1 Series 110 hp 4X2(6 wheels) 3.66m single-row flatbed light truck, and what does it include?

Feidi V1 Series 110 hp 4X2(6 wheels) 3.66m single-row flatbed light truck export reference is about From $10,944; MSRP is ¥7.88M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Feidi V1 Series 110 hp 4X2(6 wheels) 3.66m single-row flatbed light truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Feidi V1 Series 110 hp 4X2(6 wheels) 3.66m single-row flatbed light truck?

Key specs of Feidi V1 Series 110 hp 4X2(6 wheels) 3.66m single-row flatbed light truck: Drive: 4x2; Horsepower: 110 hp; Emission: China V; Fuel: Diesel; Engine: WeichaiWP2.3; Transmission: Mengwo. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Feidi V1 Series 110 hp 4X2(6 wheels) 3.66m single-row flatbed light truck suited for?

Feidi V1 Series 110 hp 4X2(6 wheels) 3.66m single-row flatbed light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Feidi V1 Series 110 hp 4X2(6 wheels) 3.66m single-row flatbed light truck differ from other variants in the same series?

Feidi V1 Series 110 hp 4X2(6 wheels) 3.66m single-row flatbed light truck belongs to Feidi Aochi V3 (formerly Aochi V1) light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Feidi V1 Series 110 hp 4X2(6 wheels) 3.66m single-row flatbed light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Feidi V1 Series 110 hp 4X2(6 wheels) 3.66m single-row flatbed light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
