JAC Haoyun 28 95 hp 4X2(6 wheels) 2.8m double-row flatbed light truck

Export reference
From $8,653
MSRP ¥6.23M CNY
Horsepower: 95
Emission: China IV
Fuel: Diesel
Engine: Quanchai490
Transmission: Xingrui
Curb Weight:: 1.92ton
seating capacity: 5Personnel
Rated payload: 1.995ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The JAC Haoyun 28 95 hp 4X2(6 wheels) 2.8m double-row flatbed light truck is a Light Truck featuring 2.74m cargo length, stake body cargo body, 5Personnel volume and 1.995t payload. On the powertrain side, it comes with a Quanchai490 engine, 95 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 95 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC1040R93K8B4
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 2800mm
Box length class: 2.8m
engine: Quanchai4B2-95C40
transmission: Xingrui LC5T28
Cab length: 5.43m
Cab width: 1.91m
Cab height: 2.18m
Front track width: 1420mm
rear track: 1395mm
Curb Weight: 1.92ton
Rated payload: 1.995ton
GVWR: 4.24ton
Max. speed: 90km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Remarks: 1. Optional front panel, grille, front bumper, combination lights, front fog lights as per chassis; 2. Optional side guard; 3. Side and rear underrun protection material: Q235, bolted connection; rear protection section size (L×W): 130mm
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: Quanchai4B2-95C40
Engine info: Quanchai490
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.545L
Emission standard: China IV
Max output power: 70kW
Max hp: 95Horsepower
Max torque: 270N·m
Max torque speed: 2000rpm
Rated speed: 3200rpm
Engine Type: Electronic control EGR
Transmission Parameters
Transmission Model: Xingrui LC5T28
Transmission Brand: Xingrui
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 2.74m
Cargo box width: 1.81m
Cargo box height: 0.37m
*Cargo box interior width: 1.8099999427795
Cab parameters
seating capacity: 5Personnel
Seat rows: Double cab
fuel tank
Fuel tank capacity: 80L
Chassis Specs
rear axle description: 2710
Leaf spring count: 3/5+3
Tire
Tire Size: 6.50-16
Number of tires: 6pcs

Photos

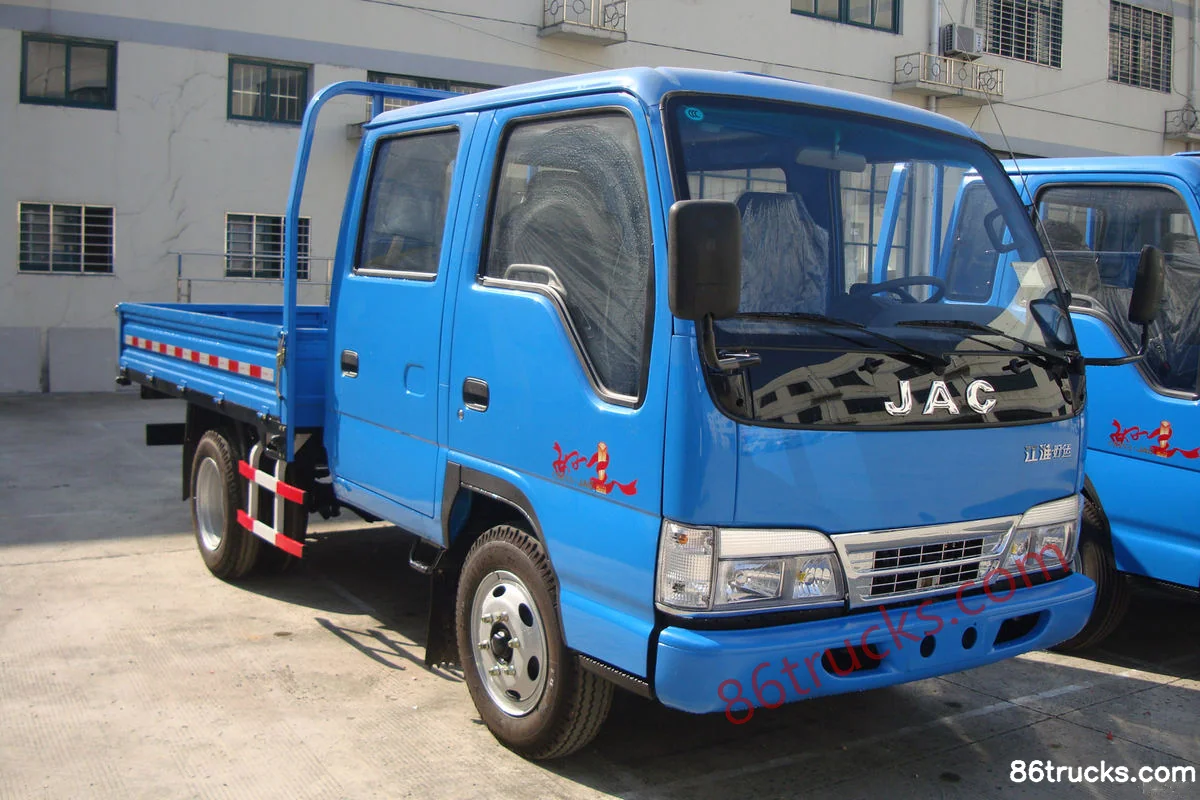

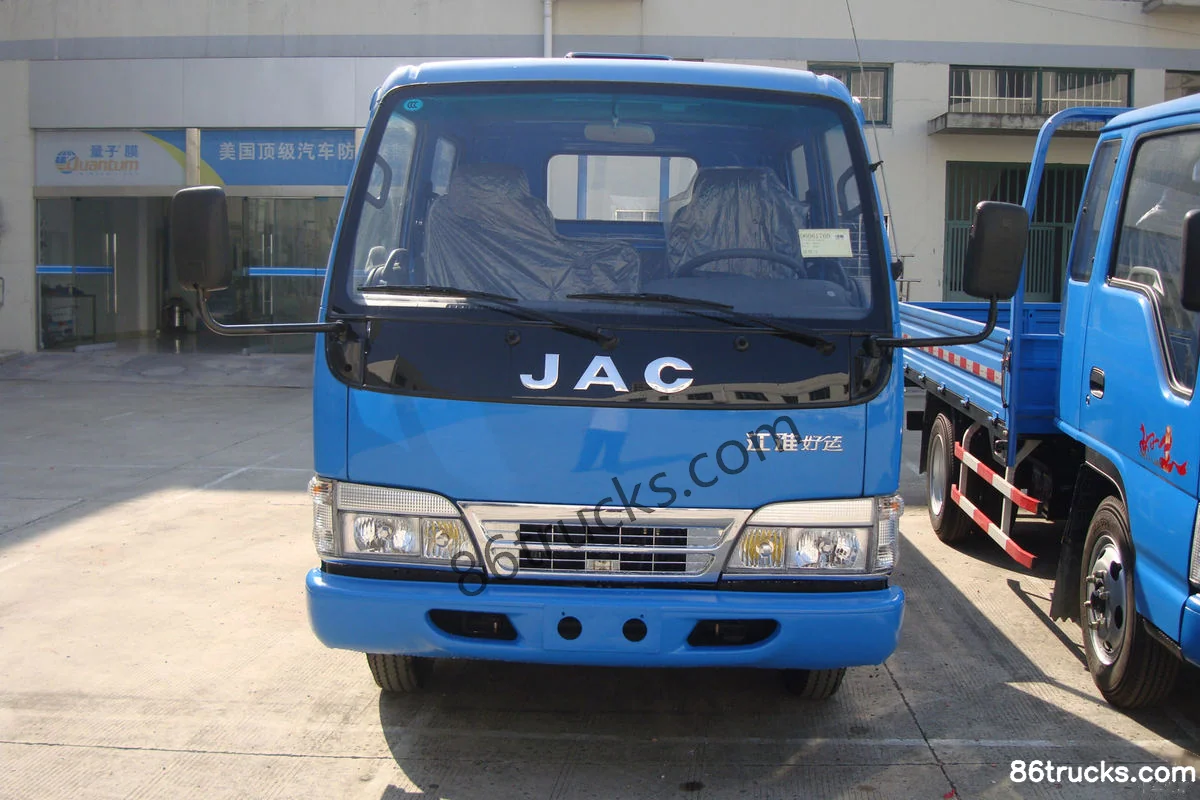

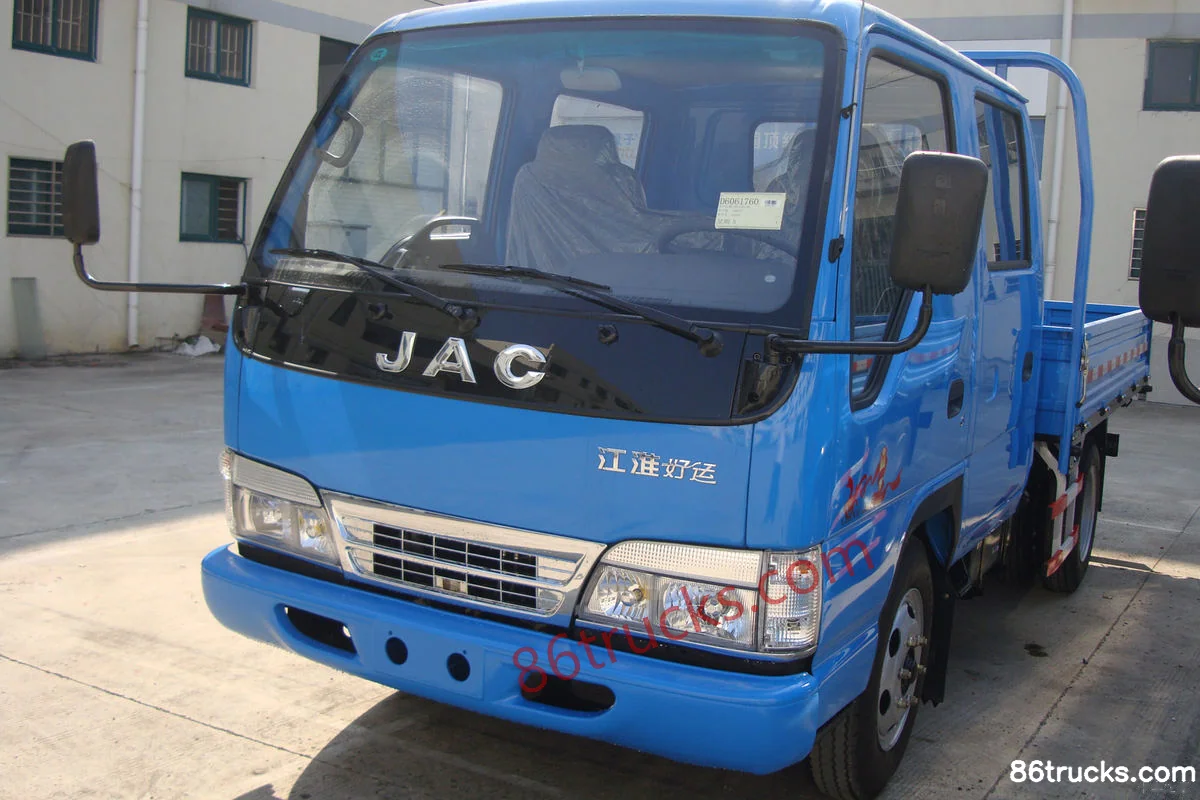

Exterior3

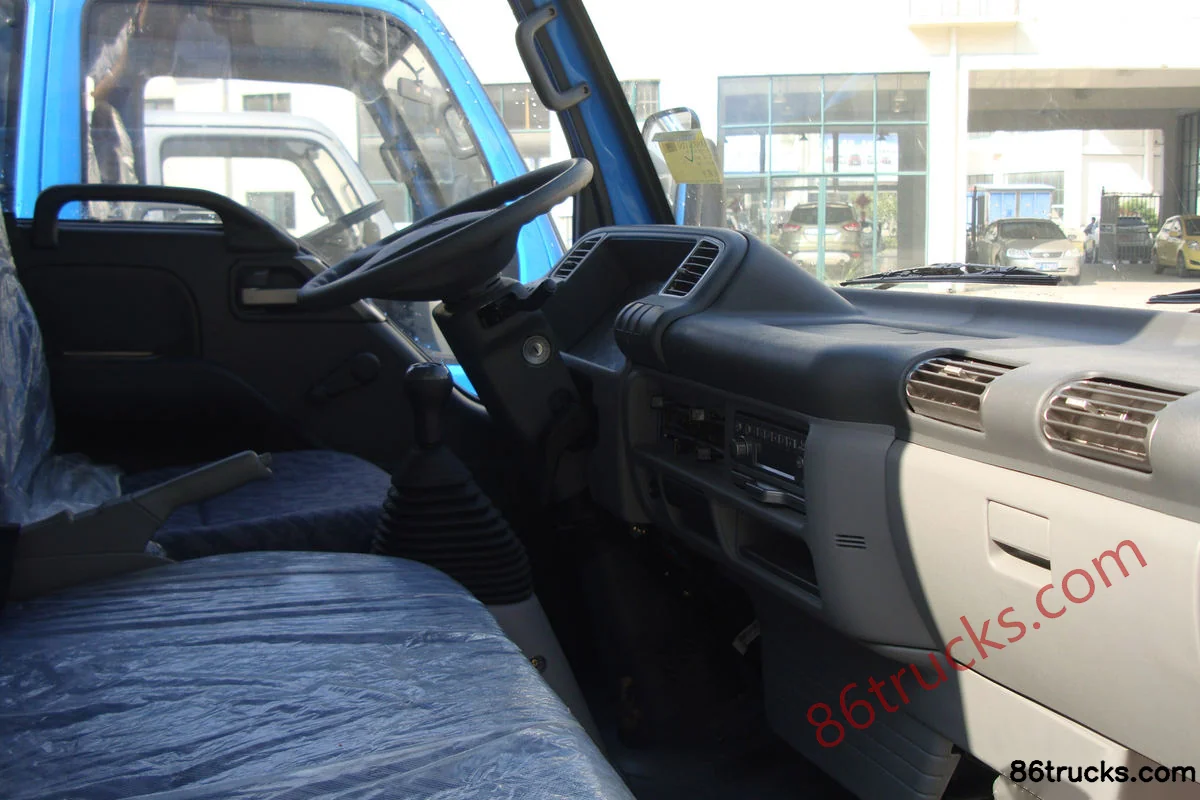

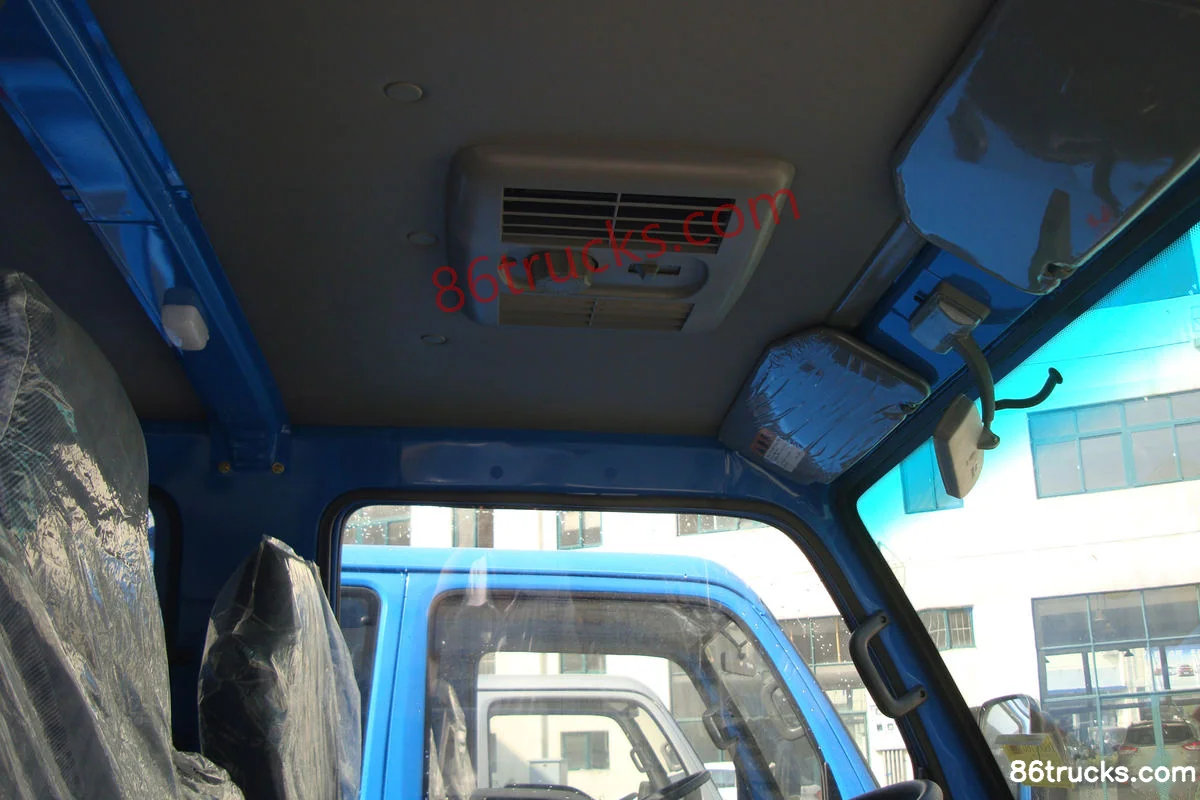

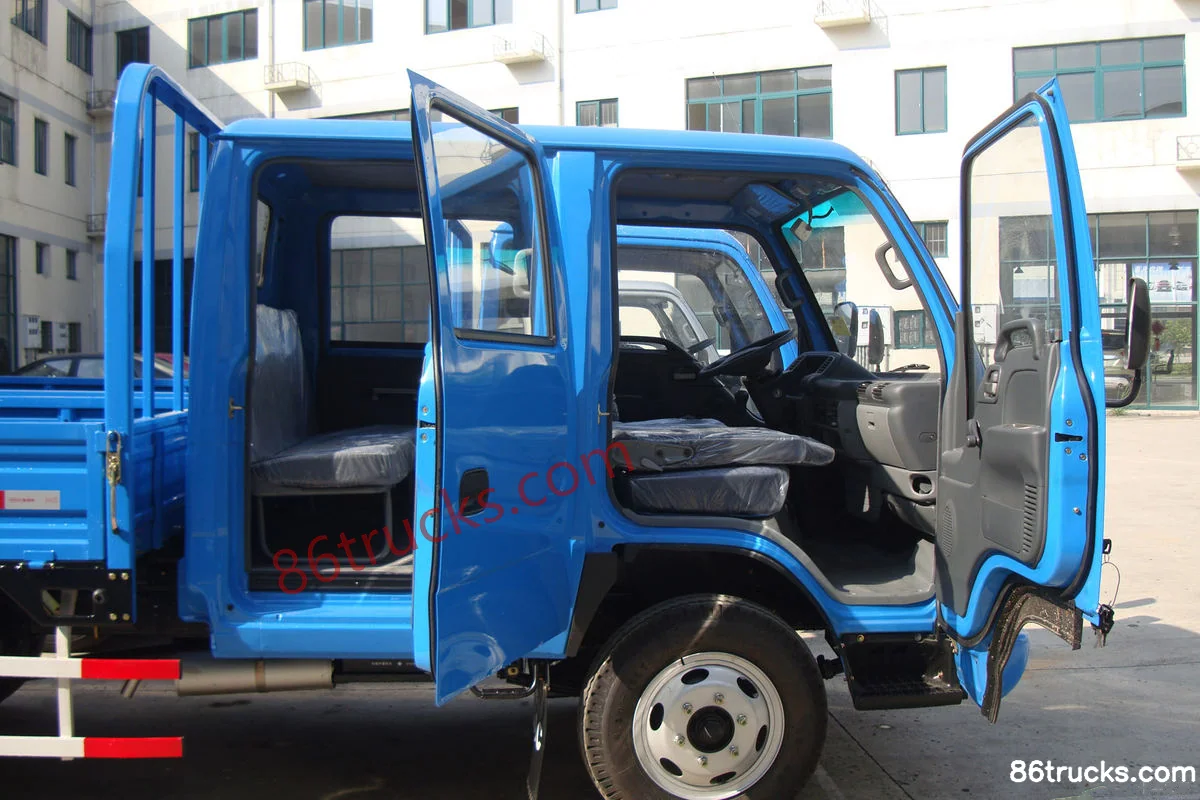

Cab3

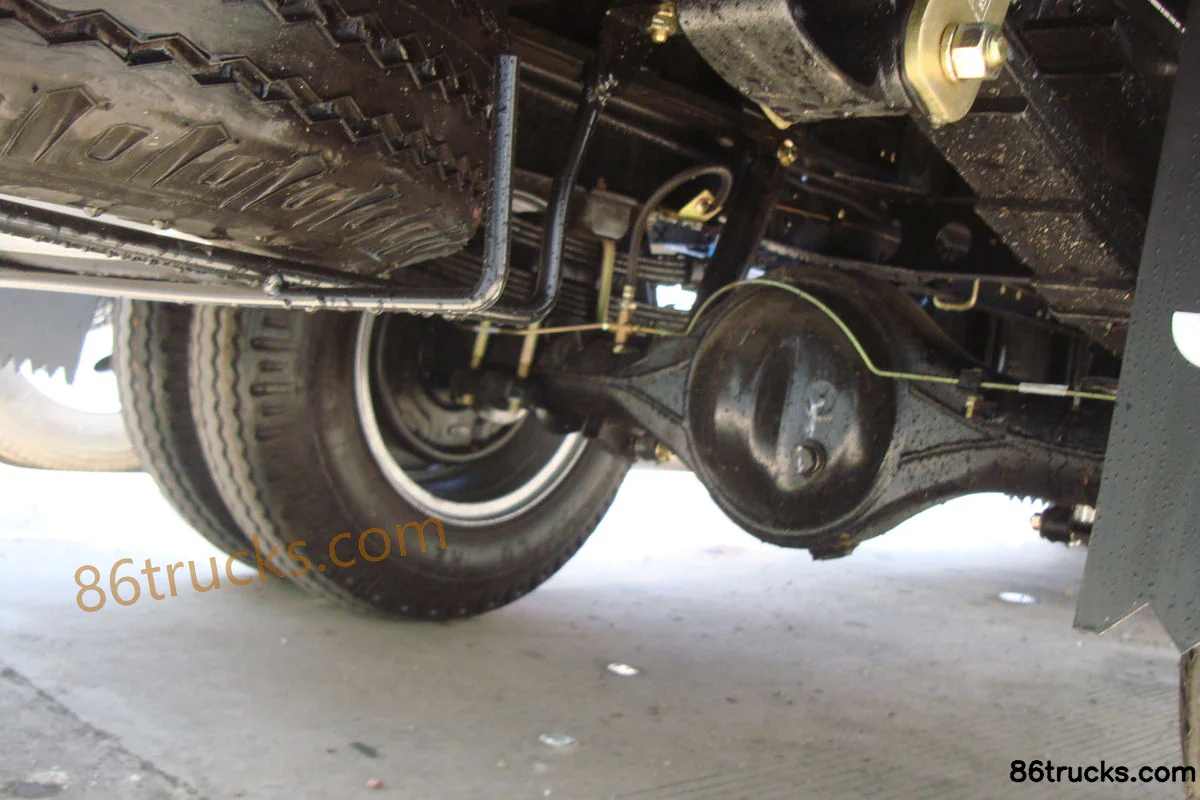

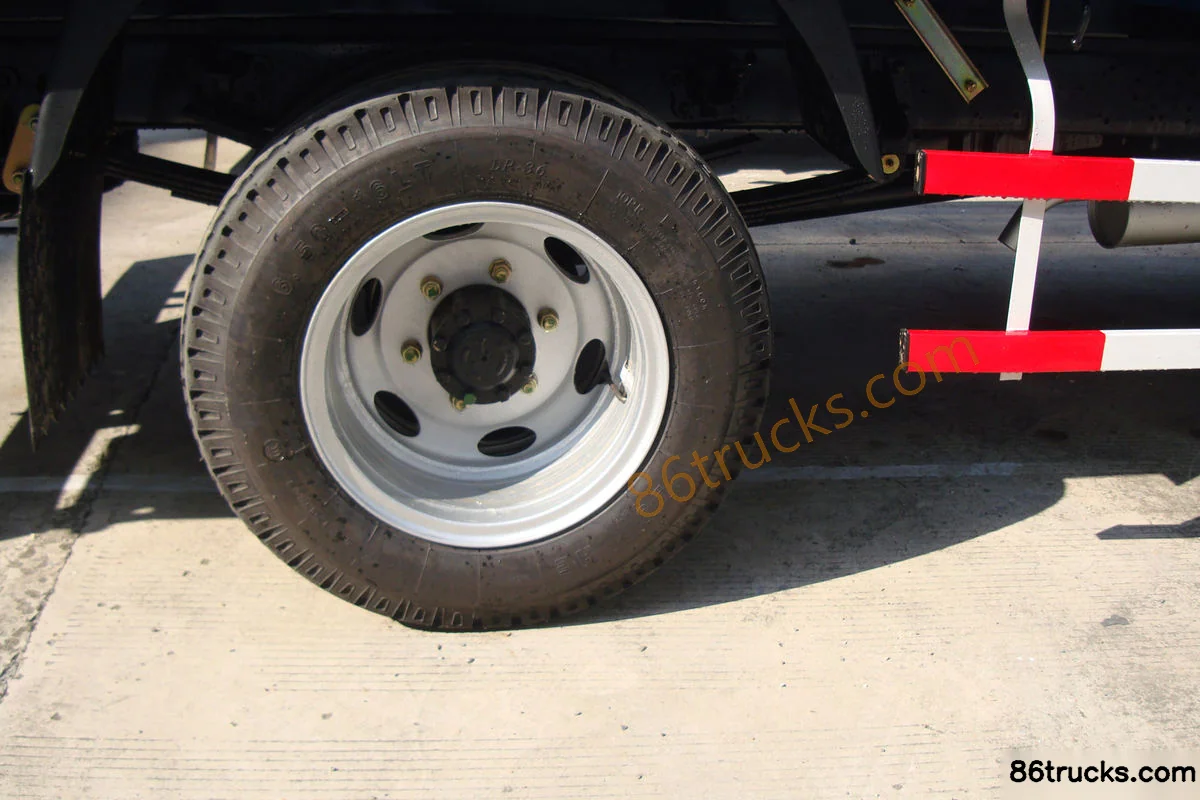

Chassis2

8 photos

FAQ

What is the export price of JAC Haoyun 28 95 hp 4X2(6 wheels) 2.8m double-row flatbed light truck, and what does it include?

JAC Haoyun 28 95 hp 4X2(6 wheels) 2.8m double-row flatbed light truck export reference is about From $8,653; MSRP is ¥6.23M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Haoyun 28 95 hp 4X2(6 wheels) 2.8m double-row flatbed light truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Haoyun 28 95 hp 4X2(6 wheels) 2.8m double-row flatbed light truck?

Key specs of JAC Haoyun 28 95 hp 4X2(6 wheels) 2.8m double-row flatbed light truck: Drive: 4x2; Horsepower: 95 hp; Emission: China IV; Fuel: Diesel; Engine: Quanchai490; Transmission: Xingrui. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Haoyun 28 95 hp 4X2(6 wheels) 2.8m double-row flatbed light truck suited for?

JAC Haoyun 28 95 hp 4X2(6 wheels) 2.8m double-row flatbed light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Haoyun 28 95 hp 4X2(6 wheels) 2.8m double-row flatbed light truck differ from other variants in the same series?

JAC Haoyun 28 95 hp 4X2(6 wheels) 2.8m double-row flatbed light truck belongs to JAC Haoyun light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Haoyun 28 95 hp 4X2(6 wheels) 2.8m double-row flatbed light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Haoyun 28 95 hp 4X2(6 wheels) 2.8m double-row flatbed light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
