JAC Kangling 33 Wide Body 120 hp 4X2(6 wheels) 4.18m Single Row Van Light Truck

Export reference
MSRP N/A
Horsepower: 120
Emission: China IV
Fuel: Diesel
Engine: JAC493
Transmission: Xingrui
Curb Weight:: 2.5ton
seating capacity: 3Personnel
Rated payload: 1.795ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The JAC Kangling 33 Wide Body 120 hp 4X2(6 wheels) 4.18m Single Row Van Light Truck is a Light Truck featuring 4.18m cargo length, Van body cargo body, 3Personnel volume and 1.795t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a JAC493 engine, 120 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 120 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5043XXYP91K5C2-1
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3308mm
Box length class: 4.2m
engine: JACHFC4DA1-2C
transmission: Xingrui LC5T28
Rear Axle Ratio: 6.142
Cab length: 5.995m
Cab width: 2.19m
Cab height: 3.1m
Front track width: 1665mm
rear track: 1525mm
Curb Weight: 2.5ton
Rated payload: 1.795ton
GVWR: 4.49ton
Max. speed: 90km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 23°
departure angle: 14°
market segment: Urban Distribution
Front/rear suspension: 1.105/1.582m
Energy Type: Diesel

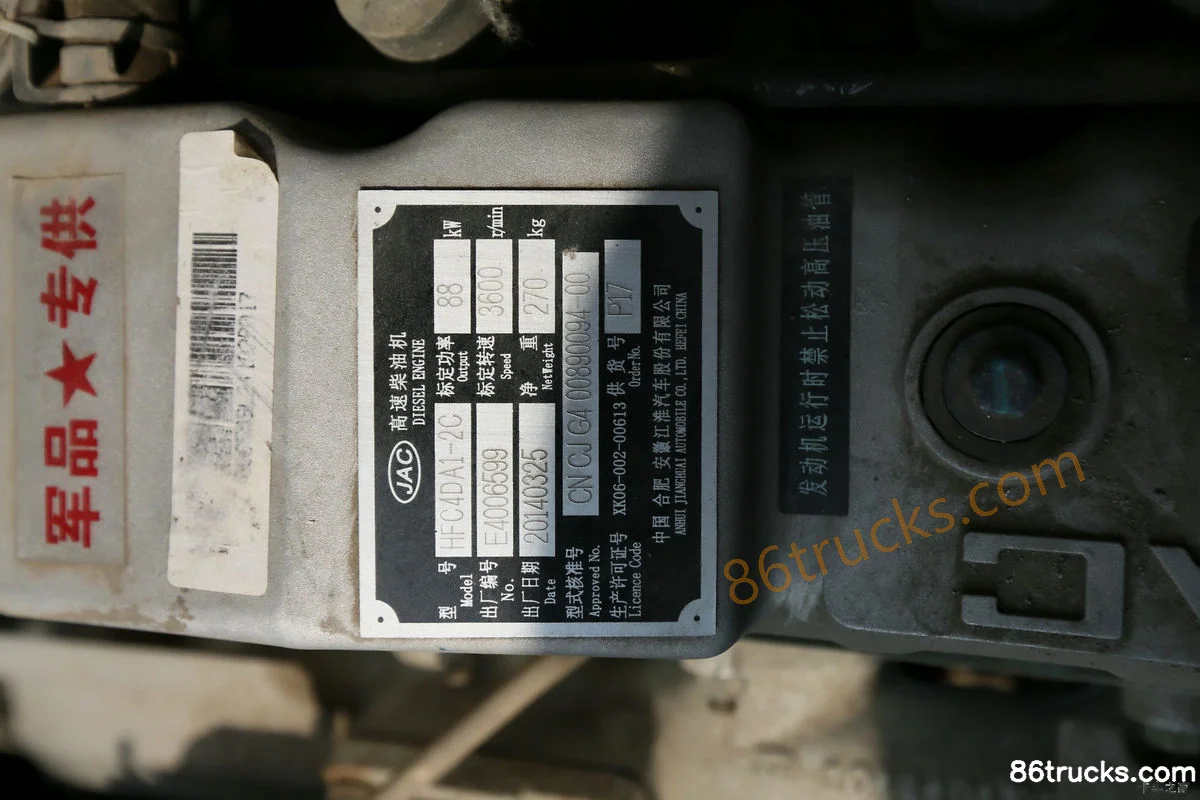

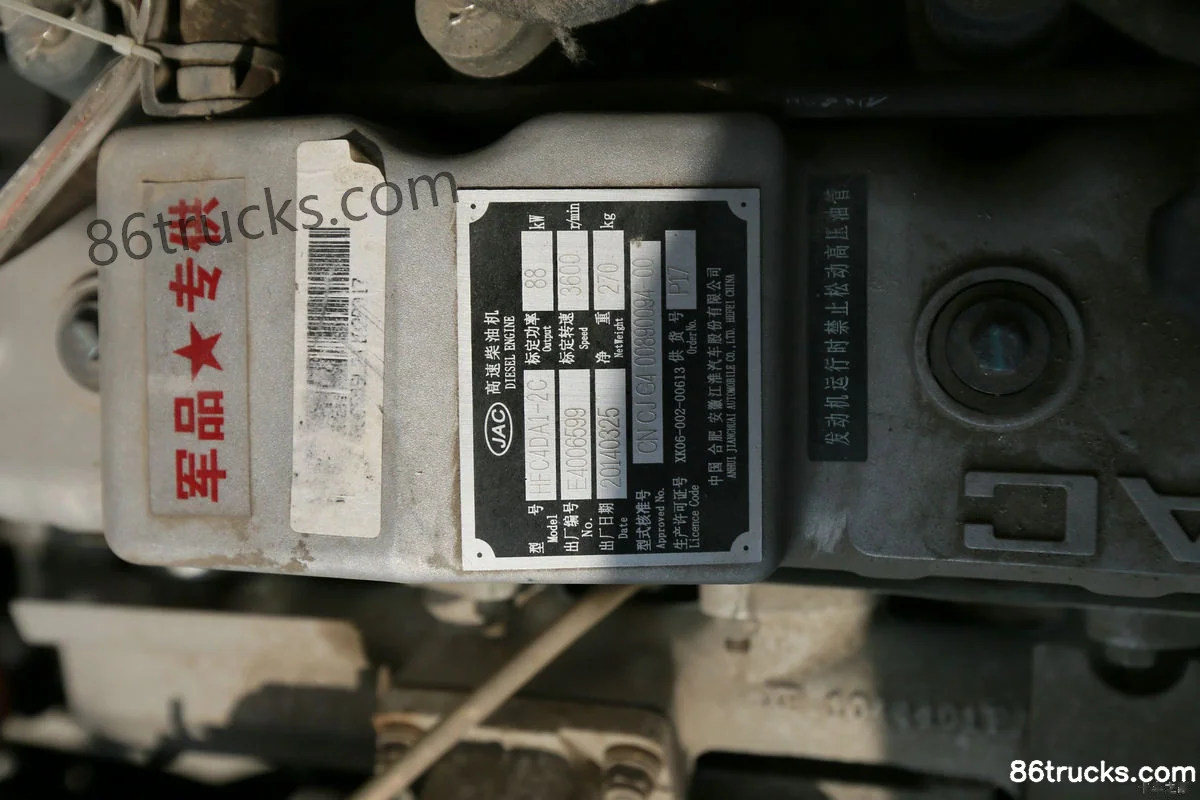

Engine parameters
Engine Brand: JAC
Engine Model: JACHFC4DA1-2C
Engine info: JAC493
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.771L
Emission standard: China IV
Max output power: 88kW
Max hp: 120Horsepower
Max torque: 250N·m
Max torque speed: 1800-2800rpm
Rated speed: 3600rpm
Engine Type: Turbocharged intercooled, inline 4-cylinder
Transmission Parameters
Transmission Model: Xingrui LC5T28
Transmission Brand: Xingrui
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.18m
Cargo box width: 2.06m
Cargo box height: 2m
*Cargo box interior width: 2.0599999427795
Cab parameters
Cab width: 2060mm
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank material: Iron
Chassis Specs
Front axle allowable load: 1620kg
rear axle allowable load: 2870kg
Axle ratio: 6.142
Leaf spring count: 12/8+6
Tire
Tire Size: 7.00R16,7.00-16,7.50-16,7.50R16
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
Service brake
Exhaust brake:

Photos

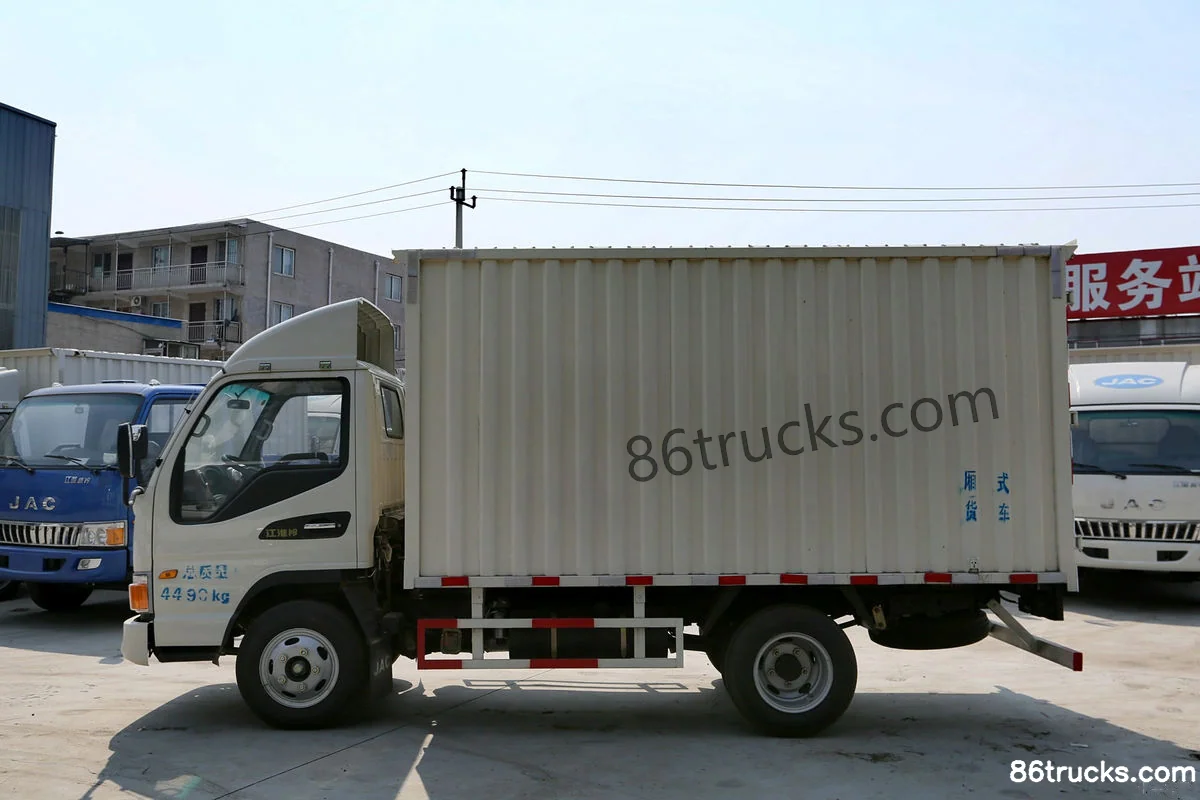

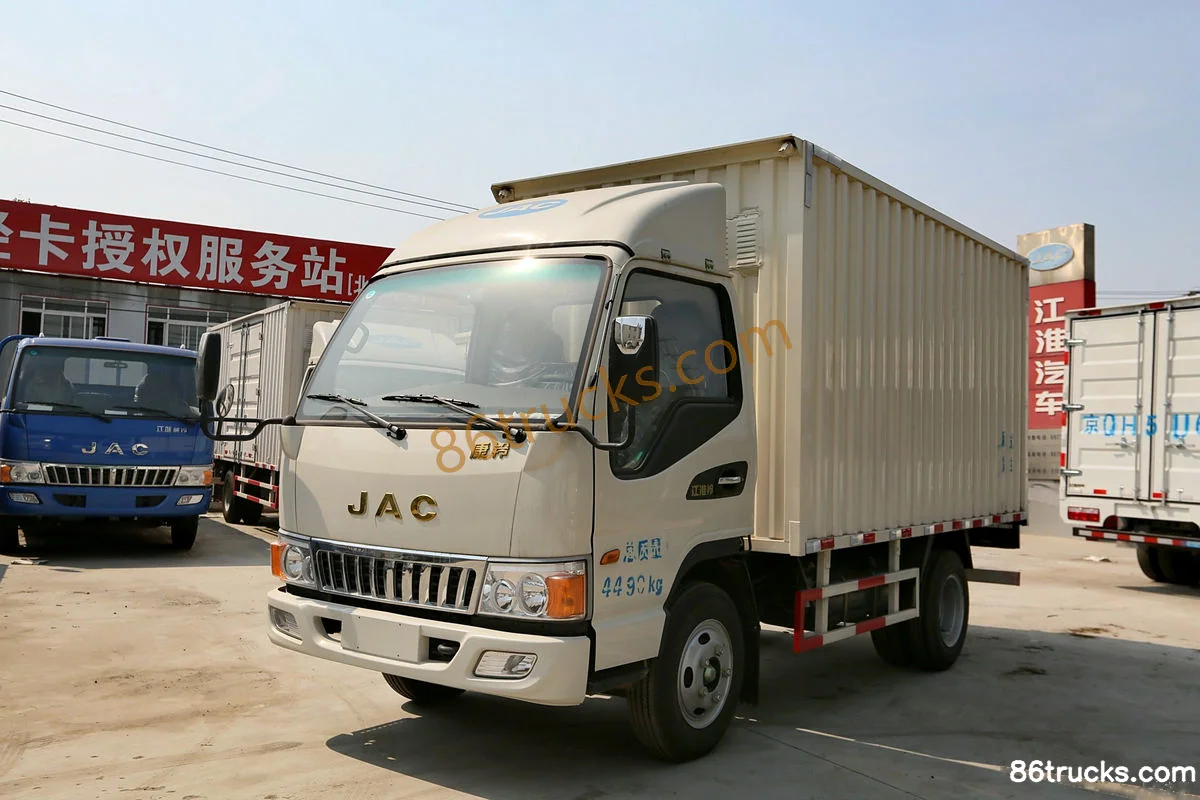

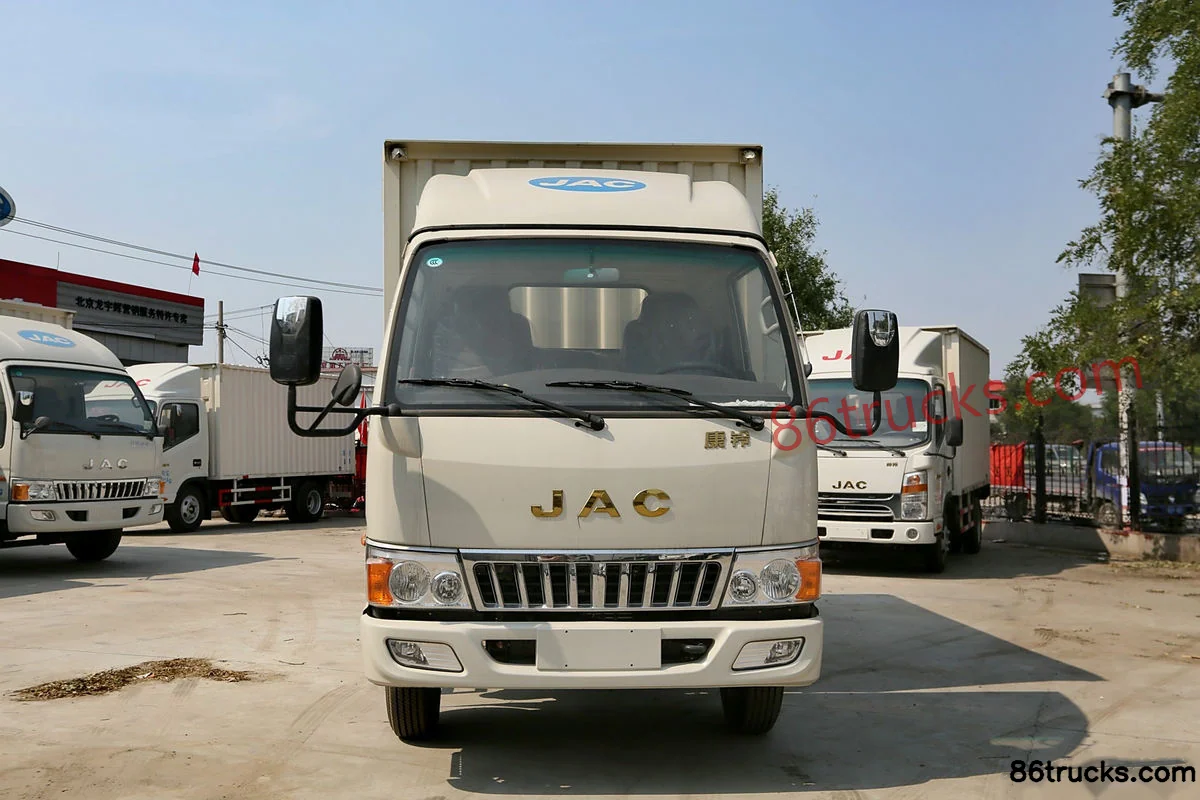

Exterior3

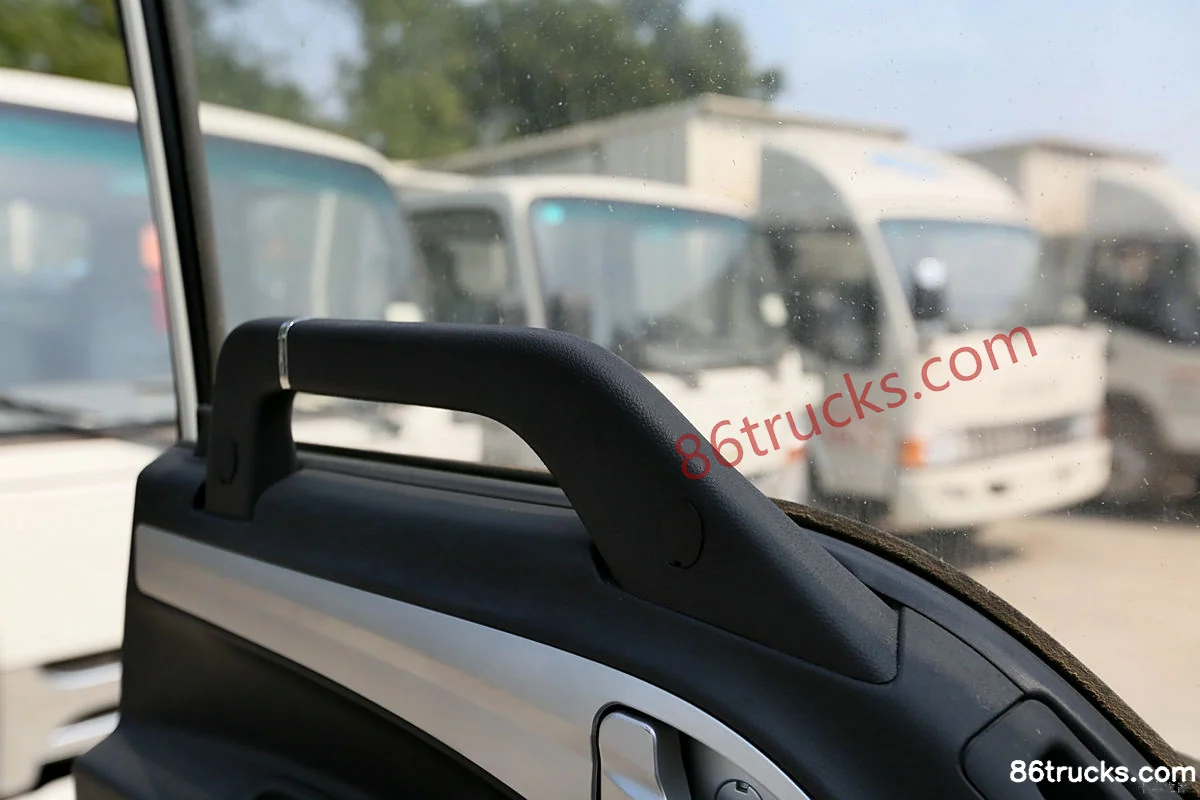

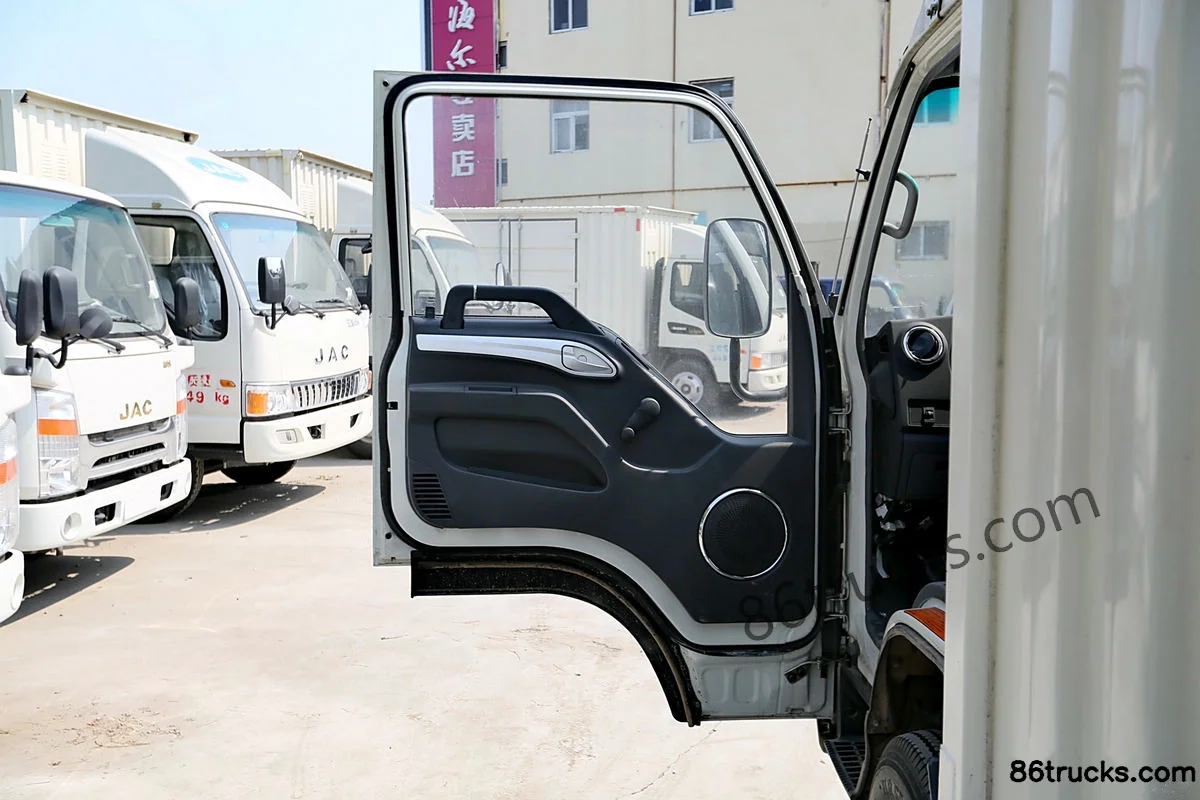

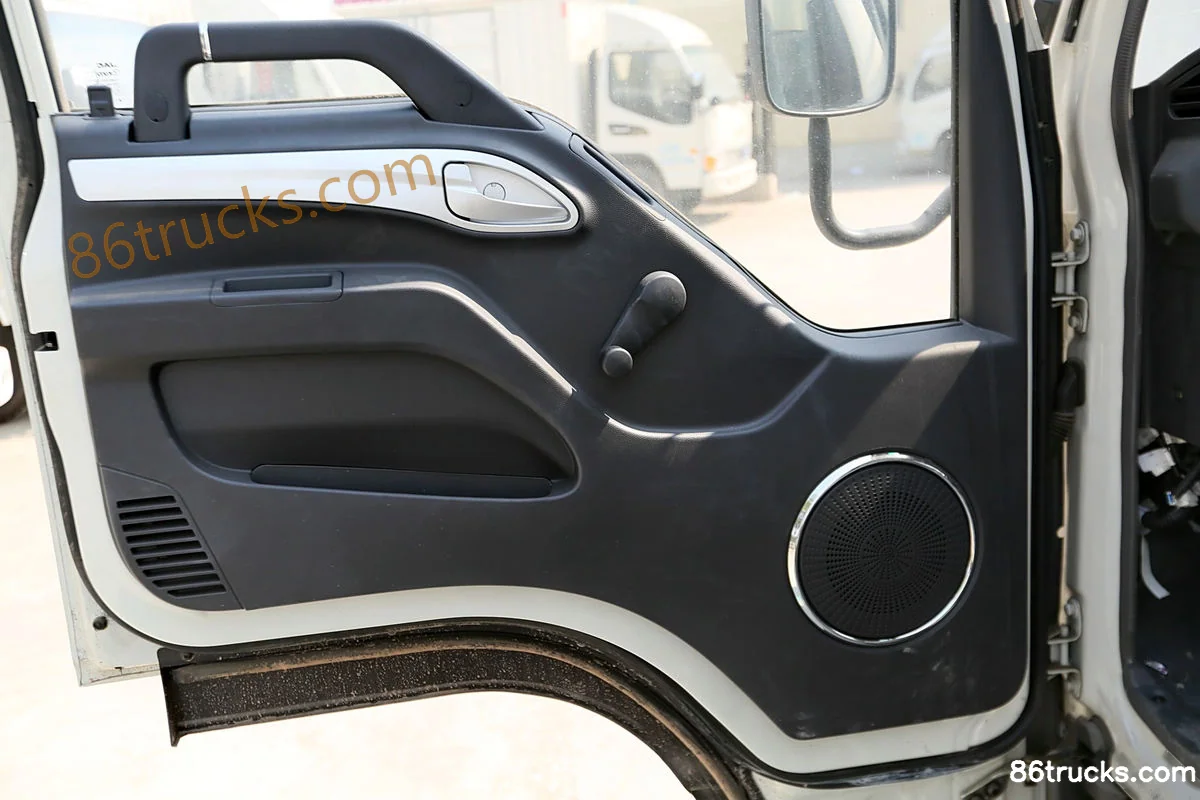

Cab3

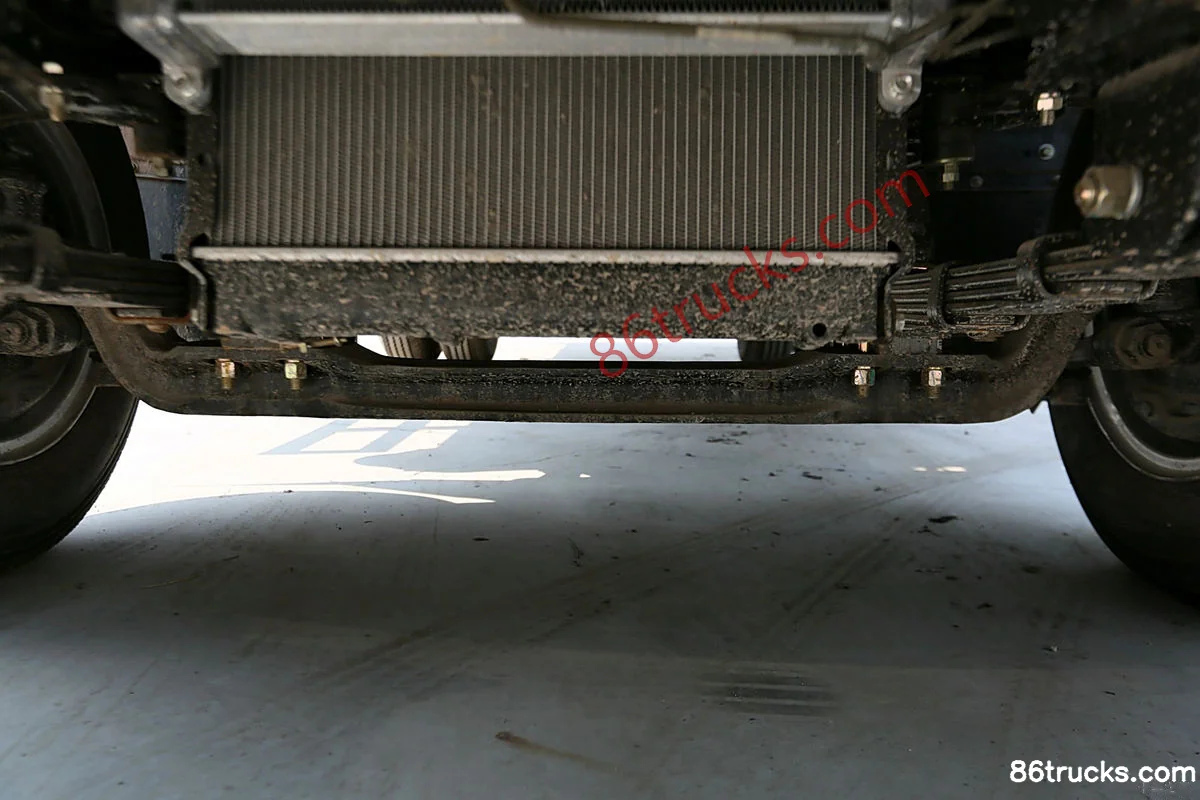

Chassis3

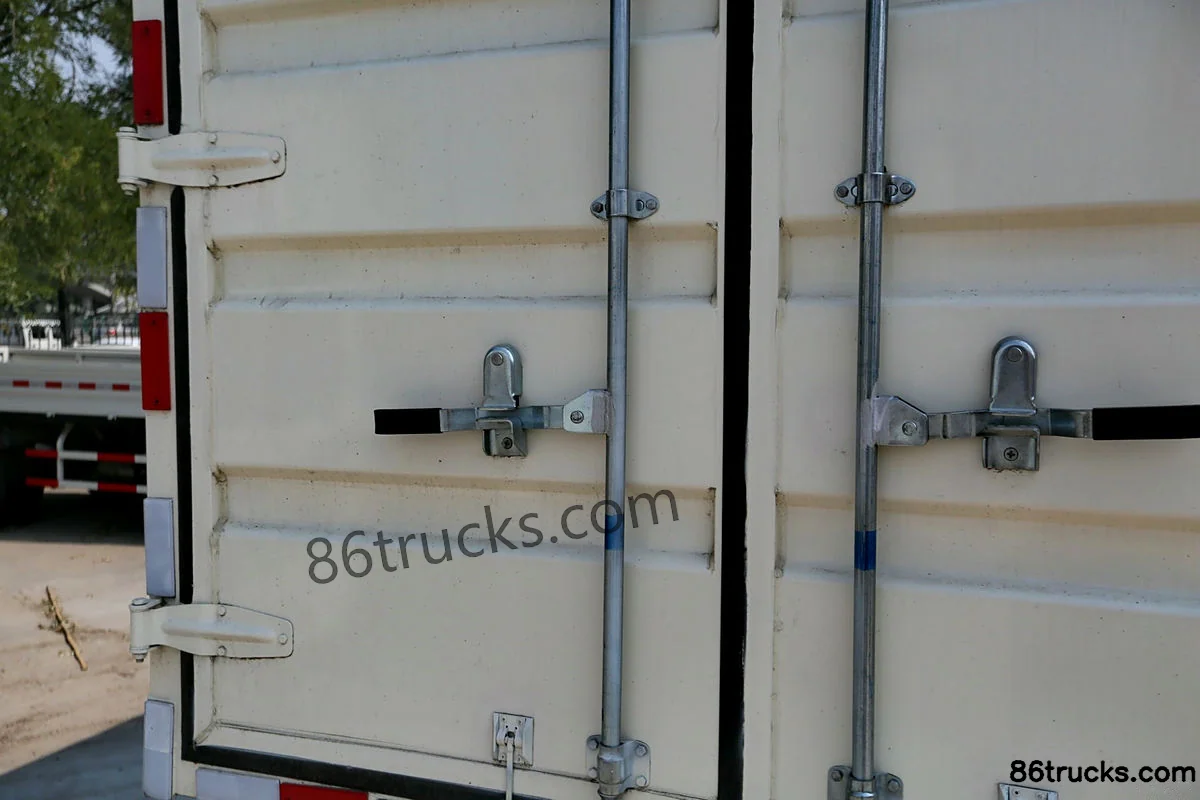

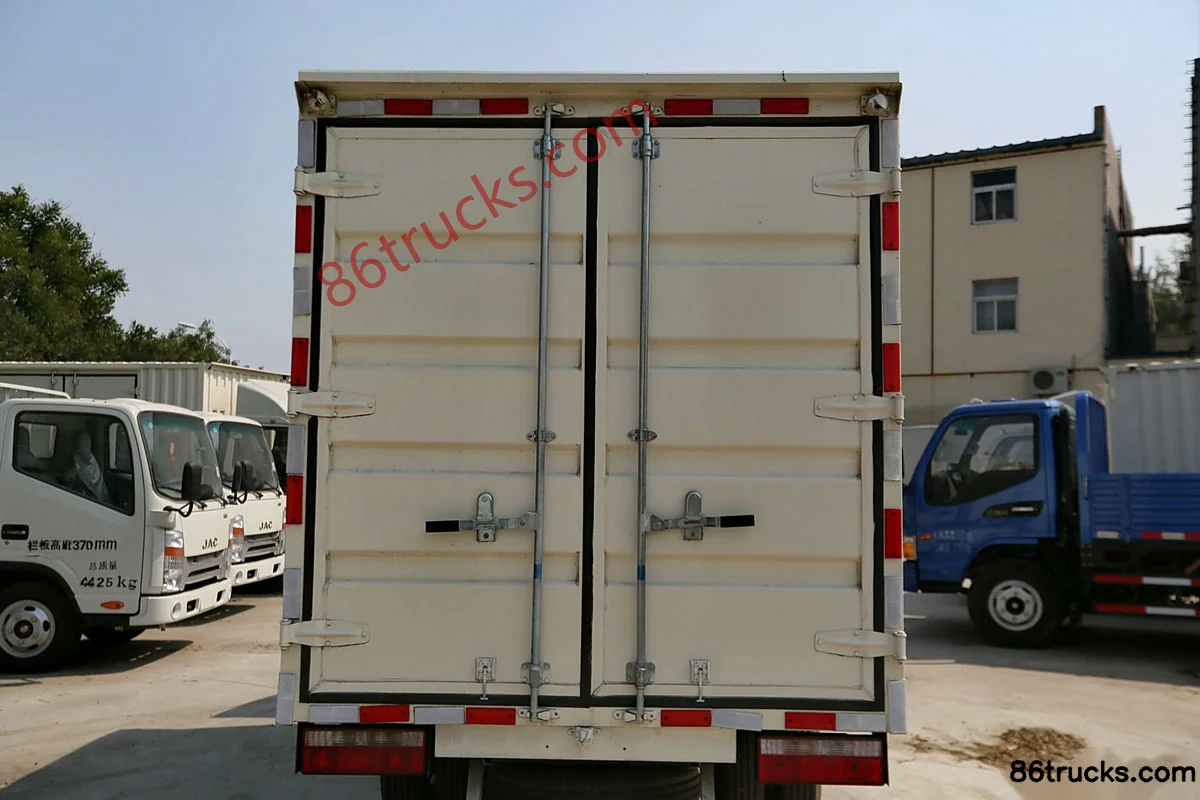

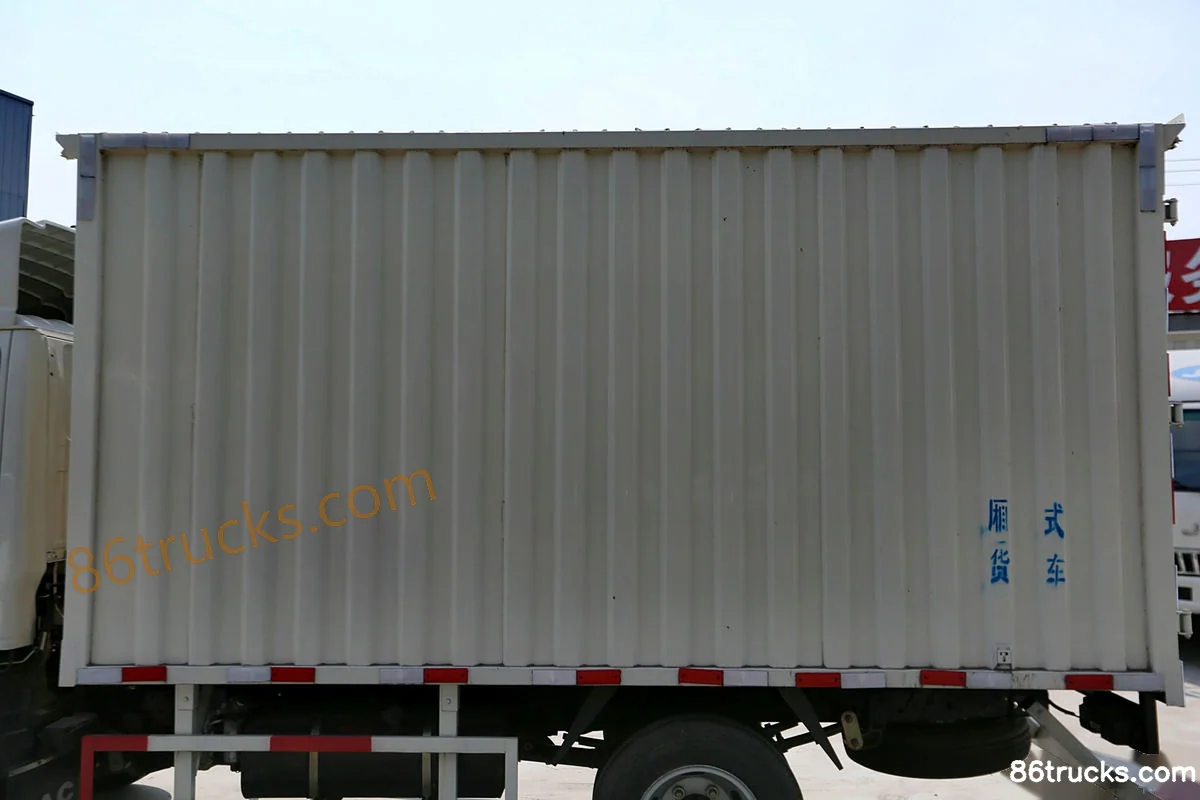

Body3

12 photos

FAQ

What emission standard does JAC Kangling 33 Wide Body 120 hp 4X2(6 wheels) 4.18m Single Row Van Light Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Kangling 33 Wide Body 120 hp 4X2(6 wheels) 4.18m Single Row Van Light Truck?

Key specs of JAC Kangling 33 Wide Body 120 hp 4X2(6 wheels) 4.18m Single Row Van Light Truck: Drive: 4x2; Horsepower: 120 hp; Emission: China IV; Fuel: Diesel; Engine: JAC493; Transmission: Xingrui. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Kangling 33 Wide Body 120 hp 4X2(6 wheels) 4.18m Single Row Van Light Truck suited for?

JAC Kangling 33 Wide Body 120 hp 4X2(6 wheels) 4.18m Single Row Van Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Kangling 33 Wide Body 120 hp 4X2(6 wheels) 4.18m Single Row Van Light Truck differ from other variants in the same series?

JAC Kangling 33 Wide Body 120 hp 4X2(6 wheels) 4.18m Single Row Van Light Truck belongs to JAC H1 light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Kangling 33 Wide Body 120 hp 4X2(6 wheels) 4.18m Single Row Van Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Kangling 33 Wide Body 120 hp 4X2(6 wheels) 4.18m Single Row Van Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
