Sichuan Hyundai Zhidao 300M 143 hp 4X2(6 wheels) 4.18m Single Row Stake Truck Chassis

Export reference
From $12,222
MSRP ¥8.8M CNY
Horsepower: 143
Emission: China IV
Fuel: Diesel
Engine: Yunnei Dewei D25
Transmission: Lu'an
Curb Weight:: 2.6ton
seating capacity: 3Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Hyundai Commercial Vehicle Sichuan Hyundai Zhidao 300M 143 hp 4X2(6 wheels) 4.18m Single Row Stake Truck Chassis is a Light Truck featuring 4.18m cargo length, Stake type cargo body, 3Personnel volume and 1.495t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Yunnei Dewei D25 engine, 143 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 143 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CNJ5040CCYZDB33M
Type: Chassis
Drive type: 4X2
Wheelbase: 3300mm
Box length class: 4.2m
engine: Yunnei PowerD25TCID1
transmission: Lu'an 6-speed
Rear Axle Ratio: 5.43
Cab length: 5.995m
Cab width: 2.17m
Cab height: 3.1m
Front track width: 1620mm
rear track: 1540mm
Curb Weight: 2.6ton
Rated payload: 1.495ton
GVWR: 4.29ton
Max. speed: 110km/h
Origin: Ziyang, Sichuan
tonnage class: Light Truck
Approach angle: 21°
departure angle: 14°
market segment: Agricultural product transport, green channel
Front/rear suspension: 1.11/1.585m
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD25TCID1
Engine info: Yunnei Dewei D25
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.499L
Emission standard: China IV
Max output power: 105kW
Max hp: 143Horsepower
Max torque: 360N·m
Max torque speed: 1600-2800rpm
Rated speed: 3600rpm
Engine Type: Electronically controlled strong-cooling EGR
Transmission Parameters
Transmission Model: Lu'an 6-speed
Transmission Brand: Lu'an
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 4.18m
Cargo box width: 2.05m
Cargo box height: 0.4m
*Cargo box interior width: 2.0499999523163
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank capacity: 120L
Chassis Specs
Front axle allowable load: 1630kg
rear axle allowable load: 2660kg
Axle ratio: 5.43
Leaf spring count: 3/9+7
Tire
Tire Size: 7.00-16 6PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

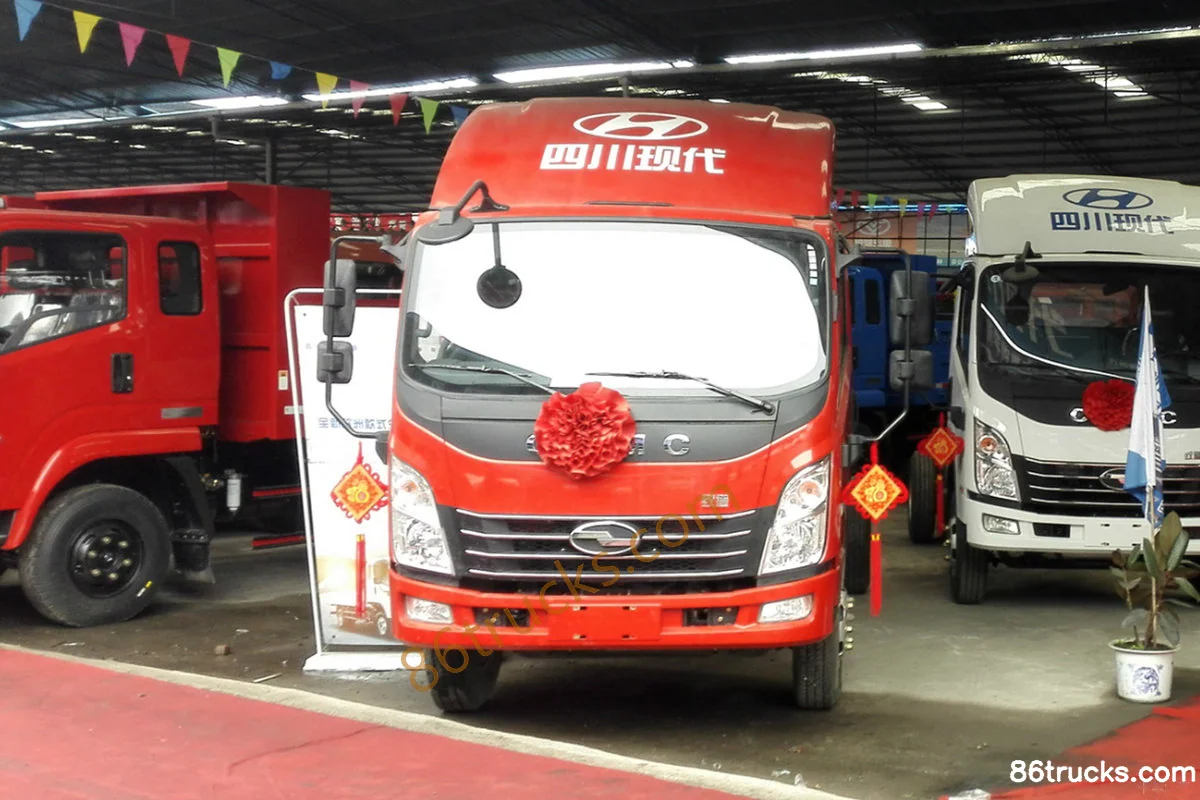

Exterior1

1 photos

FAQ

What is the export price of Sichuan Hyundai Zhidao 300M 143 hp 4X2(6 wheels) 4.18m Single Row Stake Truck Chassis, and what does it include?

Sichuan Hyundai Zhidao 300M 143 hp 4X2(6 wheels) 4.18m Single Row Stake Truck Chassis export reference is about From $12,222; MSRP is ¥8.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sichuan Hyundai Zhidao 300M 143 hp 4X2(6 wheels) 4.18m Single Row Stake Truck Chassis use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sichuan Hyundai Zhidao 300M 143 hp 4X2(6 wheels) 4.18m Single Row Stake Truck Chassis?

Key specs of Sichuan Hyundai Zhidao 300M 143 hp 4X2(6 wheels) 4.18m Single Row Stake Truck Chassis: Drive: 4x2; Horsepower: 143 hp; Emission: China IV; Fuel: Diesel; Engine: Yunnei Dewei D25; Transmission: Lu'an. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sichuan Hyundai Zhidao 300M 143 hp 4X2(6 wheels) 4.18m Single Row Stake Truck Chassis suited for?

Sichuan Hyundai Zhidao 300M 143 hp 4X2(6 wheels) 4.18m Single Row Stake Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sichuan Hyundai Zhidao 300M 143 hp 4X2(6 wheels) 4.18m Single Row Stake Truck Chassis differ from other variants in the same series?

Sichuan Hyundai Zhidao 300M 143 hp 4X2(6 wheels) 4.18m Single Row Stake Truck Chassis belongs to Zhidao 300 Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sichuan Hyundai Zhidao 300M 143 hp 4X2(6 wheels) 4.18m Single Row Stake Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sichuan Hyundai Zhidao 300M 143 hp 4X2(6 wheels) 4.18m Single Row Stake Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
