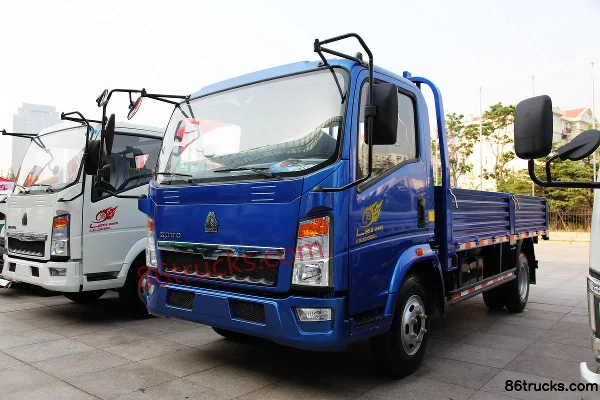

Sinotruk HOWO Hanjiang Lightweight Edition 116 hp 4X2(6 wheels) 3.85m Semi-row Flatbed Light Truck

Export reference
From $16,042
MSRP ¥11.55M CNY
Horsepower: 116
Emission: China V
Fuel: Diesel
Engine: Isuzu493
Transmission: WLY
Curb Weight:: 2.565ton
seating capacity: 3Personnel
Rated payload: 1.735ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Sinotruk HOWO Hanjiang Lightweight Edition 116 hp 4X2(6 wheels) 3.85m Semi-row Flatbed Light Truck is a Light Truck featuring 3.85m cargo length, stake body cargo body, 3Personnel volume and 1.735t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Isuzu493 engine, 116 hp, 4X2 (6 wheels) drive and China V emissions.

China V 116 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ1047F3315E145
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3280mm
Box length class: 3.8m
engine: Jiangxi IsuzuJE493ZLQ5
transmission: WLYWLY525
Cab length: 5.995m
Cab width: 2.25m
Cab height: 2.5m
Front track width: 1605mm
rear track: 1595mm
Curb Weight: 2.565ton
Rated payload: 1.735ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Jinan, Shandong
tonnage class: Light Truck
Approach angle: 19°
departure angle: 18°
market segment: Building materials, agricultural products
Front/rear suspension: 1.16/1.555m
Version: Lightweight version
Energy Type: Diesel
Engine parameters
Engine Brand: Isuzu
Engine Model: Jiangxi IsuzuJE493ZLQ5
Engine info: Isuzu493
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.771L
Emission standard: China V
Max output power: 85kW
Max hp: 116Horsepower
Max torque: 285N·m
Max torque speed: 2000rpm
Rated speed: 3200rpm
Engine Type: Inline, water-cooled, common rail, turbocharged intercooled, four-stroke
Transmission Parameters
Transmission Model: WLYWLY6T50C
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.85m
Cargo box width: 2.05m
Cargo box height: 0.4m
*Cargo box interior width: 2.0499999523163
Cab parameters
Cab width: 1880mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 1790kg
rear axle allowable load: 2705kg
Leaf spring count: 3/5+3,8/9+6
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
interior configuration
AC control type: Manual
Power Windows:
Reverse Camera:
Electronic Central Lock:
Multimedia features
GPS/Beidou driving recorder:
Radio:
Service brake
Exhaust brake:

Photos

0 photos

FAQ

What is the export price of Sinotruk HOWO Hanjiang Lightweight Edition 116 hp 4X2(6 wheels) 3.85m Semi-row Flatbed Light Truck, and what does it include?

Sinotruk HOWO Hanjiang Lightweight Edition 116 hp 4X2(6 wheels) 3.85m Semi-row Flatbed Light Truck export reference is about From $16,042; MSRP is ¥11.55M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HOWO Hanjiang Lightweight Edition 116 hp 4X2(6 wheels) 3.85m Semi-row Flatbed Light Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO Hanjiang Lightweight Edition 116 hp 4X2(6 wheels) 3.85m Semi-row Flatbed Light Truck?

Key specs of Sinotruk HOWO Hanjiang Lightweight Edition 116 hp 4X2(6 wheels) 3.85m Semi-row Flatbed Light Truck: Drive: 4x2; Horsepower: 116 hp; Emission: China V; Fuel: Diesel; Engine: Isuzu493; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO Hanjiang Lightweight Edition 116 hp 4X2(6 wheels) 3.85m Semi-row Flatbed Light Truck suited for?

Sinotruk HOWO Hanjiang Lightweight Edition 116 hp 4X2(6 wheels) 3.85m Semi-row Flatbed Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk HOWO Hanjiang Lightweight Edition 116 hp 4X2(6 wheels) 3.85m Semi-row Flatbed Light Truck differ from other variants in the same series?

Sinotruk HOWO Hanjiang Lightweight Edition 116 hp 4X2(6 wheels) 3.85m Semi-row Flatbed Light Truck belongs to Sinotruk Hanjiang Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO Hanjiang Lightweight Edition 116 hp 4X2(6 wheels) 3.85m Semi-row Flatbed Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO Hanjiang Lightweight Edition 116 hp 4X2(6 wheels) 3.85m Semi-row Flatbed Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
