FAW Liute Xin Anjie (L5R) Heavy Truck 260hp 4X2(6 wheels) Long-Nose Tractor Truck

Export reference
From $26,236
MSRP ¥18.89M CNY
Fuel: Diesel
Gross Trailer Weight:: 35ton
Wheelbase:: 4250mm
Tire Size:: 10.00-20
rear axle allowable load:: 9560kg
Displacement:: 7.7L
Drive 4X2 (6 wheels)
Horsepower 260
Emission China IV
Transmission Fast Gear

Overview

The FAW Jiefang Qingdao FAW Liute Xin Anjie (L5R) Heavy Truck 260hp 4X2(6 wheels) Long-Nose Tractor Truck is a Heavy truck featuring 4X2 (6 wheels) drive, 260 hp, 18t GVW and China IV emissions. Its segment focus covers Standard, matching those duty cycles. On the powertrain side, it comes with a XichaiCA6DL1-26E4 engine, Fast Gear transmission and Diesel fuel.

China IV 260 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA4180K2E4R7A90
Drive type: 4X2
Wheelbase: 4250mm
engine: XichaiCA6DL1-26E4
transmission: Fast Gear8JS85F
Rear Axle Ratio: 4.875
Cab length: 6.23m
Cab width: 2.5m
Cab height: 3.31m
Front track width: 2020mm
rear track: 1860mm
Gross Trailer Weight: 35ton
Curb Weight: 6.31ton
GVWR: 18ton
Max. speed: 80km/h
Origin: Liuzhou, Guangxi
tonnage class: Heavy truck
market segment:
Remarks: Highway/urban roads; Air-suspended cab semi-floating mount, driver air-suspension seat, single bunk, external sun visor, power windows, electric A/C, cable control, 50# fifth wheel and fixed base plate, 7-pin cable, spiral air hose, rear work light, aluminum radiator, reinforced power steering, exhaust brake, air handbrake, air dryer, air-to-air intercooler, full-length constant-width straight frame rail, 350L aluminum fuel tank, catwalk, split rear axle fender (with upper splash guard), ABS
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DL1-26E4
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 7.7L
Emission standard: China IV
Max output power: 195kW
Max hp: 260Horsepower
Max torque: 1050N·m
Max torque speed: 1300-1700rpm
Rated speed: 2300rpm
Transmission Parameters
Transmission Model: Fast Gear8JS85F
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears:
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 350L
Cab parameters
Cab: Flat roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
upper bunk width: 600mm
Lower Bunk Width: 740mm
Chassis Specs
Suspension type: Leaf spring
Frame Dimensions: 260*75* (7+4)mm
rear axle description: 435 stamped-welded axle
rear axle allowable load: 9560kg
Axle ratio: 4.875
Leaf spring count: 10/8+9
clutch: Φ395
Tire
Tire Size: 10.00-20
Number of tires: 6pcs

Photos

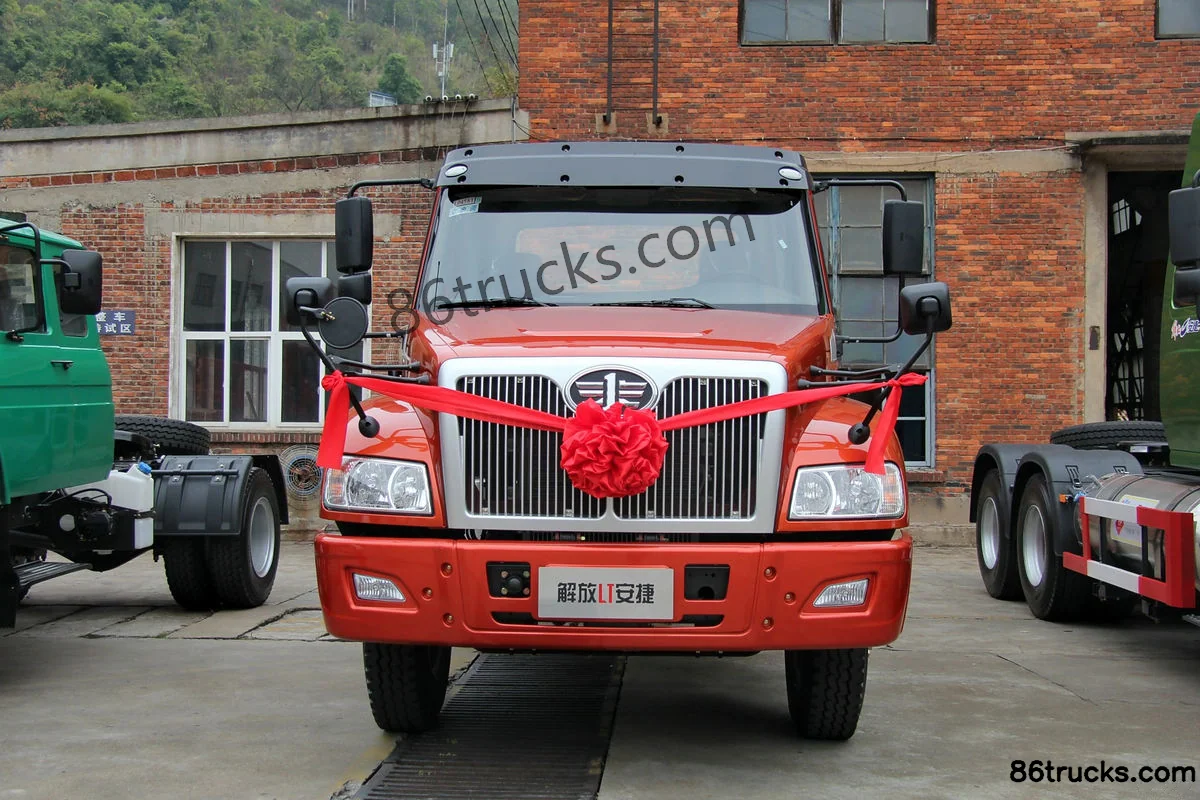

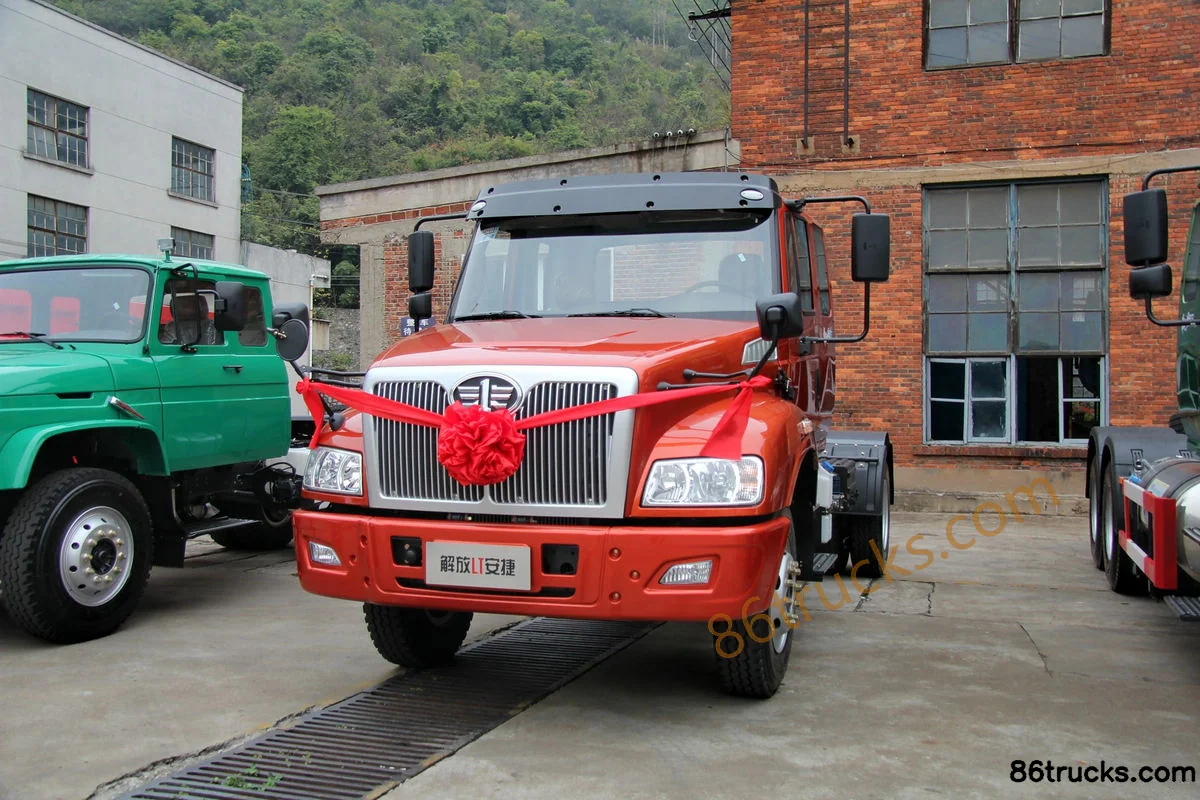

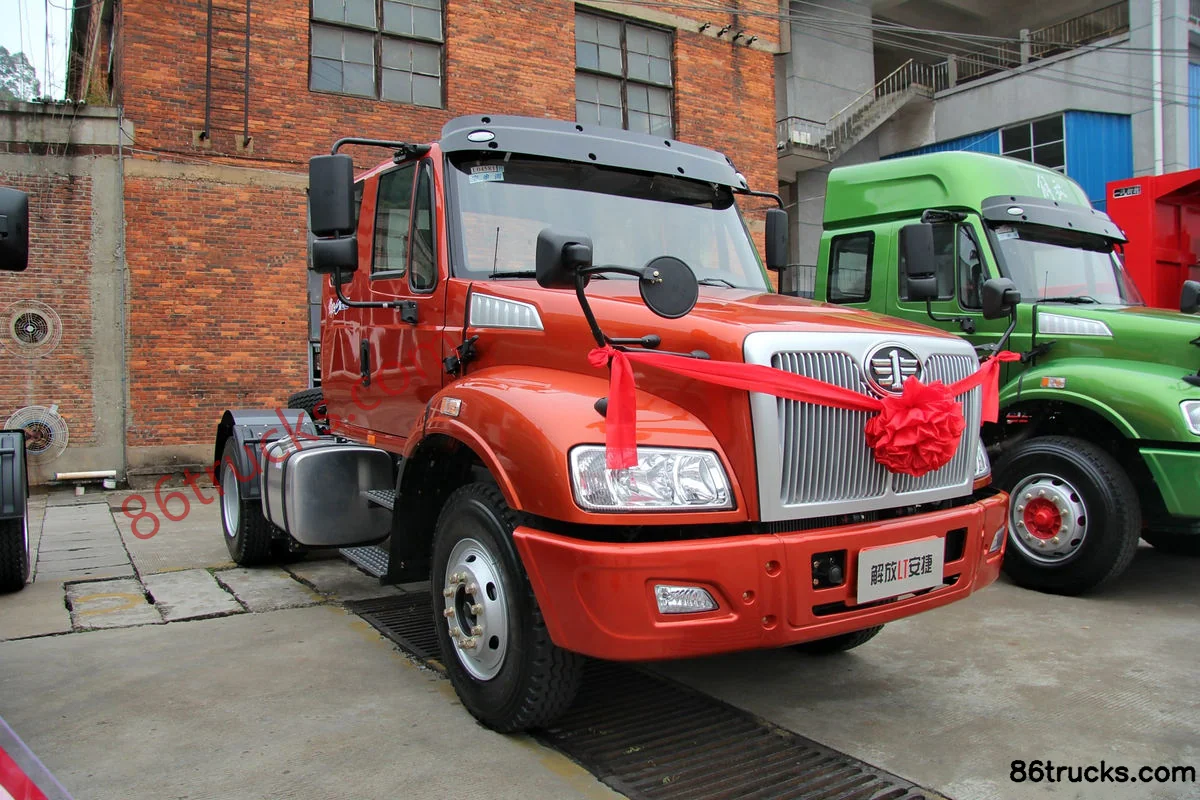

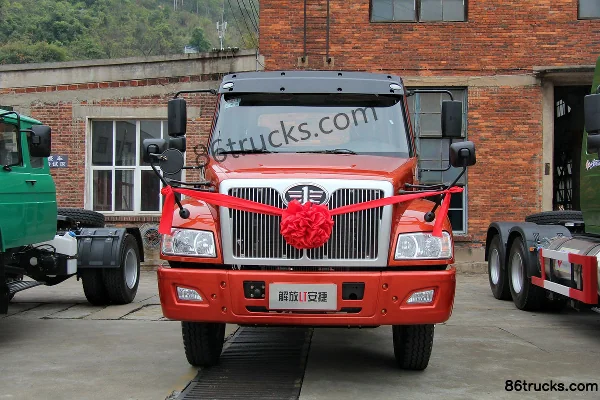

Exterior3

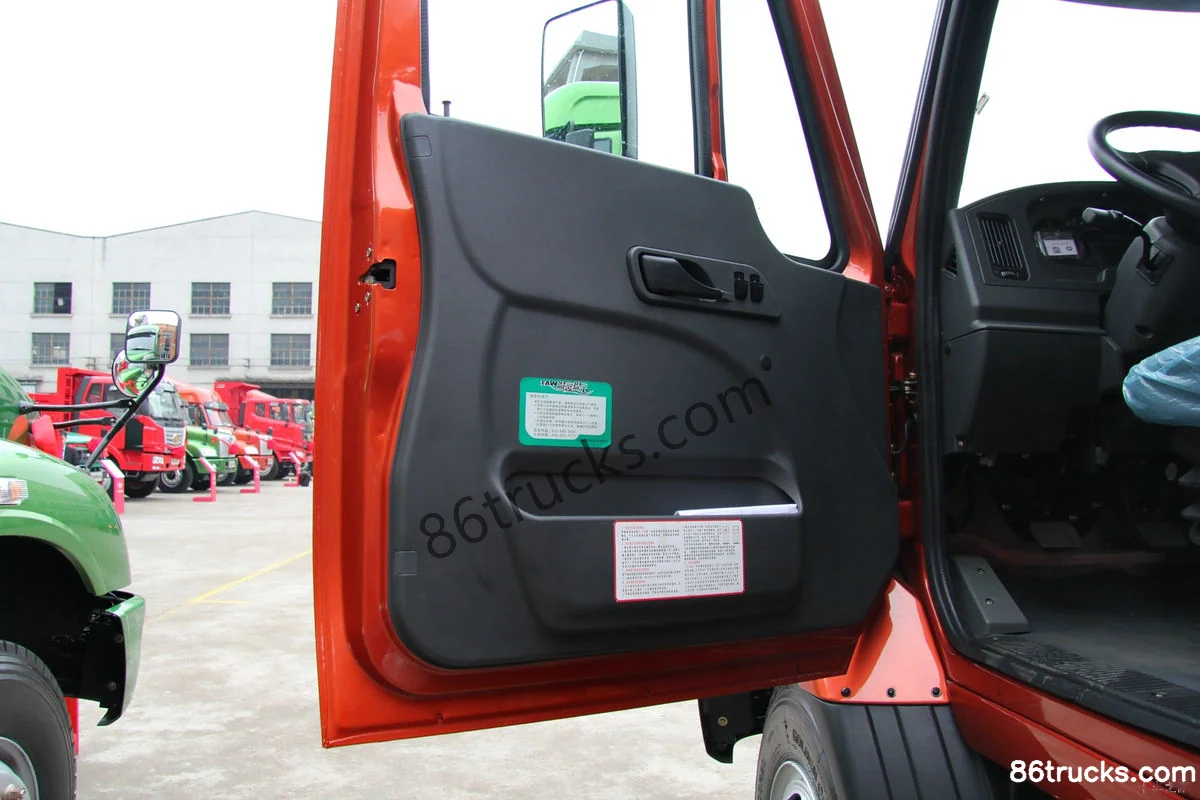

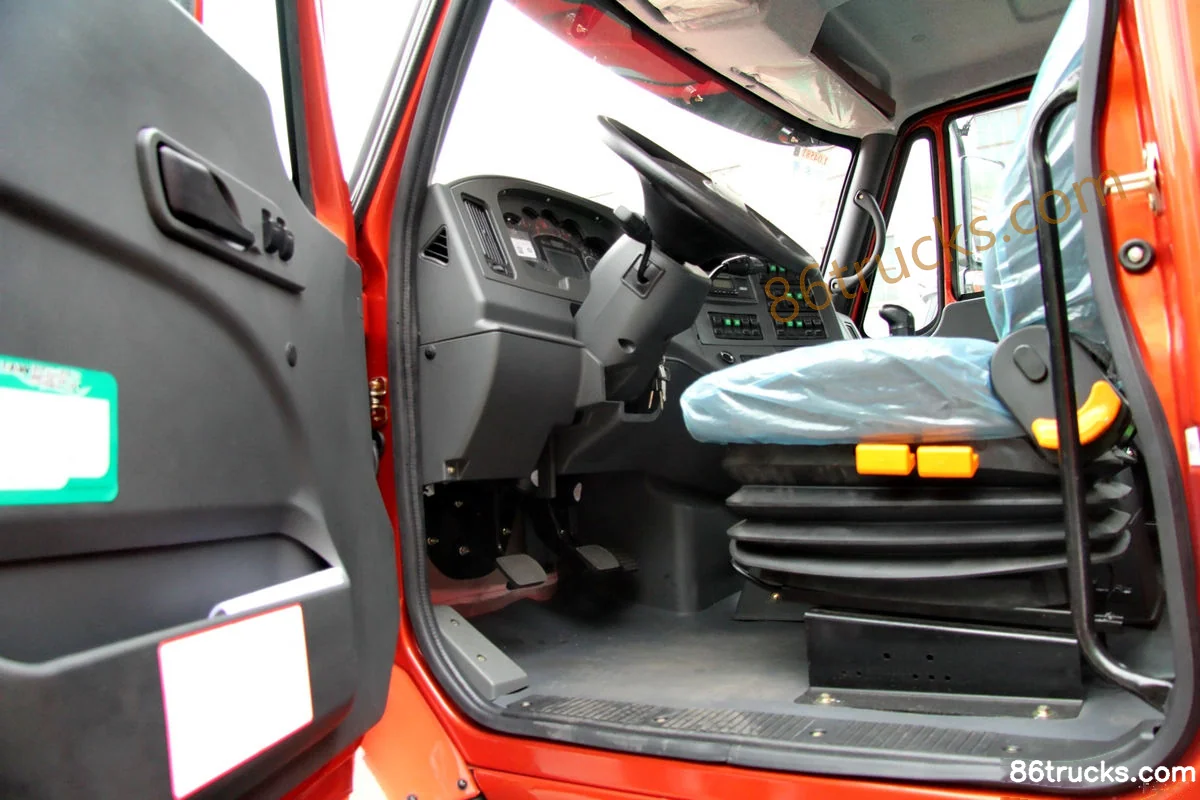

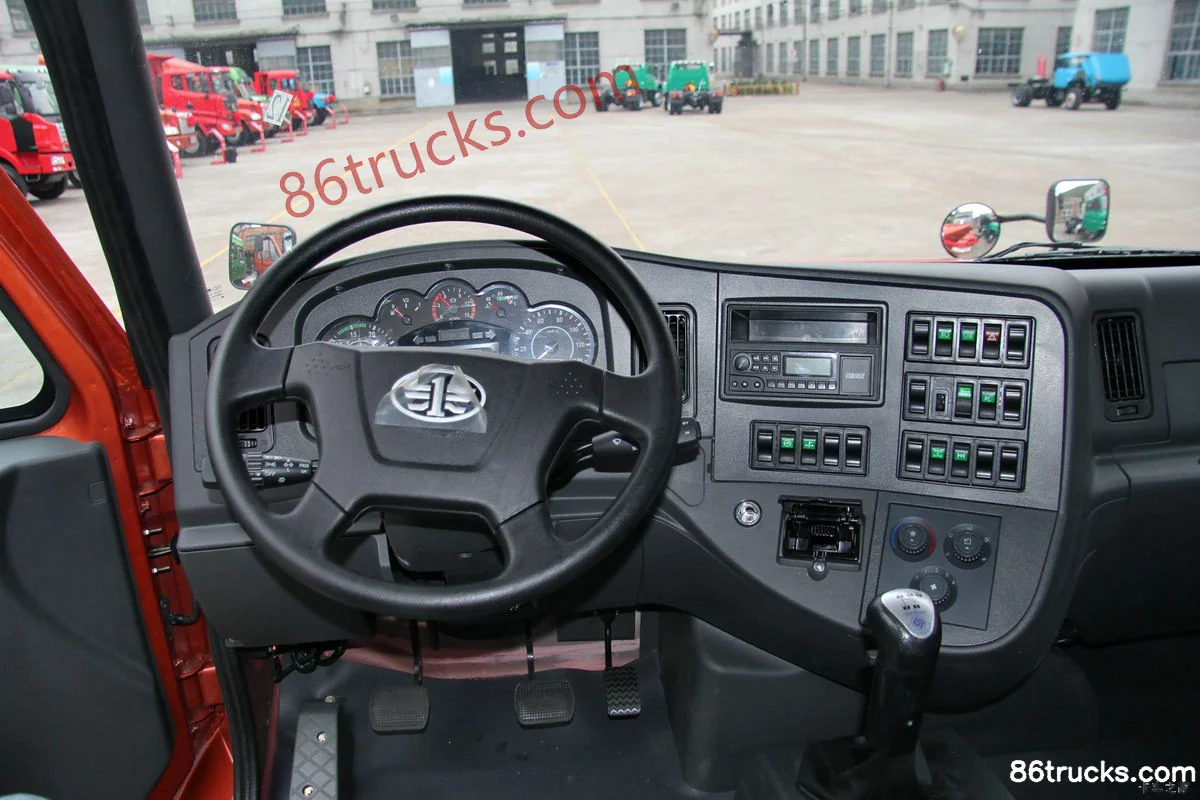

Cab3

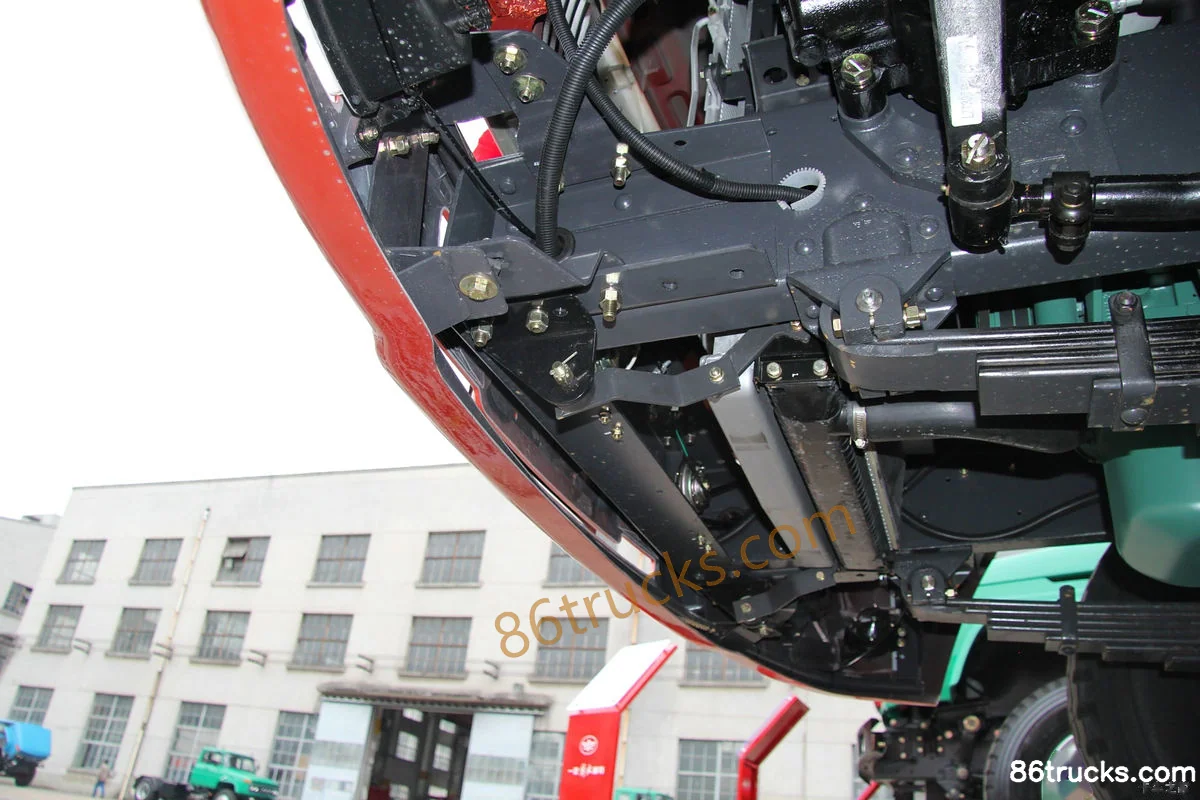

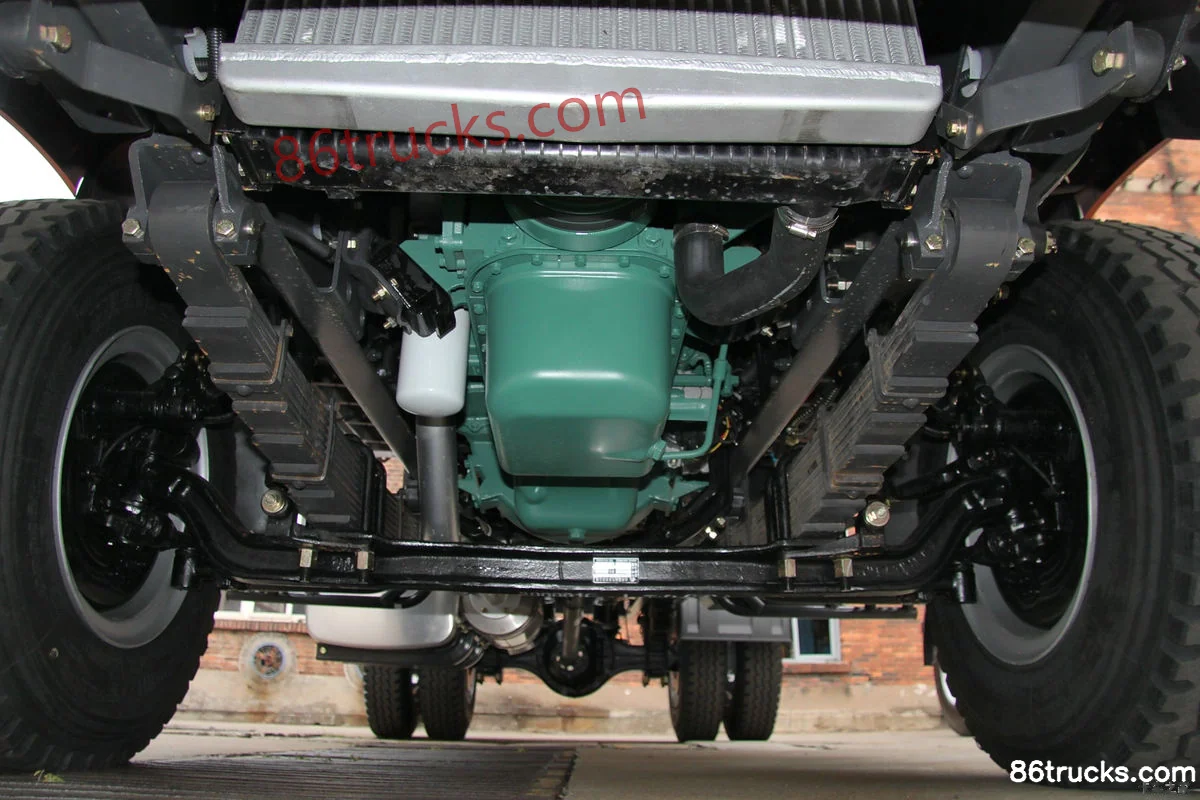

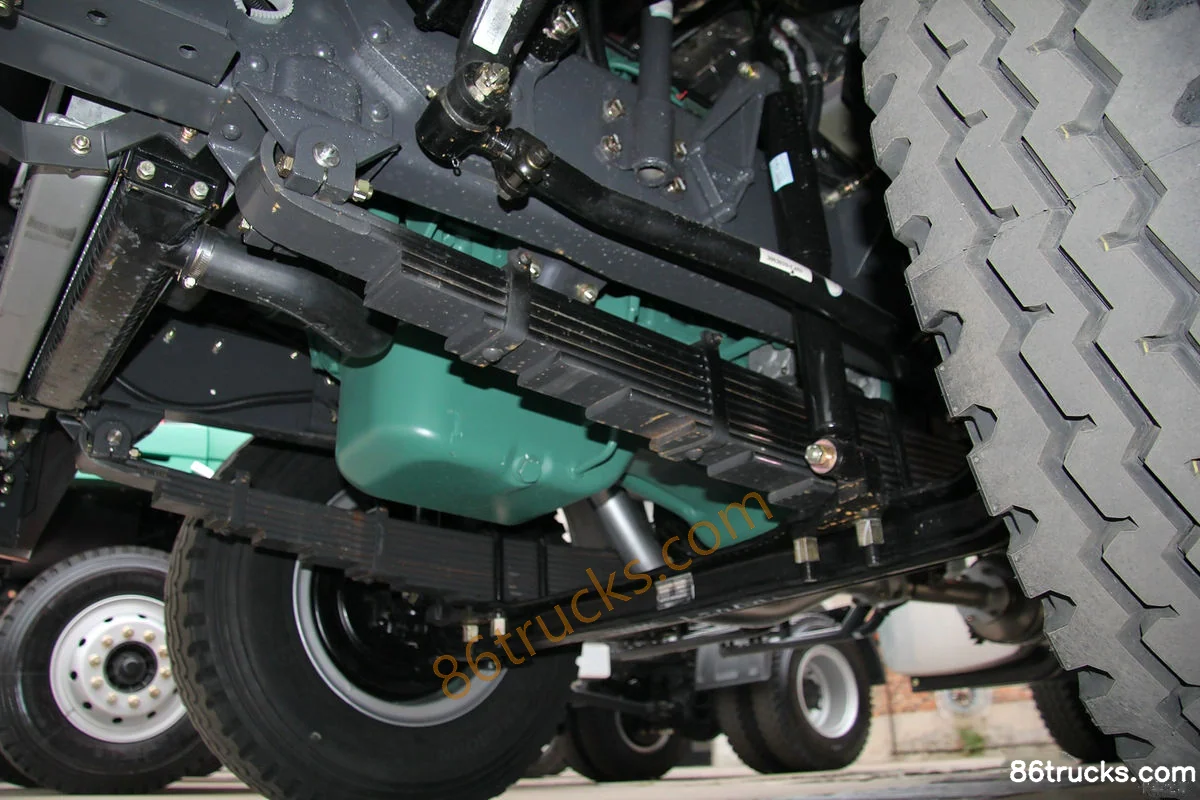

Chassis3

9 photos

FAQ

What is the export price of FAW Liute Xin Anjie (L5R) Heavy Truck 260hp 4X2(6 wheels) Long-Nose Tractor Truck, and what does it include?

FAW Liute Xin Anjie (L5R) Heavy Truck 260hp 4X2(6 wheels) Long-Nose Tractor Truck export reference is about From $26,236; MSRP is ¥18.89M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Liute Xin Anjie (L5R) Heavy Truck 260hp 4X2(6 wheels) Long-Nose Tractor Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Liute Xin Anjie (L5R) Heavy Truck 260hp 4X2(6 wheels) Long-Nose Tractor Truck?

Key specs of FAW Liute Xin Anjie (L5R) Heavy Truck 260hp 4X2(6 wheels) Long-Nose Tractor Truck: Drive: 4x2; Horsepower: 260 hp; Emission: China IV; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Liute Xin Anjie (L5R) Heavy Truck 260hp 4X2(6 wheels) Long-Nose Tractor Truck suited for?

FAW Liute Xin Anjie (L5R) Heavy Truck 260hp 4X2(6 wheels) Long-Nose Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does FAW Liute Xin Anjie (L5R) Heavy Truck 260hp 4X2(6 wheels) Long-Nose Tractor Truck differ from other variants in the same series?

FAW Liute Xin Anjie (L5R) Heavy Truck 260hp 4X2(6 wheels) Long-Nose Tractor Truck belongs to FAW Jiefang Qingdao Anjie L5R Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Liute Xin Anjie (L5R) Heavy Truck 260hp 4X2(6 wheels) Long-Nose Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Liute Xin Anjie (L5R) Heavy Truck 260hp 4X2(6 wheels) Long-Nose Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
