JMC New Shunda Narrow Body Luxury Edition 116 hp 4X2(6 wheels) 2.755m Double Row Flatbed Light Truck (China VI)

Export reference
MSRP N/A
Horsepower: 116
Emission: China VI
Fuel: Diesel
Engine: JMC Tengbao 3.0
Transmission: JMC
Curb Weight:: 2.335ton
seating capacity: 5Personnel
Rated payload: 1.835ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The JMC New Shunda Narrow Body Luxury Edition 116 hp 4X2(6 wheels) 2.755m Double Row Flatbed Light Truck (China VI) is a Light Truck featuring 2.755m cargo length, stake body cargo body, 5Personnel volume and 1.835t payload. On the powertrain side, it comes with a JMC Tengbao 3.0 engine, 116 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 116 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JX1041TSC26
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 2800mm
Box length class: 2.8m
engine: JMCJX4D30B6H
transmission: JMC5MTI280Y
Cab length: 5.41m
Cab width: 1.94m
Cab height: 2.18m
Front track width: 1385mm
rear track: 1425mm
Curb Weight: 2.335ton
Rated payload: 1.835ton
GVWR: 4.495ton
Max. speed: 100km/h
Origin: Nanchang, Jiangxi
tonnage class: Light Truck
Approach angle: 21°
departure angle: 16°
Remarks: Side trim wrap, multi-function steering wheel (instrument page turn+volume adjust)
Front/rear suspension: 1.075/1.535m
Version: Narrow-body deluxe version
Energy Type: Diesel
Engine parameters
Engine Brand: JMC
Engine Model: JMCJX4D30B6H
Engine info: JMC Tengbao 3.0
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.892L
Emission standard: China VI
Max output power: 85kW
Max hp: 116Horsepower
Transmission Parameters
Transmission Model: JMC5MTI280Y
Transmission Brand: JMC
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 2.755m
Cargo box width: 1.85m
Cargo box height: 0.38m
*Cargo box interior width: 1.8500000238419
Cab parameters
seating capacity: 5Personnel
Seat rows: Double cab
Chassis Specs
Front axle allowable load: 1460kg
rear axle allowable load: 3035kg
Leaf spring count: 7/4+6
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
lighting configuration
Front fog lamp:
Service brake
Brake Type: Hydraulic brake
smart configuration
Cruise control (CCS):

Photos

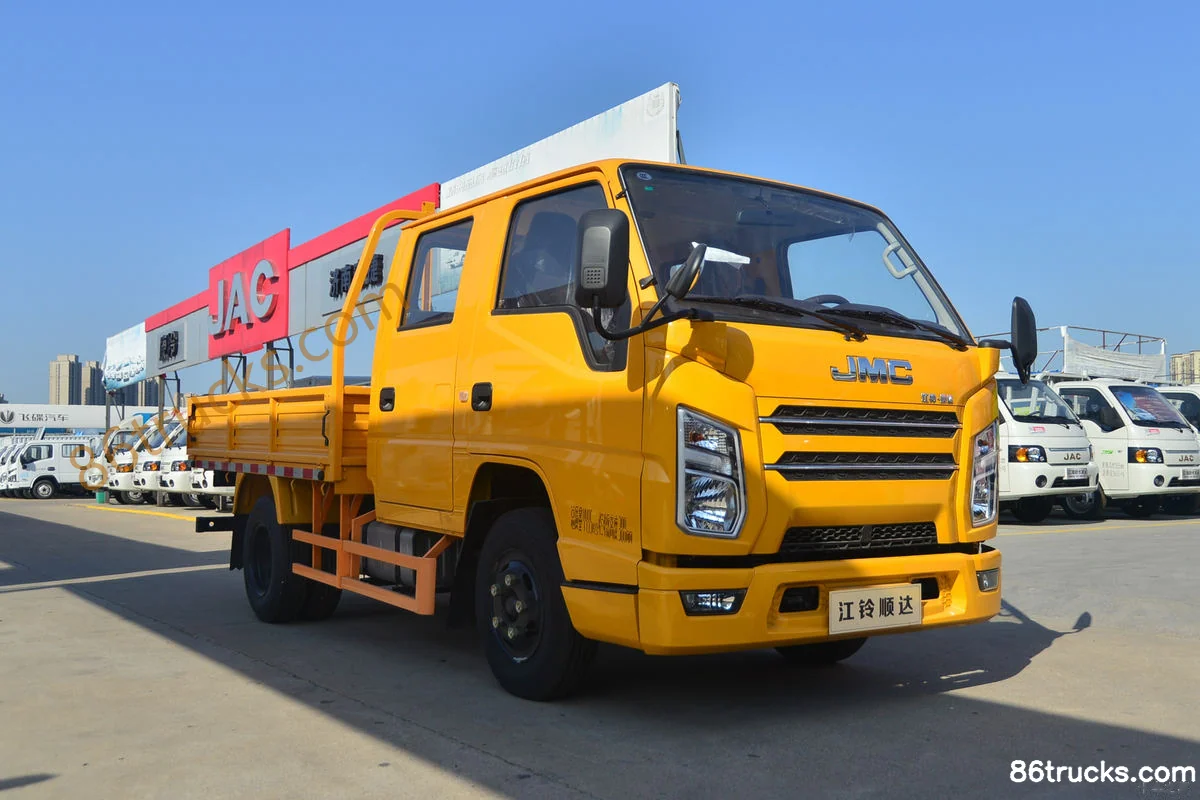

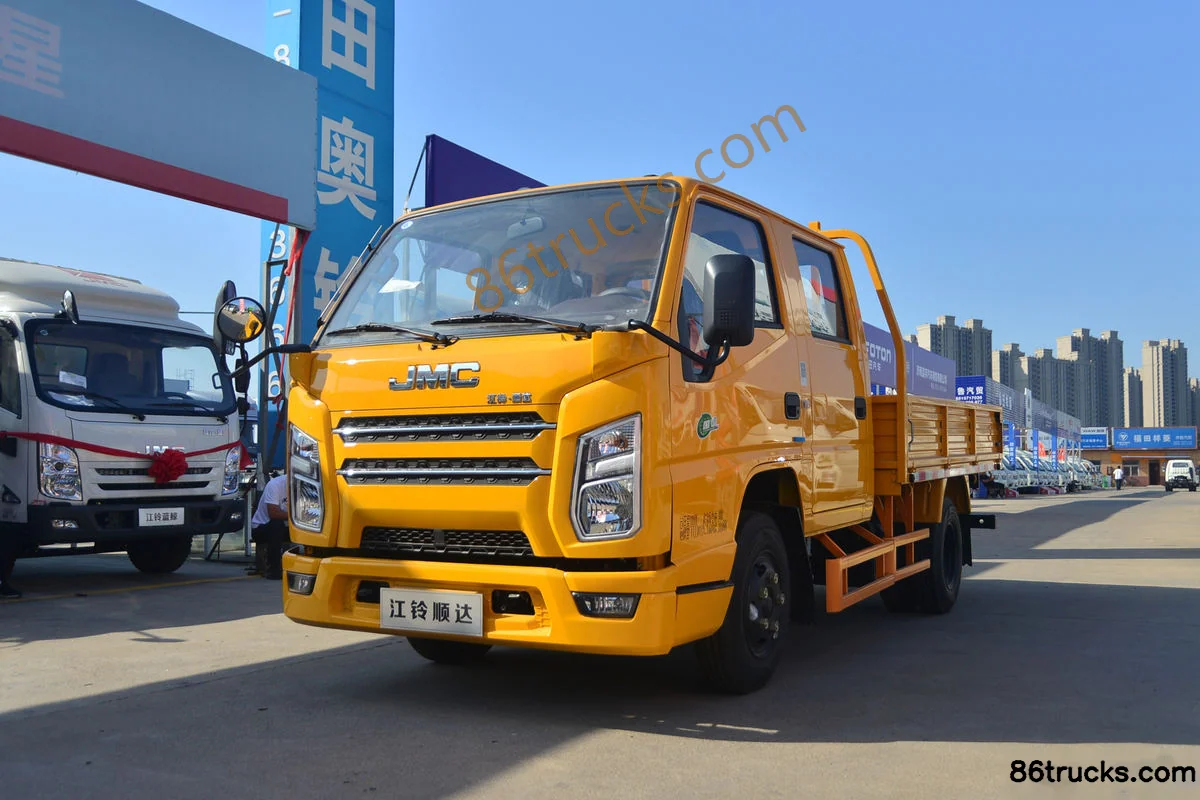

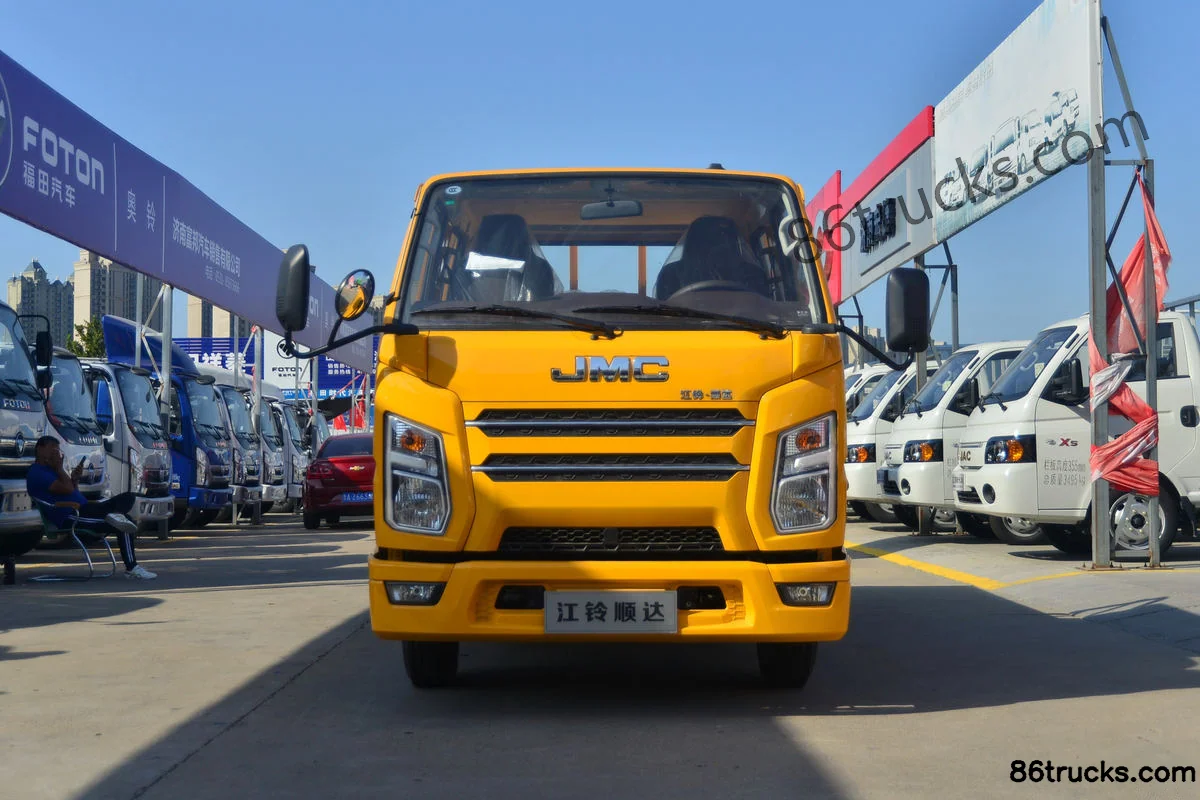

Exterior3

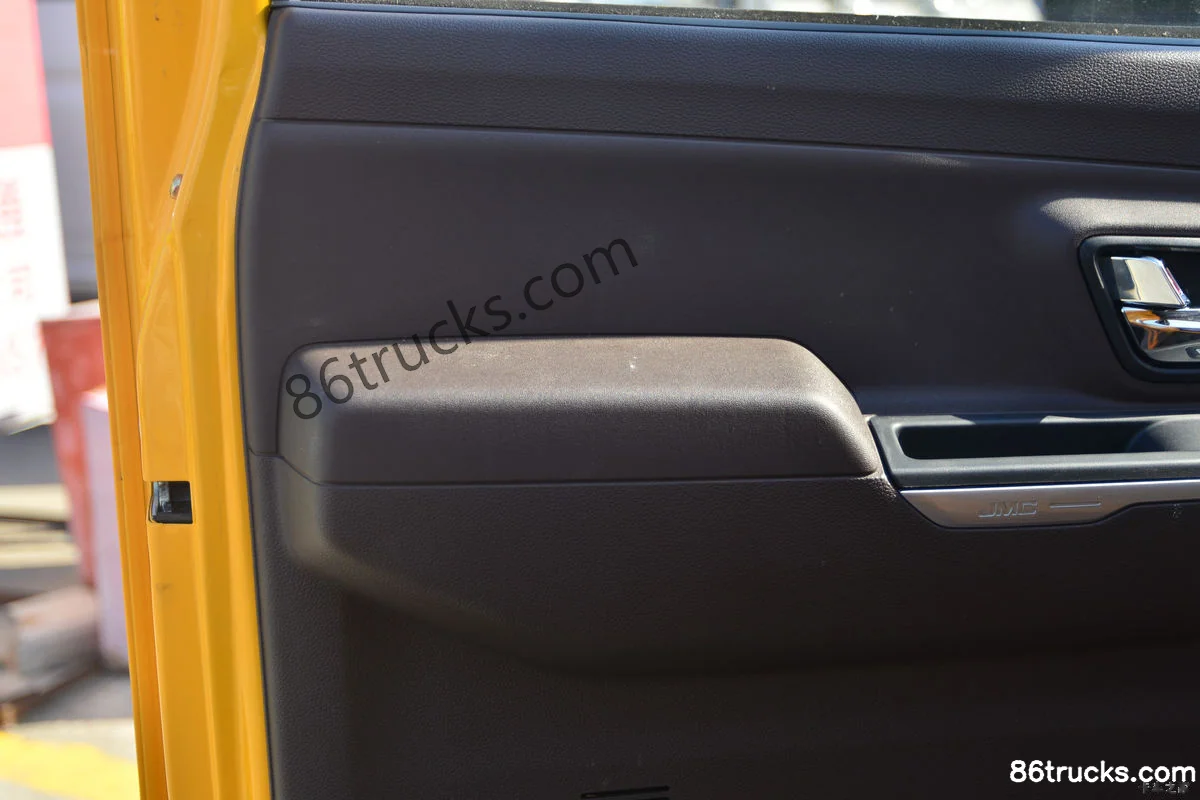

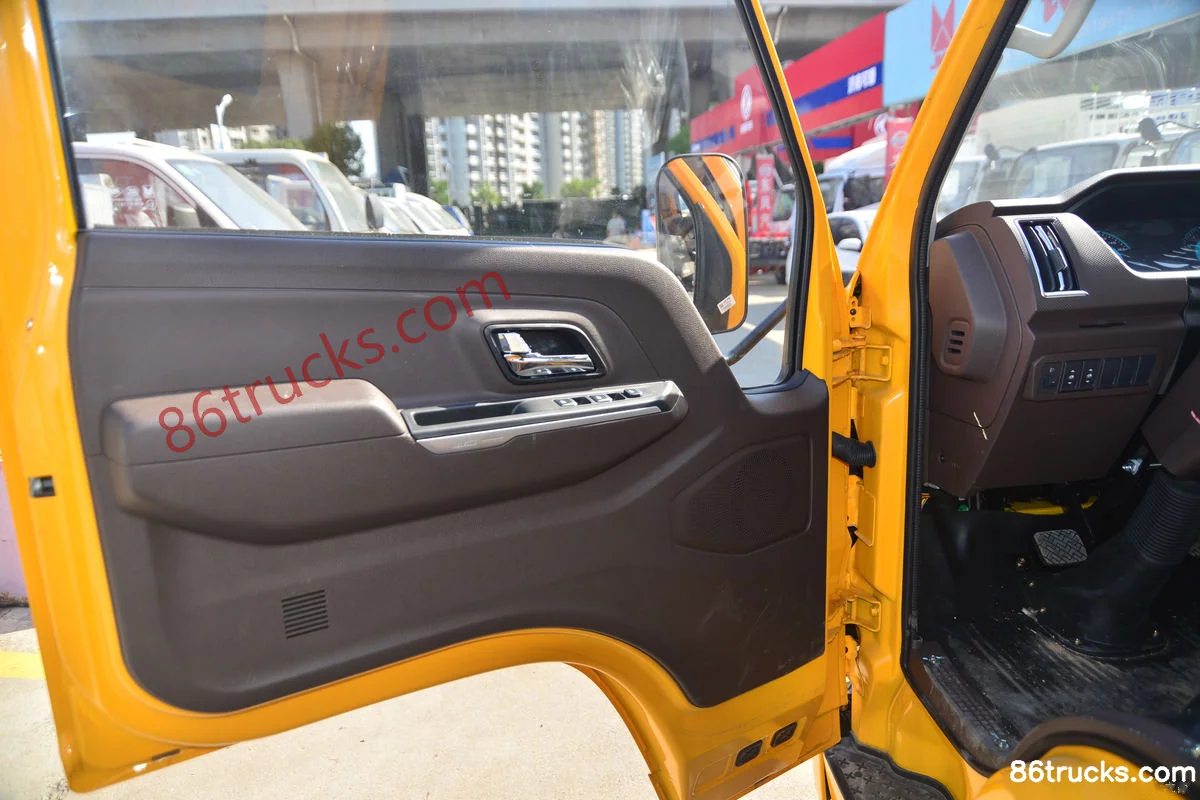

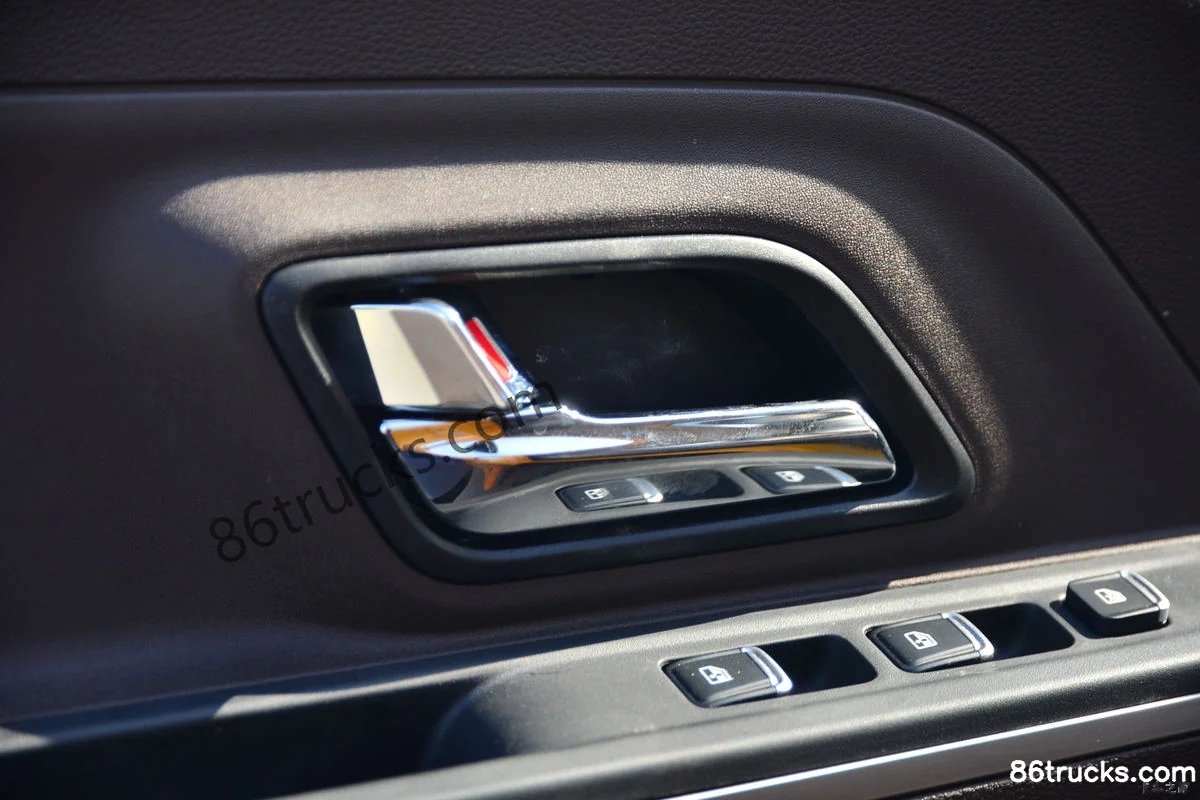

Cab3

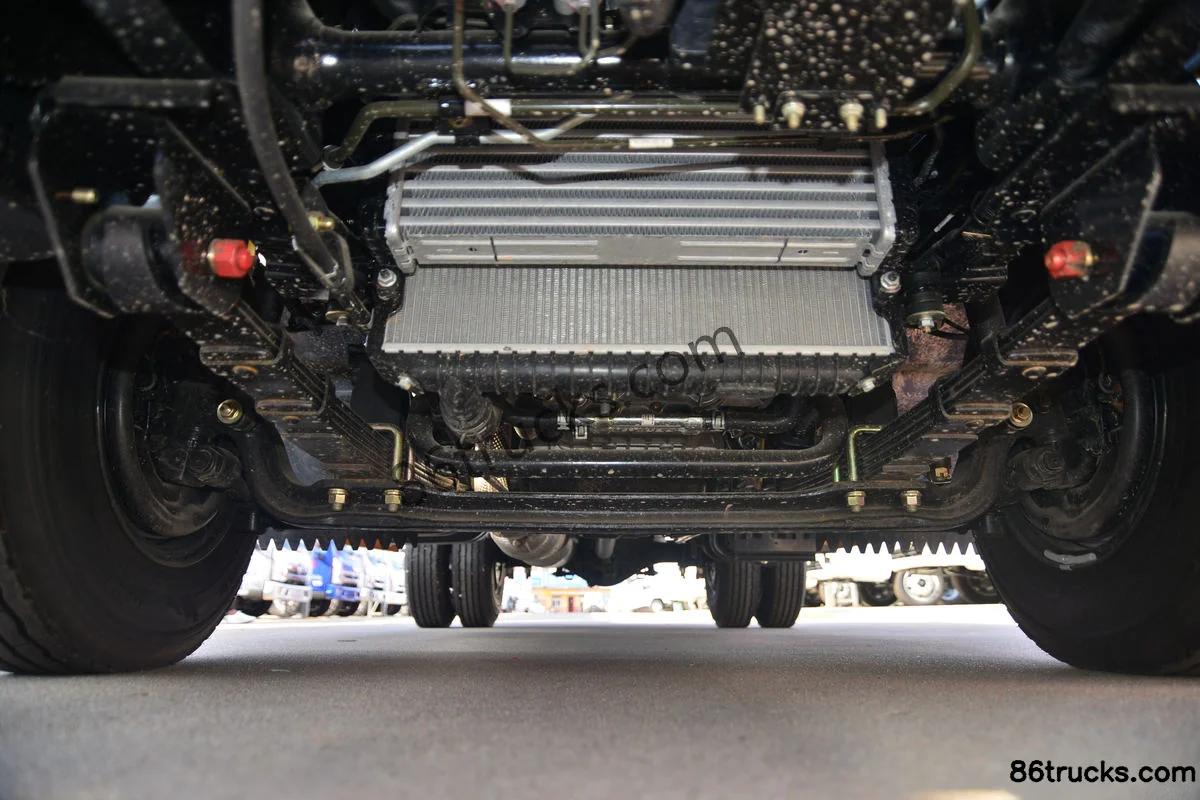

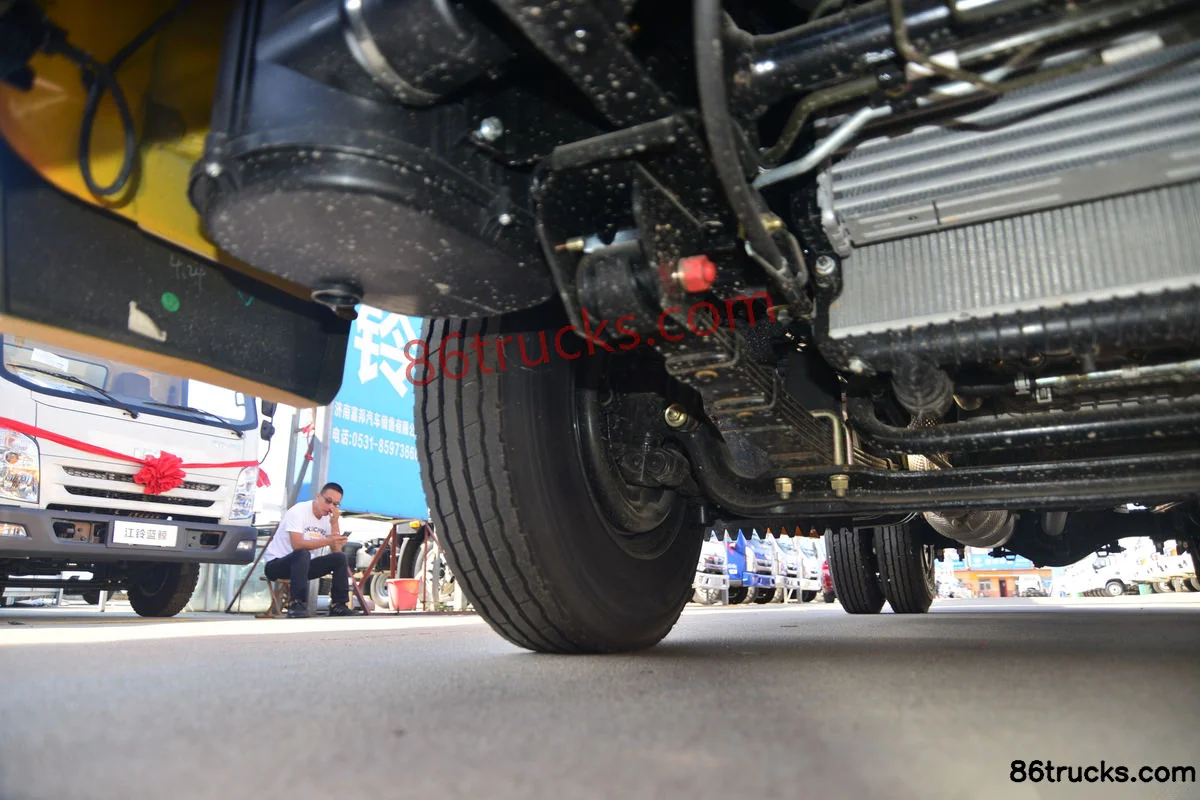

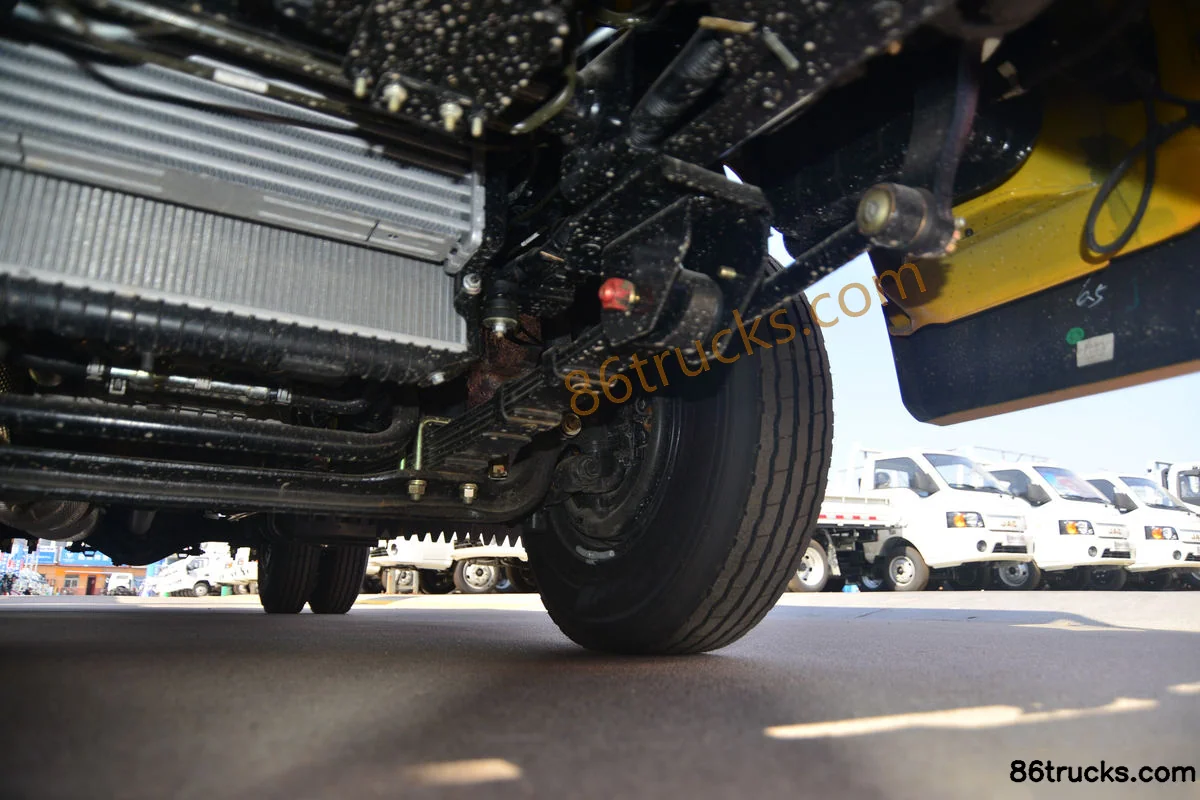

Chassis3

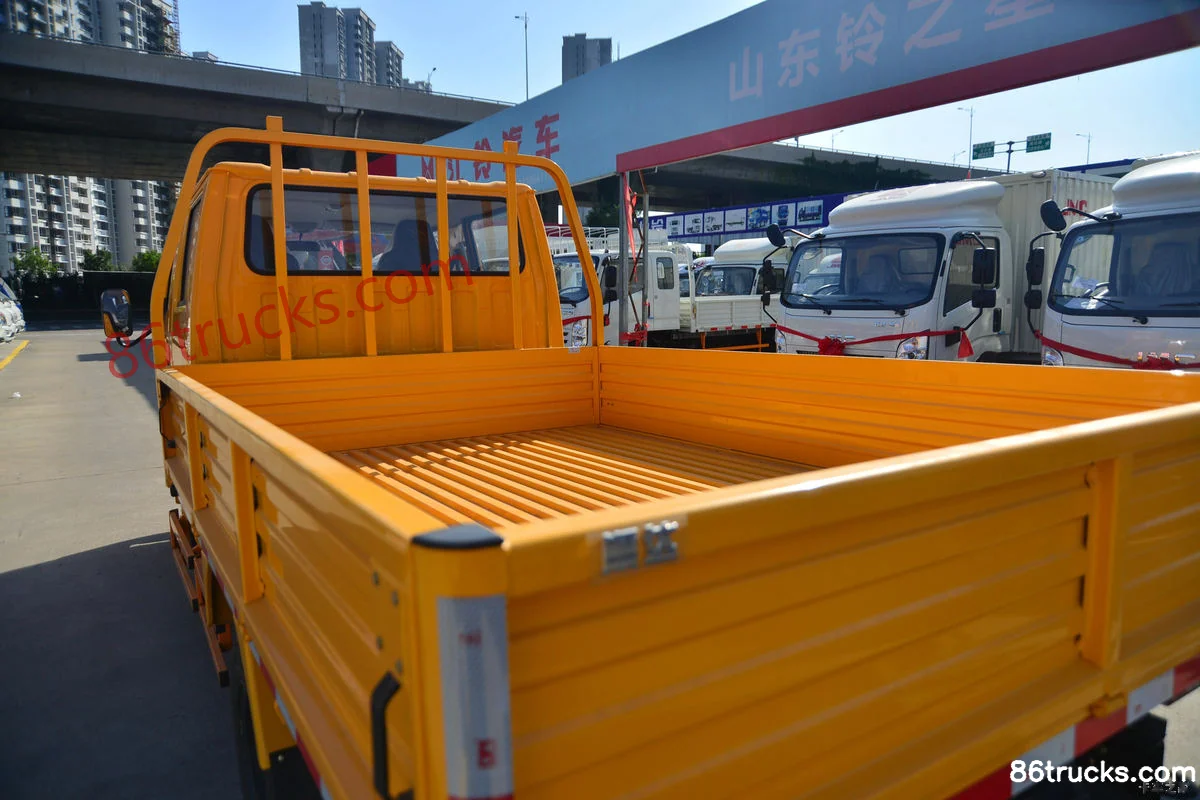

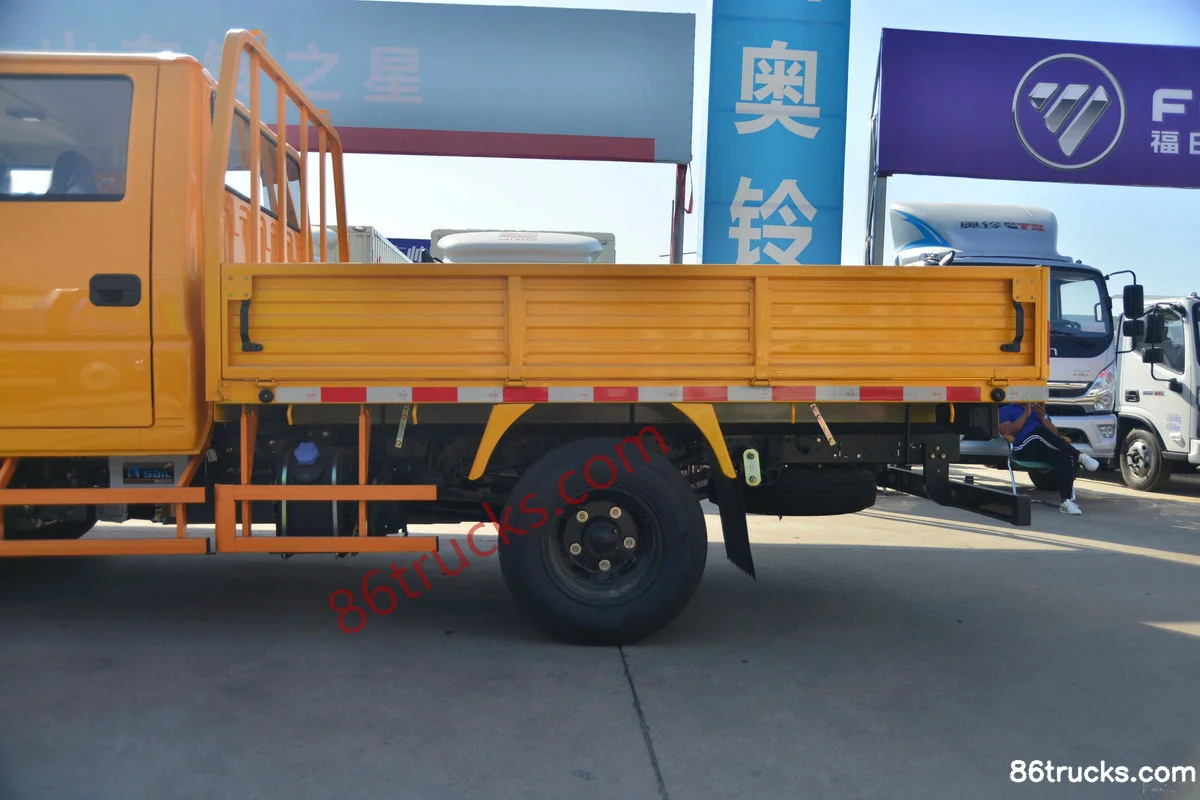

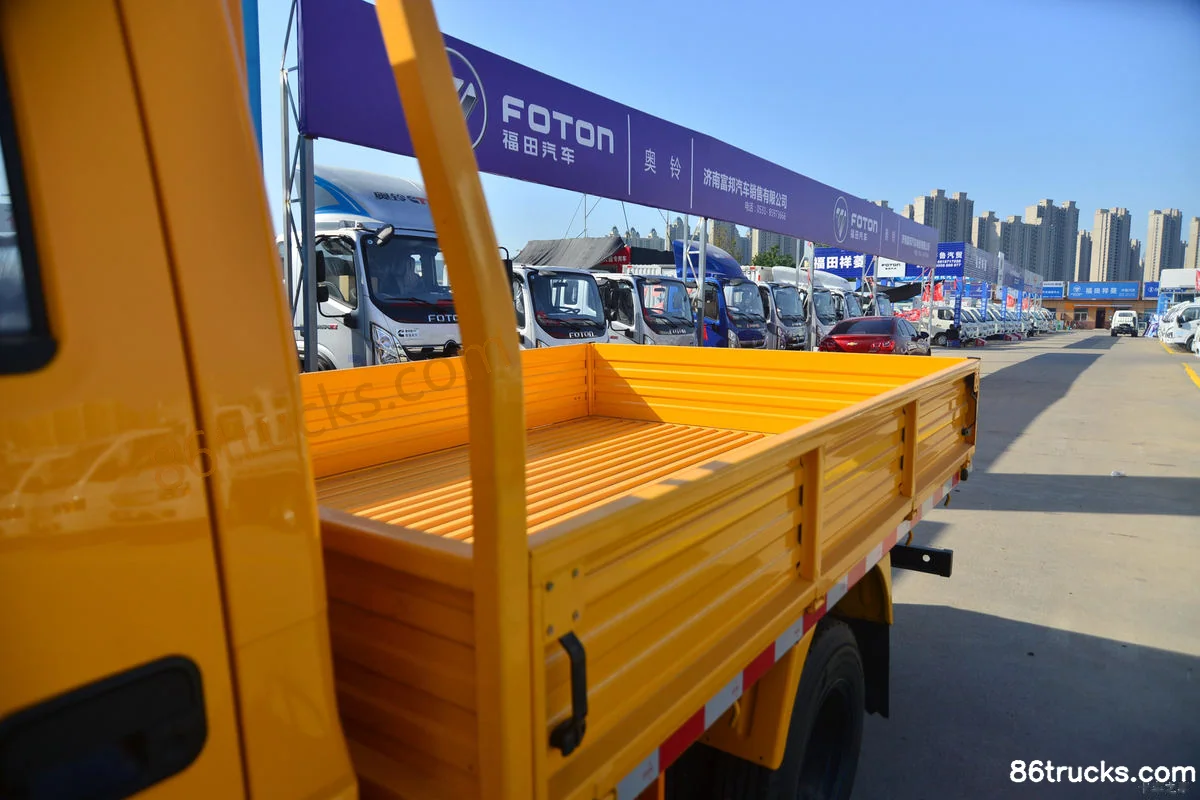

Body3

12 photos

FAQ

What emission standard does JMC New Shunda Narrow Body Luxury Edition 116 hp 4X2(6 wheels) 2.755m Double Row Flatbed Light Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC New Shunda Narrow Body Luxury Edition 116 hp 4X2(6 wheels) 2.755m Double Row Flatbed Light Truck (China VI)?

Key specs of JMC New Shunda Narrow Body Luxury Edition 116 hp 4X2(6 wheels) 2.755m Double Row Flatbed Light Truck (China VI): Drive: 4x2; Horsepower: 116 hp; Emission: China VI; Fuel: Diesel; Engine: JMC Tengbao 3.0; Transmission: JMC. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC New Shunda Narrow Body Luxury Edition 116 hp 4X2(6 wheels) 2.755m Double Row Flatbed Light Truck (China VI) suited for?

JMC New Shunda Narrow Body Luxury Edition 116 hp 4X2(6 wheels) 2.755m Double Row Flatbed Light Truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JMC New Shunda Narrow Body Luxury Edition 116 hp 4X2(6 wheels) 2.755m Double Row Flatbed Light Truck (China VI) differ from other variants in the same series?

JMC New Shunda Narrow Body Luxury Edition 116 hp 4X2(6 wheels) 2.755m Double Row Flatbed Light Truck (China VI) belongs to JMC Shunda light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC New Shunda Narrow Body Luxury Edition 116 hp 4X2(6 wheels) 2.755m Double Row Flatbed Light Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC New Shunda Narrow Body Luxury Edition 116 hp 4X2(6 wheels) 2.755m Double Row Flatbed Light Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
