Dongfeng Liuqi New Chenglong M3 220hp 6X2(8 wheels) 4.5m dump truck (lift axle)

Export reference
From $26,667
MSRP ¥19.2M CNY
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 9.6ton
Wheelbase:: 1950+2700mm
Tire Size:: 10.00-20 18PR
Rated payload: 14.705ton
Drive 6X2 (8 wheels)
Horsepower 220
Cargo box type: Dump type

Overview

The Dongfeng Liuqi New Chenglong M3 220hp 6X2(8 wheels) 4.5m dump truck (lift axle) is a Medium-duty truck featuring 14.705t payload, 24.5t GVW, Dump type cargo body and 6X2 (8 wheels) drive. On the powertrain side, it comes with a YuchaiYC4EG220-50 engine, 220 hp, China V emissions and Fast Gear transmission.

China V 220 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): LZ3251M3CB1
Drive type: 6X2
Wheelbase: 1950+2700mm
engine: YuchaiYC4EG220-50
transmission: Fast Gear10JS90A-B
Rear Axle Ratio: 5.286
Cab length: 7.595m
Cab width: 2.5m
Cab height: 3.1m
Front track width: 1920/1920mm
rear track: 1750mm
Curb Weight: 9.6ton
Rated payload: 14.705ton
GVWR: 24.5ton
Origin: Liuzhou, Guangxi
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle: 21°
Remarks: Desert air filter, reinforced leaf springs, automatic adjuster arm
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4EG220-50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.73L
Emission standard: China V
Max output power: 160kW
Max hp: 220Horsepower
Max torque: 800N·m
Max torque speed: 1300-1700rpm
Rated speed: 2500rpm
Engine Type: Vertical, inline, water-cooled, four-stroke, high-pressure common rail
Transmission Parameters
Transmission Model: Fast Gear10JS90A-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.5m
Cargo box width: 2.3m
Cargo box height: 1.5m
Cab parameters
Cab: M30B
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 200L
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle description: 457 narrow rear axle
rear axle allowable load: 11500kg
Axle ratio: 5.286
Leaf spring count: 11/11/12+9
clutch: Φ395
Tire
Tire Size: 10.00-20 18PR
Number of tires: 8pcs
Control configuration
ABS:
Stability control system:
interior configuration
Steering Wheel Material: leather
steering wheel adjustment: pneumatic
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
lighting configuration
Headlight brand: none
Front fog lamp:
daytime running lights:
Headlight height adjustment:
LED taillight:
Service brake
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):
adaptive cruise control (ACC):
Tire Pressure Monitoring System (TPMS):
Lane change assist (ALC):
AEB automatic emergency braking system:

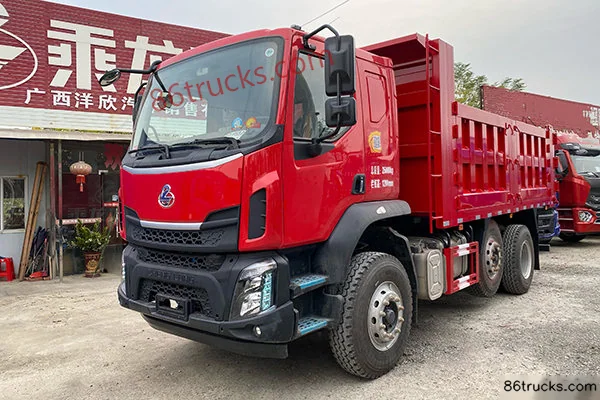

Photos

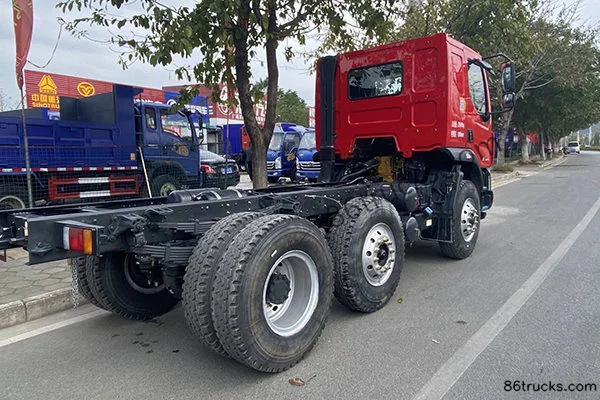

Exterior2

2 photos

FAQ

What is the export price of Dongfeng Liuqi New Chenglong M3 220hp 6X2(8 wheels) 4.5m dump truck (lift axle), and what does it include?

Dongfeng Liuqi New Chenglong M3 220hp 6X2(8 wheels) 4.5m dump truck (lift axle) export reference is about From $26,667; MSRP is ¥19.2M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Liuqi New Chenglong M3 220hp 6X2(8 wheels) 4.5m dump truck (lift axle) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Liuqi New Chenglong M3 220hp 6X2(8 wheels) 4.5m dump truck (lift axle)?

Key specs of Dongfeng Liuqi New Chenglong M3 220hp 6X2(8 wheels) 4.5m dump truck (lift axle): Drive: 6x2; Horsepower: 220 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Liuqi New Chenglong M3 220hp 6X2(8 wheels) 4.5m dump truck (lift axle) suited for?

Dongfeng Liuqi New Chenglong M3 220hp 6X2(8 wheels) 4.5m dump truck (lift axle) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Liuqi New Chenglong M3 220hp 6X2(8 wheels) 4.5m dump truck (lift axle) differ from other variants in the same series?

Dongfeng Liuqi New Chenglong M3 220hp 6X2(8 wheels) 4.5m dump truck (lift axle) belongs to Dongfeng New Chenglong M3 Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Liuqi New Chenglong M3 220hp 6X2(8 wheels) 4.5m dump truck (lift axle)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Liuqi New Chenglong M3 220hp 6X2(8 wheels) 4.5m dump truck (lift axle)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
