Sinotruk HOWO TS7 Classic Edition 6.9L Diesel 290 hp 4X2(6 wheels) Sinotruk 10-speed 9.6m Van Cargo Truck

Export reference
From $38,167
MSRP ¥27.48M CNY
Horsepower: 290
Emission: China VI
Fuel: Diesel
Engine: Sinotruk6.9L
Transmission: Sinotruk
Curb Weight:: 8.78ton
seating capacity: 2Personnel
Rated payload: 9.09ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Sinotruk HOWO TS7 Classic Edition 6.9L Diesel 290 hp 4X2(6 wheels) Sinotruk 10-speed 9.6m Van Cargo Truck is a Heavy truck featuring 9.6m cargo length, Van body cargo body, 2Personnel volume and 9.09t payload. On the powertrain side, it comes with a Sinotruk6.9L engine, 290 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 290 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ5187XXYN711KF1
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 7100mm
Box length class: 9.6m
engine: SinotrukMC07.29-61
transmission: SinotrukHW10C-HD12
Rear Axle Ratio: 3.91
Cab length: 12m
Cab width: 2.55m
Cab height: 3.98m
Front track width: 2058mm
rear track: 1860mm
Curb Weight: 8.78ton
Rated payload: 9.09ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Jinan, Shandong
tonnage class: Heavy truck
Approach angle: 19°
departure angle:
Front/rear suspension: 1.465/3.055m
Version: Classic Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: MC07.29-61
Engine info: Sinotruk6.9L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.87L
Emission standard: China VI
Max output power: 213kW
Max hp: 290Horsepower
Max torque: 1200N·m
Max torque speed: 1200-1800rpm
Rated speed: 2200rpm
Transmission Parameters
Transmission Model: HW10C-HD12
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 9.6m
Cargo box width: 2.45m
Cargo box height: 2.8m
Cab parameters
Cab width: 2310mm
Cab tilting: Electric
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Sunroof: Manual sunroof
fuel tank
Fuel tank capacity: 600L
Chassis Specs
Front axle description: 1094 self-adjusting arm front axle
Front axle allowable load: 6500kg
Frame Dimensions: 250mm
rear axle description: MCJ09BGQ self-adjusting arm single rear axle
Steering gear: Domestic
rear axle allowable load: 11500kg
Axle ratio: 3.91
Leaf spring count: 3/4
Aluminum wheels:
Tire
Tire Size: 295/80R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Camera:
Remote key:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
Radio:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

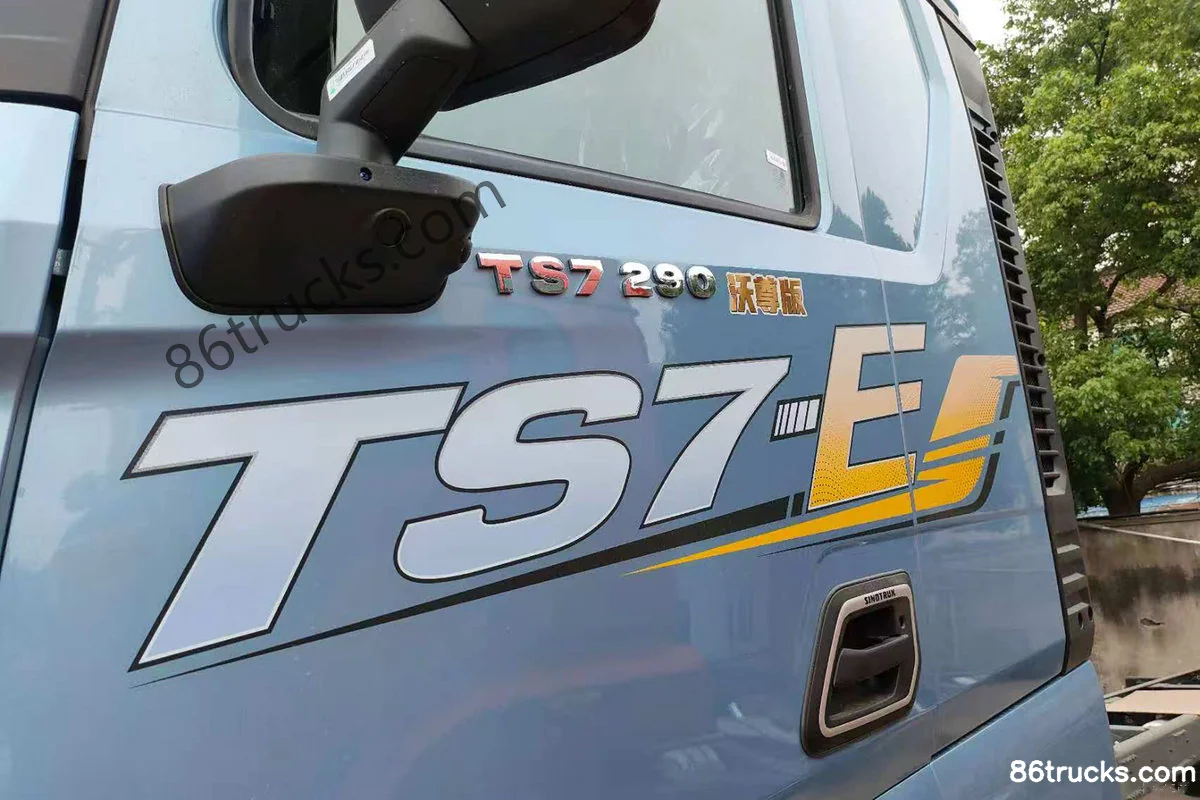

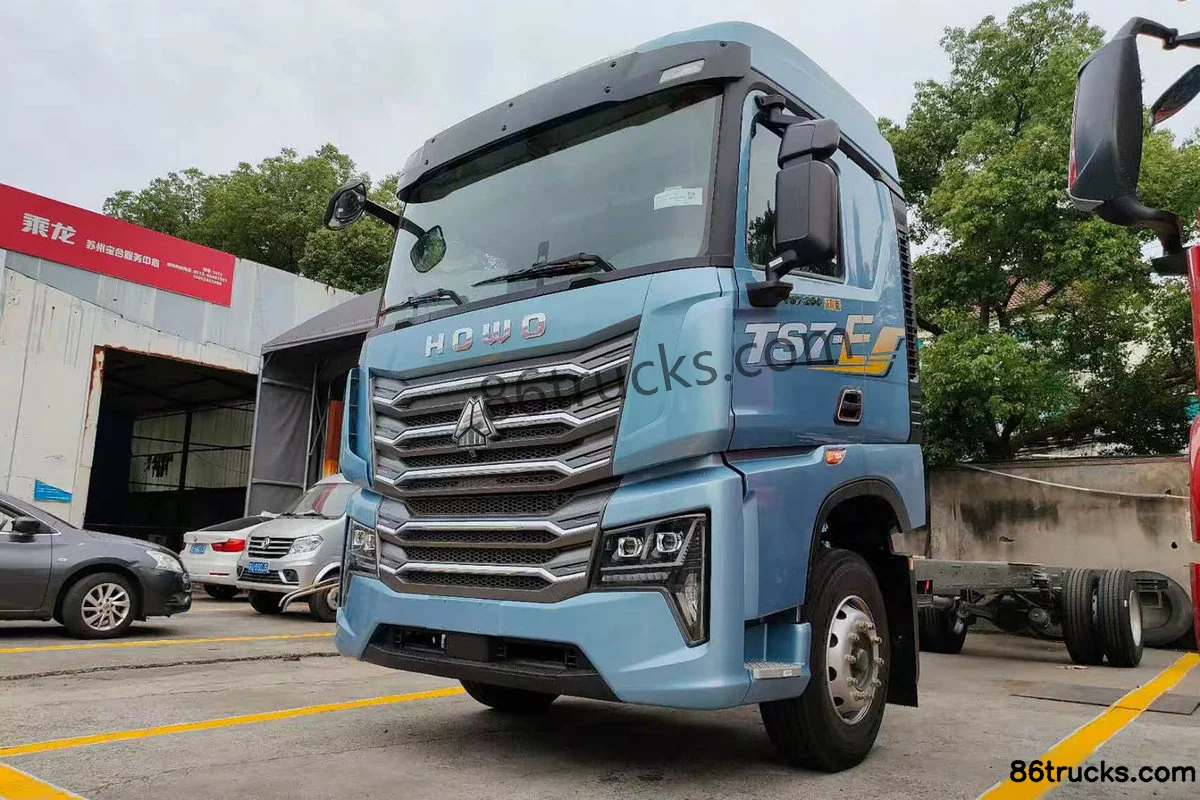

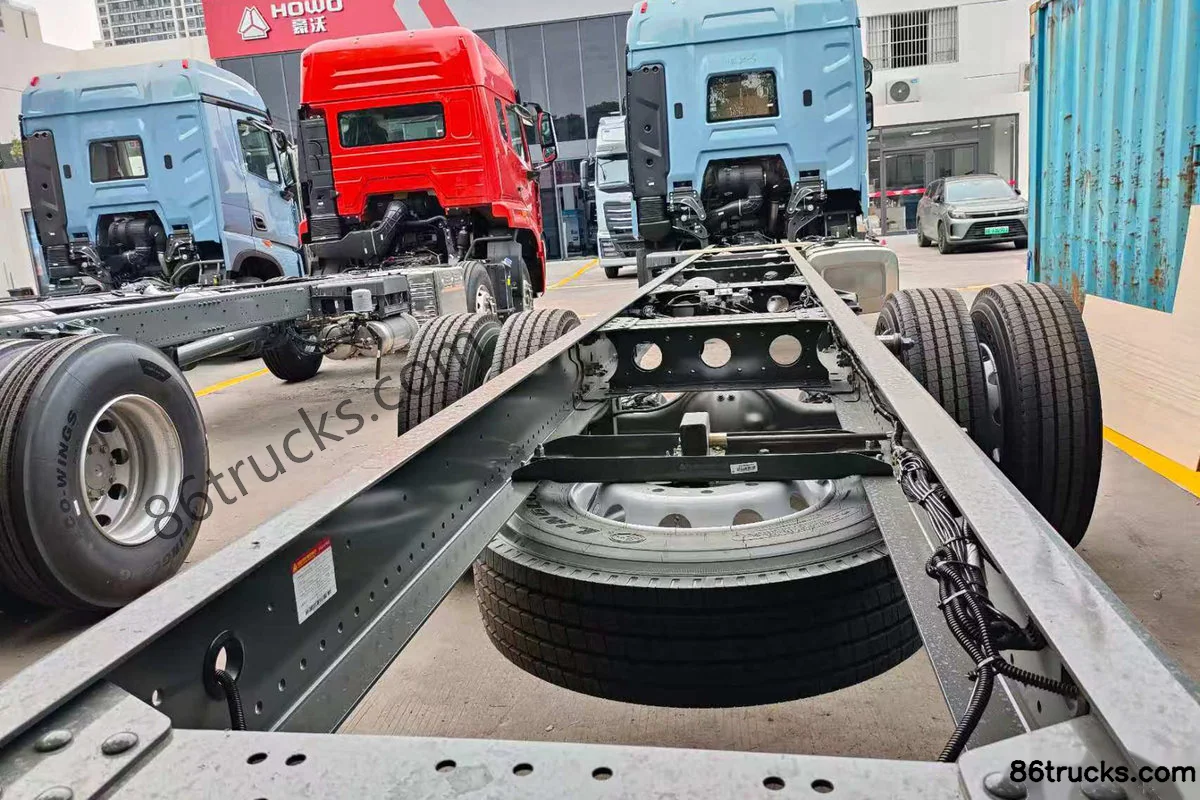

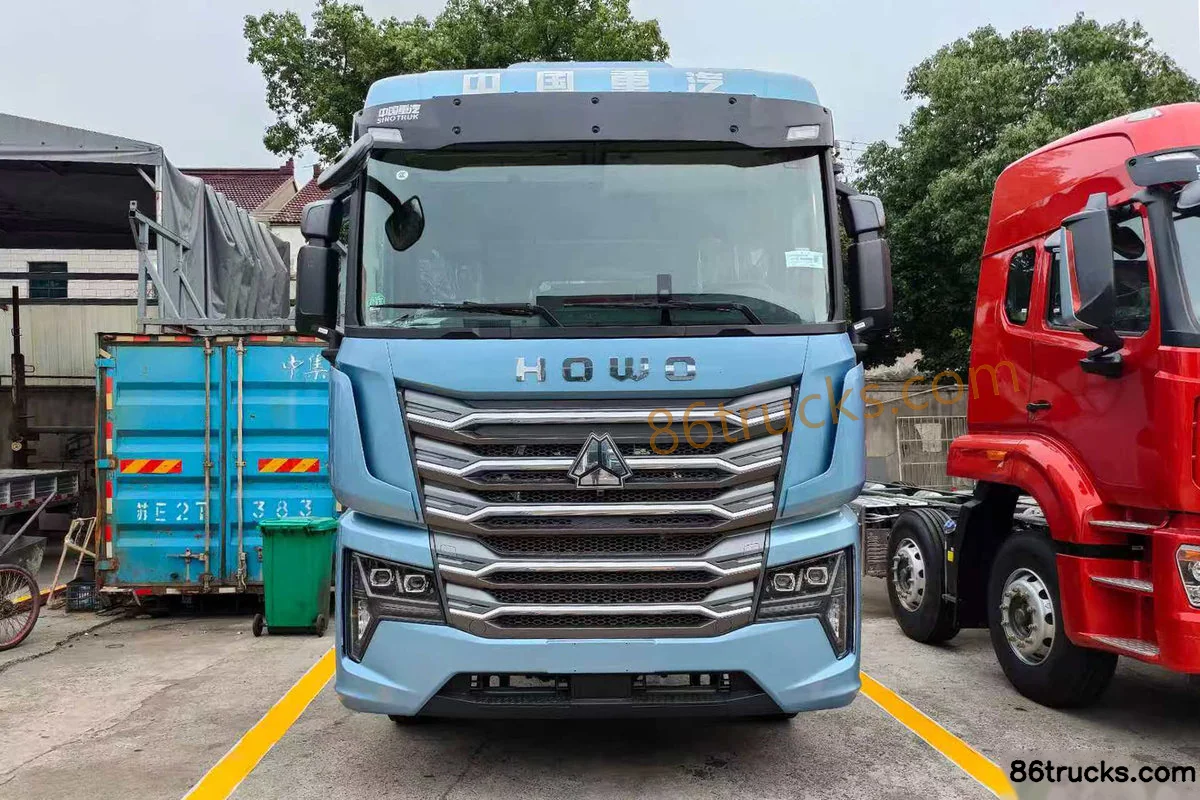

Photos

Exterior3

Cab1

4 photos

FAQ

What is the export price of Sinotruk HOWO TS7 Classic Edition 6.9L Diesel 290 hp 4X2(6 wheels) Sinotruk 10-speed 9.6m Van Cargo Truck, and what does it include?

Sinotruk HOWO TS7 Classic Edition 6.9L Diesel 290 hp 4X2(6 wheels) Sinotruk 10-speed 9.6m Van Cargo Truck export reference is about From $38,167; MSRP is ¥27.48M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HOWO TS7 Classic Edition 6.9L Diesel 290 hp 4X2(6 wheels) Sinotruk 10-speed 9.6m Van Cargo Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO TS7 Classic Edition 6.9L Diesel 290 hp 4X2(6 wheels) Sinotruk 10-speed 9.6m Van Cargo Truck?

Key specs of Sinotruk HOWO TS7 Classic Edition 6.9L Diesel 290 hp 4X2(6 wheels) Sinotruk 10-speed 9.6m Van Cargo Truck: Drive: 4x2; Horsepower: 290 hp; Emission: China VI; Fuel: Diesel; Engine: Sinotruk6.9L; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO TS7 Classic Edition 6.9L Diesel 290 hp 4X2(6 wheels) Sinotruk 10-speed 9.6m Van Cargo Truck suited for?

Sinotruk HOWO TS7 Classic Edition 6.9L Diesel 290 hp 4X2(6 wheels) Sinotruk 10-speed 9.6m Van Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk HOWO TS7 Classic Edition 6.9L Diesel 290 hp 4X2(6 wheels) Sinotruk 10-speed 9.6m Van Cargo Truck differ from other variants in the same series?

Sinotruk HOWO TS7 Classic Edition 6.9L Diesel 290 hp 4X2(6 wheels) Sinotruk 10-speed 9.6m Van Cargo Truck belongs to SinotrukHOWO TS7 (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO TS7 Classic Edition 6.9L Diesel 290 hp 4X2(6 wheels) Sinotruk 10-speed 9.6m Van Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO TS7 Classic Edition 6.9L Diesel 290 hp 4X2(6 wheels) Sinotruk 10-speed 9.6m Van Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
