Kama Kaijie M3 Chuangye Edition PRO 140 hp 4X2(6 wheels) 3.83m Semi-Sleeper Flatbed Light Truck

Export reference
MSRP N/A
Horsepower: 140
Emission: China VI
Fuel: Diesel
Engine: XichaiCA4D
Transmission: WLY
Curb Weight:: 2.565ton
Kama Kaijie M3 Chuangye Edition PRO 140 hp 4X2(6 wheels) 3.83m Semi-Sleeper Flatbed Light Truck exterior
View more photos (12)
seating capacity: 3Personnel
Rated payload: 1.735ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Kama Kaijie M3 Chuangye Edition PRO 140 hp 4X2(6 wheels) 3.83m Semi-Sleeper Flatbed Light Truck is a Light Truck featuring 3.83m cargo length, stake body cargo body, 3Personnel volume and 1.735t payload. On the powertrain side, it comes with a XichaiCA4D engine, 140 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 140 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): KMC1042F336DP6
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 3.8m
engine: XichaiCA4DB1-14E68
transmission: WLY 8-speed
Cab length: 5.995m
Cab width: 2.27m
Cab height: 2.39m
Front track width: 1610mm
rear track: 1655mm
Curb Weight: 2.565ton
Rated payload: 1.735ton
GVWR: 4.495ton
Max. speed: 100km/h
Origin: Shouguang, Shandong
tonnage class: Light Truck
Approach angle: 19°
departure angle: 17°
Front/rear suspension: 1.125/1.51m
Version: Chuangyeban PRO
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA4DB1-14E68
Engine info: XichaiCA4D
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.2L
Emission standard: China VI
Max output power: 100kW
Max hp: 140Horsepower
Engine Type: Inline 4-cylinder, 4-stroke, water-cooled, turbocharged intercooled, BOSCH 1800BAR common rail system, EGR DOC DPF
Transmission Parameters
Transmission Model: WLY 8-speed
Transmission Brand: WLY
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.83m
Cargo box width: 2.1m
Cargo box height: 0.4m
*Cargo box interior width: 2.1
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1860kg
rear axle allowable load: 2635kg
Leaf spring count: 3/5+3
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Multimedia features
Radio:
standard instrument cluster:
lighting configuration
Headlight height adjustment:
Service brake
Brake Type: Air brake
Parking brake: Spring brake

Photos

Exterior3

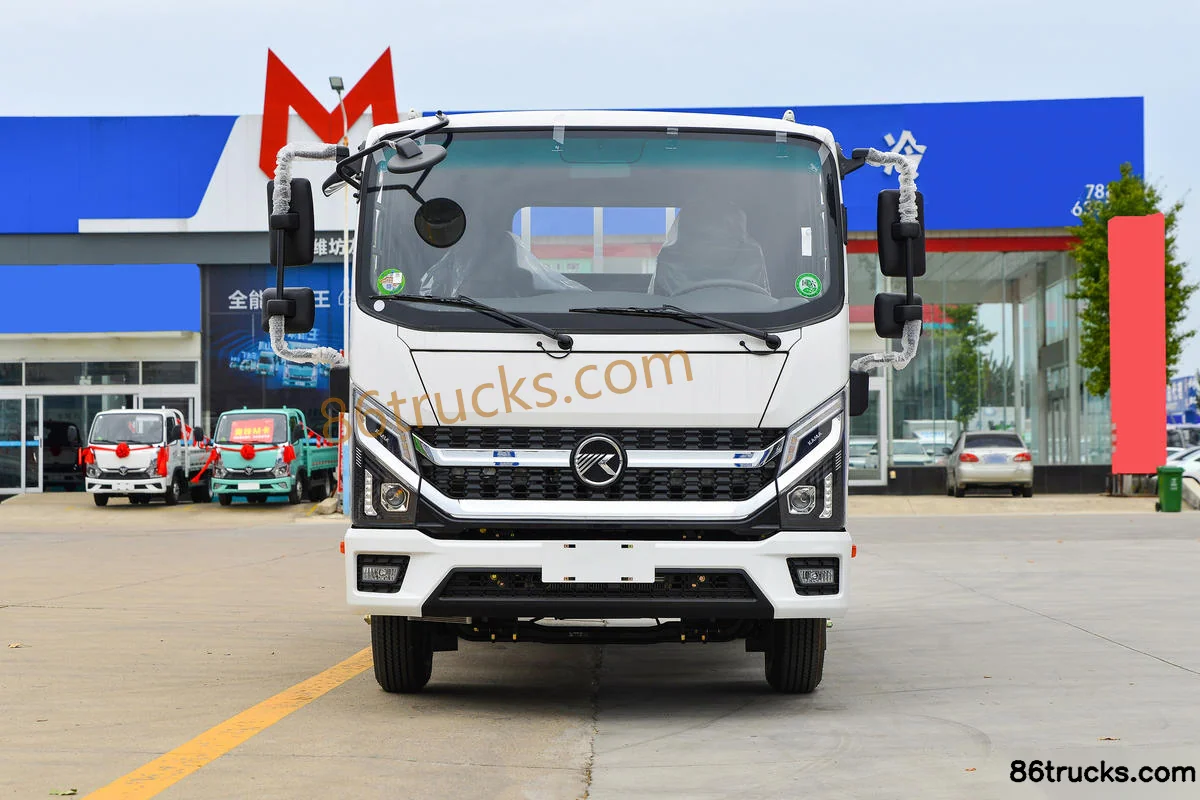

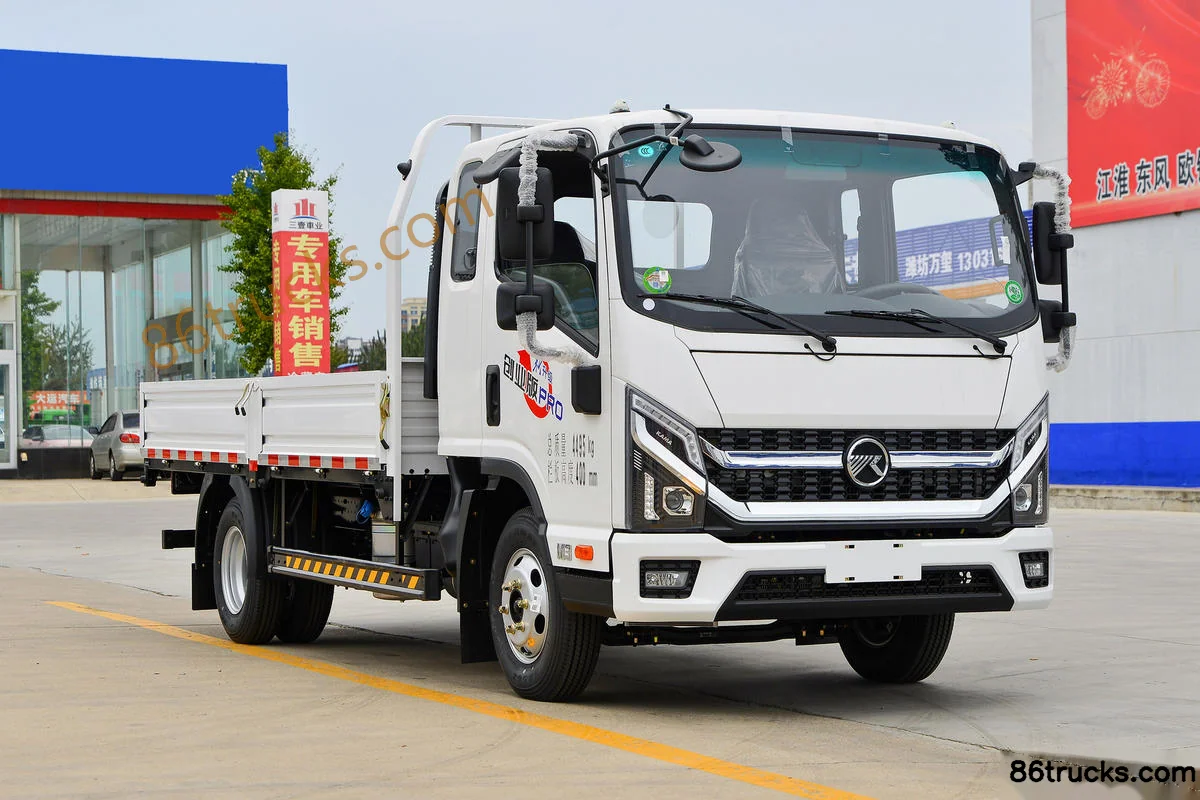

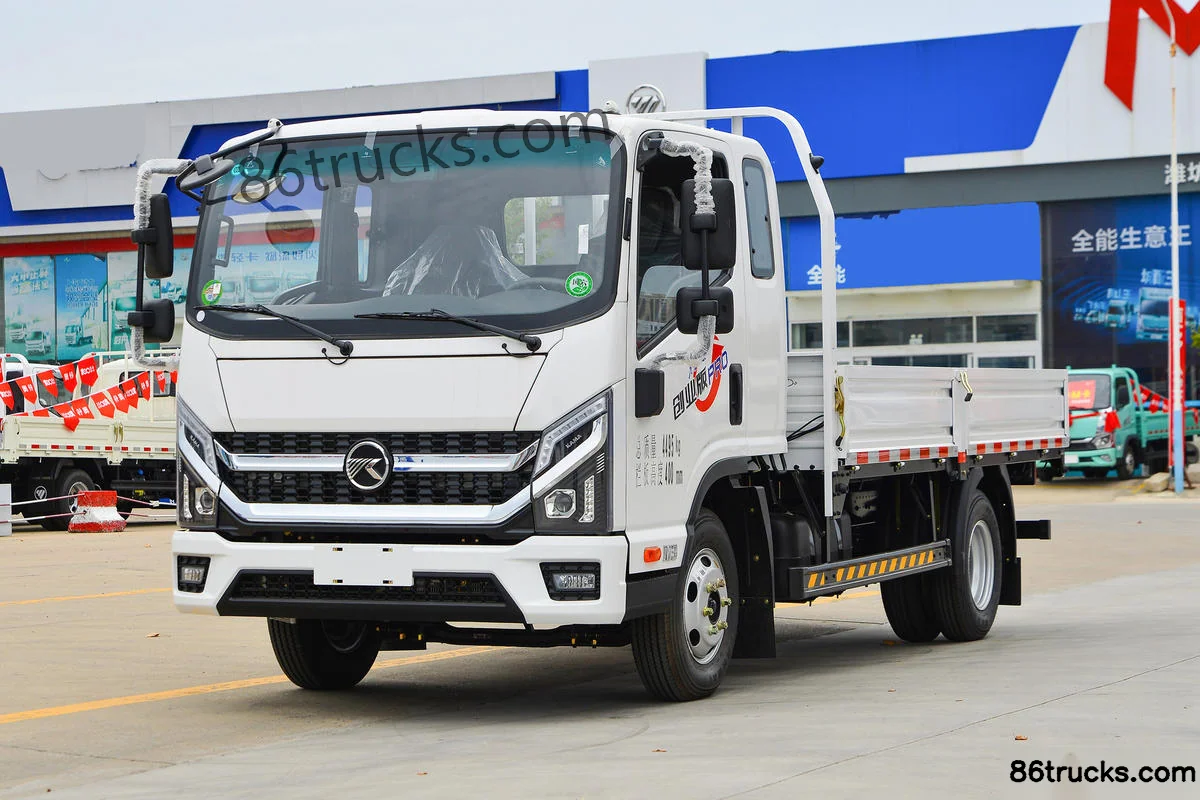

Kama Kaijie M3 Chuangye Edition PRO 140 hp 4X2(6 wheels) 3.83m Semi-Sleeper Flatbed Light Truck Exterior (1) | 86Trucks Kama Kaijie M3 Chuangye Edition PRO 140 hp 4X2(6 wheels) 3.83m Semi-Sleeper Flatbed Light Truck Exterior (2) | 86Trucks Kama Kaijie M3 Chuangye Edition PRO 140 hp 4X2(6 wheels) 3.83m Semi-Sleeper Flatbed Light Truck Exterior (3) | 86Trucks

Cab3

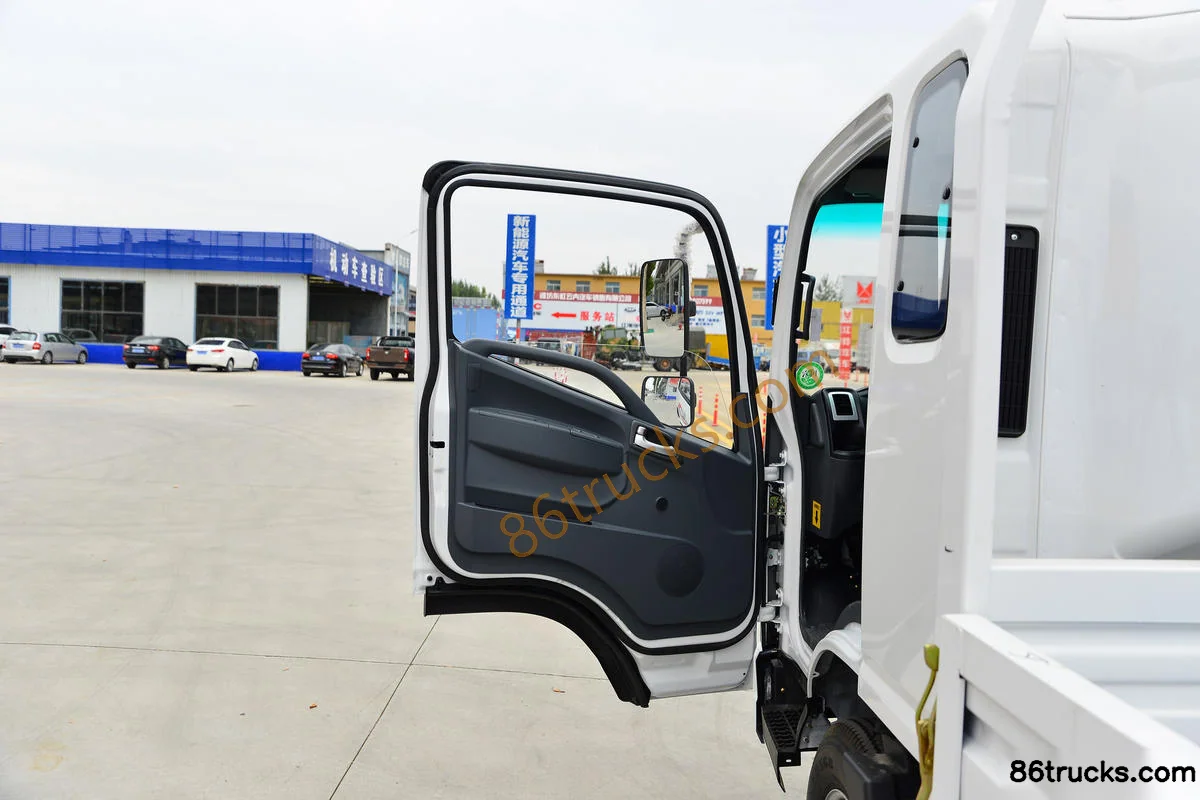

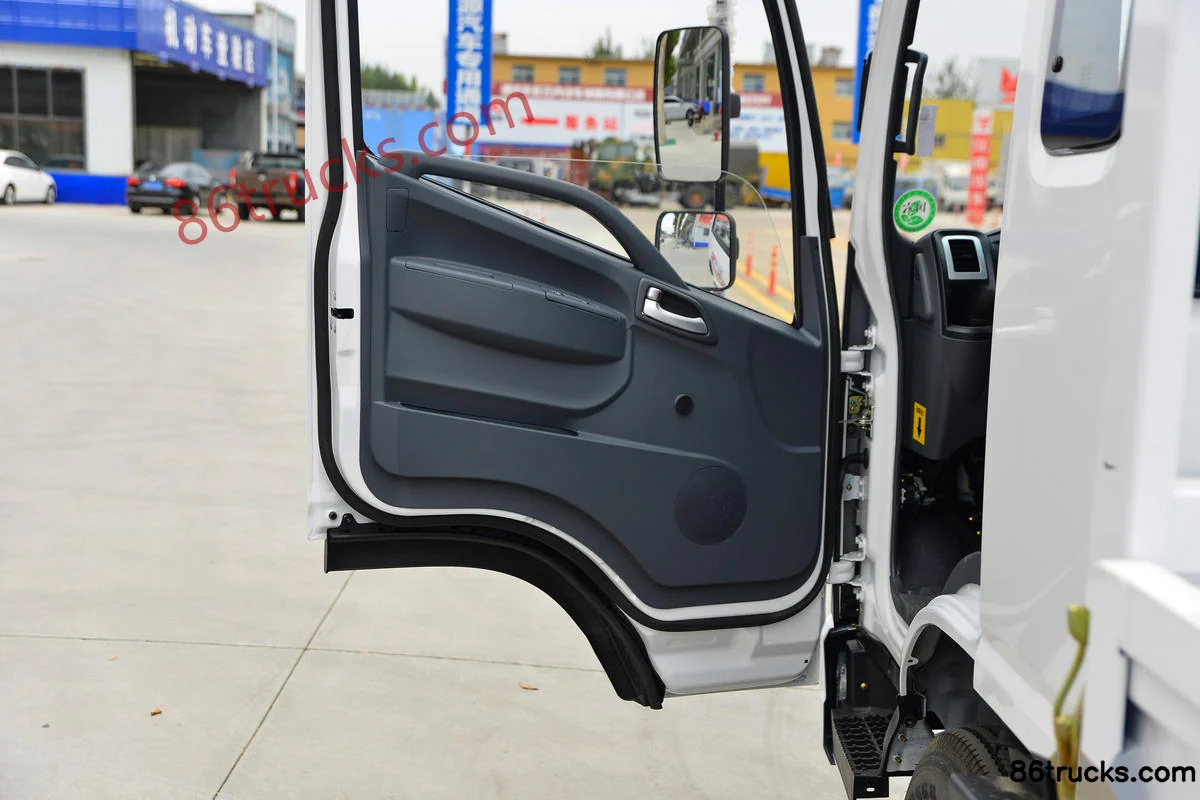

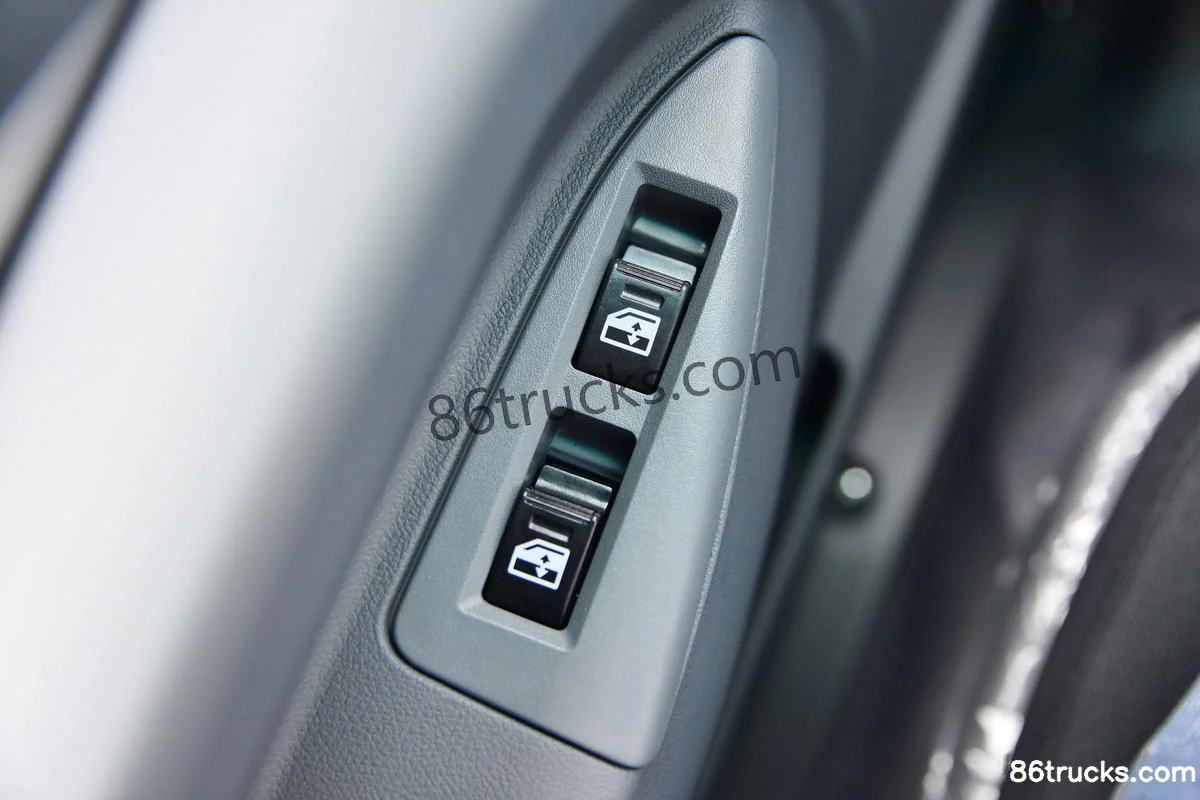

Kama Kaijie M3 Chuangye Edition PRO 140 hp 4X2(6 wheels) 3.83m Semi-Sleeper Flatbed Light Truck Cab (1) | 86Trucks Kama Kaijie M3 Chuangye Edition PRO 140 hp 4X2(6 wheels) 3.83m Semi-Sleeper Flatbed Light Truck Cab (2) | 86Trucks Kama Kaijie M3 Chuangye Edition PRO 140 hp 4X2(6 wheels) 3.83m Semi-Sleeper Flatbed Light Truck Cab (3) | 86Trucks

Chassis3

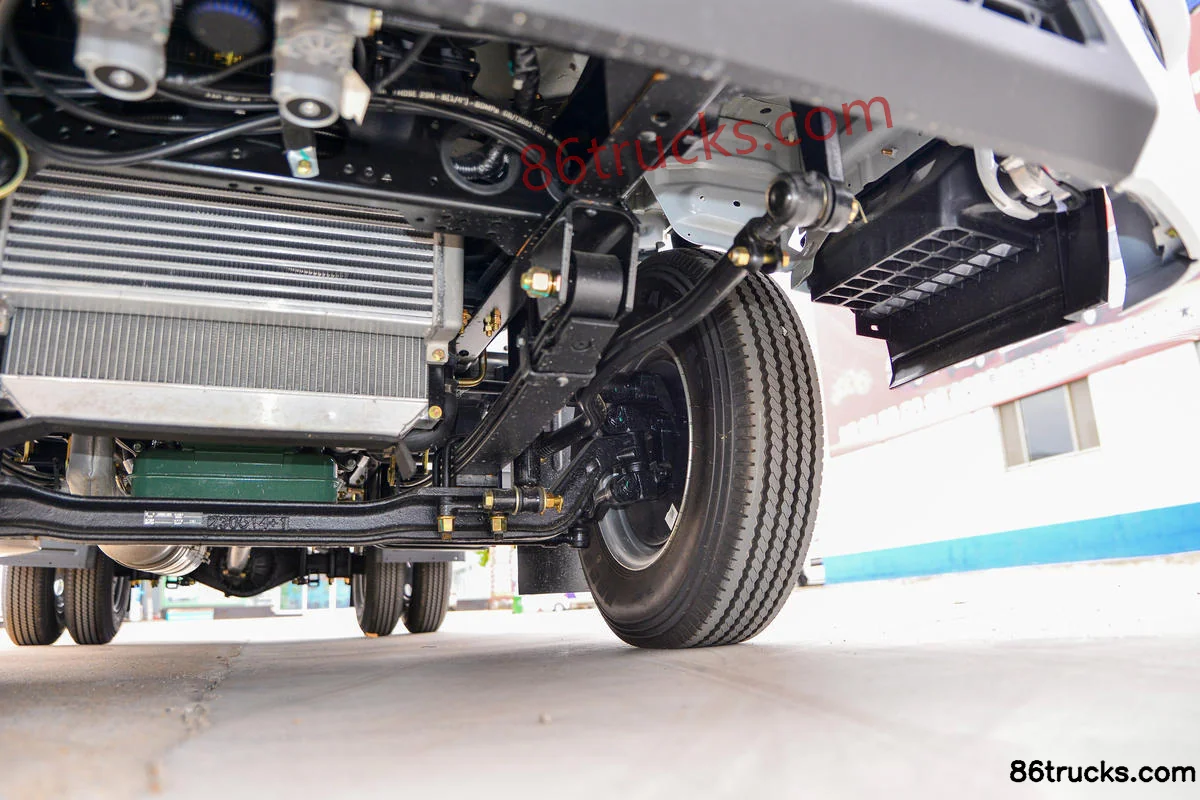

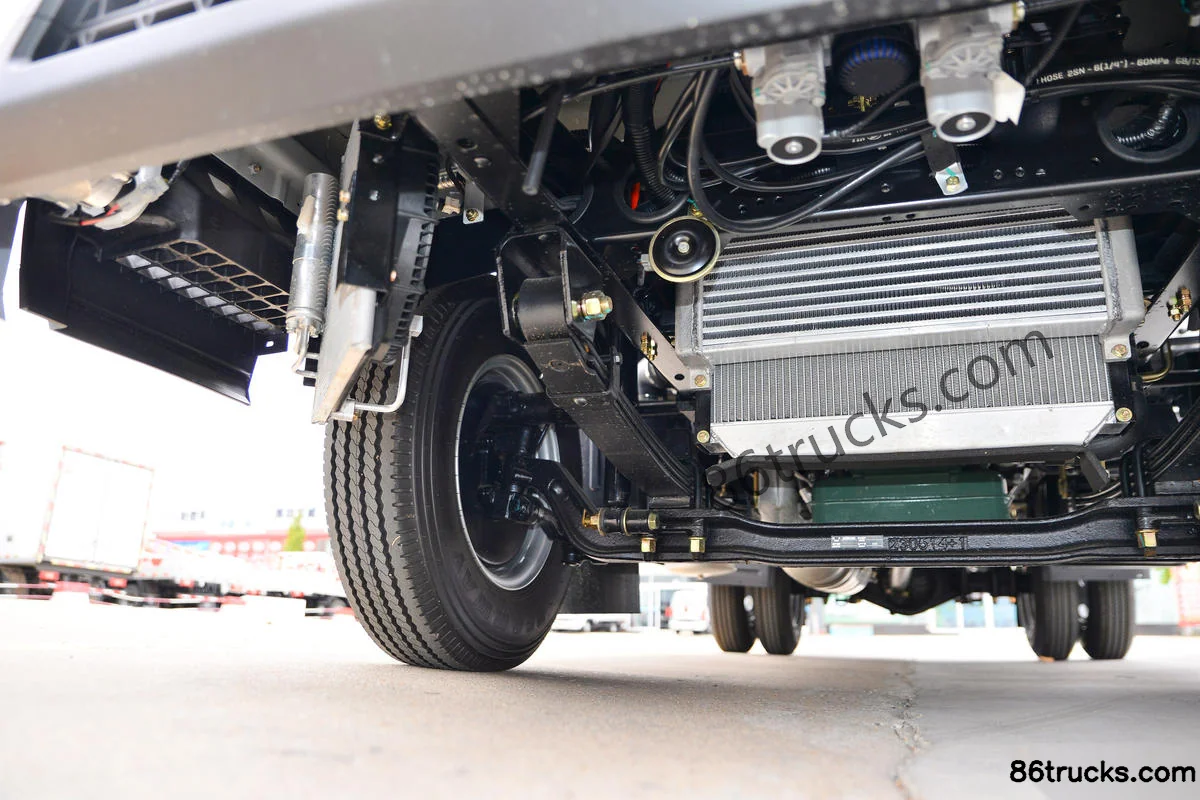

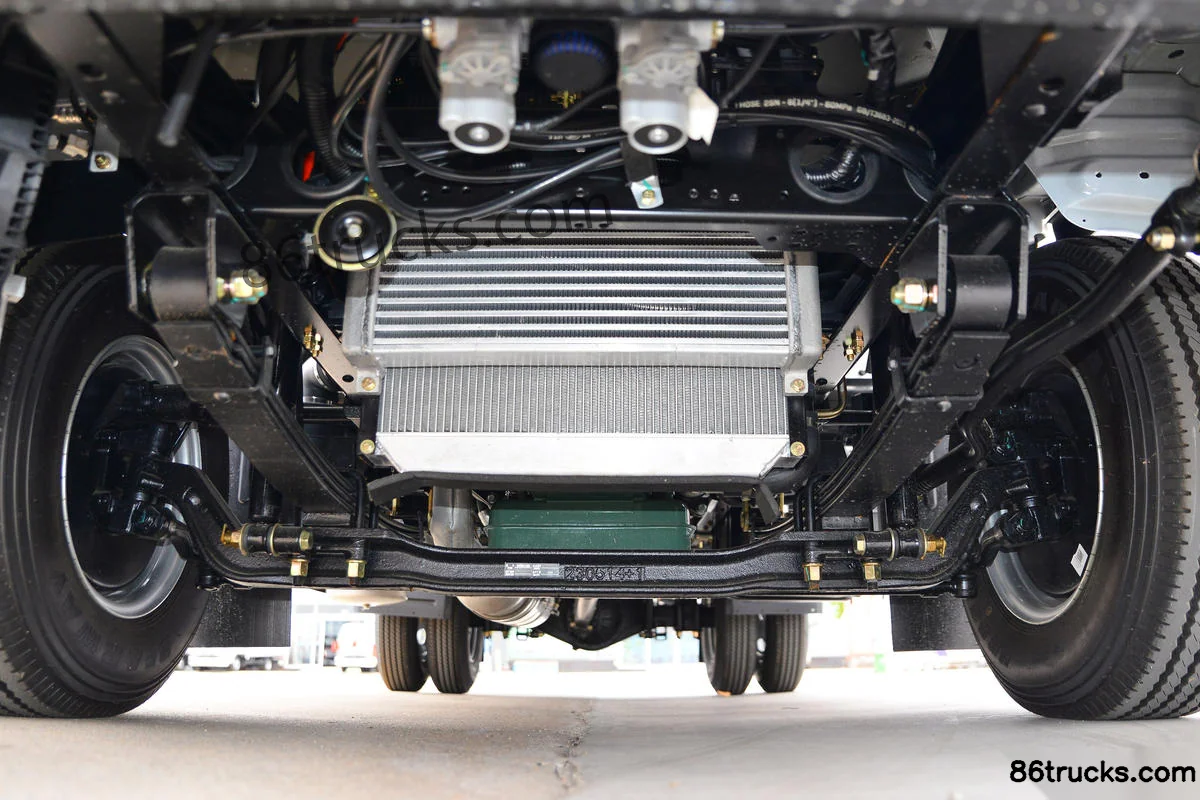

Kama Kaijie M3 Chuangye Edition PRO 140 hp 4X2(6 wheels) 3.83m Semi-Sleeper Flatbed Light Truck Chassis (1) | 86Trucks Kama Kaijie M3 Chuangye Edition PRO 140 hp 4X2(6 wheels) 3.83m Semi-Sleeper Flatbed Light Truck Chassis (2) | 86Trucks Kama Kaijie M3 Chuangye Edition PRO 140 hp 4X2(6 wheels) 3.83m Semi-Sleeper Flatbed Light Truck Chassis (3) | 86Trucks

Body3

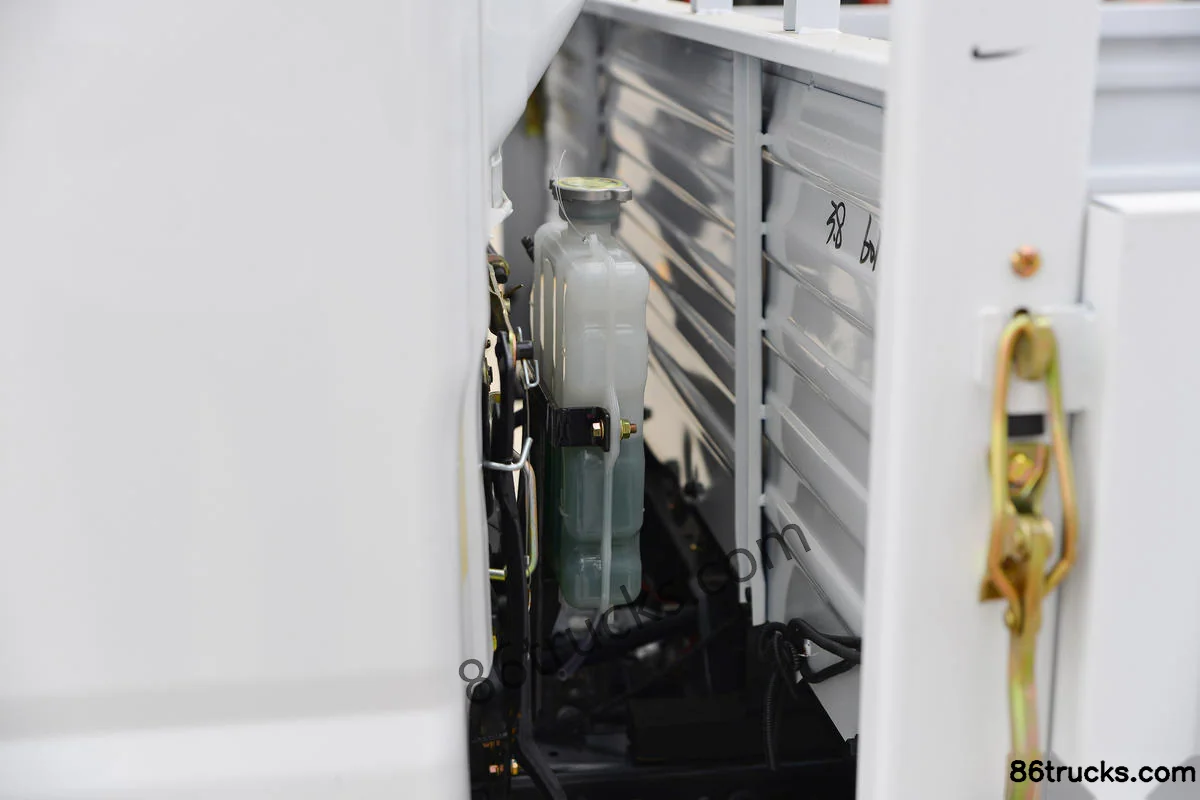

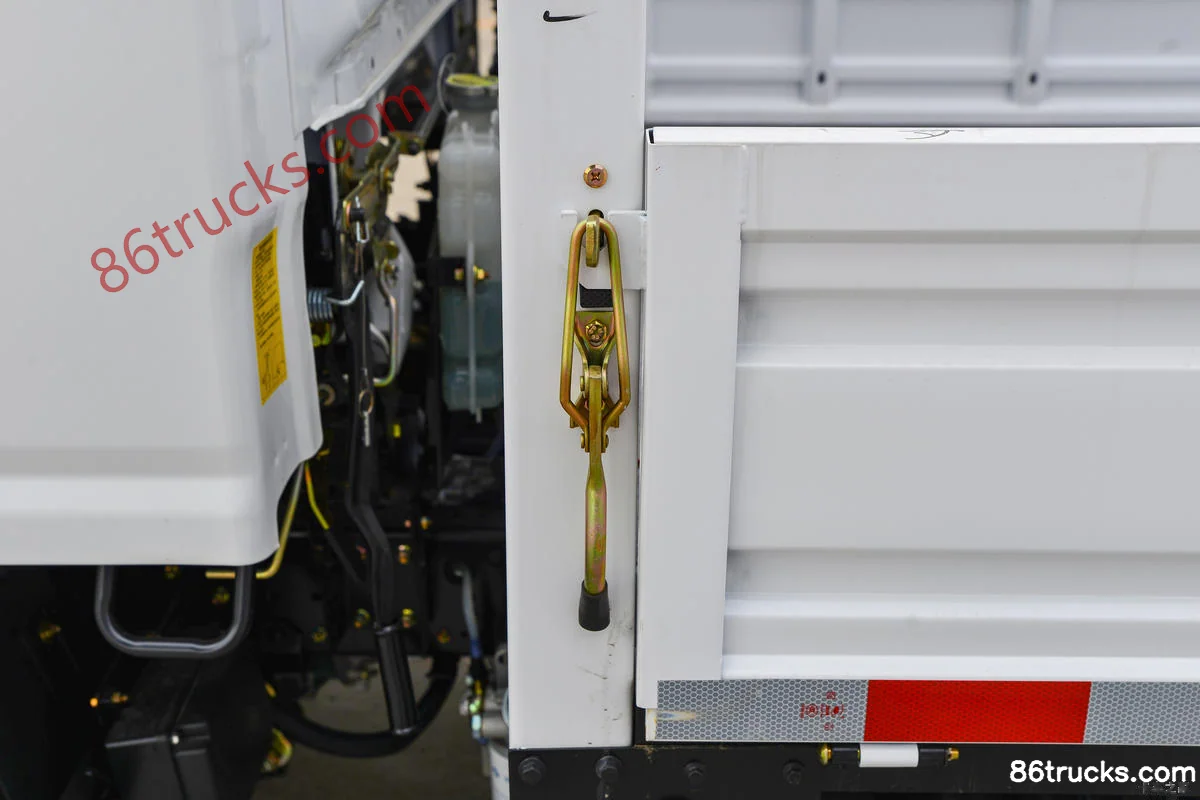

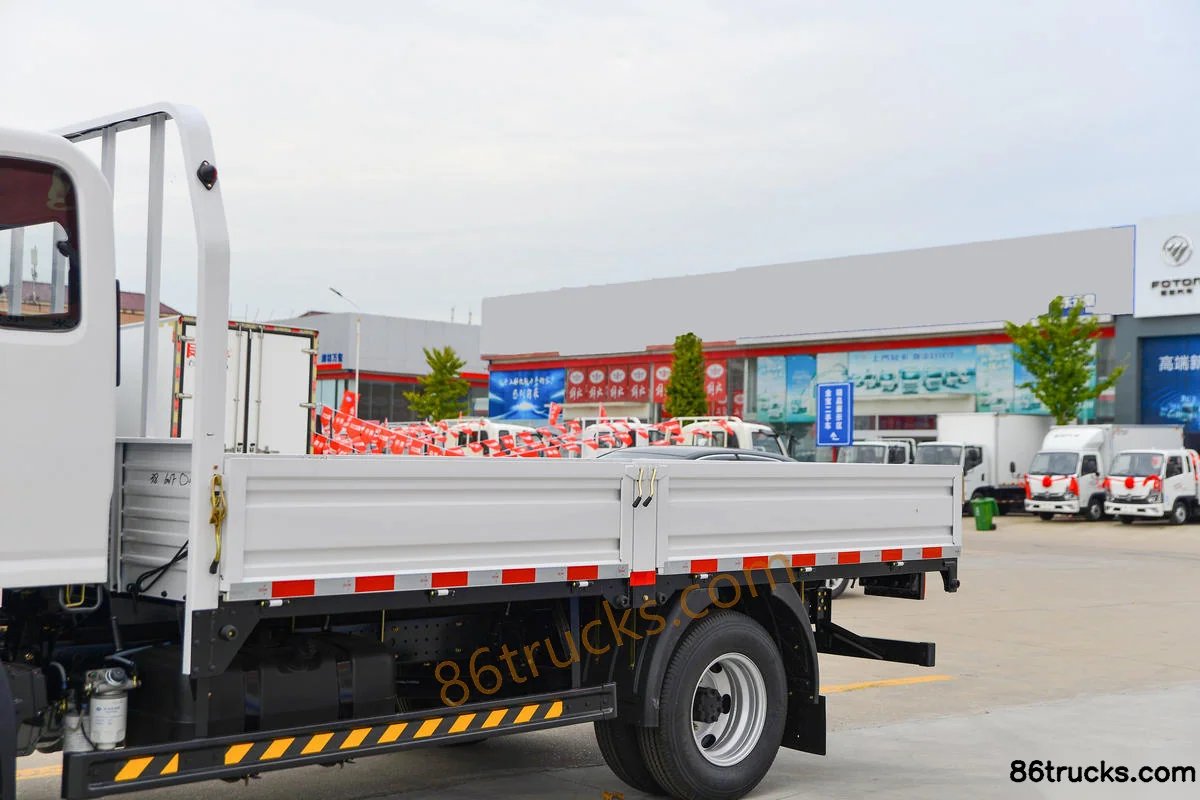

Kama Kaijie M3 Chuangye Edition PRO 140 hp 4X2(6 wheels) 3.83m Semi-Sleeper Flatbed Light Truck Body (1) | 86Trucks Kama Kaijie M3 Chuangye Edition PRO 140 hp 4X2(6 wheels) 3.83m Semi-Sleeper Flatbed Light Truck Body (2) | 86Trucks Kama Kaijie M3 Chuangye Edition PRO 140 hp 4X2(6 wheels) 3.83m Semi-Sleeper Flatbed Light Truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does Kama Kaijie M3 Chuangye Edition PRO 140 hp 4X2(6 wheels) 3.83m Semi-Sleeper Flatbed Light Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Kama Kaijie M3 Chuangye Edition PRO 140 hp 4X2(6 wheels) 3.83m Semi-Sleeper Flatbed Light Truck?

Key specs of Kama Kaijie M3 Chuangye Edition PRO 140 hp 4X2(6 wheels) 3.83m Semi-Sleeper Flatbed Light Truck: Drive: 4x2; Horsepower: 140 hp; Emission: China VI; Fuel: Diesel; Engine: XichaiCA4D; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Kama Kaijie M3 Chuangye Edition PRO 140 hp 4X2(6 wheels) 3.83m Semi-Sleeper Flatbed Light Truck suited for?

Kama Kaijie M3 Chuangye Edition PRO 140 hp 4X2(6 wheels) 3.83m Semi-Sleeper Flatbed Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Kama Kaijie M3 Chuangye Edition PRO 140 hp 4X2(6 wheels) 3.83m Semi-Sleeper Flatbed Light Truck differ from other variants in the same series?

Kama Kaijie M3 Chuangye Edition PRO 140 hp 4X2(6 wheels) 3.83m Semi-Sleeper Flatbed Light Truck belongs to Kama Kaijie M3 Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kama Kaijie M3 Chuangye Edition PRO 140 hp 4X2(6 wheels) 3.83m Semi-Sleeper Flatbed Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kama Kaijie M3 Chuangye Edition PRO 140 hp 4X2(6 wheels) 3.83m Semi-Sleeper Flatbed Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
