Dongfeng Commercial Vehicle Tianjin Medium Truck 180hp 4X2(6 wheels) 3800mm Wheelbase Cargo Truck Chassis

Export reference
MSRP N/A
Horsepower: 180
Emission: China V
Fuel: Diesel
Engine: Dongkang 6-cyl
Transmission: Dongfeng
Curb Weight:: 6.3ton
seating capacity: 3Personnel
Rated payload: 7.995ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Dongfeng Commercial Vehicle Tianjin Medium Truck 180hp 4X2(6 wheels) 3800mm Wheelbase Cargo Truck Chassis is a Medium-duty truck featuring 4.8m cargo length, stake body cargo body, 3Personnel volume and 7.995t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Dongkang 6-cyl engine, 180 hp, 4X2 (6 wheels) drive and China V emissions.

China V 180 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DFL1140B10
Type: Chassis
Drive type: 4X2
Wheelbase: 3800mm
engine: DongfengISB180 50
transmission: DongfengDF6S900
Cab length: 7.3m
Cab width: 2.5m
Cab height: 2.82m
Front track width: 1800mm
rear track: 1860mm
Curb Weight: 6.3ton
Rated payload: 7.995ton
GVWR: 14.29ton
Max. speed: 98km/h
Origin: Shiyan, Hubei
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle: 12°
market segment: Building materials, agricultural products
Front/rear suspension: 1.44/2.06m
Energy Type: Diesel
Engine parameters
Engine Brand: Dongfeng
Engine Model: DongfengISB180 50
Engine info: Dongkang 6-cyl
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 5.9L
Emission standard: China V
Max output power: 132kW
Max hp: 180Horsepower
Max torque: 700N·m
Max torque speed: 1200-1700rpm
Rated speed: 2500rpm
Engine Type: SCR
Transmission Parameters
Transmission Model: DongfengDF6S900
Transmission Brand: Dongfeng
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.8m
Cargo box width: 2.294m
Cargo box height: 0.6m
*Cargo box interior width: 2.2939999103546
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 4800kg
rear axle allowable load: 9490kg
Leaf spring count: 8/10+8
Suspension (front/rear): Leaf spring
Tire
Tire Size: 10.00R20
Number of tires: 6pcs
Control configuration
ABS:

Photos

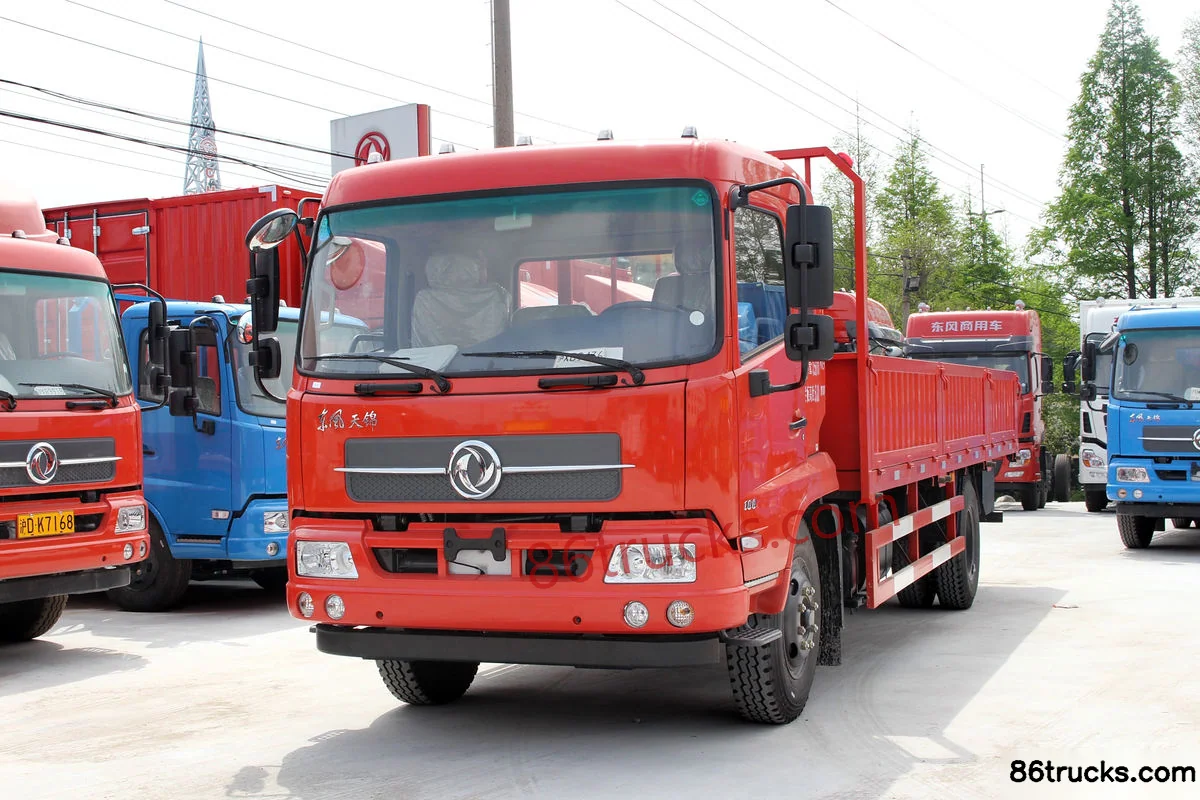

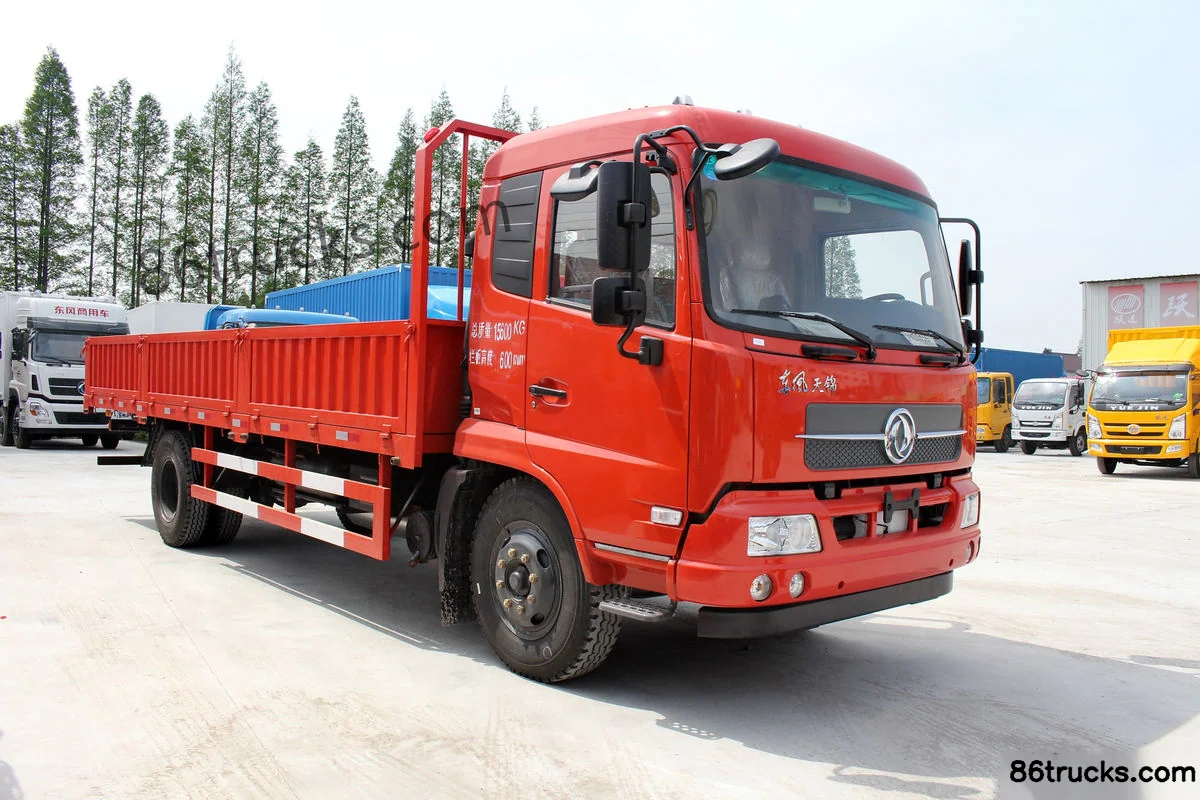

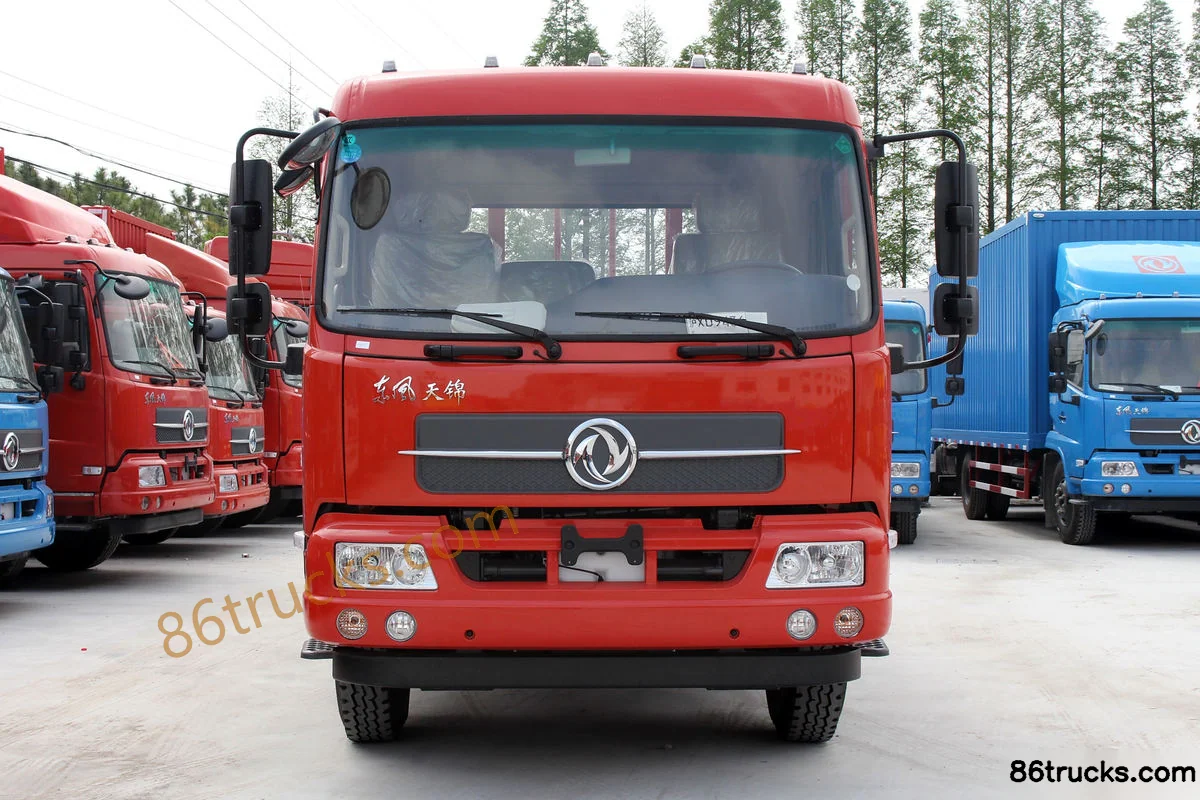

Exterior3

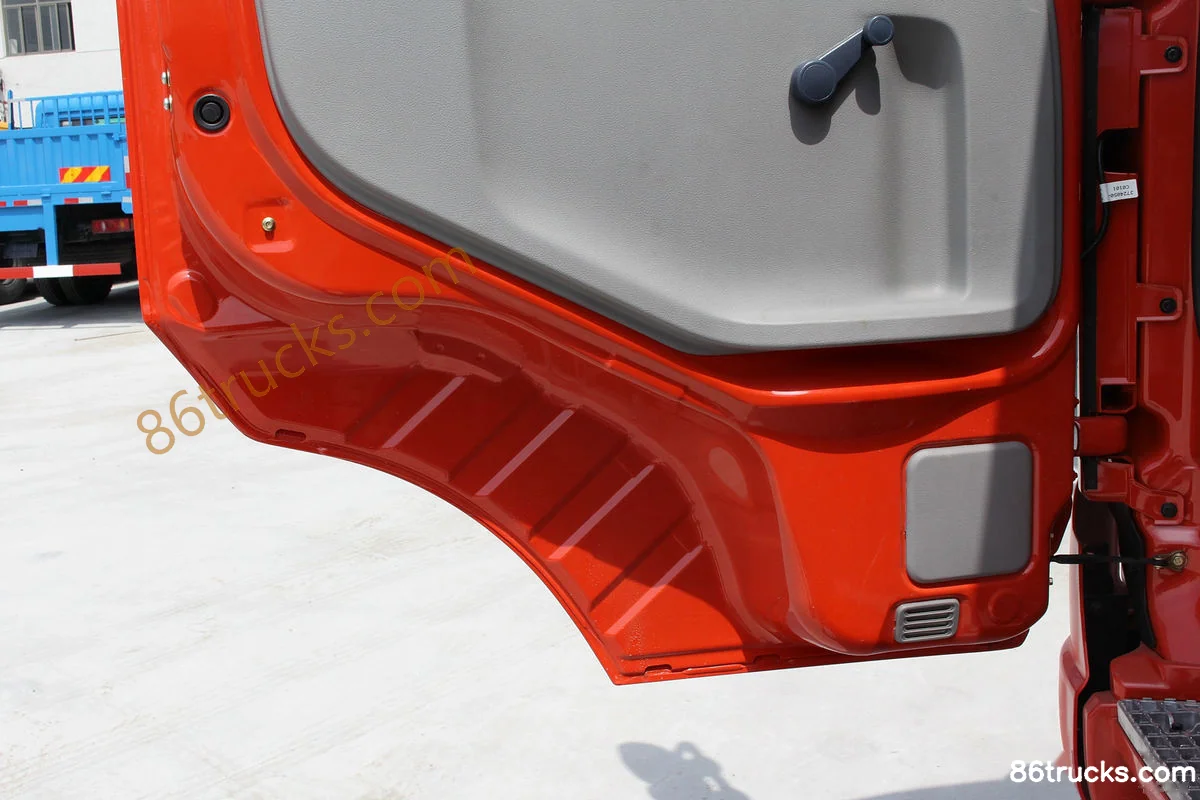

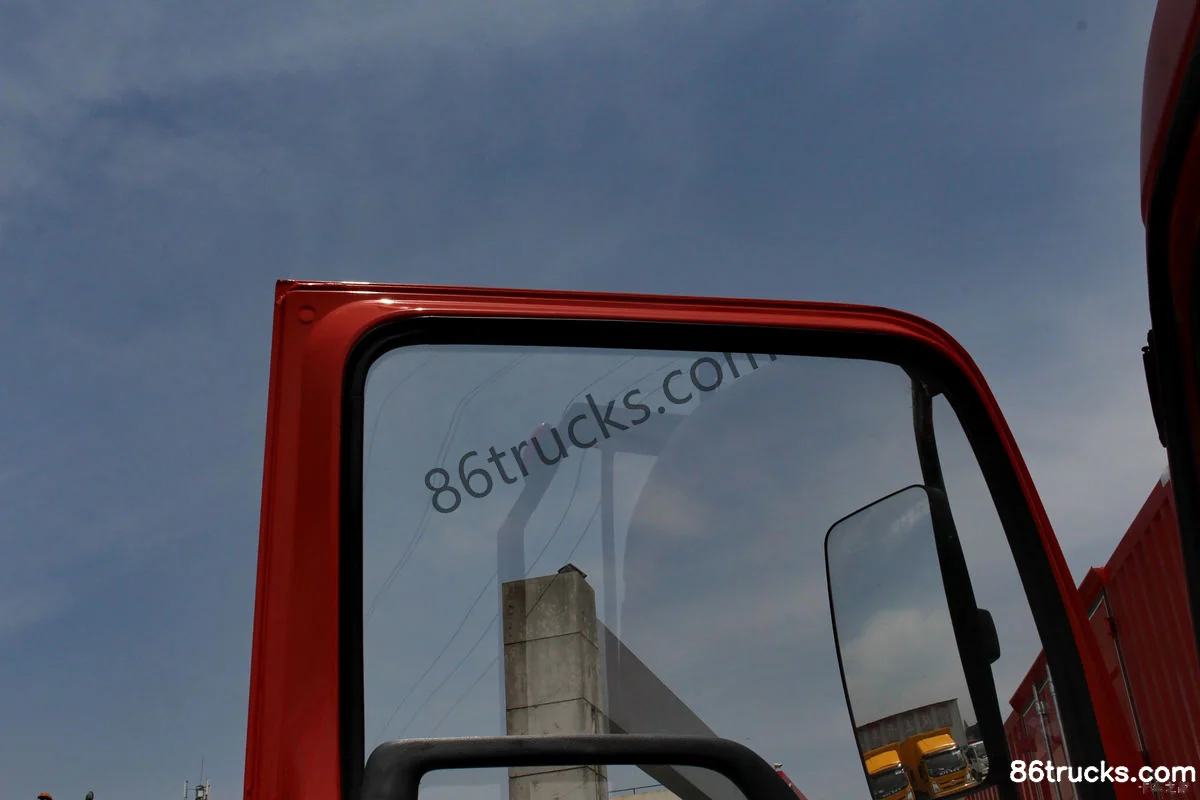

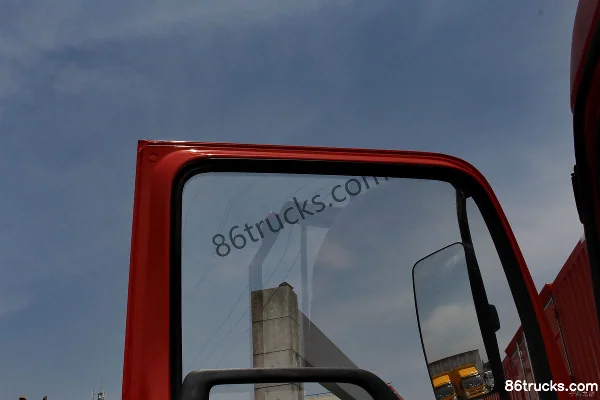

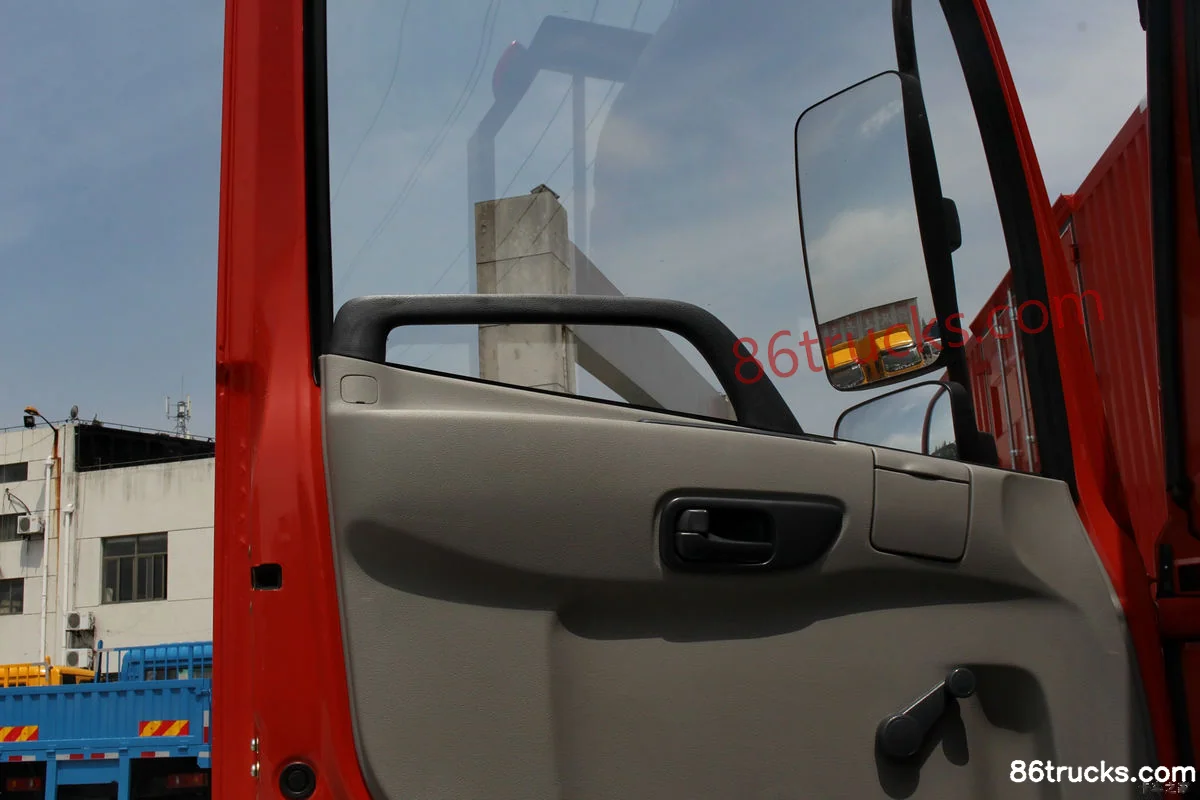

Cab3

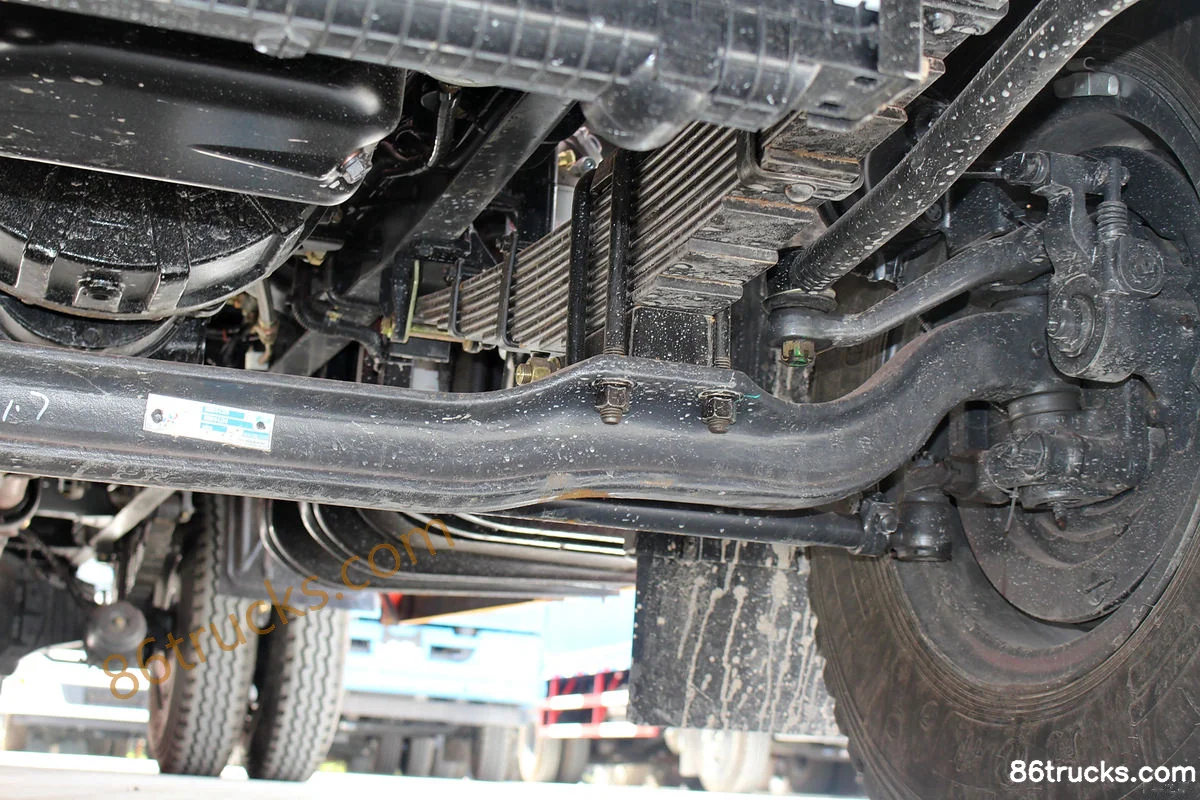

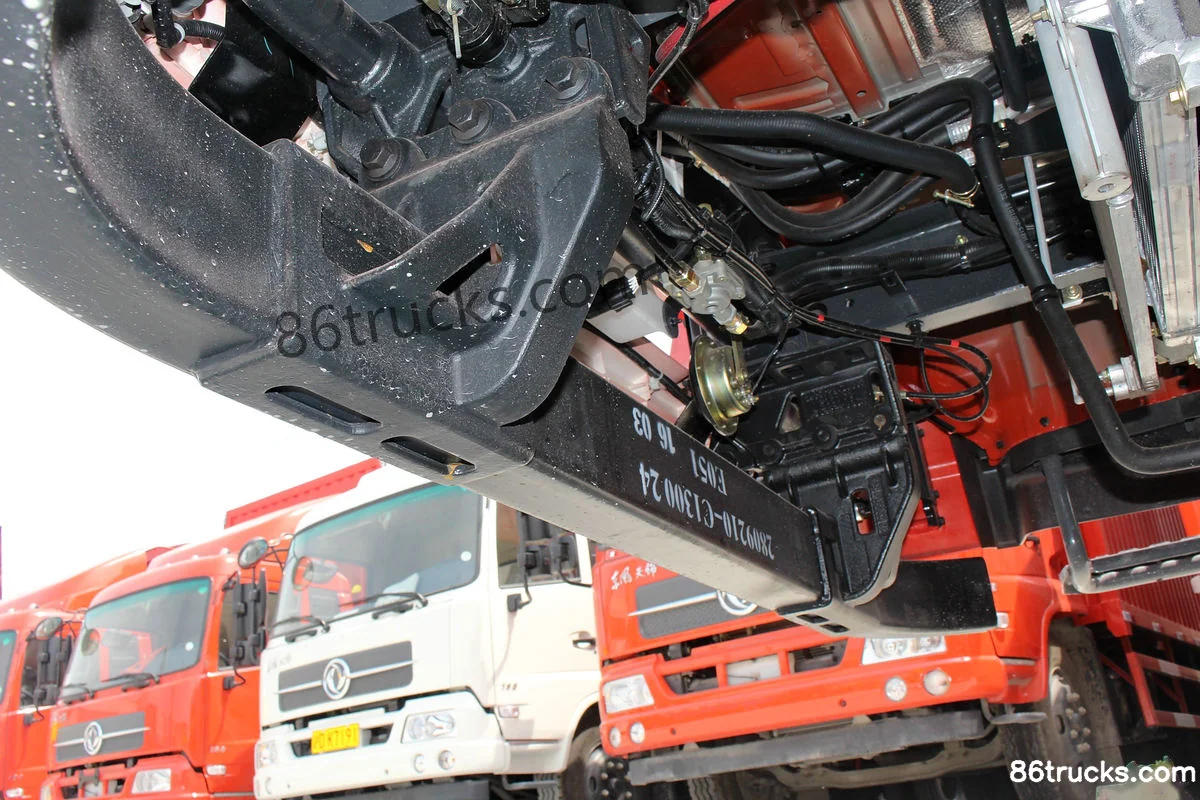

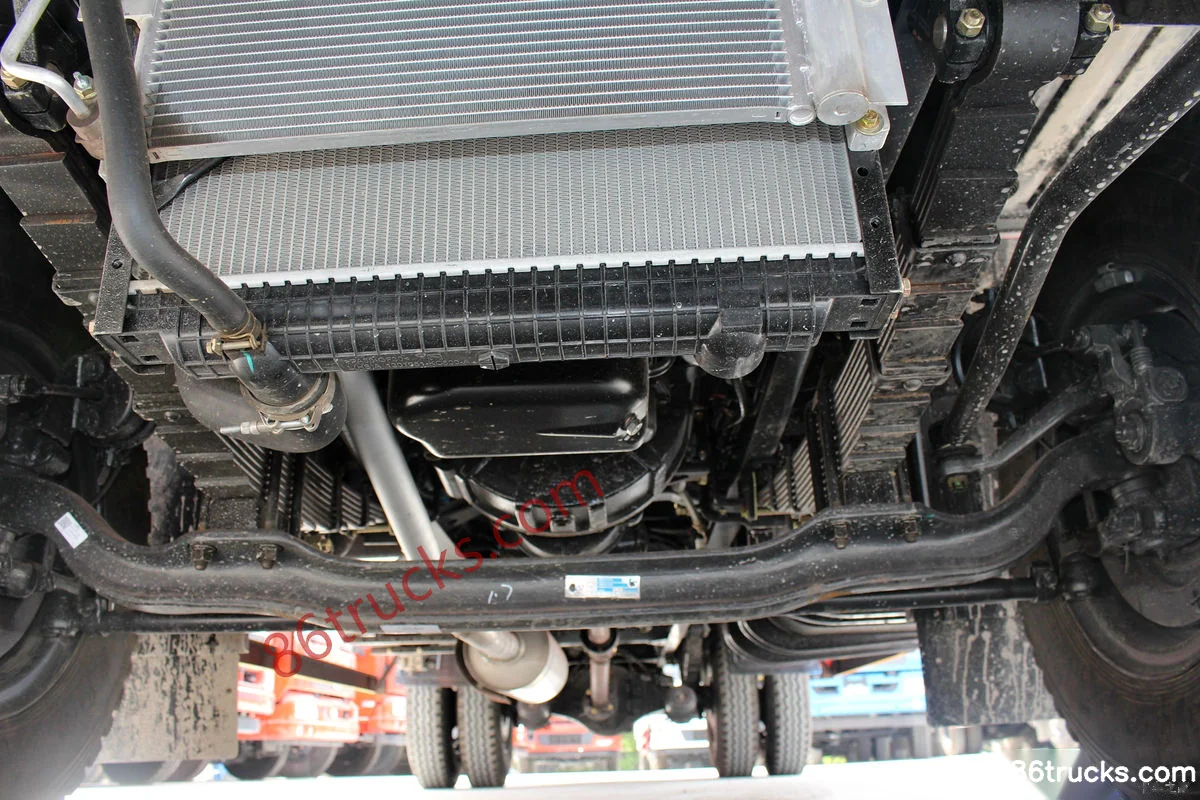

Chassis3

9 photos

FAQ

What emission standard does Dongfeng Commercial Vehicle Tianjin Medium Truck 180hp 4X2(6 wheels) 3800mm Wheelbase Cargo Truck Chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Commercial Vehicle Tianjin Medium Truck 180hp 4X2(6 wheels) 3800mm Wheelbase Cargo Truck Chassis?

Key specs of Dongfeng Commercial Vehicle Tianjin Medium Truck 180hp 4X2(6 wheels) 3800mm Wheelbase Cargo Truck Chassis: Drive: 4x2; Horsepower: 180 hp; Emission: China V; Fuel: Diesel; Engine: Dongkang 6-cyl; Transmission: Dongfeng. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Commercial Vehicle Tianjin Medium Truck 180hp 4X2(6 wheels) 3800mm Wheelbase Cargo Truck Chassis suited for?

Dongfeng Commercial Vehicle Tianjin Medium Truck 180hp 4X2(6 wheels) 3800mm Wheelbase Cargo Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dongfeng Commercial Vehicle Tianjin Medium Truck 180hp 4X2(6 wheels) 3800mm Wheelbase Cargo Truck Chassis differ from other variants in the same series?

Dongfeng Commercial Vehicle Tianjin Medium Truck 180hp 4X2(6 wheels) 3800mm Wheelbase Cargo Truck Chassis belongs to Dongfeng Tianjin Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Commercial Vehicle Tianjin Medium Truck 180hp 4X2(6 wheels) 3800mm Wheelbase Cargo Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Commercial Vehicle Tianjin Medium Truck 180hp 4X2(6 wheels) 3800mm Wheelbase Cargo Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
