JAC Gallop K6L II 220 hp 4X2(6 wheels) 7.2m Refrigerated Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Curb Weight:: 8.05ton
Wheelbase:: 5300mm
Tire Size:: 10.00R20,11R22.5
Cab dimensions:: 9.5×2.6×3.9m
Rated payload: 9.755ton
Drive 4X2 (6 wheels)
Cargo box dimensions: 7.2×2.44×2.43m
Horsepower 220

Overview

The JAC Gallop K6L II 220 hp 4X2(6 wheels) 7.2m Refrigerated Truck is a Refrigerated Truck featuring 7.2×2.44×2.43m cargo body, 9.755t payload, 9.5×2.6×3.9m cab and 5300mm wheelbase. On the powertrain side, it comes with 220 hp, 4X2 (6 wheels) drive, China V emissions and Diesel fuel.

China V 220 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.5×2.6×3.9m
Truck Type: Refrigerated Truck
Drive type: 4X2
Wheelbase: 5300mm
Vehicle origin: Hefei, Anhui
Front track width: 1785mm
rear track: 1810mm
Curb Weight: 8.05ton
Rated payload: 9.755ton
Max. speed: 89km/h
Remarks: Optional ratio 4.875/5.286
Front/rear suspension: 1.4/2.8m
Energy Type: Diesel
Engine parameters
Engine Model: Yunnei PowerD45TCIE1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.46L
Emission standard: China V
Max output power: 162kW
Max hp: 220Horsepower
Max torque: 820N·m
Rated speed: 2400rpm
Engine Type: SCR
Cargo box parameters
Cargo box dimensions: 7.2×2.44×2.43m
Cargo box width: 2.44m
Cargo box height: 2.43m
Body Parameters
Vehicle certification code: HFC5181XLCP3K2A53V
Body Brand: JAC Gallop
Chassis Specs
Chassis Brand: JAC Gallop
Chassis Series: GallopK6
Chassis Model: HFC5181XXYP3K2A47V
Front axle description: 4T
Frame Dimensions: 245mm
rear axle description: 8T
Axle ratio: 4.333
Leaf spring count: 9/9+7
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear8JS85TC
Tire
Tire Size: 10.00R20,11R22.5
Number of tires: 6pcs

Photos

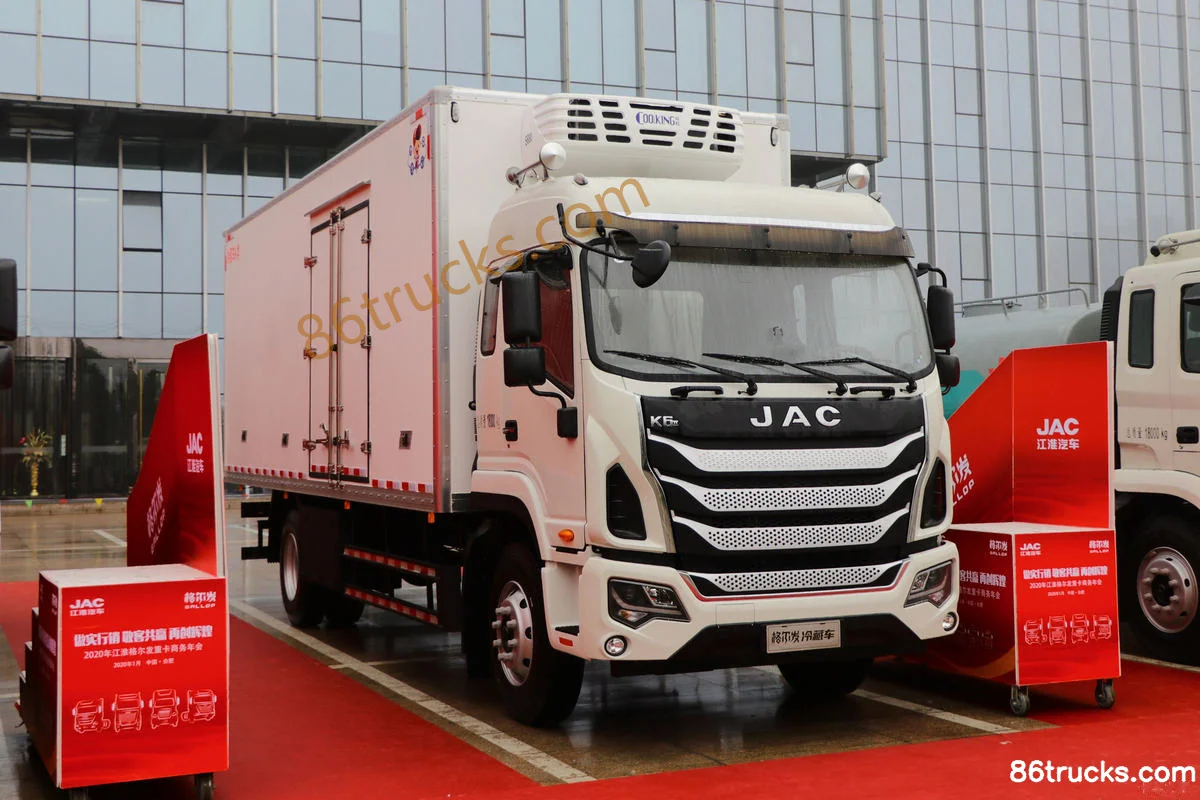

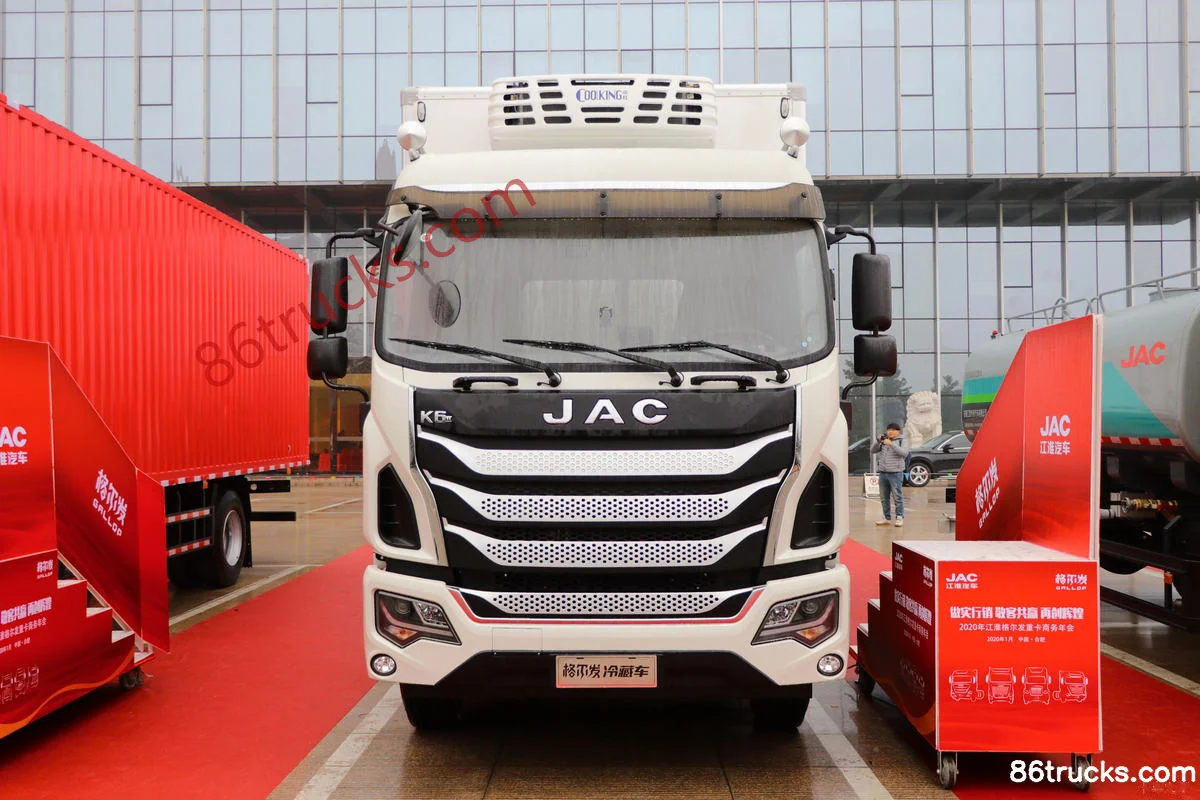

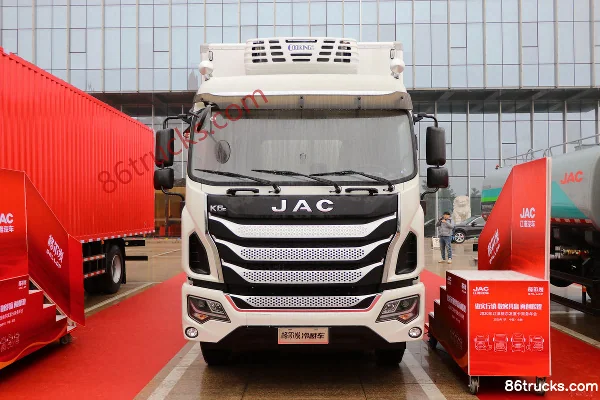

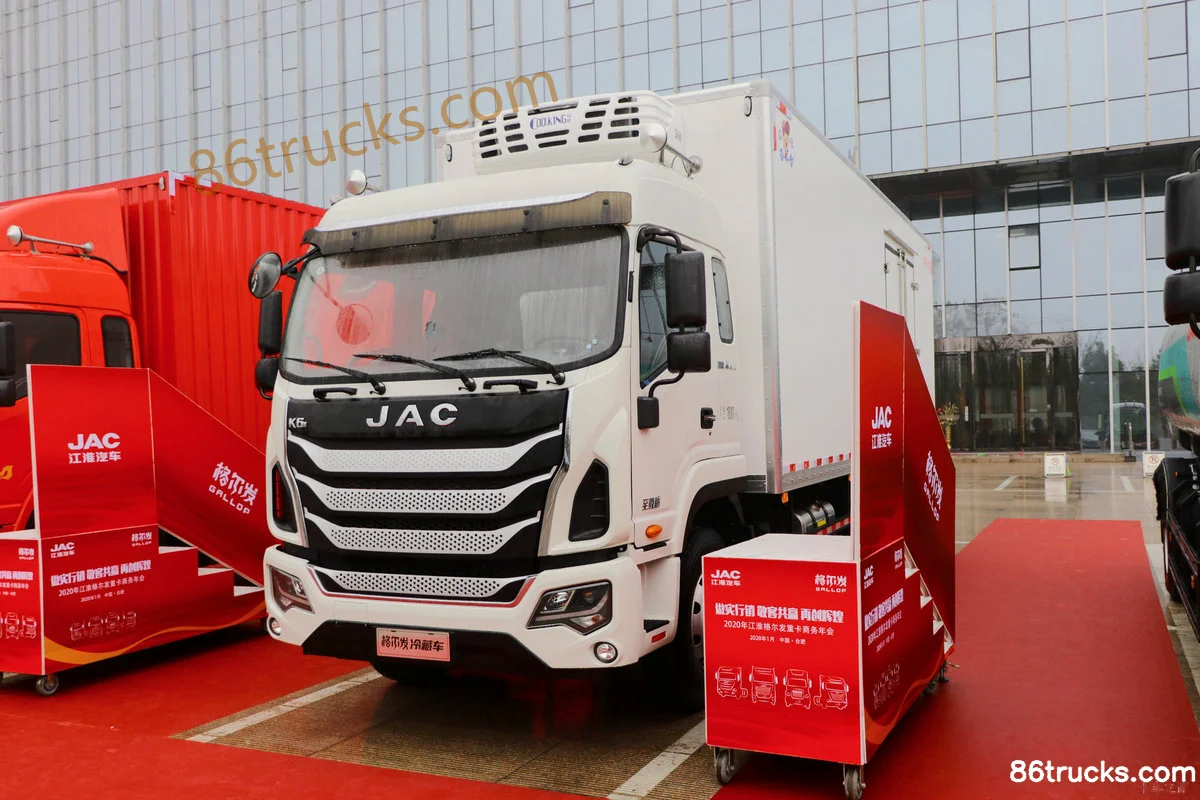

Exterior3

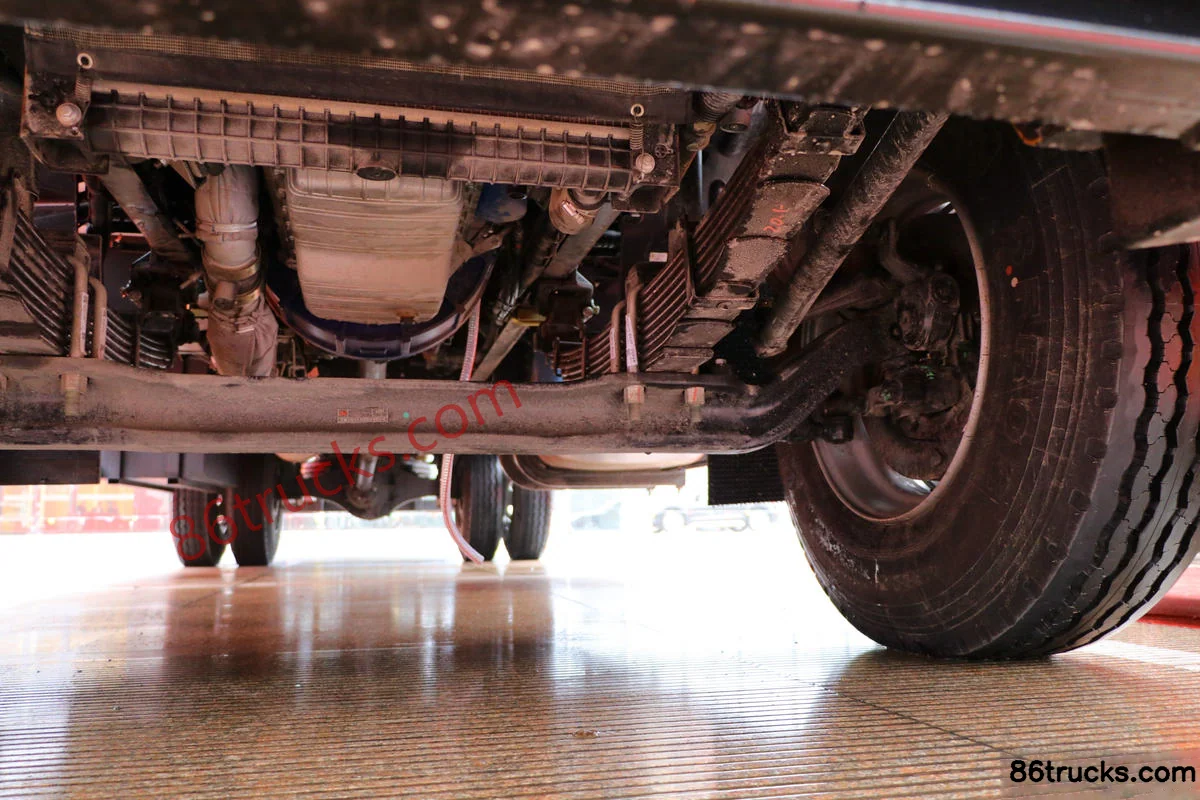

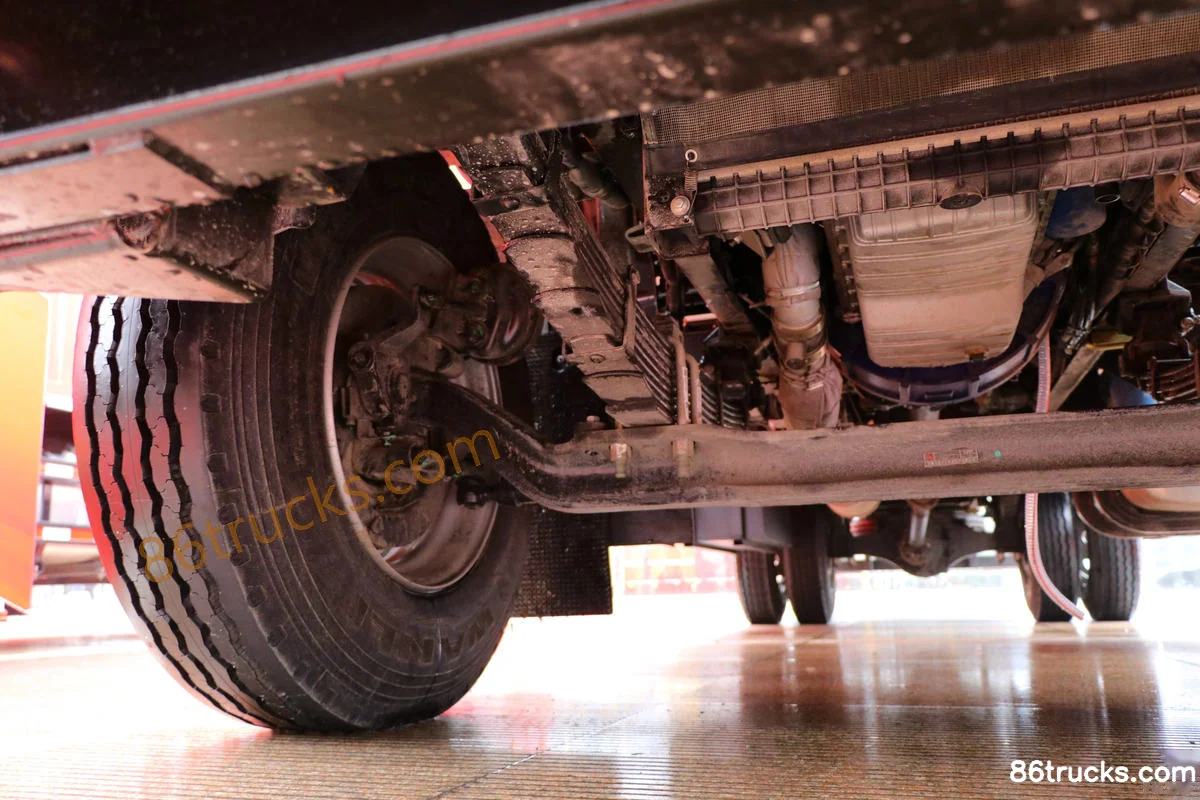

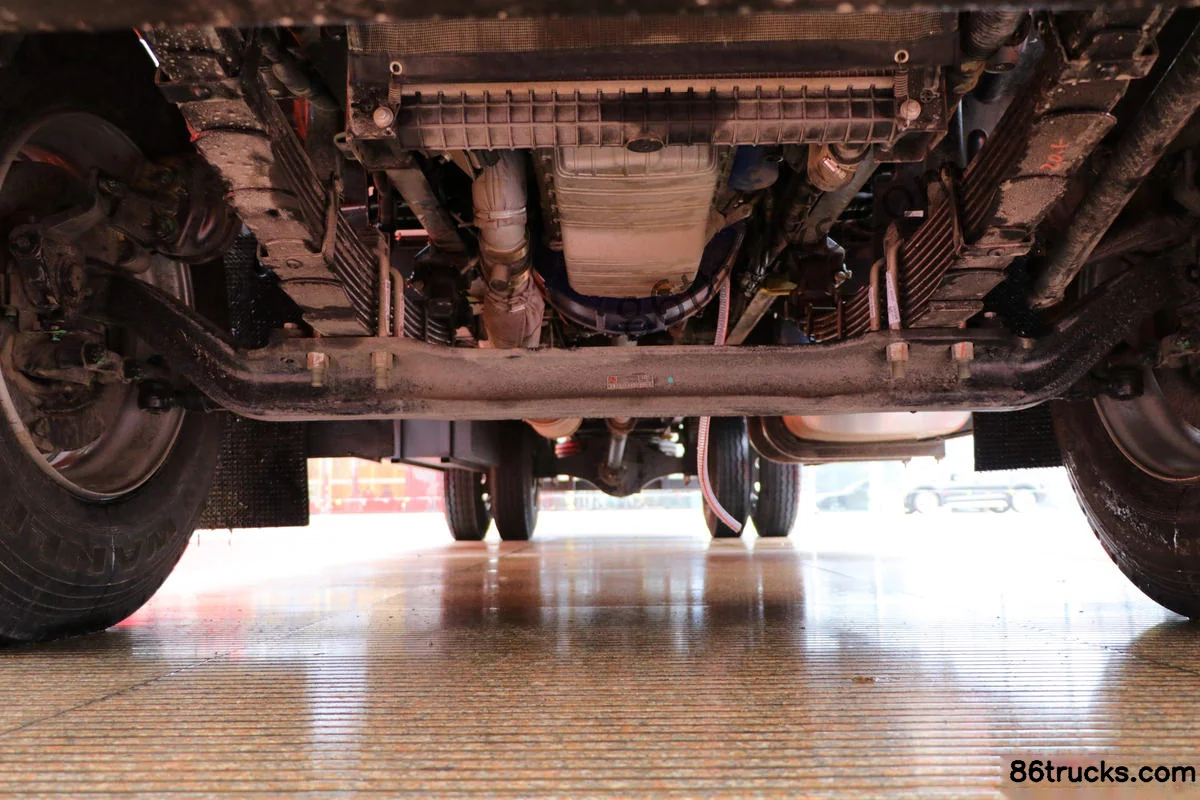

Chassis3

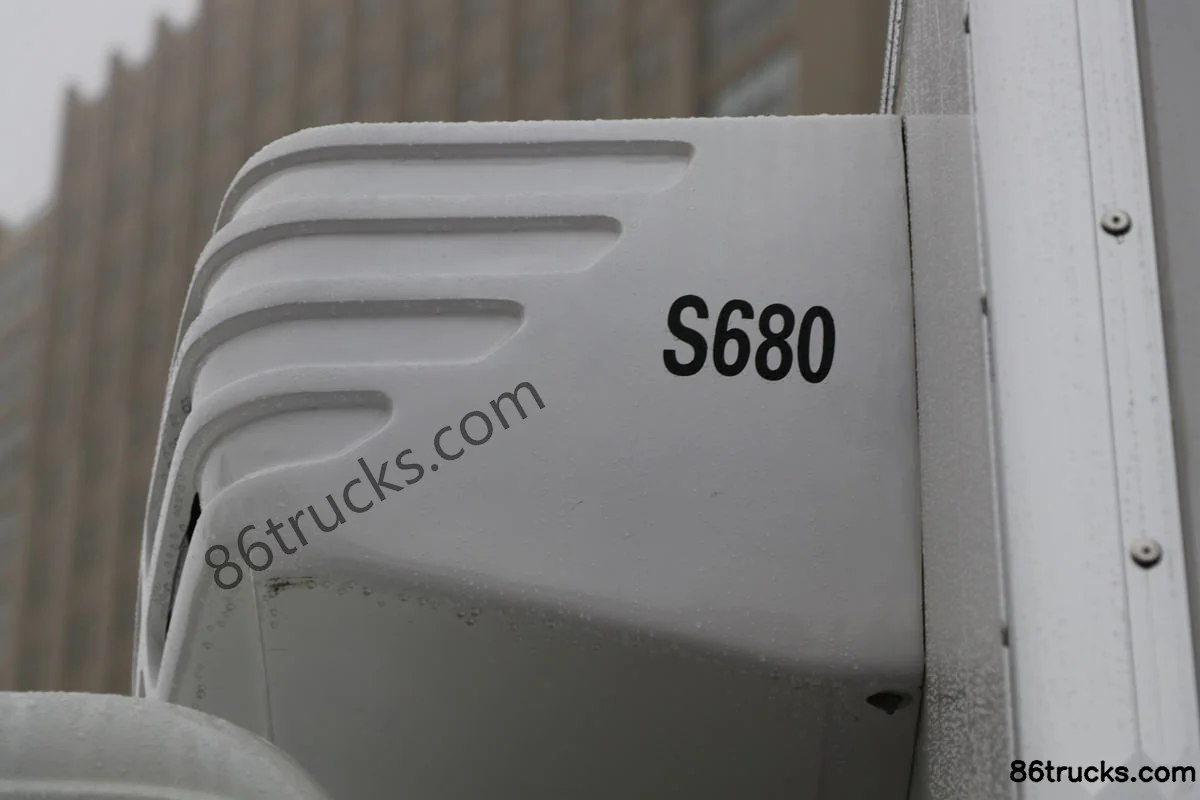

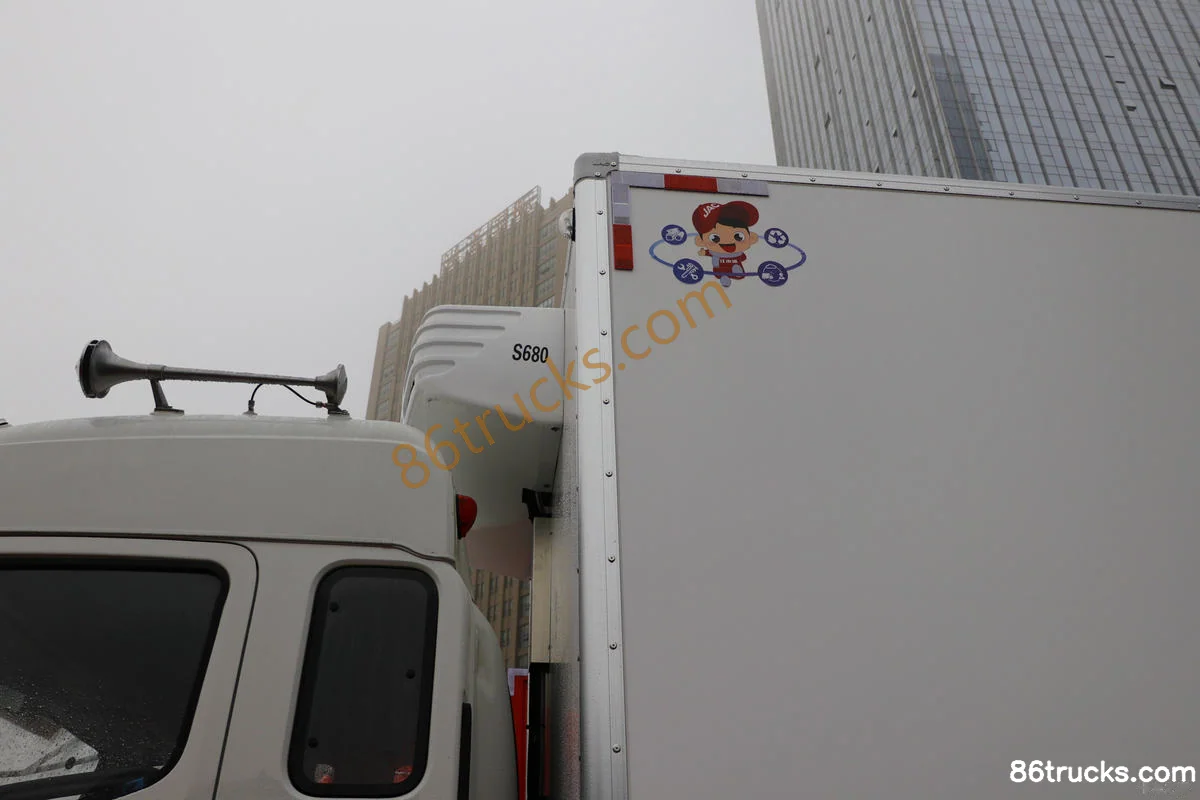

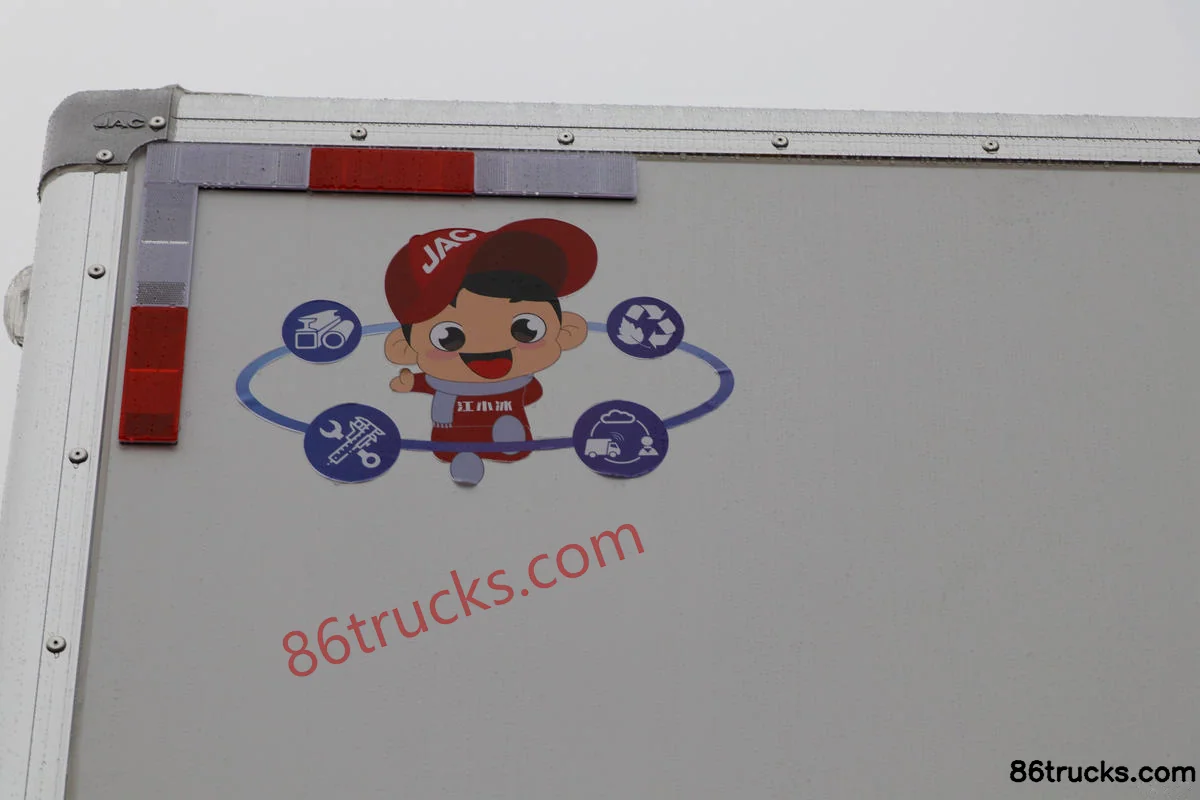

Body3

9 photos

FAQ

What emission standard does JAC Gallop K6L II 220 hp 4X2(6 wheels) 7.2m Refrigerated Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop K6L II 220 hp 4X2(6 wheels) 7.2m Refrigerated Truck?

Key specs of JAC Gallop K6L II 220 hp 4X2(6 wheels) 7.2m Refrigerated Truck: Drive: 4x2; Horsepower: 220 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop K6L II 220 hp 4X2(6 wheels) 7.2m Refrigerated Truck suited for?

JAC Gallop K6L II 220 hp 4X2(6 wheels) 7.2m Refrigerated Truck is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Gallop K6L II 220 hp 4X2(6 wheels) 7.2m Refrigerated Truck differ from other variants in the same series?

JAC Gallop K6L II 220 hp 4X2(6 wheels) 7.2m Refrigerated Truck belongs to JAC Gallop K6 Heavy Truck (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop K6L II 220 hp 4X2(6 wheels) 7.2m Refrigerated Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop K6L II 220 hp 4X2(6 wheels) 7.2m Refrigerated Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
